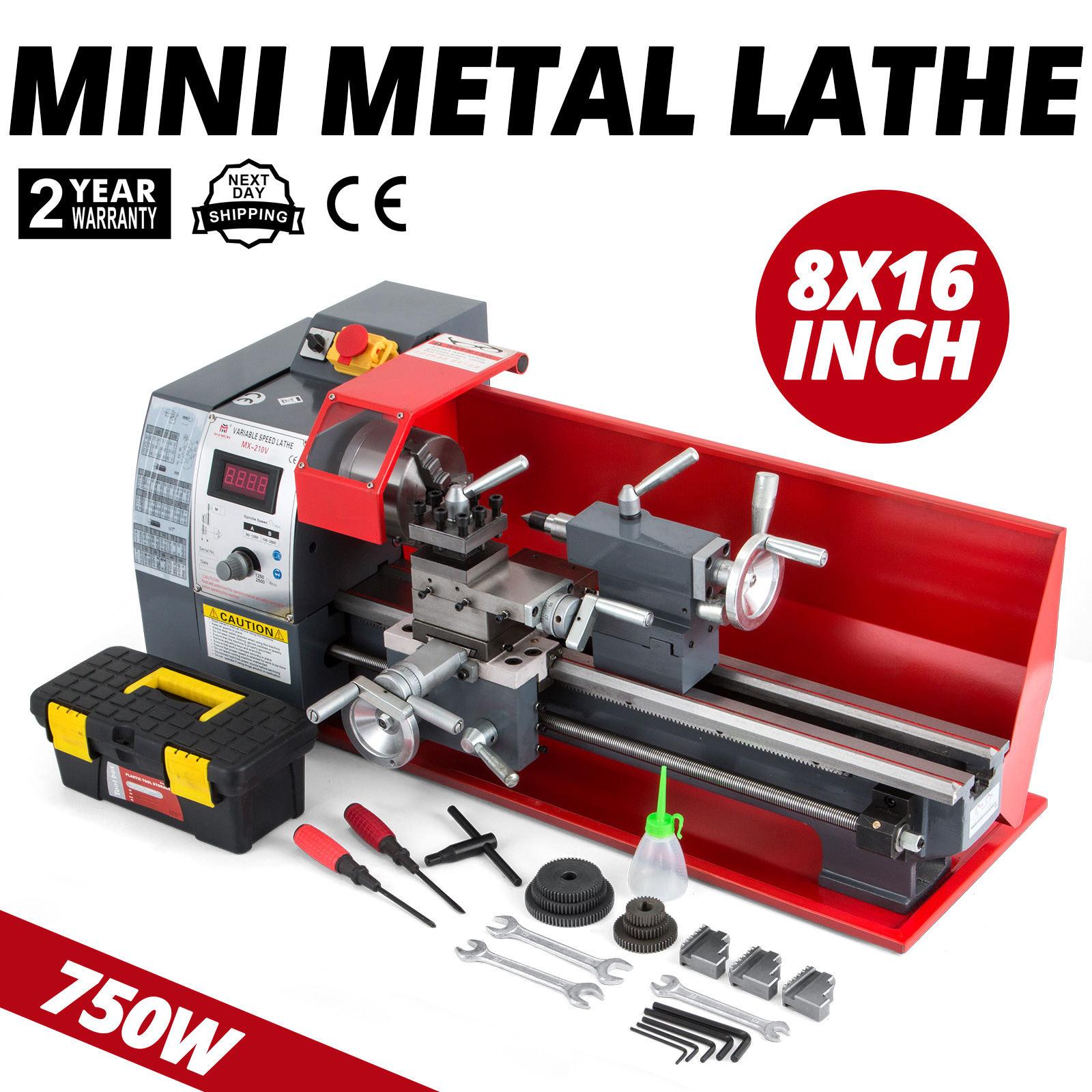

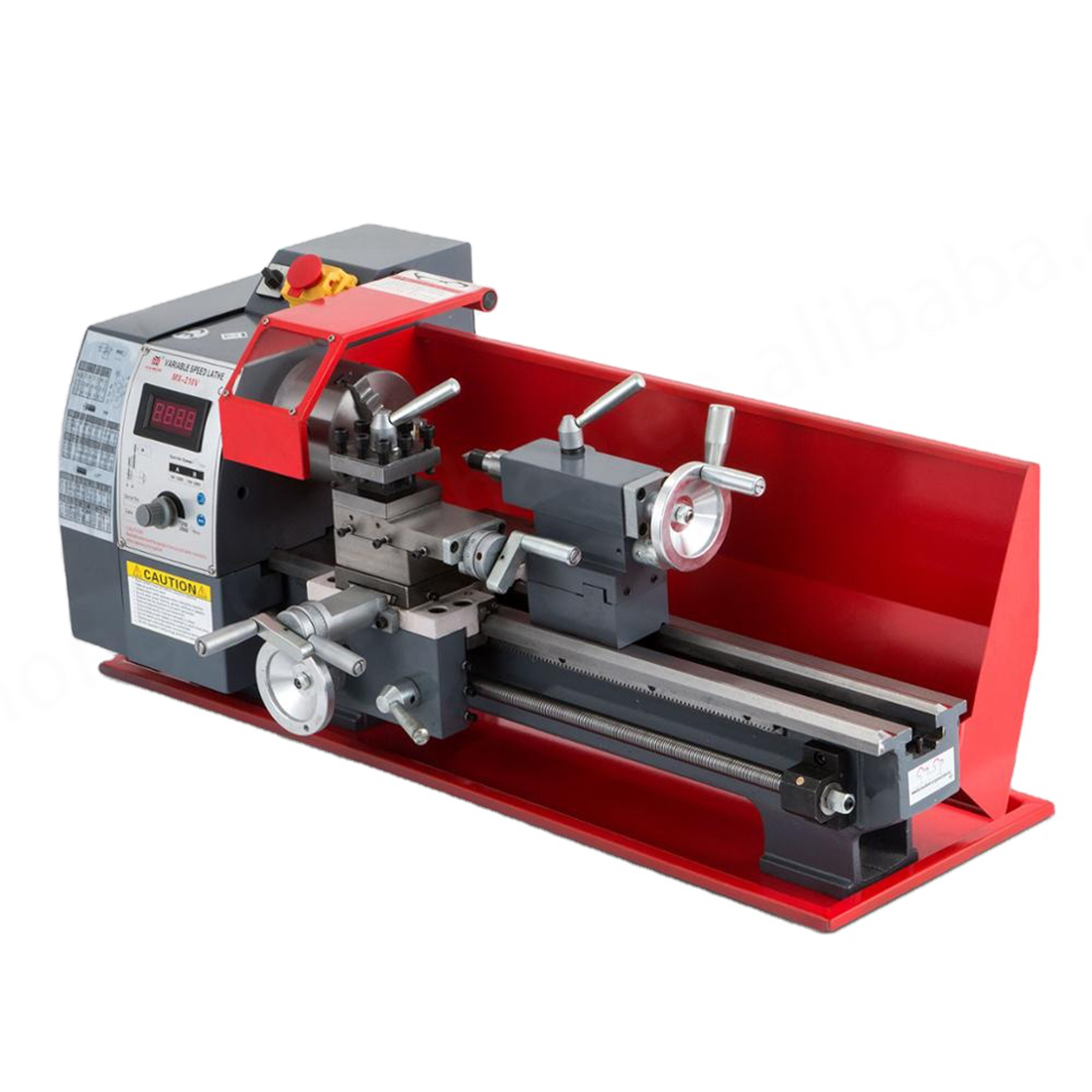

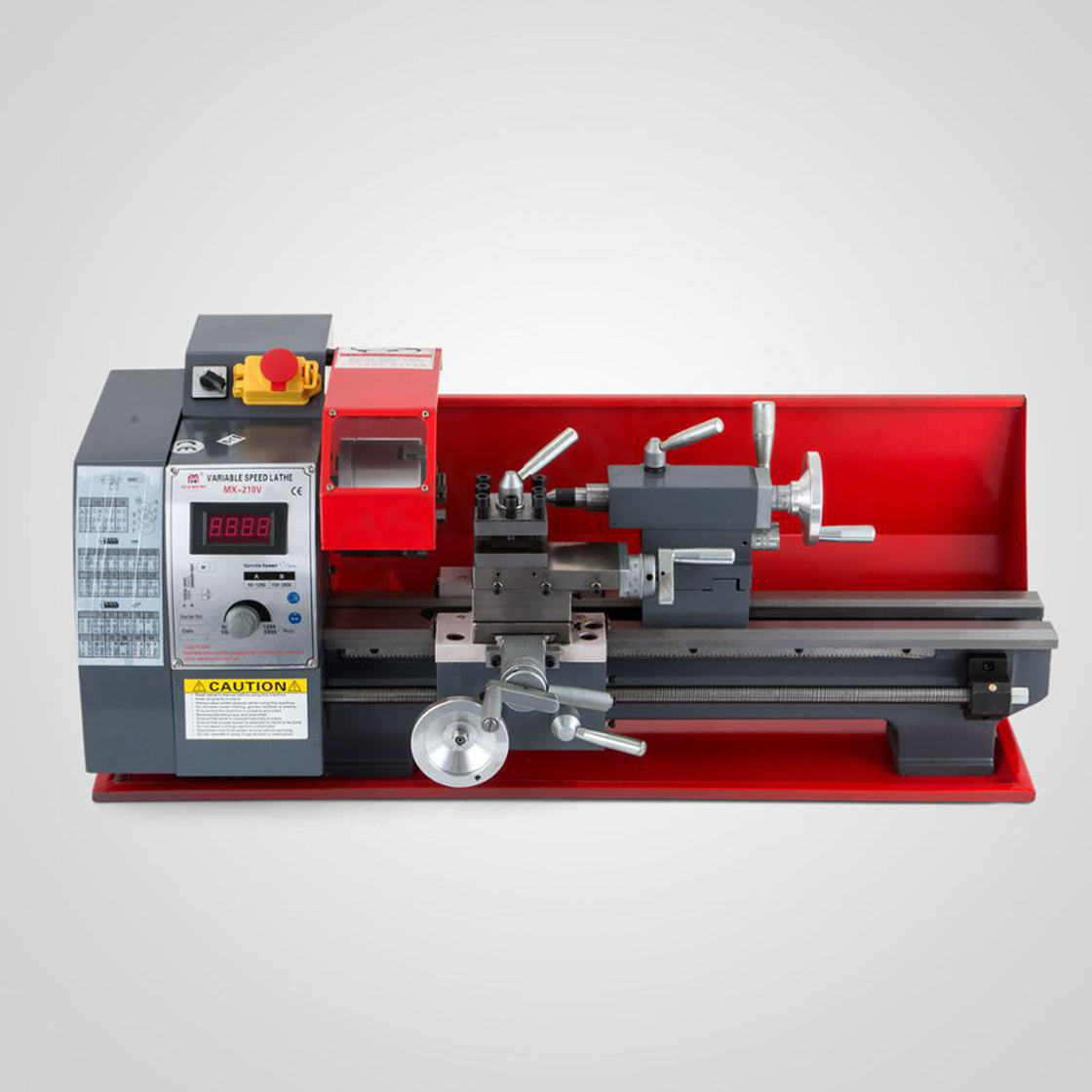

Hydraulic Mini Torno Metal Stone Lathe Machine Heavy Duty Tool Post
Product Description
This precision mini lathe is designed to perform various types of metal, jade and wood turning. It can be used in areas such as mini precision parts processing, sample processing and modeling works. It is both perfect for hobbyists and modelers who is looking to add finite detail to their construction project.
Attention:
Read the manual carefully before open the package.
Make sure the machine is leveled before Power on the machine.
Make sure that the gap between the middle plate or guide is moderate, not too small. Moving the plate by swiveling the wheel to make sure the plate can move smoothly.
Before starting up, make sure that the voltage is within the working voltage range (230V +/- 10% or 120V +/- 10% base on the products you bought).
The cutting amount should be controlled within 1.5 mm for steel or iron, 3 mm for Aluminum or copper to prevent damage of the motor or the motor circuit board due to overload.
Applications & Advantages
Application: Suitable for turnings of metal, wood, jade, etc.
Ideal for use in labs, workshops, engineering and education.
Can be turned within foreign aid, turning thread, turning taper and so on.
Telescopic sets with scale: You can intuitively see the length of the telescopic handle scale, precise scaling can be digitally standardized or adjusted by lateral movement.

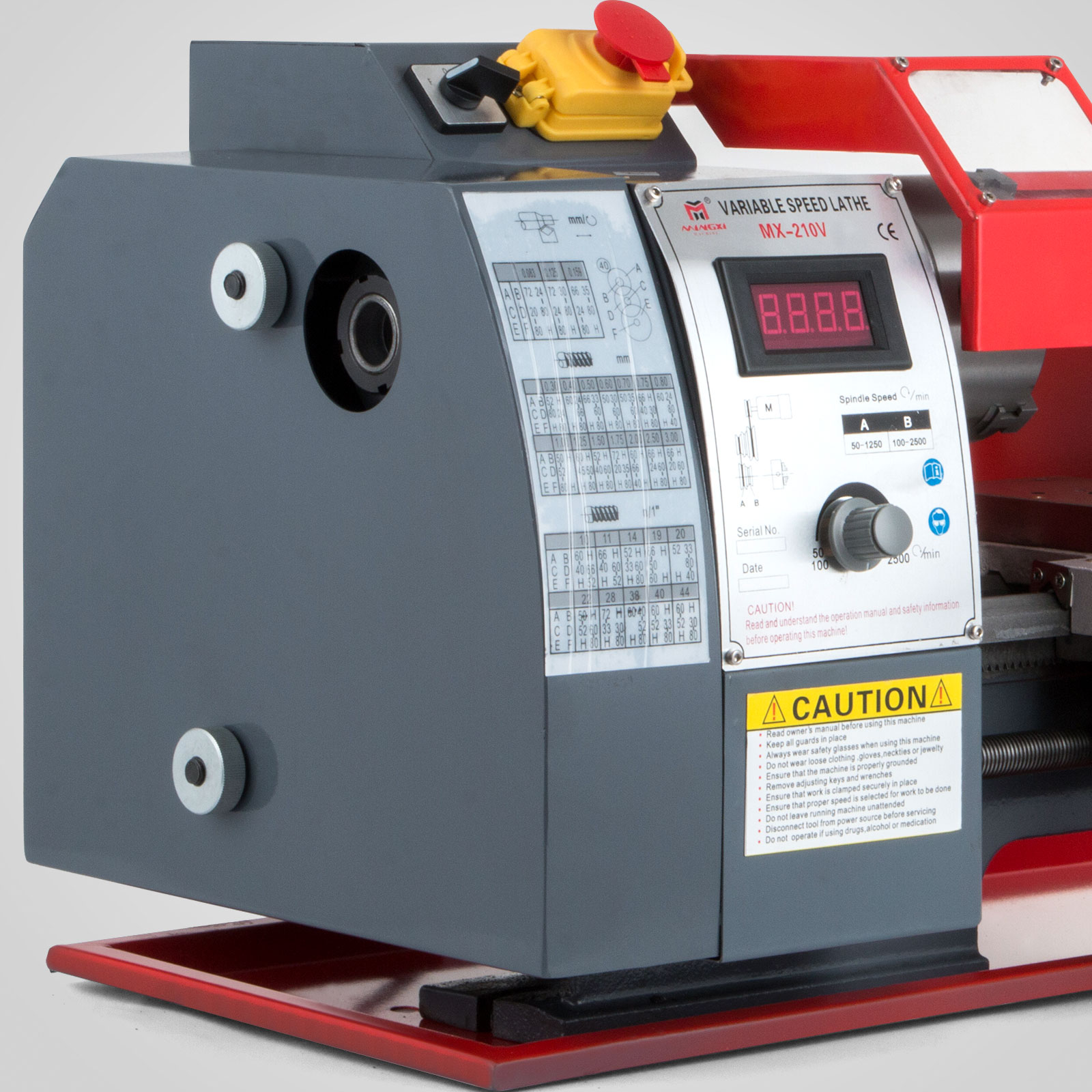

By adjusting the speed switch, the spindle speed can be adjusted from 50 to 2500RPM.
Equipped with gears of strong power, this machine is wear-resistant, durable, more accurate rotation and in particular, more precise, accurate and professional.
Automatic tool with multi function and usage, infinitely variable.
More accurate operation, more professional performance.
Product Details
Key Features
Variable spindle speed of 50-2500RPM
Spindle bearings use precise tapered roller bearings

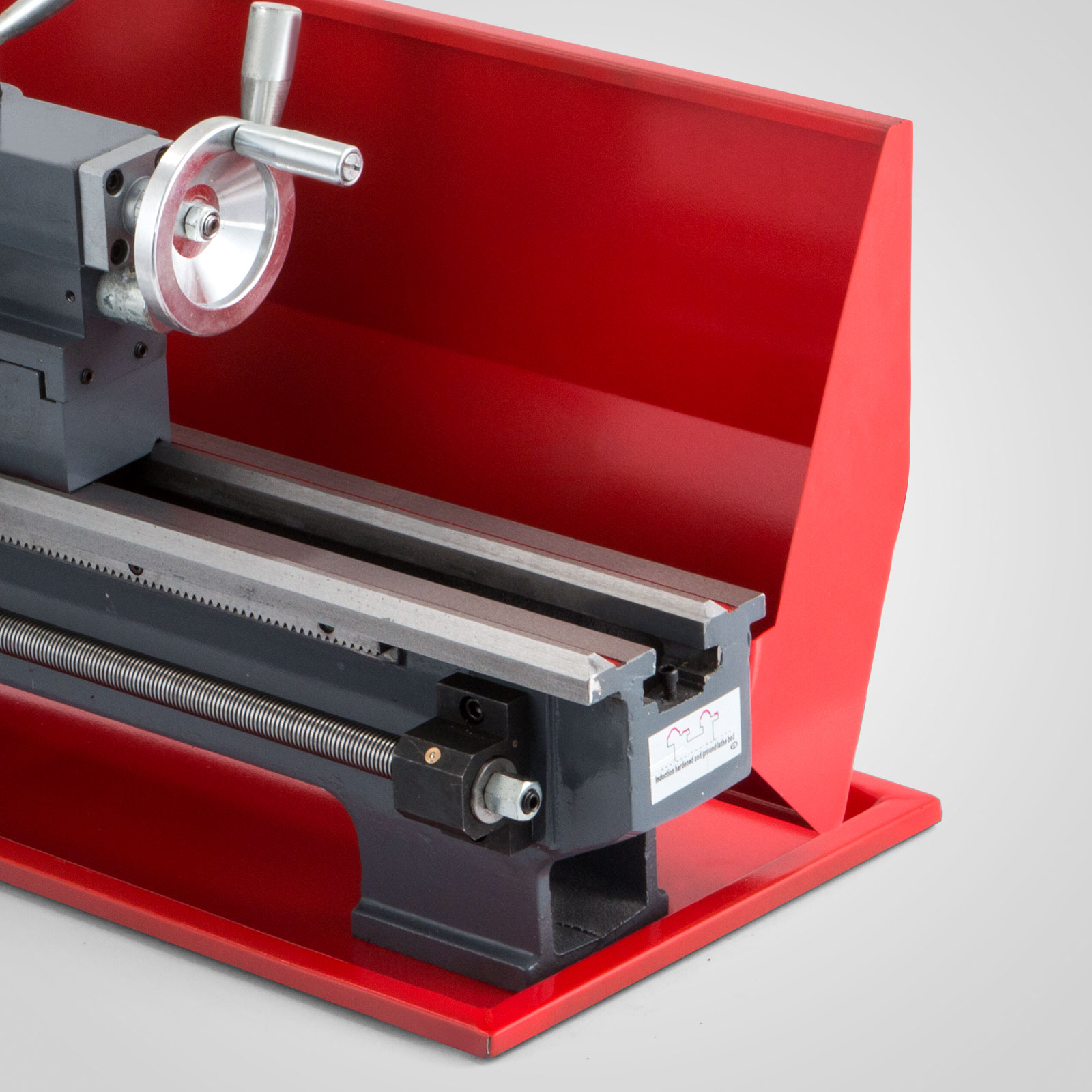

Rails have been quenched with high frequency and elaborate milling
High precision, able to turn out standard qualified works
750W strong power, 400mm processing distance

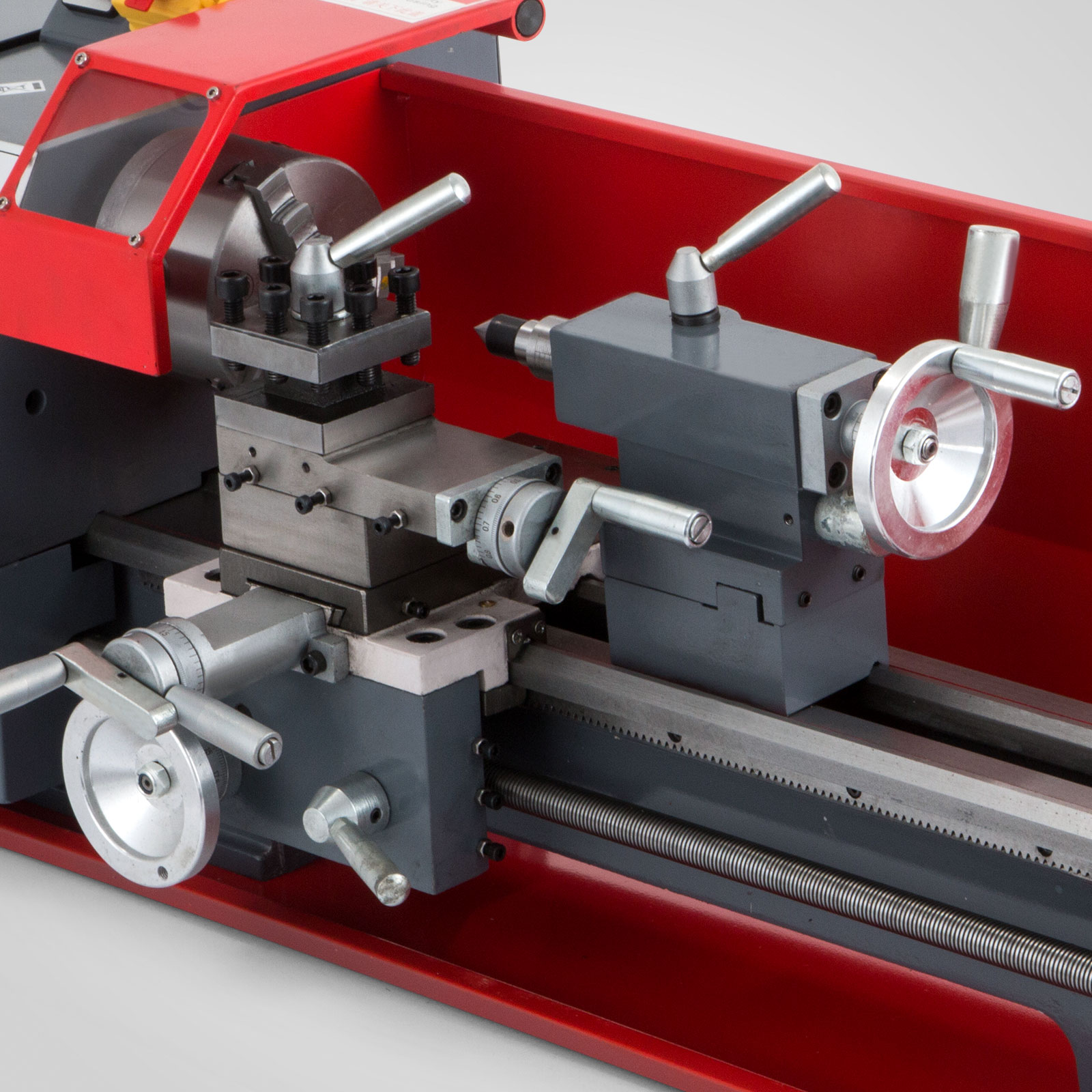

Bed saddle tail scale precision, feed more precise fine-tuning, telescopic sleeve scale practical
Multi-function and multi-usage, can be turned within the foreign aid, turning thread, turning taper and so on
Automatic tool, Infinitely variable, professional tool post
Specifications
Voltage
220V
Motor Power
750W
Spindle Taper
MT3
Tail Stock Taper
MT2
Range of Spindle Speeds
50-2500RPM
Swing Over Bed
210mm (8")
Chuck Diameter
125mm (5")
Hole Thru Spindle
φ21mm (0.83")
Maximum Compound Slide Travel
55mm (2")
Maximum Cross Slide Travel
75mm (3")
Gross Weight
70kg (154lbs)

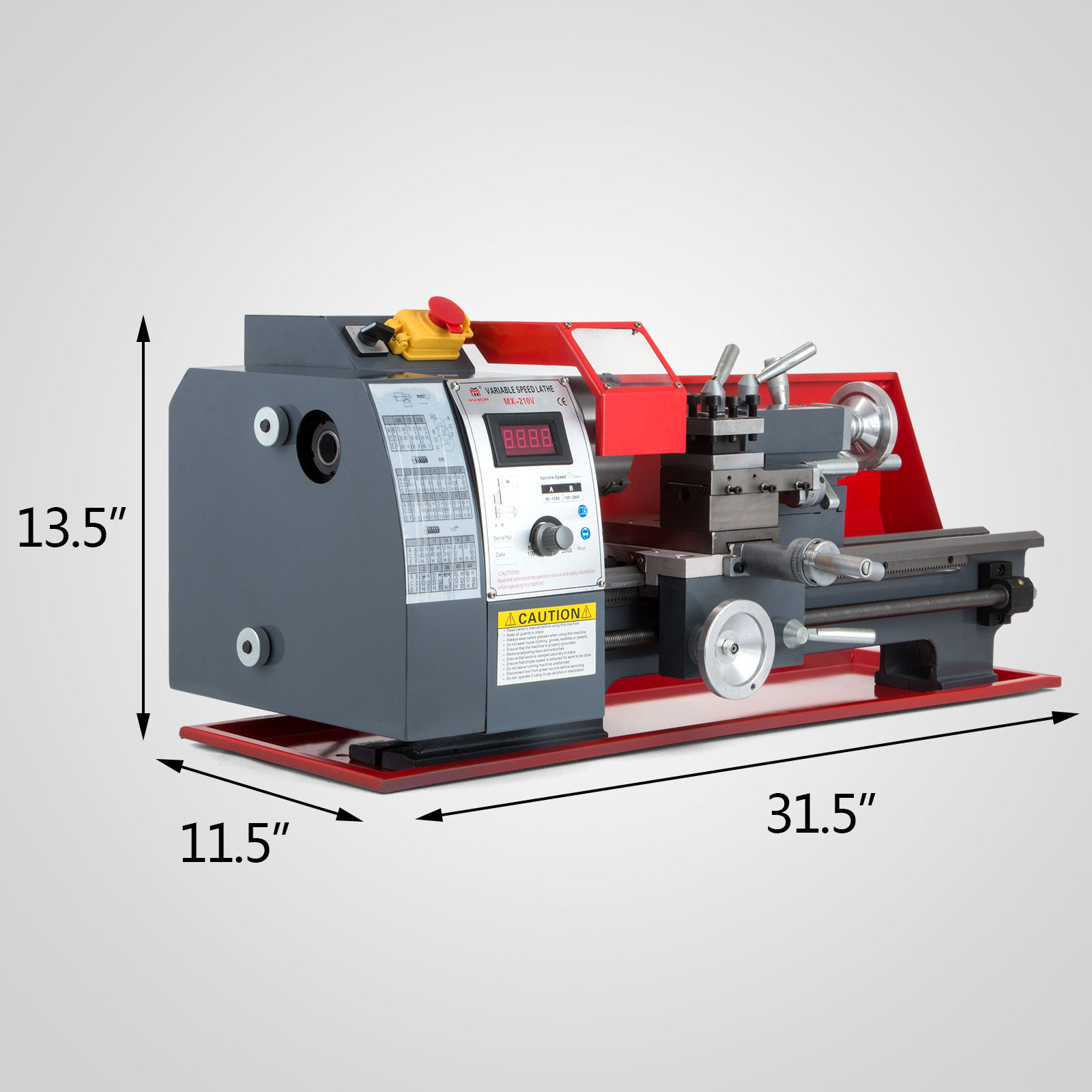

Package Dimensions (L*W*H)
920×480×460mm (37"×19"×19")
Packaging & Shipping

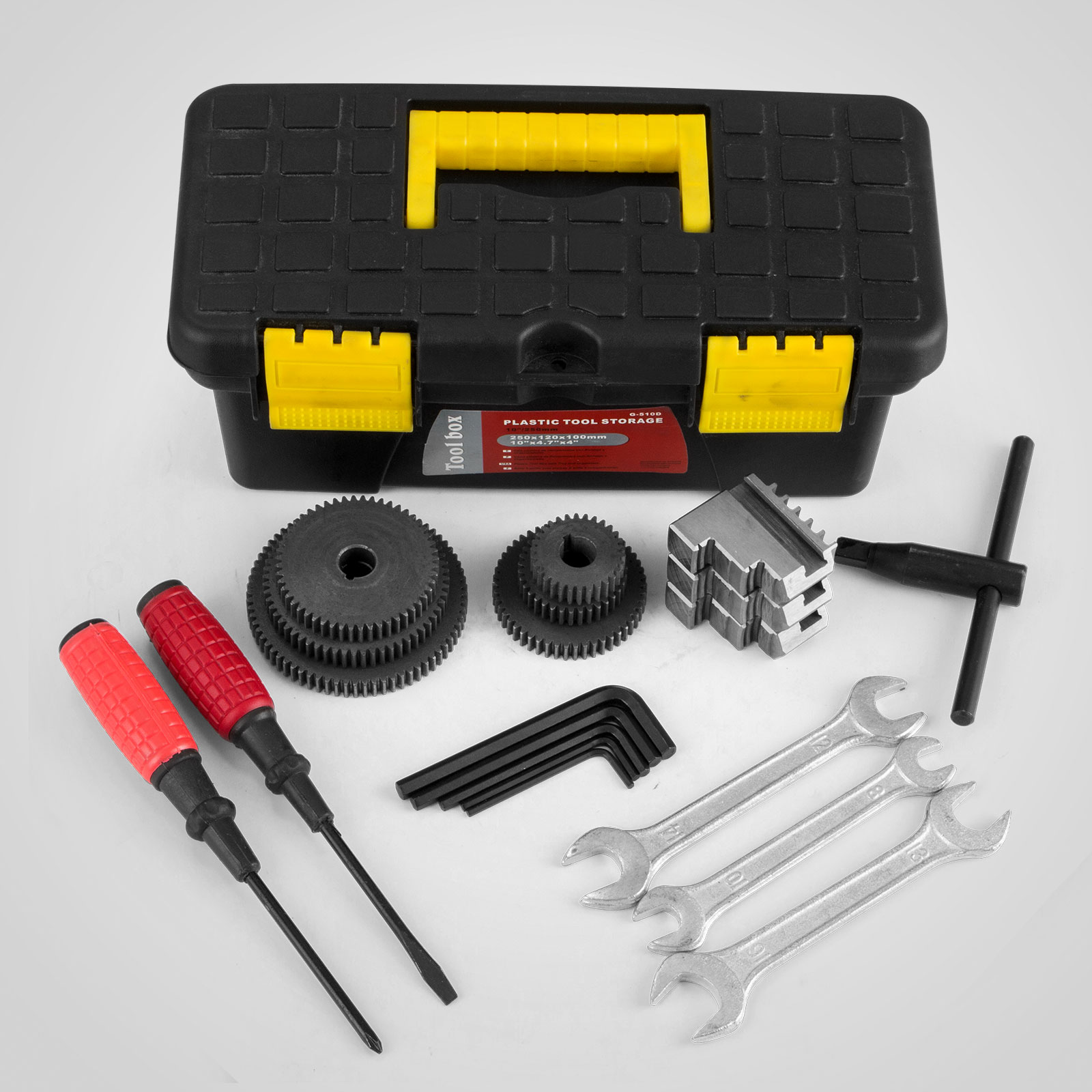

1 X Mini Lathe 750W Set
1 X Operation Manual
Frequently Asked Questions (FAQ)
Q1: What materials can be processed with this mini lathe?
This precision mini lathe is highly versatile and specifically designed to perform turning operations on various materials including metal, wood, and jade.
Q2: What is the spindle speed range and how is it adjusted?
The spindle speed range is 50 to 2500 RPM. You can easily adjust the rotation speed using the infinitely variable speed control switch.
Q3: What are the recommended cutting depth limits to avoid motor damage?
To prevent overloading the motor or the motor circuit board, the cutting depth should be controlled within 1.5 mm for steel or iron, and within 3 mm for aluminum or copper.
Q4: Does this lathe machine feature adjustable scaling?
Yes, it is equipped with telescopic sets with precise scaling on the handle. This allows users to intuitively see the scale length and make standard digital or lateral adjustments.
Q5: What bearings are used in the spindle of this machine?
The spindle bearings utilize high-precision tapered roller bearings to ensure rotation accuracy and long-term durability.
