Product Description

Products Description

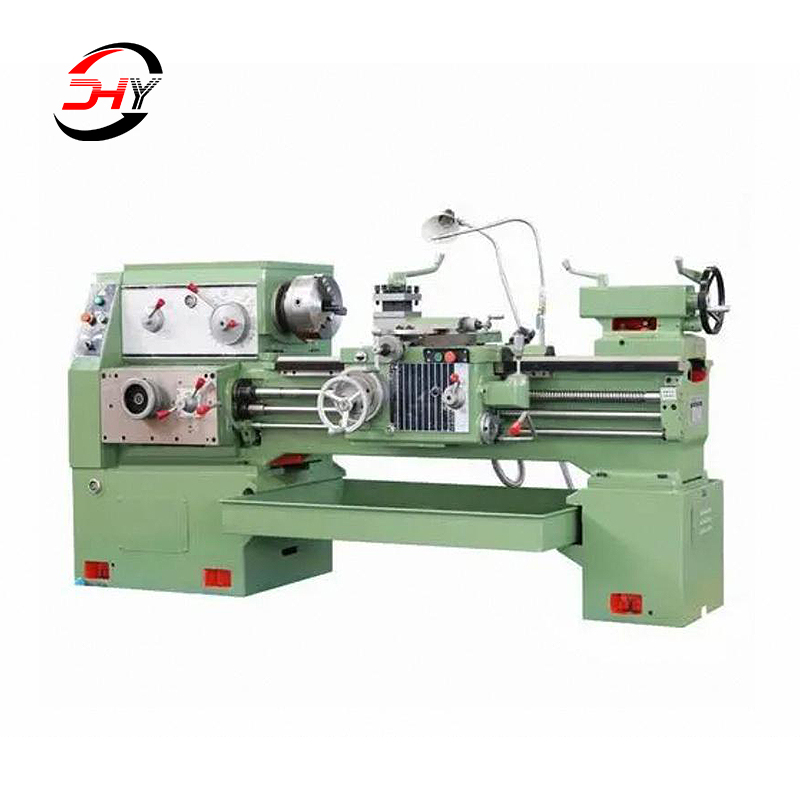

CA6166 Lathe Machine
Feature :
The CA6166 series of lathes is suitable for turning inner and outer cylindrical surfaces, conical surfaces, and other rotating surfaces, and can perform drilling and oil groove pulling work. The bed is wider than a regular lathe and has a higher stiffness. The guide rail surface has been quenched in the middle class and is durable and wear-resistant. The machine tool operation is flexible and centralized, and the slide plate is equipped with a quick moving mechanism. Adopting a single handle for visual operation, with good user friendliness. The structural stiffness and transmission stiffness of the machine tool are higher than those of ordinary lathes, with high power utilization rate, suitable for strong and high belt cutting. The spindle has a large aperture and can be equipped with complete accessories.
Type CA6140
CA6140B		 CA6150
CA6150B
CA6150C		 CA6161
CA6161B
CA6161C		 CA6166
CA6166B
CA6166C		 CA6180
CA6180B
CA6180C
CA6240
CA6240B		 CA6250
CA6250B
CA6250C		 CA6261
CA6261B
CA6261C		 CA6266
CA6266B
CA6266C		 CA6280
CA6280B
CA6280C
Max. swing over bed 400mm 500mm 610mm 660mm 800mm
Max. swing over carriage 210mm 300mm 370mm 400mm 540mm
Max. swing in gap (CA62 series) 630mm 720mm 830mm 880mm 1020mm
Max. effective length in gap (CA62 Series) 210mm
Max. length of workpiece 750/1000/1500/2000/2200/3000/4000mm
Width of bed 400mm
Section of turning tool 25×25 mm
Main spindle motor 7.5kw(10HP)
Spindle
Spindle speed 16--1400rpm(24step)
Spindle bore 52mm (B:80mm),(C:105mm)
Spindle taper No.6(MT6)(Φ90 1:20)[Φ113:20]
Feed
NO. of feed (64 kinds)(for each)
Range of metric threads (1-192mm) (44 kinds)
Range of inch threads (2-24tpi) (21kinds)
Range of module threads 0.25-48 (module 39 kinds)
Range of diametral pitch threads 1-96DP (37 kinds)
Tailstock
Max. tailstock spindle travel 150mm
Tailstock spindle diameter 75mm
Taper of tailstock spindle centre hole 1-96DP (37 kinds)
Packing dimensions (L*W*H)
Overall dimensions for 750mm 2550×1140×1750mm 2550×1140×1750mm 2550×1140×1750mm 2550×1140×1750mm 2550×1140×1750mm
Overall dimensions for 1000mm 2700×1140×1750mm 2700×1140×1750mm 2700×1140×1750mm 2700×1140×1750mm 2700×1140×1750mm
Overall dimensions for 1500mm 3200×1140×1750mm 3200×1140×1750mm 3200×1140×1750mm 3200×1140×1750mm 3200×1140×1750mm
Overall dimensions for 2000mm 3700×1140×1750mm 3700×1140×1750mm 3700×1140×1750mm 3700×1140×1750mm 3700×1140×1750mm
Overall dimensions for 2200mm 4030×1140×1750mm 4030×1140×1750mm 4030×1140×1750mm 4030×1140×1750mm 4030×1140×1750mm
Overall dimensions for 3000mm 4850×1140×1750mm 4850×1140×1750mm 4850×1140×1750mm 4850×1140×1750mm 4850×1140×1750mm
Overall dimensions for 4000mm 5800×1140×1750mm 5800×1140×1750mm 5800×1140×1750mm 5800×1140×1750mm 5800×1140×1750mm
Weight (kg)
Overall dimensions for 750mm 2100 /1990 2170/2060 2300/2180 2380/2260 2520/2400
Overall dimensions for 1000mm 2190/2070 2260/2140 2380/2250 2570/2450 2720/2560
Overall dimensions for 1500mm 2350/2220 2450/2290 2577/2437 2810/2640 2980/2800
Overall dimensions for 2000mm 2720/2570 2800/2640 2940/2787 3050/2880 3260/3087
Overall dimensions for 2200mm 2800/2600 3940/2790 3120/2970 3390/3180 3490/3287
Overall dimensions for 3000mm 3300/3200 3450/3300 3600/3450 3930/3687 4200/3887
Overall dimensions for 4000mm 3500/3400 3750/3600 3950/3800 4580/4200 4850/4500

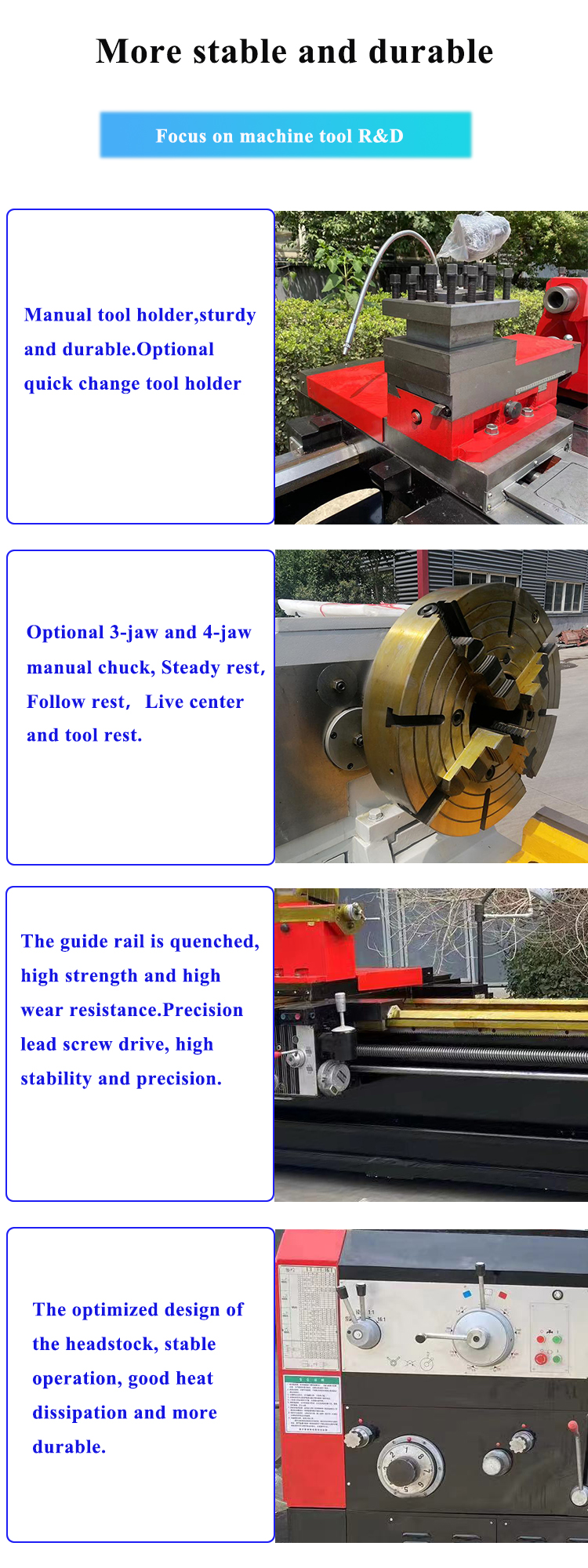

Lathe Component Detail

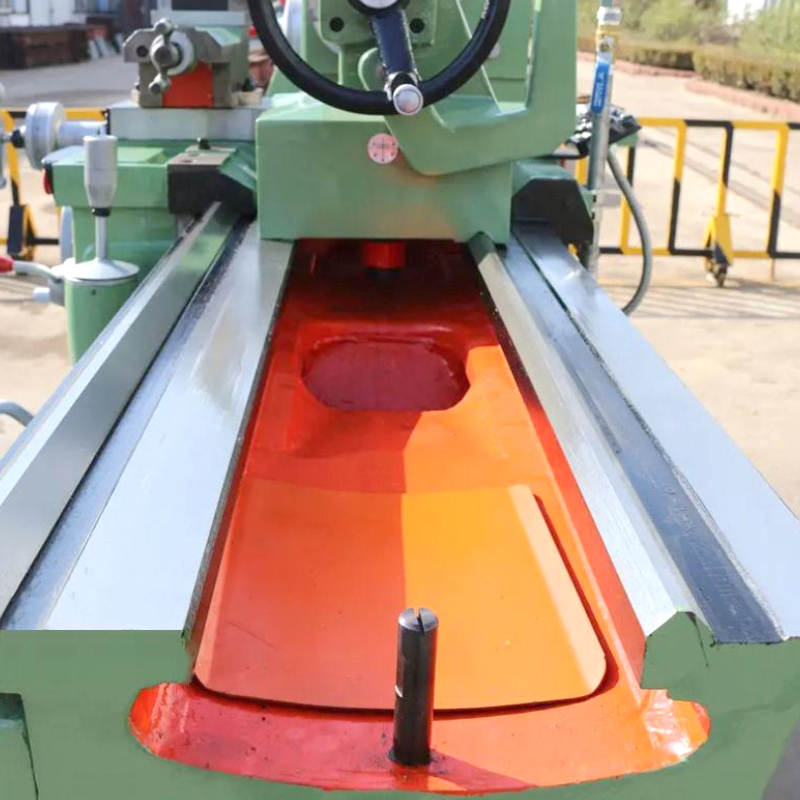

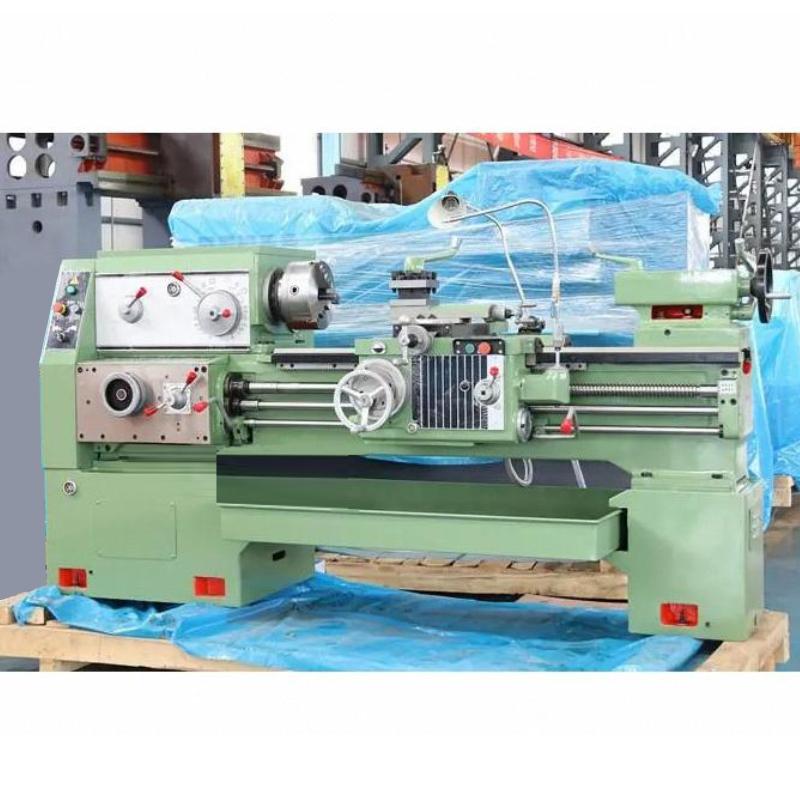

Lathe Bed Construction

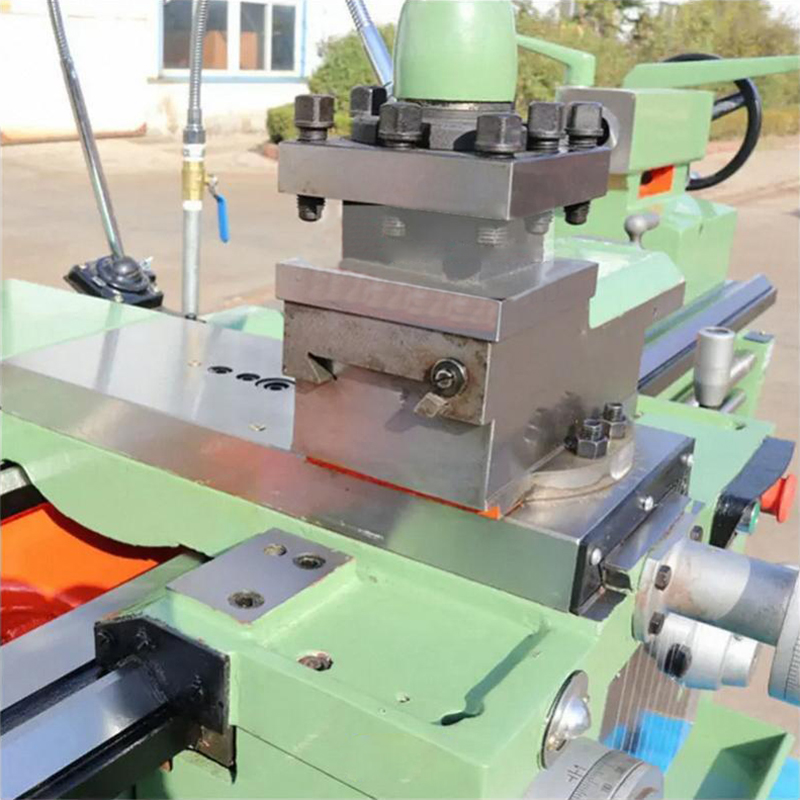

Lathe Part Detail A

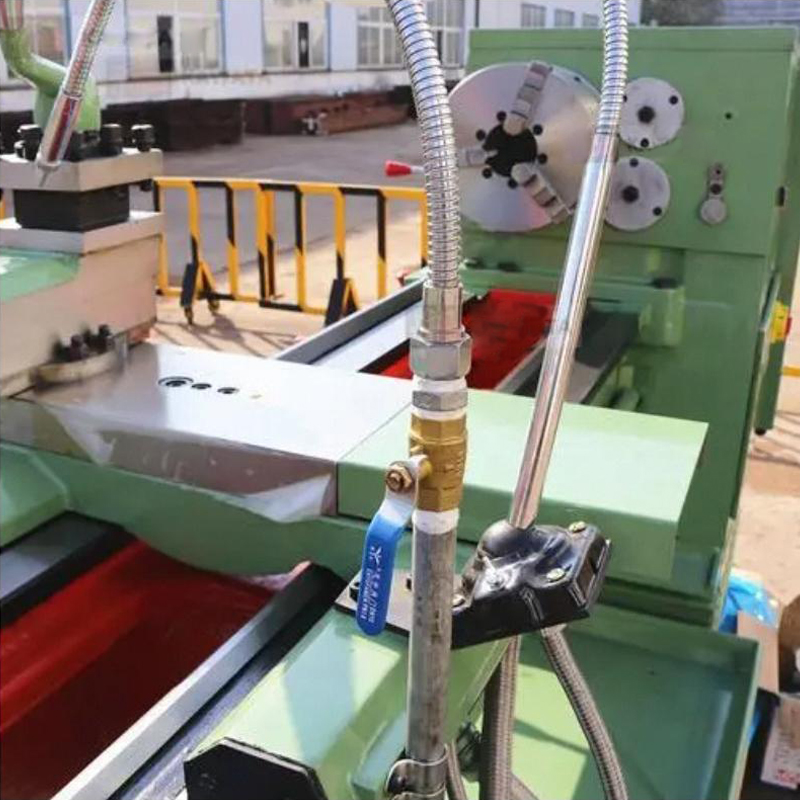

Lathe Part Detail B
Key Advantages
1
When the longitudinal automatic feed is applied, the handwheel of the slide box can automatically disengage to prevent injury to the operator.
2
The tailstock of the lathe is equipped with a unloading device, which can reduce the labor intensity of the operator.
3
Without changing the change wheel, metric, imperial, pitch, and module threads can be directly machined.
4
The headboard and feed box can be automatically lubricated.
5
The knife holder can move quickly in all four directions.
Product Gallery
Gallery Image 1
Gallery Image 2
Gallery Image 3
Gallery Image 4
Gallery Image 5
Gallery Image 6
Gallery Image 7
Frequently Asked Questions
What is your MOQ and warranty?
The minimum order quantity is one set, the warranty period is one year, and lifetime technical support is provided.
What is the delivery time?
The production period of the machine is generally about 30 working days.
What is the packaging of the machine?
The standard packaging of the machine is an iron pallet and a plastic film wooden box.
How to choose the most suitable machine?
Please let us know your processing needs or machine parameters, we can choose the best model for you, or you can choose the exact model yourself. You can also send us product drawings and our engineers will make reasonable recommendations.
What are your trade terms?
FOB, CFR, CIF or other terms are all acceptable.
What are the payment terms?
T/T, 30% down payment when ordering, 70% balance before shipment.
