| Item | Data |
|---|---|

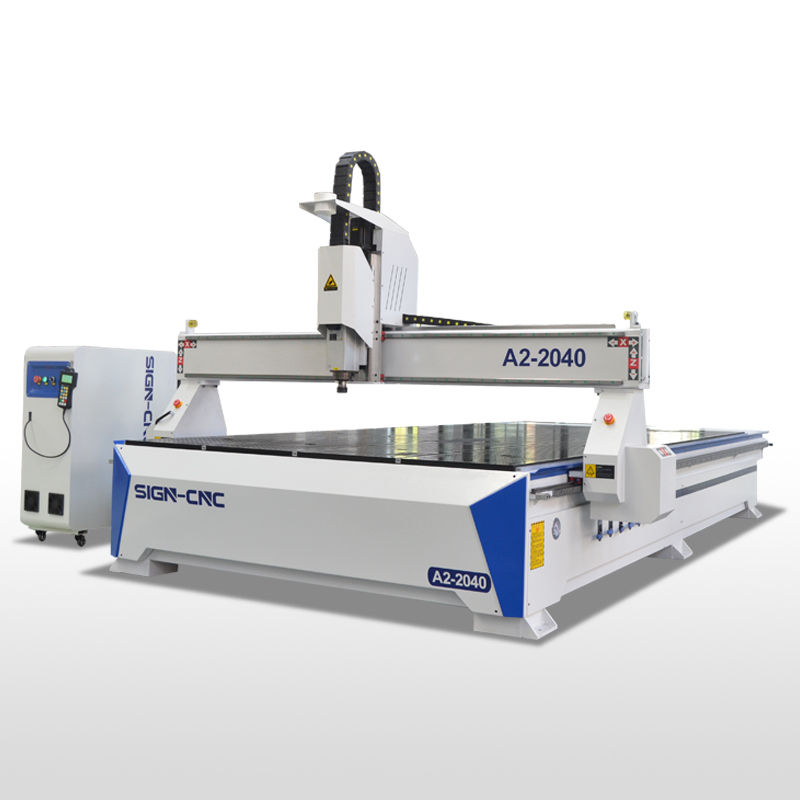

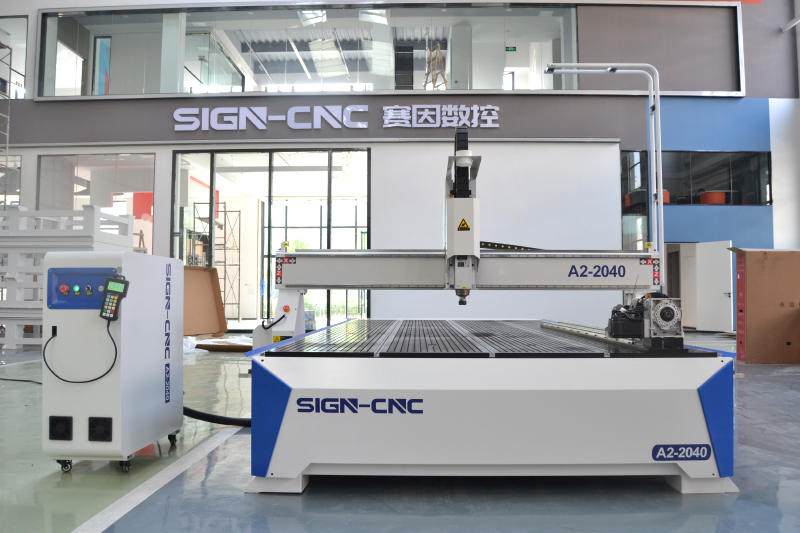

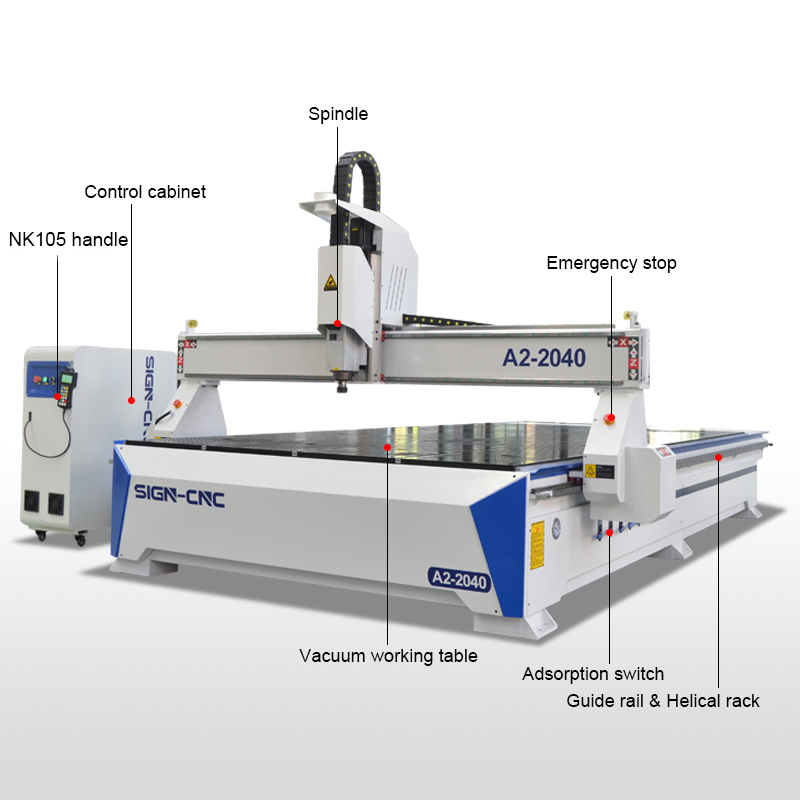

| Model | A2-2040 |
| X, Y Working size | 2000*4000mm |
| Z feed Height | 200mm |
| Table Surface | Vacuum table with T-slot table |
| Vacuum pump | 5.5kw vacuum pump |

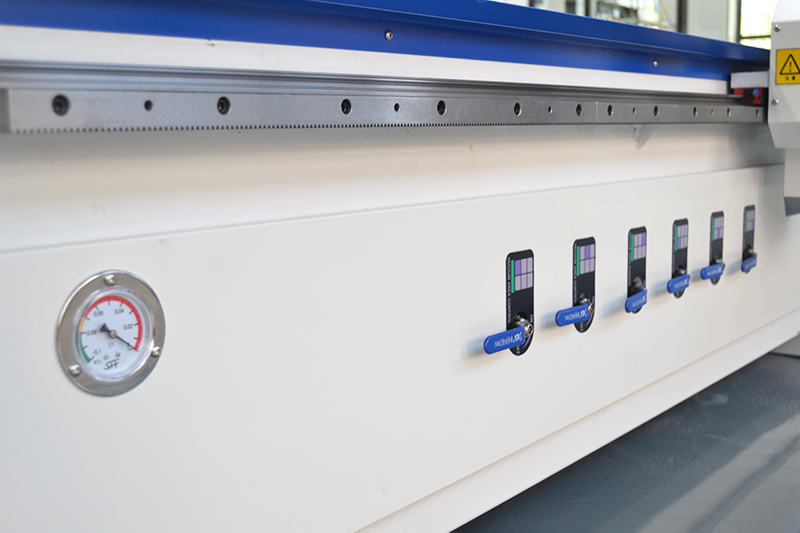

| X, Y Structure | Rack and Pinion, Linear Square Guide Rail |
| Z Structure | 25mm Linear Square Guide Rail and Ball Screw |
| Max. Power Consumption | (Without spindle) 2.0Kw |

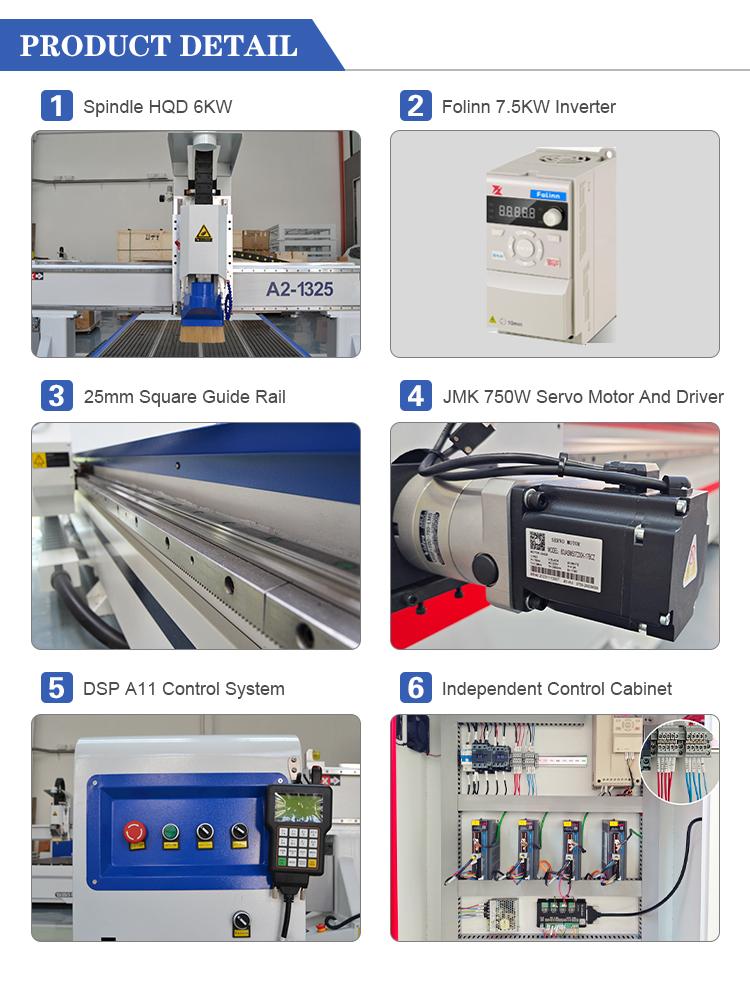

| Spindle Power | 6kw Air-cooled spindle |
| Inverter | Folinn 7.5kw |

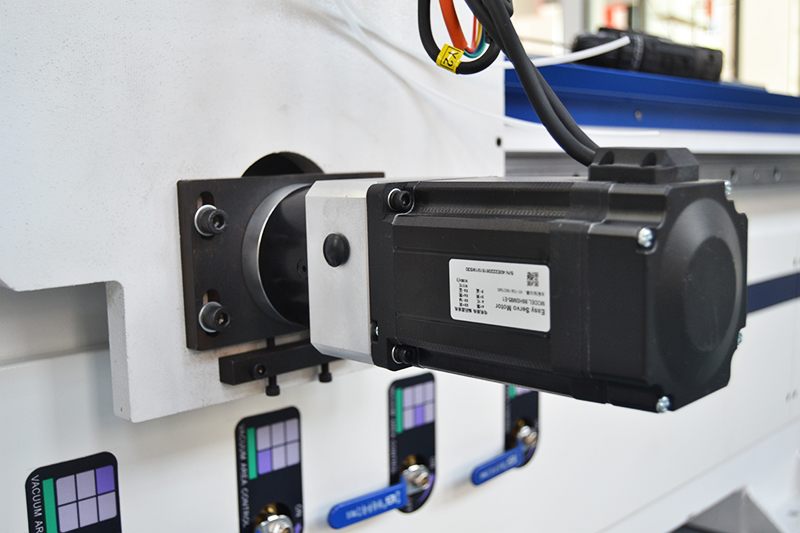

| Drive Motors | AC Servo motor and driver |
| Reducer | Shimpo planetary reducer |
| Voltage | AC380V/220V 50/60Hz |
| Control System | DSP A11 control system |

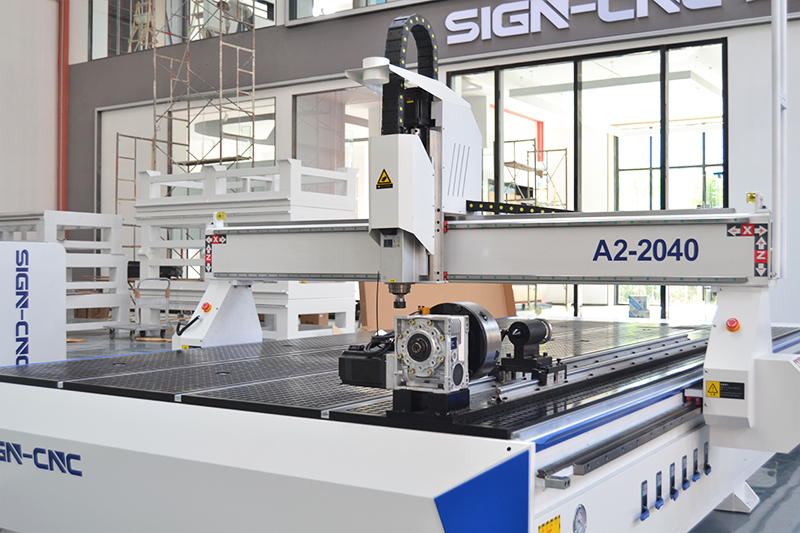

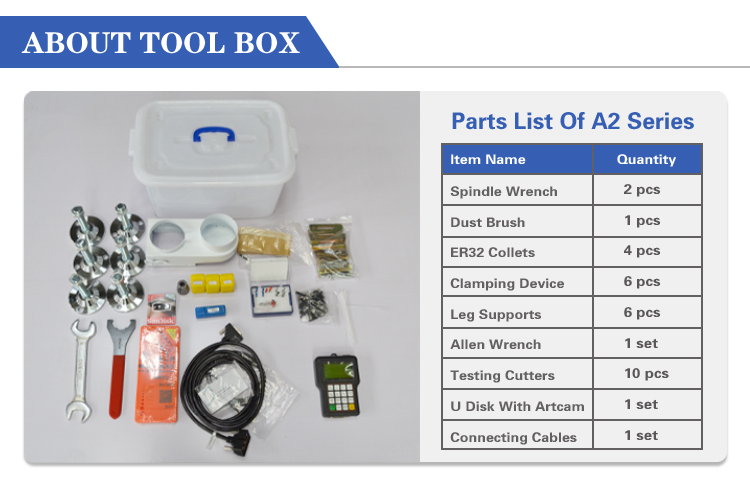

| Optional Parts | Rotary, Multi-head and Semi-automatic tool changer |
| Warranty | Two years |

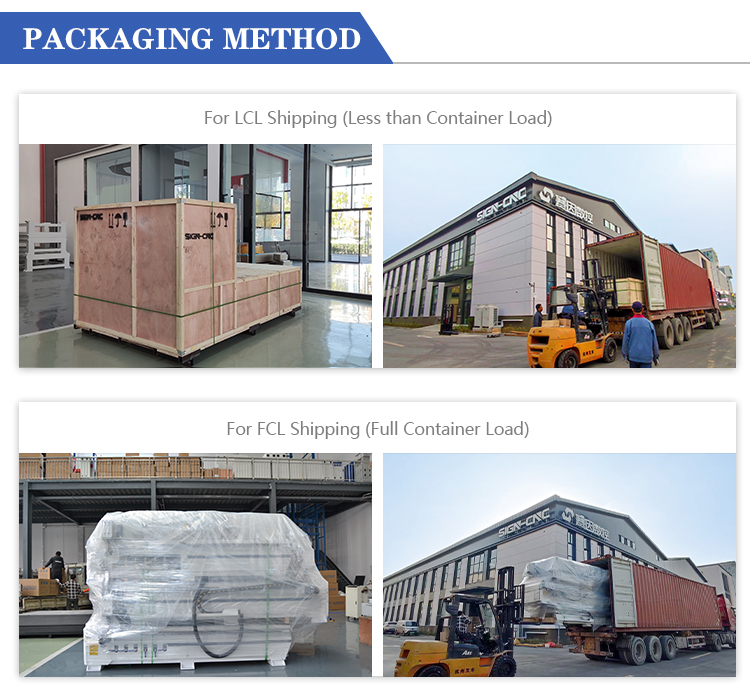

It is recommended to use export standard fumigation-free wooden boxes, which are stronger and suitable for long-distance transportation.
It can be loaded directly at the factory without wooden boxes, and the maximum number of machines can be loaded to reduce costs.
