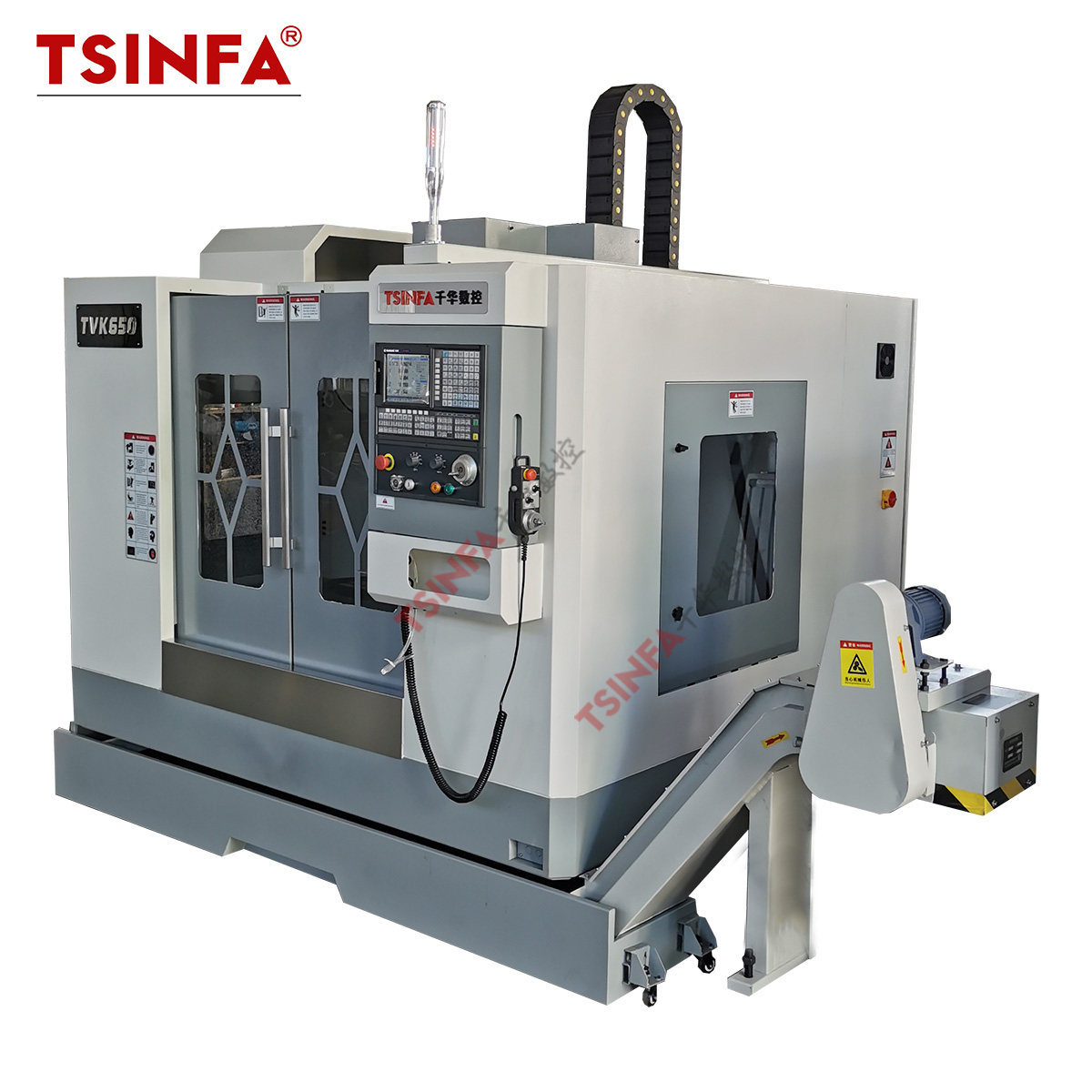

High-Speed VMC650 5 Axis Small CNC Milling Machine with Siemens Controller Vertical Machining Center by CNC Machining Centre
High-Speed VMC650 5 Axis Small CNC Milling Machine with Siemens Controller Vertical Machining Center by CNC Machining Centre
High-Speed VMC650 5 Axis Small CNC Milling Machine with Siemens Controller Vertical Machining Center by CNC Machining Centre
High-Speed VMC650 5 Axis Small CNC Milling Machine with Siemens Controller Vertical Machining Center by CNC Machining Centre
High-Speed VMC650 5 Axis Small CNC Milling Machine with Siemens Controller Vertical Machining Center by CNC Machining Centre
1 / 5
High-Speed VMC650 5 Axis Small CNC Milling Machine with Siemens Controller Vertical Machining Center by CNC Machining Centre
High-Speed VMC650 5 Axis Small CNC Milling Machine with Siemens Controller Vertical Machining Center by CNC Machining Centre
High-Speed VMC650 5 Axis Small CNC Milling Machine with Siemens Controller Vertical Machining Center by CNC Machining Centre
High-Speed VMC650 5 Axis Small CNC Milling Machine with Siemens Controller Vertical Machining Center by CNC Machining Centre
High-Speed VMC650 5 Axis Small CNC Milling Machine with Siemens Controller Vertical Machining Center by CNC Machining Centre

High-Speed VMC650 5 Axis Small CNC Milling Machine with Siemens Controller Vertical Machining Center by CNC Machining Centre

Send Inquiry

Product Description

Product Description
The main performance characteristics:
High quality resin sand
Taiwan spindle
Automatic lubrication system

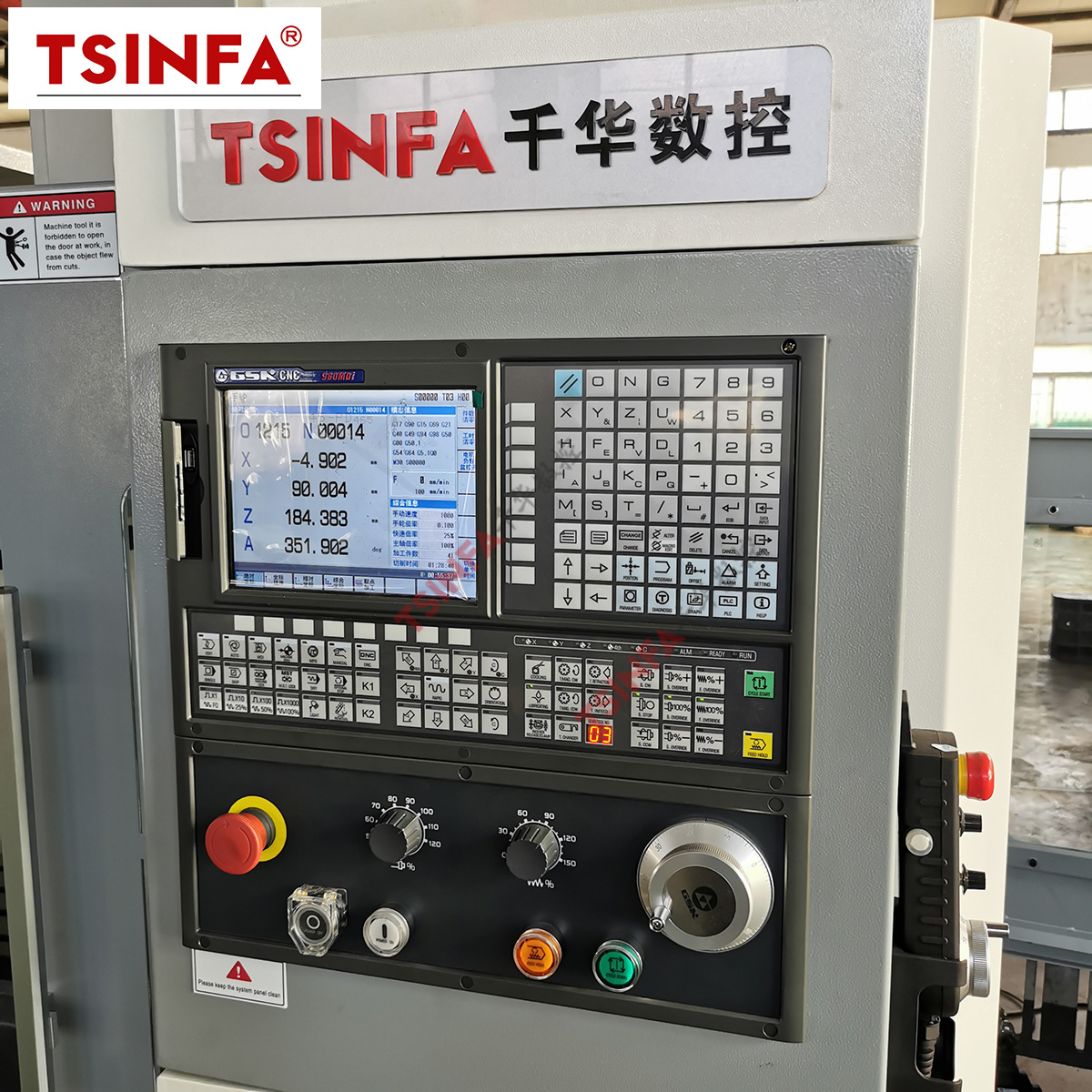

System: GSK, SIEMENS, FANUC
16T Tool magazine
3 axis linear rail
High-Speed VMC650 5 Axis Small CNC Milling Machine with Siemens Controller Vertical Machining Center
Technical Specifications
Specification Unit VMC 640 VMC 650
Table size mm 800*320 800*400
Max. table load kg 350 400
X/Y/Z table travel mm 600*400*450 650*400*500
Numbers, width mm 3*14 3*16
Spindle nose to table surface mm 130-570 130-600
Spindle center to Column surface mm 400 470
Spindle taper - BT40 BT40
Spindle speed r.p.m 6000 (optional: 8000) 8000
Main motor kw 3.7 5.5
Table rapid feed speed m/min 18/18/18 24/24/20
Cutting feed speed mm 10000 10000
Three-axis servo motor torque NM 6/6/10 6/6/10
Positioning accuracy mm ±0.006 ±0.006
Repeat position accuracy mm ±0.005 ±0.005
Net weight kg 2500 3000
Overall dimension (L×W×H) mm 2200*1900*2500 2200*1900*2500
Detailed Images

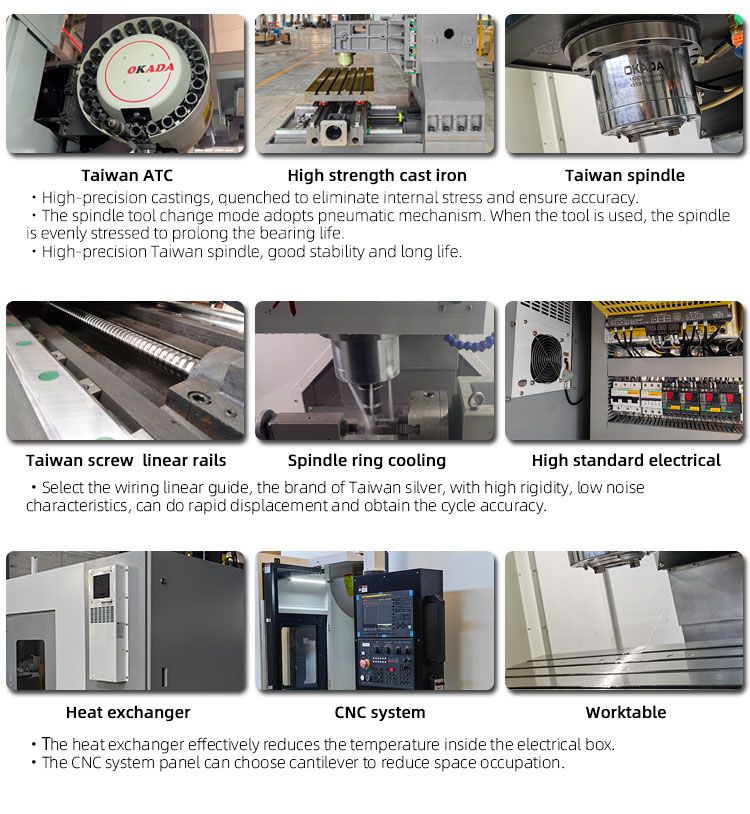

VMC650 Details 1

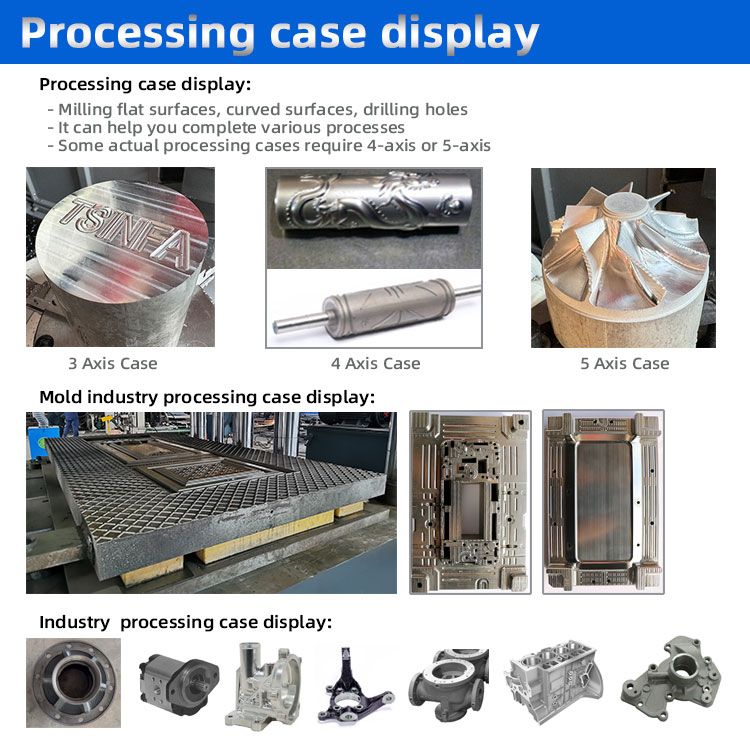

VMC650 Details 2

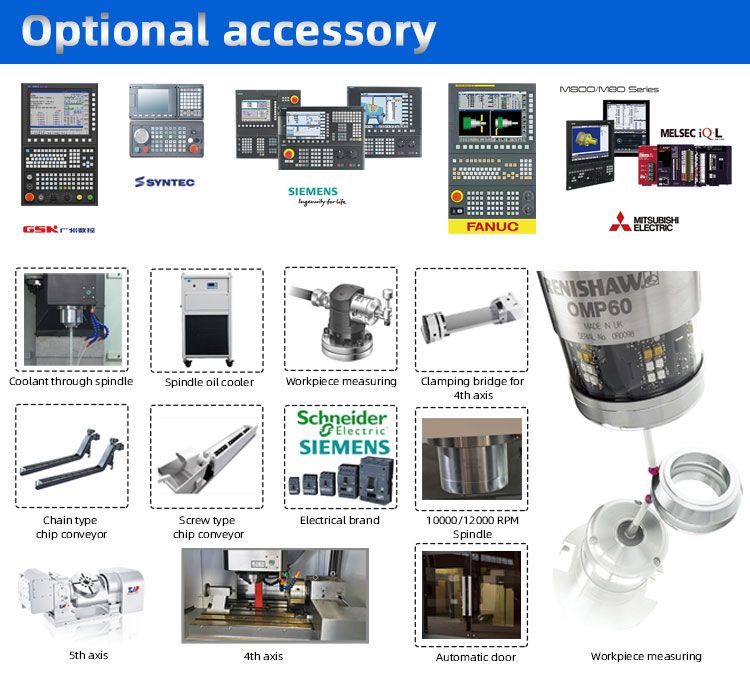

VMC650 Details 3
VMC650 Details 4
Certifications
CE Quality Certification
Facility Overview

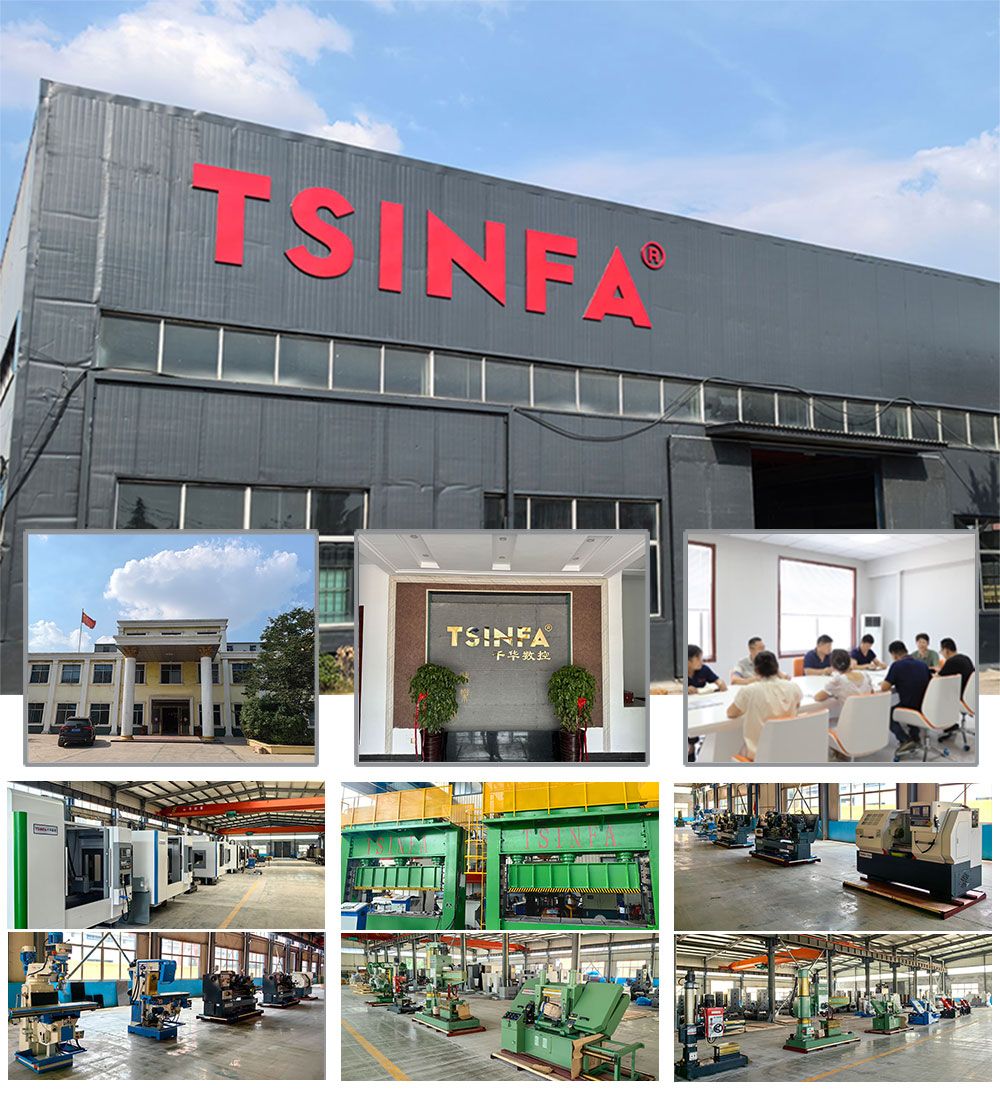

Manufacturing Workshop
Packaging & Shipping
Packaging and Loading
Frequently Asked Questions
Q1: How can I choose the most suitable machine?
Please provide your target specifications or workpiece drawings. Based on your requirements, we will evaluate the dimensions and material of your workpiece to recommend the best and most suitable machine model for you.
Q2: What is your primary product range?
Our main product line covers metal cutting machinery and metal forming machinery. This includes CNC machining centers, CNC lathes, manual lathes, manual milling machines, sawing machines, and hydraulic press equipment.
Q3: What shipping and transportation options do you offer?
We offer flexible, structured transportation solutions to meet diverse international shipping needs, including options such as DDP, CIF, FOB, and FCA.
Q4: What are the standard payment terms?
Our standard payment term is via T/T. This requires a 30% initial deposit payment at the time of order placement, with the remaining 70% balance paid in full prior to shipment.
Q5: What is the Minimum Order Quantity (MOQ)?
The Minimum Order Quantity is 1 set. For certain specific, low-cost auxiliary machinery, the MOQ requirements may vary, so please confirm with us.
Q6: How can I obtain a CIF price quote?
To request a detailed CIF price quote, please inform us of your required machine configurations and the exact port of destination for delivery.
