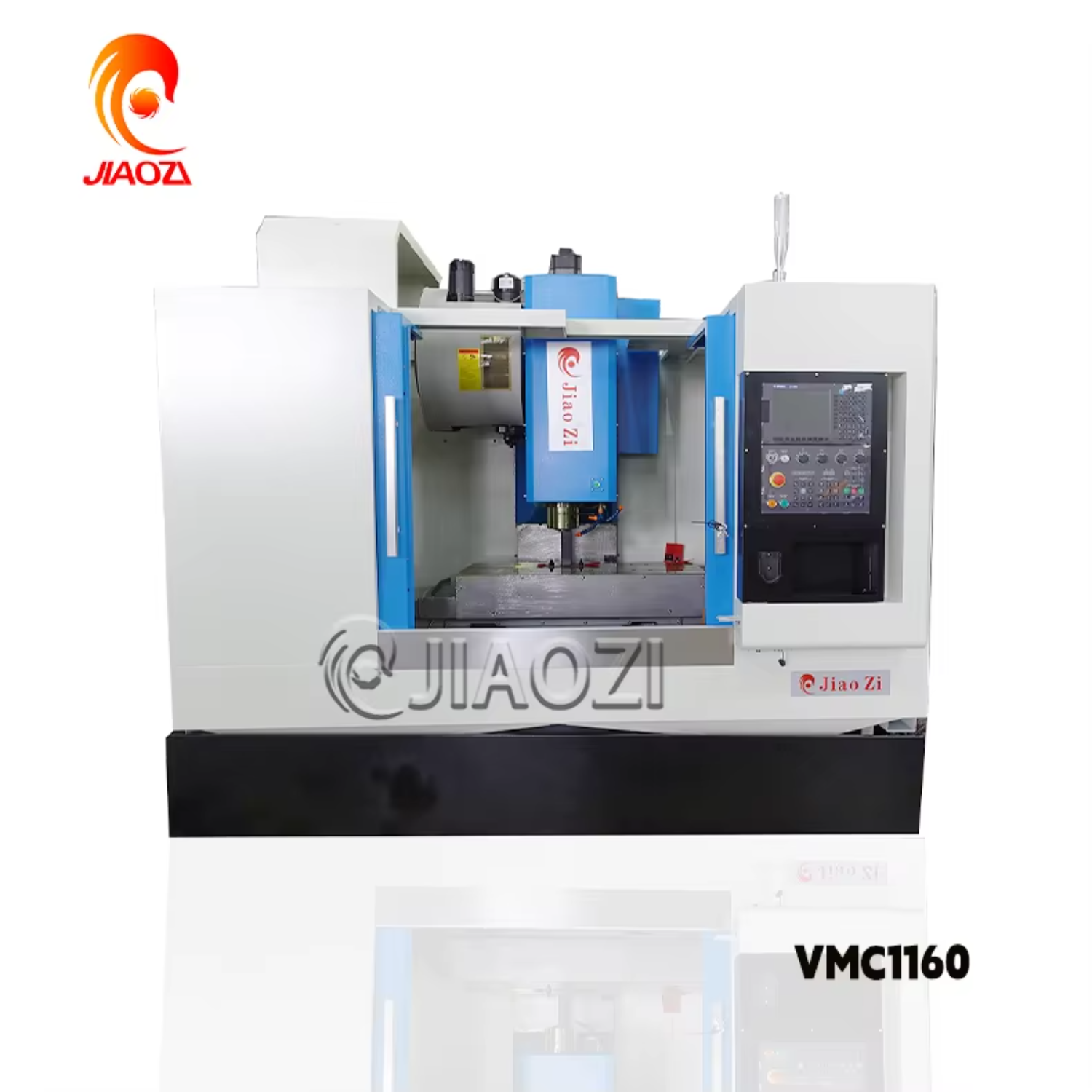

High-speed Vmc1160 Vmc CNC Milling Machine Fanuc / Mitsubishi / KND Control Metal Processing Center

Product Description

Product Highlights
  • High Precision Guide Rail: Large load capacity and high accuracy for precise machining.
  • It features high rigidity, excellent impact resistance, and minimal deformation.
  • Customizable Options: Ideal for various machining needs with optional accessories.
  • Durable Resin Sand Casting: Robust construction for reliable performance in heavy-duty operations.
  • 24-hour online service available at all times.
  • The warranty period is 36 months.

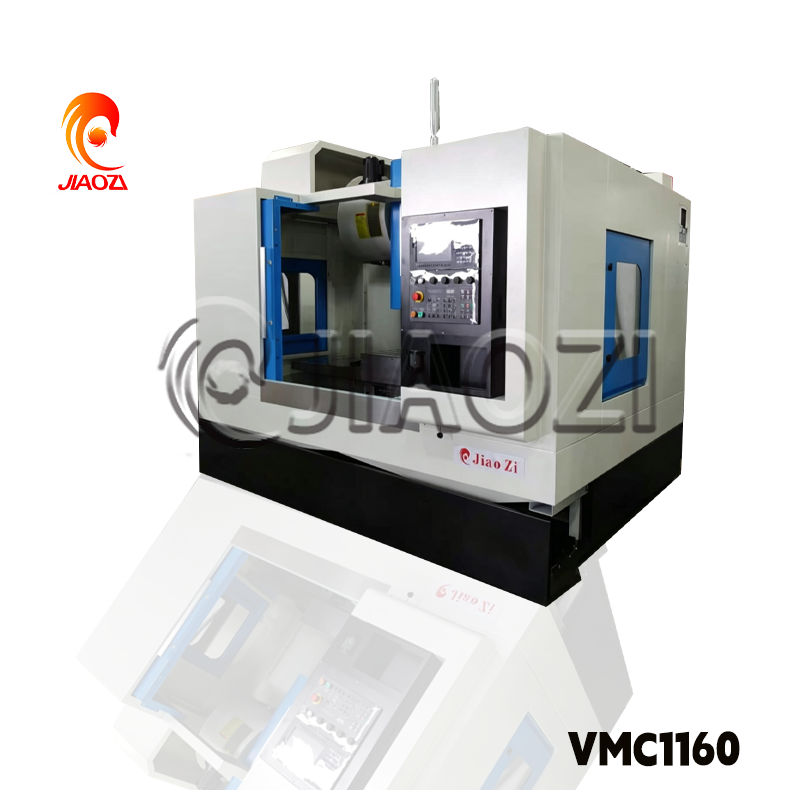

Scene Image
High-speed Vmc1160 Vmc CNC Milling Machine Fanuc / Mitsubishi / KND Control Metal Processing Center

Scope of application.

The machining center is primarily used for precision milling, drilling, boring, and threading of metals. It is widely used for processing various types of precision structural components and box-type parts, such as those found in molds, automobiles, aerospace, construction machinery, 3C electronics, and medical devices. It is suitable for both single-piece prototype production and mass production.

Specifications
Item Model Unit VMC1160
Table sizemm1200*600
Load-bearing capacitykg800
T-Slotmm5-18×100
Maximum Left/Right Travel (X-axis)mm1100
Maximum Front/Back Travel (Y-axis)mm600
Maximum Vertical Travel (Z-axis)mm600
Maximum Distance from Spindle End Face to Table Surfacemm720
Minimum Distance from Spindle End Face to Table Surfacemm120
Distance from Spindle Center to Z-Axis Guide Surfacemm650
Tool Magazine TypeDisc
Tool Magazine CapacityPcs24
Tool Change Times2.2
Maximum Tool DiametermmΦ80/Φ150
Maximum Tool Lengthmm200
Maximum Tool Weightkg8
Taper Hole (7:24)BT40-150
RPM Ranger/min8000
Spindle Rated power/peakkw11
Rapid Traverse (X-axis)m/min24
Rapid Traverse (Y-axis)m/min24
Rapid Traverse (Z-axis)m/min20
Feed Ratemm/min1-10000
Accuracy Testing StandardsJISB6336-4:2000/ GB/T18400.4-2010
X/Y/Z Axis accuracymm±0.005/300
X/Y/Z Axis Repeatabilitymm±0.005/300
Machine size(L*W*H)mm3300×2550×2800
Machine weightkg7800

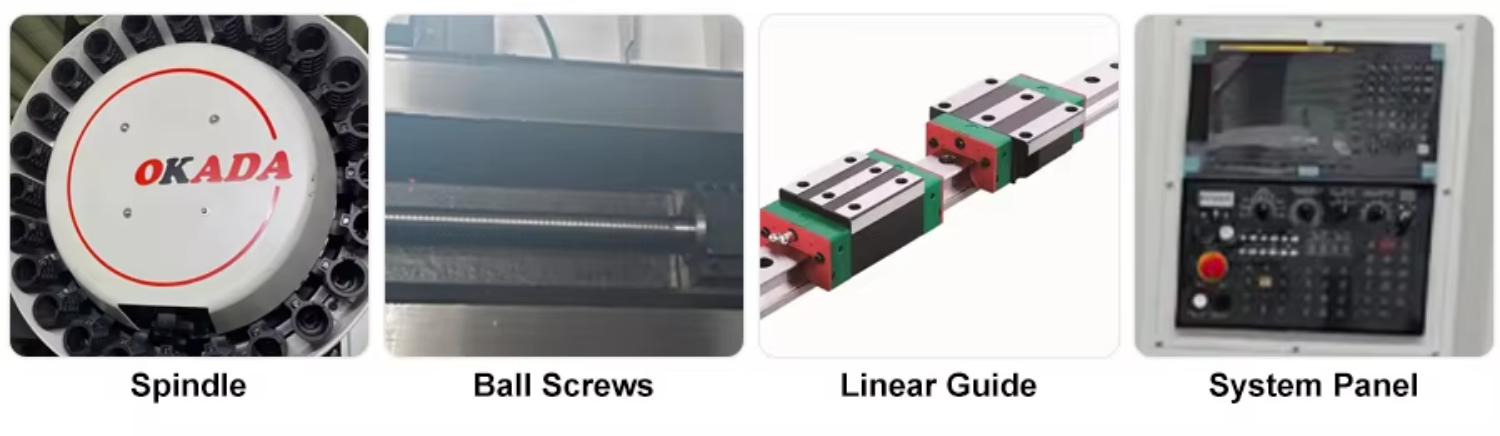

Detail Shot

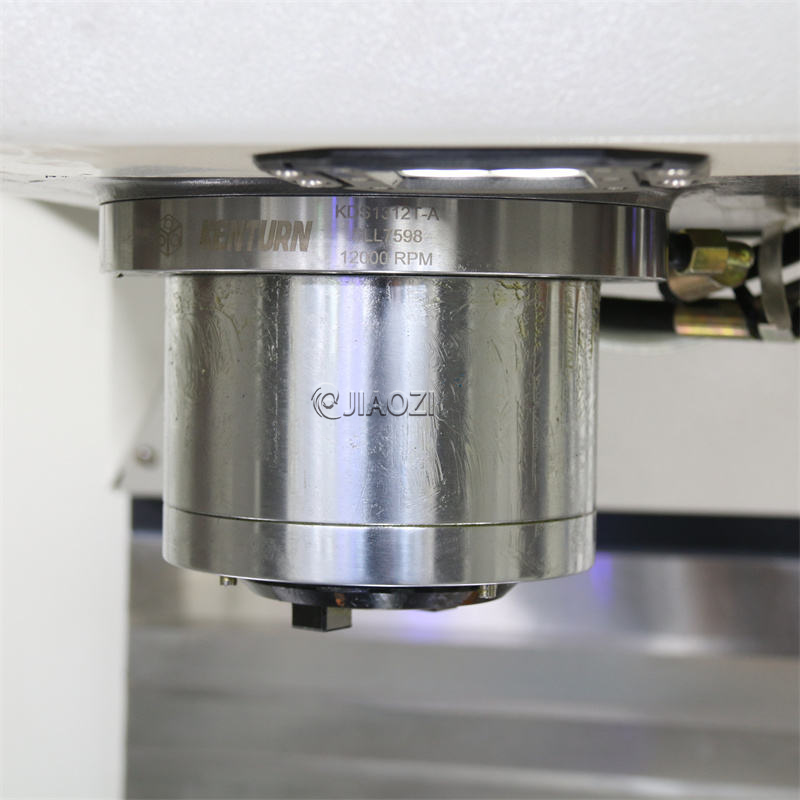

Precision spindle.
Precision spindle.

BT40 spindle, 8000 rpm, with cooling ring function.

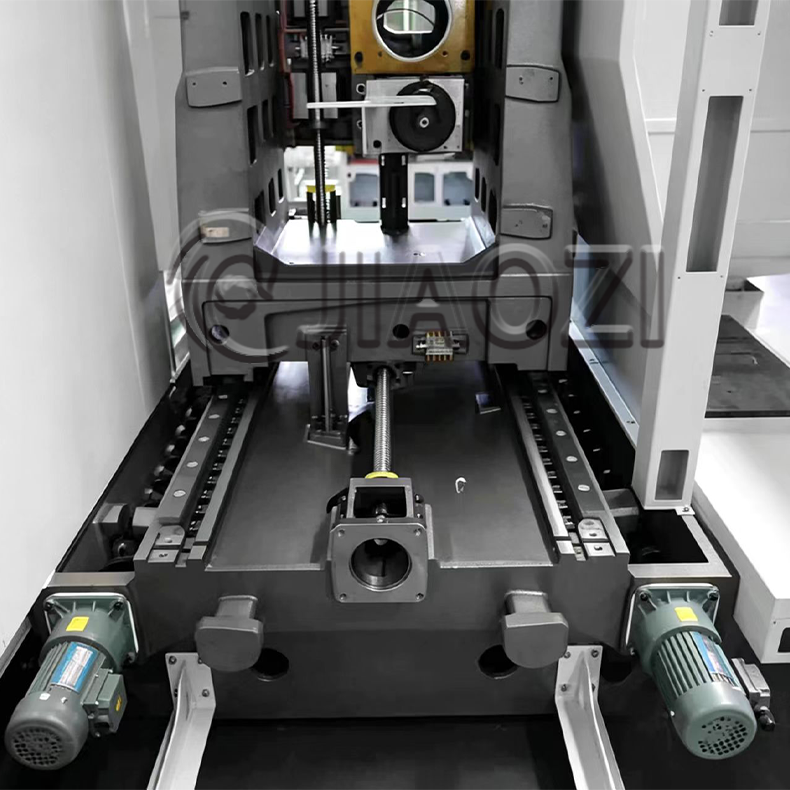

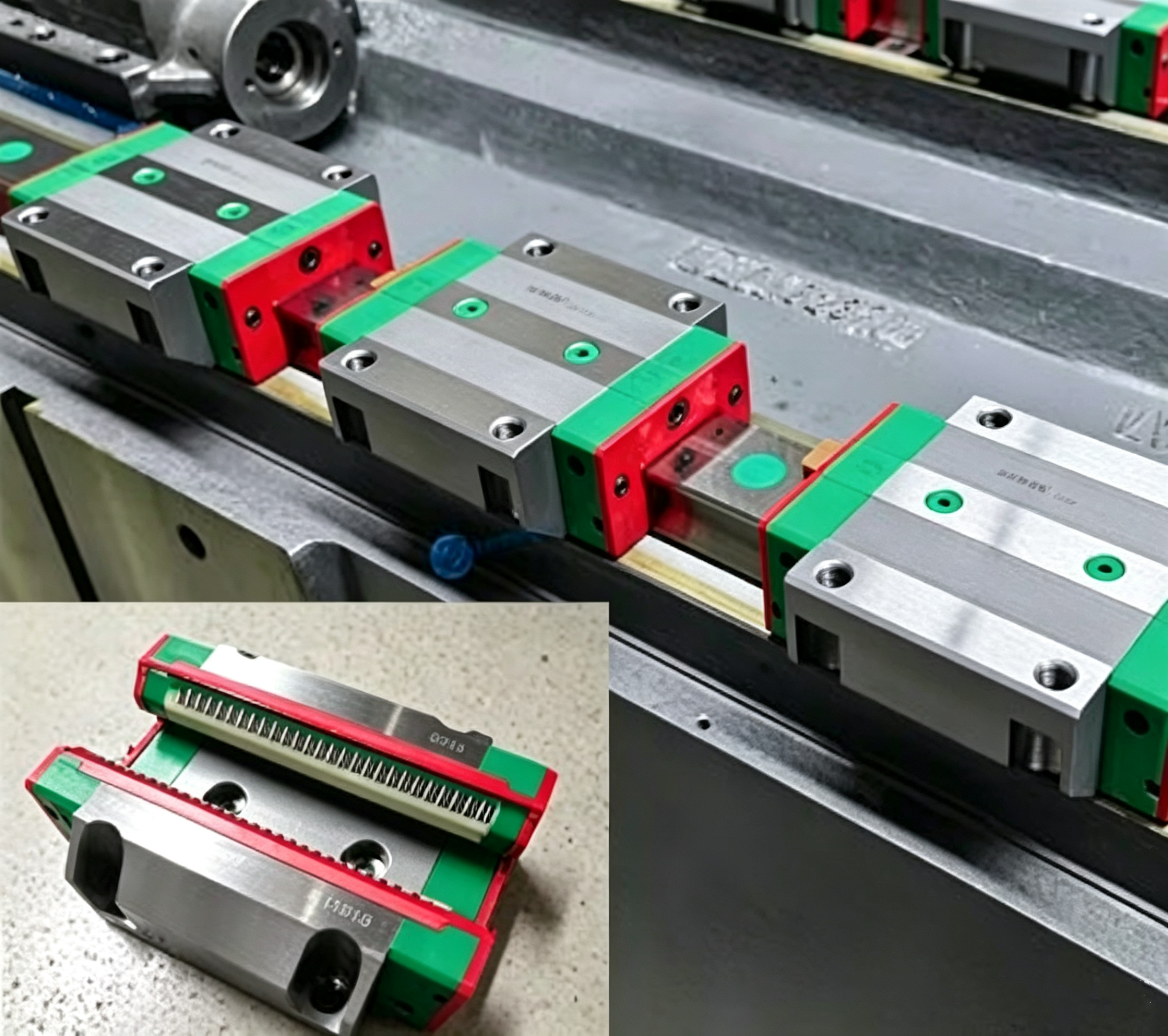

Precision linear guide rails.
Precision linear guide rails.

High-speed roller linear guide with positioning accuracy down to the μm level.

High-speed Vmc1160 Vmc CNC Milling Machine Fanuc / Mitsubishi / KND Control Metal Processing Center
Customized Service
High-speed Vmc1160 Vmc CNC Milling Machine Fanuc / Mitsubishi / KND Control Metal Processing Center

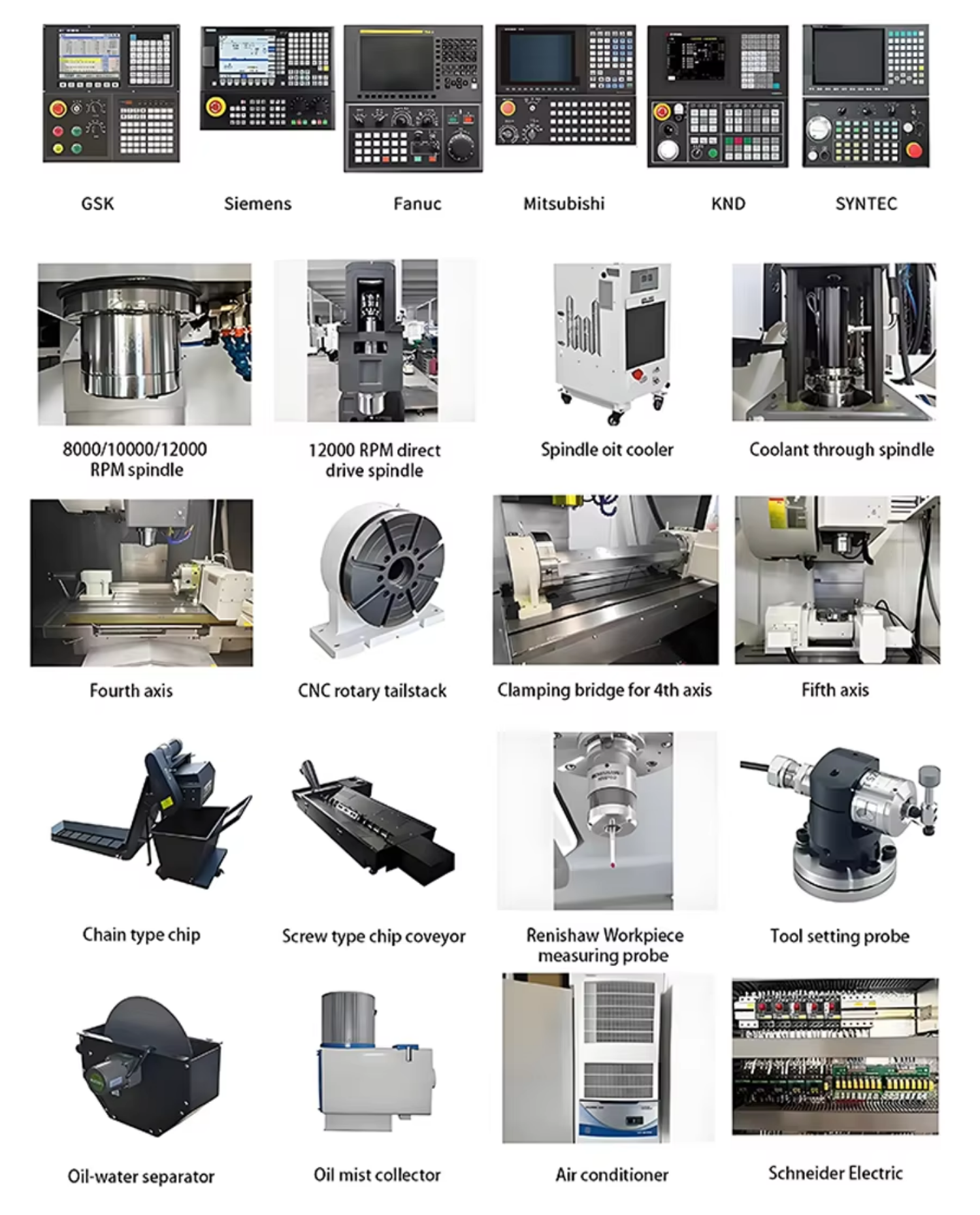

Optional Configuration
High-speed Vmc1160 Vmc CNC Milling Machine Fanuc / Mitsubishi / KND Control Metal Processing Center
Our Services
High-speed Vmc1160 Vmc CNC Milling Machine Fanuc / Mitsubishi / KND Control Metal Processing Center
Application Industry
High-speed Vmc1160 Vmc CNC Milling Machine Fanuc / Mitsubishi / KND Control Metal Processing Center

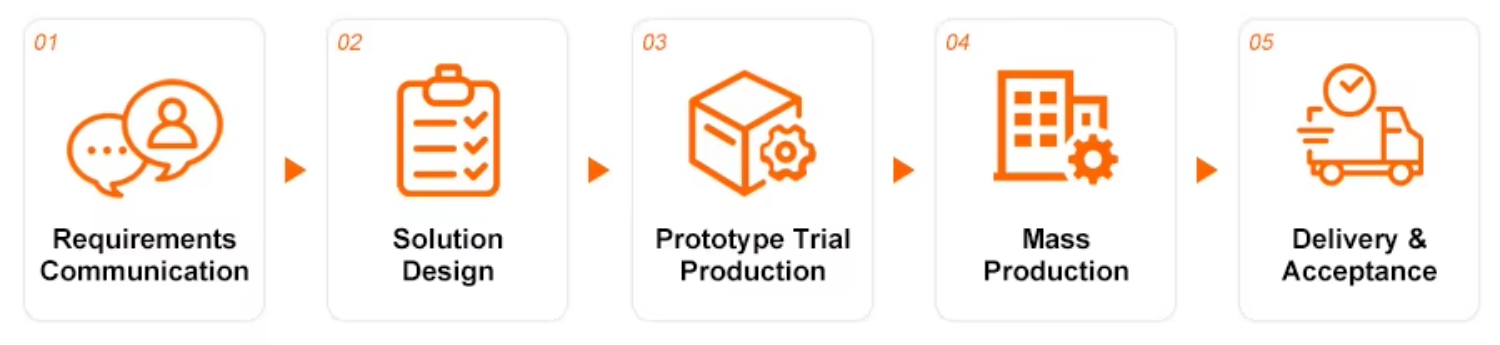

R&D Production Process
High-speed Vmc1160 Vmc CNC Milling Machine Fanuc / Mitsubishi / KND Control Metal Processing Center
About The Supplier
We have been committed to the development, production, sales and service of vertical machining center. At present, the company's products include: CNC gantry milling machine, CNC floor milling machine, CNC lathe, and guide rail grinding machine for heavy machine tools. Numerical control milling machine, numerical control grinder, numerical control lathe, machining center, car-milling composite machine, Laser engraving, drilling center, five-axis joint blade / impeller processing center, CNC honing machine, high-precision outer circle grinding machine, CNC grinding machine, ordinary outer circle grinding machine, special grinding machine, ultra-precision machining machine, automatic production line, ordinary milling machine, complete set of equipment, functional parts, etc. Products are widely used in the automotive, aerospace, shipbuilding, power generation, rail transit, mold, machinery and other industries. The company always adheres to the business principles of integrity, innovation, excellent manufacturing, sincere service, and customer-oriented, providing machine tool products that meet customer needs, stable quality, superior technology, and efficient and high-quality services. After years of unremitting efforts, the company has formed a leading position in the mid-to-high-end vertical machining products, especially in the five-axis machine tool products. The company's vertical machining center products are continuously improved and innovated through independent research and development, as well as the introduction and absorption of foreign advanced technologies, and have won high recognition in many fields such as automobiles and molds through standardized production assembly processes and a perfect quality management system. The overall rich product line adopts modular design and production to meet the diversified needs of customers, adopts constantly optimized product structure, high-quality accessories, and high-standard inspection requirements to ensure the efficient and high-quality products, and create greater value for customers. In addition, the company has always adhered to the independent innovation technology route and cultivated independent intellectual property rights. Achieve major scientific and technological breakthroughs in the realization of multiple high-end CNC machine tools; The company attaches great importance to the investment of technological innovation funds to maintain a continuous technological lead. As a manufacturer of domestic high-end CNC machine tools, The company will take market demand as the guide, strengthen the continuous innovation of product technology, strive to become the leading force of technological innovation in the field of CNC machine tools, become a supplier of specialized high-end CNC equipment, and comprehensively promote the development of enterprises and the entire machine tool industry.
Company Overview
High-speed Vmc1160 Vmc CNC Milling Machine Fanuc / Mitsubishi / KND Control Metal Processing Center

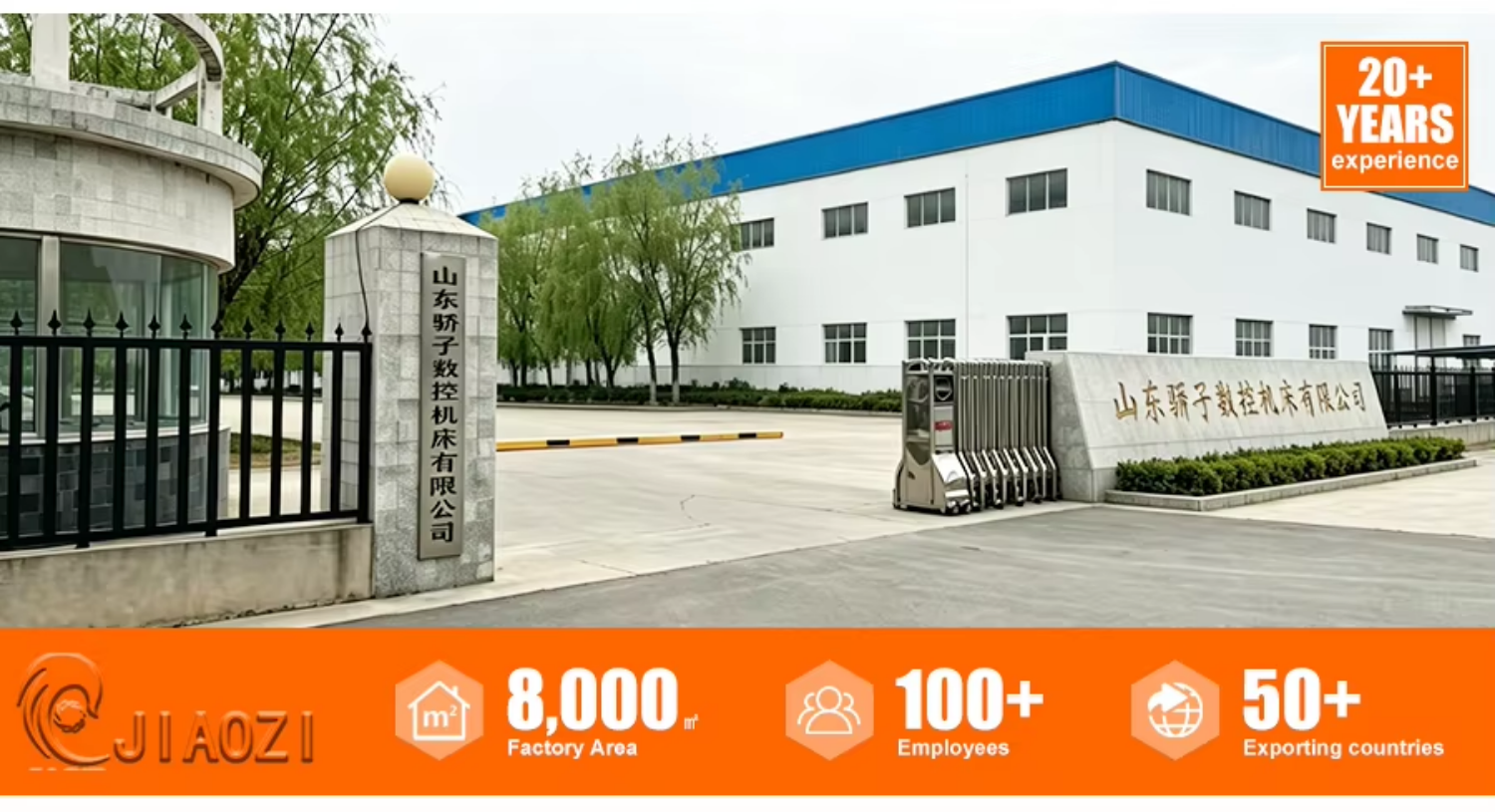

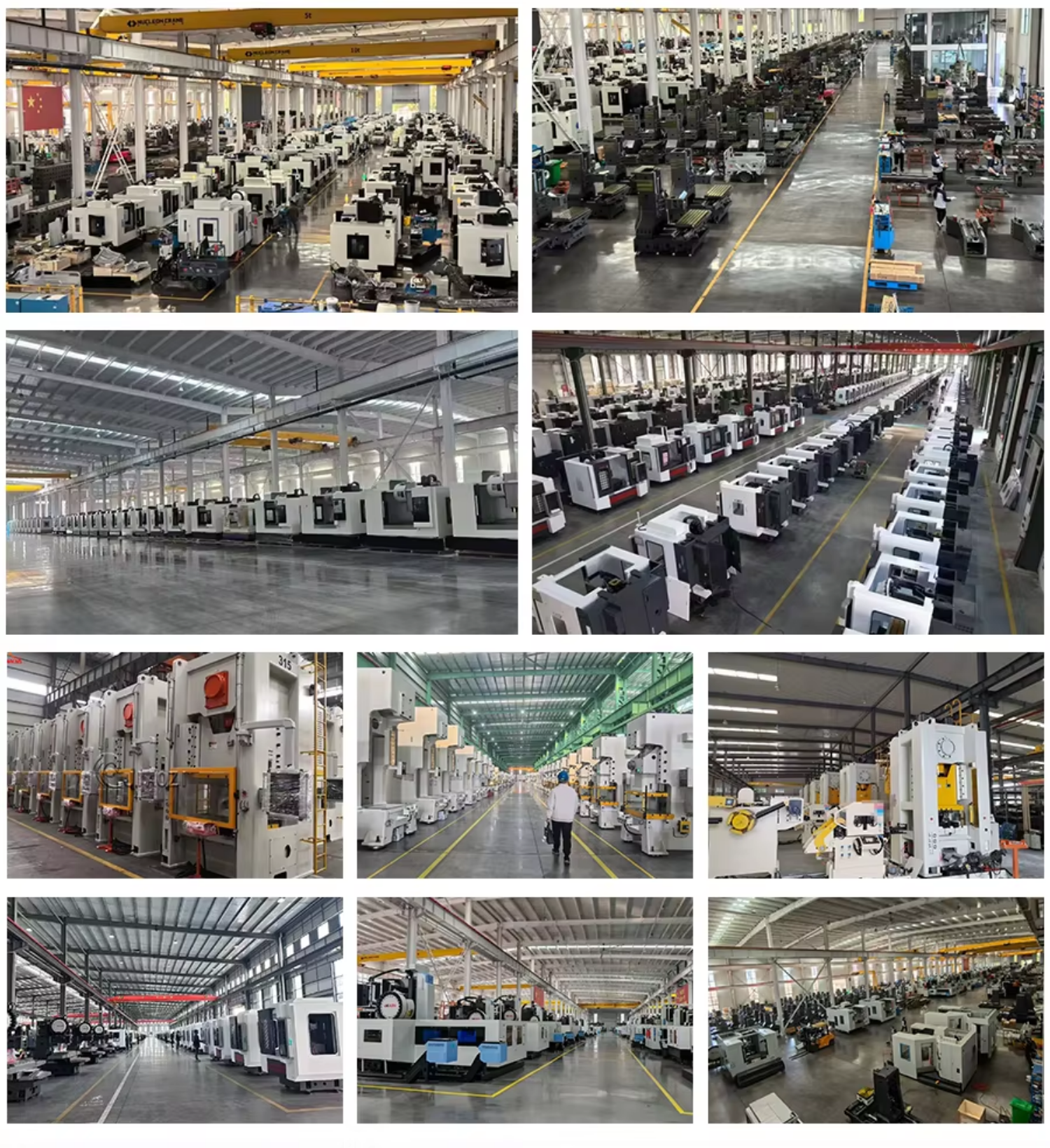

Factory Profile
High-speed Vmc1160 Vmc CNC Milling Machine Fanuc / Mitsubishi / KND Control Metal Processing Center
High-speed Vmc1160 Vmc CNC Milling Machine Fanuc / Mitsubishi / KND Control Metal Processing Center
Trade Show Participation
High-speed Vmc1160 Vmc CNC Milling Machine Fanuc / Mitsubishi / KND Control Metal Processing Center
Packaging & Shipping Specifications
High-speed Vmc1160 Vmc CNC Milling Machine Fanuc / Mitsubishi / KND Control Metal Processing Center
Frequently Asked Questions (FAQs)
?What are your company’s main products?

We specialize in manufacturing a wide variety of machines, such as vertical machining centers, horizontal machining centers, milling machines, CNC shaper machines, CNC lathe machines, arm drilling machines, and punching presses.

?What are the terms of payment?

Pay a 30% down payment upon placing the order, and pay the remaining 70% before shipment.

?How to choose the most suitable machine?

Please let me know your specifications, and we can choose the best model for you, or you can specify a particular model. You can also send us the drawing/product, and we will select the most suitable machine for you.

?Is custom configuration possible?

Yes, it can be customized according to specific needs.

?What are the minimum order quantities and the warranty periods?

The minimum order quantity is one set, with a warranty period of 36 months.

?What kind of post-purchase support service do you offer?

We offer a 24-hour online service available at all times to address operational queries and provide technical assistance during the 36-month warranty period.
