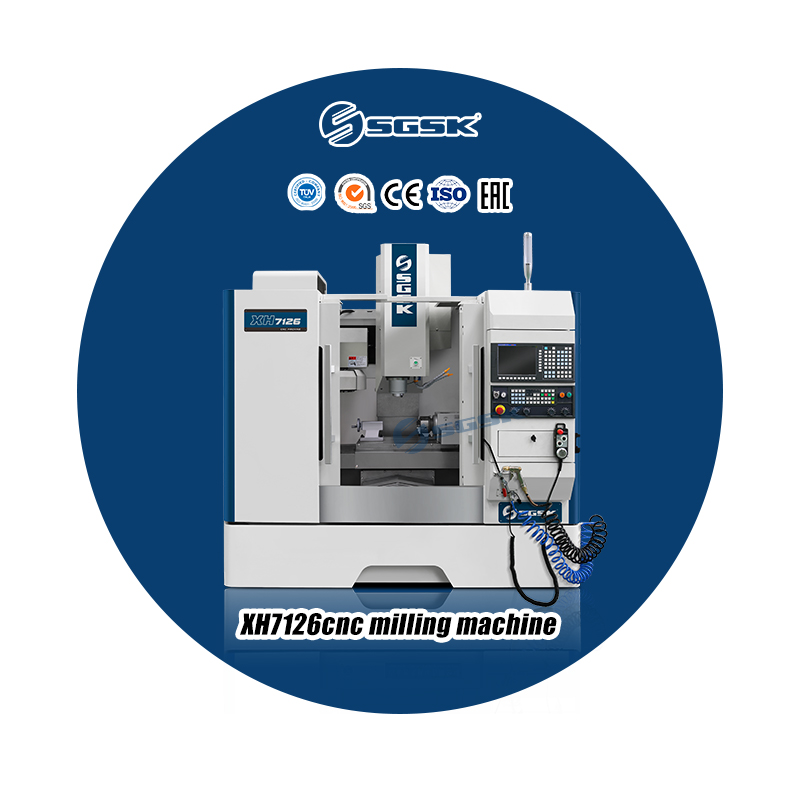

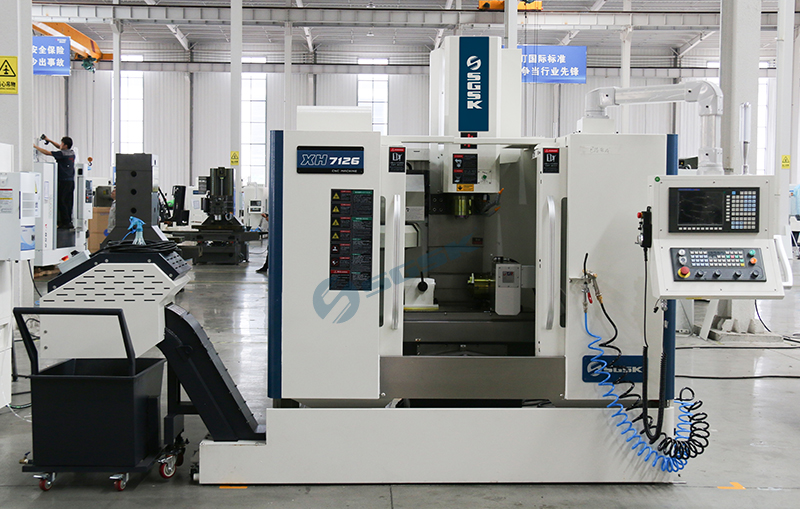

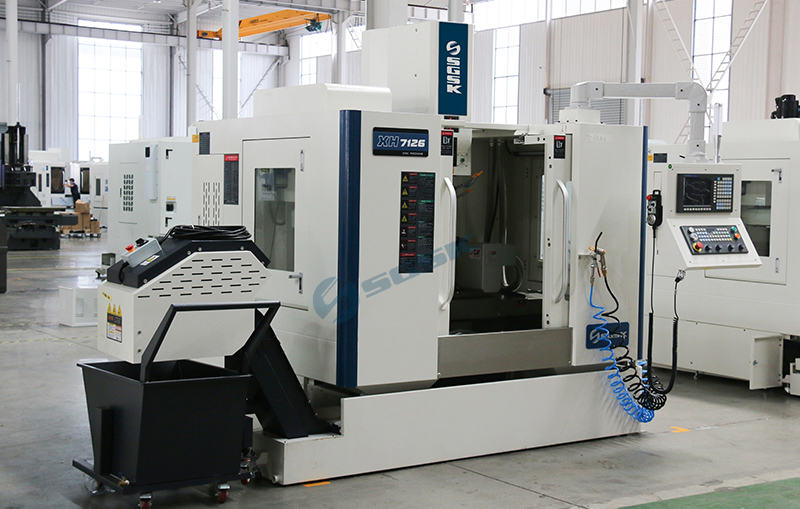

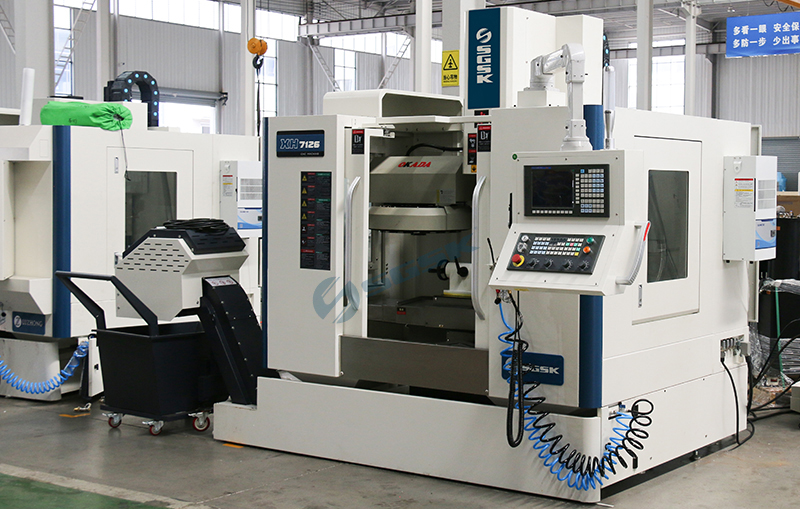

| Specifications | Units | XH7126 |
|---|---|---|
| Table size | mm | 800*300 |
| X axis travel | mm | 600 |
| Y axis travel | mm | 320 |
| Z axis travel | mm | 450 |
| Max. worktable load | kg | 300 |
| T slot(number-width*pitch) | - | 3-16*90 |
| Max. spindle speed | rpm | 8000 |
| Spindle taper | mm | BT40 |
| Main motor power | kw | 5.5 |
| X/Y/Z rapid traverse speed | m/min | 24/24/20 |
| Cutting feed speed | mm/min | 1-10000 |
| Guide rail type | - | Linear rail |
| Distance from spindle axis to column surface | mm | 410 |
| Distance between spindle nose and table surface | mm | 100-550 |
| Positioning accuracy | mm | 0.0075 |
| Repeat positioning accuracy | mm | 0.005 |
| Tool magazine | - | Armless 16 |
| Max. tool diameter | mm | φ90 |
| Max. tool weight | kg | 8 |
| Machine weight | kg | 3000 |
| Overall dimension(L*W*H) | mm | 1900*1700*2100 |

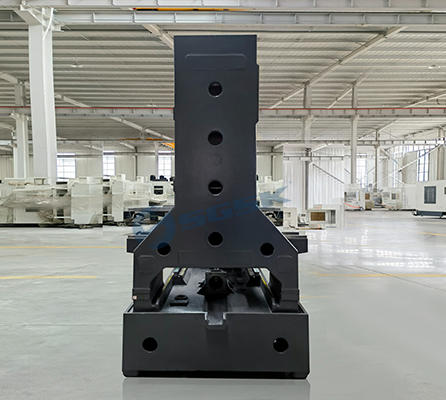

High strength high quality HT300 cast iron structure.

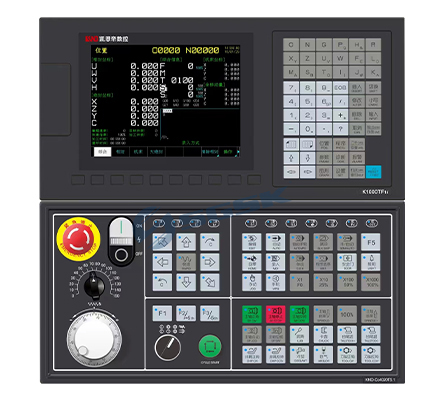

Standard: KND1000/GSK980MDi control system.

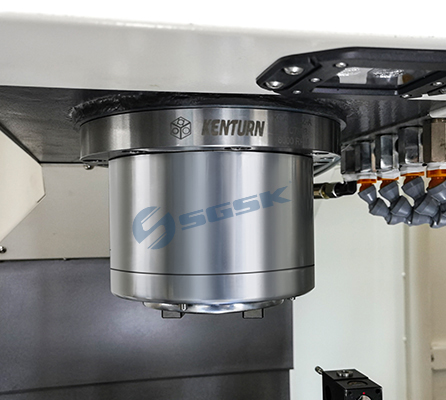

1. Taiwan spindle BT40 8000rpm.
2. Passed dynamic balance ISO rating test.

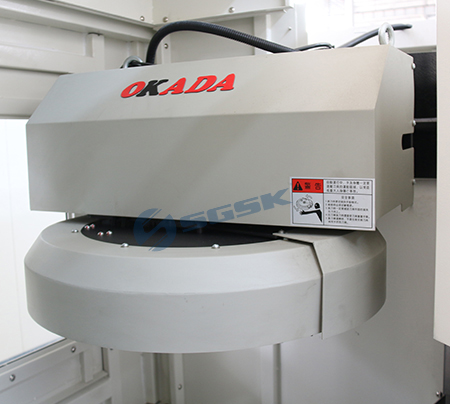

1. Taiwan OKADA armless 16 tool magazine.
2. Tool change time is only 6-7 seconds.

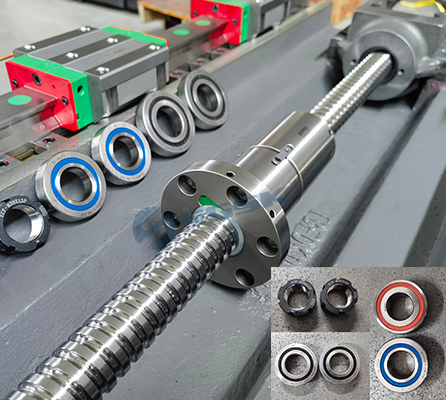

1. Famous brand lead screw.
2. SKF or NACHI bearings.
3. YC direct connection coupling.

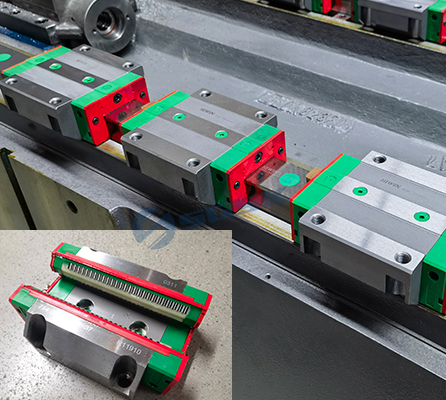

1. Taiwan high speed roller linear guide rail, positioning accuracy can reach μm class.
2. Brand: HIWIN or PMI.

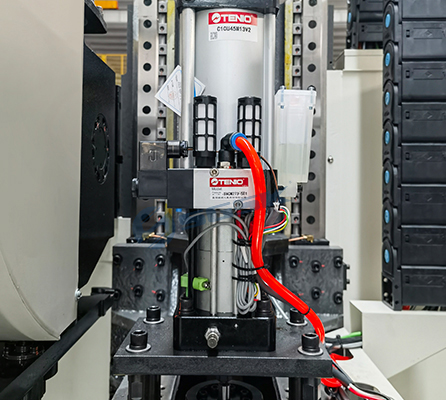

Taiwan high-reliability spindle tool unclamp cylinder.

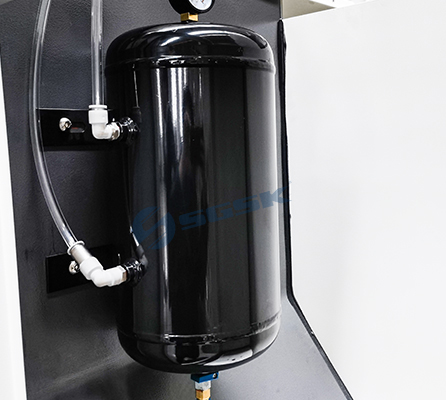

Dedicated air storage tank to ensure the stability of the spindle tool change.

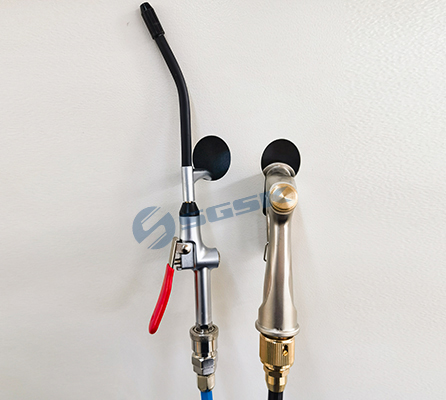

High-pressure air and water guns for easy cleaning and maintenance.

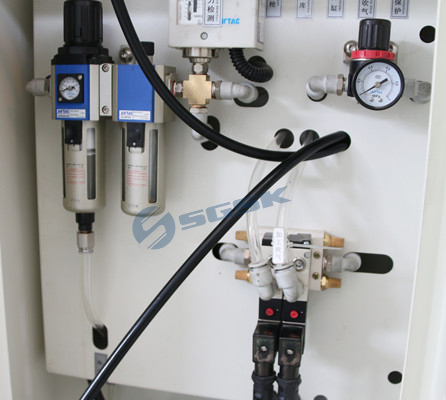

Equipped standard with quality AirTAC Pneumatic Components.

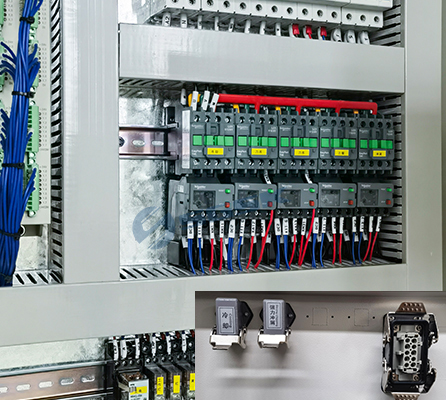

1. Equipped with Schneider safety electrical components.
2. Quick plug configuration as standard.

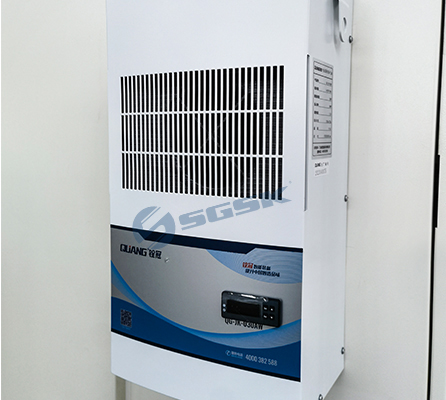

Industrial electrical cabinet air conditioner for better heat dissipation.

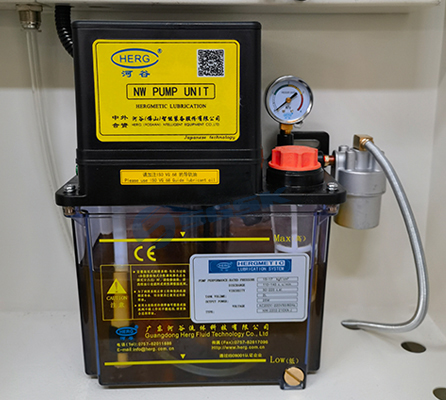

HERG automatic centralized lubrication device.

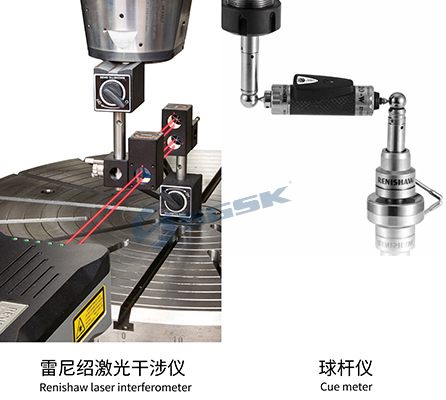

Each machine passes Renishaw laser interferometer and ballbar testing.

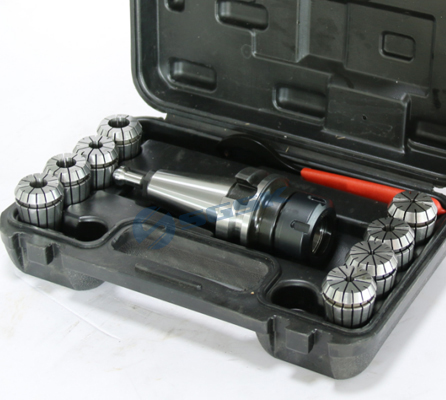

Standard configuration includes BT40 milling chuck set.

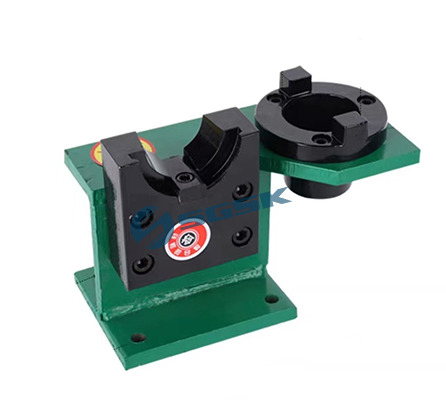

Rigid knife block standard accessories for secure tools setup.
The minimum order quantity (MOQ) is one set, and our standard product warranty is 18 months.

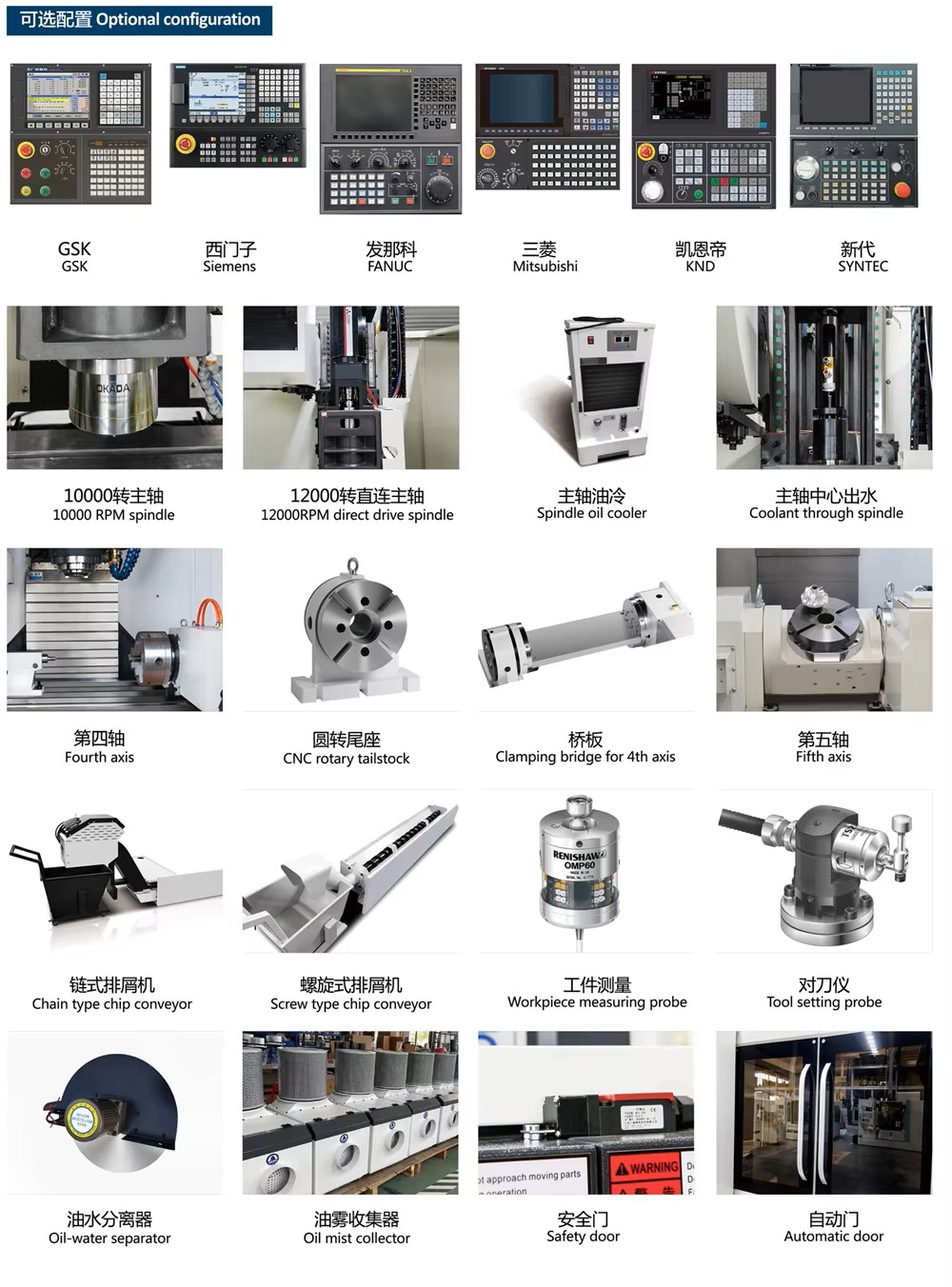

We offer configurations with FANUC, SIEMENS, MITSUBISHI, LNC, SYNTEC, GSK, and other major systems based on your specific operational needs.
For conventional machines, delivery is within 30-45 working days after receiving the deposit. Customized or special machines may require a longer lead time, which will be confirmed upon request.
The machines are securely packed on standard iron pallets wrapped in protective plastic film to prevent moisture and damage during transit.
You can share your specific machining requirements, dimensions, or technical drawings, and our engineering team will evaluate and recommend the most optimal model for your workflow.
We accept FOB, CFR, CIF, and other standard international trade terms. Payment terms are T/T (30% initial deposit upon ordering, 70% balance before shipment) or irrevocable LC at sight.
