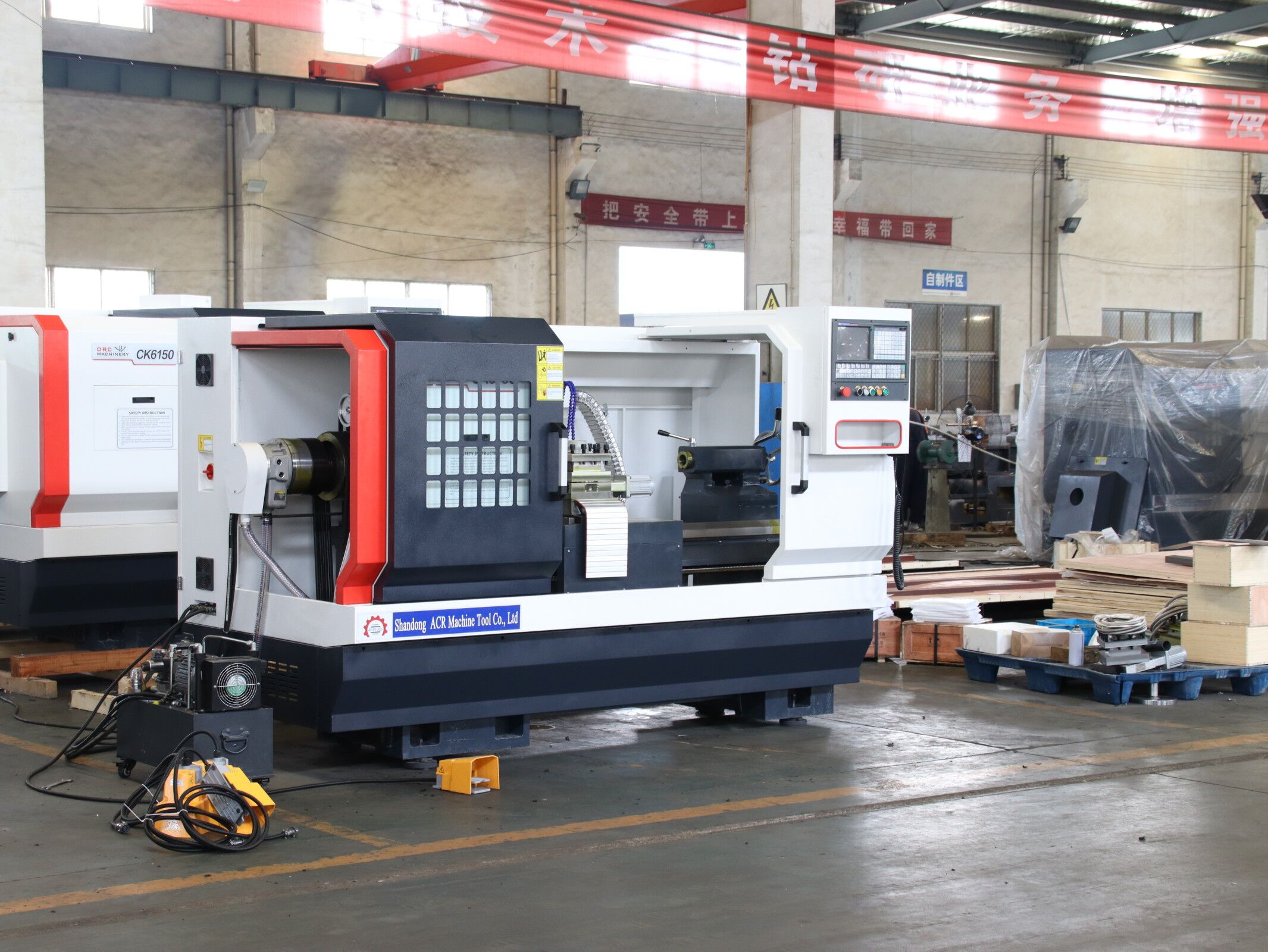

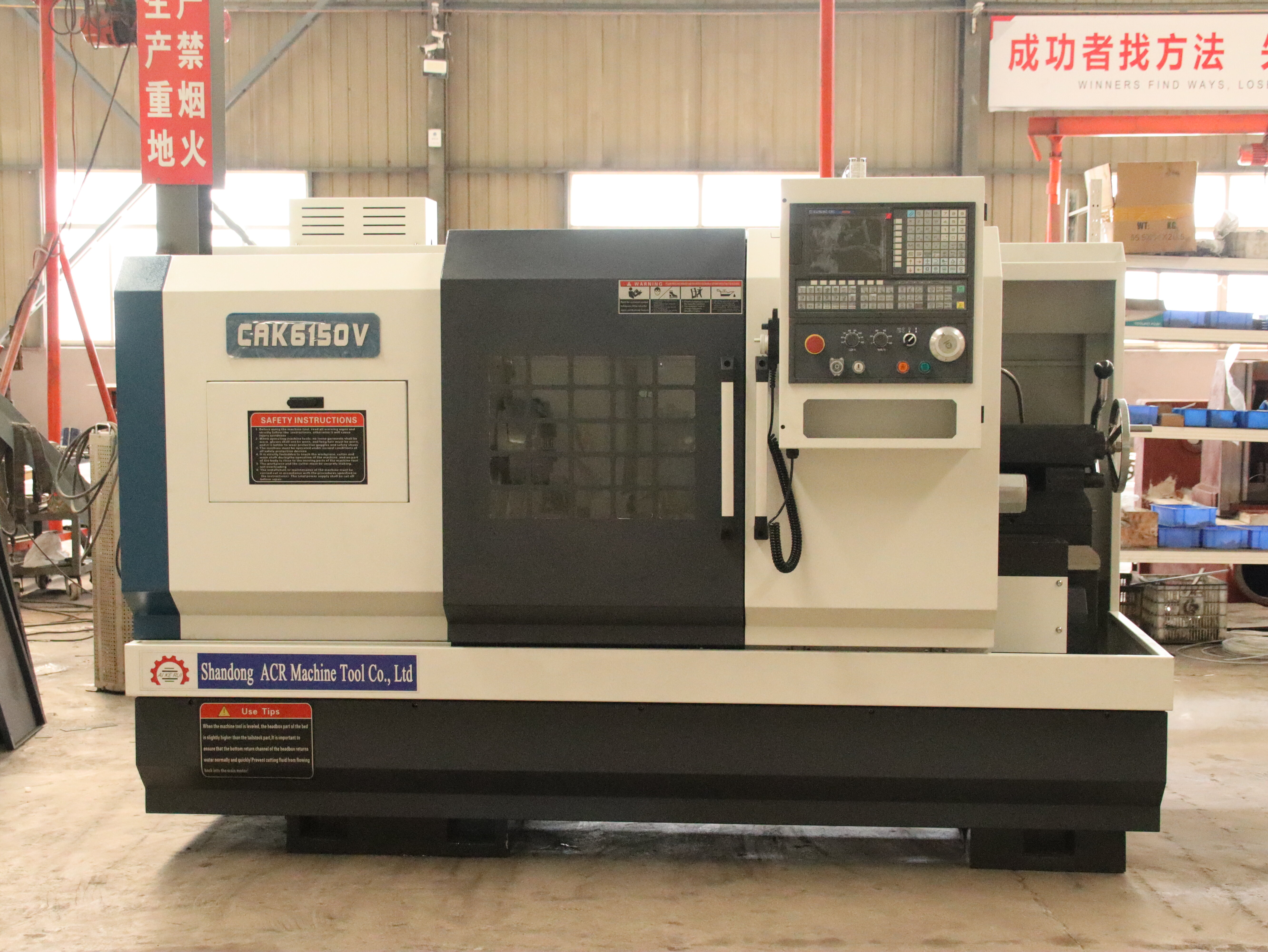

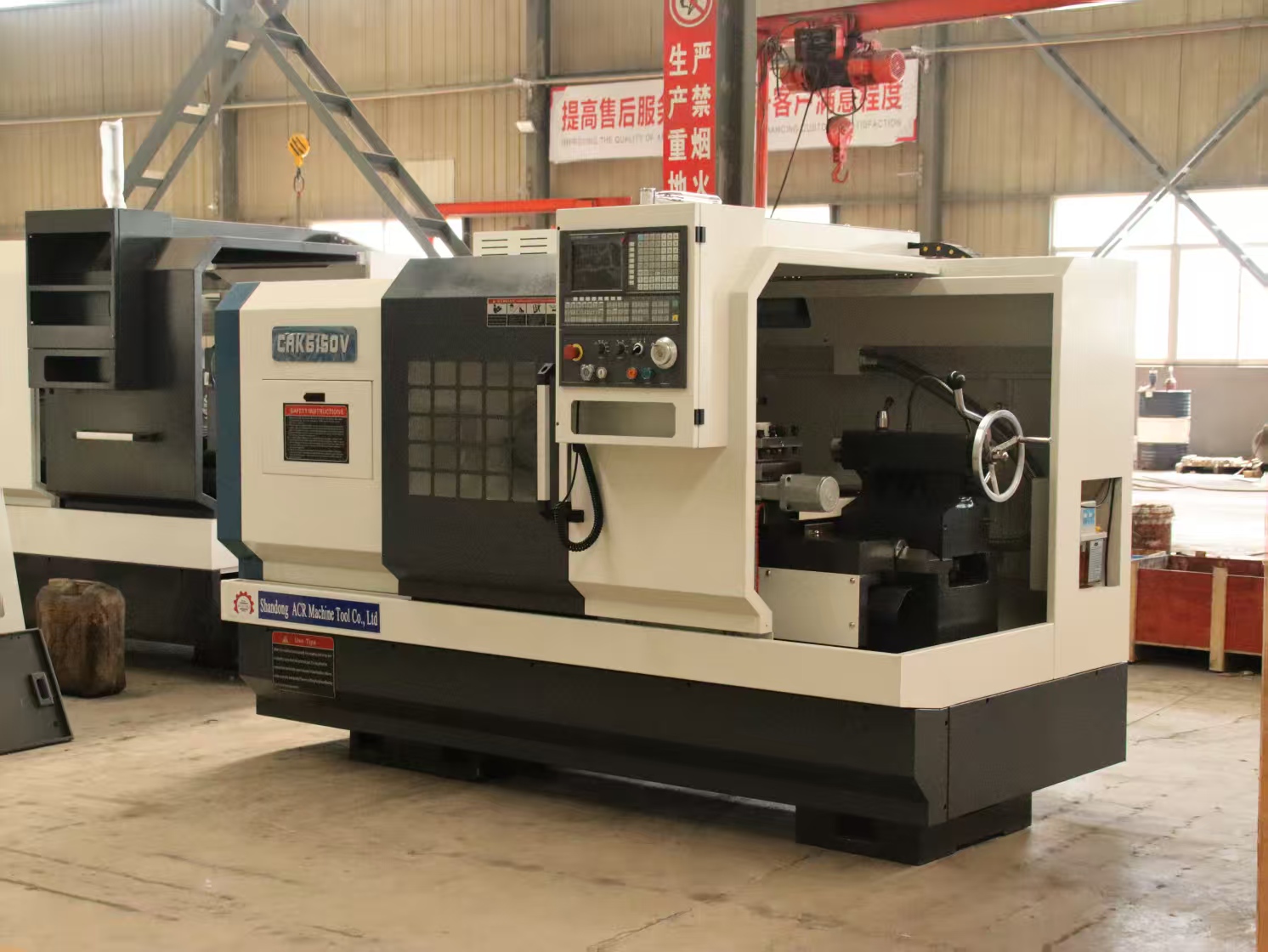

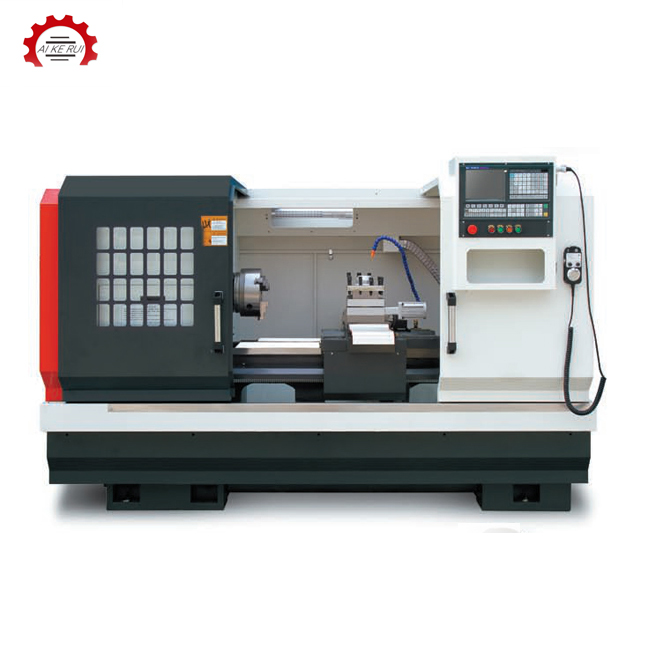

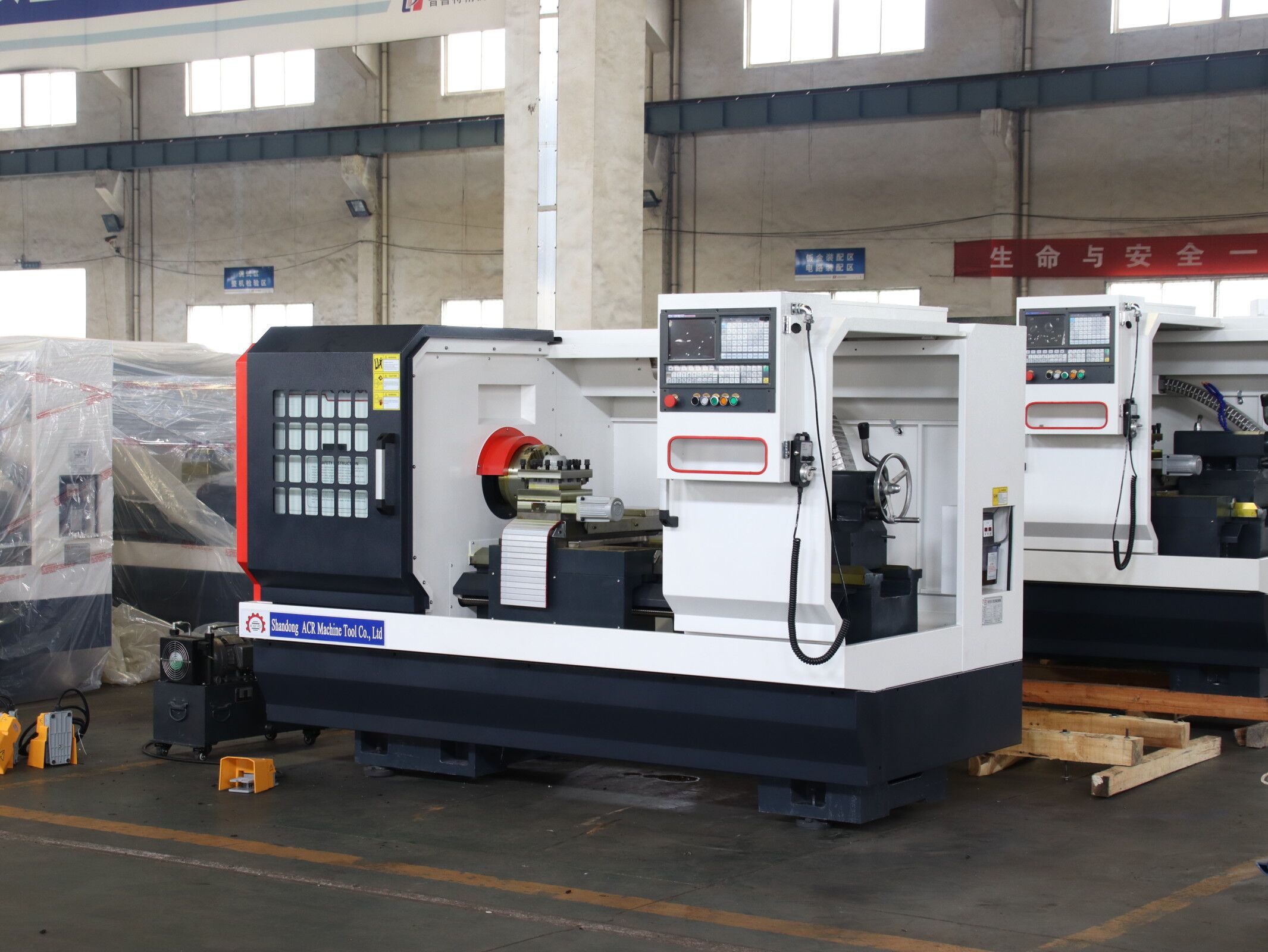

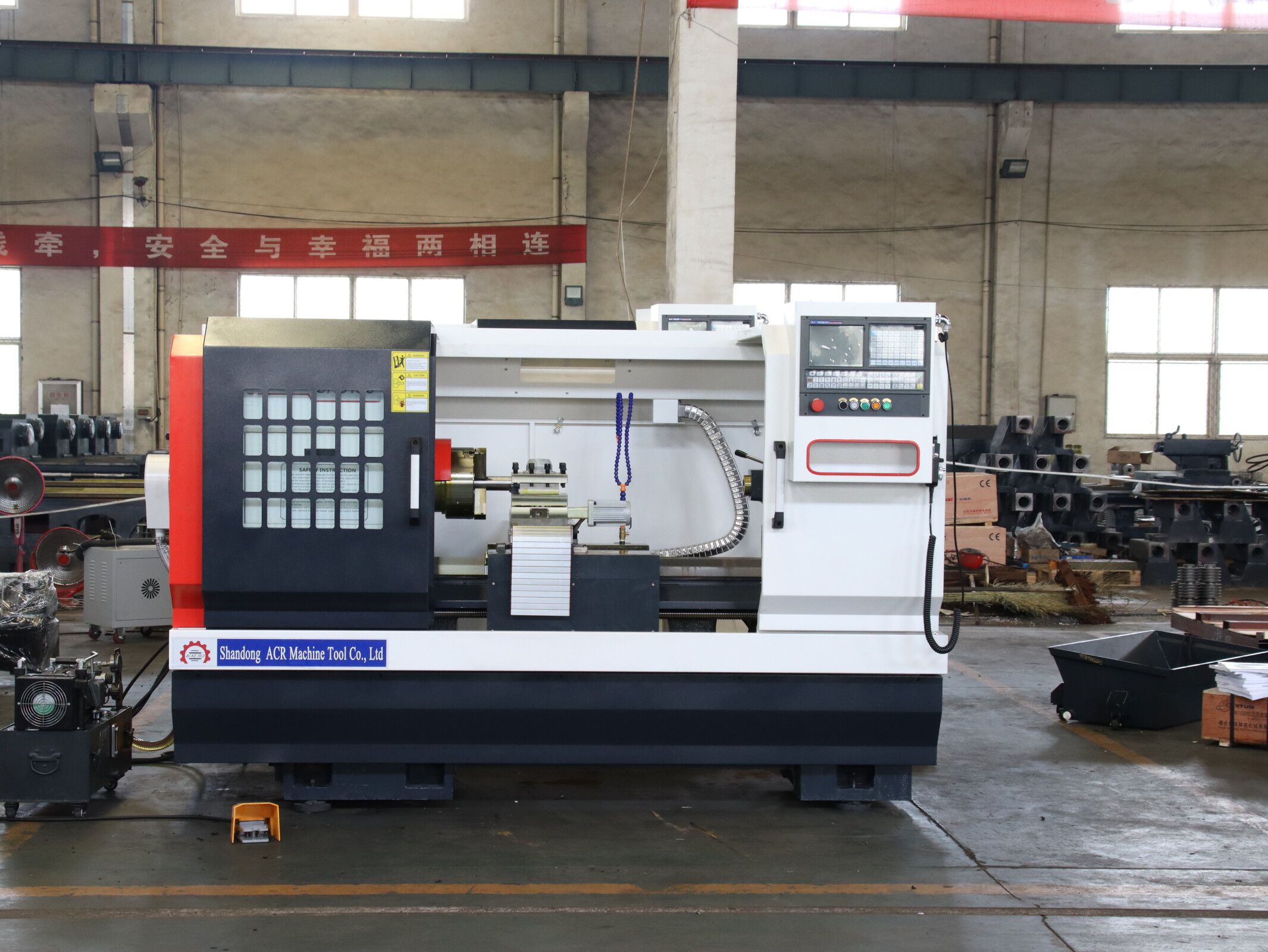

This series of CNC lathe is an economical CNC machine tool, is a general CNC automatic metal processing equipment, can carry out mechanical parts semi-finishing and finishing, with reliable structure, easy operation and economic and practical characteristics, suitable for all kinds of shaft and disc parts to automatically complete the internal and external cylindrical surface, conical surface, arc surface, end face, grooving, chamfering and other processes of cutting, and can turn metric straight thread, end thread and inch straight thread and taper thread and other kinds of turning.
| Specifications | Unit | CK6150 |
| Max. swing dia. over bed | mm | 500 |
| Max. swing dia. over slide | mm | 250/280 |
| Maximum turning diameter (disc type) | mm | 500 |
| Max. processing length | mm | 1000/1500/2000 |
| Maximum turning length | mm | 850/1350/1850 |

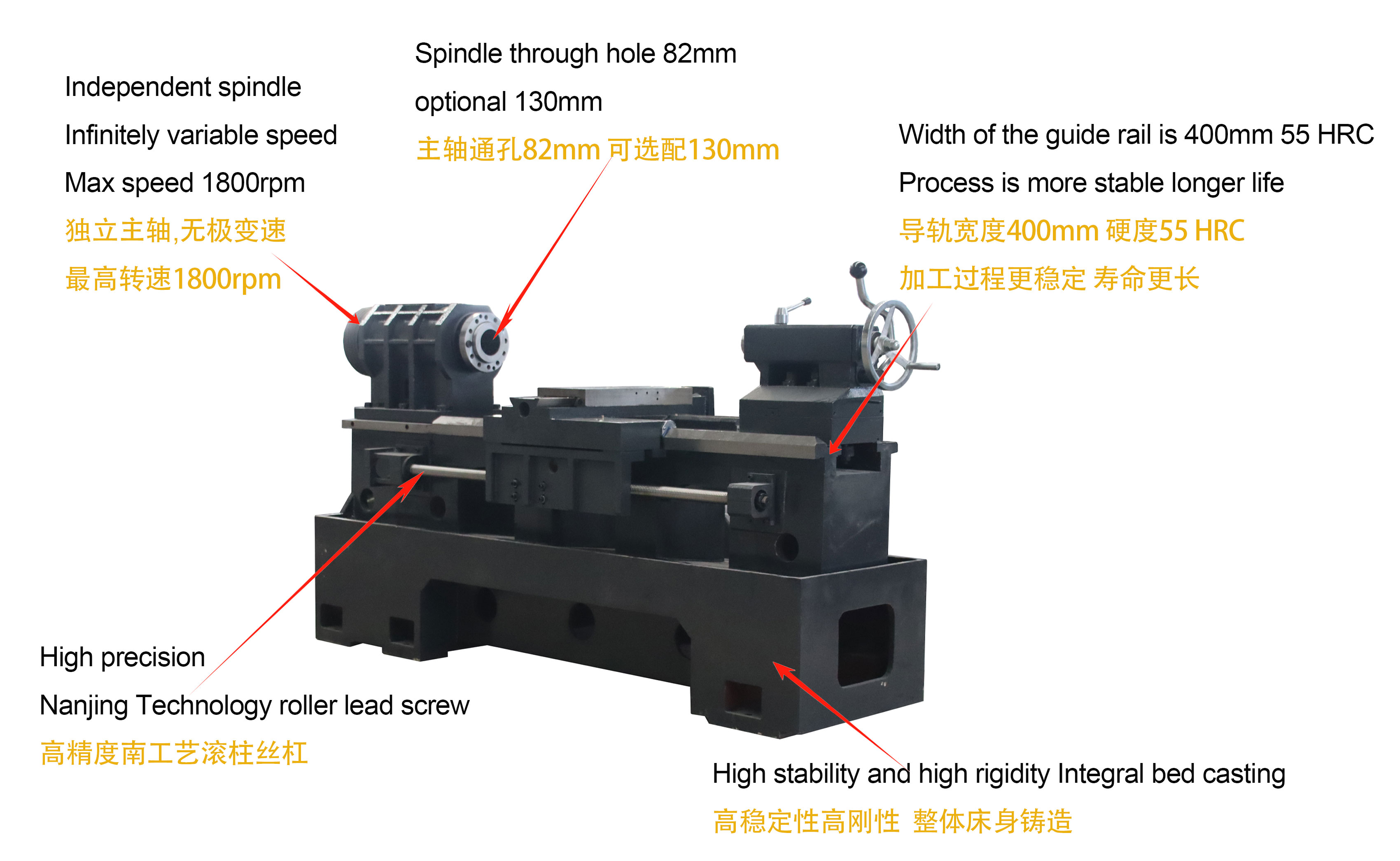

| Form and code of spindle end | A2-8/A2-11 | |
| Diameter of spindle through hole | mm | 82/130 |
| Spindle speed range | r/min | 150-1800/150-800 |
| Spindle shift mode | Stepless speed regulation | |
| Motor power of spindle | kw | 7.5 |

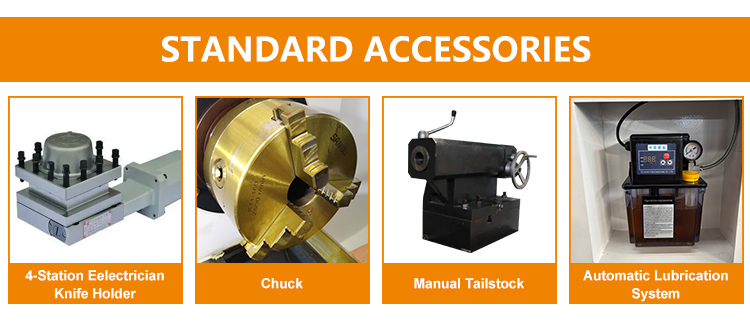

| Chuck type | Chuck | |
| Chuck size | inch | 10/15 |
| X axis rapid traverse | m/min | 6 |
| Z axis rapid traverse | m/min | 8 |
| X axis servo motor torque | N.m | 5/7.5 |
| Z axis servo motor torque | N.m | 7.5/10/15 |
| X axis travel | mm | 280 |
| Z axis travel | mm | 1000/1500/2000 |
| Capacity of tool holder | 4/6/8 | |
| Maximum tool cross section | mm | 25x25 |
| Tail stock quill dia | mm | 75 |
| Tail stock quill travel | mm | 150 |
| Tail stock quill taper | MT5# | |
| Total rated power | kw | 11/12/13 |
| Total rated current | A | 23/26/29 |
| Net weight | kg | 2700/3100/3300 |
| Machine dimension(L×W×H) | mm | 2650/3250/3750×1700×1820 |
