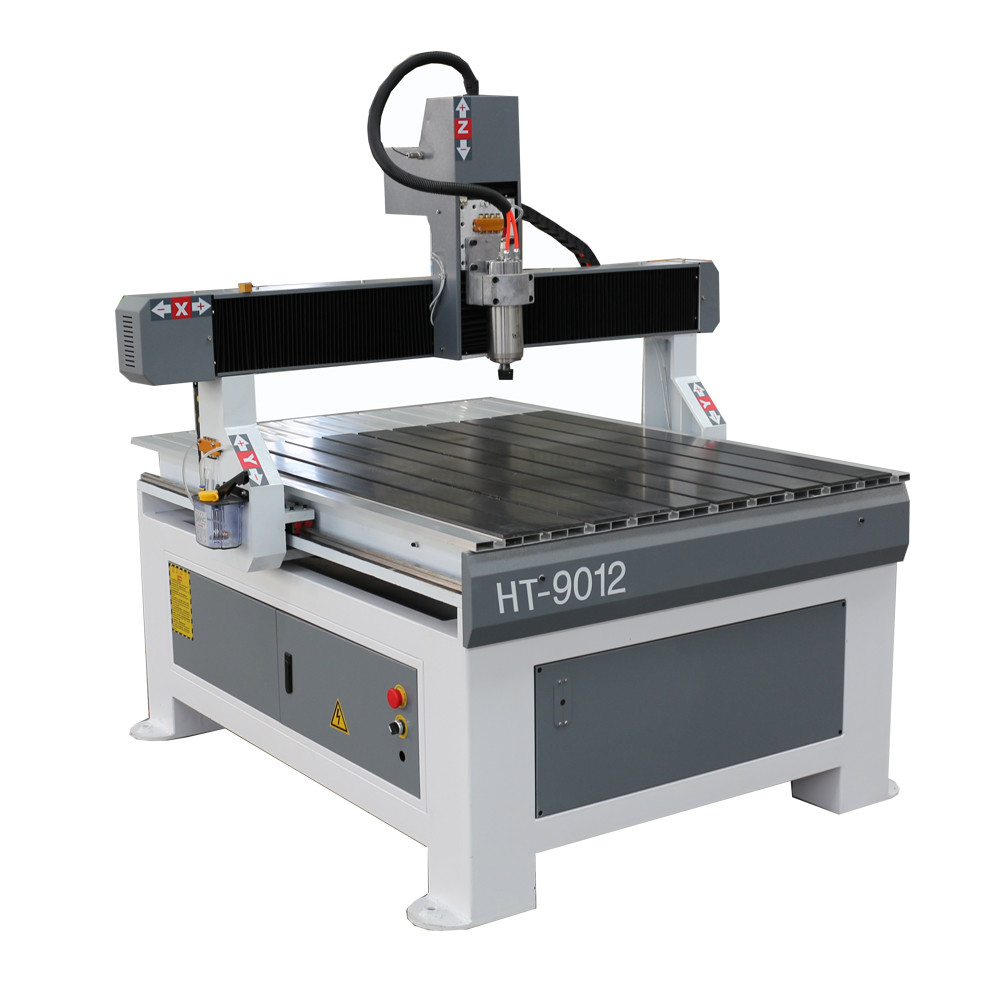

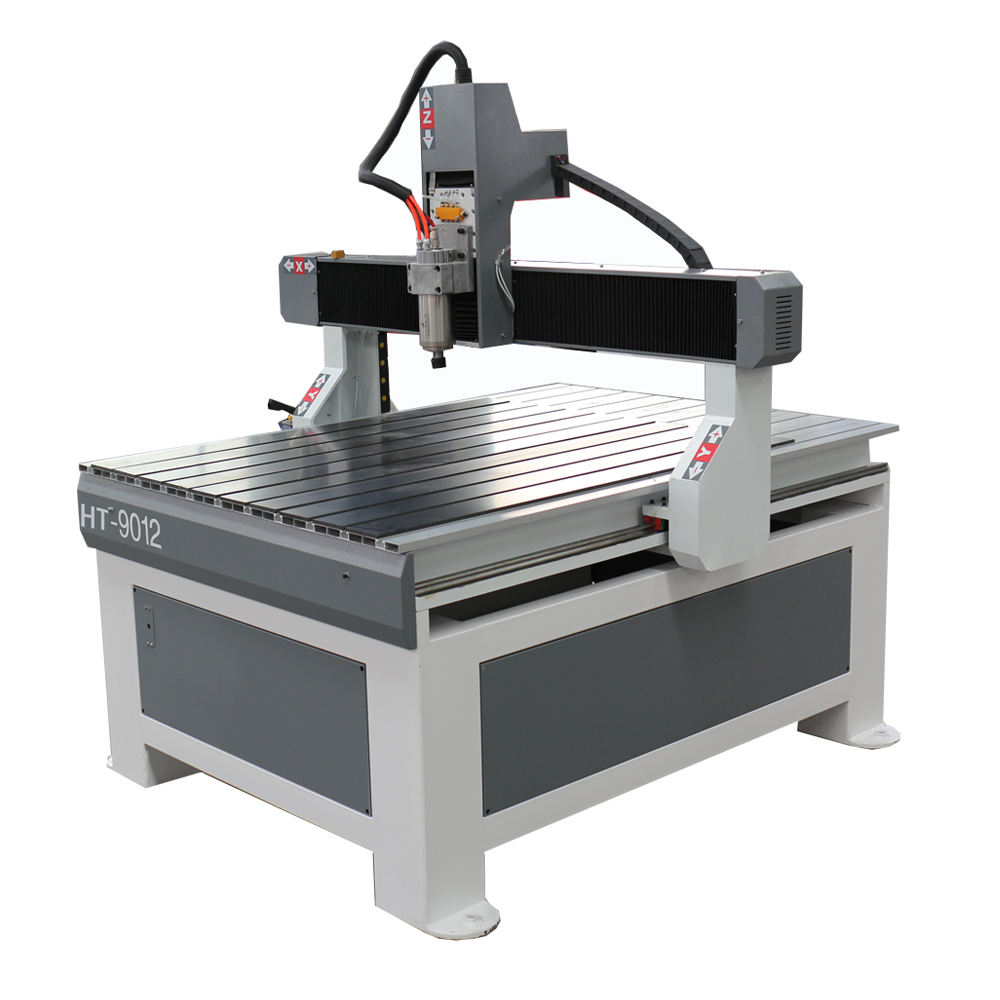

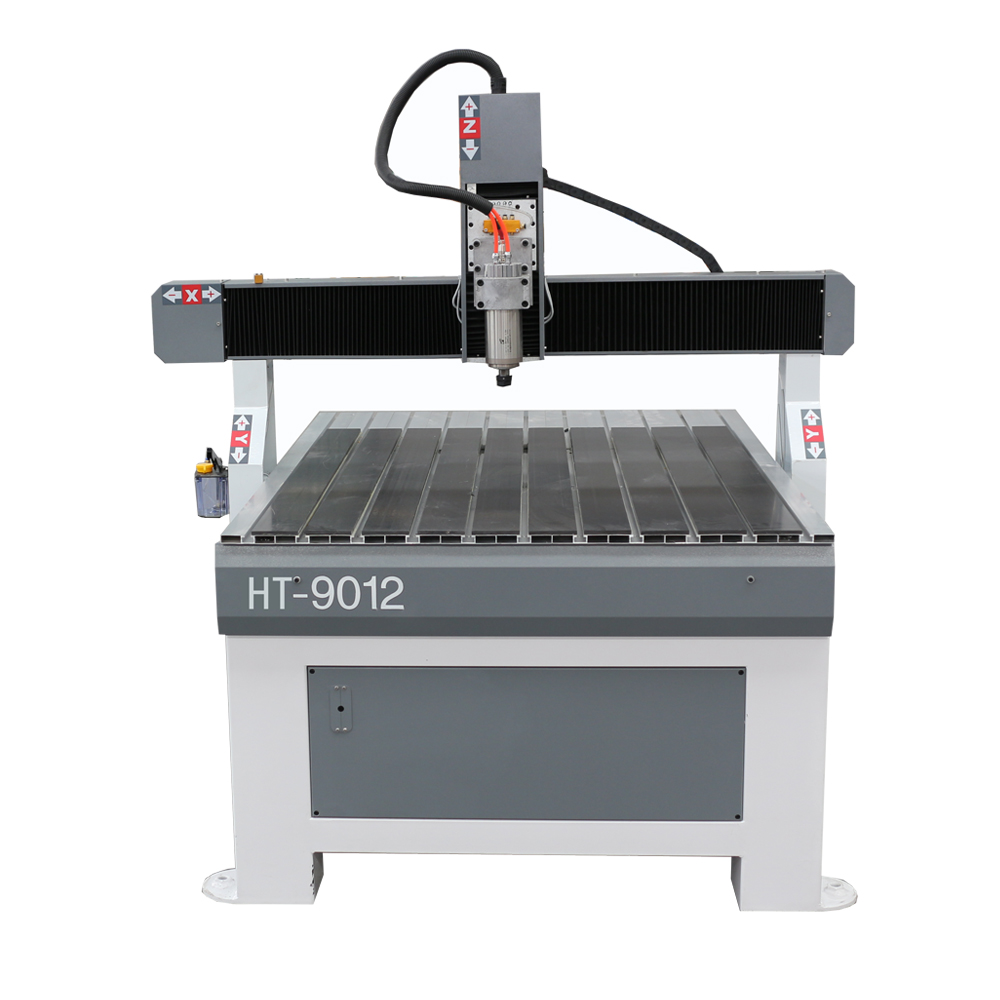

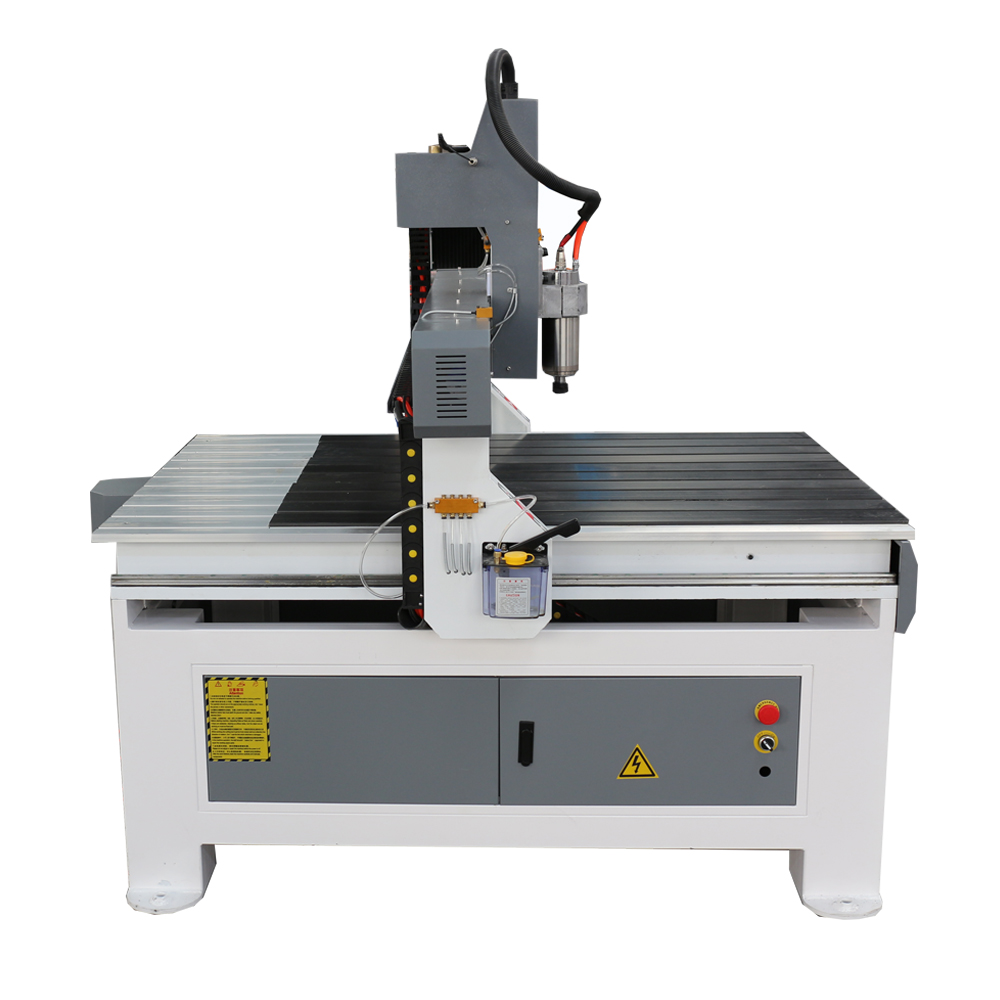

High Quality Small 9012 Wood Design CNC Router Milling Machine Desktop Mini CNC Router
Characteristics
- Steel tube welded frame with a highly stable structure.
- X-Y-Z axis adopts ball screw drive, ensuring high processing accuracy.
- 2.2KW Water-cooled spindle provides fast cooling speed and low noise levels.
- Equipped with a stepper motor and driver for stable and reliable operation.
- Weihong control system with multiple software compatibility for a more stable system performance.
Performance Parameter
| No. |
Description |
Parameter |
| 1 | XYZ working area | 900*1200*100mm |
| 2 | Table size | 1100*1500mm |
| 3 | XYZ travel positioning accuracy | ±0.01mm |
| 4 | XYZ repositioning positioning accuracy | ±0.02mm |
| 5 | Gantry | Aluminium molding |
| 6 | Lathe structure | Casting iron |
| 7 | Drive system X-Y axis | Ball screw |
| 8 | Drive system Z axis | Ball screw |
| 9 | Spindle power | 2.2KW |
| 10 | Max velocity | 8m/min |
| 11 | Max working speed | 6m/min |
| 12 | Spindle speed | 0-24000rpm |
| 13 | Work mode | Stepper |
| 14 | Working voltage | AC220V/380V |
| 15 | Command language | G code |
| 16 | Interface | USB or parallel port |
| 17 | Operating system | Ncstudio/DSP/Mach3 |
| 18 | Flash memory | 128 |
| 19 | X-Y resolution | <0.025mm |
| 20 | Software environment | Wentai type3 artcam |
| 21 | Running environment | Temperature: 0-45°C |
| 22 | Packing size | 1850*1550*1650mm |
| 23 | Net weight | 400kg |
| 24 | Gross weight | 500kg |

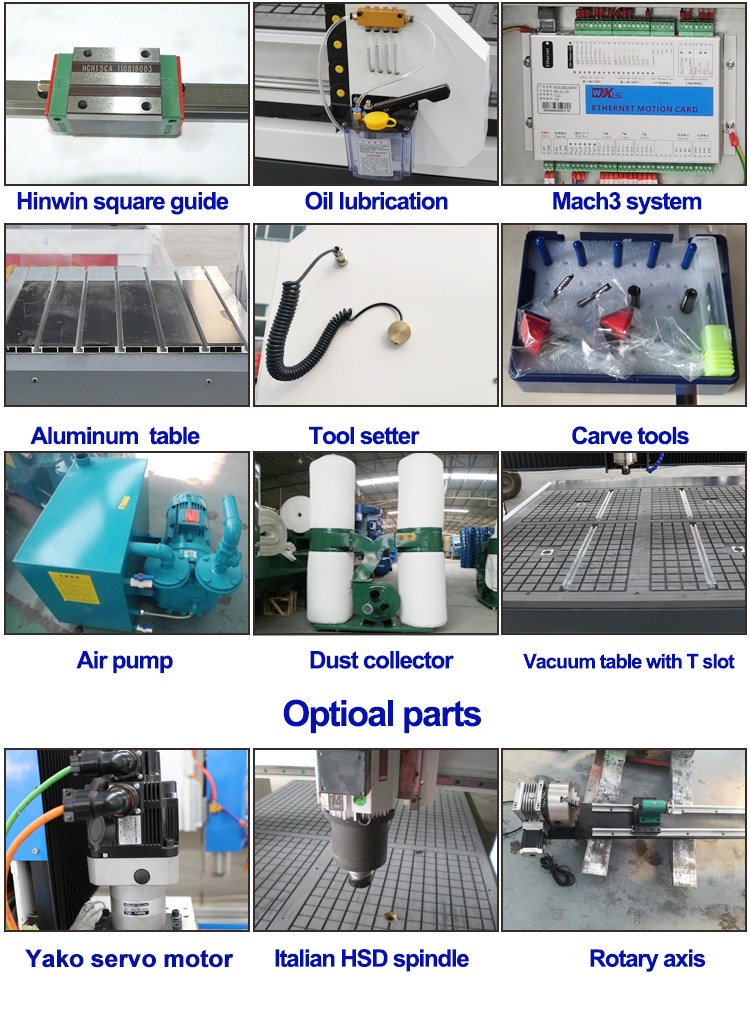

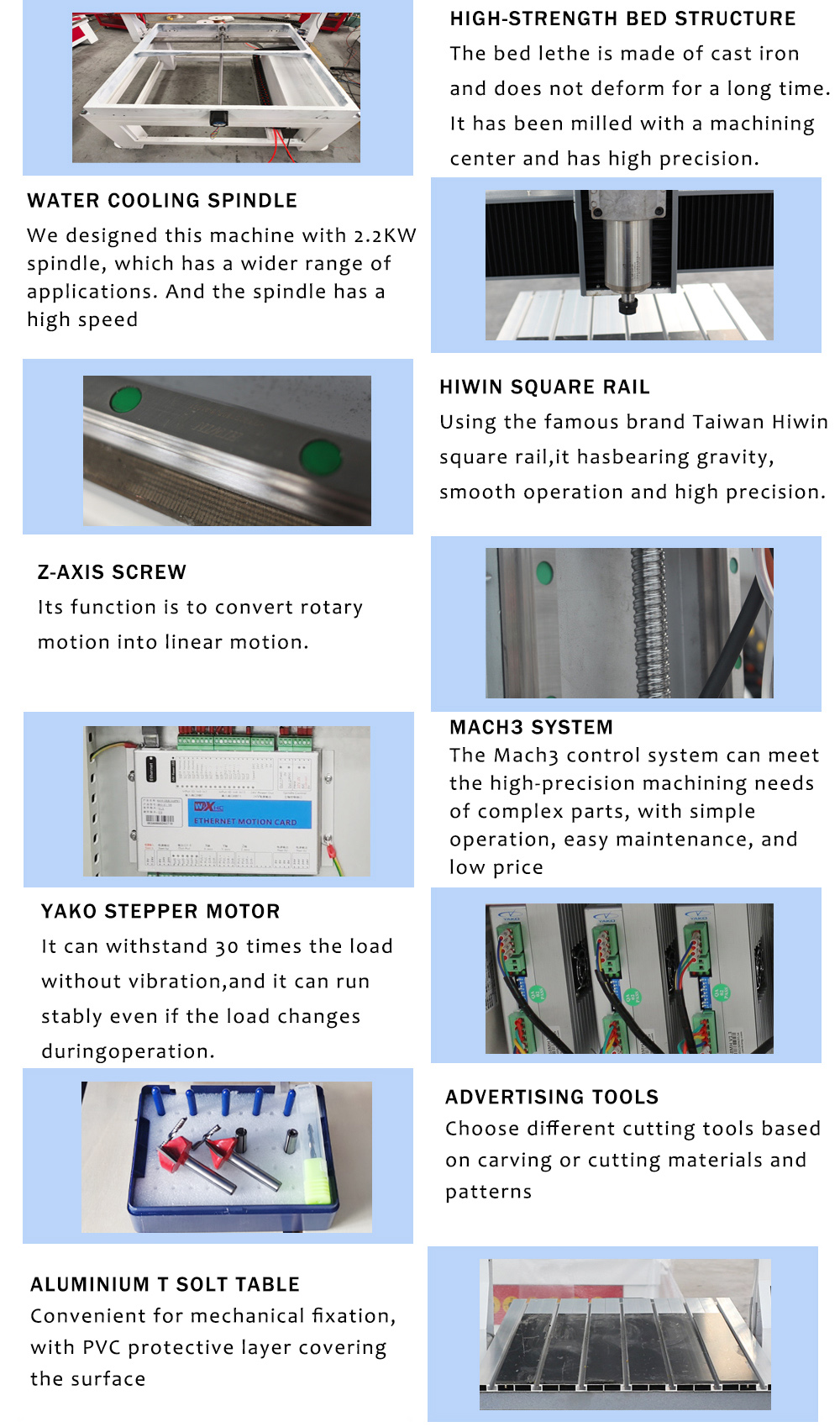

Main Parts

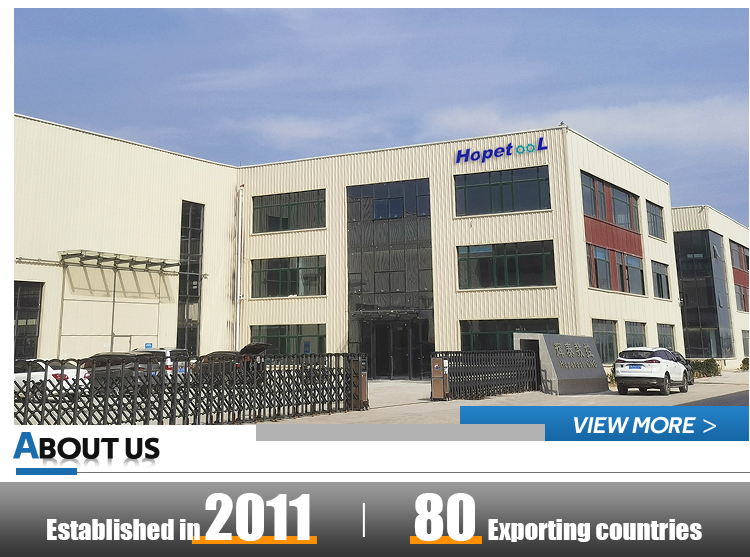

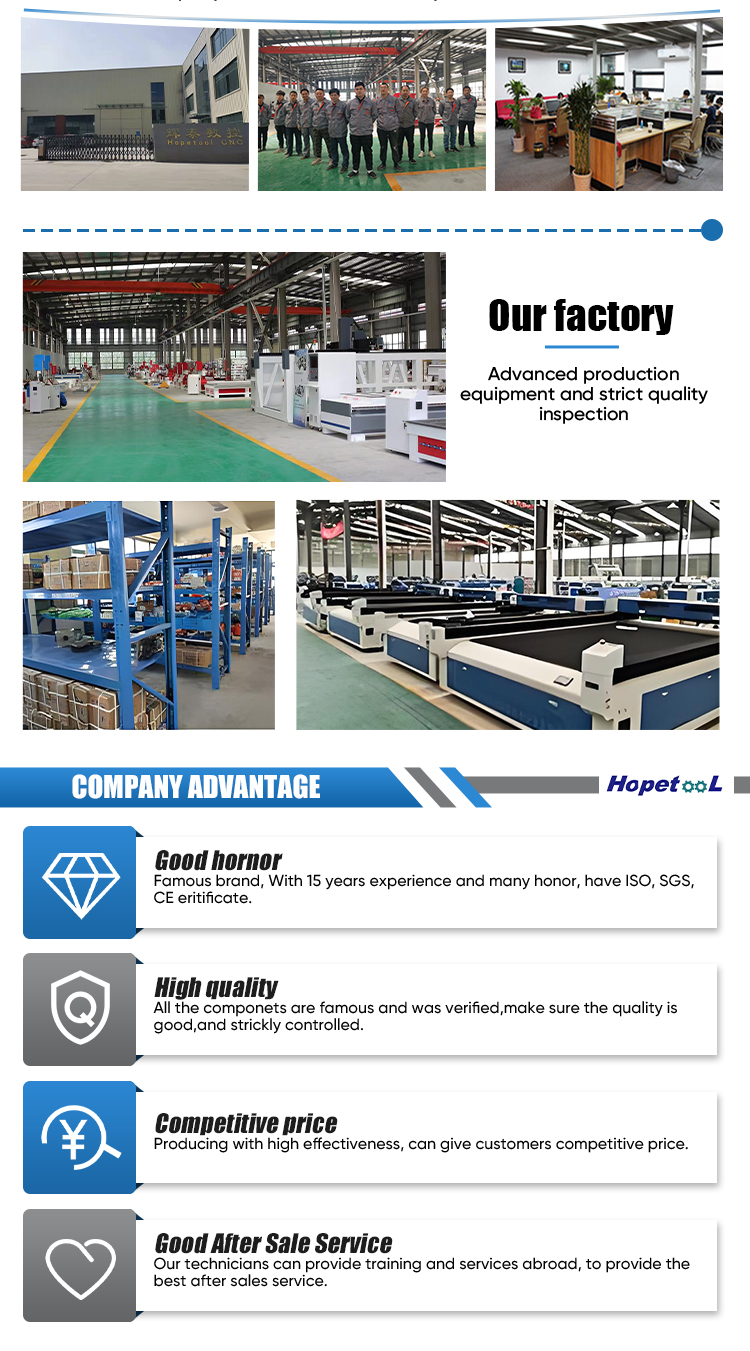

Manufacturing Capacity
We are a professional enterprise specializing in the development and manufacturing of CNC routers and CO2 laser machines. After 15 years of dedicated development, our machines have been exported to more than 80 countries, and we have established solid partnerships with distributors globally. Our main product range includes CNC routers, 1325 CO2 laser machines, 3000W 3015 fiber laser cutting machines, 3000W handheld laser welding/cutting machines, bridge stone cutting machines, sliding table saws, and 120A 1530 plasma cutting machines.
Support and After-Sales Service
Training and Use
- We provide the English version machine operation manual for installation and operation.
- Customers can visit our factory for comprehensive training.
- Our engineers are available to travel to customer facilities for onsite training.
Warranty and After-Sales Service
- We offer a 2-year warranty starting from the date the machine arrives at the destination port.
- 24-hour after-sales support is available; customers can contact us at any time.
- If technical challenges cannot be resolved remotely, engineers can provide onsite door-to-door assistance.
Frequently Asked Questions
How to get the most suitable machine and best price?
Please tell us the materials you want to work on and how you plan to process them (engraving, cutting, or other?). Also, please provide the maximum dimensions of the materials (Length, Width, and Thickness).
What are the payment terms?
We accept 30% or 50% T/T or secure payment methods in advance, with the balance due after the machine production is finished.
What is the production lead time after ordering?
The manufacturing duration is approximately 10 to 20 days depending on the specific machine configuration.
If we do not know how to operate the machine, can you provide training?
Yes. If you visit our facility, we will offer free hands-on training until you can operate the machine independently. If you cannot travel, we can dispatch a specialized engineer to your facility, provided you cover the travel expenses (tickets, meals, and accommodation).
How is your after-sales service structured?
We offer round-the-clock support via phone, instant messaging apps, or email. Our technical engineers are also available for onsite installation and troubleshooting visits.
How is product quality controlled?
Every stage of production undergoes strict quality inspections. The complete machine is fully tested to ensure optimum performance before leaving the factory. Testing videos and photos are provided to customers prior to shipping.
