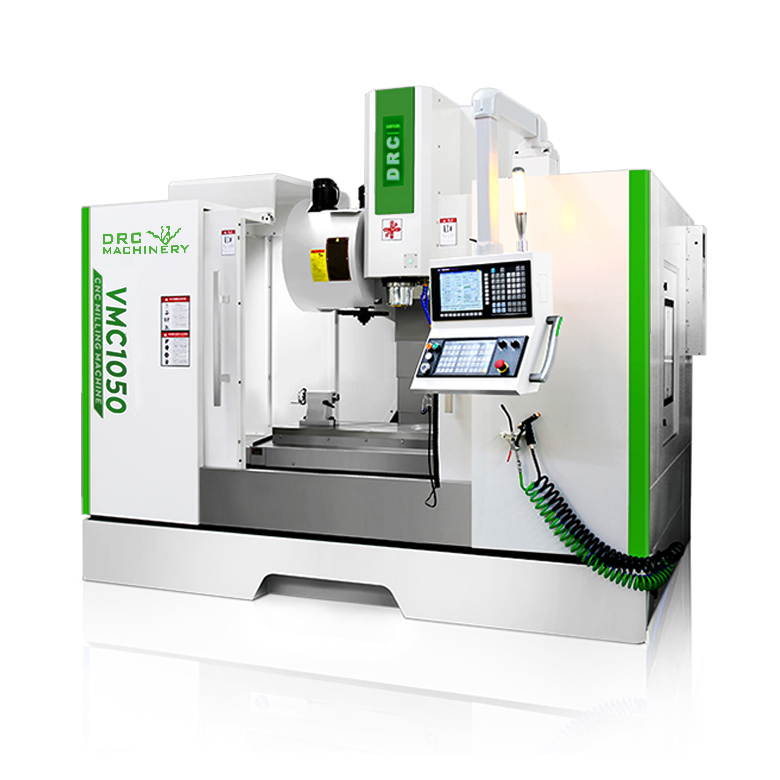

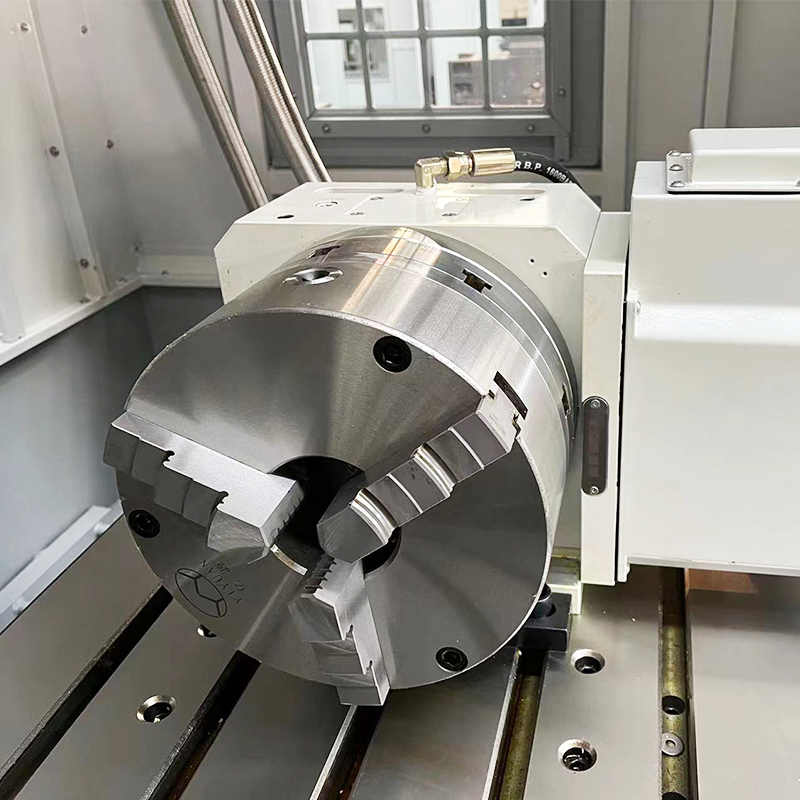

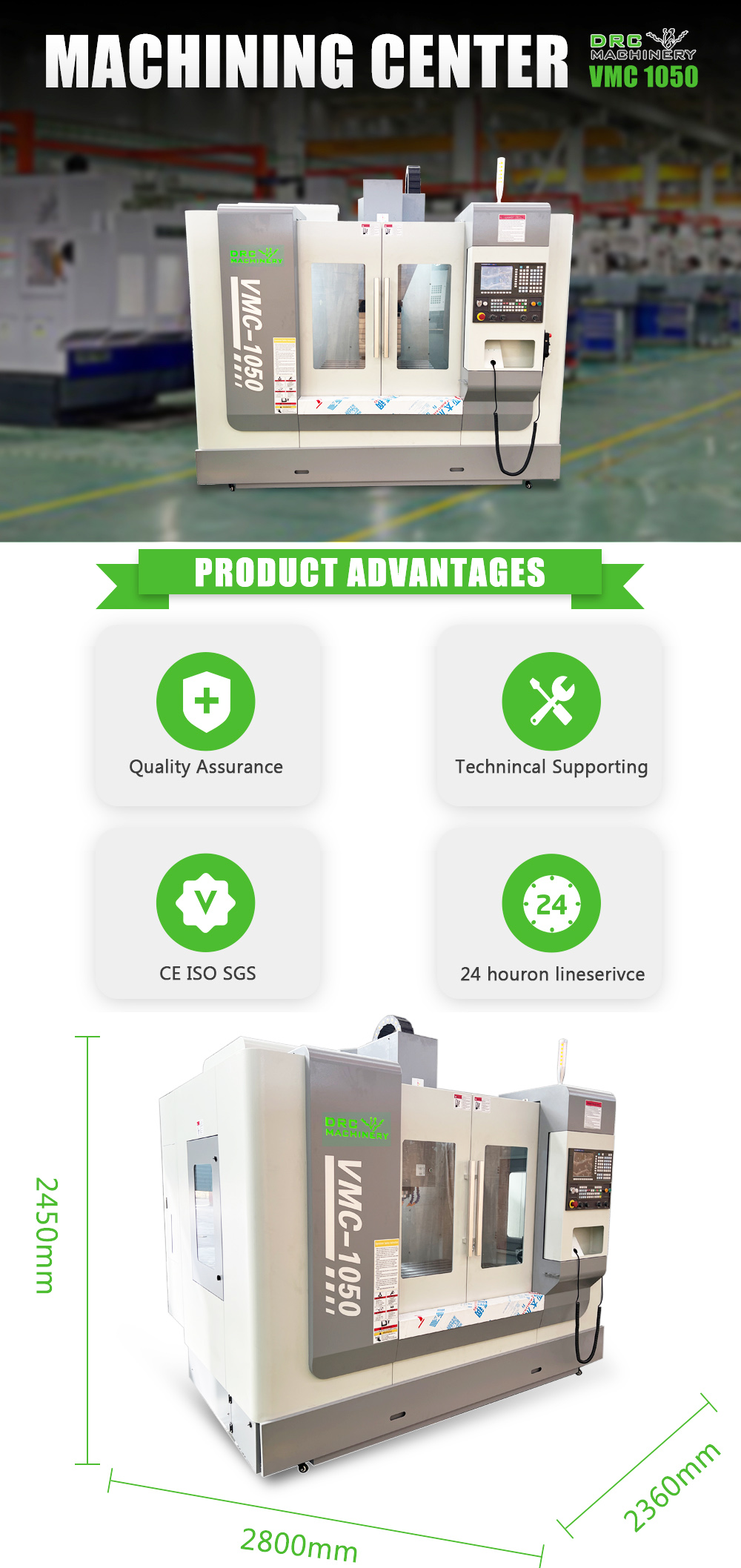

High Quality 5 Axis Taiwan Vertical Machine Center VMC1050 CNC Metal Milling Machining Center

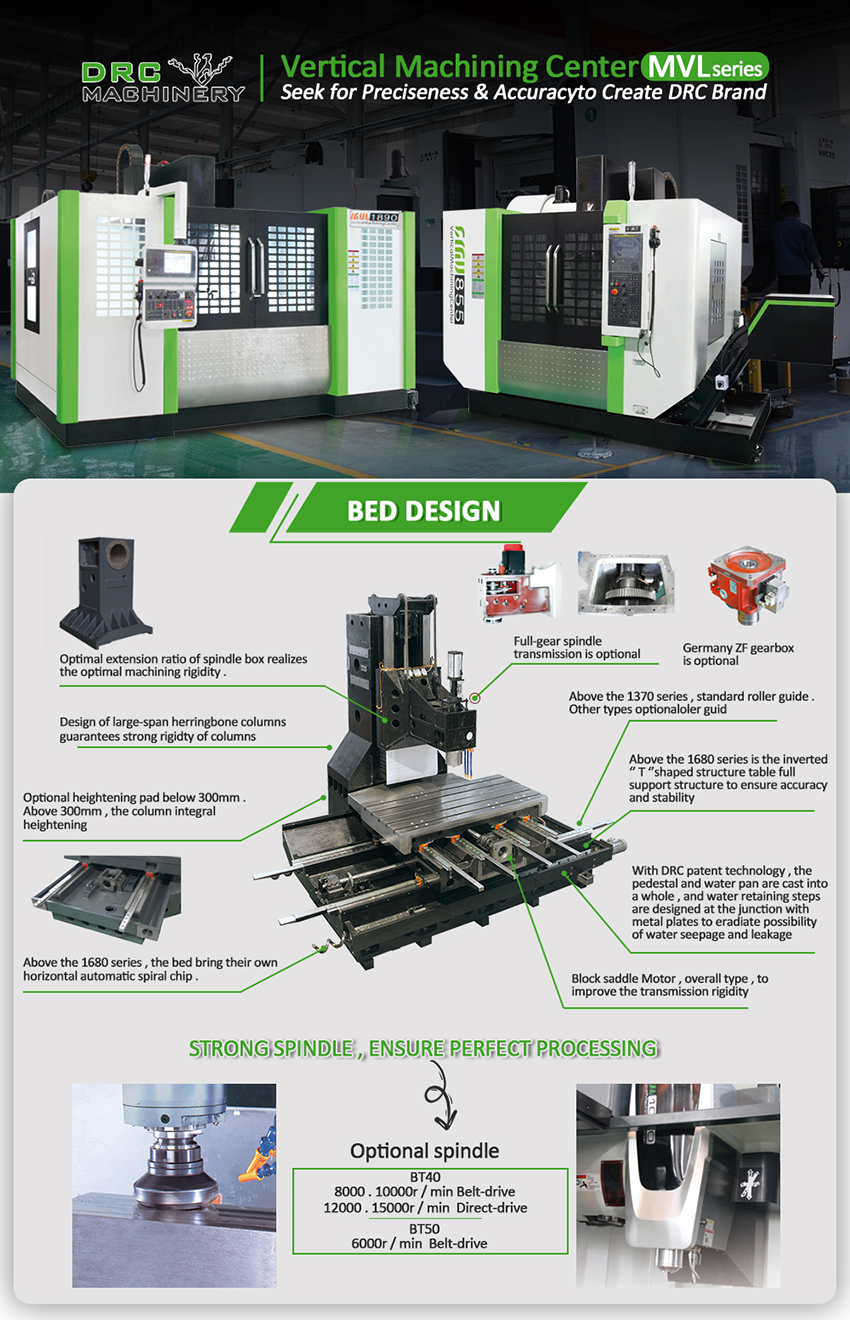

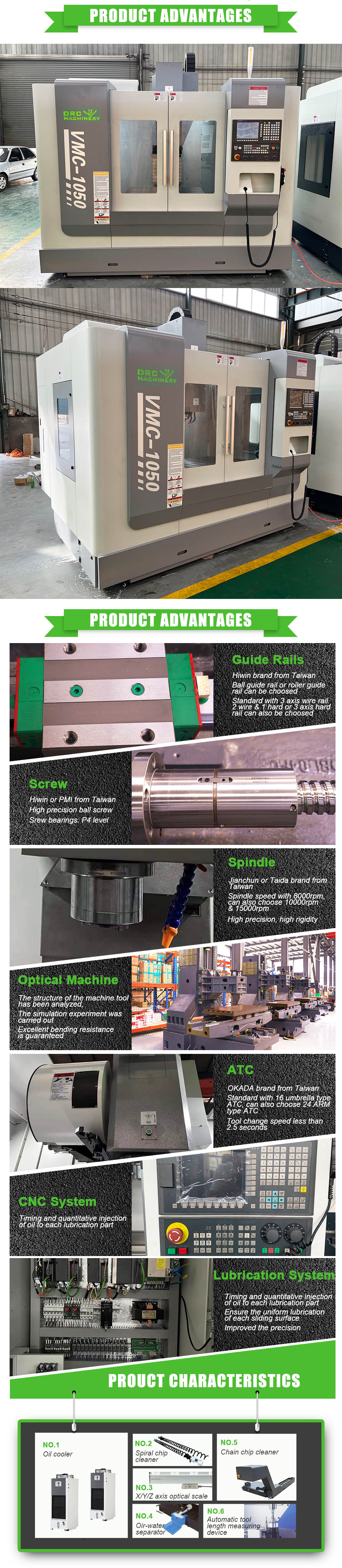

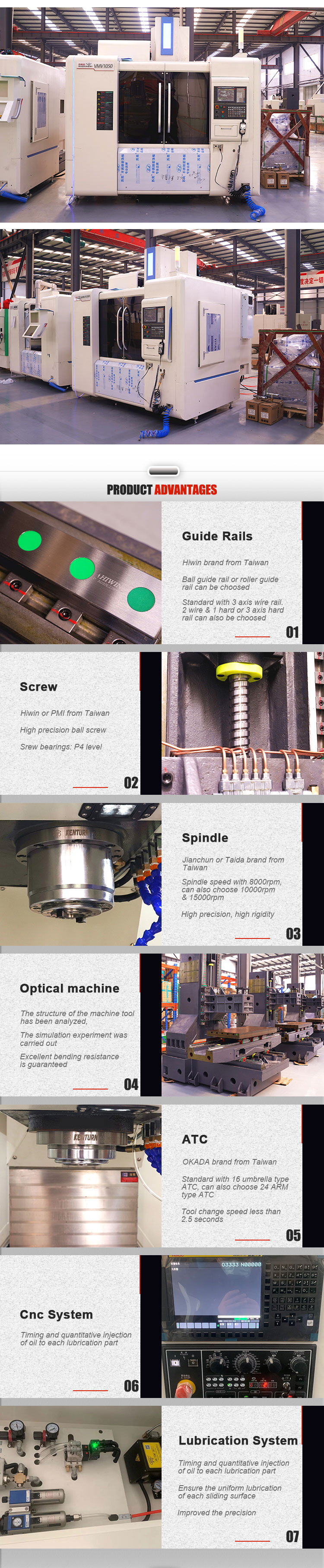

High-Quality Structure: The main large parts of the machine tool, including the base, saddle, worktable, column, and headstock, are all made of high-quality resin sand molding and high-strength cast iron. The complete heat treatment process eliminates residual stress, and sufficient reinforcement plates ensure strength, rigidity, and high stability.
Linear Guides: The XY axis adopts roller linear guides, offering strong rigidity and exceptional dynamic accuracy.
Precision Transmission: The three-axis transmission uses Taiwan-made ground double-nut ball screw for a compact, stable, and highly precise movement. The original imported Japanese screw support bearings are pre-stretched at both ends to prevent loss of precision from thermal elongation, forming a highly rigid mechanical transmission system.
Waterproof Base Design: The base adopts a cast-in large water tray structure, ensuring excellent waterproof performance.

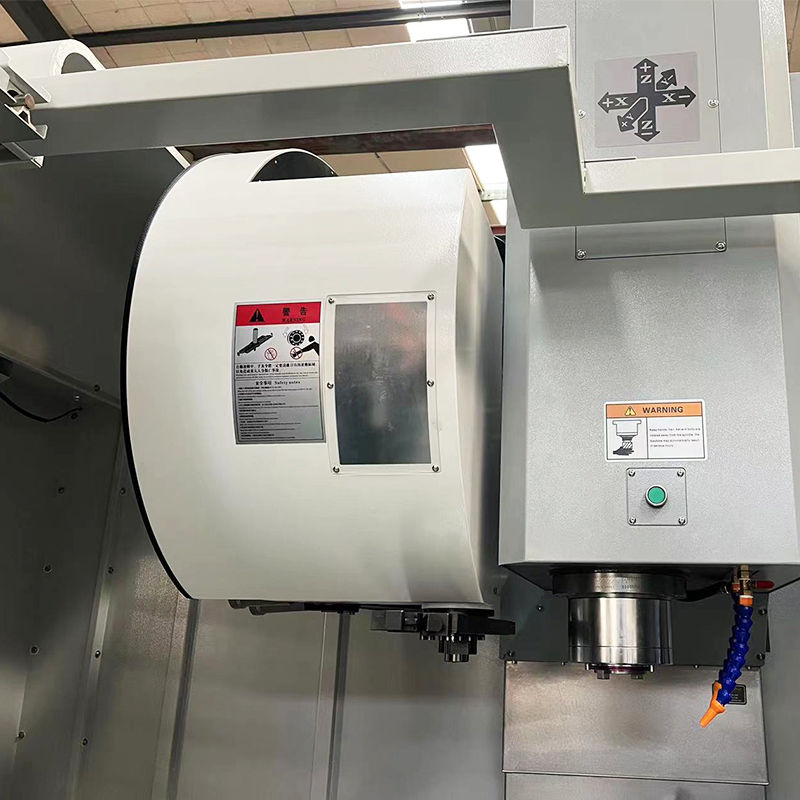

High-Rigidity Spindle: The Taiwan-made BT40 spindle features constant grease lubrication. It delivers reliable lubrication for bearings, is environmentally friendly, and guarantees long-term maintenance-free operation.
The Main Performance Characteristics:
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder

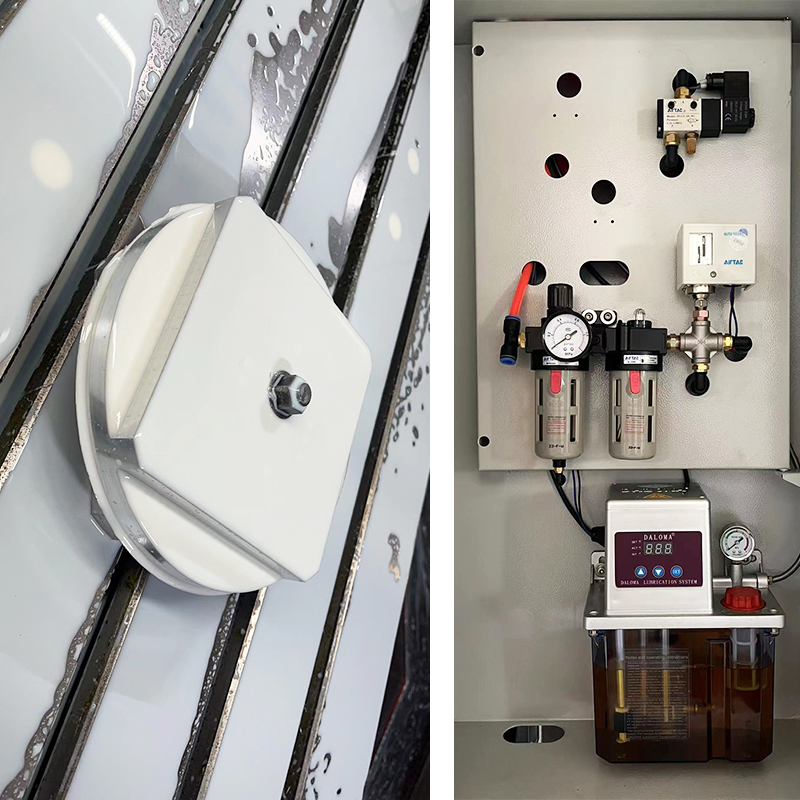

Automatic lubrication system
Chip conveyor at optional
Model
VMC 1050 (GSK 25i system)
Travel parameters of 3 axis
X / Y / Z axis travel
1050/500/500mm
Spindle face to table distance
120-620mm
Distance between spindle center and column guide surface
520mm
Worktable parameters
Worktable size
1100×500mm
Maximum load bearing of worktable
600kg
T Shot
5×18×90mm
Feeding parameters
X/Y/Z axis rapid movement rate
24/24/24m/min
Feed moving velocity X, Y, Z
1-12m/min
Spindle parameters
Main shaft connection
Belt
Spindle taper
BT40-150
Range of spindle speed
8000rpm
Spindle motor power
(Alternating current servo) 7.5kW
ATC parameters
ATC capacity
24qty
Maximum tool size
Φ92mm (tool from a distance)
Maximum tool weight
8kg
Precision
Positioning accuracy (JIS standard)
±0.008/300mm
Repeated positioning accuracy (JIS standard)
±0.005mm
Shape and weight
Machine size
2800×2360×2450mm
Weight
5600kg
Main supplier of components
The spindle group/Timing belt pulley
Taiwan Jianchun / danquan
Lead screw bearings (class P4)
Germany FAG / Japan NACHI
Linear guideway
Taiwan Shangyin / Yintai X45mm Y45mm Z45mm
Automatic tool changer
Okada / Dasu, Taiwan
Ball screw F4016 (grade C3)
Taiwan Shangyin / Yintai
Lubricant pump
Domestic Hegu / Baoteng
Cooling pump
Domestic Zhehong / Nuoke
Main pneumatic element
Taiwan Airtac
Main electrical components
France Schneider
Frequently Asked Questions (FAQ)
What are the primary structural materials used in the VMC1050?
The main components, including the base, saddle, worktable, column, and headstock, are made from high-strength, high-quality cast iron cast in resin sand. This structure undergoes complete heat treatment to remove residual stress, ensuring high rigidity and structural stability.
What components contribute to the high precision of the 3-axis transmission?
The machine uses ground double-nut ball screws (Taiwan Shangyin/Yintai) combined with original imported lead screw bearings (Germany FAG / Japan NACHI) of class P4. Pre-stretching is applied at both ends to eliminate precision errors caused by thermal elongation.
What CNC system and spindle configuration does this machine utilize?
The machine is equipped with the GSK 25i CNC control system. It features a belt-connected Taiwan-made BT40 spindle with a rotation speed of up to 8000rpm, powered by a 7.5kW alternating current servo motor.
What is the load capacity and dimensions of the worktable?
The VMC1050 features a spacious worktable measuring 1100×500mm and has a maximum weight capacity of 600kg, making it suitable for a variety of metal milling operations.
Does this machine feature an automatic tool changer (ATC)?
Yes, it is equipped with a high-capacity Automatic Tool Changer from Taiwan (Okada/Dasu) that can hold up to 24 tools, supporting a maximum tool weight of 8kg and a maximum tool size of Φ92mm.
What are the positioning accuracies for this vertical machining center?
Following the JIS standard, the VMC1050 provides a positioning accuracy of ±0.008/300mm and a repeated positioning accuracy of ±0.005mm.
