Our machining center adopts an ultra-high rigidity machine structure with Hiwin and PMI precision components for exceptional positioning accuracy. Optional full-closed loop control meets strict mold-making and high-accuracy needs. Core transmission parts from leading brands ensure long-term operational stability and consistent performance for your manufacturing business.
A standard tool magazine from renowned brands supports rapid tool changes and chip evacuation with optional 4th or 5th-axis linkage for automated lines. Optional automatic doors and robotic loading systems enable unattended production for maximum industrial output and labor cost reduction.
The system handles milling, drilling, boring, reaming, and tapping in a single setup, meeting complex needs for automotive, mold-making, 3C electronics, and medical industries. Its large working envelope is designed for diverse and flexible manufacturing requirements.
Optional CNC systems from GSK, FANUC, Mitsubishi, and Siemens cover everything from cost-effective to high-end standards. Graphical programming and simulation reduce trial-cutting risks and significantly lower the skill barrier for new operators.
Equipped with high-speed Okada and Shuge spindles and rapid feed systems to shorten cycle times and increase hourly output. Stable batch processing capabilities help customers achieve fast delivery and a higher return on investment for global markets.
We use only 100% genuine parts to ensure total quality. This includes Okada/Shuge spindles, Hiwin/PMI drive systems, and control systems from FANUC, Mitsubishi, and Siemens, integrated with Schneider Electric components to ensure a service life comparable to top international models.

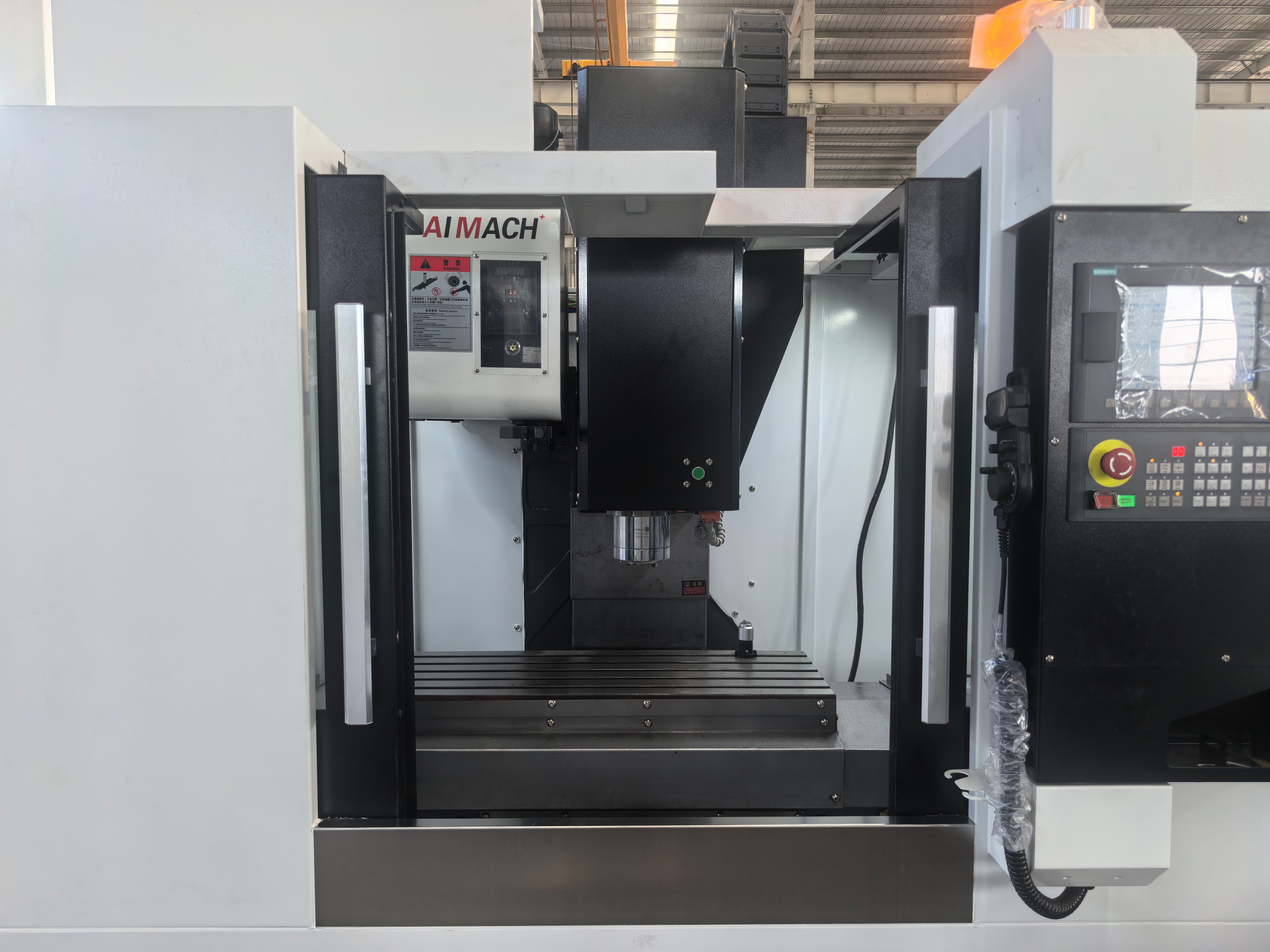

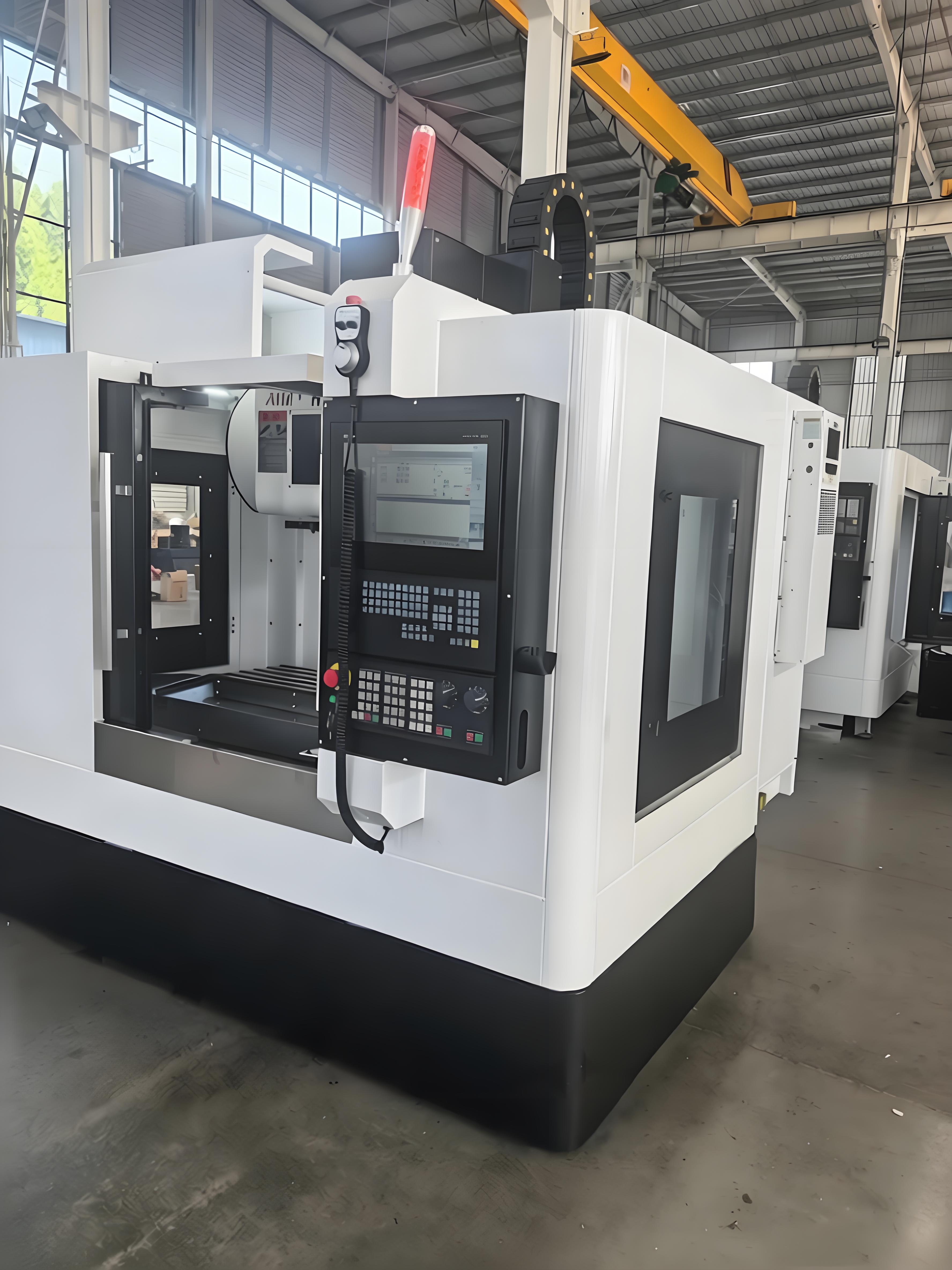

| Model | Unit | VMC640 |
|---|---|---|
| Workbench dimensions | mm | 900*330 |
| X-axis travel | mm | 640 |
| Y-axis stroke | mm | 400 |
| Z-axis stroke | mm | 500 |
| Maximum workbench load | kg | 200 |
| Maximum spindle speed | rmp | 8000 |
| Main shaft Castanopsis chinensis degree | mm | BT40 |
| Main motor power | kw | 5.5 |
| X/Y/Z rapid traverse speed | m/min | 24/24/20 |
| Guide rail type | - | Linear guide |
| Distance from spindle center to column guide rail slider | mm | 410 |
| Distance from spindle end face to worktable surface | mm | 100-550 |
| Positioning accuracy | mm | 0.075 |
| Repeat positioning accuracy | mm | 0.005 |
| Machine weight | kg | 3000 |
| Overall dimensions (length * width * height) | mm | 2300*2150*2500 |

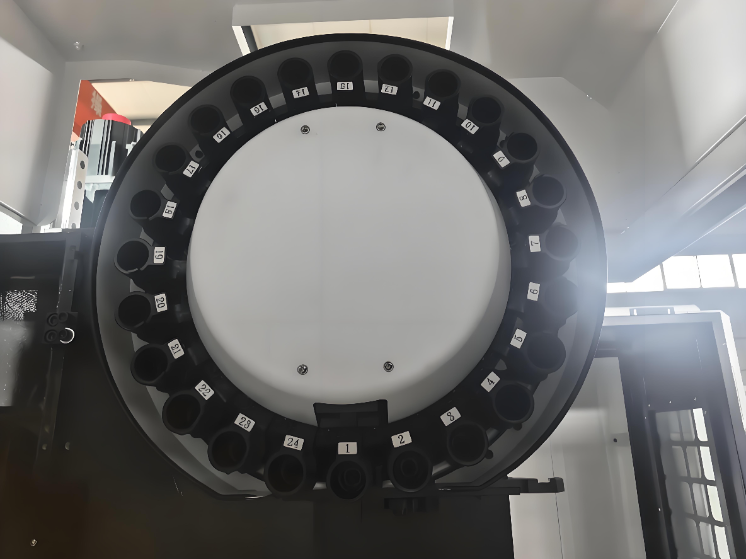

1. Taiwan tool magazine arm with 24 tools.
2. Tool change time only 2-3 seconds.

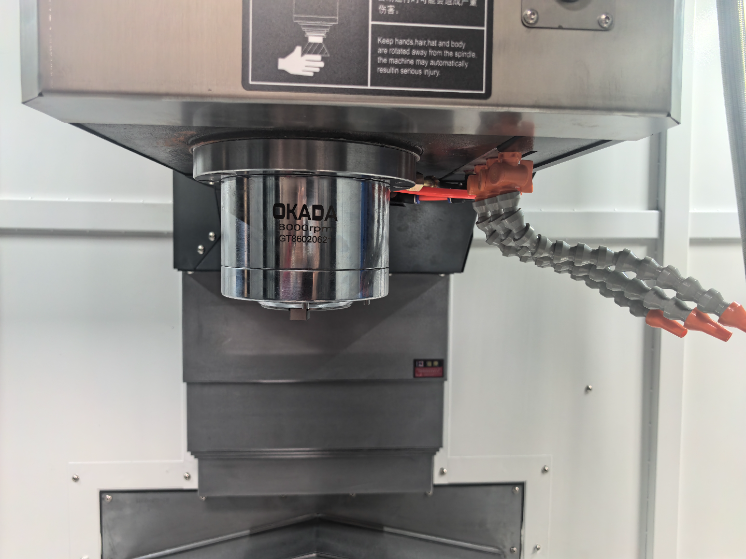

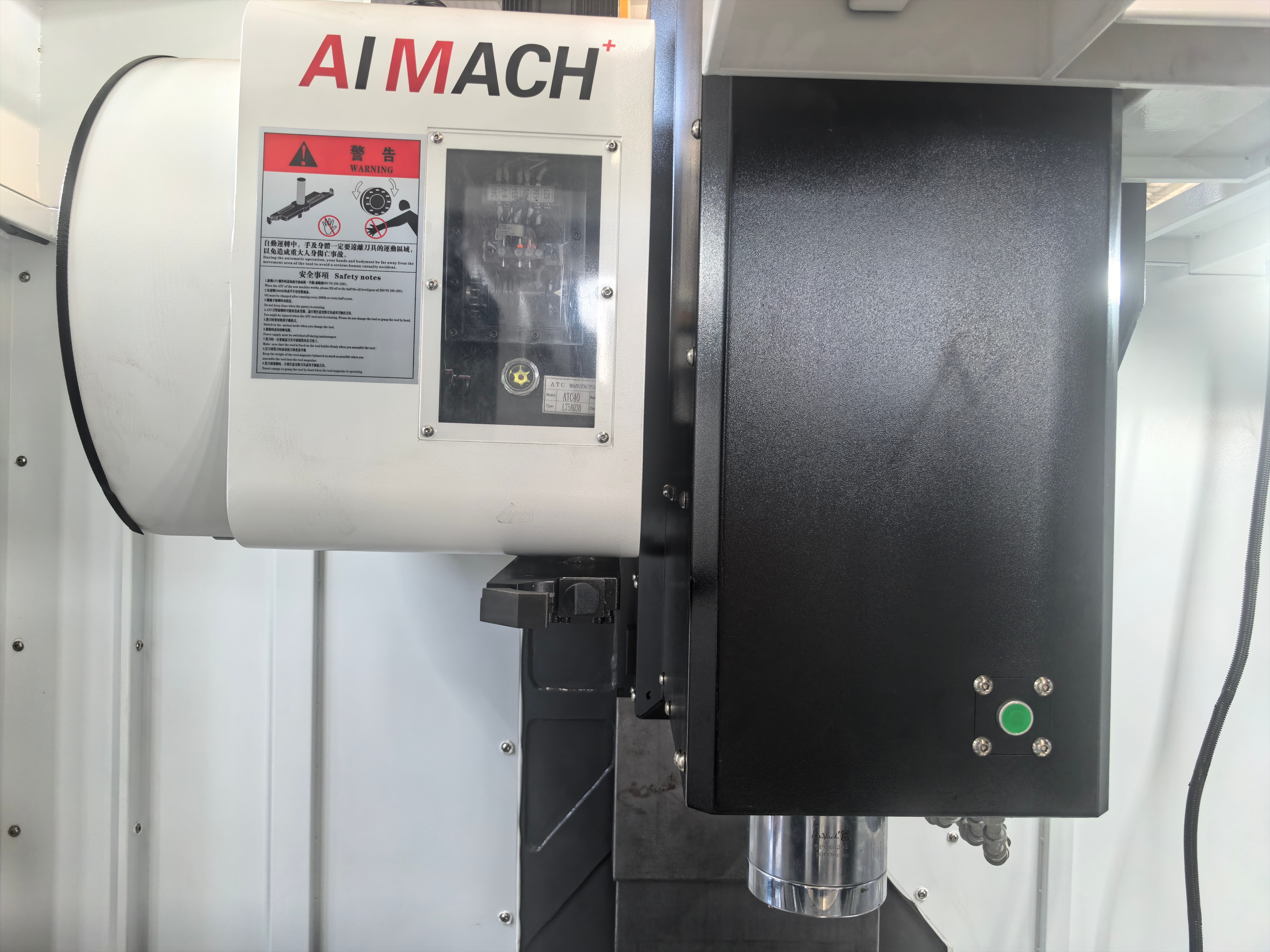

1. Taiwan Spindle BT40 8000 RPM with Annular Cooling Function.
2. Passed Dynamic Balance ISO Grade Test.

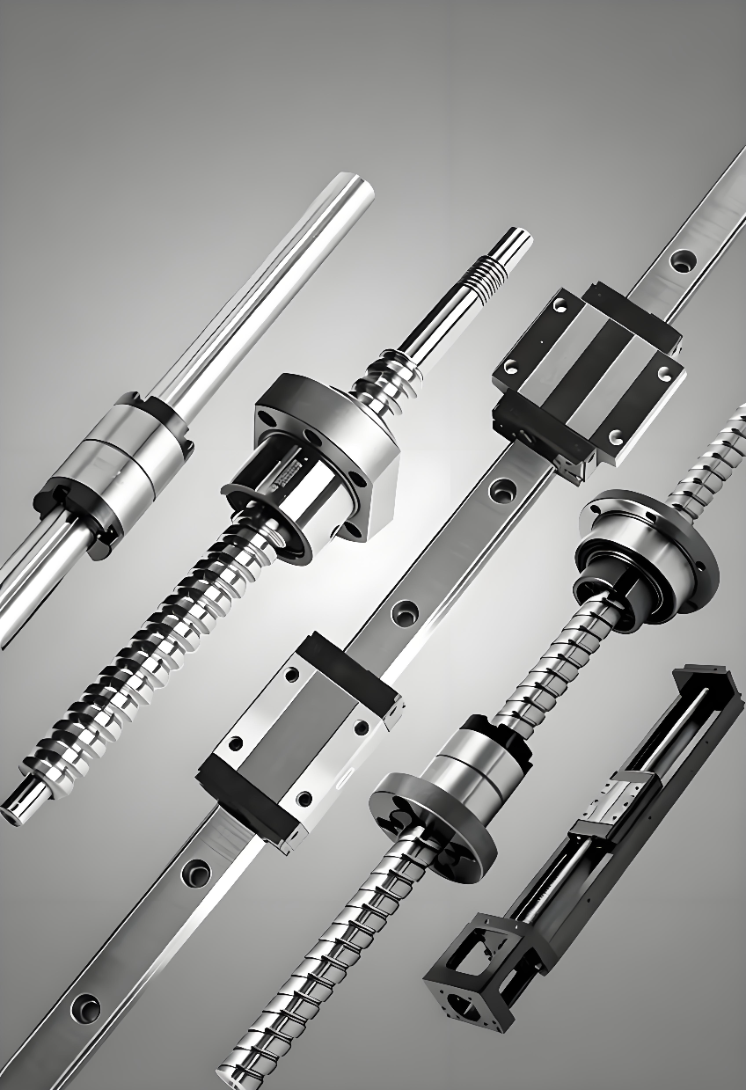

1. The lead screw bearings use FAG or NSK bearings.
2. Coupling YC direct connection.

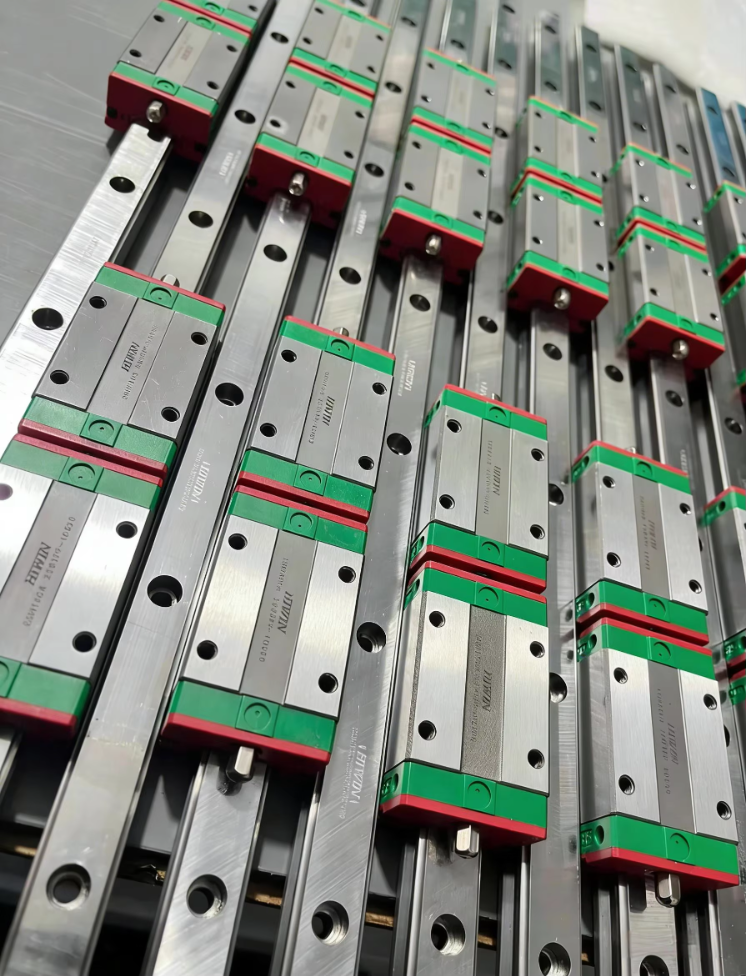

1. Taiwan High-Speed Roller Linear Guide, positioning accuracy can reach μm level.

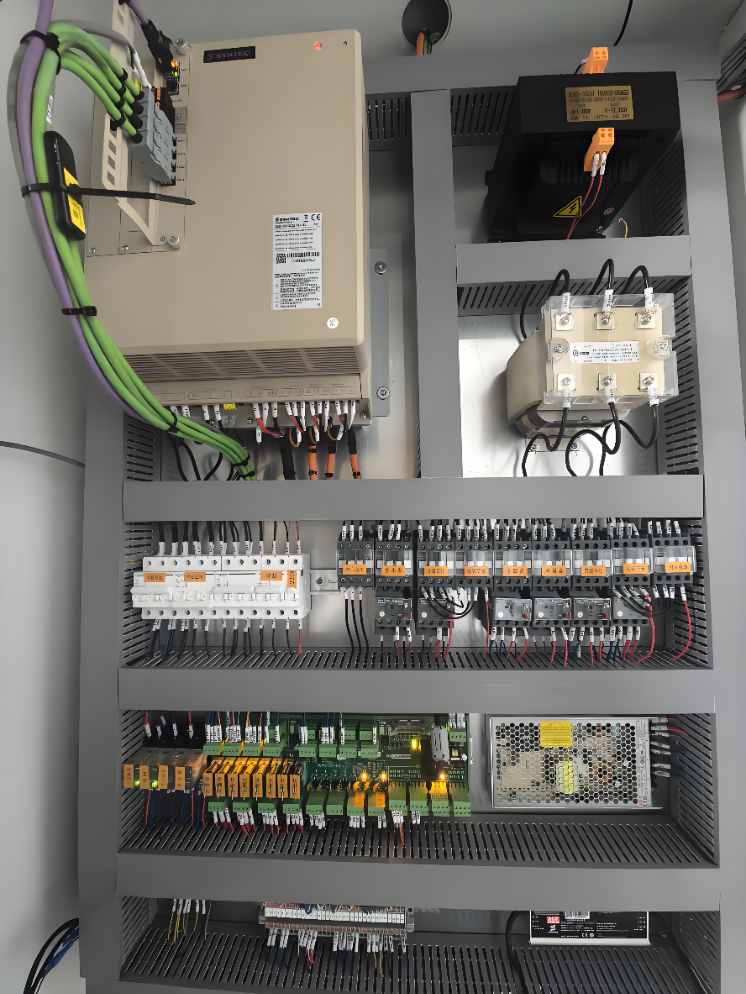

1. Schneider safety electrical components.
2. Quick plug as standard.

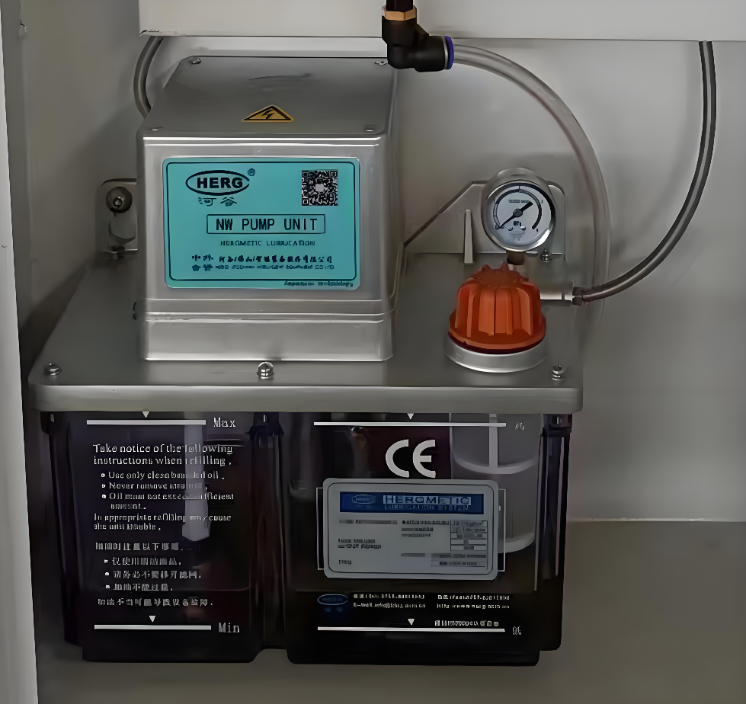

Equipped with the HERG automatic centralized lubrication device.

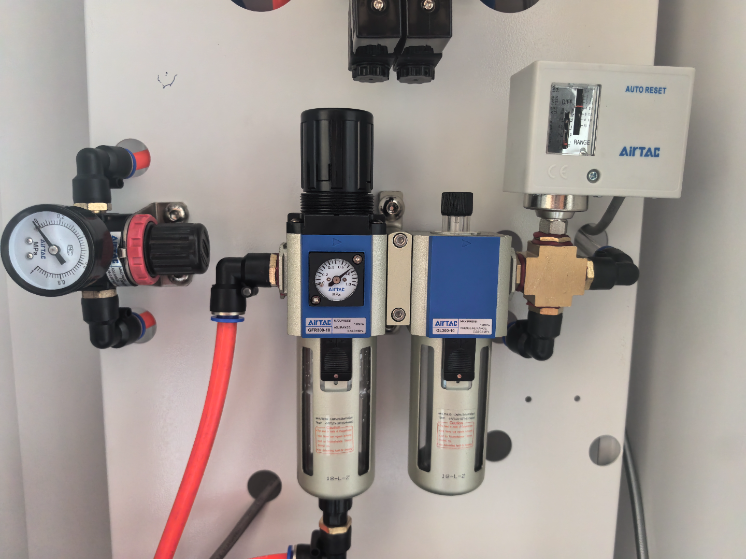

Standard AirTAC Pneumatic Components.
