Products Description

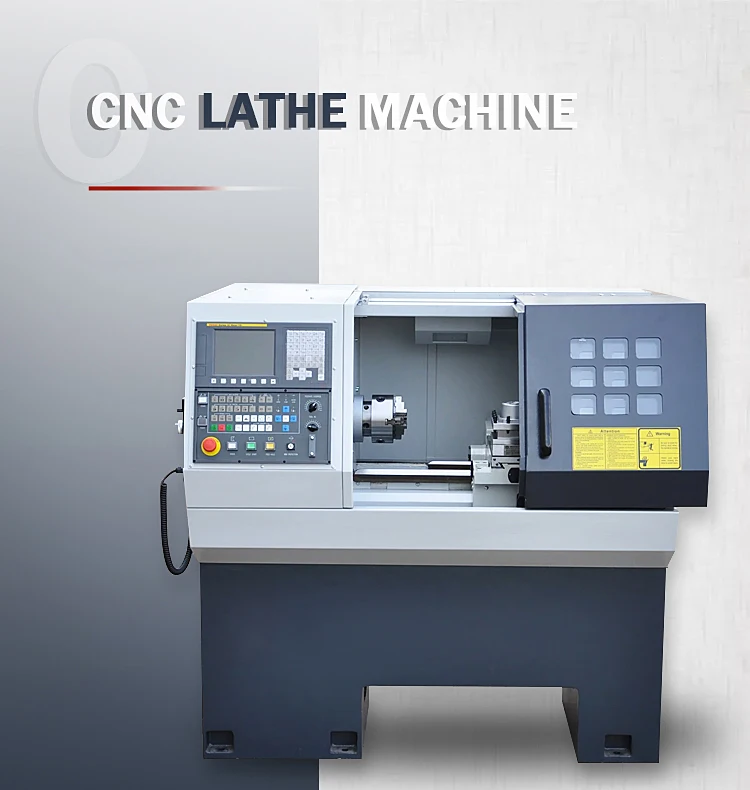

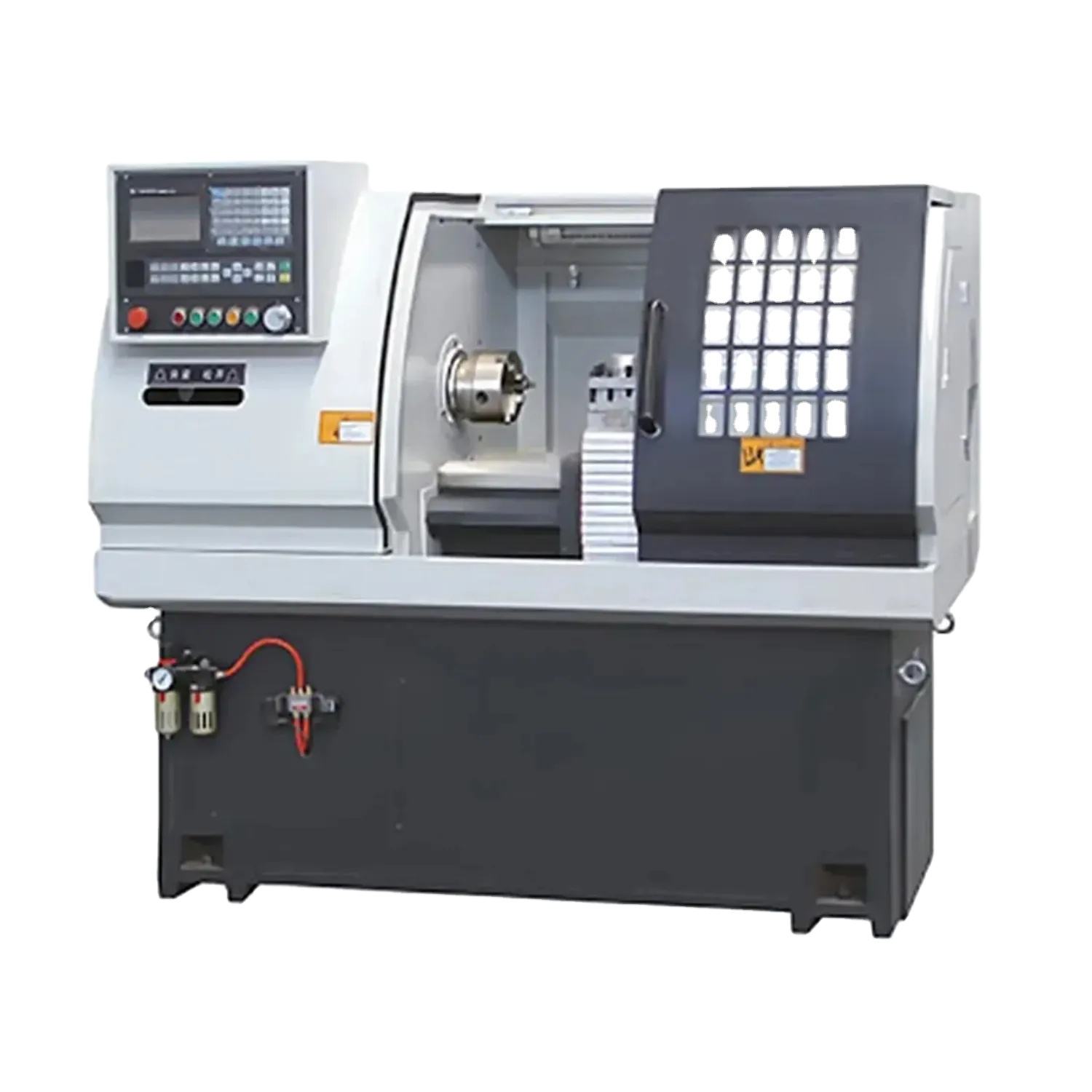

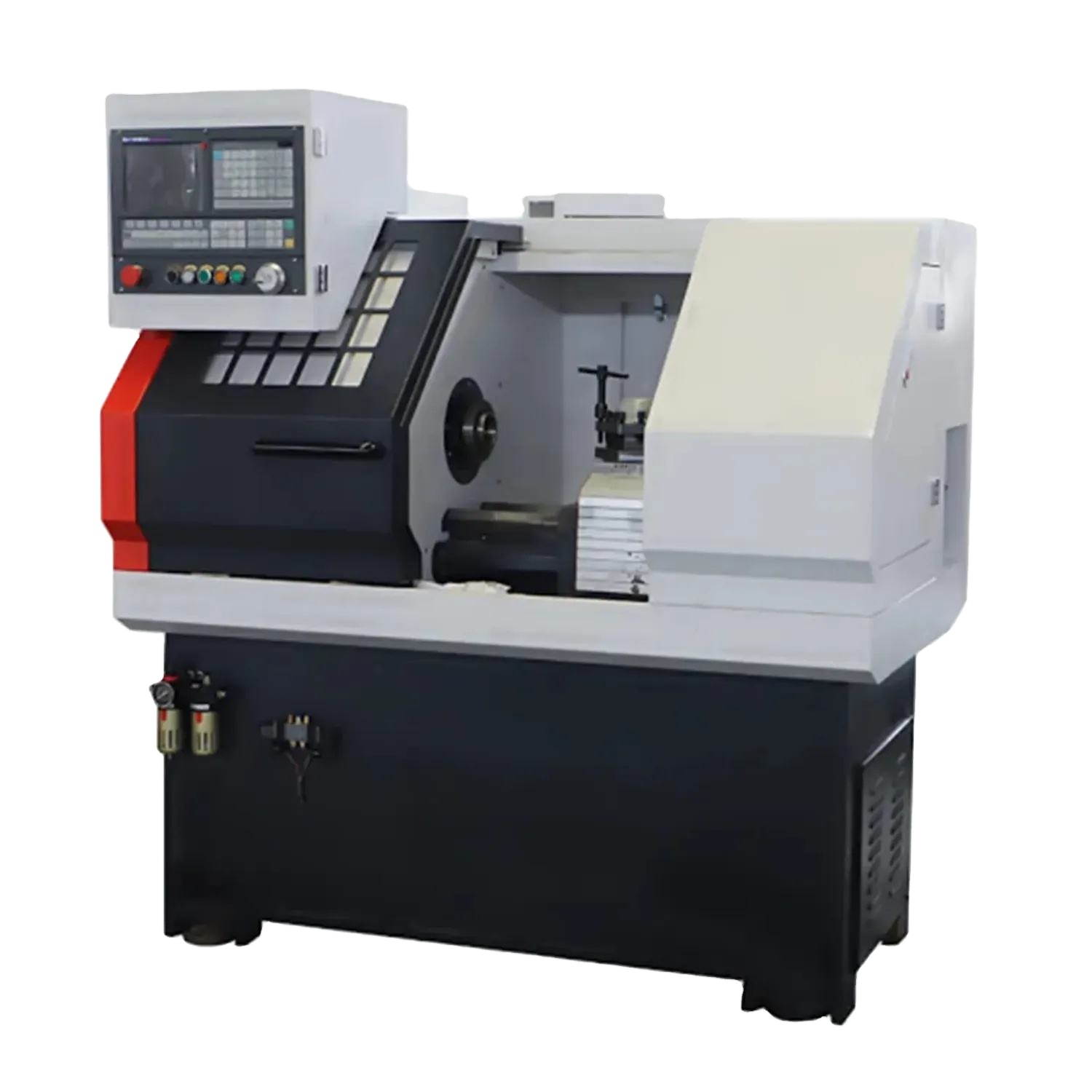

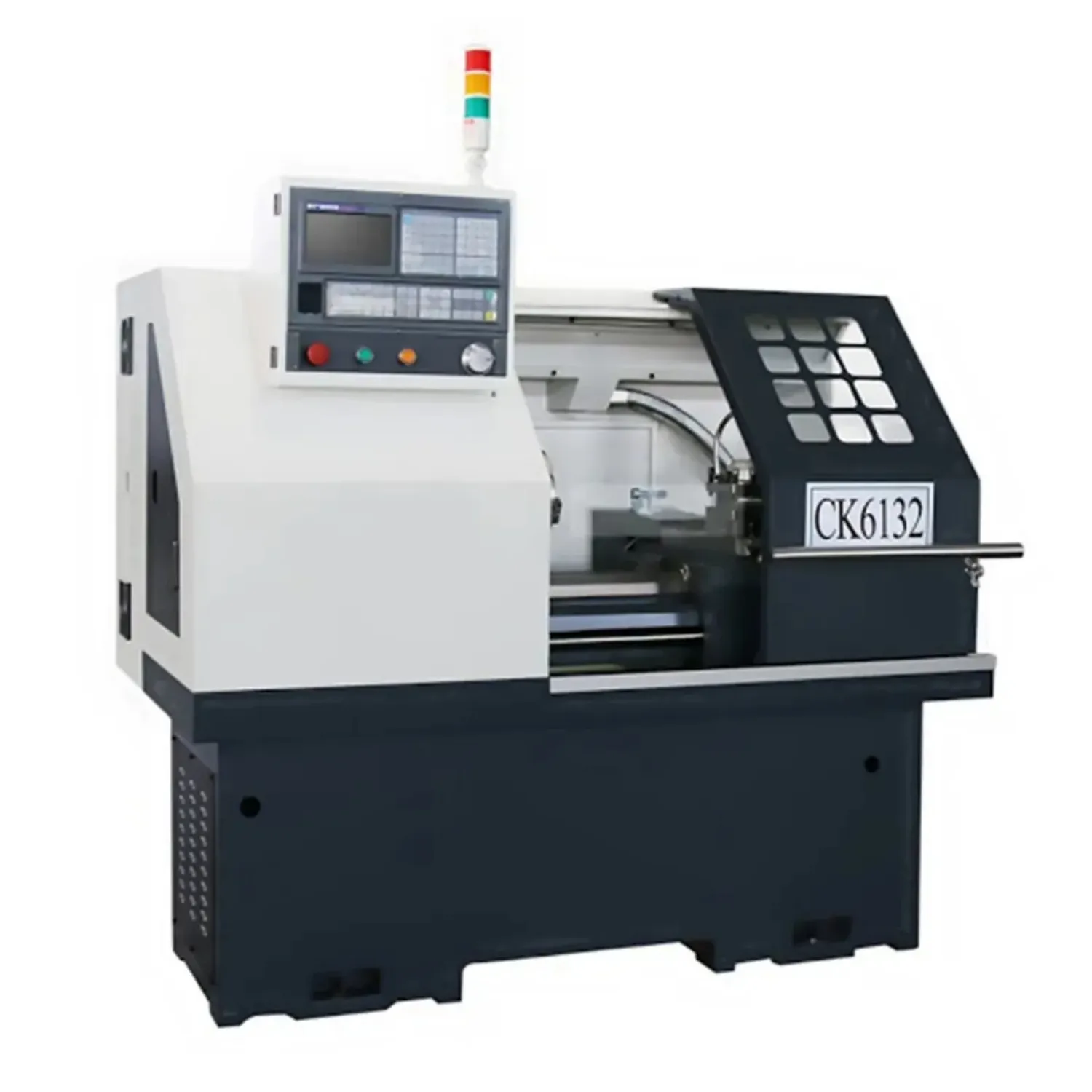

CNC lathe is one of the widely used CNC machine tools. It is mainly used for cutting inner and outer cylindrical surfaces, inner and outer conical surfaces with arbitrary cone angle, complex rotary inner and outer curved surfaces, cylinders and conical threads of shaft parts or disc parts, and it can cut, drill, ream, ream and bore holes, etc.

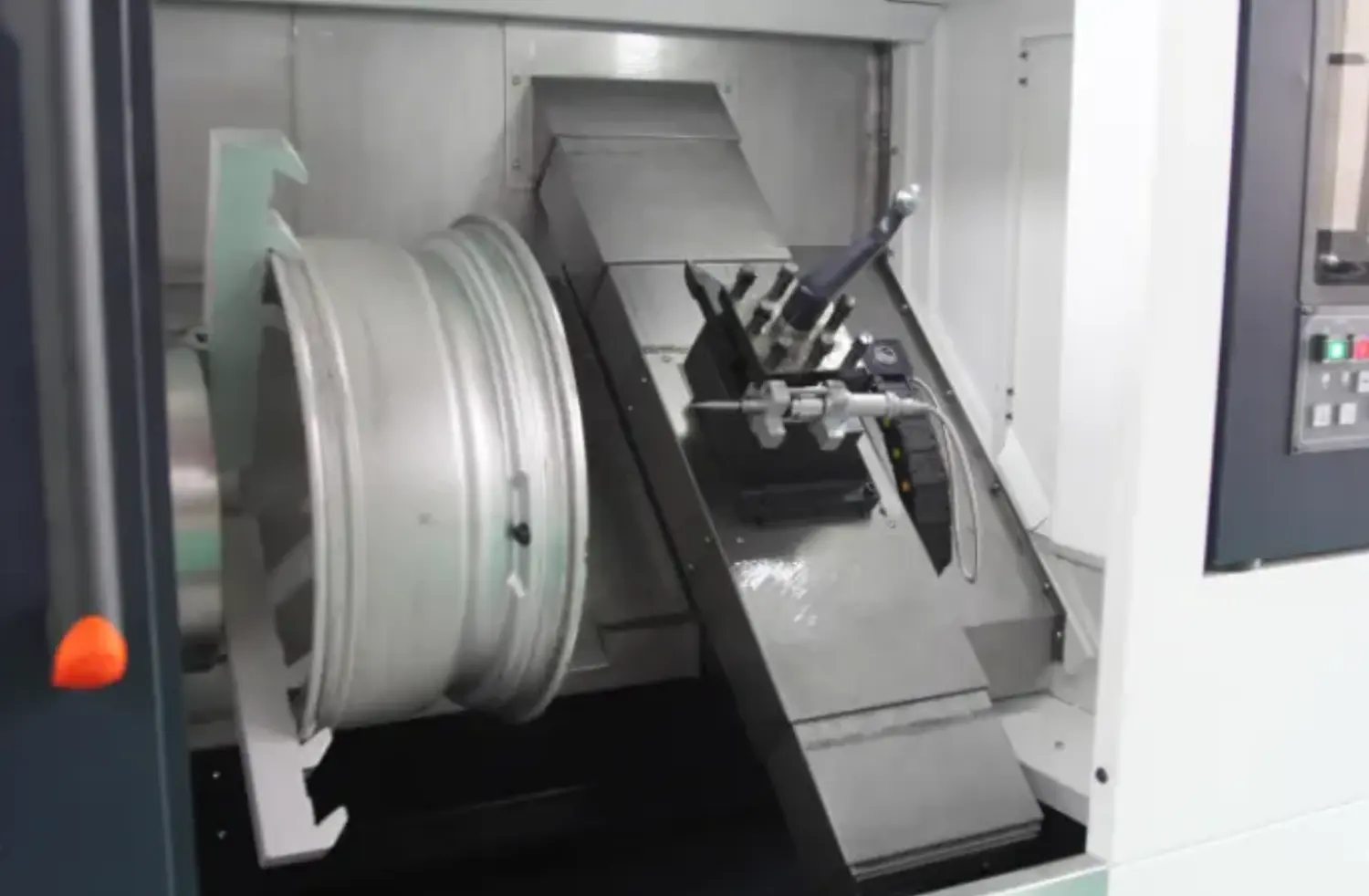

The CNC machine tool processes the parts automatically according to the pre programmed processing program. We put the parts of the processing route, process parameters, tool trajectory, displacement, cutting parameters and auxiliary functions.
According to the instruction code and program format of the NC machine tool, the program sheet is written, and then the contents of the program sheet are recorded on the control medium, and then input into the NC device of the NC machine tool, so as to command the machine tool to process parts.
| ITEMS |
CK6140S |
| Max. Swing over bed |
410mm(16") |
| Max. cross travel(X) |
300mm |
| Max. Longitudinal travel (Z) |
1000mm |
| Rapid feed for Axis X |
5m/min |
| Rapid feed for Axis Z |
8m/min |
| Size of tool shank |
20×20mm |
| Min input |
0.001mm |
| Repeatability X/Z |
0.0075/0.01mm |
| Max. Swing over slide (for gang tools) |
φ150mm |
| Max. Swing over slide |
230mm |
FAQ
Q1 How can I choose the most suitable machines?
Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model. You can also send us the products drawing ,we will choose the most suitable machines for you.
Q2 What is your payment terms?
30% down-payment after contract ,and 70% payment before shipment. Meanwhile it can be discussed according to your situation.
Q3 Where is our factory located? How can I visit there?
Our factory is located in China. You are warmly welcomed to visit us.
Q4 What is your delivery time?
The delivery depends on different machines with different configurations. Please contact us to confirm it is in stock or not.
Q5 Can you send the service engineer to our company?
We have engineers stationed in Canada, Egypt, and Algeria. The after-sales service system is very perfect.
Q6 What operations can a CNC lathe perform?
It is mainly used for cutting inner and outer cylindrical surfaces, inner and outer conical surfaces with arbitrary cone angle, complex rotary inner and outer curved surfaces, cylinders and conical threads of shaft parts or disc parts. Additionally, it can perform cutting, drilling, reaming, reaming, and boring holes.
