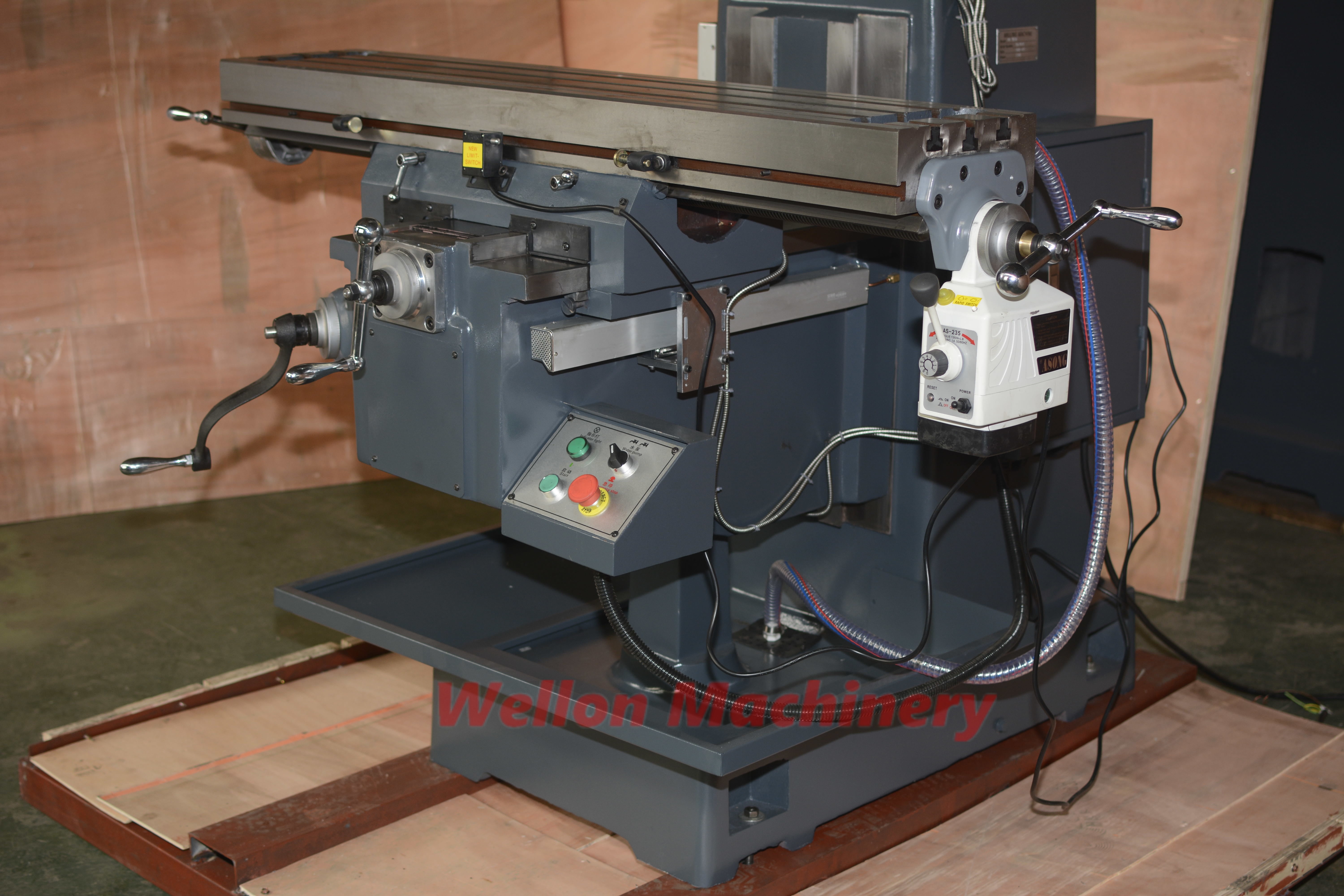

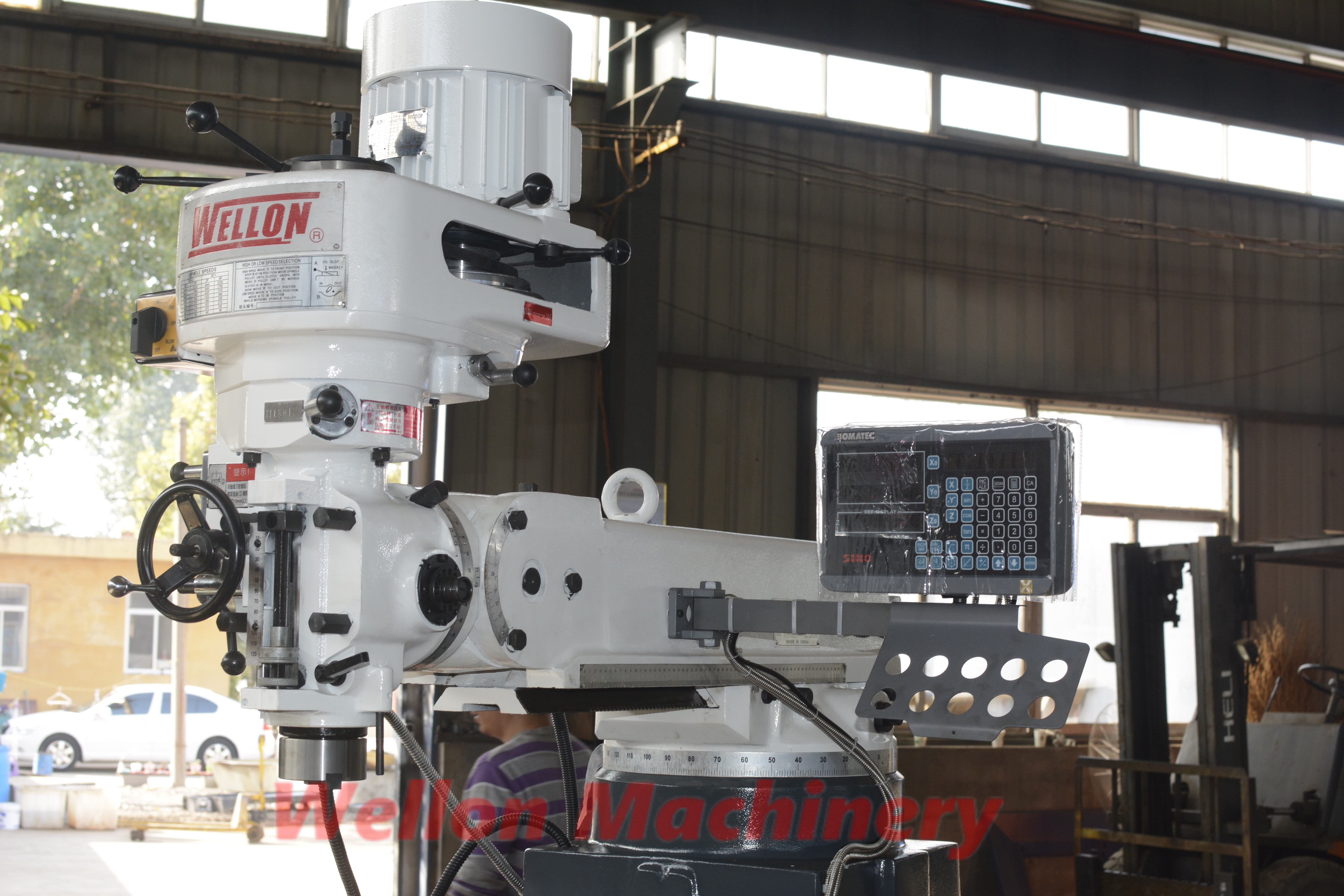

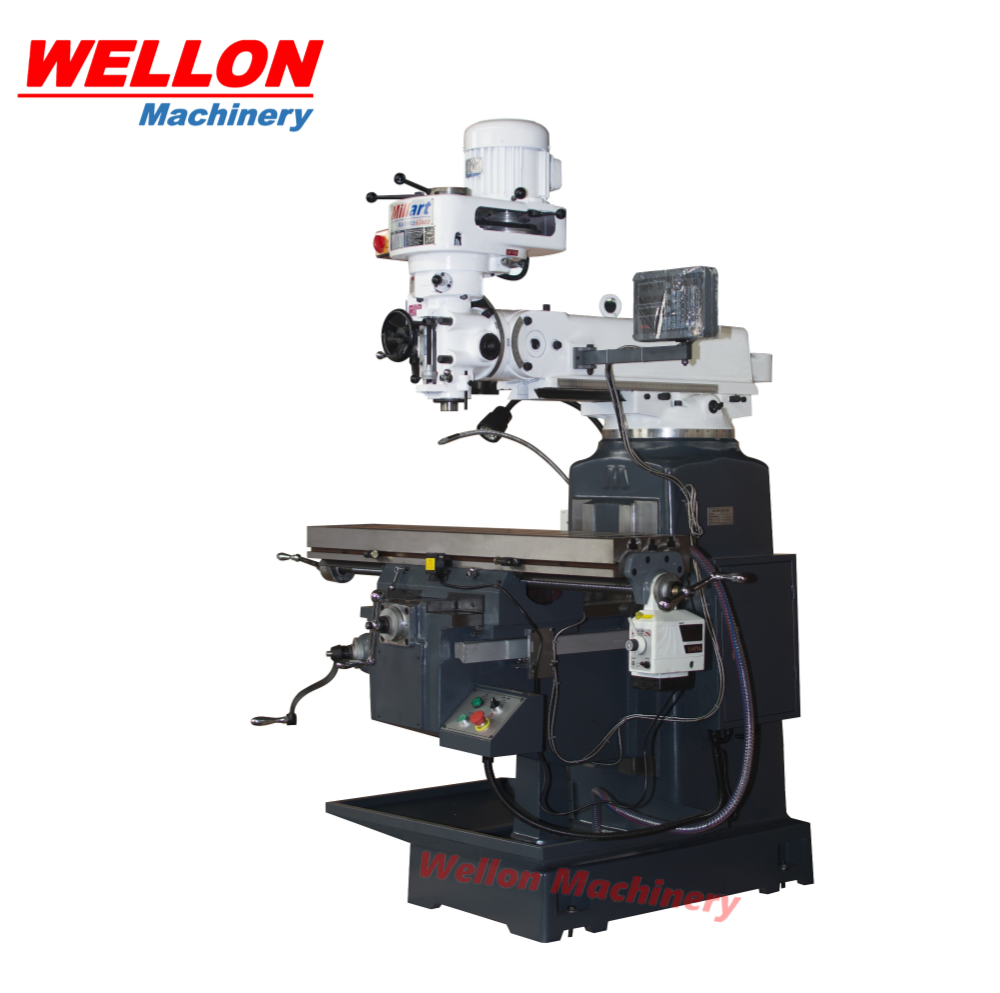

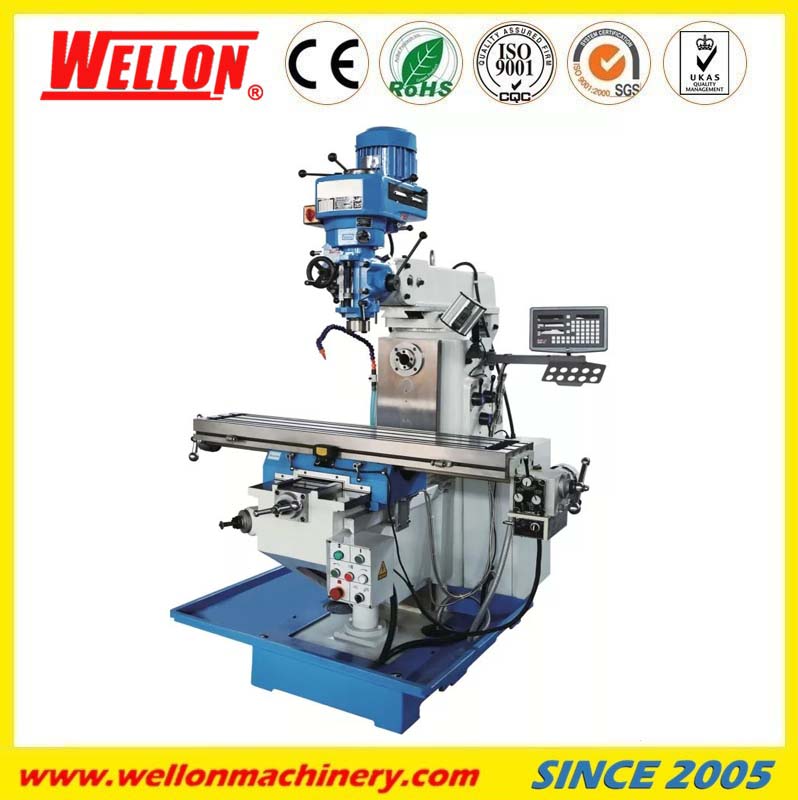

Turret Milling Machine has reasonable construction and superior machining functions such as drilling, boring, milling of plane, inclined plane and slot, and such functions available by use of the corresponding attachments as milling of helix slot, round surface, rack, gear and spline
| Model | X6325W |
| Table size | 254*1270 (254*1370 optional) |
| Longitudinal travel(mm) | 850/950 |
| Cross travel(mm) | 380 |
| Vertical travel(mm) | 400 |
| T-slot No.and size(mm) | 3*16 |
| Ram travel(mm) | 470 |
| Distance from spindle nose to table(mm) | 0-400 |

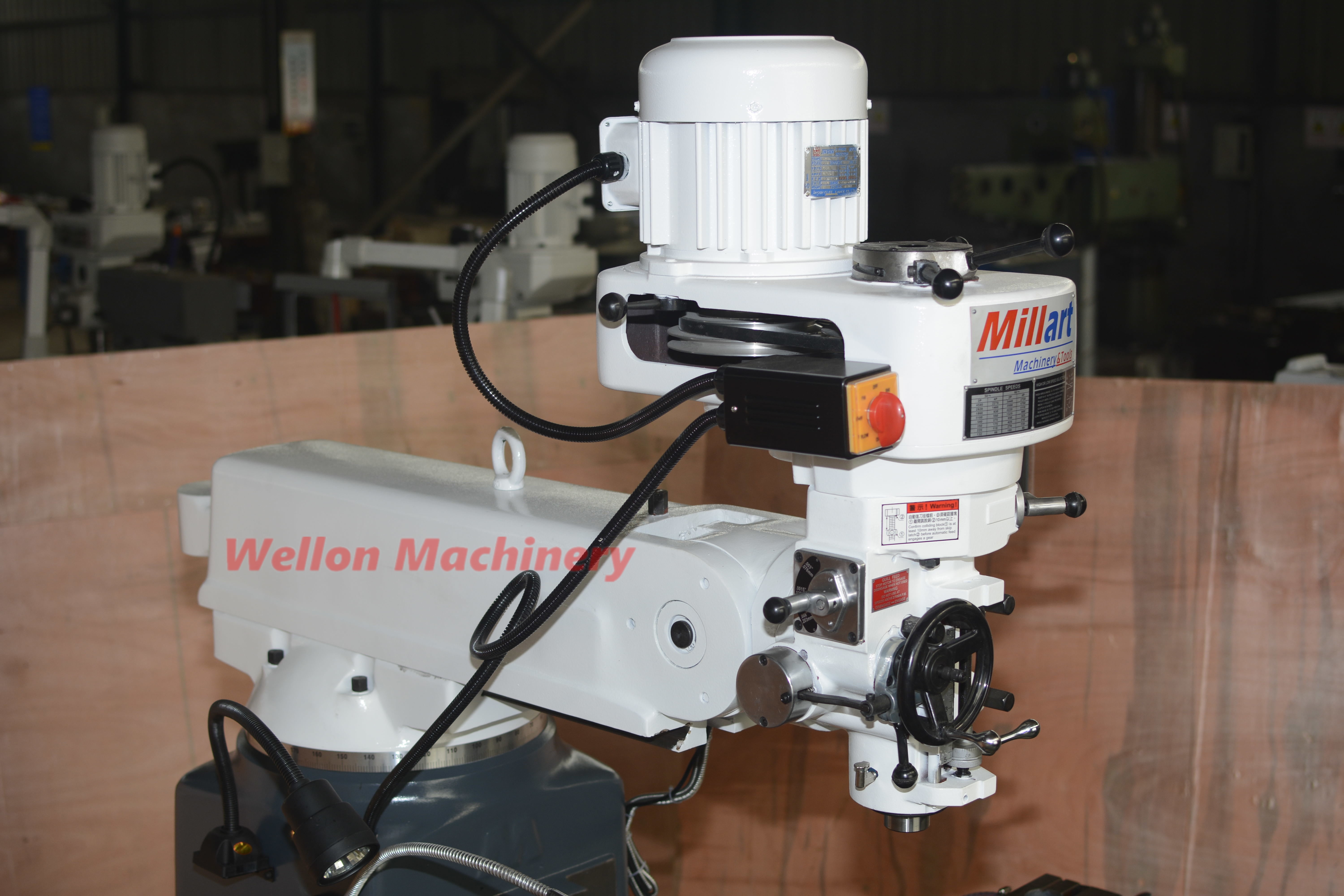

| Vertical Spindle speed | 16 steps: 66-4540 rpm Variable:60-4200 rpm(Optional) |

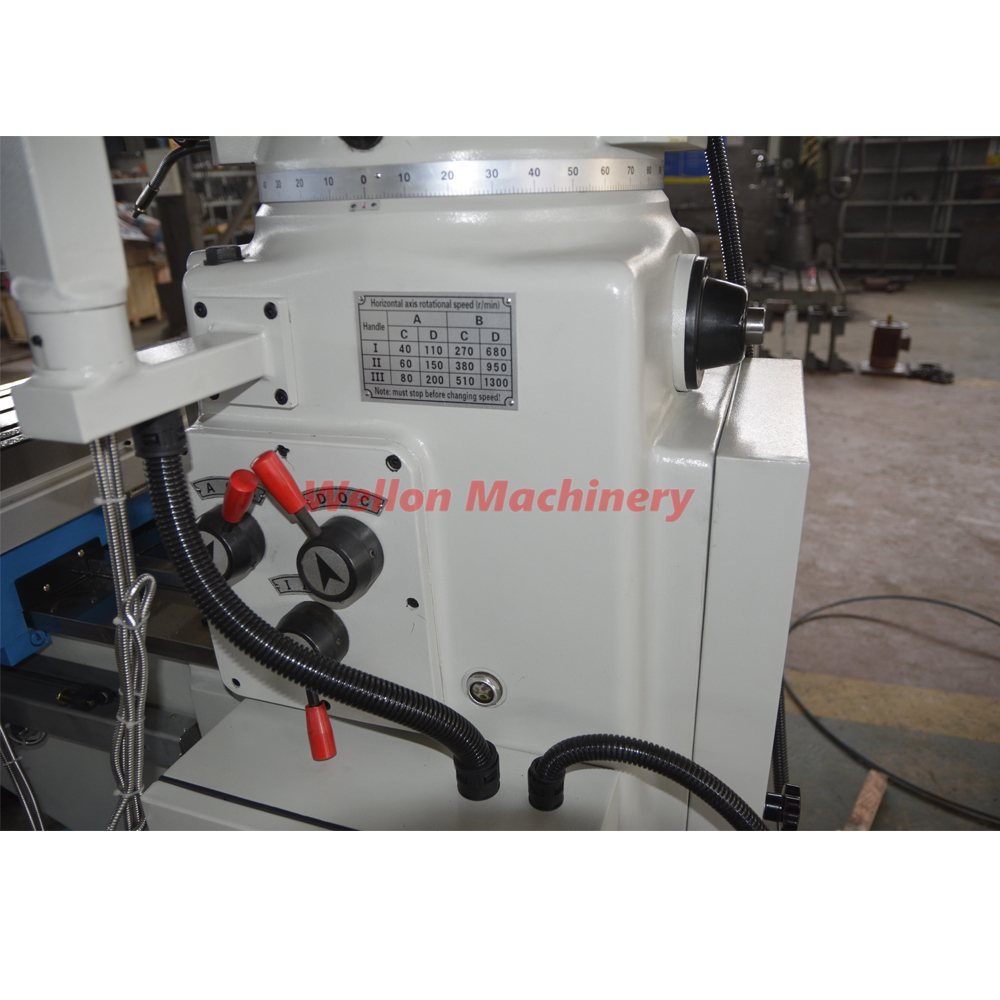

| Horizontal spindle speed | 40-1300 rpm |
| Spindle hole taper | R8 / ISO30 ISO40 is optional |
| Horizontal spindle taper | ISO40 |
| Auto quill feed(mm/r) | 3 steps 0.04/0.08/0.15 |
| Spindle travel(mm) | 127 |
| Vertical Spindle motor | 2.25kw/3hp |
| Horizontal spindle motor | 2.2 kw |
| Head swivel | 90° |
| Head tilting | 45° |
| Dimension of package | 1516*1550*2080 |
| N/G weight/set(kgs) | 1500/1600 |
