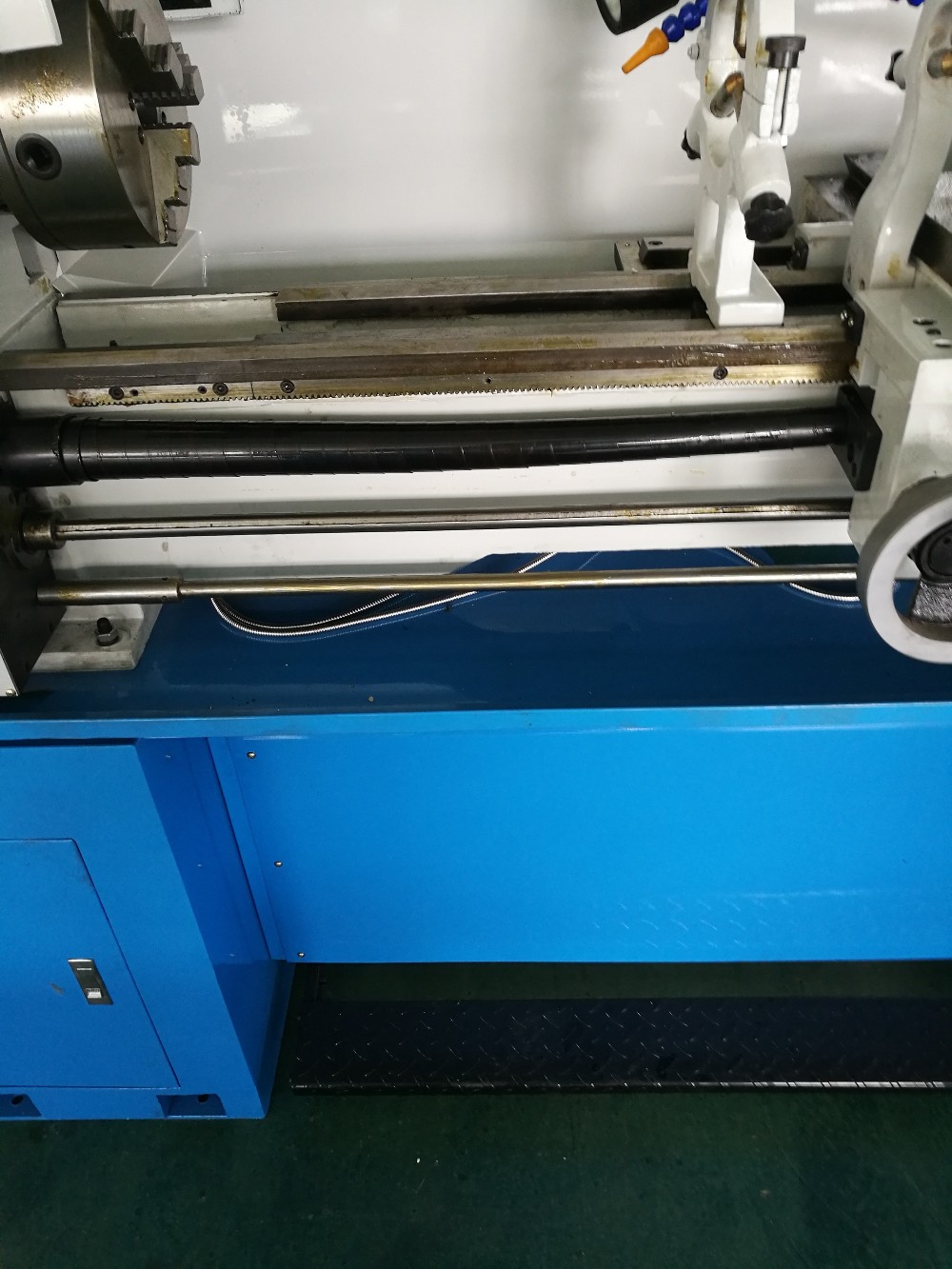

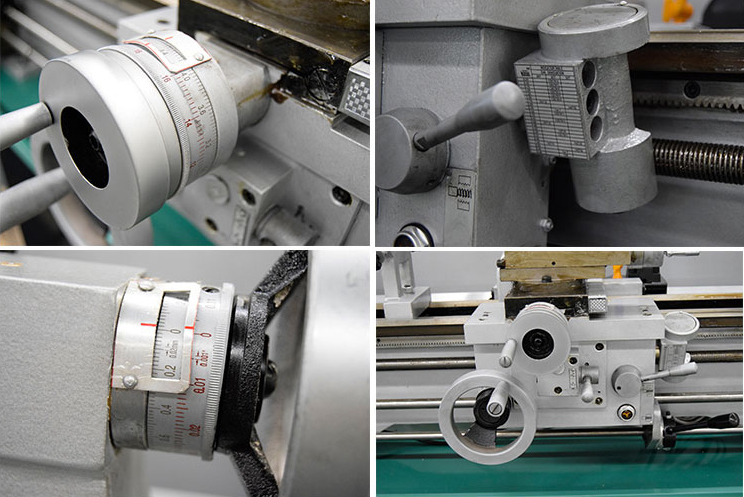

Supersonic frequency hardened bed way.
Precision roller bearing for spindle.
High quality steel, ground and hardened gear inside headstock.
Easy and fast operating gearbox.
Strong power motor configuration.

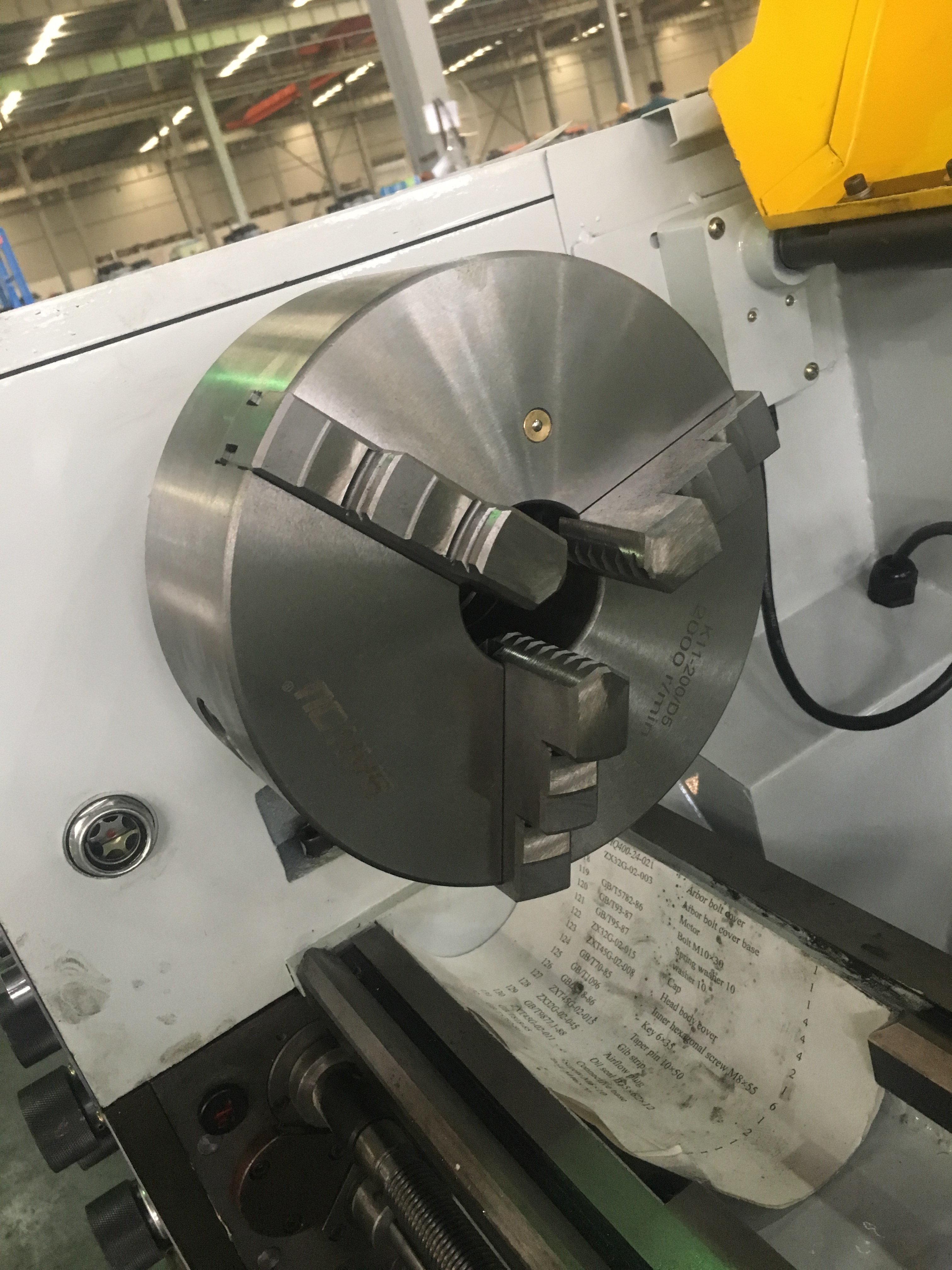

ASA D4 camlock spindle nose.
Various threads cutting functions available.
| Parameter Name / Model details | |
|---|---|
| Swing Over Bed | 360mm |
| Swing Over Carriage | 220mm |
| Swing over gap | 500mm |
| Distance Between Centers | 1000mm |
| Width of bed-way | 186mm |
| Spindle diameter | φ38mm |
| Taper of spindle | MT5 |
| Step of speed | 8 |
| Range of speed | 84~1850r.p.m |
| Head | D5 with D5' chuck |
| Metric thread | 26 kinds (0.4~7mm) |
| Inch thread | 34 kinds (4~56T.P.I) |
| Moulder thread | 16 kinds (0.35~5M.P) |
| Diametral thread | 36 kinds (6~104D.P) |
| Longitudinal feeds | 0.091~2.533mm/r (0.0036"~0.1005") |
| Cross feeds | 0.025~0.69mm/r (0.0012"~0.00345") |
| Diameter of lead screw | φ22(7/8") |
| Pitch of lead screw | 3mm or 8T.P.I |
| Saddle travel | 1000mm |
| Cross travel | 160mm |
| Compound travel | 70mm |
| Barrel travel | 95mm |
| Barrel diameter | 32mm |
| Taper of center | MT3 |
| Motor power | 1.5kw (2HP) |
| Motor for coolant system's power | 0.04kw (0.055HP) |
| Machine Dimensions (L×W×H) | 1920×760×760 |
| N.W./G.W. (main machine) | 505/565kgs |

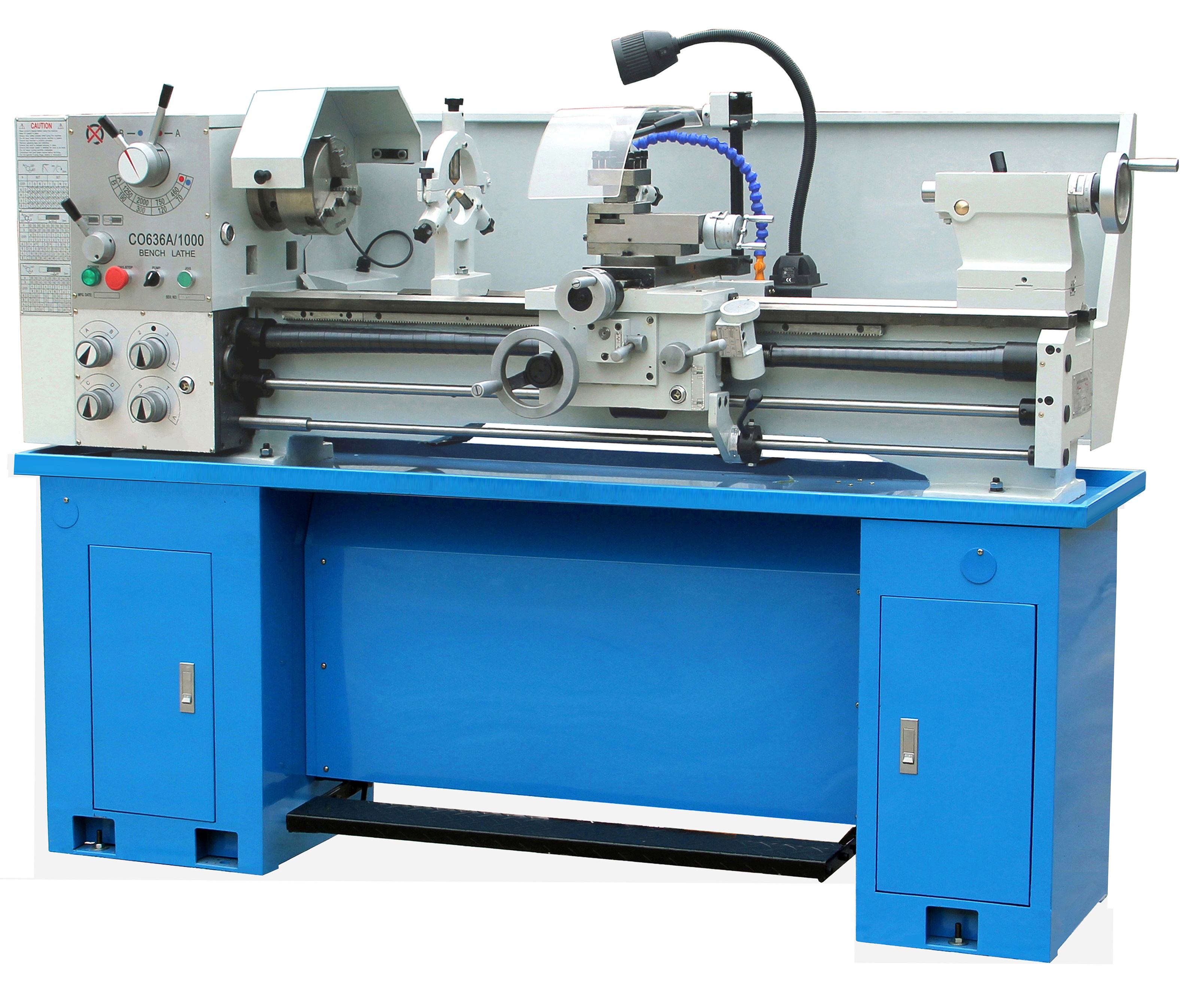

The C0636A lathe machine features a supersonic frequency hardened bed way, precision roller bearings for the spindle, ground and hardened gears inside the headstock, an easy-to-operate gearbox, and support for various thread cutting configurations.
The machine offers a swing over bed of 360mm, a swing over carriage of 220mm, and a maximum swing over gap of 500mm.
It offers versatile thread cutting including 26 kinds of Metric threads (0.4~7mm), 34 kinds of Inch threads (4~56T.P.I), 16 kinds of Module threads (0.35~5M.P), and 36 kinds of Diametral threads (6~104D.P).
The main spindle motor has a power capacity of 1.5kW (2HP), and it is supported by a secondary 0.04kW (0.055HP) motor dedicated to the integrated coolant system.

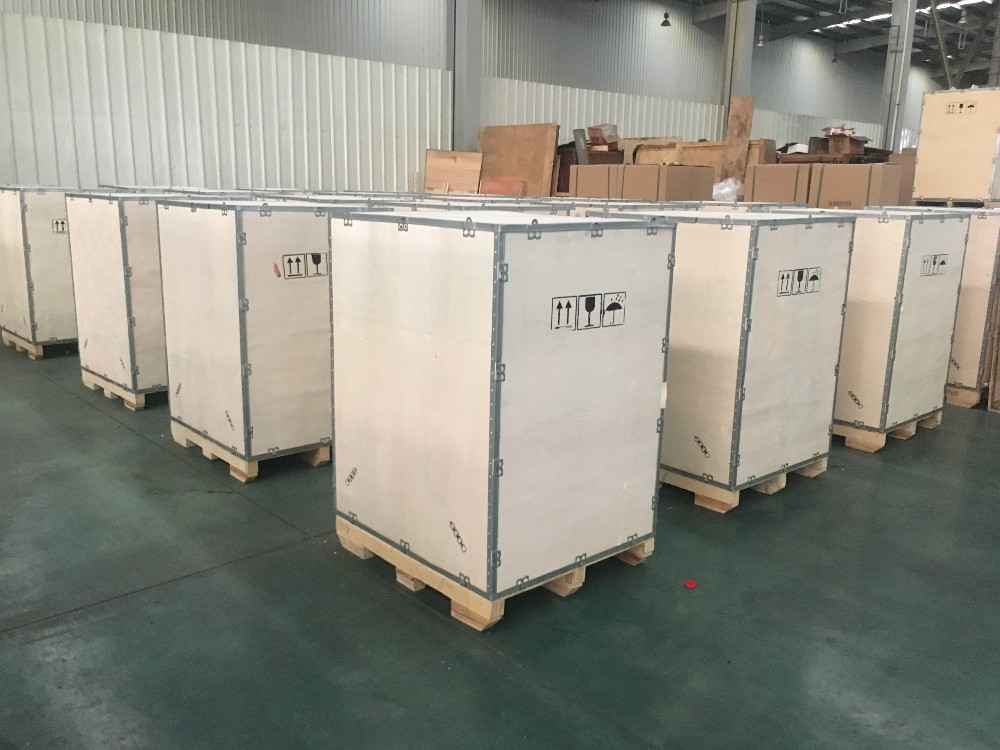

The lathe machines are securely packed using export-standard robust wooden crates with protective internal padding to avoid movement, dust, and moisture during sea or land transit.
The spindle features a through-bore diameter of 38mm with a spindle taper of MT5 to accommodate standard heavy-duty tooling.
