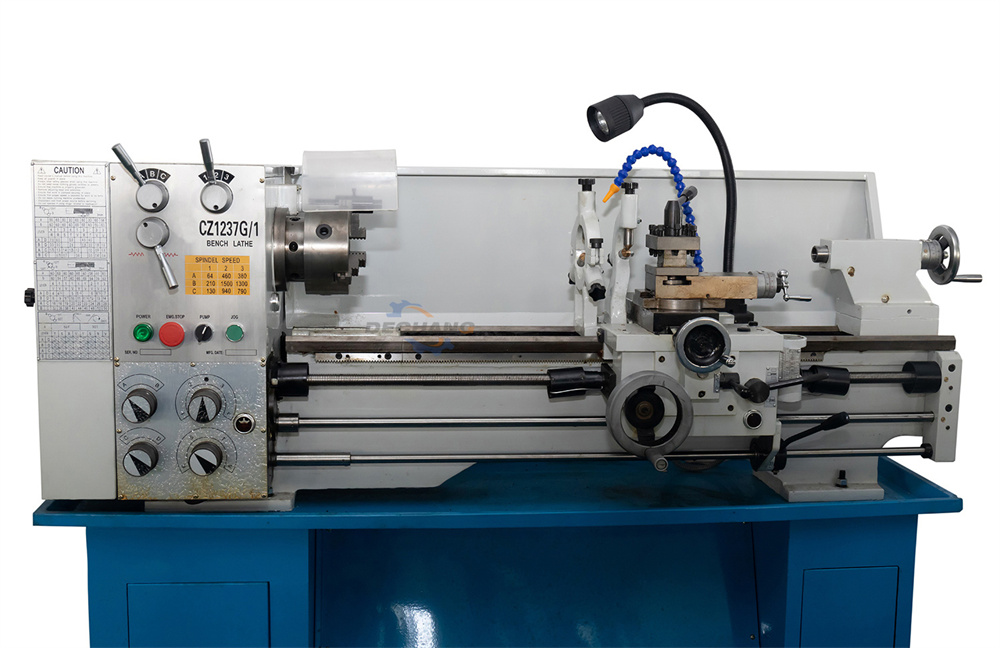

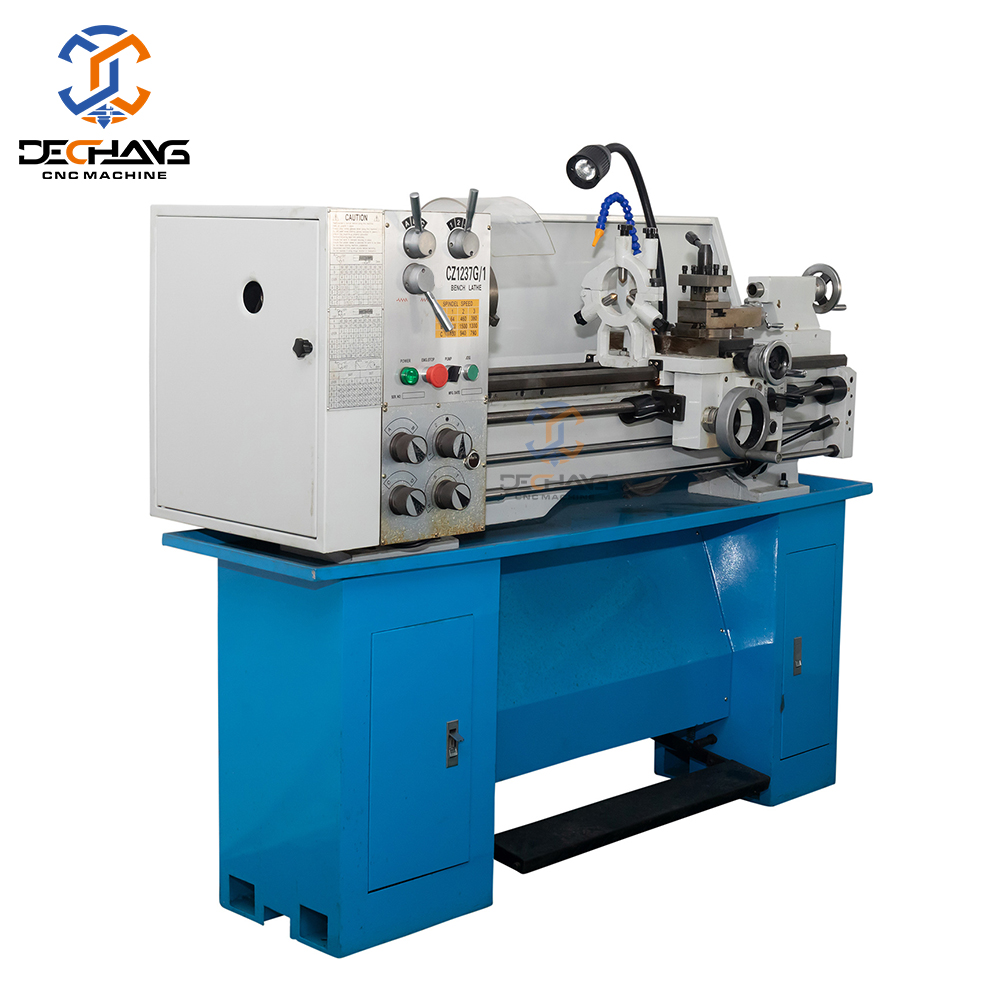

| Specifications | Units | CZ1237G/1 |
|---|---|---|
| Swing over bed | mm | 305 |
| Swing over cross slide | mm | 173 |
| Swing over gap | mm | 440 |
| Distance between centers | mm | 940 |
| Spindle bore | mm | 38 |
| Spindle bore taper | - | MT5 |
| Spindle speed steps | rpm | 64-1500 |
| Spindle speed range | - | 9 |
| Top tool post travel | mm | 85 |
| Cross slide axis travel | mm | 150 |
| Z axis travel | mm | 810 |
| Longitudinal feeds range | mm/r | 0.052-1.392 |
| Cross feeds range | mm/r | 0.014-0.38 |
| Metric threads range(kinds) | mm | 0.4-7(26 kinds) |
| Inch threads range(kinds) | T.P.I. | 4-56(34 kinds) |
| Module threads range(kinds) | M.P. | 0.35-5(16 kinds) |
| Diametral pitch thread range(kinds) | D.P. | 6-104(36 kinds) |
| Tailstock quill diameter | mm | 32 |
| Tailstock quill taper | - | MT3 |
| Tailstock quill travel | mm | 95 |
| Main motor power | kw | 1.1(1.5HP) |
| Coolant motor power | kw | 0.04(0.055HP) |
| Machine weight | kg | 460/515 |
| Packing size（W*H*L） | mm | 1780*760*760 440*410*700 370*410*700 |

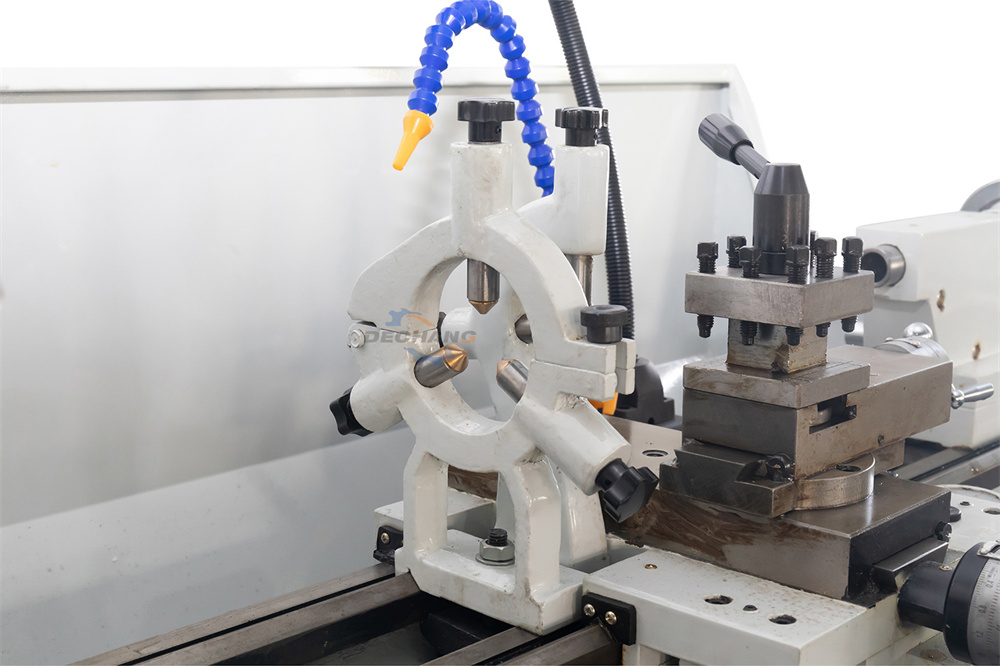

Live center, face plate, steady rest and follow rest, 4 jaw independent chuck and so on.
We are a professional supplier and exporter of CNC machines and manual machines, specializing in manufacturing and selling various machine tools to global customers for more than 10 years.
Our mission is to provide the best machine tools and solutions, create the greatest value for our customers, realize mutual benefits, and build long-term, stable cooperative relationships.
Our main products are:
CNC Lathe Machine, CNC machining center, CNC Milling Machine, CNC Turning Center, Lathe machine, Milling machines, Drilling machine, Sawing machine, Grinding machine and other metal-working machines and accessories.
QUALITY COMMITMENT
We are committed to bringing efficiency, high precision, and stability to all users by insisting on providing our customers with high-quality machines. Our machines have passed ISO and CE Certificates.
1. MANUFACTURER CAPABILITY
We have purchased high-precision and high-efficiency advanced equipment from well-known brands. Our machining and production technology level has been continuously improved, resulting in a continuous increase in production capacity. We provide first-class machines to meet the needs of global customers.
2. R&D CENTER
We have gathered first-rate professionals in the machine tool trade and established long-term technical cooperative relations with other famous machine manufacturers. Meanwhile, we pay close attention to introducing advanced technology, and make great efforts to achieve technical renovation and develop market-oriented, highly sophisticated products.
From the moment you partner with us, we are fully dedicated to guiding you, answering your questions, and supporting your business. You can rest assured that you always have a trusted partner to guide you every step of the way.
1. Warranty
The warranty period is generally 13 months after the B/L date. During the warranty period, if parts are damaged due to quality problems (excluding human factors and improper operation), we will provide free replacement parts. Meanwhile, the machine should be operated under normal conditions according to the Operation Manual.
2. Quick Response
Our expert technical support specialists are available seven days a week, 24 hours a day, so you can always count on us to provide help when you need it most.
3. Online Technical Support
On communication channels, our technicians and sales representatives will deliver solutions via video and text instructions.
4. Overseas Commissioning and Installation
This is a paid service. If an engineer is required for overseas installation and debugging, please contact the sales representative to obtain the cost.
We use standard export packaging: plywood case with pallet. This packaging protects the machine and avoids damage during shipping.
We provide comprehensive CNC machines and manual machines to global customers. Whether you are an end user, a dealer, or a machining factory, you can send your technical requirements, specifications, and drawings, and we will provide the most suitable machine or a comprehensive processing line solution.
