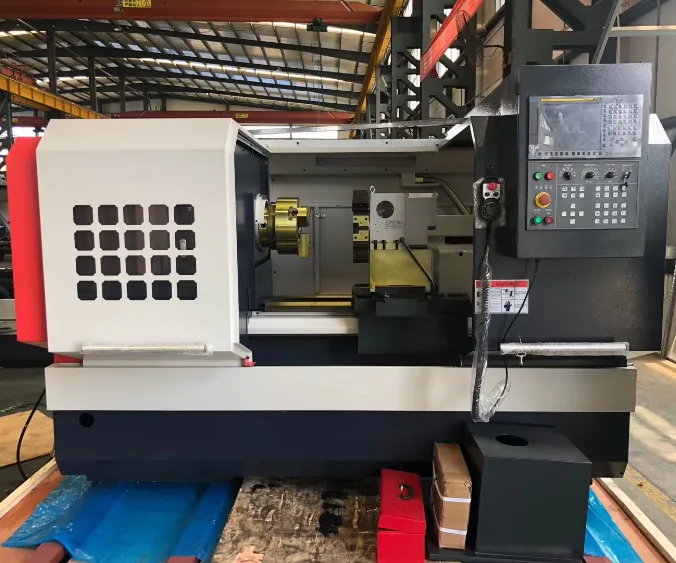

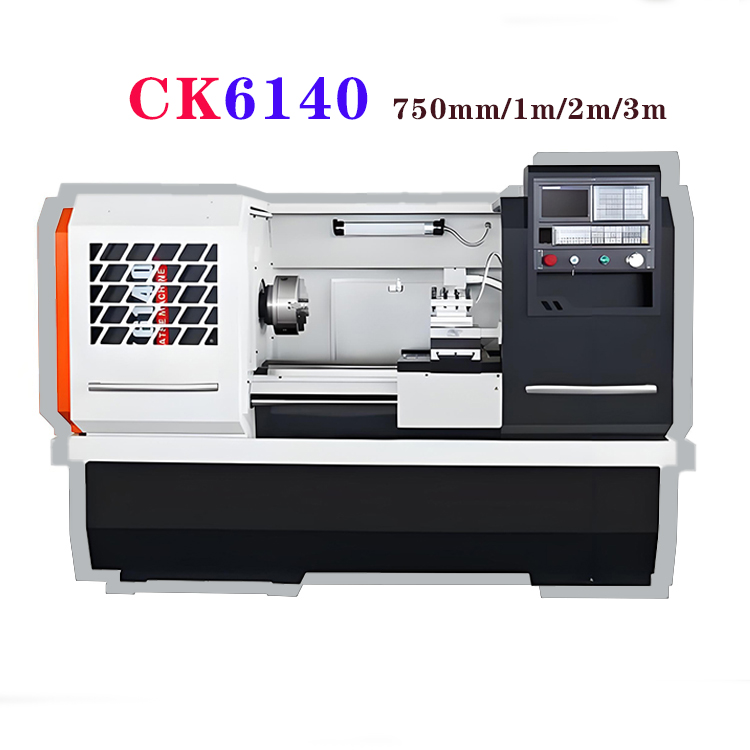

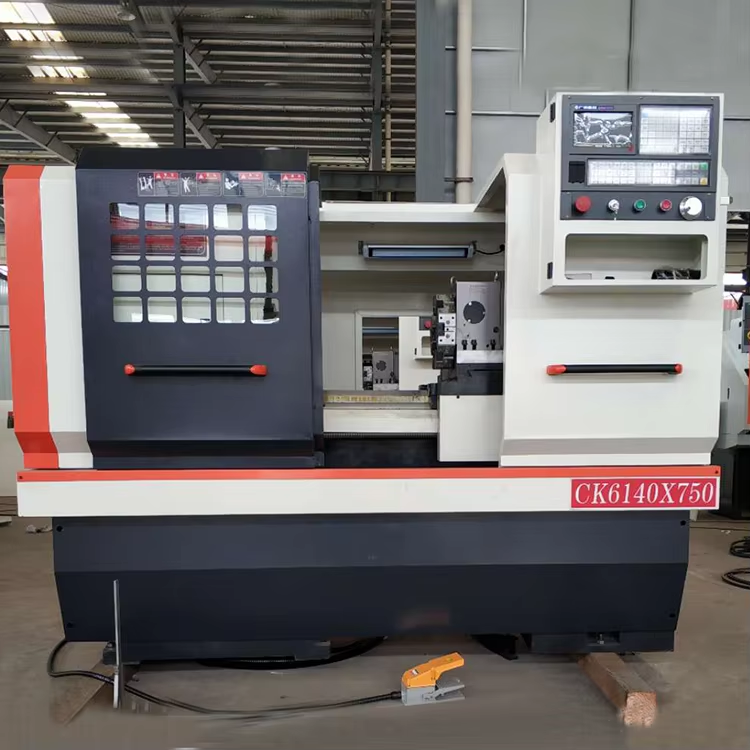

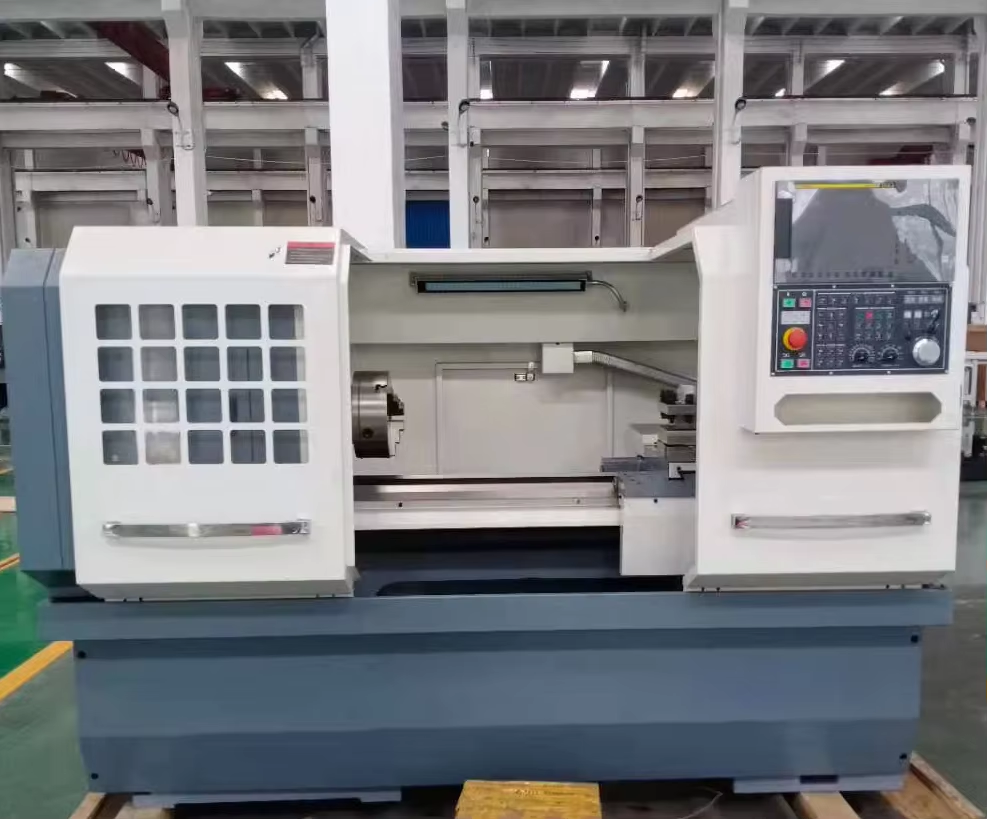

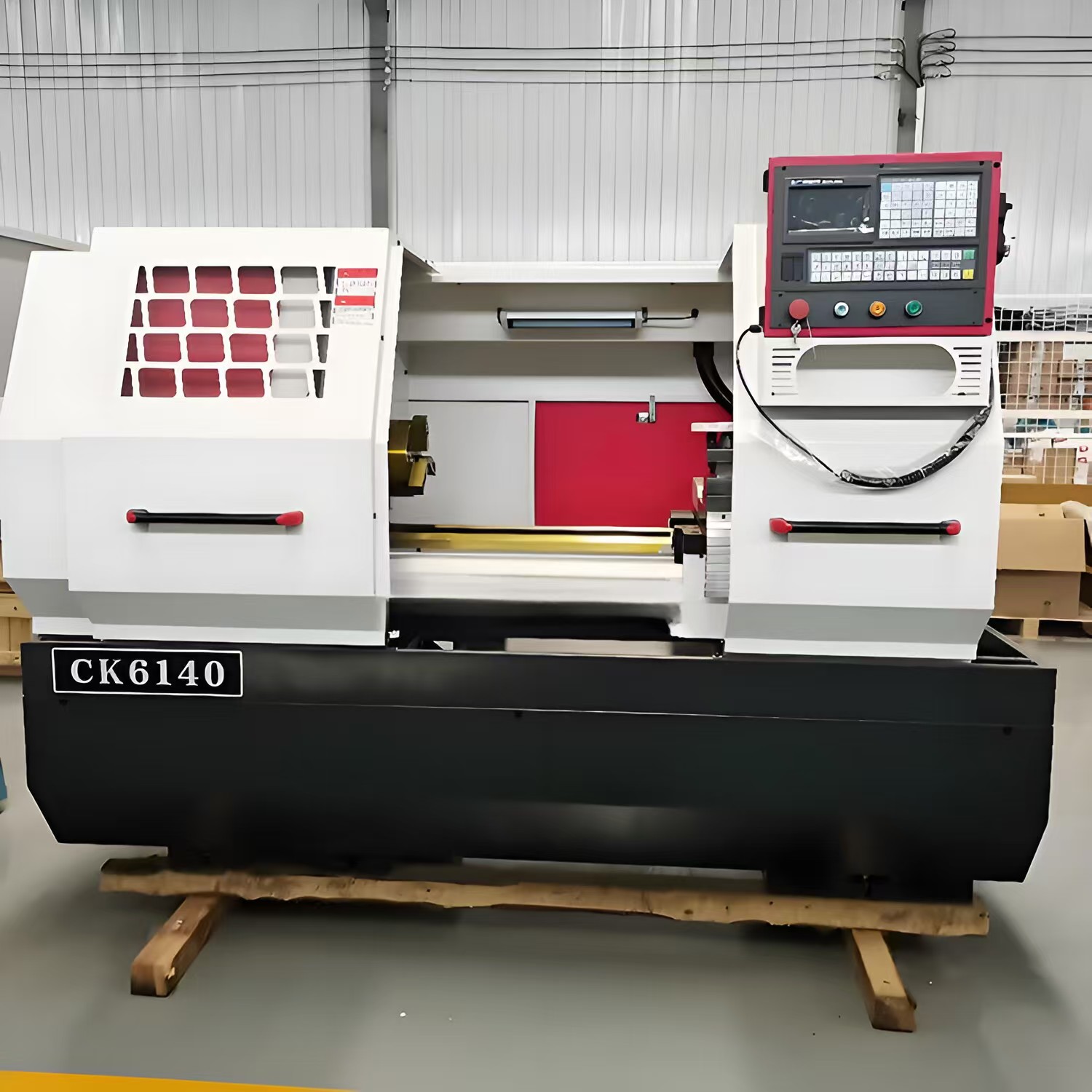

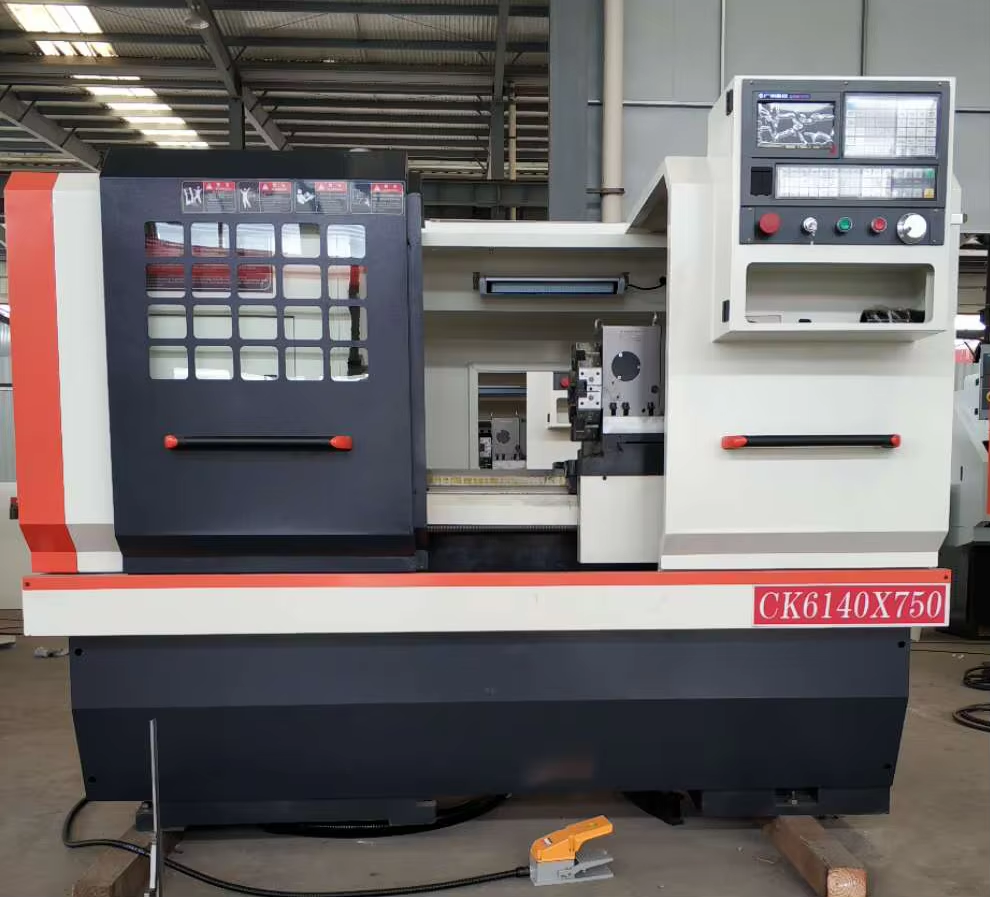

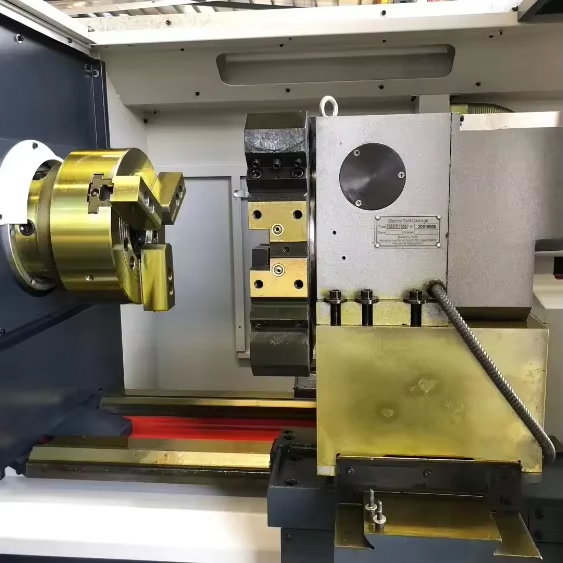

This series of machine tools is a mature product mainly exported worldwide. The whole machine has a compact structure, beautiful appearance, large spindle torque, high rigidity, stable and reliable performance, and excellent accuracy retention. The CNC Lathe machine CK6140 features a wide digital system with servo motor stepless speed regulation, making it an exceptional horizontal CNC turning lathe.

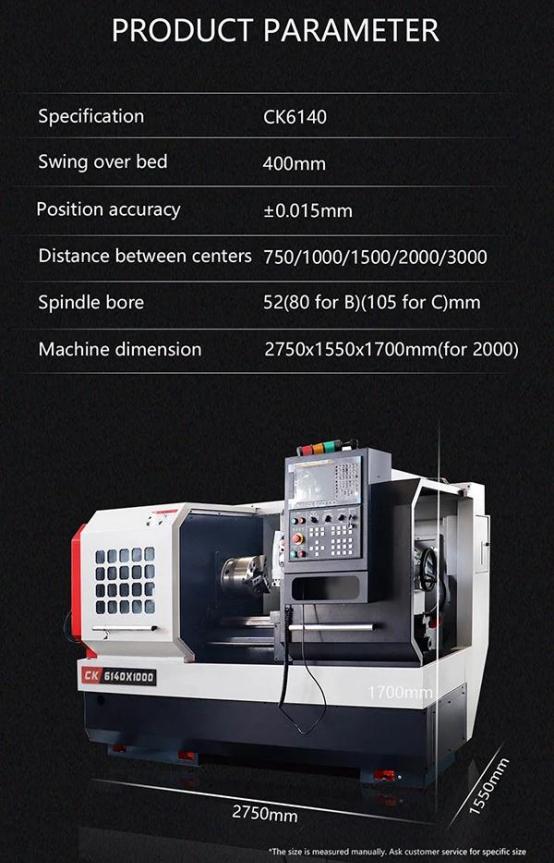

| Parameter | CK6140 * 750mm | CK6140 * 1000mm | CK6140 * 1500mm | CK6150 * 2000mm | CK6150 * 2500mm |
|---|---|---|---|---|---|
| Max. swing over bed | 400mm | 400mm | 400mm | 500mm | 500mm |
| Max. Swing over cross slide | Φ200mm | Φ200mm | Φ200mm | φ290mm | φ290mm |
| Max. workpiece length | 750mm | 1000mm | 1500mm | 2000mm | 2500mm |
| Spindle hole | Φ80 | Φ80 | Φ80 | Φ80 | Φ80 |
| Spindle nose | C6 | C6 | C6 | C6 | C6 |
| Spindle tap | MT6 | MT6 | MT6 | MT6 | MT6 |
| Spindle speeds (Number) 3 Steps | 162-1500 | 162-1500 | 162-1500 | 162-1500 | 162-1500 |
| X-axis stroke | 280mm | 280mm | 300mm | 280mm | 280mm |
| Z-axis stroke | 600mm | 850mm | 1350mm | 850mm | 1350mm |
| Feed speed X/Z | X:3m/min Z:4m/min | X:3m/min Z:4m/min | X:3m/min Z:4m/min | X:3m/min Z:4m/min | X:3m/min Z:4m/min |
| Rapid feed speed X/Z | X:4m/min Z:6m/min | X:4m/min Z:6m/min | X:4m/min Z:6m/min | X:4m/min Z:6m/min | X:4m/min Z:6m/min |

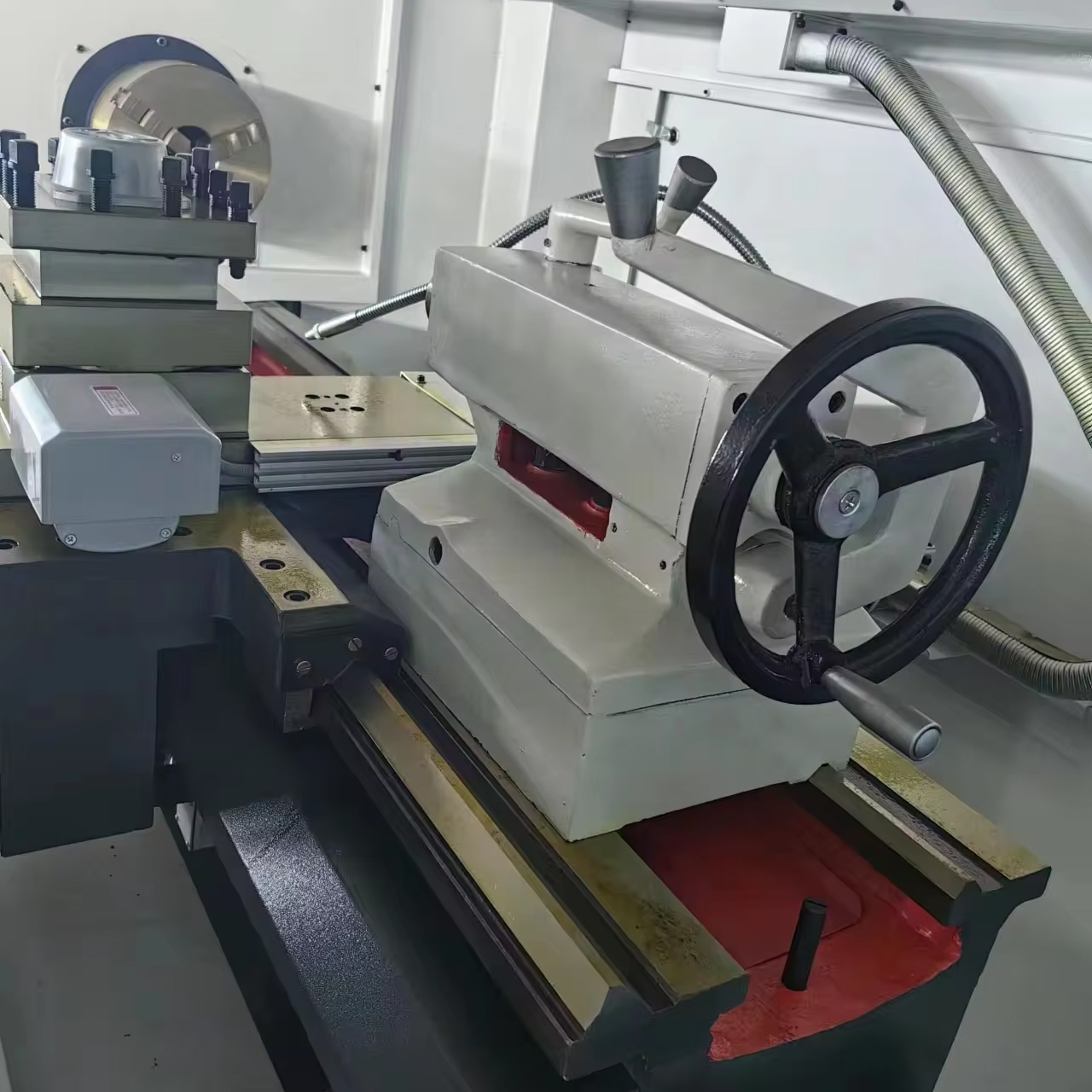

| MAX. tailstock spindle travel | 150mm | 150mm | 150mm | 150mm | 150mm |
| Tailstock spindle diameter | Φ65mm | Φ65mm | Φ65mm | φ75 | φ75 |
| Taper of tailstock spindle center hole | MT5 | MT5 | MT5 | MT5 | MT5 |

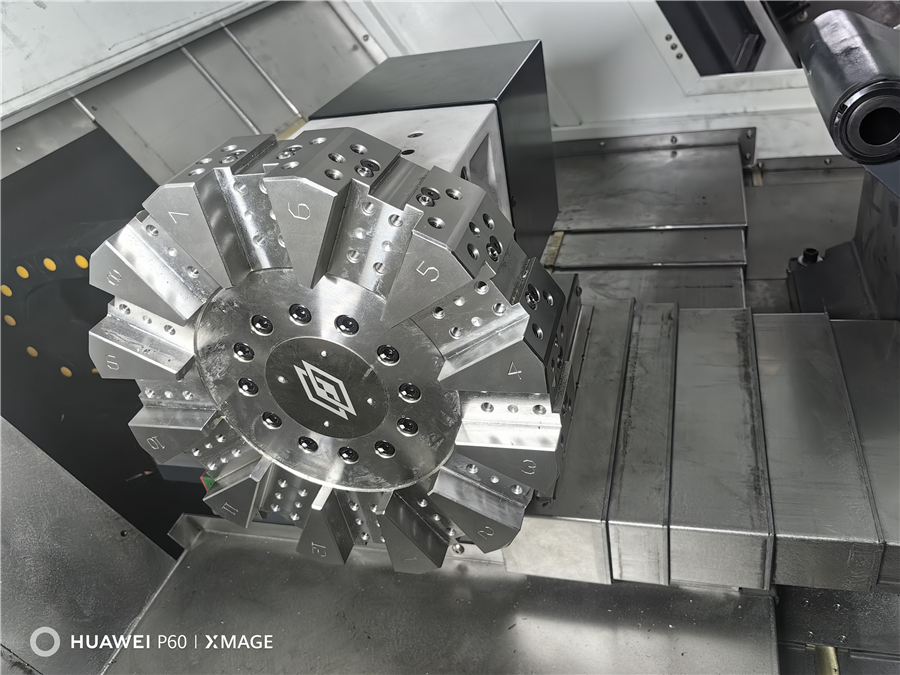

| Tool number | 4 (Optional 6) | 4 (Optional 6) | 4 (Optional 6) | 4 (Optional 6) | 4 (Optional 6) |
| Tool body size | 25*25mm | 25*25mm | 25*25mm | 25*25mm | 25*25mm |
| Tool change time | 2s | 2s | 2s | 2s | 2s |
| Main motor power | 7.5kw | 7.5kw | 7.5kw | 7.5kw | 7.5kw |

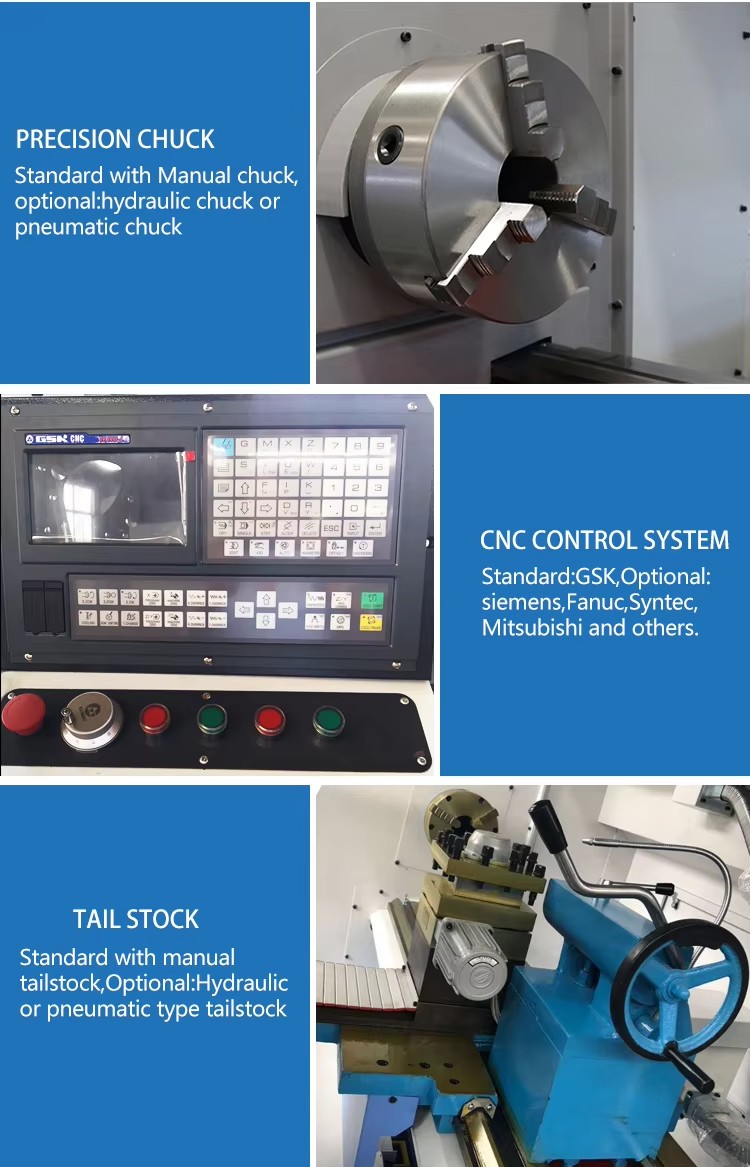

| Chuck | 250mm | 250mm | 250mm | 250mm | 250mm |
| Positioning accuracy | ±0.015mm | ±0.015mm | ±0.015mm | ±0.015mm | ±0.015mm |
| Repositioning accuracy | ±0.006mm | ±0.006mm | ±0.006mm | ±0.006mm | ±0.006mm |
| Dimensions | 2550*1550*1700mm | 2750*1550*1700mm | 3250*1550*1700mm | 2750*1550*1700mm | 3250*1550*1700mm |
| Weight | N.W. 2100kg | N.W. 2200kg | N.W. 2300kg | N.W. 2200kg | N.W. 2300kg |
