CNC Woodworking Lathe 5 Axis with RTCP Function for Complex Staircase Spiral Stairs Turning Milling

Product Description

Woodworking CNC Lathe Banner

Machine Photos

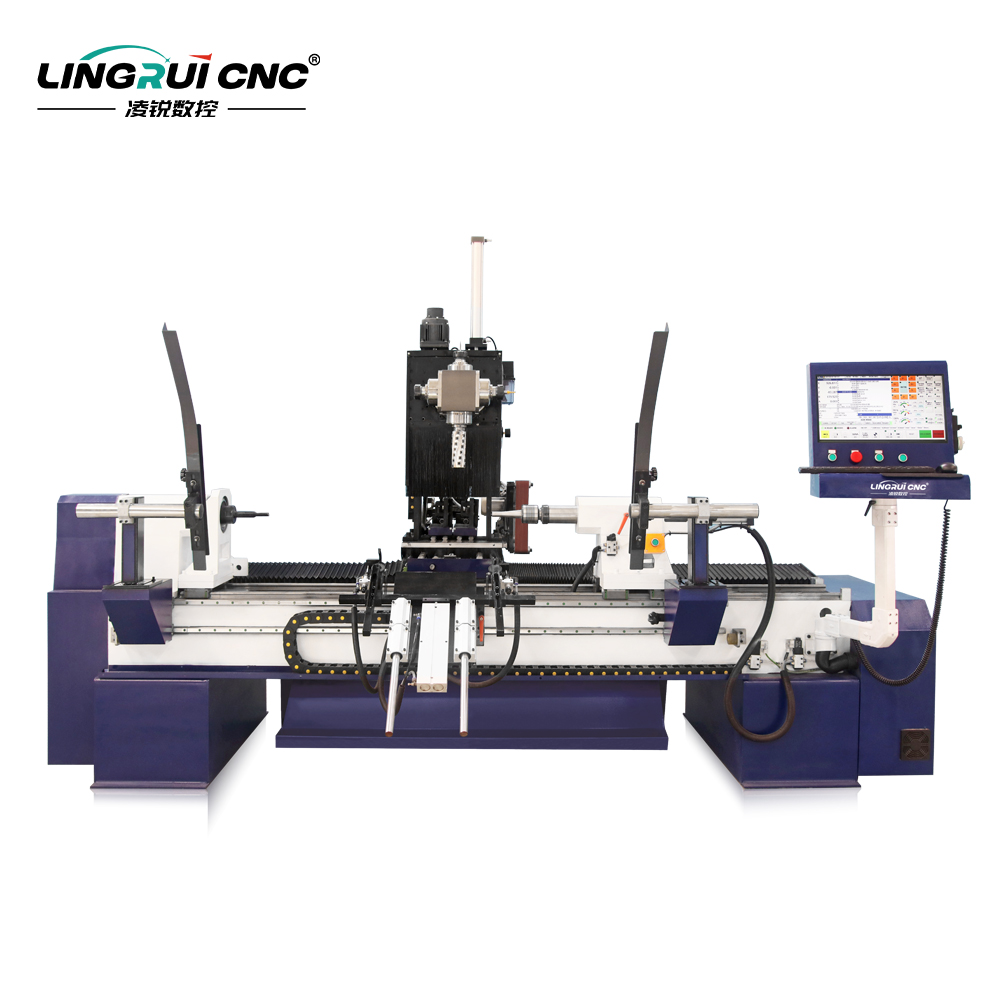

CNC Woodworking Lathe View 1
CNC Woodworking Lathe View 2
CNC Woodworking Lathe View 3

Product Parameters

Product Parameters Overview
Model LR-1530-7T-5AXIS
Processing Dimensions 1500 * 300mm (customizable according to processing requirements)
Lathe Bed Heavy-duty integrally cast parallel twin beds, independent anti-interference control cabinet
Linear Axis Drive Motor Bus-type absolute 1500W servo motor
Fifth Rotary Axis Drive Motor Bus-type absolute 750W servo motor

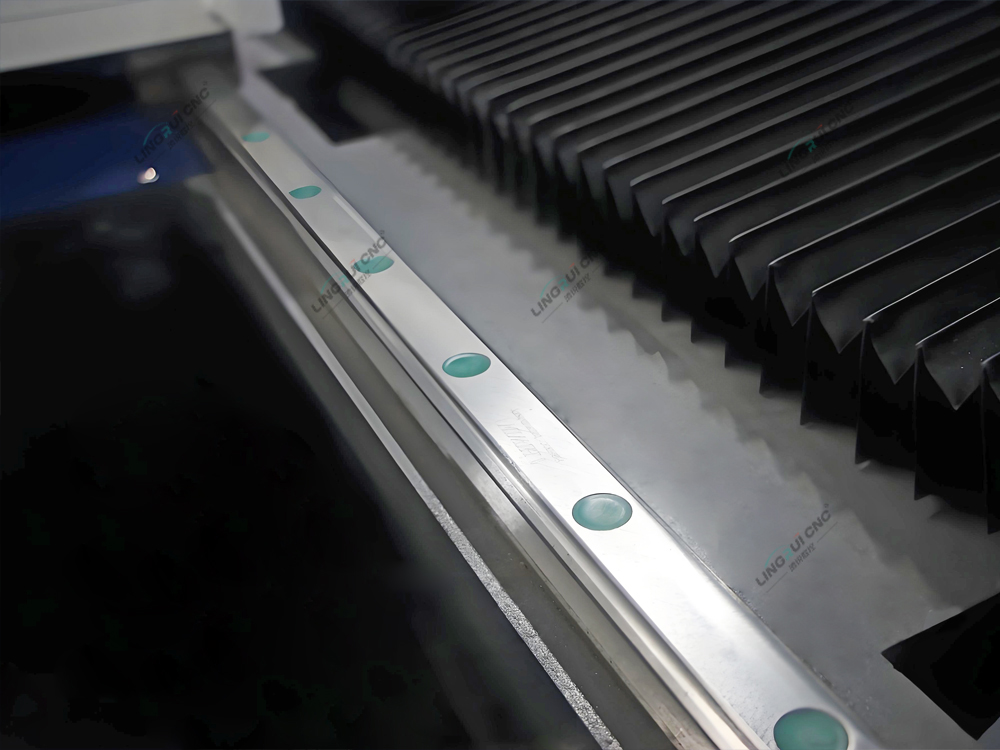

Linear Axis Transmission Mode Z axis: high-precision helical rack + Taiwan Hiwin 30 guide rail/flange slider
X, Y axis: TBI ball screw + Taiwan Hiwin 30 guide rail/flange slider
Reducer Shimpo (Japan) planetary gear reducer
Frequency Converter Hpmont frequency converter/servo frequency converter
Drive-Spindle Motor 4KW pure servo high-torque and high-speed motor
Drive-Spindle Speed 0-6000r/min
Turning Tool Two mounting positions for turning tools (self-installable)
Multi-functional Spindle 7.5KW high-speed air-cooled four-head spindle (supports 5-axis RTCP)
Multi-functional Spindle Speed 0-18000r/min
Multi-functional Spindle Collet ER40 φ26mm
Sanding Device Independent 1100W variable frequency servo motor control, replaceable sanding belt, selectable sandpaper grit
Sanding Device Speed 0-6000r/min
Automatic Loading and Unloading Four-bar linkage cylinder loading/unloading device (simple and easy to use)
Control System Taiwan LNC control system
Lubrication System Central lubrication and maintenance system (automatic timed lubrication)
Electrical Components Delixi/Schneider AC contactors, relays, circuit breakers
Operating Voltage AC380V/220V 50/60Hz
Compatible Software Artcam, Type3, AutoCAD, CDR, Carving, Powermill, UG, Mastercam, etc.
Engraving Instructions Standard G code, u00,mmg,plt
Security System XYZB four-axis all photoelectric limit
Repeat Positioning Accuracy ±0.02mm
Weight 2300kg
Dimensions 3750*2150*2150mm

Details Images

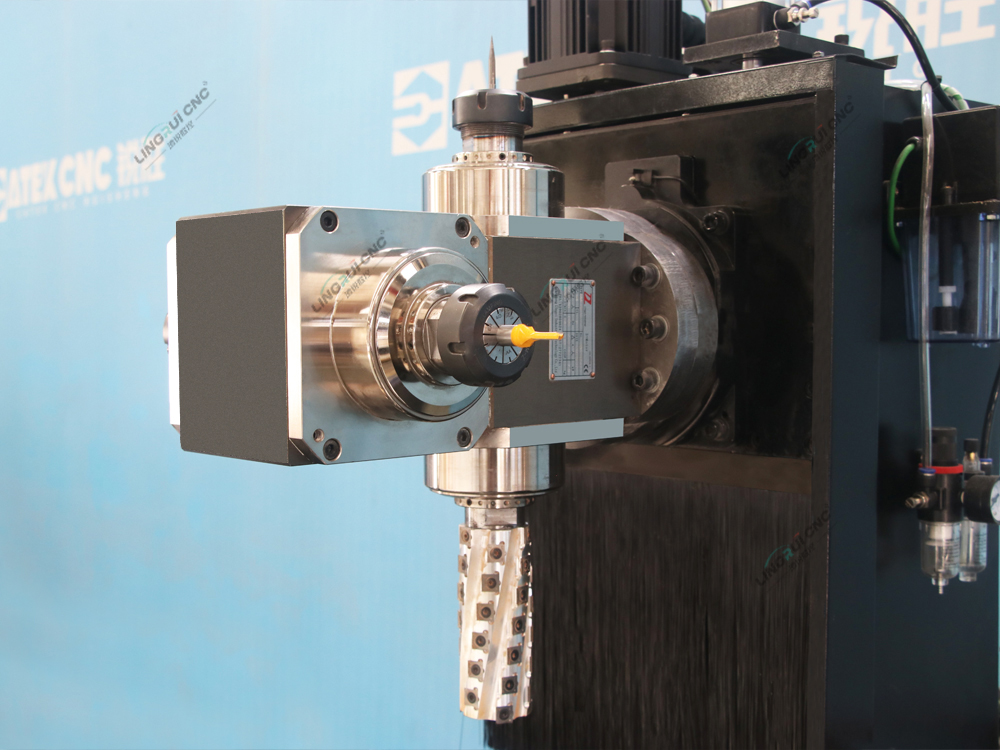

Four-head electric spindle
The four-head electric spindle, designed specifically for five-axis machining centers, features an integrated design and boasts a maximum speed of 18,000 rpm. Equipped with an ER40 toolholder, it can accommodate four different tool types at a time. During machining, it automatically rotates and switches tools according to the drawing and offers ±90-degree tilt adjustment, making it easy to complete complex processes such as drilling, grooving, and engraving on both inclined and vertical workpiece surfaces.

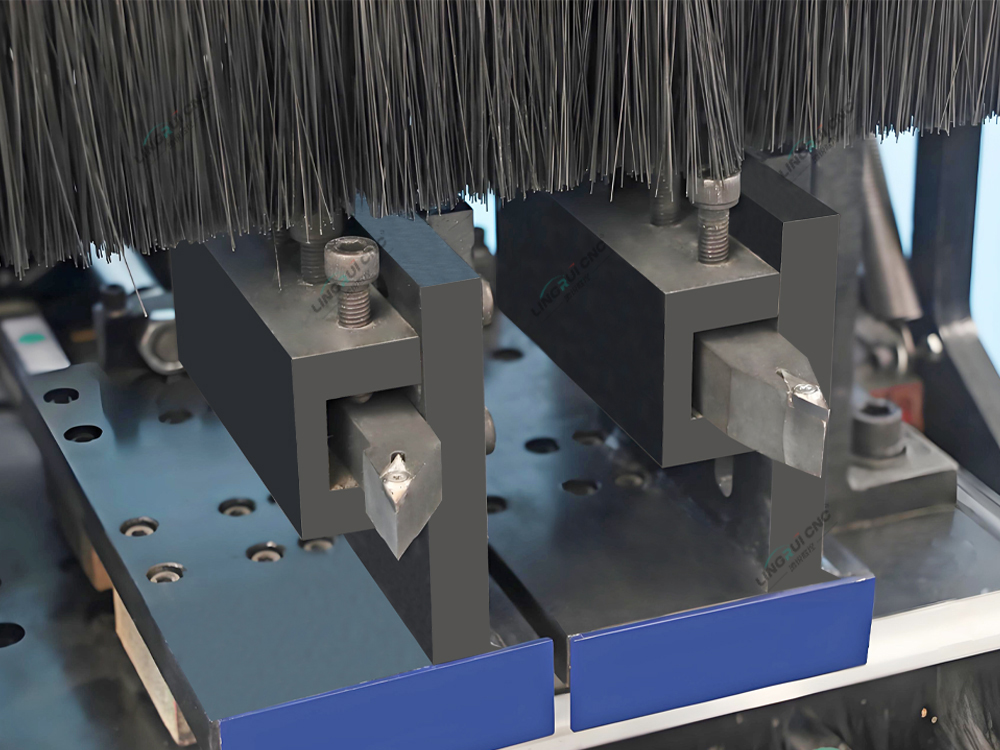

Turning tool positions
Equipped with two turning tool mounting positions, switched via a pneumatic cylinder, these two mounting positions accommodate various functional tools, including V-type turning tools, U-type turning tools, O-type turning tools, and cut-off tools. These positions automatically switch between the two positions based on workpiece requirements, meeting diverse turning needs.
Sanding belt unit
Equipped with a sanding belt unit for grinding, it's driven by an 1100W brushless servo motor, with a maximum speed of 6000 rpm. The speed can be adjusted to suit your grinding needs. A grinding wheel and a pulsating sanding unit are also available as options.
LNC CNC system
The LNC five-axis CNC system supports advanced features such as five-axis RTCP and handwheel simulation. It is compatible with various formats including NC, TAP, and TXT, and features an intuitive interface for easy control.

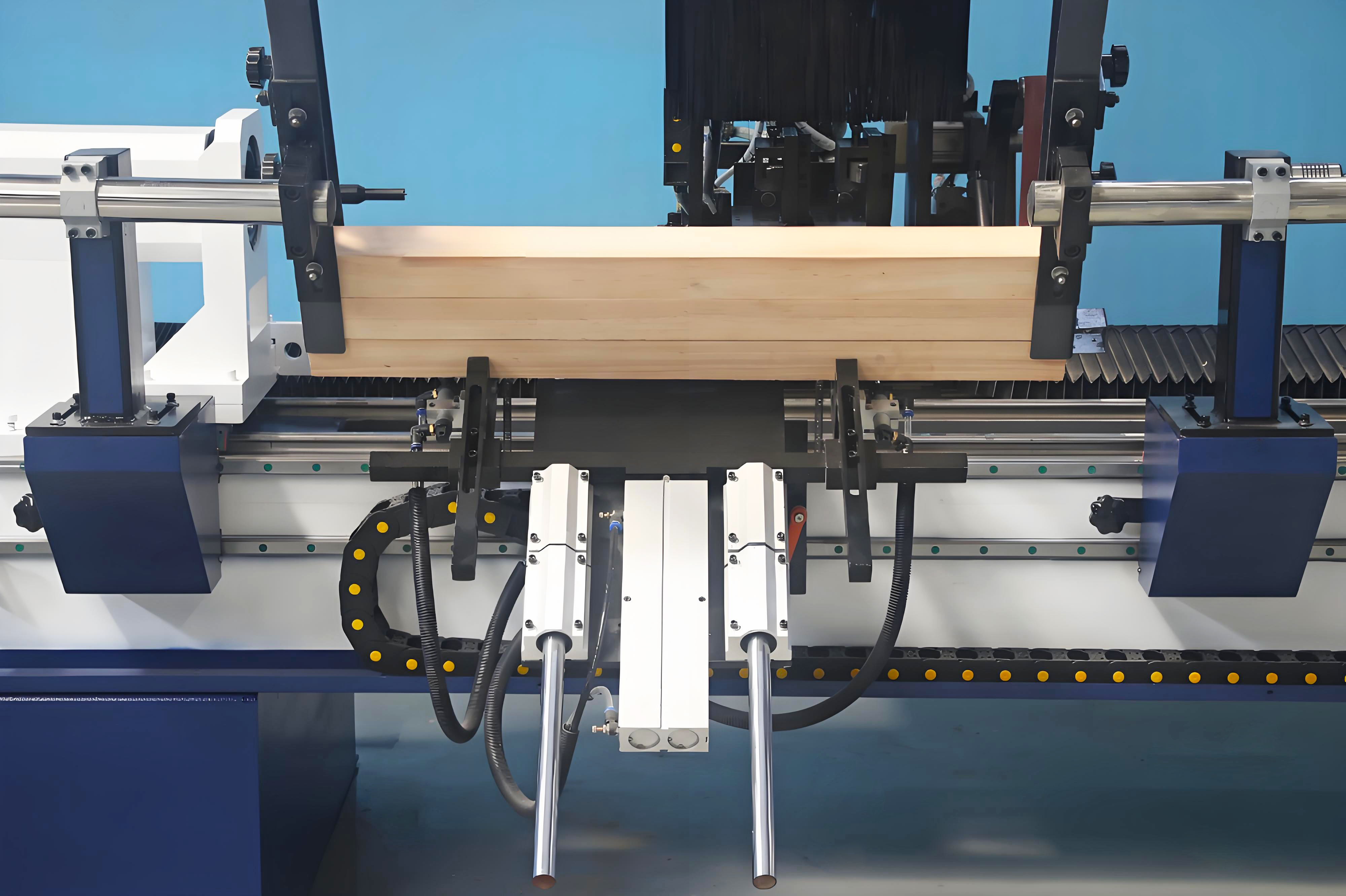

Pneumatic feeding device
The pneumatic automatic feeding device features a four-link structure for high stability and strong load-bearing capacity. It can be adjusted to suit the size of the raw material. It's easy to use and eliminates the need for manual loading, saving labor and improving efficiency.
Pulse control handwheel
An external five-axis pulse control handwheel allows for free adjustment of the X, Y, Z, and A axes, making tool calibration even more convenient.
Servo motor and reducer
It utilizes a 1500W bus-based absolute servo motor and a Japan Shinpo planetary reducer on the Z-axis. It boasts a traverse speed exceeding 60 m/min, a wide and smooth speed regulation range, stable torque output, and high positioning accuracy, making it ideally suited for five-axis CNC woodworking lathes requiring high machining precision and multi-axis synchronization.
Lubrication system
The central automatic lubrication and oiling maintenance system regularly lubricates all transmission parts of the machine, preventing untimely manual lubrication.
Gray cast iron construction
Constructed entirely of gray cast iron, it incorporates four high-strength bearings, which effectively distribute the load and reduce rotational friction, resulting in higher rotational precision and more stable speed.

Sample Display

The LR-1530-7T-5AXIS five-axis multi-function CNC woodworking lathe, with its five-axis RTCP linkage, high-precision control, and multi-function automatic switching capabilities, meets the full range of processing needs from ordinary wood products to complex special-shaped crafts.
