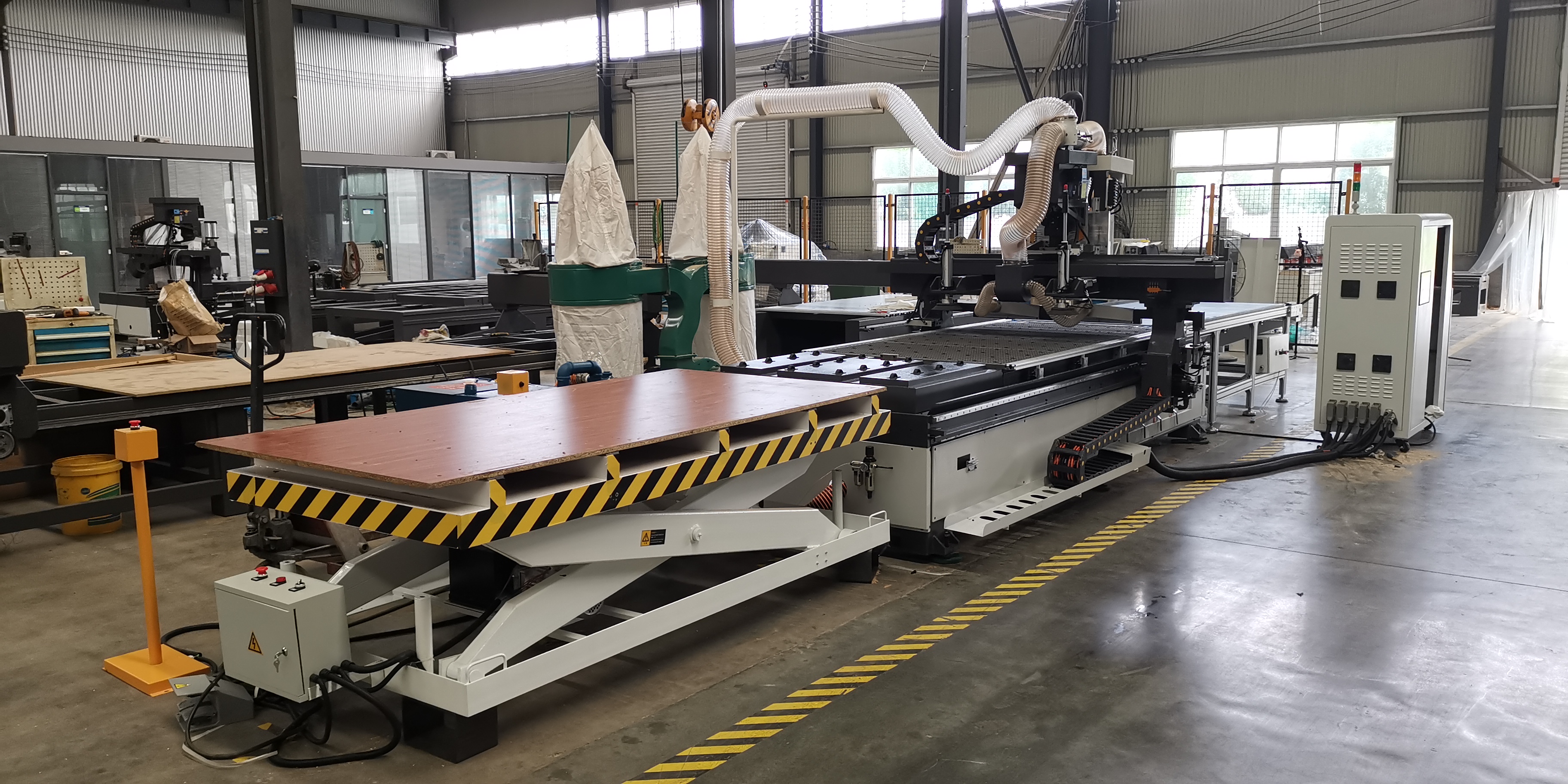

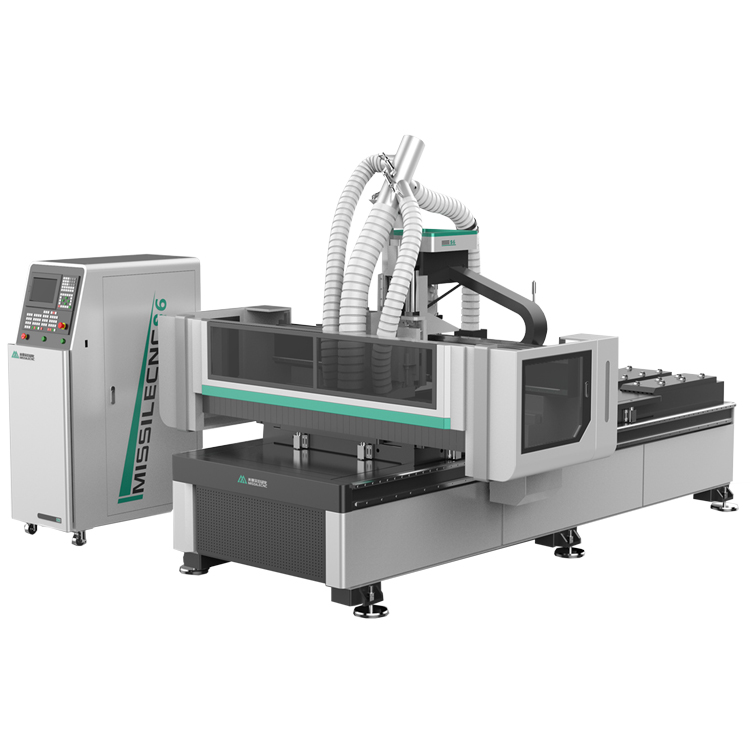

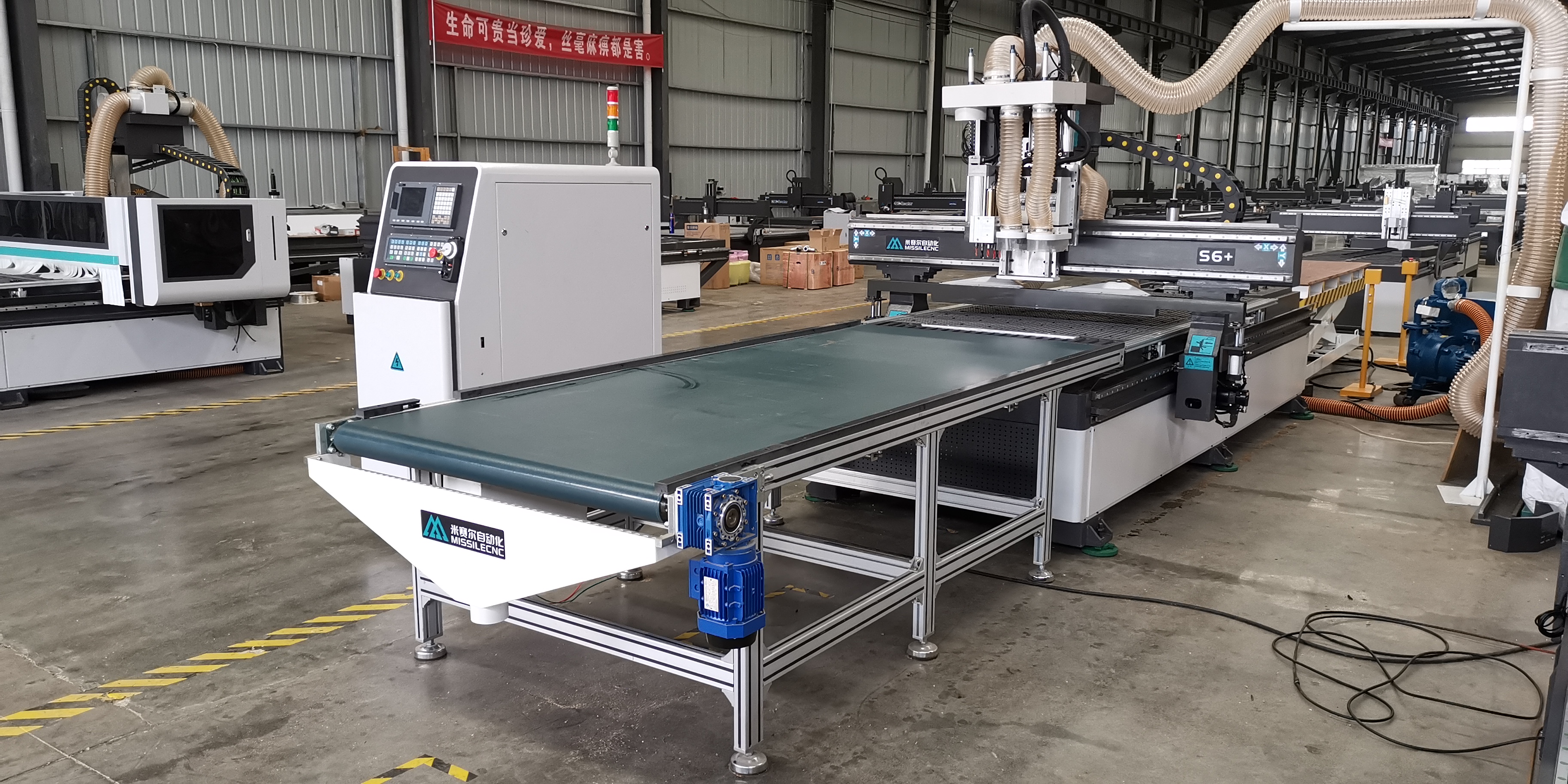

S6 is a professional machine for panel furniture production. It is equipped with a 6KW ATC spindle and Italy FAM 5+4 boring heads which can meet all kinds of vertical holes drilling requirements.
S6 has multifunction capabilities including routing, drilling, cutting, edge chamfering, and more.

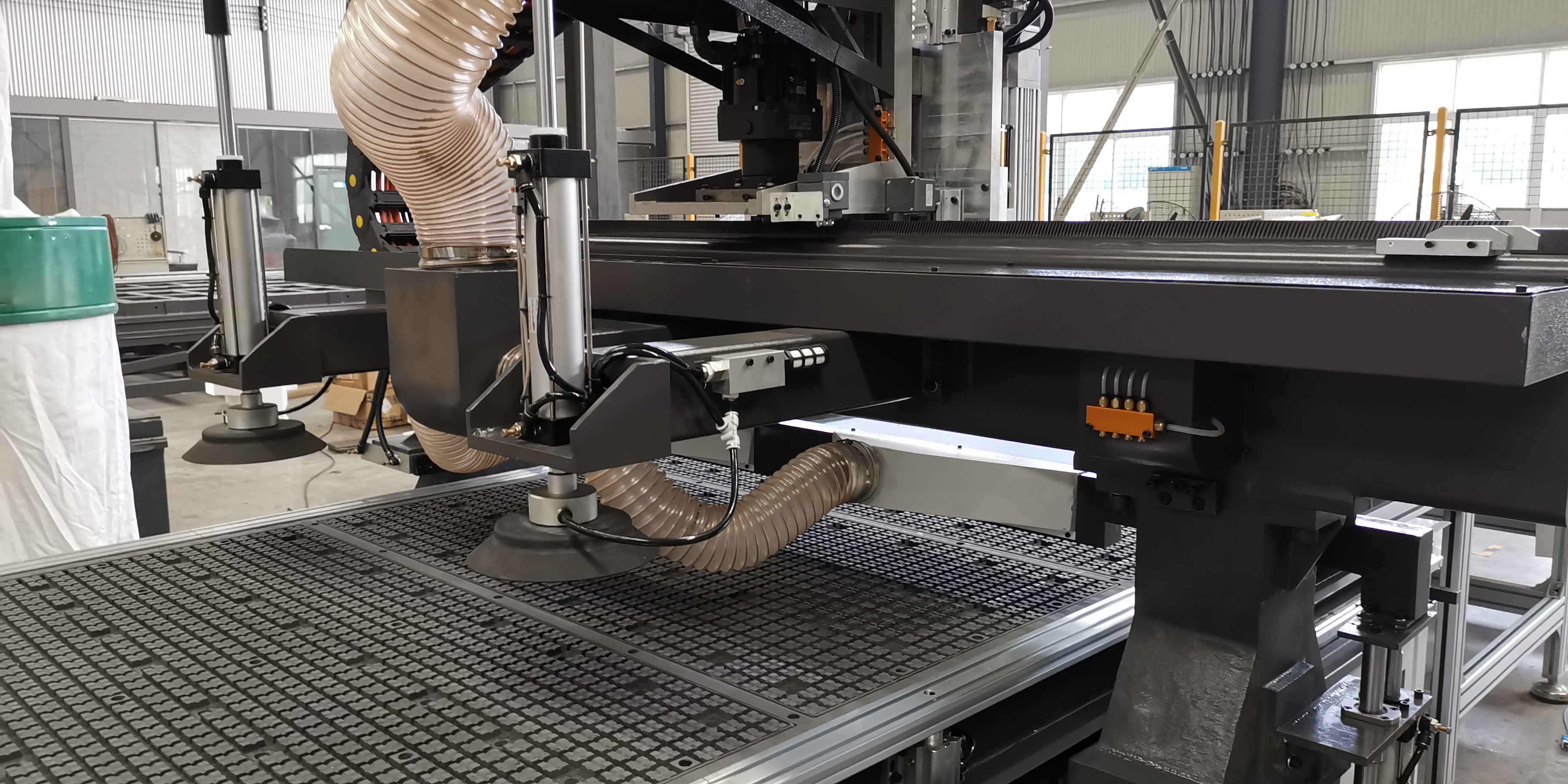

S6 is also equipped with an automatic push function which can push the finished panel board from the worktable and collect the dust during operation at the same time. This setup makes it significantly easier for the operator to unload the panel board, allowing new feeding boards to be strongly sucked onto the worktable easily.
Optional upgrades include an automatic front conveyor belt, unloading table system, automatic rear pre-labelling device, safety fence enclosure, and laser safety light curtains.
Panel furniture industry: Wood furniture making, cabinet, closet, kitchen, etc. Door and windows: engraving, chamfering, cutting, relief, etc.
Other applications: Suitable for processing display counters, artificial stone flow management units, petrochemical PF filter plates, headboard, insulation plates, styrofoam model, yacht bedroom, OA office desktop.
| Parameter | Specification Details |
|---|---|
| Working area | 1300*2500*200mm |
| Traveling positioning accuracy | 0.02mm |

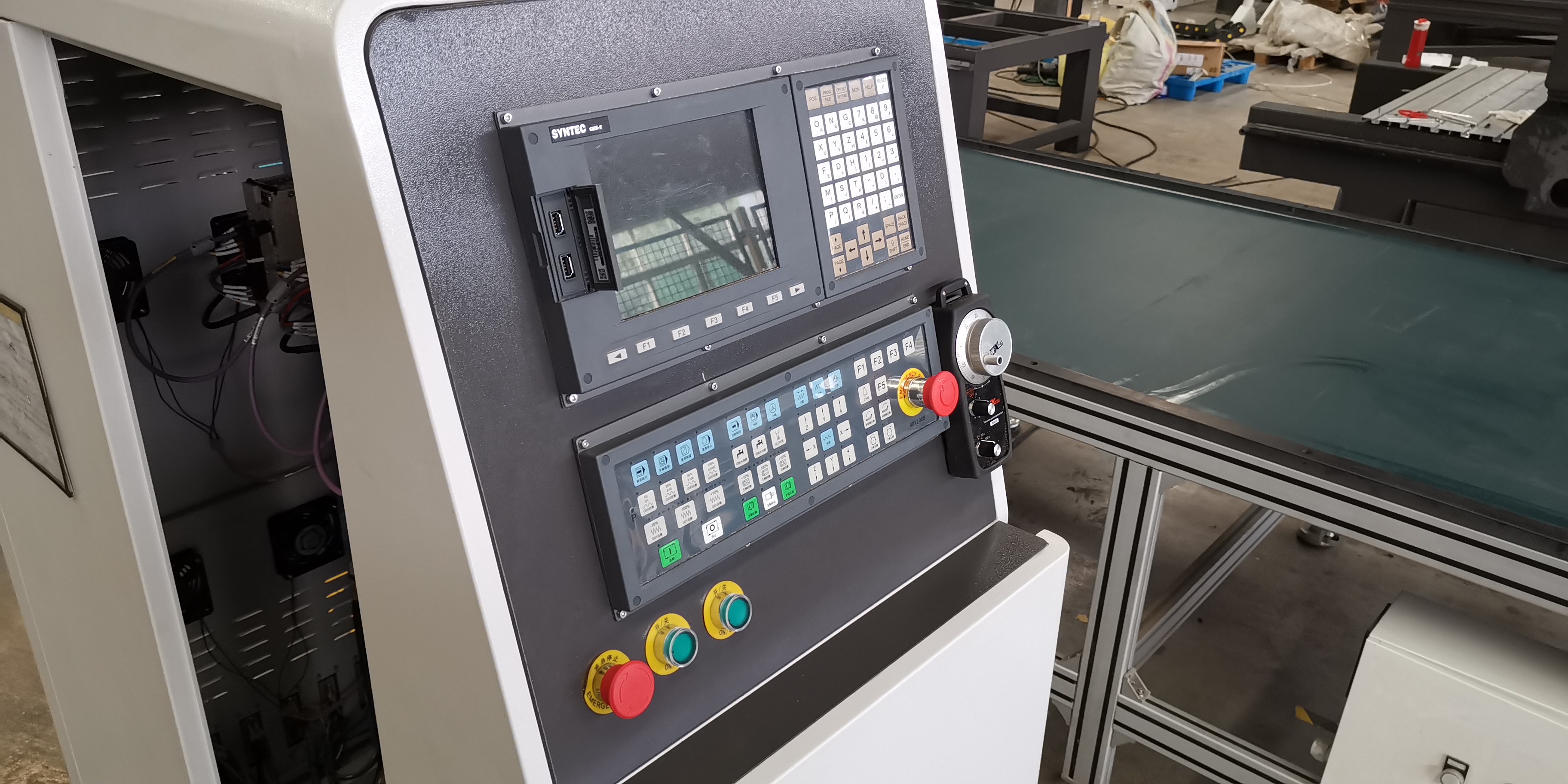

| Operating system | Syntec control system |
| Working Voltage | AC380V/50HZ/3PH |
| Repositioning accuracy | 0.02mm |
| Table surface | Vacuum table |
| Max. traveling speed | 80000mm/min |
| Max. working speed | 25000mm/min |
| Spindle power | HSD Air-cooling 9KW |
| Drive & motor | YASKAWA servo |
| Tool storage capacity | 12 |
| Drilling capacity | 9 |
We are a research and development manufacturer specializing in high precision, high quality and high standard CNC router machines. The main product line includes:

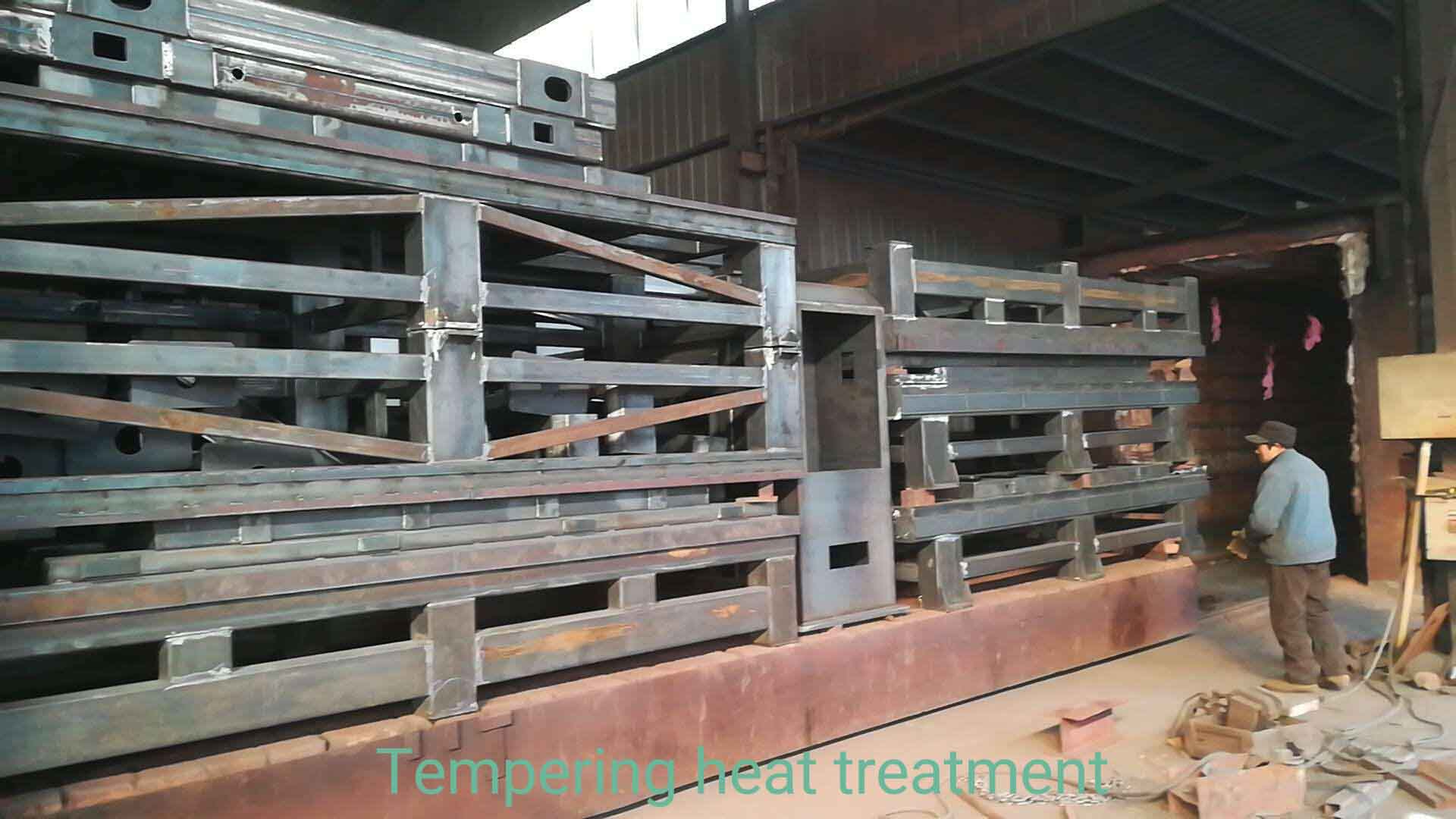

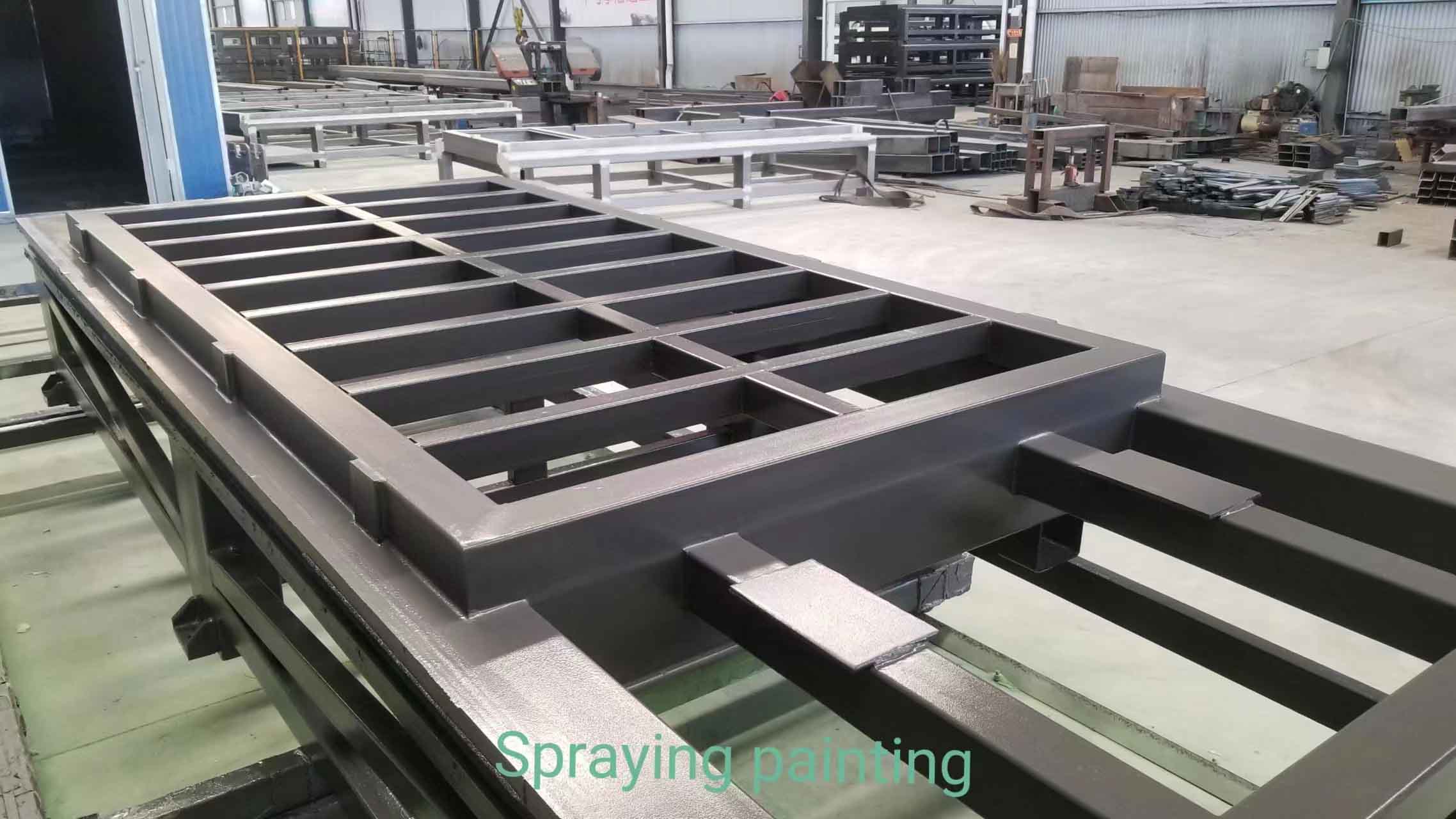

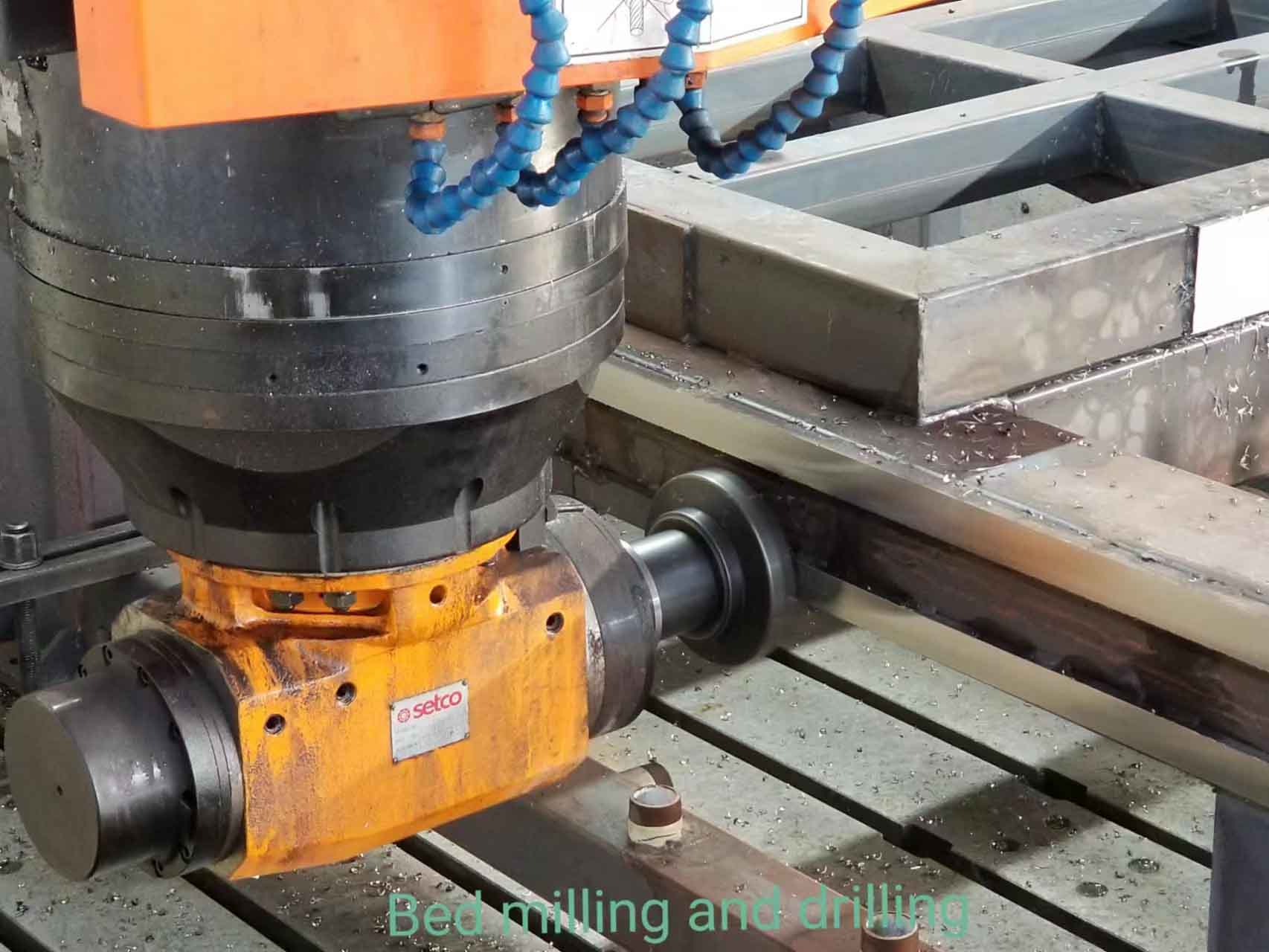

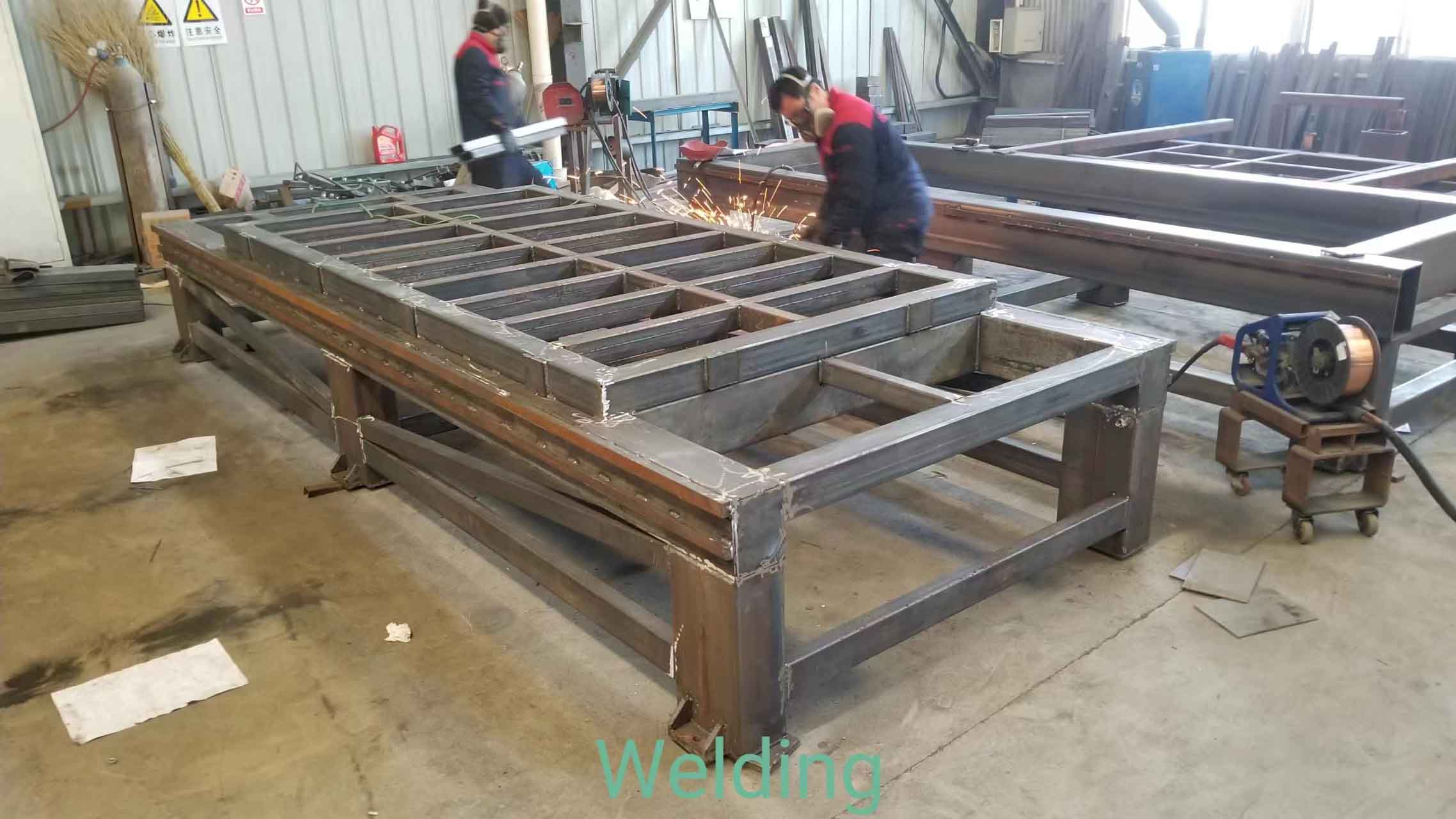

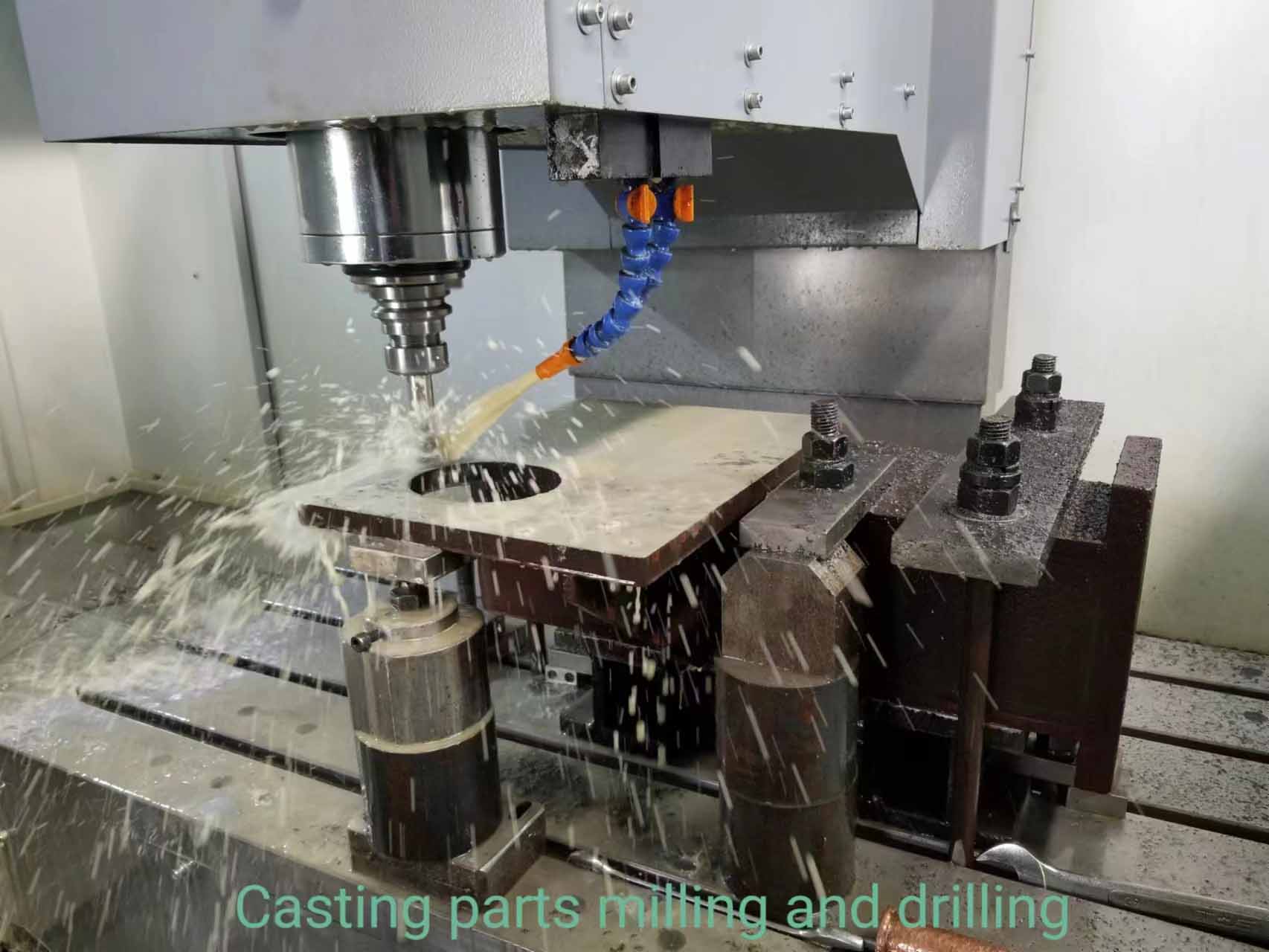

Our production area spans nearly 20,000 square meters, equipped with three gantry moving machining centers, five vertical machining centers, one 150-meter semi-automatic welding spray production line, and one 80-meter sandblasting tempering processing line. This infrastructure ensures every step of the CNC router processing meets rigorous, high-standard requirements.
We keep most machines in stock and can typically dispatch equipment in 72 hours or less, helping you get to work as soon as possible. We provide on-site training and services for customers around the world, around the clock.

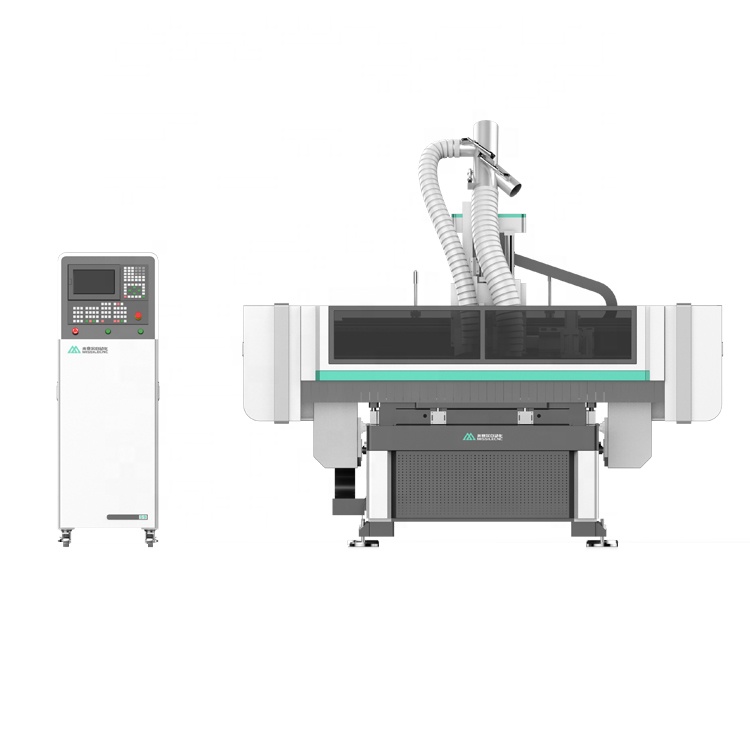

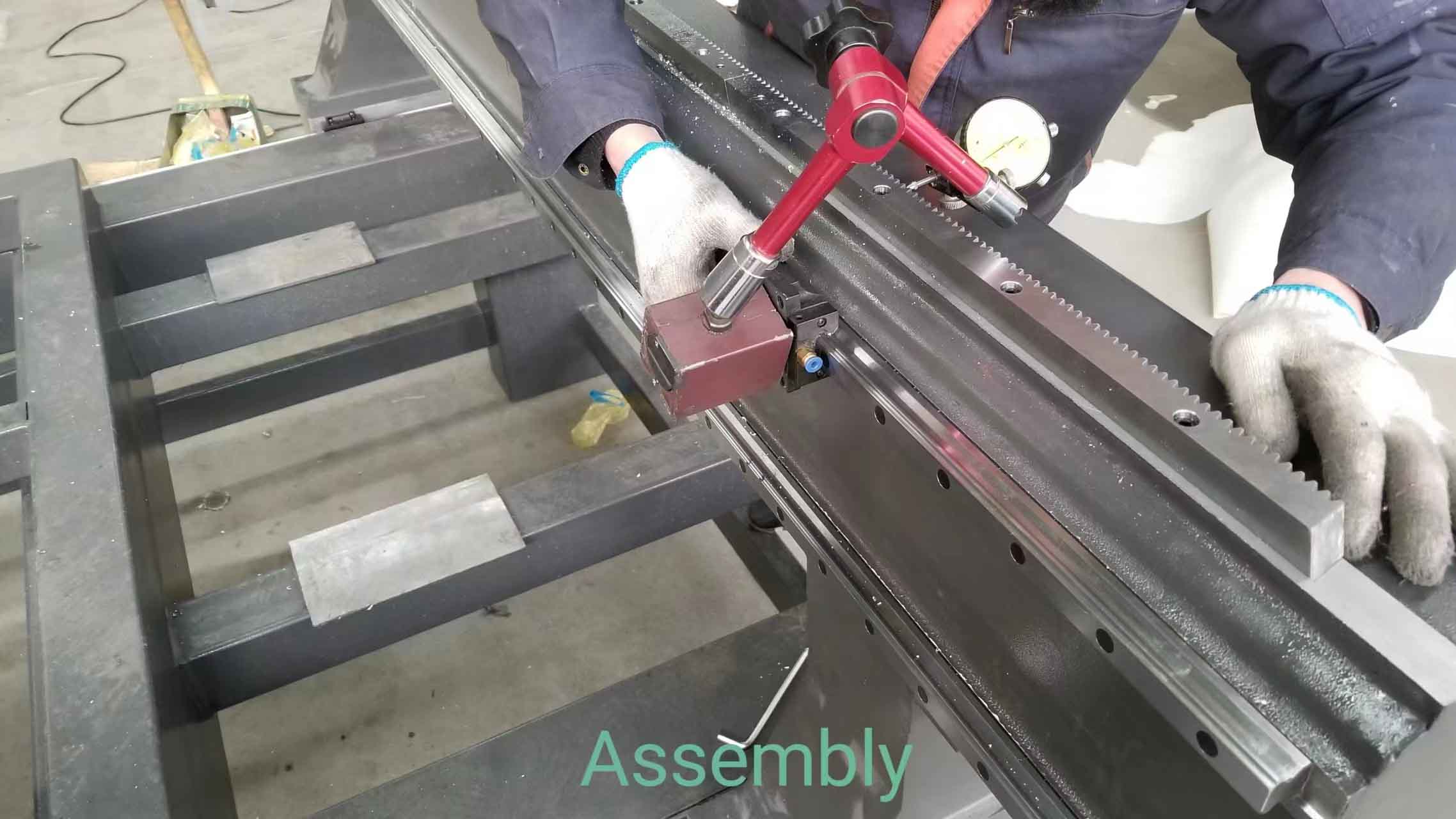

S9 series comes with a 5+4 vertical drilling device and an ATC system with double process, making it highly suitable for nested-based panel furniture. All drilling and milling components are completed by high-precision machining centers featuring high-precision racks and rails, giving the series excellent precision performance.

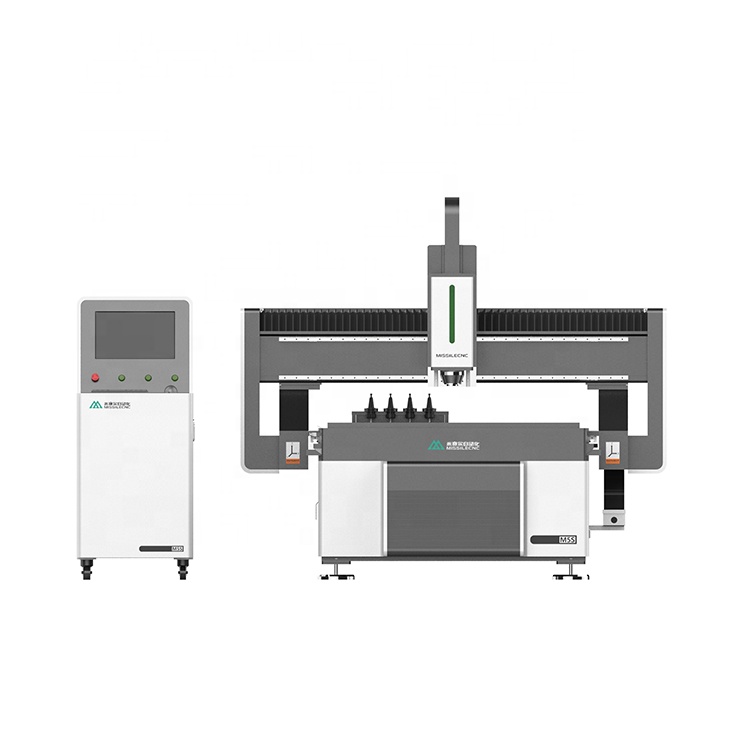

The M5S mini words CNC router is a flagship model. It features a gantry moving design, a high-precision German Herion gear rack, and high-precision processed machine frame & parts. This ensures outstanding processing results. With a linear-type four-tool changer, it is suitable for both advertising and high-precision woodworking industries.

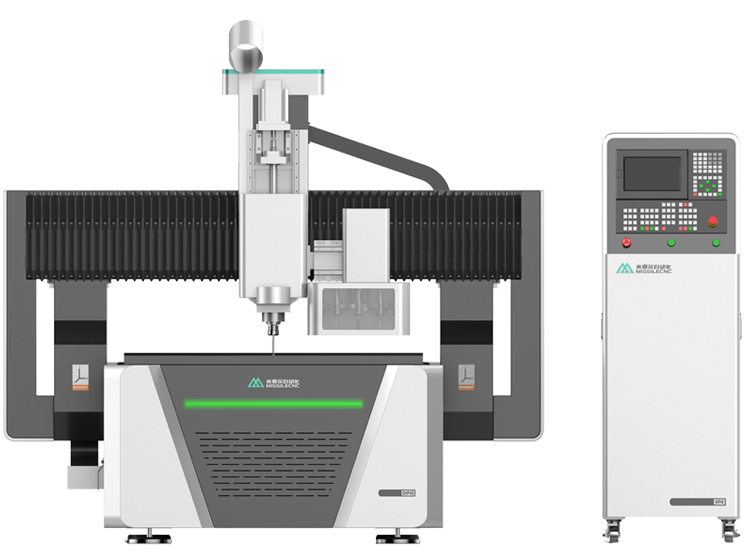

The EHP48 model is specifically designed for cutting and engraving aluminum composite, metal composite, and solid aluminum sheets. It is also suitable for sign-making using 0.5-50mm acrylic. When cutting aluminum and acrylic, it achieves exceptionally smooth finished edges.

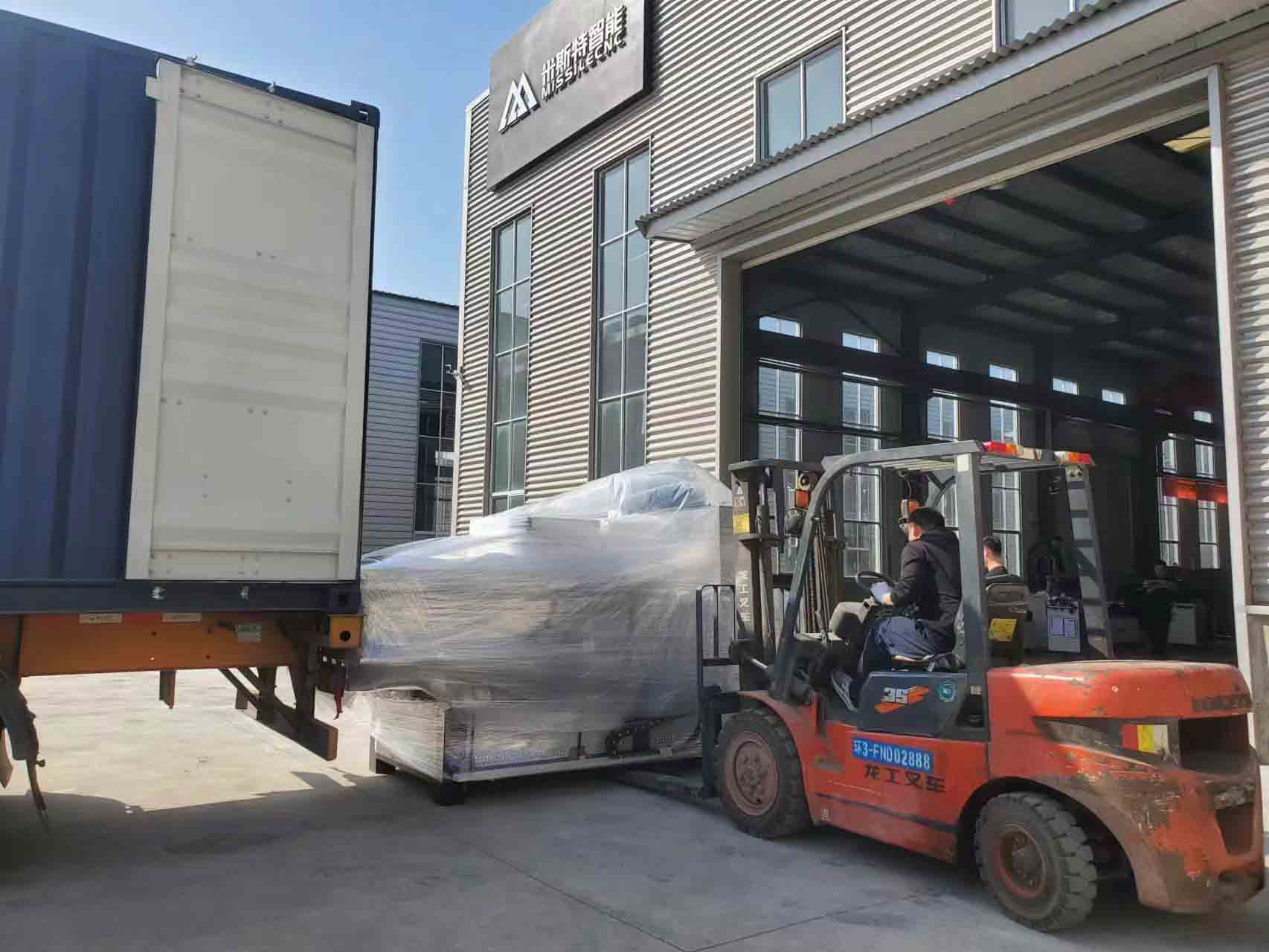

To better ensure the safety of your goods, professional, environmentally friendly, convenient, and efficient packaging services are provided.
