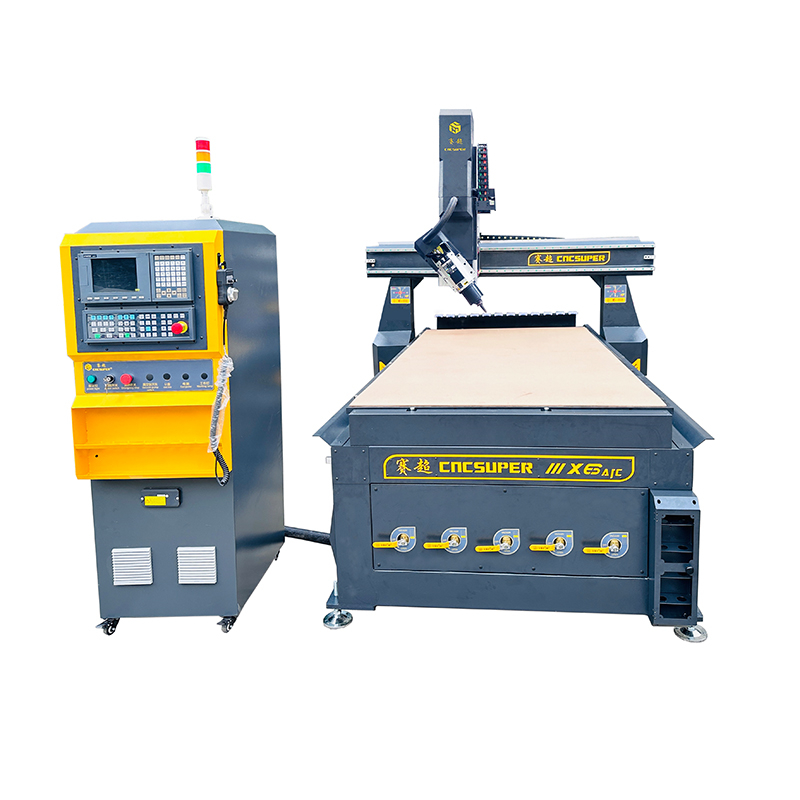

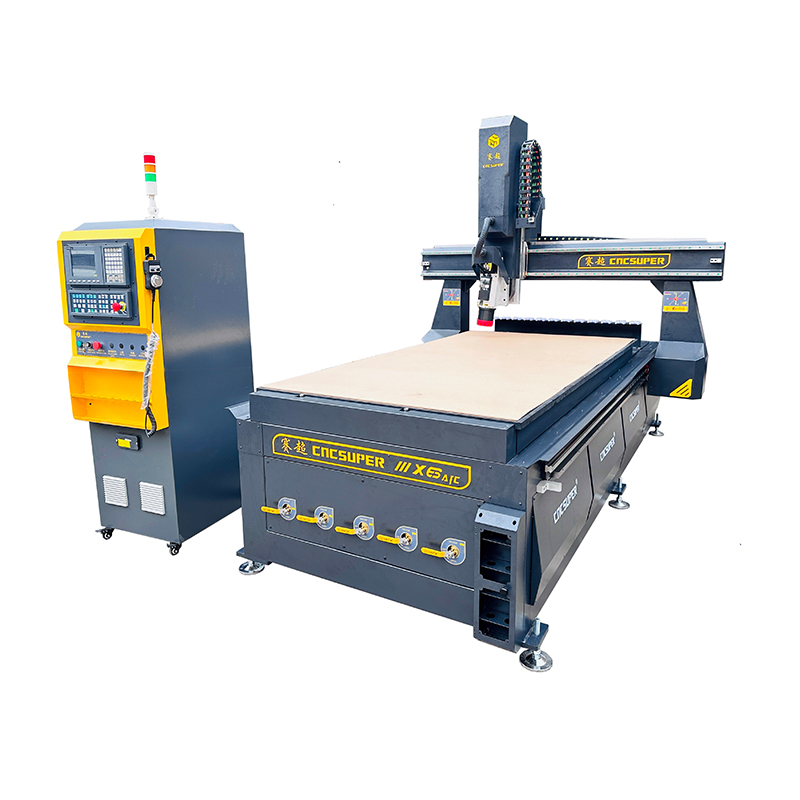

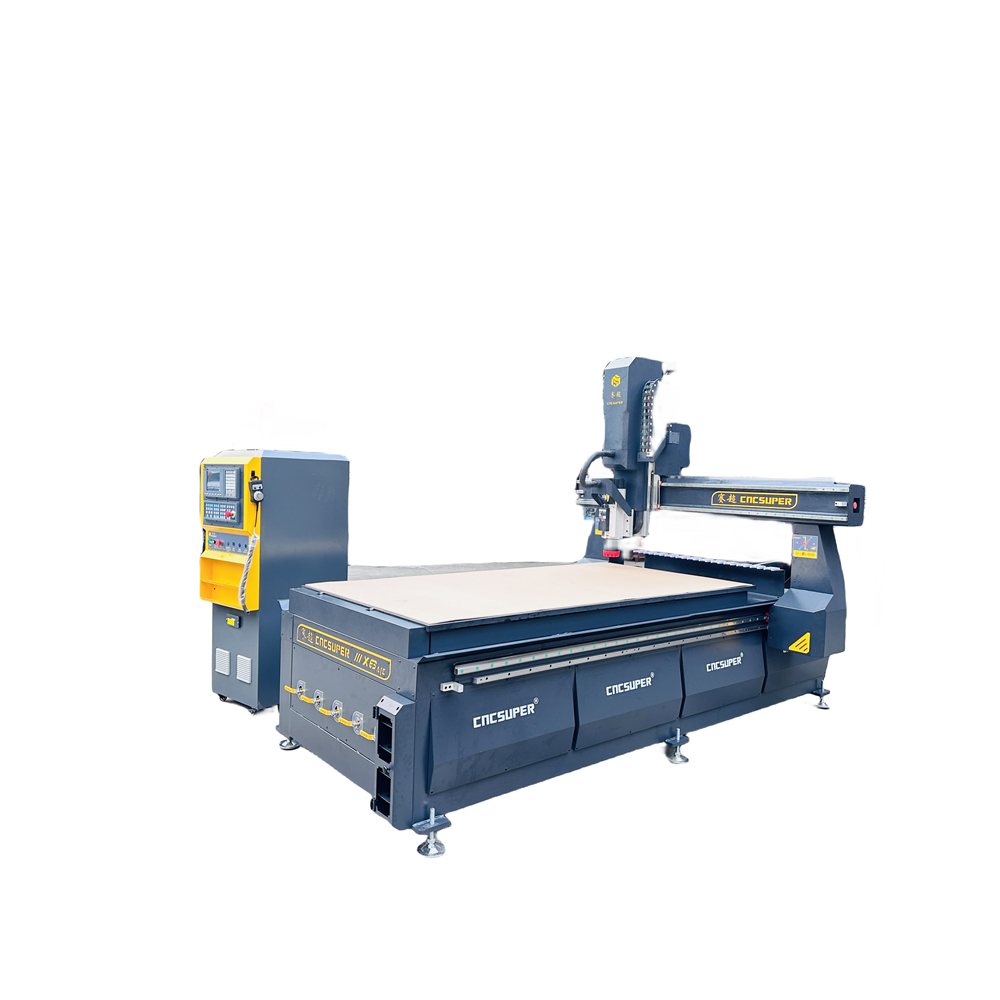

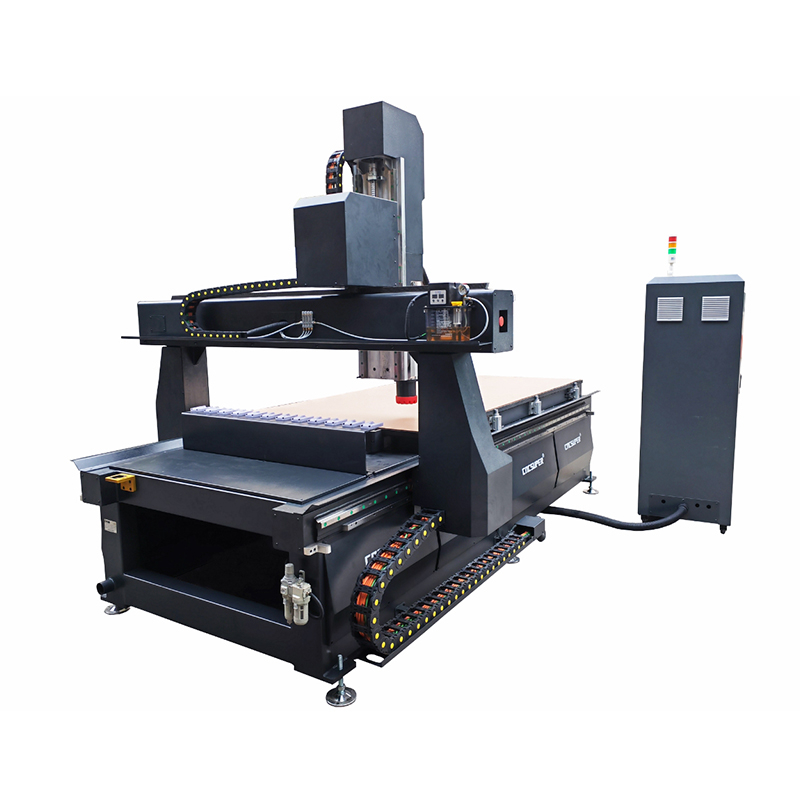

Auto Tool Change Woodworking Furniture 4 Axis Cnc Router 1325 2030 Desktop Cnc Router Machine With Vacuum Table
Auto Tool Change Woodworking Furniture 4 Axis Cnc Router 1325 2030 Desktop Cnc Router Machine With Vacuum Table
Auto Tool Change Woodworking Furniture 4 Axis Cnc Router 1325 2030 Desktop Cnc Router Machine With Vacuum Table
Auto Tool Change Woodworking Furniture 4 Axis Cnc Router 1325 2030 Desktop Cnc Router Machine With Vacuum Table
Auto Tool Change Woodworking Furniture 4 Axis Cnc Router 1325 2030 Desktop Cnc Router Machine With Vacuum Table
1 / 5
Auto Tool Change Woodworking Furniture 4 Axis Cnc Router 1325 2030 Desktop Cnc Router Machine With Vacuum Table
Auto Tool Change Woodworking Furniture 4 Axis Cnc Router 1325 2030 Desktop Cnc Router Machine With Vacuum Table
Auto Tool Change Woodworking Furniture 4 Axis Cnc Router 1325 2030 Desktop Cnc Router Machine With Vacuum Table
Auto Tool Change Woodworking Furniture 4 Axis Cnc Router 1325 2030 Desktop Cnc Router Machine With Vacuum Table
Auto Tool Change Woodworking Furniture 4 Axis Cnc Router 1325 2030 Desktop Cnc Router Machine With Vacuum Table

Auto Tool Change Woodworking Furniture 4 Axis Cnc Router 1325 2030 Desktop Cnc Router Machine With Vacuum Table

Send Inquiry

Product Description

ATC CNC router 4 axis 3d foam carving machine with spindle swing 180 / 4 axis automatic wood carving CNC router 1325 1530 2030

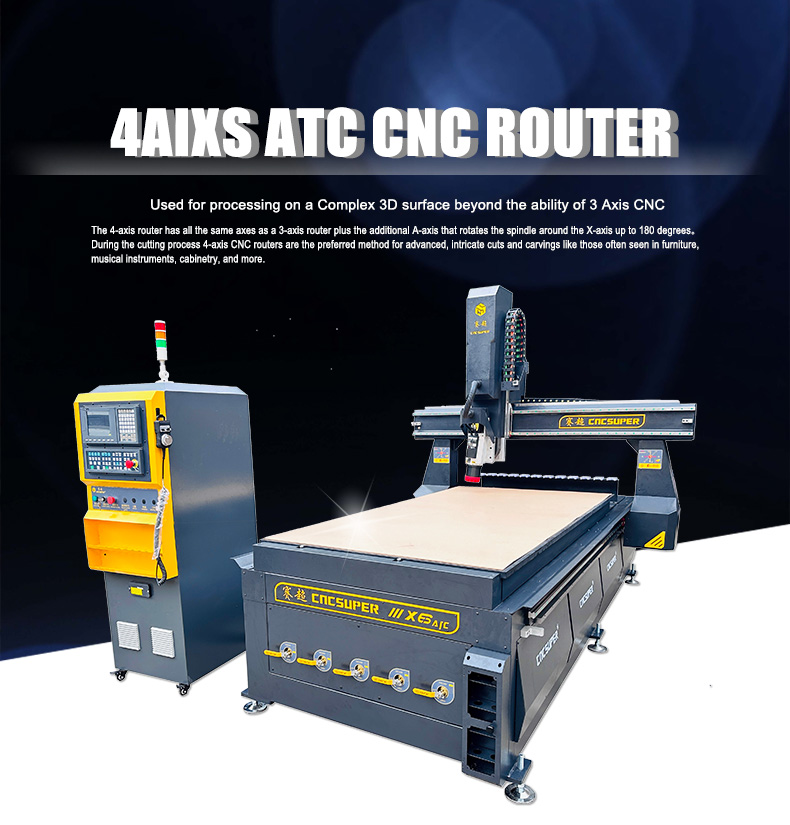

ATC CNC router 4 axis 3d foam carving machine
Application
  • Mould: wood, wax, gypsum, foams.
  • Furniture: wooden doors, cabinets, plate, office and wood furniture, tables, chair, doors and windows.
  • The wood products: voice box, game cabinets, computer tables, sewing machines table, instruments.
  • Plate processing: insulation part, plastic chemical components, PCB, inner body of car, bowling tracks, stairs, anti bate board, epoxy resin, ABS, PP, PE and other carbon mixed compounds.
  • Decorate industry: Acrylic, PVC, MDF, artificial stone, organic glass, plastic and soft metals such as copper, aluminum plate engraving and milling process.
Key Features
  • 1 Precision engineered, heavy-duty steel frame construction with high temperature tempering provides the strength and rigidity needed to eliminate vibration and maintain accurate tolerances.
  • 2 Top-quality components: 4 axis 9KW ATC spindle, Delta inverter, TBI ball screw, SYNTEC servo motors, SYNTEC control system and so on. Long-time working time, high precision and efficiency.
  • 3 Linear tool Magazine system with 12 forks and tool holders, make the 4 axis wood CNC machine change tools quickly and save time. Carousel tool magazine is optional.
  • 4 SYNTEC 60W-E Control system with hand wheel, easy to operate and control, best match with SYNTEC servo and support a variety of software generated.
  • 5 Many optional configuration and OEM service available. According to your requirement, different configurations will be offered.
4 axis automatic wood carving CNC router details
Product Parameters
Parameter Item Specifications & Details
Model X6 ATC- 4 axis
Machine structure Heavy-duty steel frame construction with quenching treatment
X, Y axis travel (mm) 1300*2500, optional: 1500*3000, 2000*3000, 2000*4000, 2000*6000, 3000*9000 etc.
Z axis travel (mm) 400, optional: 500, 650, 700 etc.
Table surface Vacuum and T-slot combined
Vacuum pump 7.5KW air vacuum pump
Spindle 9KW ATC air cooling spindle, ISO 30, ER32
4-axis 180 degree
Tool magazine Linear type auto tool changer, optional: carousel type auto tool changer
Tool holder with collet ISO30, ER32 collet: φ1/8, φ4, φ6, φ1/2
Inverter Taiwan DELTA 11KW
Control system Taiwan SYNTEC controller
Driving system Taiwan SYNTEC servo motors and drivers
Transmission X,Y axis: Taiwan Helical Rack and Pinion; Z axis: Taiwan TBI high precision ball screw
Linear guide Original Taiwan HIWIN
Reducer Japan SHIMPO reducer
Max. Rapid Travel Rate 45000mm/min
Max. Working Speed 25000mm/min
Traveling Positioning Accuracy ±0.03/300mm
Repositioning Accuracy ±0.03mm
Table positioning cylinder 6 pieces (X2, Y4)
Lubrication system 1.5L automatic lubrication system
Tool calibration Automatic tool sensor calibration
Electrical components Schneider
Compatible software Powermill, UG, Alphacam, Fusion 360, etc.
Command language G Code & M Code
Working air pressure 0.6MPa
Working voltage 380V/50HZ/3PH, can be customized
N.W 1800KG

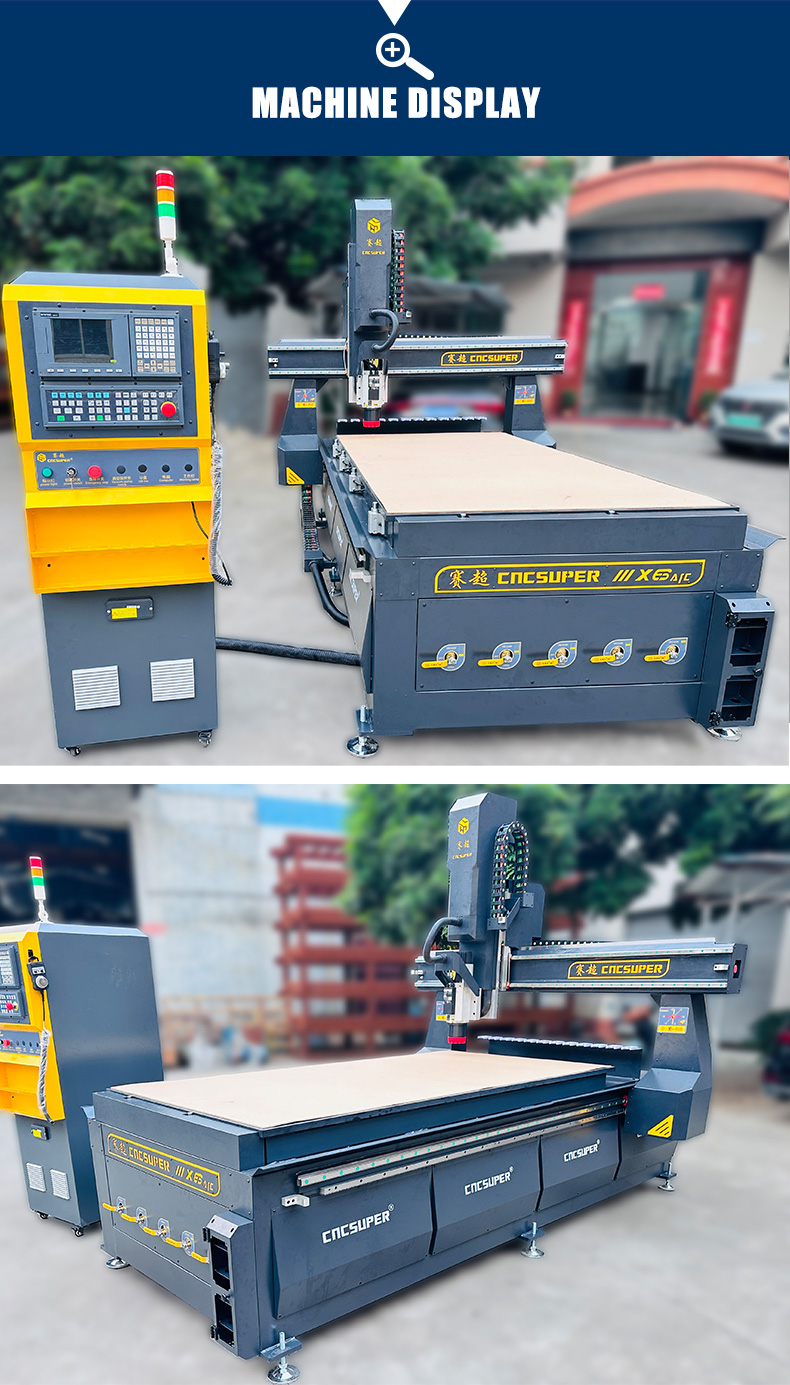

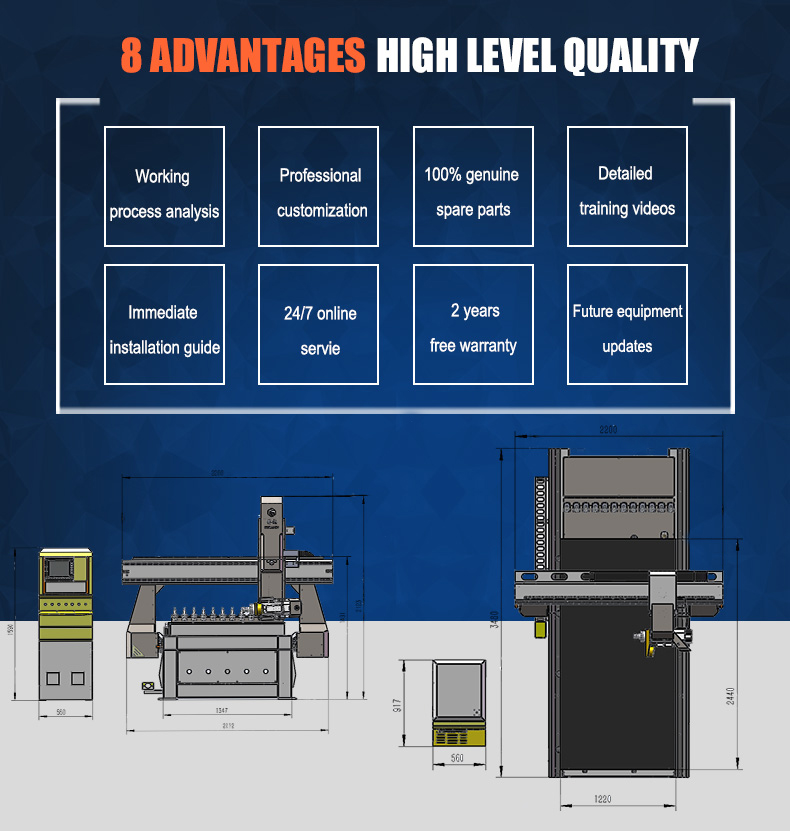

Product Parameter Diagram
Product Details

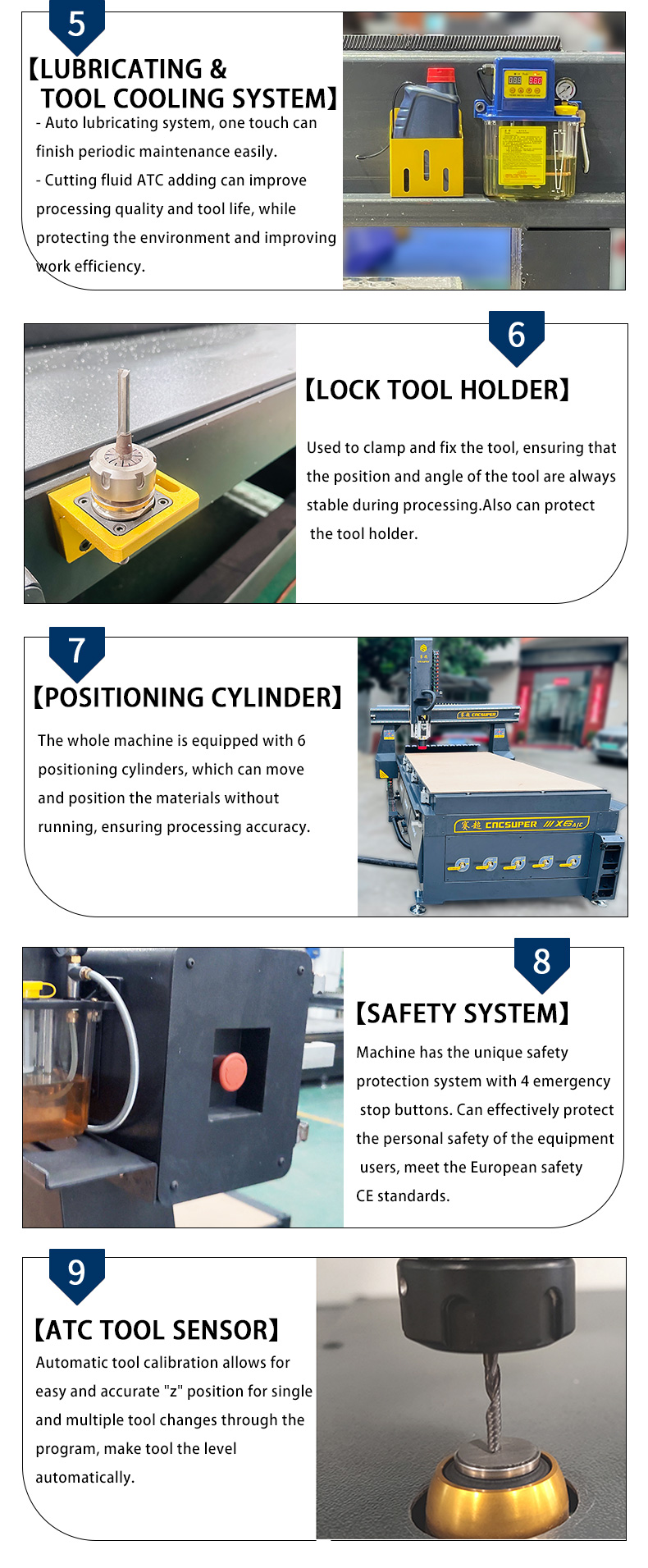

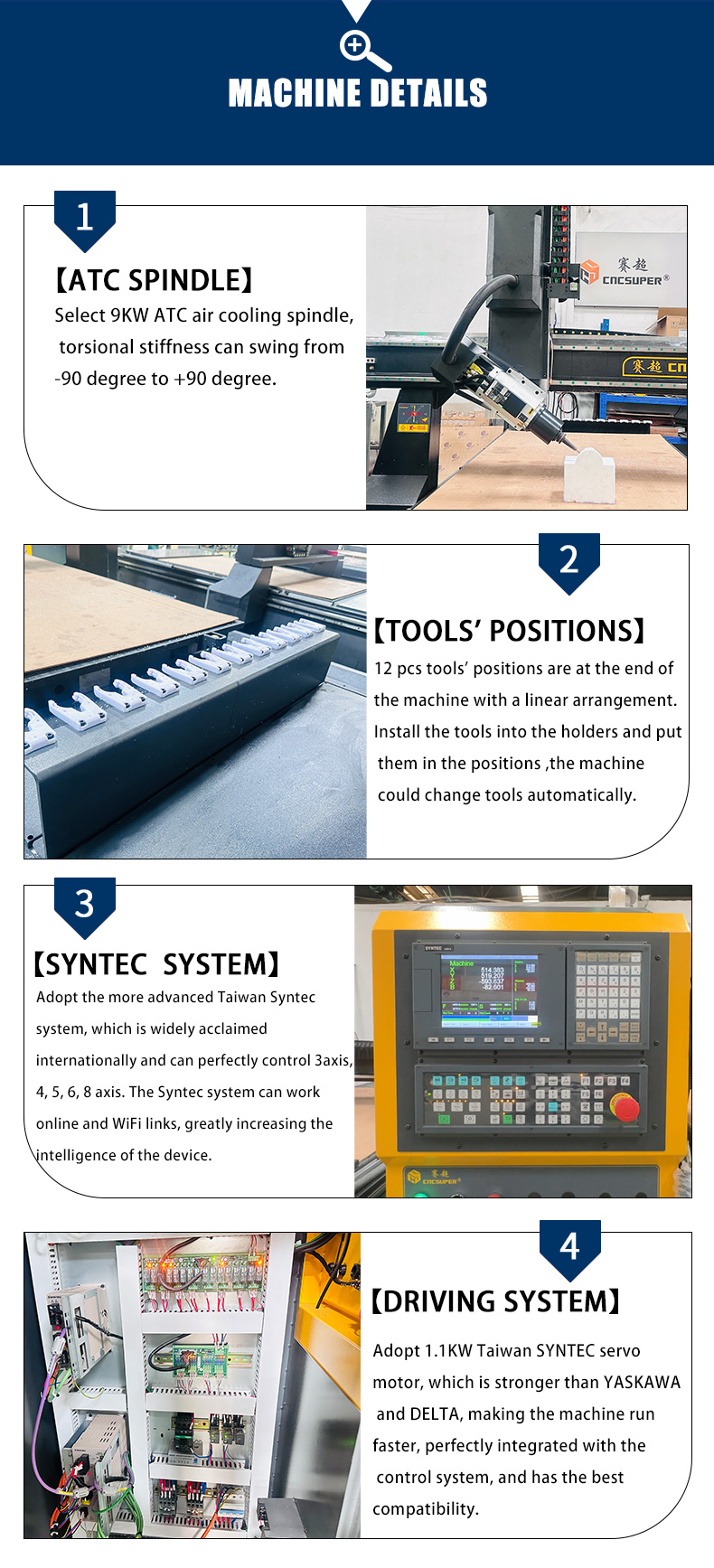

Machine component close-up 1 Machine component close-up 2
Application Cases
CNC Carving Applications
Factory Overview

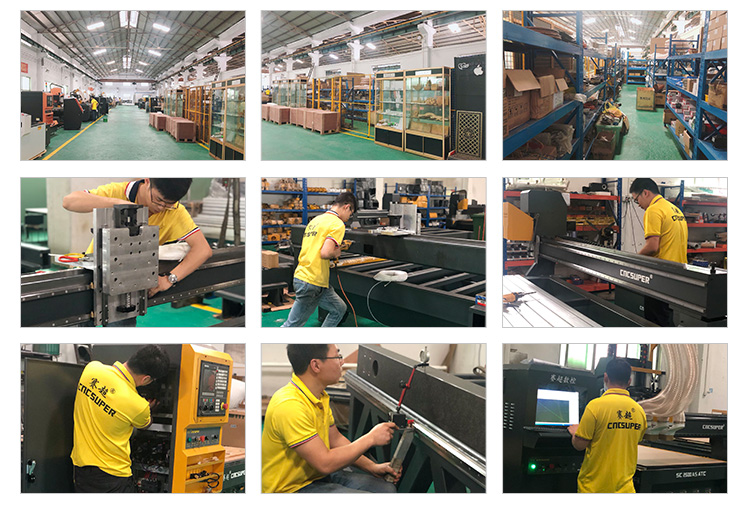

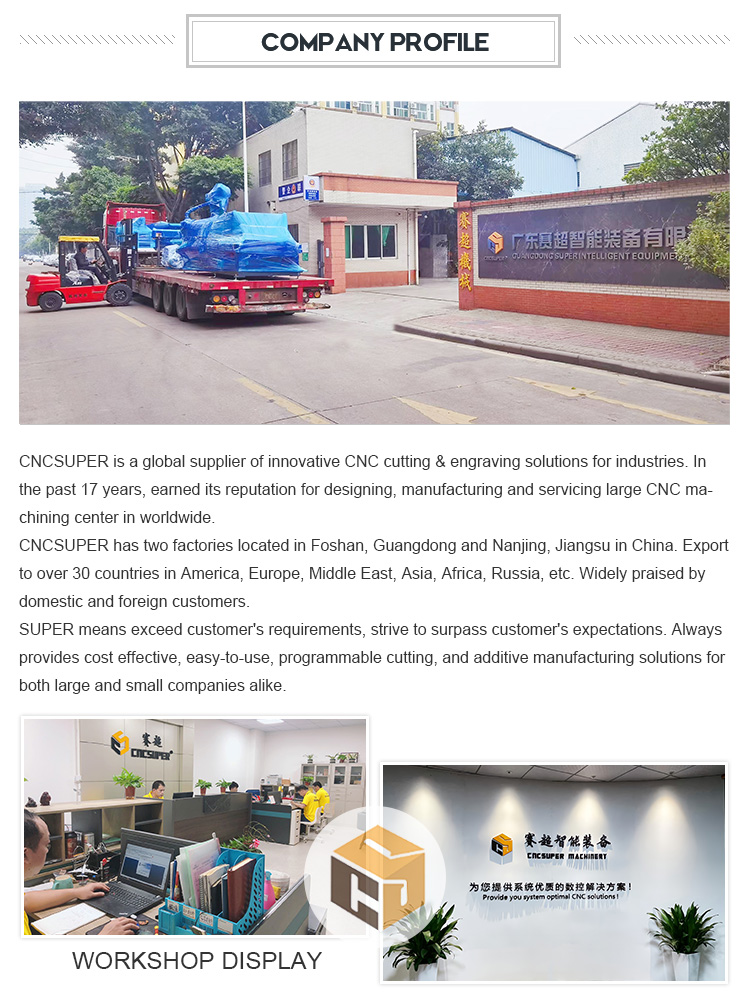

Factory Workshop 1 Factory Workshop 2 Production Process

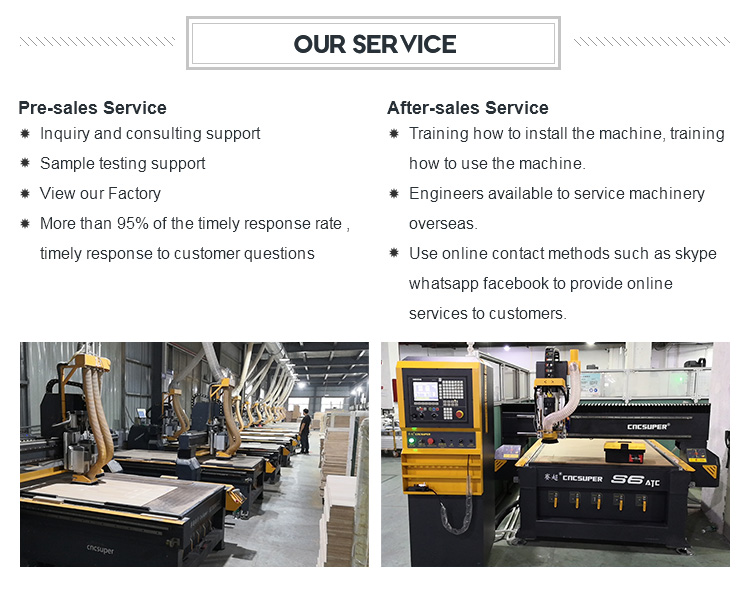

Testing Area Warehouse Office Area
Packing & Delivery
Packing and delivery details
Frequently Asked Questions
FAQ info
What materials can this 4-axis ATC CNC router process?
This machine is highly versatile and can process materials including wood, foam, gypsum, wax, plastics (PCB, ABS, PP, PE, epoxy resin), and soft metals like copper and aluminum.
What is the advantage of the 180-degree spindle swing?
The 4-axis spindle swing capability (up to 180 degrees) allows for multi-angle and 3D surface machining, which is perfect for complex mould making, 3D foam carving, and curved wood furniture components.
How does the Automatic Tool Changer (ATC) system improve work efficiency?
The linear tool magazine system features 12 forks and tool holders. It automatically changes tools based on the processing commands, significantly reducing manual intervention and saving valuable production time.
Can the working size and voltage of this CNC machine be customized?
Yes. While the standard working size is 1300*2500mm and standard voltage is 380V/50HZ/3PH, both can be fully customized (such as 1500*3000mm, 2000*4000mm sizes, and custom voltages) according to your local power specifications and production requirements.
What software is compatible with this machine?
The system supports standard G-code and M-code command languages. It is highly compatible with mainstream design and programming software such as Powermill, UG, Alphacam, Fusion 360, and others.
