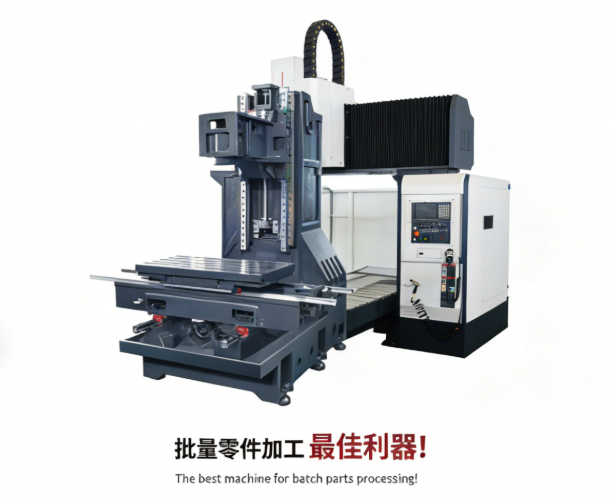

CNC 3/4/5 Axis VMC XT-LV1380 High Speed Precision 3 Linear Guideways Vertical Milling Machine
CNC 3/4/5 Axis VMC XT-LV1380 High Speed Precision 3 Linear Guideways Vertical Milling Machine
CNC 3/4/5 Axis VMC XT-LV1380 High Speed Precision 3 Linear Guideways Vertical Milling Machine
CNC 3/4/5 Axis VMC XT-LV1380 High Speed Precision 3 Linear Guideways Vertical Milling Machine
CNC 3/4/5 Axis VMC XT-LV1380 High Speed Precision 3 Linear Guideways Vertical Milling Machine
1 / 5
CNC 3/4/5 Axis VMC XT-LV1380 High Speed Precision 3 Linear Guideways Vertical Milling Machine
CNC 3/4/5 Axis VMC XT-LV1380 High Speed Precision 3 Linear Guideways Vertical Milling Machine
CNC 3/4/5 Axis VMC XT-LV1380 High Speed Precision 3 Linear Guideways Vertical Milling Machine
CNC 3/4/5 Axis VMC XT-LV1380 High Speed Precision 3 Linear Guideways Vertical Milling Machine
CNC 3/4/5 Axis VMC XT-LV1380 High Speed Precision 3 Linear Guideways Vertical Milling Machine

CNC 3/4/5 Axis VMC XT-LV1380 High Speed Precision 3 Linear Guideways Vertical Milling Machine

Send Inquiry

Product Description

Product Image 1
Product Image 2
Item Unit XT-LV1380
X/Y/Z Travel mm 1300×800×700
Distance from Spindle Nose to Table Surface mm 180-880
Distance from Spindle Center to Z-axis Guide Surface mm 835
Table Size mm 800×1400
Max. Table Load kg 1300
T-slot Number/Width pcs/mm 5-18*100
Spindle Taper — BT40-150
Spindle Speed r/min 8000
3-axis Motor Power kw X/Y/Z: 4.5 (Z with timing belt)
Main Motor Power kw 11
3-axis Rapid Traverse m/min X/Y: 20; Z: 12
Tool Magazine Type — BT40-24 / Disc type
X/Y/Z Positioning Accuracy mm 0.01
X/Y/Z Repeat Positioning Accuracy mm 0.005
Shipping Weight kg 9000
Overall Dimension mm 3600×2800×3200

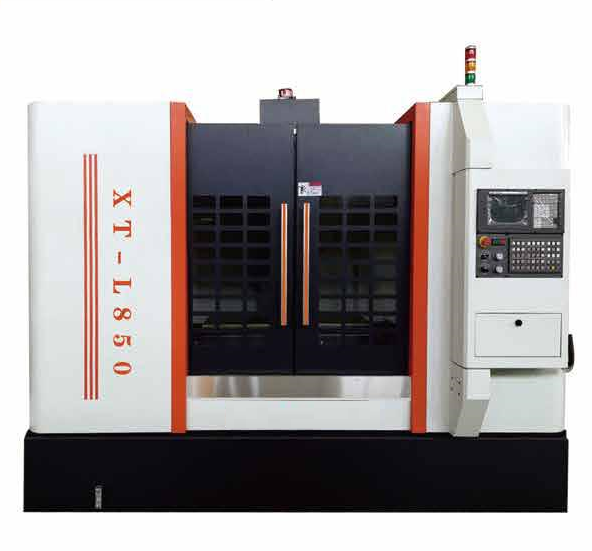

Product Diagram
Detail Image 1
Detail Image 2
Detail Image 3
Detail Image 4
Detail Image 5
Detail Image 6
Detail Image 7
Frequently Asked Questions
Q What are your core products?
We specialize in the R&D and manufacturing of industrial machinery and electrical equipment. Our core products include agricultural tractors, harvesters, industrial fans, machine tools, transformers, diesel generators, PLC control cabinets, and other full-series equipment.
Q Are your products certified internationally?
All products have passed ISO9001 quality management system certification. Some export products additionally hold CE, UL, CB, and other international certifications, complying with technical standards in Europe, America, Southeast Asia, and other regions for direct overseas sales.
Q Do you support OEM/ODM customization?
Yes! We have a complete R&D team, capable of customizing product functions, appearance, and nameplate logos according to customer drawings and parameter requirements. The minimum order quantity (MOQ) is negotiable.
Q What is your production capacity and delivery time?
We own a large modern production base with an annual capacity of 5000+ units. The delivery time for standard products is 7-15 working days, and 15-30 working days for customized products. Urgent orders can be processed with priority.
Q What is the product warranty period and after-sales support?
All products come with a 12-month warranty, and core components have a 24-month warranty. We have 3 overseas after-sales service centers (Southeast Asia/Europe/North America) providing 24/7 technical support and fast maintenance response.
Q What payment terms and trade terms do you accept?
We support mainstream payment methods such as T/T, L/C, and Western Union. Trade terms including EXW, FOB, CIF, and DAP are available to meet the different logistics needs of buyers.
