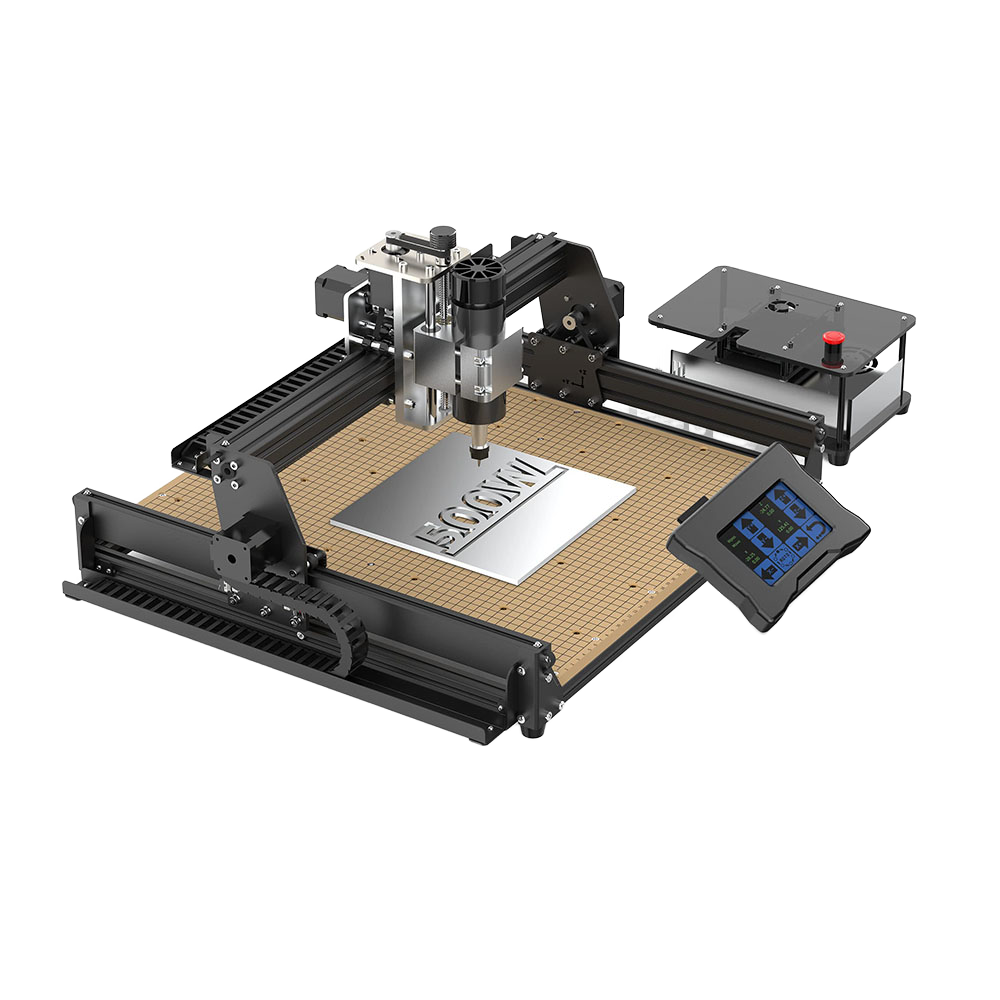

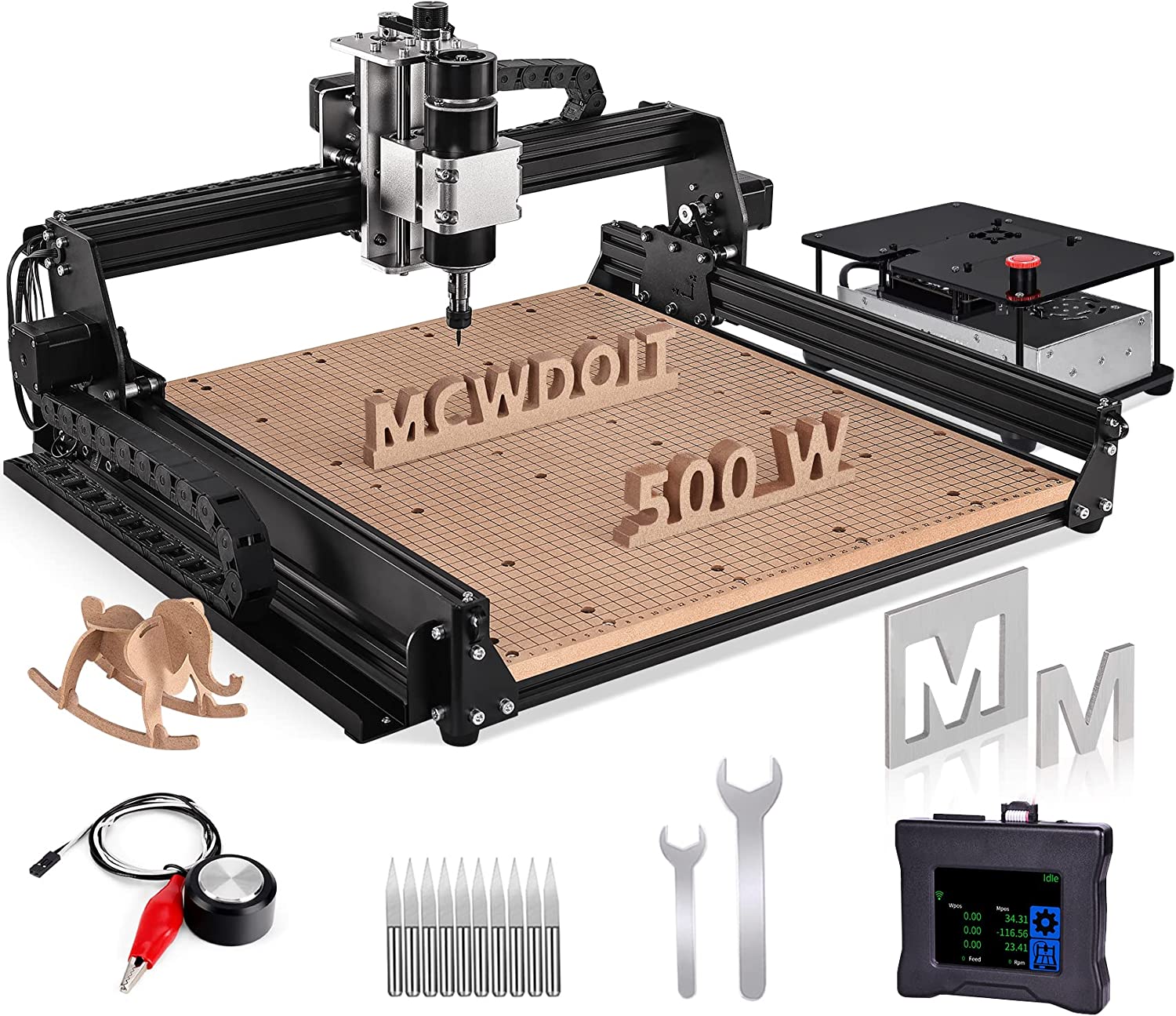

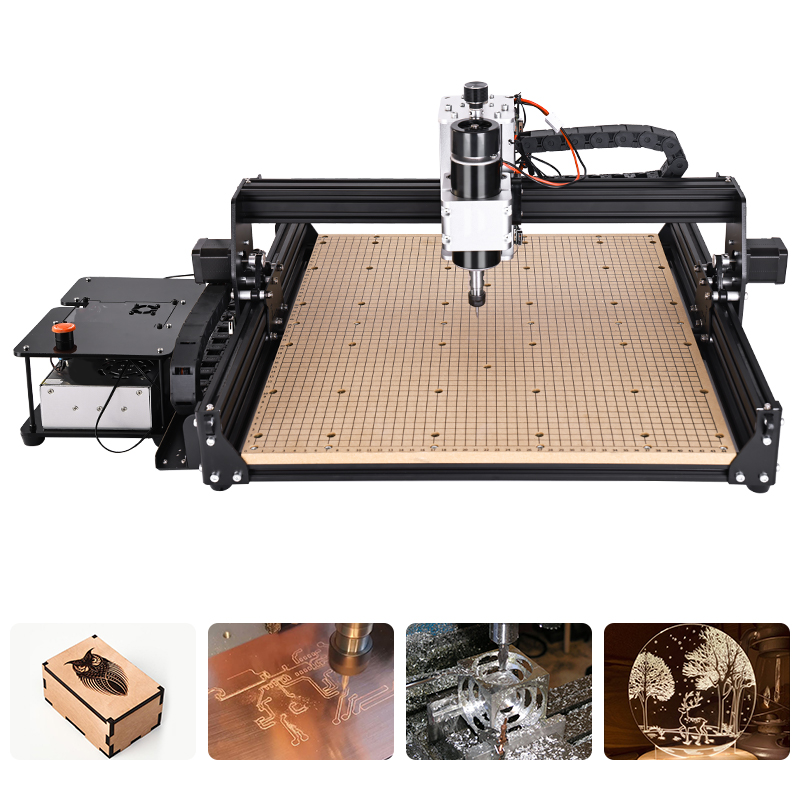

500W Spindle & High Speed
Making it possible to cut stainless steel, aluminum and other metals. The maximum movement speed can reach 5000mm/min, the spindle speed range is 0-11000rpm/min.
Larger Working Area
Increased to 430*390*90 mm(16.9*15.4*3.5inch). The working table has precise scale lines, which is convenient for you to locate and measure the engraving material size.
Wide Application & Compatibility
The CNC wood machine is compatible with GRBL software and supports systems such as Windows XP/7/8/10 and Mac OS.
Easy to Assemble

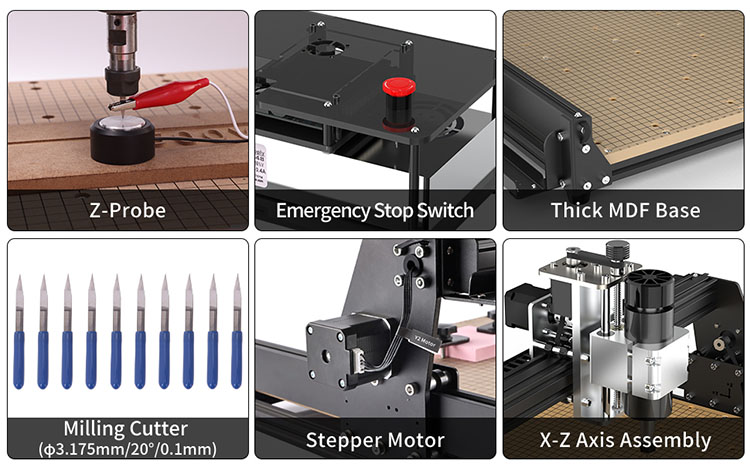

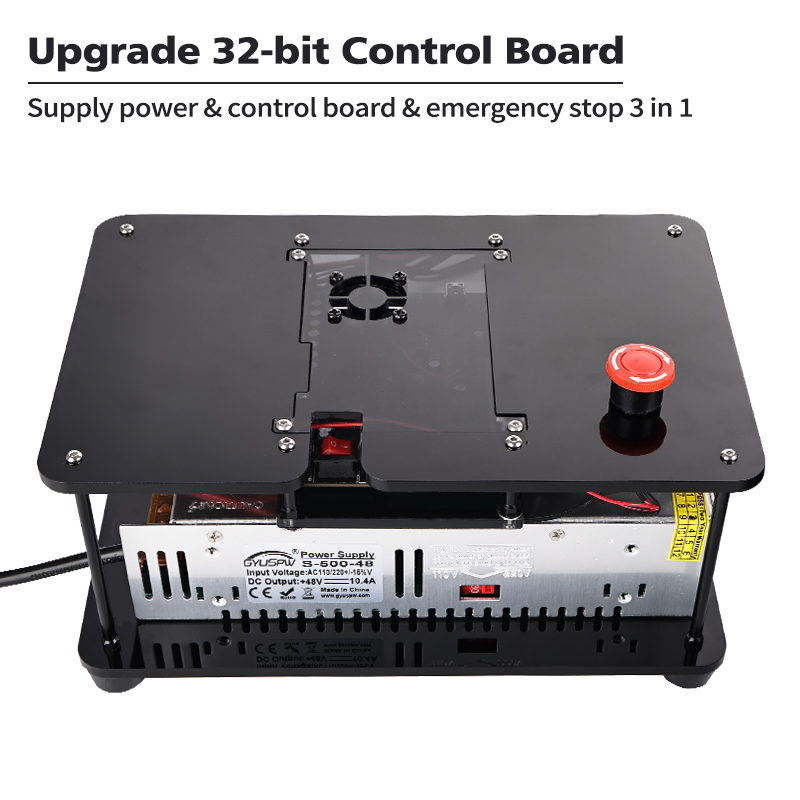

This CNC wood carving machine could be assembled in 15-30 minutes. The main components are already pre-assembled. Wires are clearly labeled for quick connection. The control board, power supply, emergency stop, and wires are integrated into a newly designed box for easy and safe operation.
The maximum no-load speed can reach 11000rpm/min makes it possible to engraving metal, like aluminum, brass, copper and silver, of course it can carving other material like wood, plexiglass, leather, PCB, MDF, acrylic, resin, nylon, carbon fiber, PCB, etc.
Upgrade Your CNC
If you are an professional in CNC and want to have an upgrade set, you can add a module to upgrade the 4540CNC, making it more powerful. With this module, it allows for more engraving/cutting possibilities.
Easy to Assemble
The module of XYZ axis and wires dramatically reduces the effort of assembly, allowing you to start carving your projects in less time.
Touchscreen LCD Display
Please Note
Offline Controller
Touchscreen LCD Display
Comes with a 2.8" Touchscreen LCD Display that's easy to read and use.
Please Note
As shown in the diagram, when the status display bar shows "? ?", it indicates that the offline machine cannot recognize the status of the control panel at this time, you need to press the reset button of the CNC machine control panel, and then restart the offline controller.

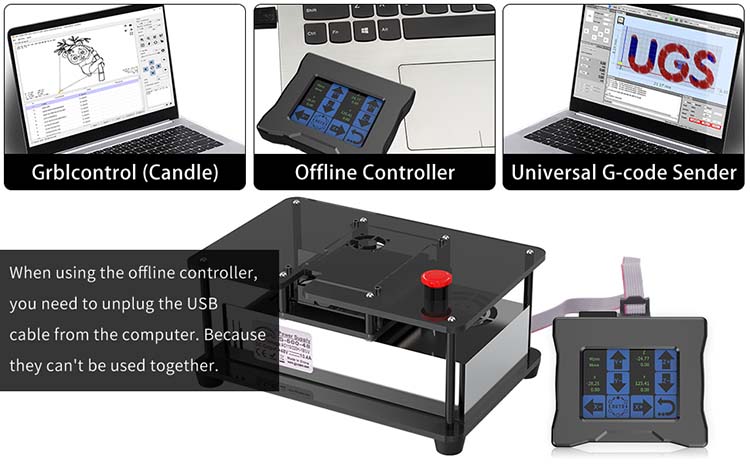

Offline Controller
With the offline controller, you can control your CNC without connecting to a computer. Easily load your projects onto the included card and have them ready to go without the need of a dedicated computer.
Portfolio

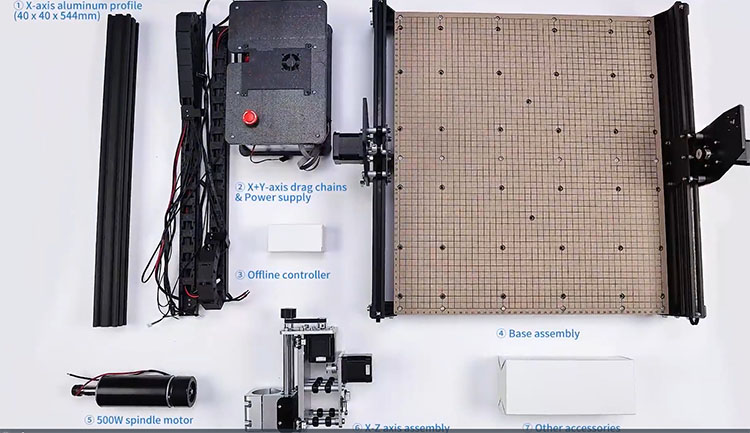

Product Packaging
FAQ
1. Can this carve Bronze or Aluminium blocks, or it can just engrave Stainless Steel?
Yes, it can carve metals, Depth per pass and feed rate will need to be adjusted for different metal. We recommend depth per pass of 0.1mm and feed rate of 120mm/min for stainless steel, depth per pass of 1mm and feed rate of 300mm/min for wood. The lower the speed, the more stable the work. Note: When engraving metals, the temperature of the metal will be extremely high due to the huge friction between the milling cutter and the metal, so please keep adding lubricating oil during engraving process.
2. I am a New to CNC, what should I do to start an engraving project with this router machine?
We provide a free control software Candle grbl which is fine to start and get it going. It's then personal choice afterwards what you go to, Easel is fairly simple but loads of options. 360 is good but is expensive. Please note that the Candle is just a control software, can only read G-code files, does not support design pictures. So, we need to use other software to design images and make G-code files, Most of our customers use Easel to design G-code file and then use Candle or UGS to control the machine.
3. Once I create Gcode in Easel, do I transfer them to the controller with a usb drive/sd card?
Yes, you can run the file in Candle, or transfer the file to a usb drive/sd card and run it in the controller.
4. Is this product good for a total beginner?
We recommend professionals to buy this machine, the new starter is not recommended. The CNC itself is not a problem, it's the software part that's the difficulty. You can go to YouTube to learn a lot of the basics. It takes more patience, but worth it.
5. What systems and software is the CNC wood machine compatible with?
The machine is compatible with GRBL Control software and supports major operating systems, including Windows XP/7/8/10, Linux, and Mac OS.
6. What is the working area size and spindle performance of CNC 4540?
The working area has been increased to 450x400x90mm (17.72" x 15.75" x 3.54"). It features a 500W spindle that runs at a speed range of 0-11000rpm/min, allowing you to cut metals such as aluminum and stainless steel.
