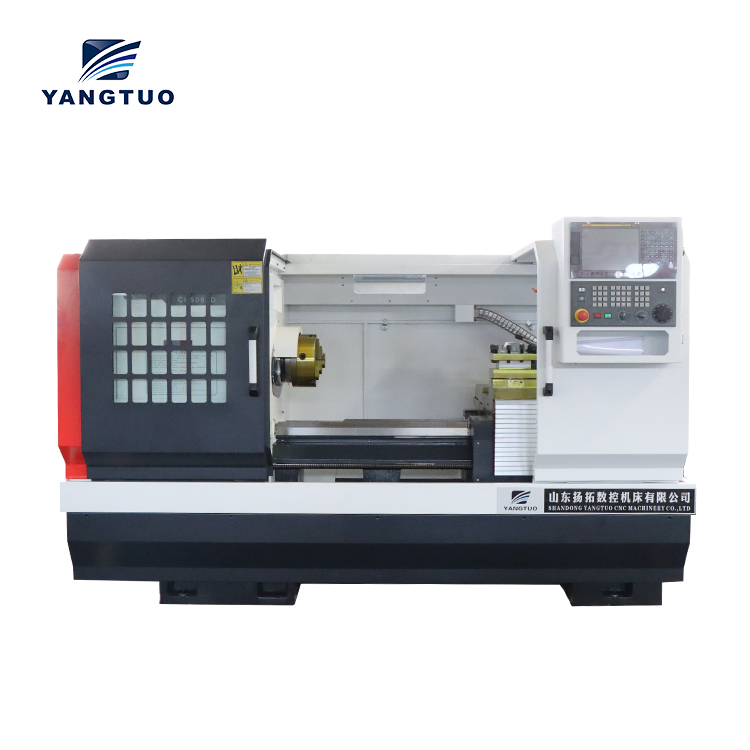

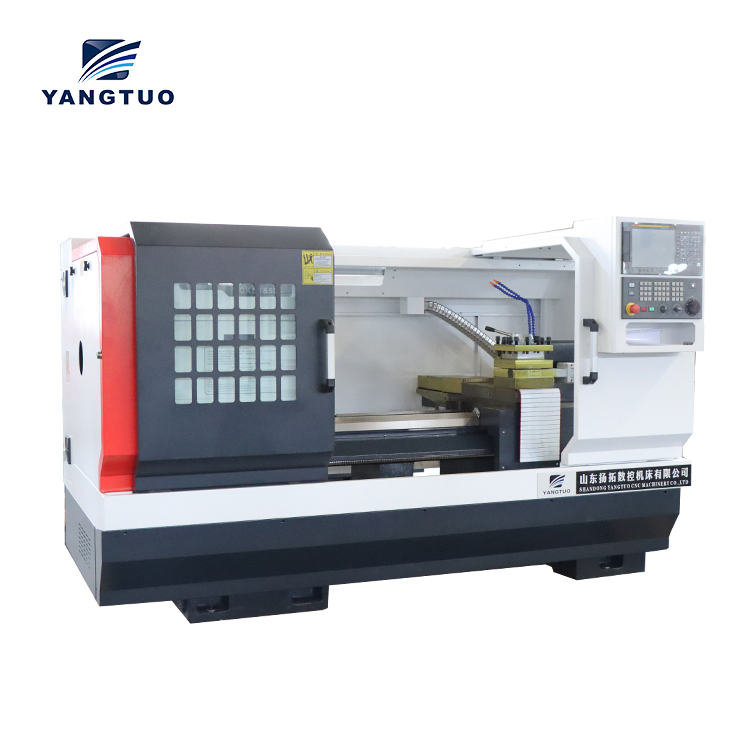

| Item | CK6150 |
| Max. swing dia. over bed | Φ500mm |
| Max. swing dia. over cross slide | Φ250mm |
| Processing length | 300mm/1000mm/1600mm |
| Width of the bed | 400mm |
| Dia. of spindle | Φ75mm |
| Spindle taper | 1:20/Φ90 |
| spindle nose | A2-8 |
| Max.Spindle speed | 1800rpm |
| Spindle speed step | step-less |

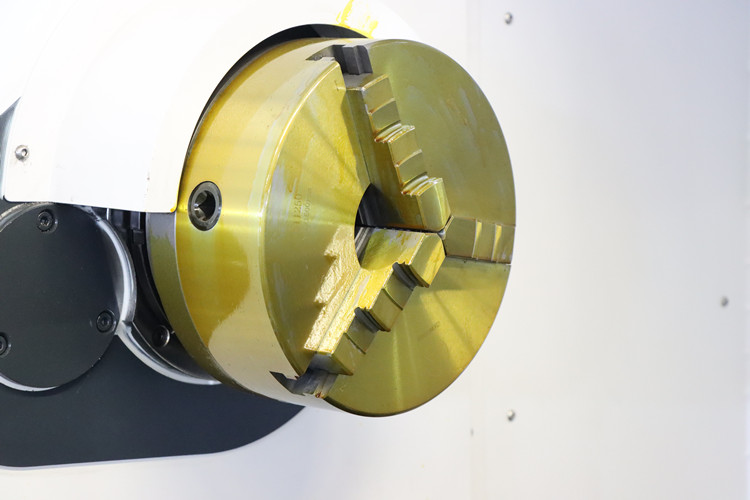

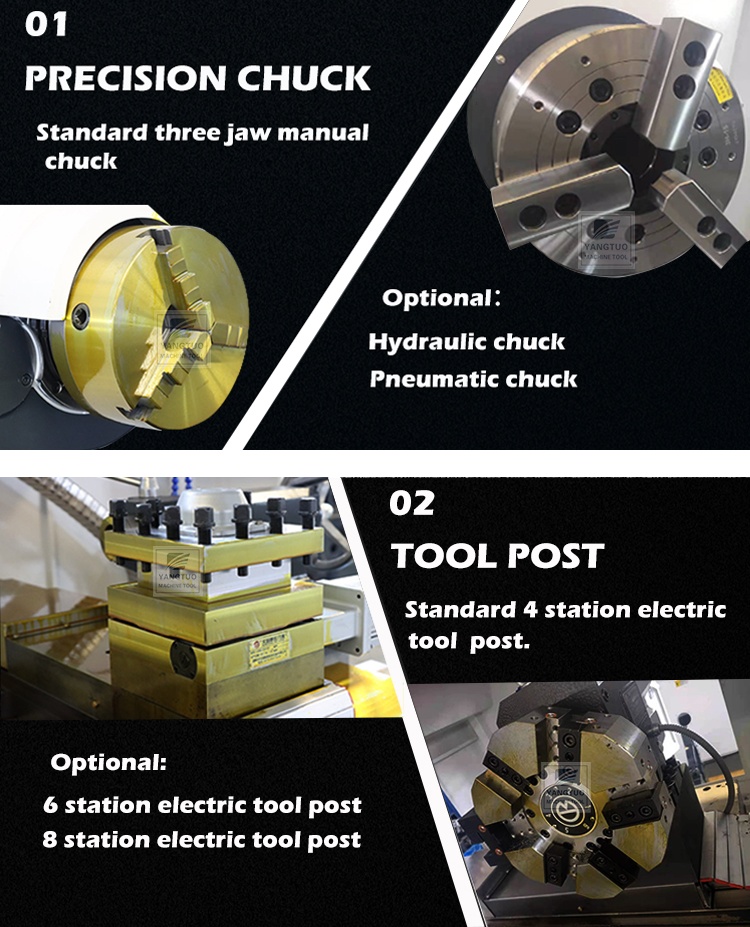

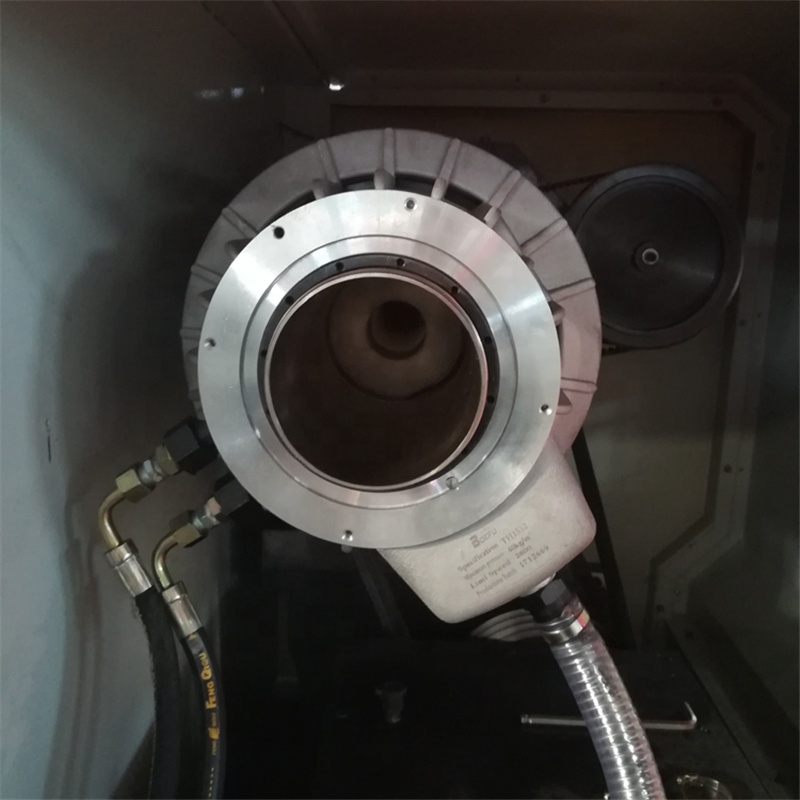

| chuck size | 250mm |

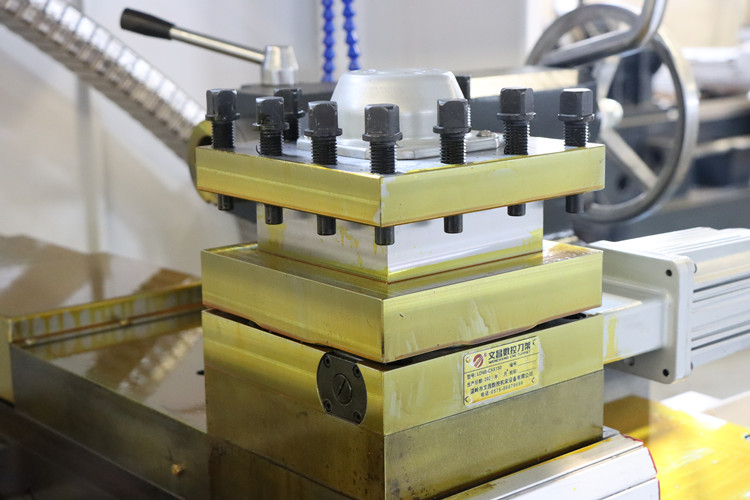

| Tool holder | 4 station |
| Tool bar section | 25X25mm |
| Main motor power | 7.5KW |
| X/Z axis position accuracy | 0.02/0.025mm |
| X/Z axis repeatability | 0.01/0.012mm |
| X/Z axis travel | 360/750mm/1000mm/1500mm |
| X/Z axis fast feeding speed | 8/10 M/MIN |

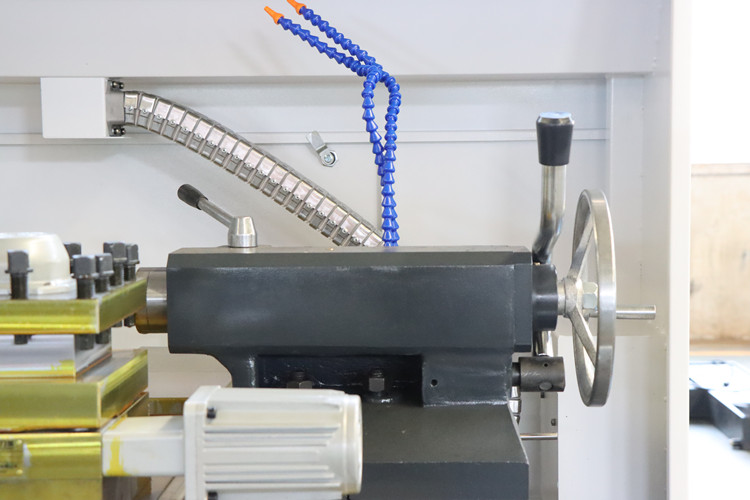

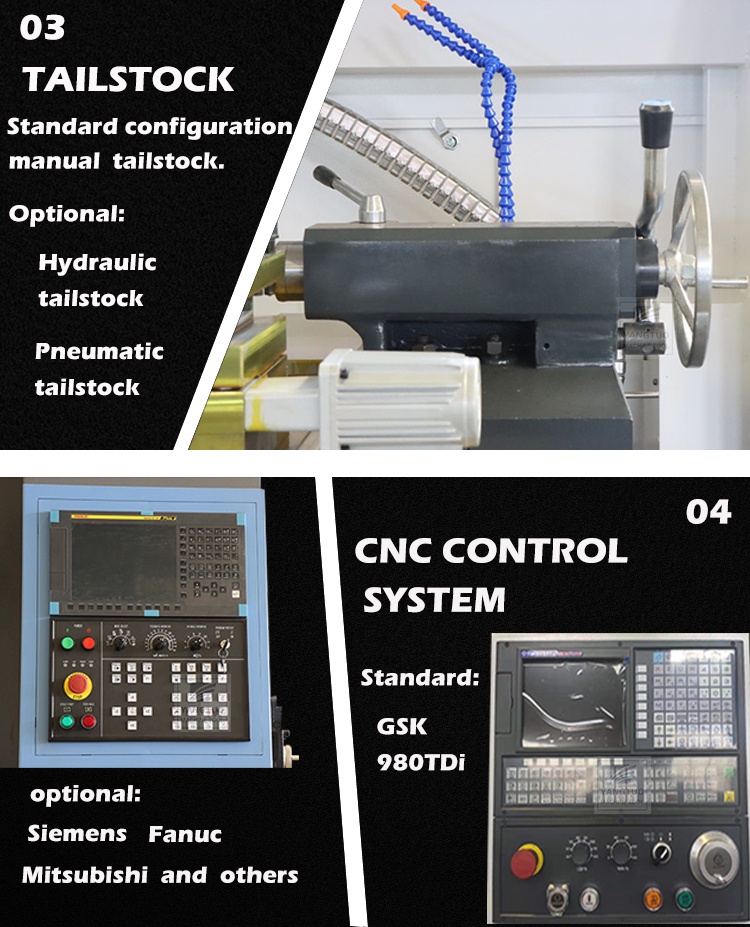

| Tailstock sleeve travel | 150mm |
| Tailstock taper | MT5 |

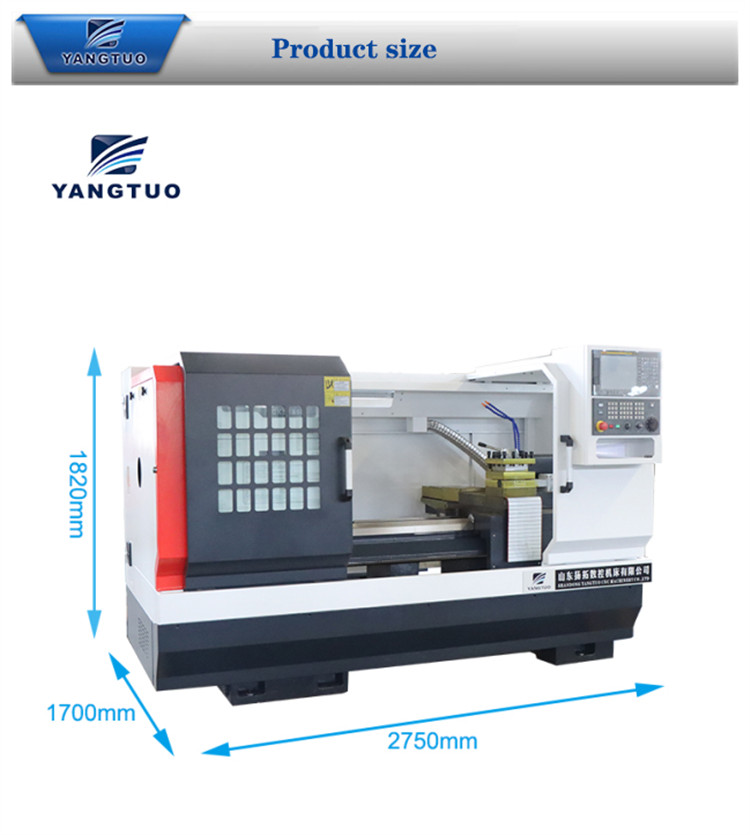

| Dimension | 2750/3330*1700*1820mm |
| weight | 2850kg |
One year warranty period. During this period, if you have any parts broken because of quality problems, we will supply them to you free of charge by express. Out of the warranty period, if you have any questions, you can contact us, and we will supply our best service as usual.
