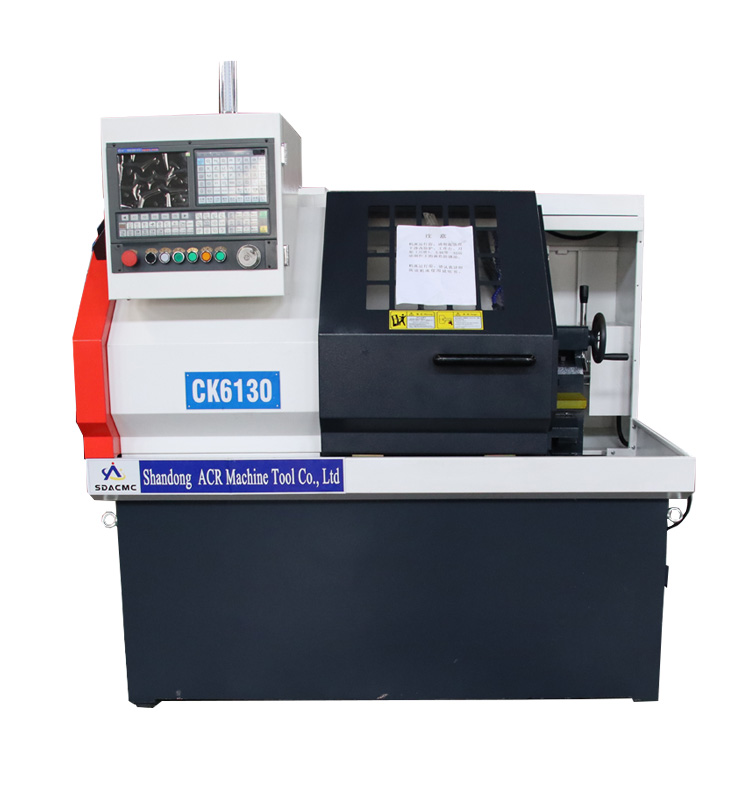

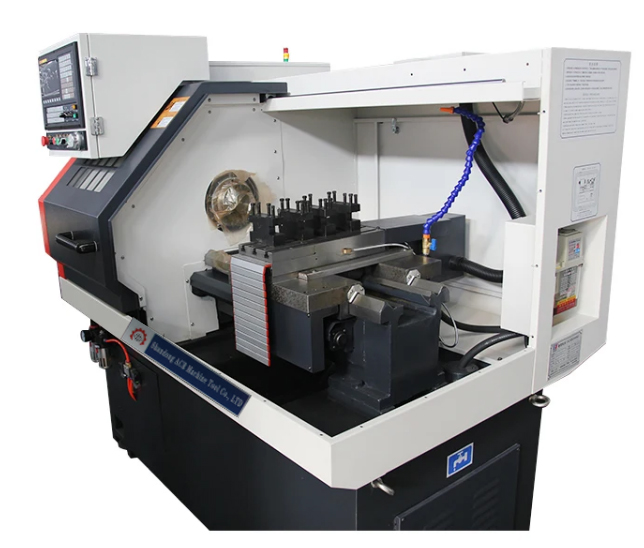

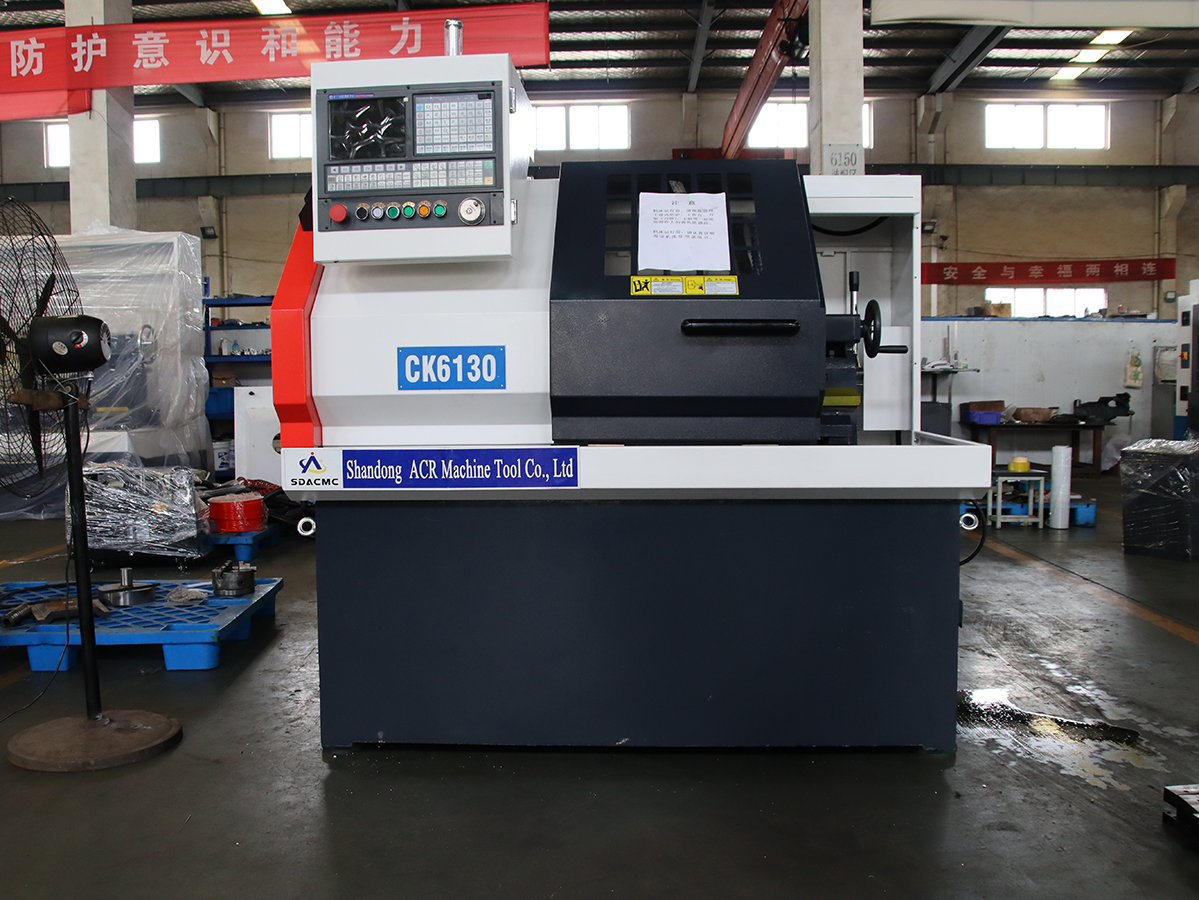

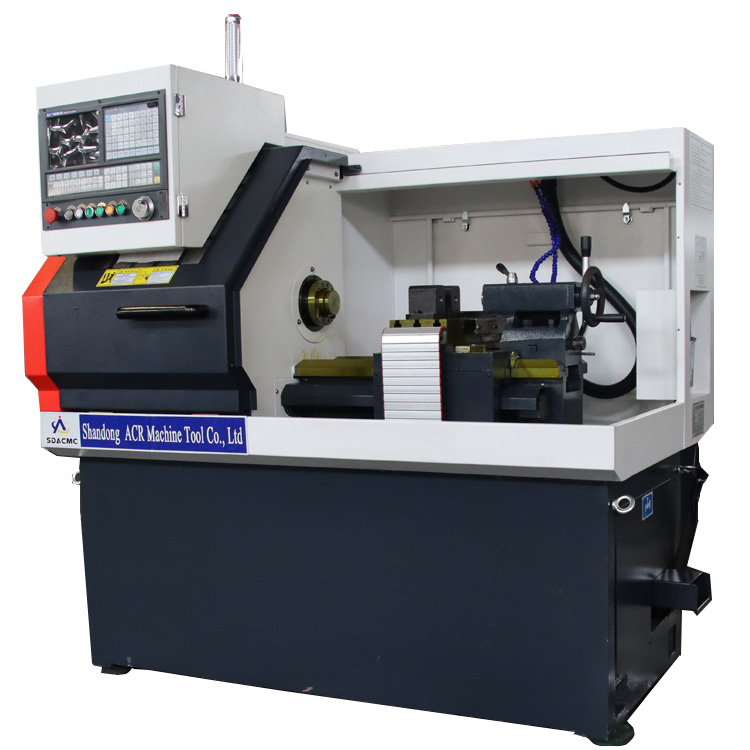

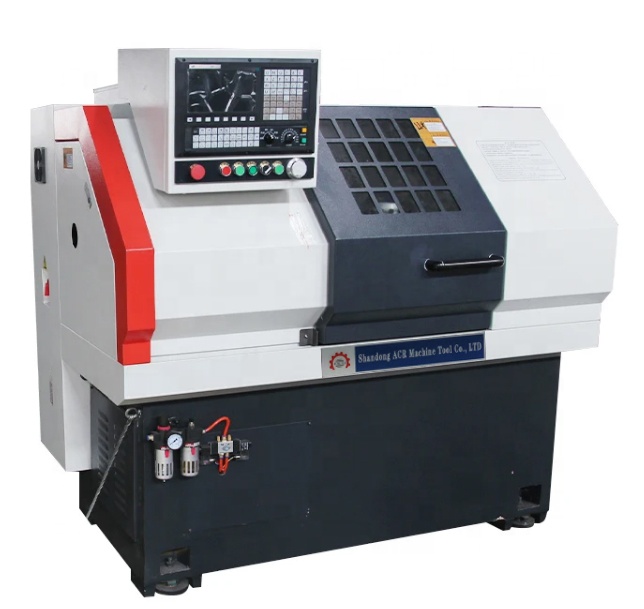

CK6130 Precision CNC Lathe Light Duty Benchtop Machine with Mitsubishi Control System
This series of CNC lathe is an economical CNC machine tool, is a general CNC automatic metal processing equipment, can carry out mechanical parts semi-finishing and finishing, with reliable structure, easy operation and economic and practical characteristics.
Suitable for all kinds of shaft and disc parts to automatically complete the internal and external cylindrical surface, conical surface, arc surface, end face, grooving, chamfering and other processes of cutting, and can turn metric straight thread, end thread and inch straight thread and taper thread and other kinds of turning.
| SPECIFICATIONS | Units | CK6130 |
|---|---|---|
| Swing over bed | mm | 300 |
| Swing over cross slide | mm | 100 |
| Distance between centers | mm | 320 |
| Spindle bore | mm | 48 |
| Spindle bore taper | - | MT6 |
| Spindle nose type | - | A2-5 |
| Spindle speed steps | - | Stepless |
| Spindle speed range | rpm | 2500 |

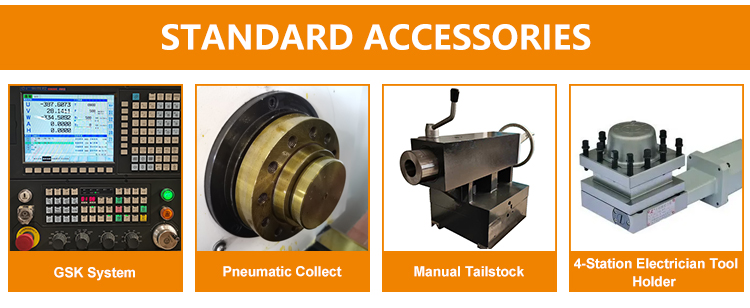

| Turret/tool post | - | Electric 4 position |
| Tool size | mm | 16*16 |
| X axis travel | mm | 100 |
| Z axis travel | mm | 320 |
| X axis rapid traverse | mm/min | 6000 |
| Z axis rapid traverse | mm/min | 10000 |
| Tailstock quill diameter | mm | 52 |
| Tailstock quill taper | - | MT4 |
| Tailstock quill travel | mm | 80 |
| Main motor power | kw | 4 |
| Coolant motor power | kw | 0.09 |
| Machine weight | kg | 1500 |
| Overall dimension(L*W*H) | mm | 2200*1160*1620 |

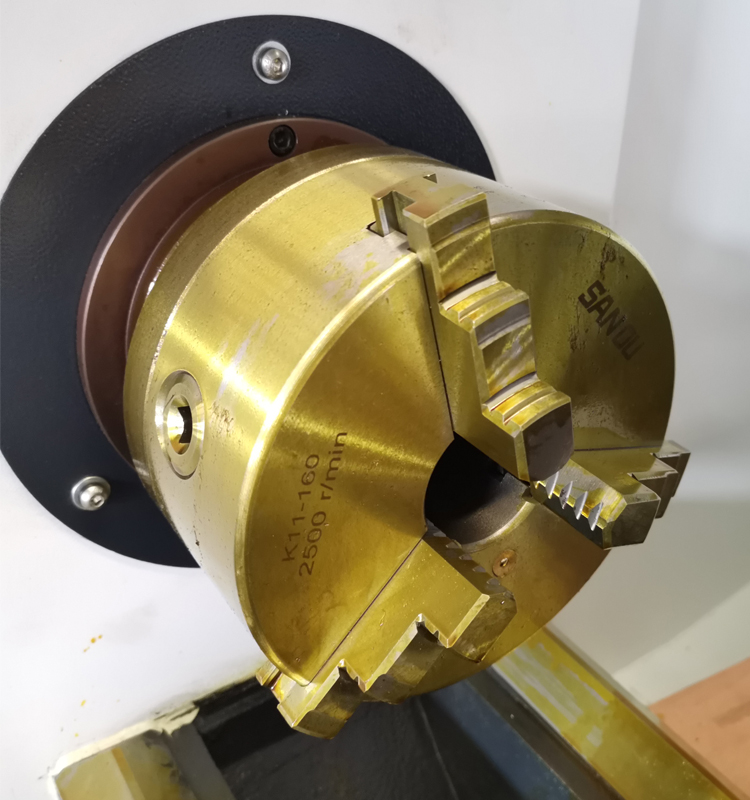

Function: Used on machine tools to fix workpieces, ensuring stability during processing and enabling precise machining operations. The 3-jaw structure allows it to better adapt to workpieces of different shapes.
Features:

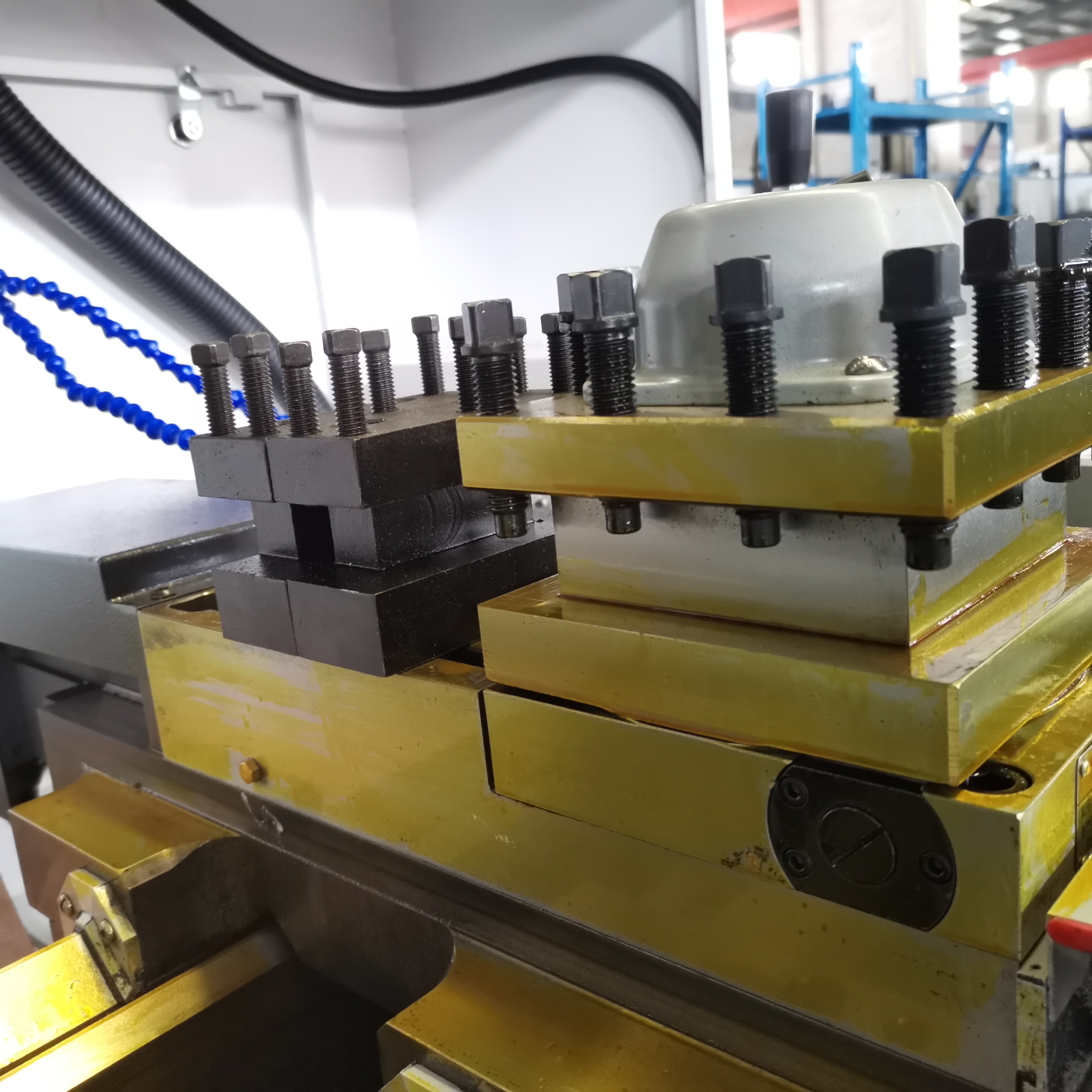

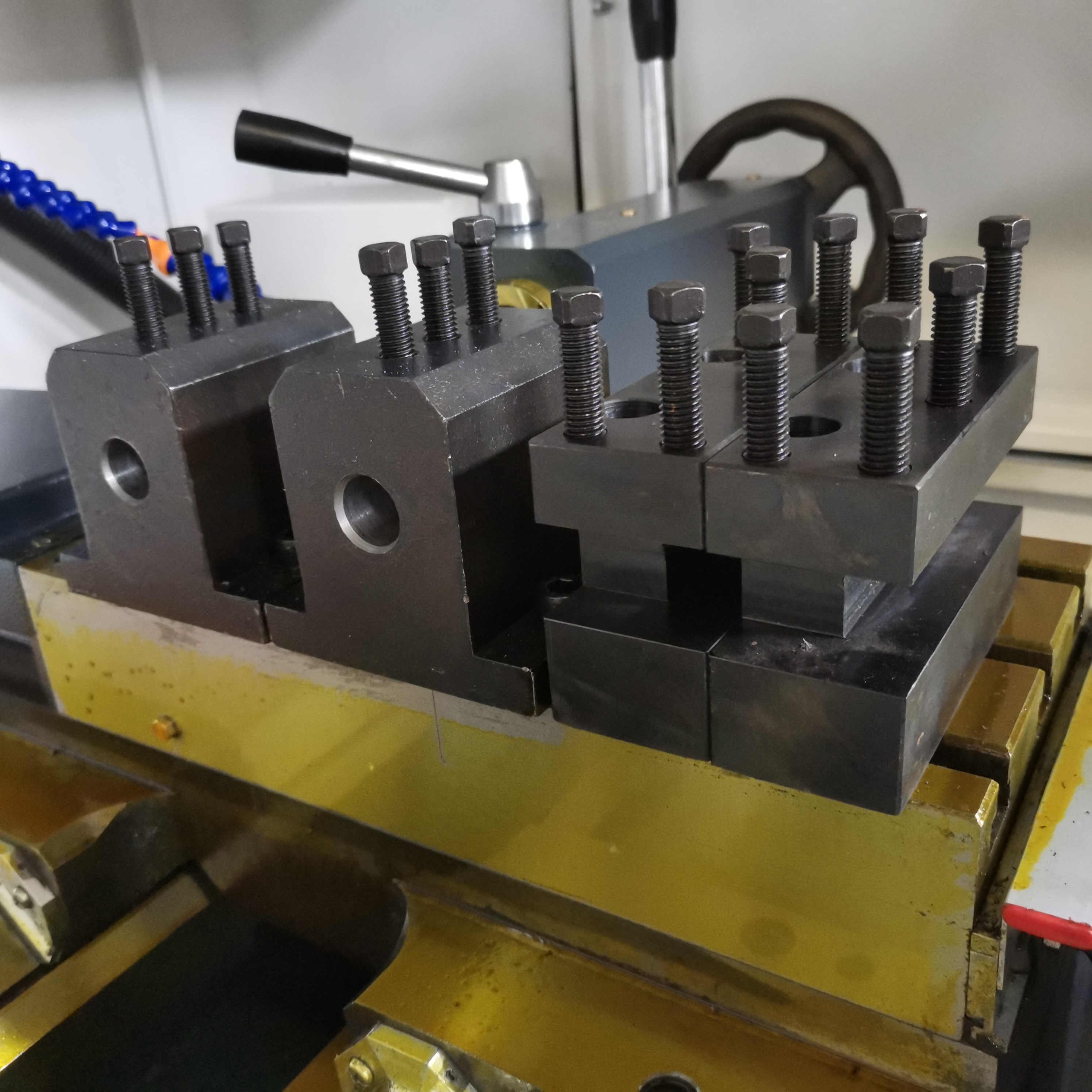

Features: Automatic tool changing, reduced manual intervention, improved machining efficiency and accuracy, suitable for multi-process and complex part processing requirements.
We specialize in product design, research and development, manufacturing, and sales. The main production and operation focus on CNC lathe machines, CNC milling machines, vertical machining centers, horizontal machining centers, gantry machining centers, manual lathes, manual milling machines, and other series of machine tools products.
Our products have covered all parts of the country and have been exported to North Korea, Angola, Kenya, South America, Southeast Asia, Russia, the Middle East, and other countries and regions, earning praise from domestic and foreign customers.
We have a strict production process and inspection process to ensure high-performance quality. We provide high-quality pre-sale and after-sale service to solve customer’s problems in time. Our professional technical team has rich industry experience and professional knowledge.
