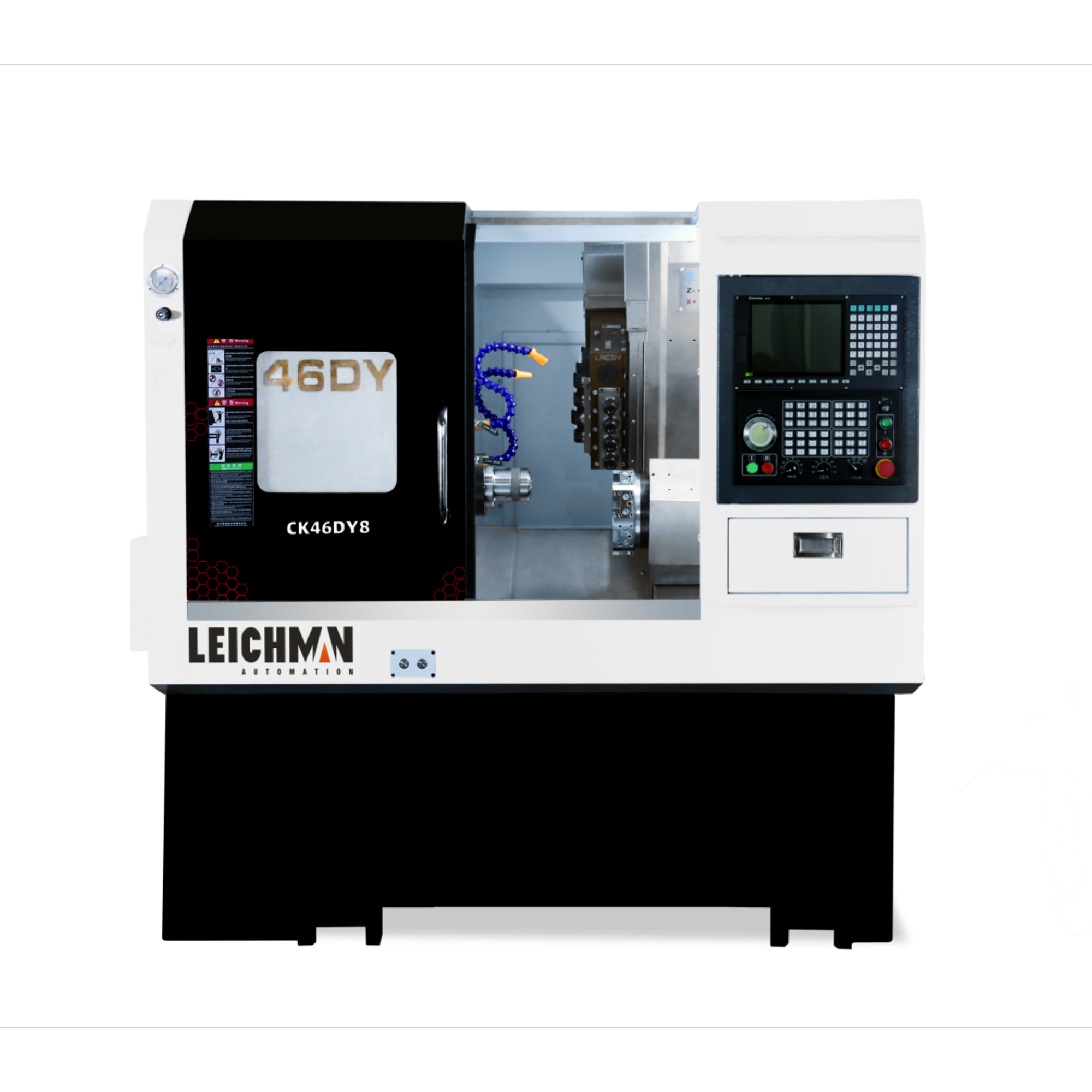

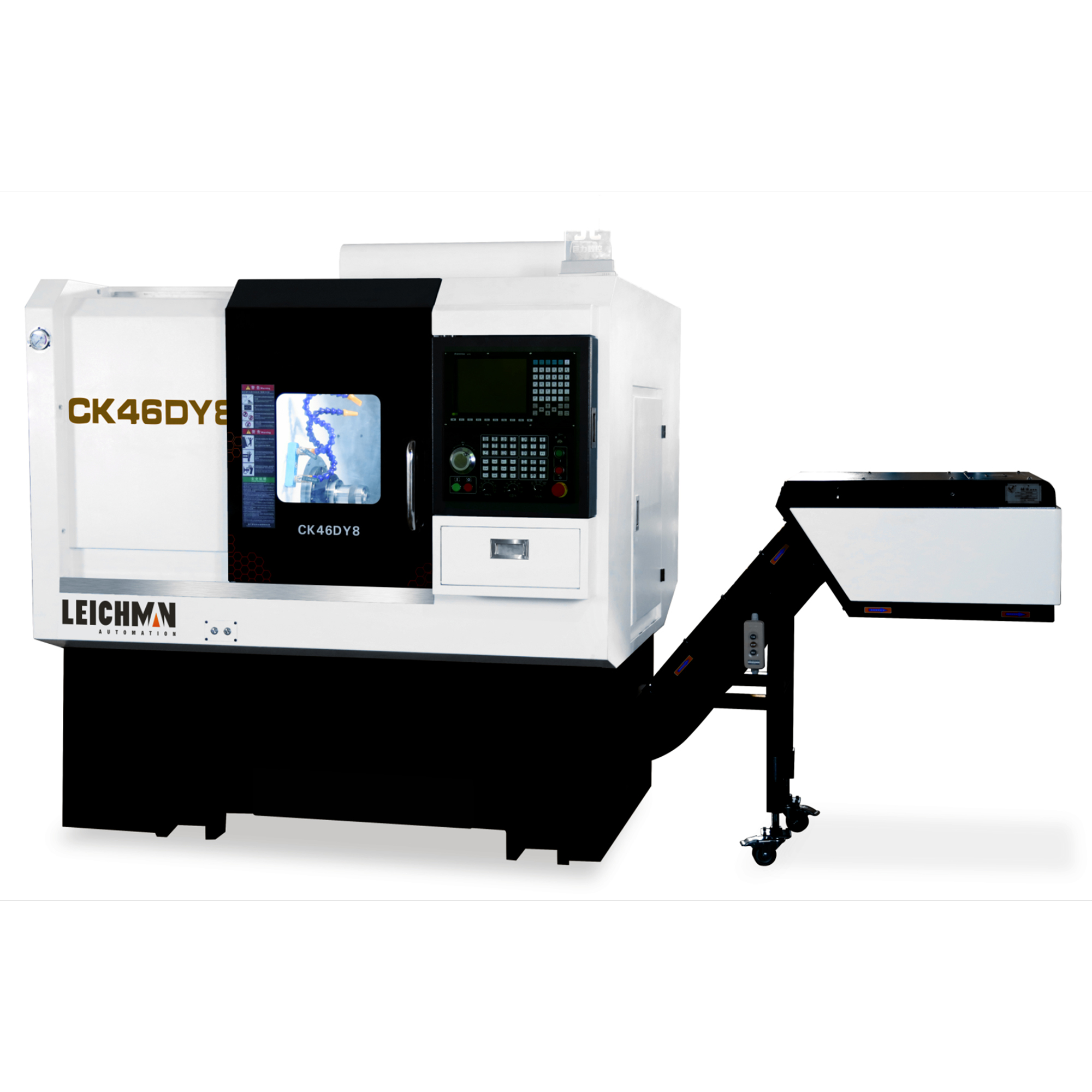

CK46DY8 Slant Bed Cnc Lathe Used Lathe Machine Mini Wood Lathe Machine 5-axis Turning Service for Metal Parts

1 / 5

CK46DY8 Slant Bed Cnc Lathe Used Lathe Machine Mini Wood Lathe Machine 5-axis Turning Service for Metal Parts

Send Inquiry

Product Description

High Precision, High Rigidity, Heavy Duty Sleeve Spindle
Integral cast iron base, 30° inclined bed, good rigidity, easy operation and chip removal

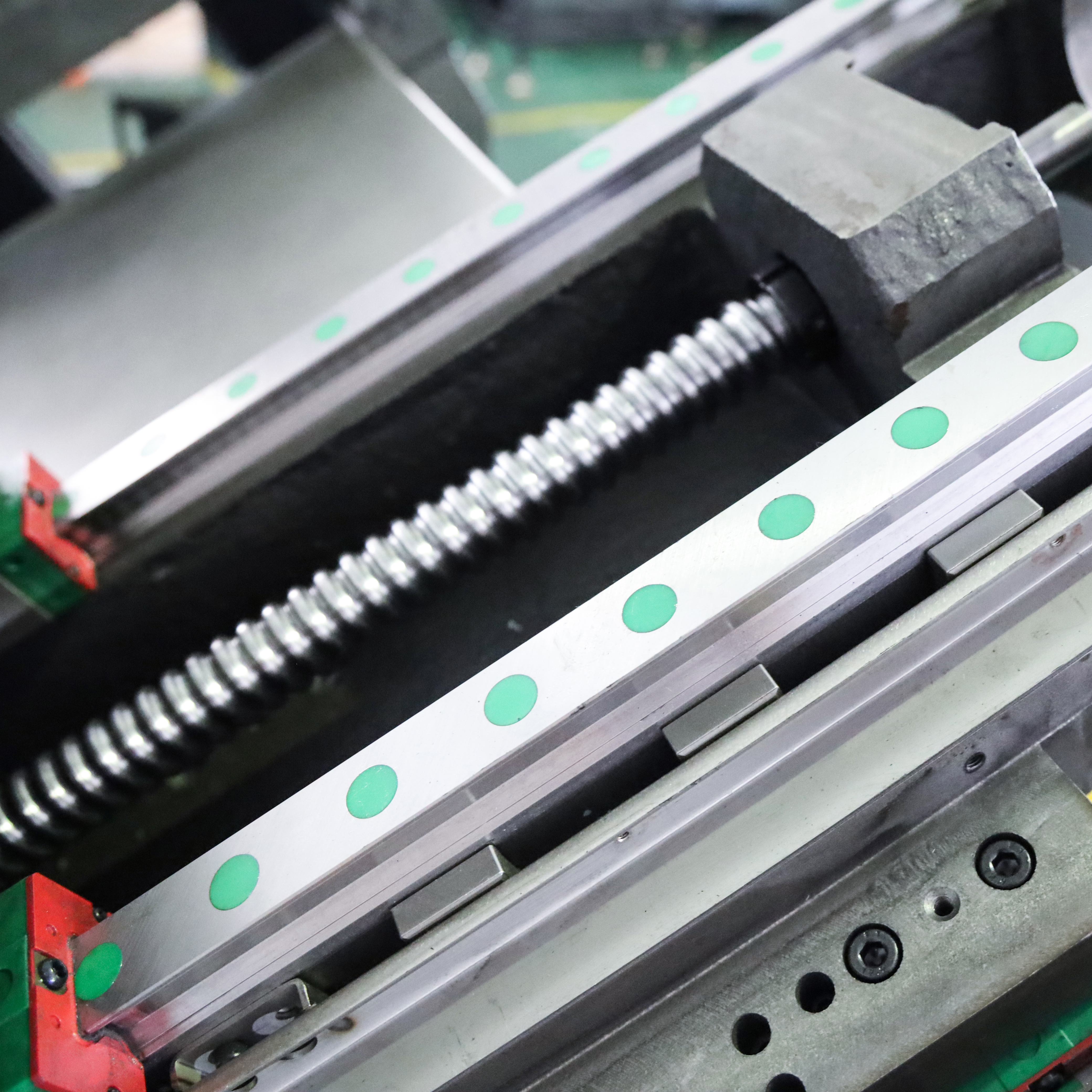

High rigidity, high precision, high speed Japanese ball screw, Japanese precision ball screw

	Item	Unit	CK36	CK46
Capacity	Max swing over bed	mm	400	450
	Max cutting diameter	mm	350	360
	Max machining dia.(disk)	mm	135	135
	Max machining dia.(shaft)	mm	220	220
Travel	X axis travel	mm	750	950
Travel	Z axis travel	mm	270	290
Precision	Spindle runout	mm	0.004	0.004
Precision	X/Z axis reposition precision	mm	0.002	0.002
Body structure	Slant bed degree	°	45	45
Spindle	Spindle speed	rpm	6000	6000
	Chuck diameter	inch	5"	6"
	Spindle nose		A2-4	A2-5
	Spindle bore	mm	46	56
	Max bar diameter	mm	35	45
	Hight between worktable and spindle	mm	70	70
Rapid speed	X axis rapid speed	m/min	27	27
Rapid speed	Z axis rapid speed	m/min	27	27
Motor power	Spindle	kw	4.0	5.5
	X axis feed motor	kw	1.1	1.7
	Y axis feed motor	kw	1.1	1.7

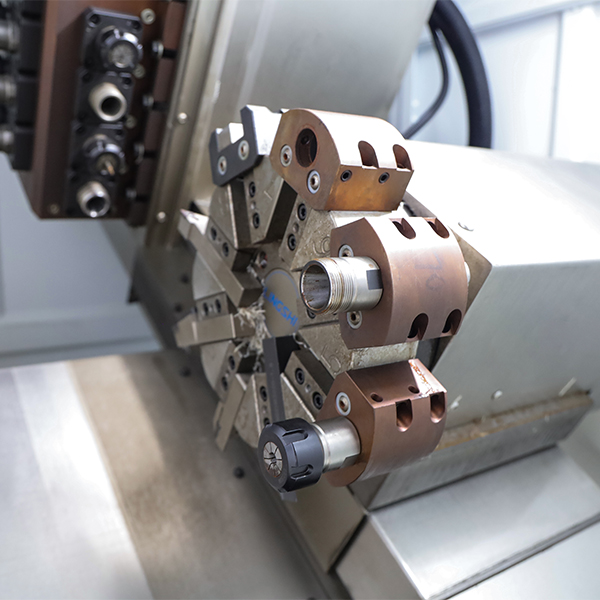

Tool holder form	Row of knives		8	8
Tool size		mm	20*20	20*20
Boring bar diameter		mm	φ20	φ20
Other	Dimension	mm	1800×1300×1600	2160×1600×1800
Other	Weight	kg	1800	2600

Frequently Asked Questions

Q1: What are the differences in swing capacity between the CK36 and CK46 models?

The CK36 features a maximum swing over bed of 400 mm, while the CK46 offers a larger capacity of 450 mm to accommodate bigger workpieces.

Q2: What type of spindle and speed do these CNC lathes feature?

Both the CK36 and CK46 are built with a high-precision, high-rigidity, heavy-duty sleeve spindle operating at speeds up to 6000 rpm.

Q3: What is the bed degree and structural layout of the lathe?

The machines are designed with an integral cast iron base and a 30° inclined bed, which optimizes structural rigidity and ensures smooth chip removal.

Q4: What are the X and Z axes repositioning accuracies?

Equipped with Japanese precision ball screws, both models achieve a high repositioning precision of 0.002 mm for X and Z axes travel.

Q5: What are the spindle bore and bar capacities of each model?

The CK36 has a spindle bore of 46 mm with a maximum bar diameter capacity of 35 mm. The CK46 has a larger spindle bore of 56 mm with a maximum bar capacity of 45 mm.

Q6: What motor power configurations drive the CK36 and CK46?

The CK36 uses a 4.0 kW spindle motor and 1.1 kW feed motors. The CK46 features a more powerful 5.5 kW spindle motor and 1.7 kW feed motors for heavier cutting operations.
