CJM360 HOYONG-TRD Multifunctional Metal Manual Turning Center Light Duty Horizontal Benchtop Mini Lathe 220V 4-8 Tool Stations
CJM360 HOYONG-TRD Multifunctional Metal Manual Turning Center Light Duty Horizontal Benchtop Mini Lathe 220V 4-8 Tool Stations
CJM360 HOYONG-TRD Multifunctional Metal Manual Turning Center Light Duty Horizontal Benchtop Mini Lathe 220V 4-8 Tool Stations
CJM360 HOYONG-TRD Multifunctional Metal Manual Turning Center Light Duty Horizontal Benchtop Mini Lathe 220V 4-8 Tool Stations
CJM360 HOYONG-TRD Multifunctional Metal Manual Turning Center Light Duty Horizontal Benchtop Mini Lathe 220V 4-8 Tool Stations
1 / 5
CJM360 HOYONG-TRD Multifunctional Metal Manual Turning Center Light Duty Horizontal Benchtop Mini Lathe 220V 4-8 Tool Stations
CJM360 HOYONG-TRD Multifunctional Metal Manual Turning Center Light Duty Horizontal Benchtop Mini Lathe 220V 4-8 Tool Stations
CJM360 HOYONG-TRD Multifunctional Metal Manual Turning Center Light Duty Horizontal Benchtop Mini Lathe 220V 4-8 Tool Stations
CJM360 HOYONG-TRD Multifunctional Metal Manual Turning Center Light Duty Horizontal Benchtop Mini Lathe 220V 4-8 Tool Stations
CJM360 HOYONG-TRD Multifunctional Metal Manual Turning Center Light Duty Horizontal Benchtop Mini Lathe 220V 4-8 Tool Stations

CJM360 HOYONG-TRD Multifunctional Metal Manual Turning Center Light Duty Horizontal Benchtop Mini Lathe 220V 4-8 Tool Stations

Send Inquiry

Product Description

Lathe Machine Banner
Lathe details 1
Lathe details 2
Lathe details 3
Lathe features 1
Lathe features 2
Lathe features 3

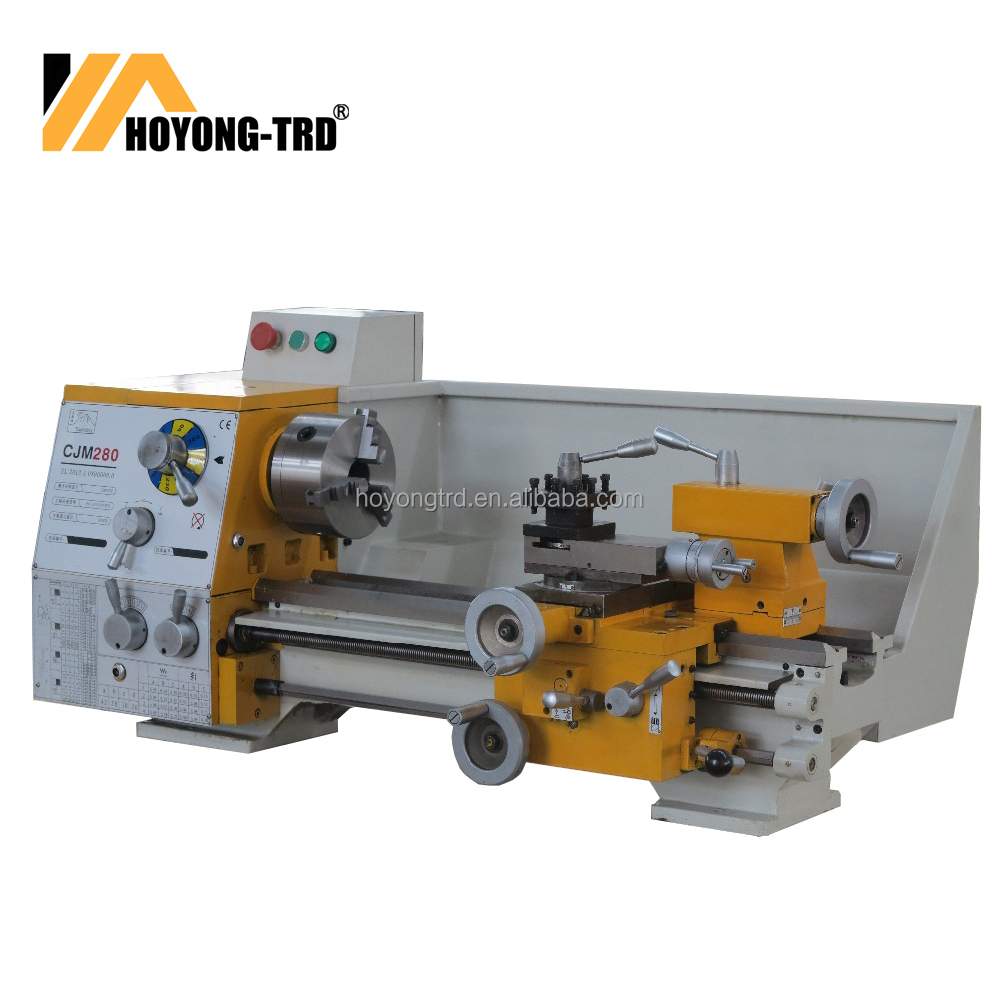

Lathe Machine Structure

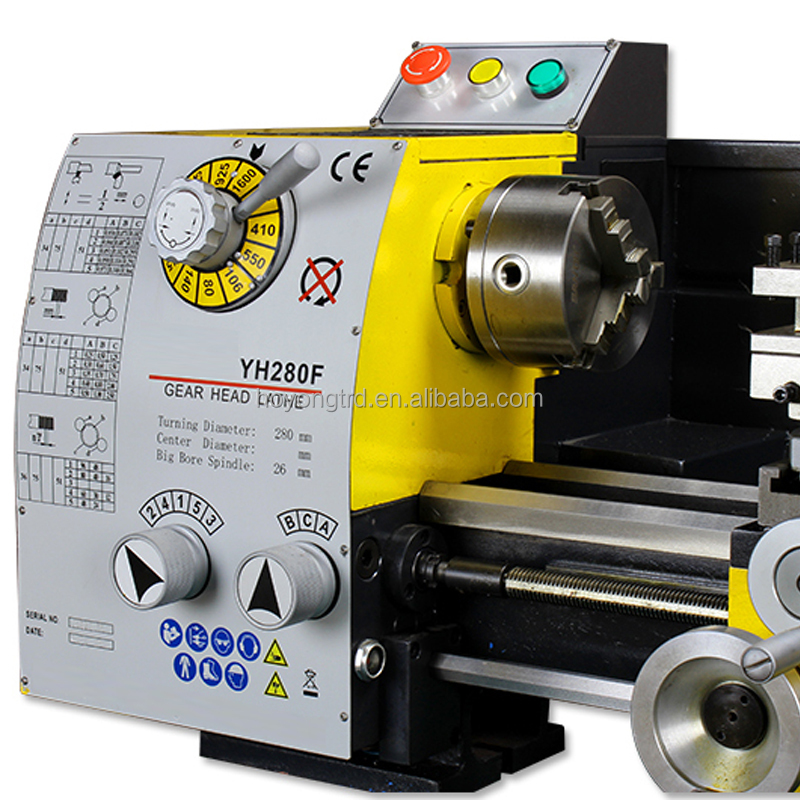

Internal view 1

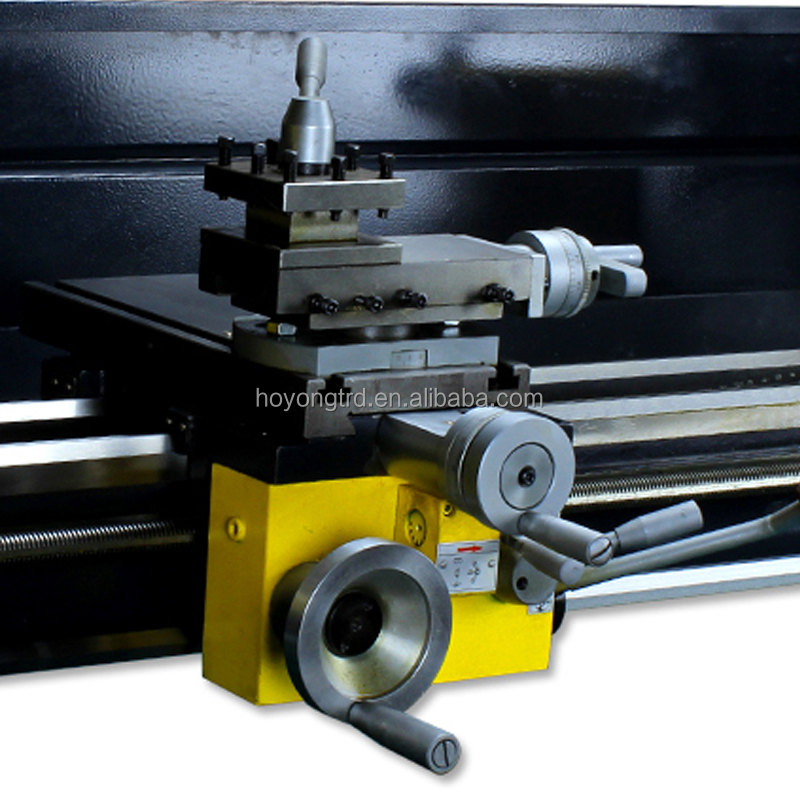

Internal view 2
  • Precision ground and hardened bed ways.
  • The spindle is supported with precision roller bearings.
  • Headstock gears are made of high quality steel, ground and hardened.
  • Easy operating speed change levers.
  • Spindle speed range 80-1600rpm.
  • Easy operating gear box has various feeds and thread cutting function.
  • With or without cabinet according to requirement.
Specification CJM360
Max. swing diameter over bed 360mm
Max. length of work piece 800mm
Max. swing diameter over middle carriage 200 mm
Spindle bore 40mm
Taper of hole in spindle MT5
Max. cross stroke over tool carrier 160mm
Max. longitudinal stroke over tool carrier 100mm
Metric thread kinds 22
Metric thread pitch 0.20-7mm
Inch thread kinds 45
Inch thread pitch 21/2-48 1/n″
Modulus thread kinds on processing 21
Modulus thread pitch on processing 0.20-3.5mm
Diametrical thread kinds on processing 31
Diametrical thread pitch on processing 8-120 1/n″
Longitudinal feed on spindle tool carrier 0.10-1.40mm/r
Cross feed on spindle tool carrier 0.045-0.60mm/r
Max stroke on taper hole 80mm
Taper of Tailstock MT3
Step of spindle speed 12
Range of spindle speed 60-1600r/min
Tool size 12x12mm
Motor 1.5kw
N.W. 360kgs
G.W. 380kgs
Overall size(L×W×H) 1580×745×1390mm
Packing size(L×W×H) 1580X745X730mm
Stand 410X380X685mm
Stand 410X320X685
Component 1
Component 2
Component 3
Frequently Asked Questions
What are the main spindle specifications of the CJM360 lathe?
The CJM360 features a 40mm spindle bore with an MT5 spindle taper. It offers a spindle speed range of 60-1600 r/min across 12 speed steps, supported by precision roller bearings.
What is the maximum workpiece capacity for this machine?
The machine supports a maximum workpiece length of 800mm. The maximum swing diameter over the bed is 360mm, and the maximum swing diameter over the middle carriage is 200mm.
What types of threads can the CJM360 cut?
The easy-to-operate gearbox allows for multiple threading operations, including 22 types of metric threads (0.20-7mm pitch), 45 types of inch threads (21/2-48 1/n″), 21 types of modulus threads (0.20-3.5mm), and 31 types of diametrical threads (8-120 1/n″).
How are the bed ways and headstock gears processed?
The bed ways are precision ground and hardened for enhanced durability and accuracy. Similarly, the headstock gears are made of high-quality steel that has been ground and hardened to ensure smooth transmission.
Does the lathe machine come with a stand or cabinet?
The lathe can be configured and supplied either with or without the cabinet/stand according to your specific operational requirements.
What are the physical dimensions and weight of the CJM360?
The overall machine size is 1580×745×1390mm with a net weight (N.W.) of 360 kgs and gross weight (G.W.) of 380 kgs. The packing size is 1580X745X730mm.
