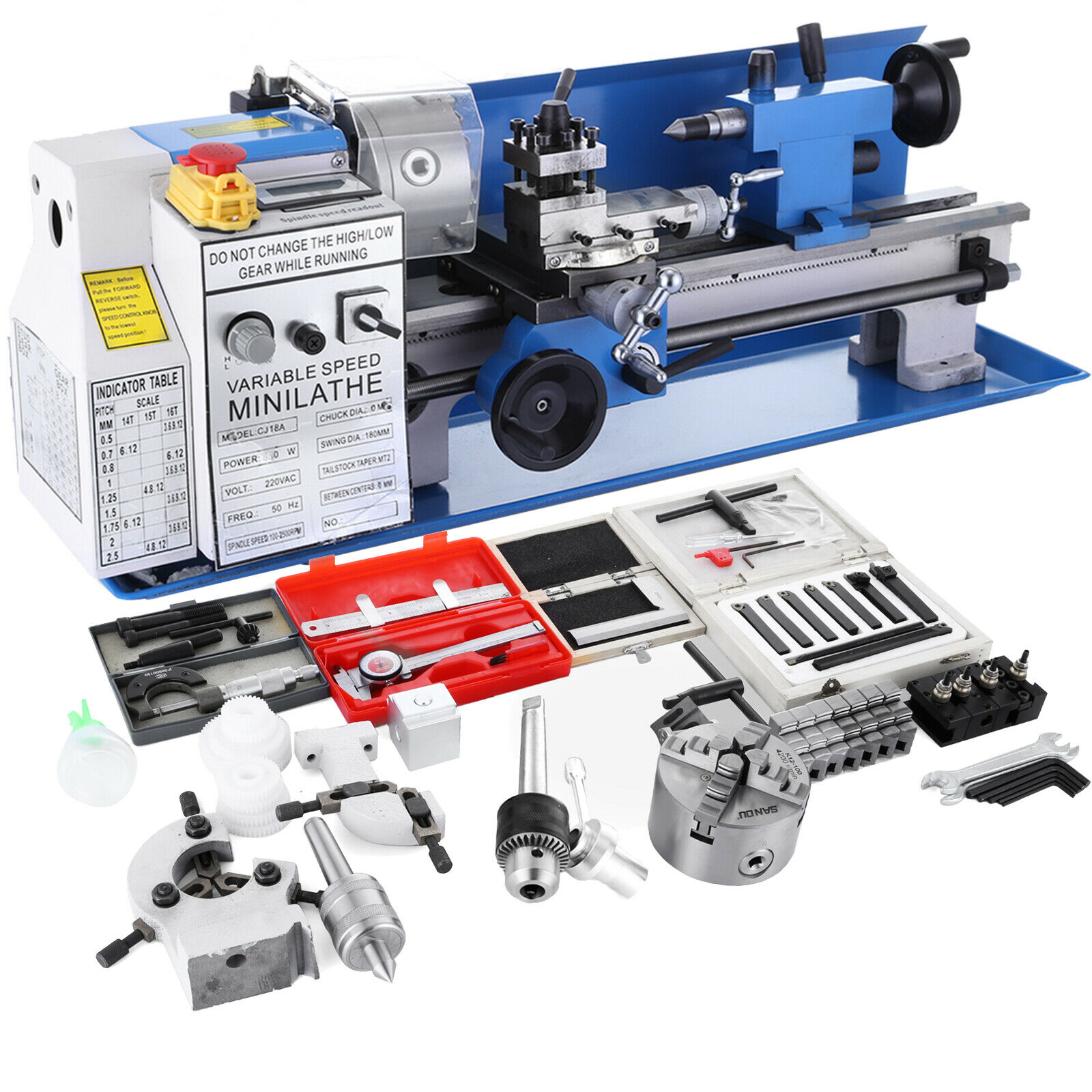

New CJ18A 7x14 Inch 550W Benchtop Mini Metal Lathe Machine 350x180mm

Product Description

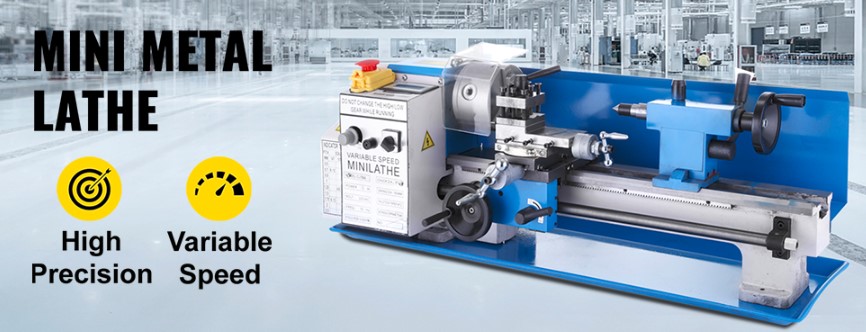

Benchtop Mini Metal Lathe Machine
New CJ18A 7x14 inch 550W Benchtop Mini Metal Lathe Machine 350x180mm
Product Description
Power 550W, 220V
Distance Between Centers 350mm (14")
Swing Over Bed 180mm (7")
Swing Over Cross Slide 110mm (4.3")
Taper MT3

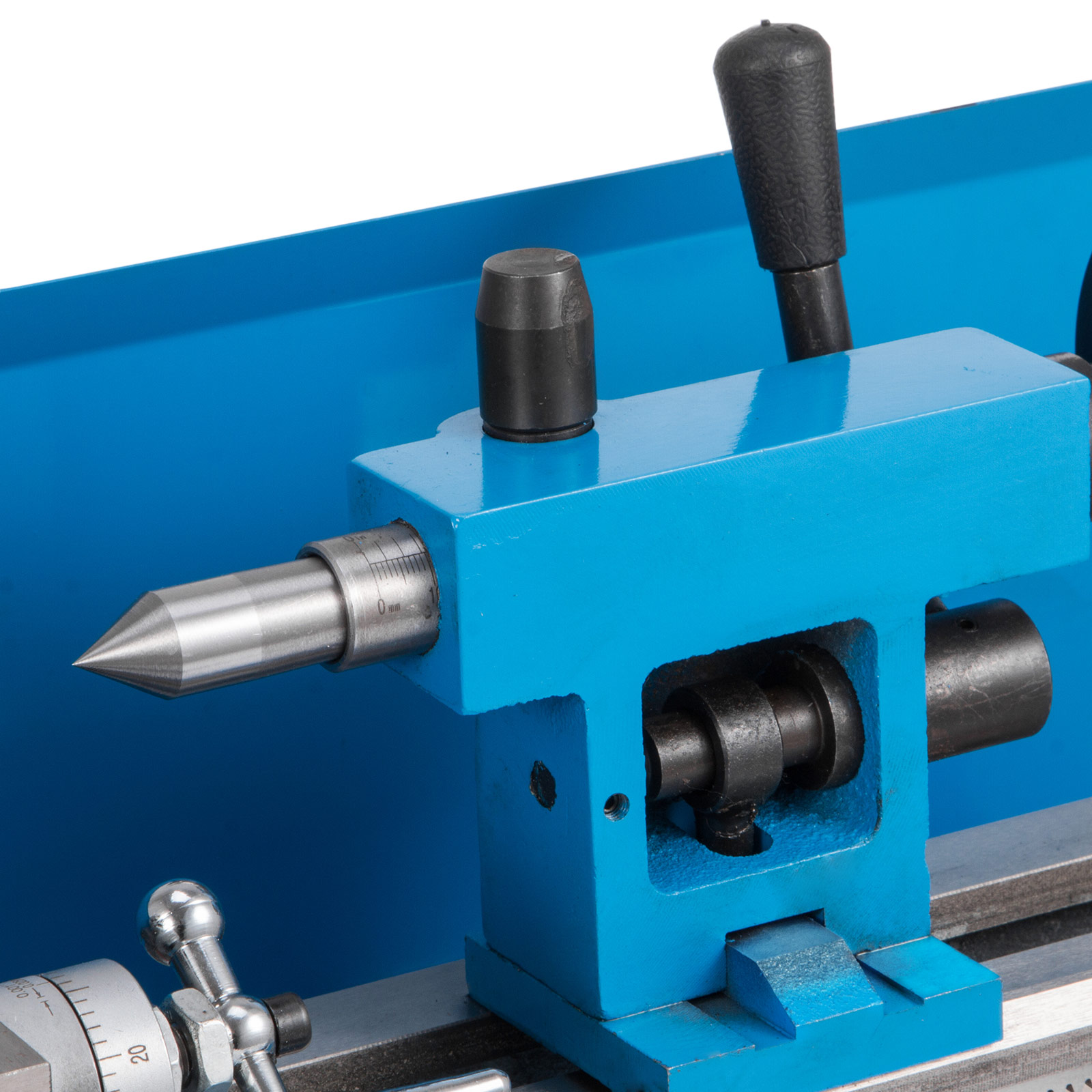

Tailstock Taper MT2
Chuck Diameter 100mm (3.9")
Spindle Speed 50-2500rpm
Spindle Bore 21mm (0.8")
Cross Slide Travel 65mm (2.6")
Chuck Diameter 100mm (3.9") (Integral spindle plate is 100mm and can take 3 or 4 jaw chucks-no adapter plate required)
Range of Metric Threads 0.5-2.5mm (0.02"-0.1")
Range of Imperial Threads 12-52 TPI
Spindle Accuracy 0.01mm

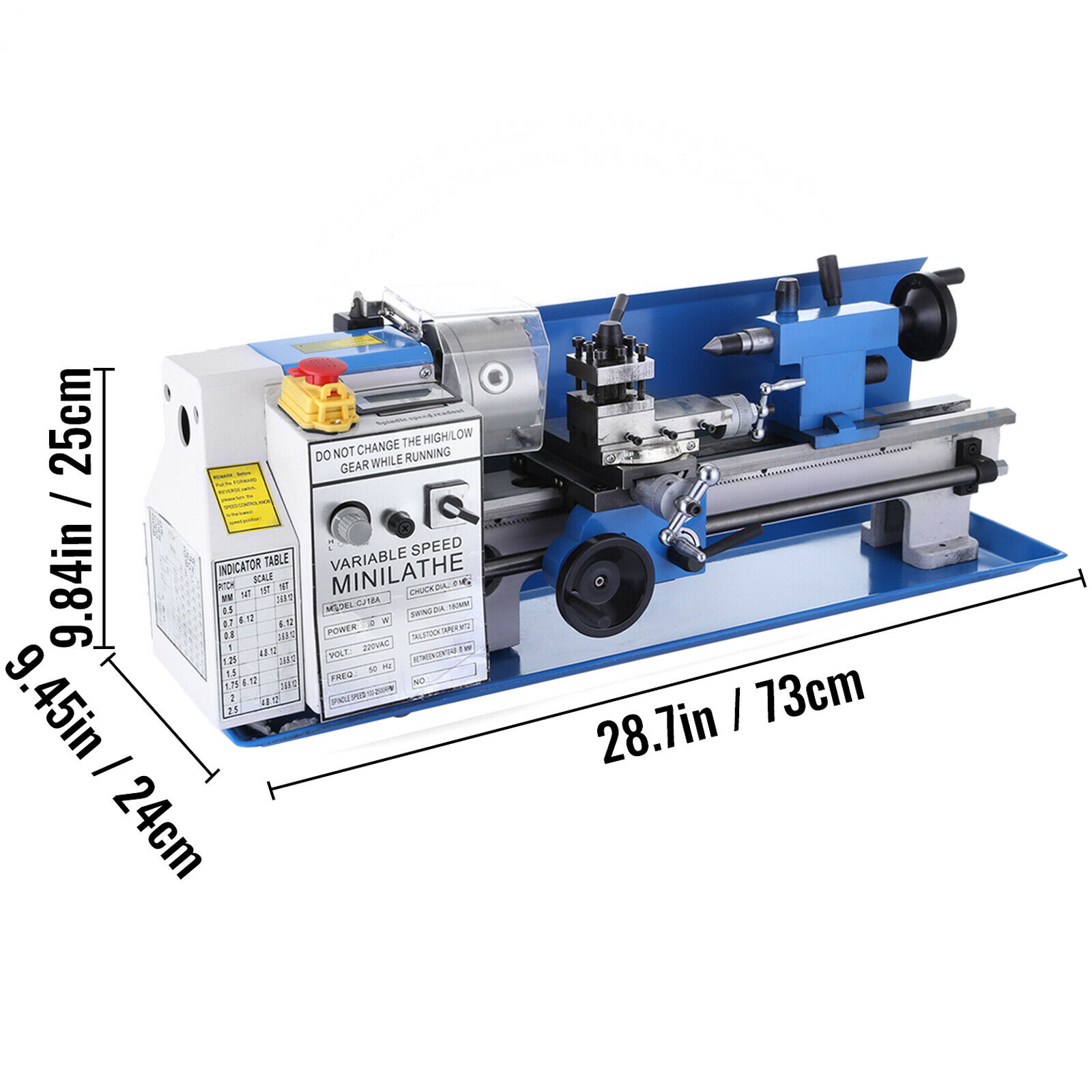

Actual Lathe Dimensions 77*32*29cm (30"*13"*12")
STRONG & DURABLE CONSTRUCTION

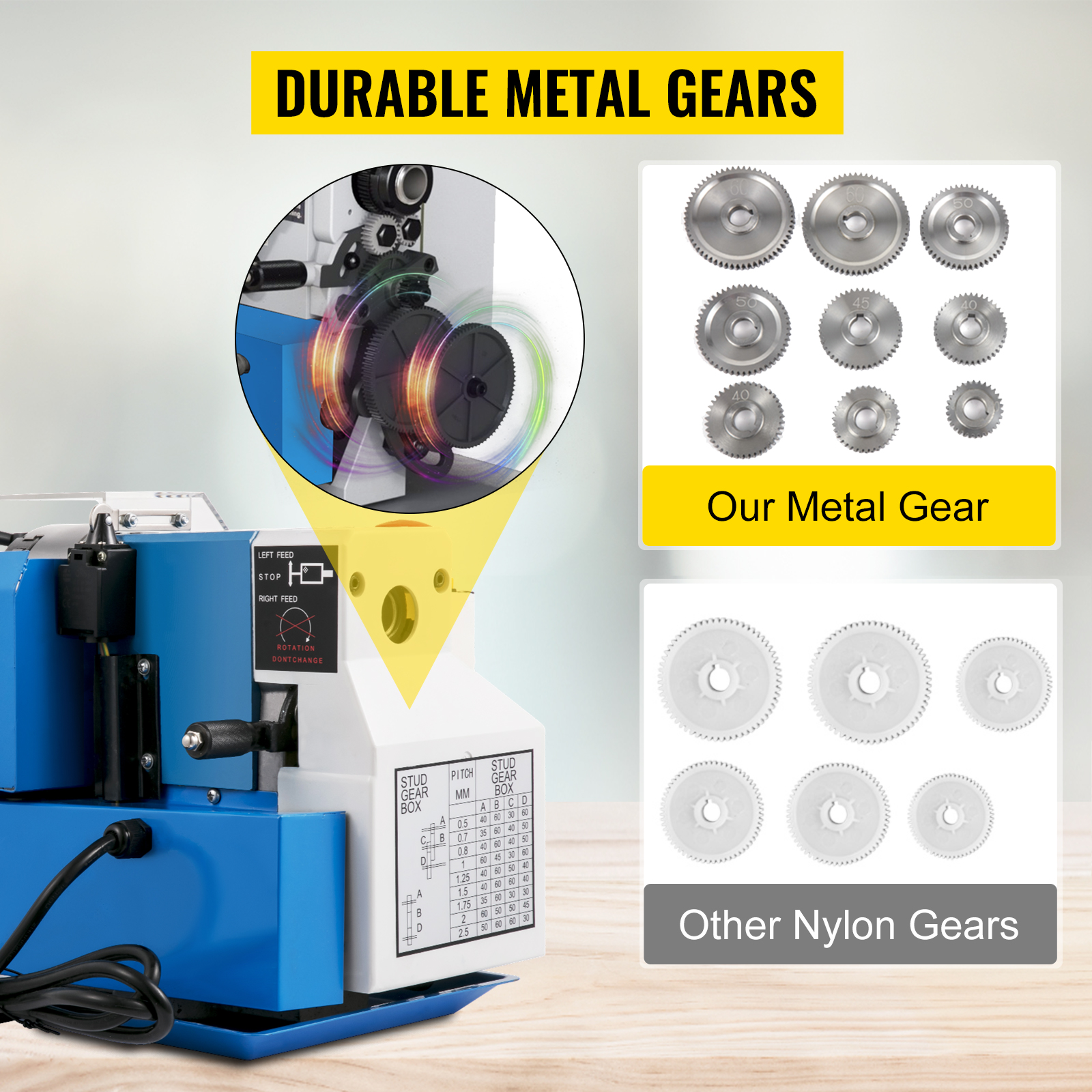

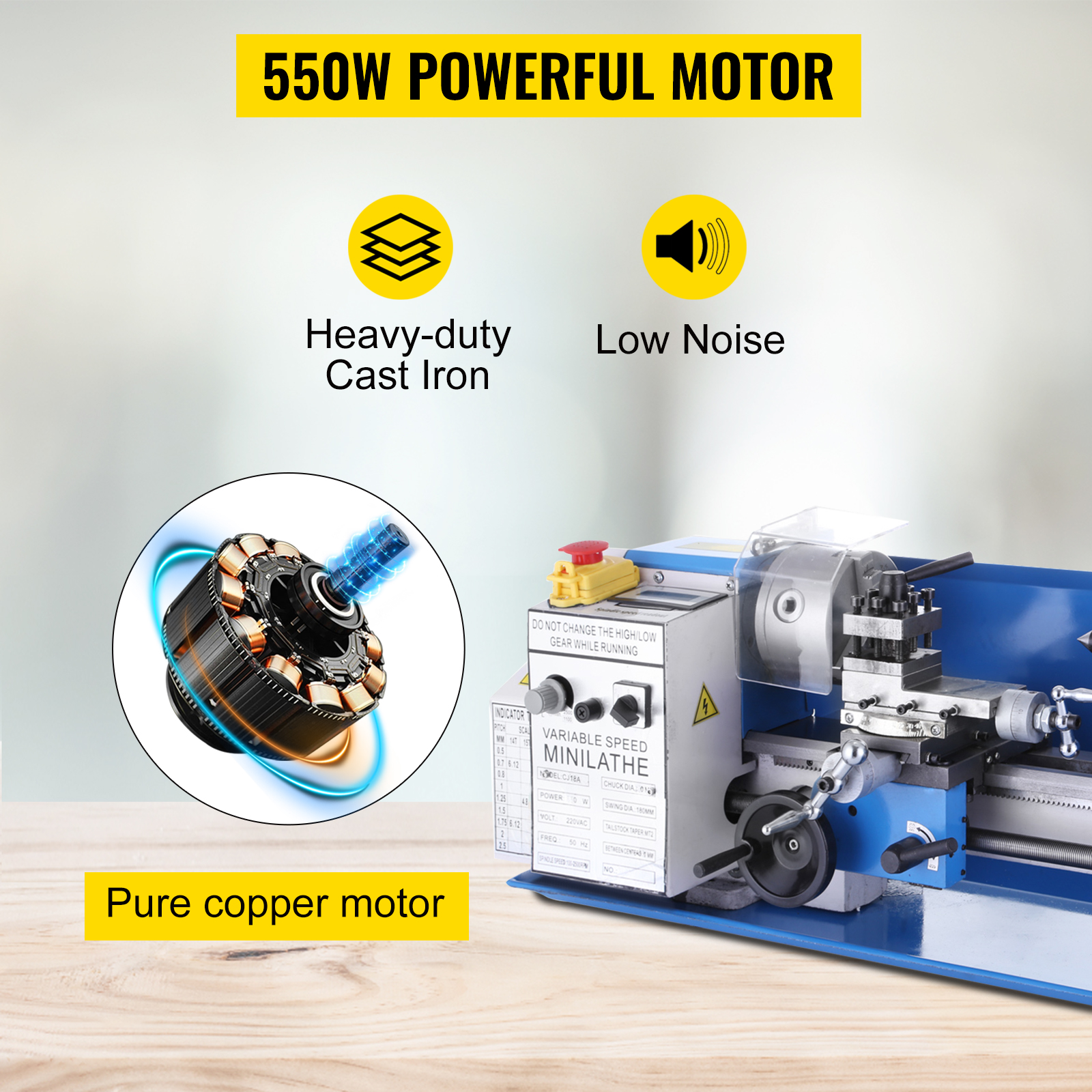

The mini lathe features a finish that resists wear and tear. It is equipped with a 550 watt motor that delivers a large amount of power. If you are interested in model making, this machine is the professional and ideal helper. It has precise metric scales and metal gears that work with pinpoint accuracy.

CONTINUOUSLY ADJUSTABLE SPEEDS

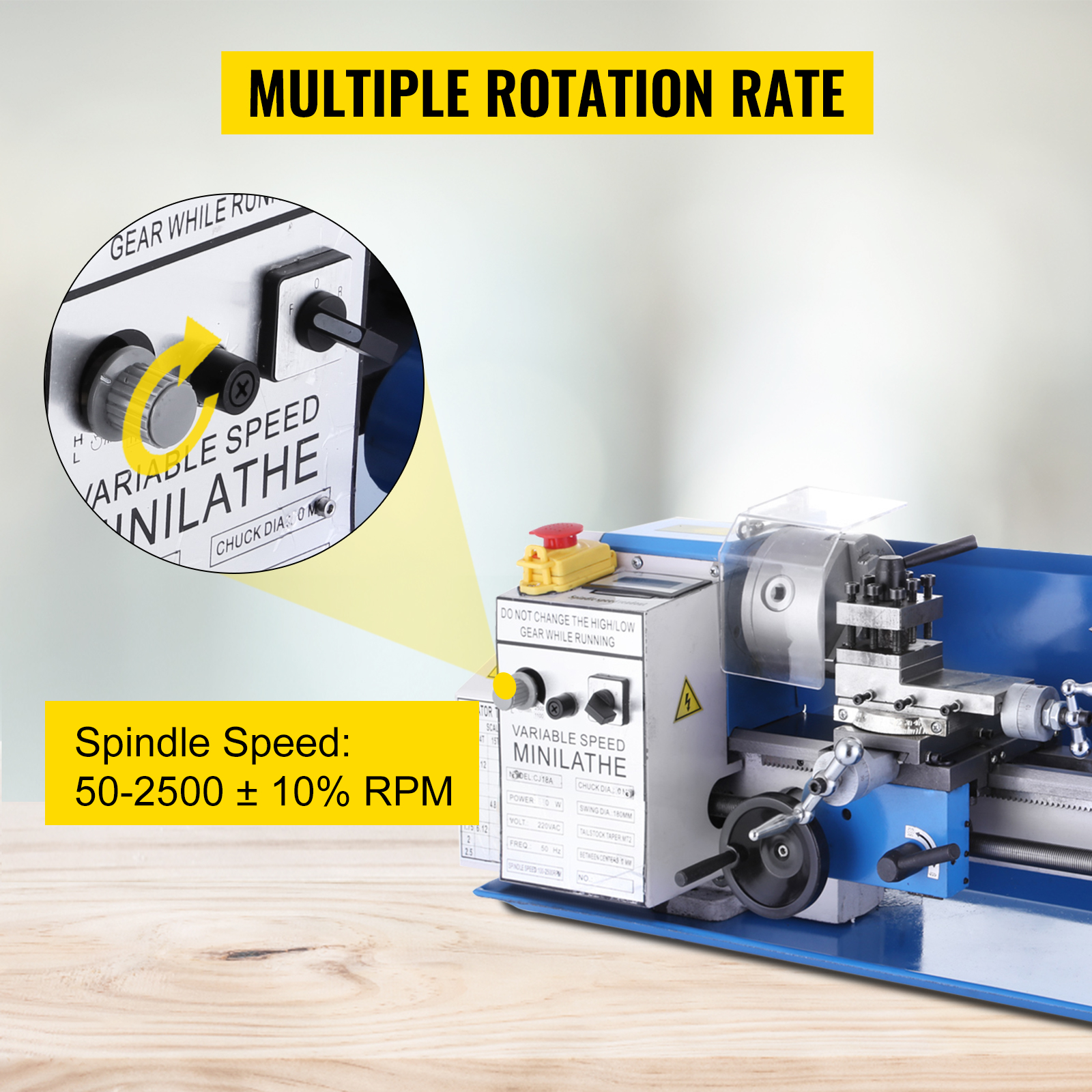

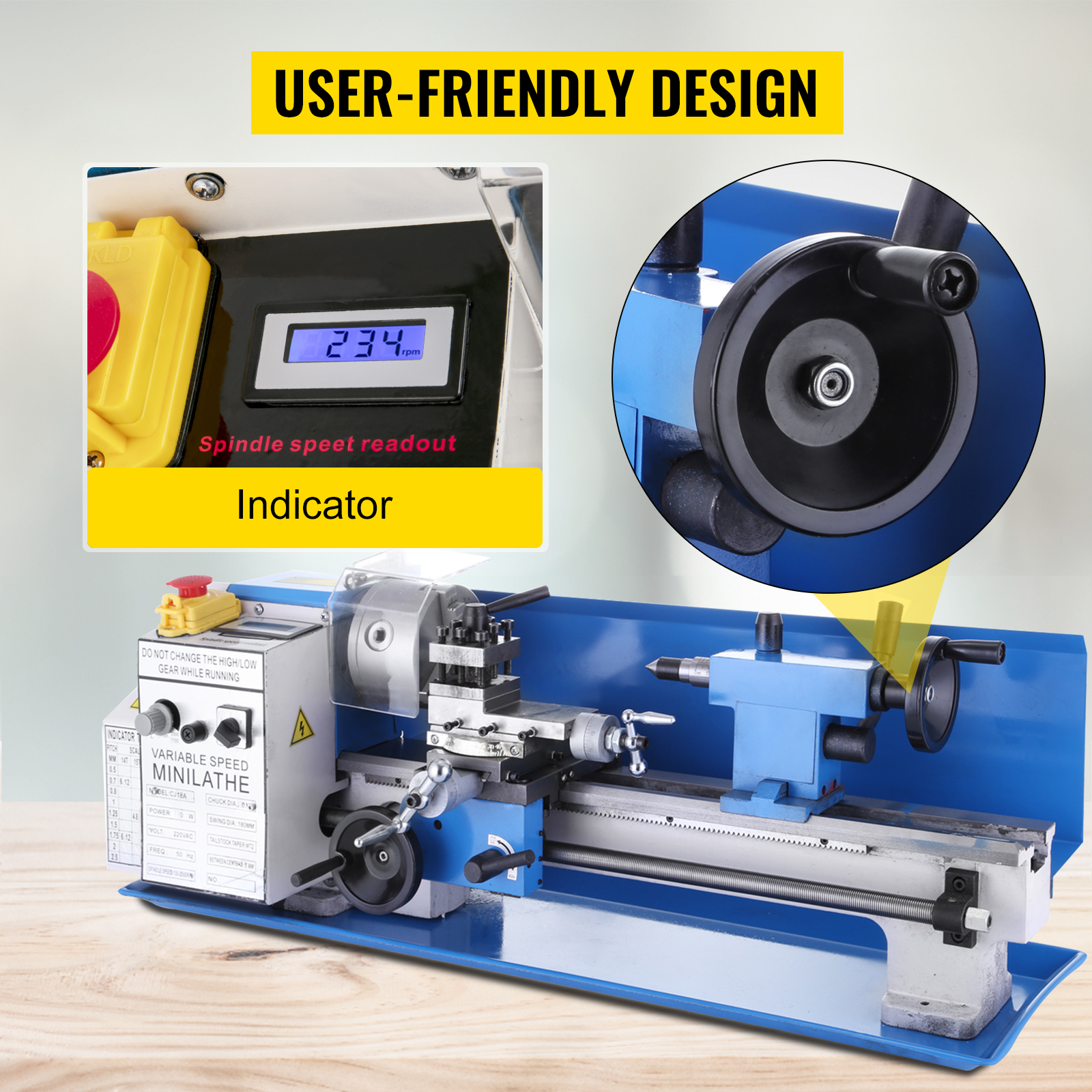

Rotational speed range: 50-2500 rpm. The mini lathe has variable speeds that give you the opportunity to do your best work. With this lathe you can work both forwards and backwards at any possible speed. Feed speed can be set manually or automatically and there is an emergency button just in case.

WORK WITH PRECISION

Spindle bore: 0.8 inch / 21 mm. The metalworking machine is equipped with 4-jaw chuck that firmly clamps the raw material and an anti-collision device that ensures your safety during operation.

FASTER & MORE EFFICIENT

Pig size over bed: 7.1 inch / 180 mm. The small metal lathe has a turret for quick tool changes and a cross slide for free saw blade changes, which enables inside, face and bevel cuts.

COMPLETE ACCESSORY KIT

With the included lathe tool kit and accessory kit, the lathe can do precision work, making bushings, spindles, prototypes, models and more.

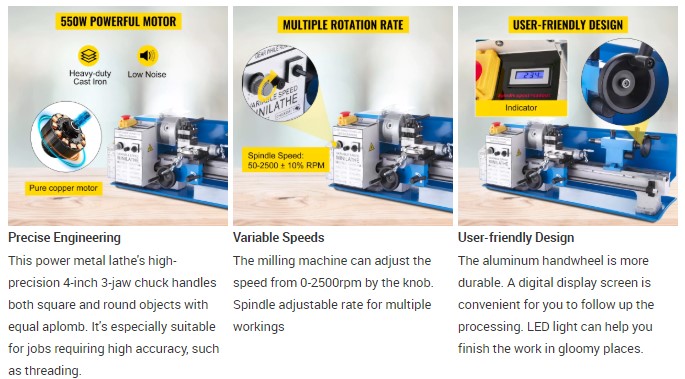

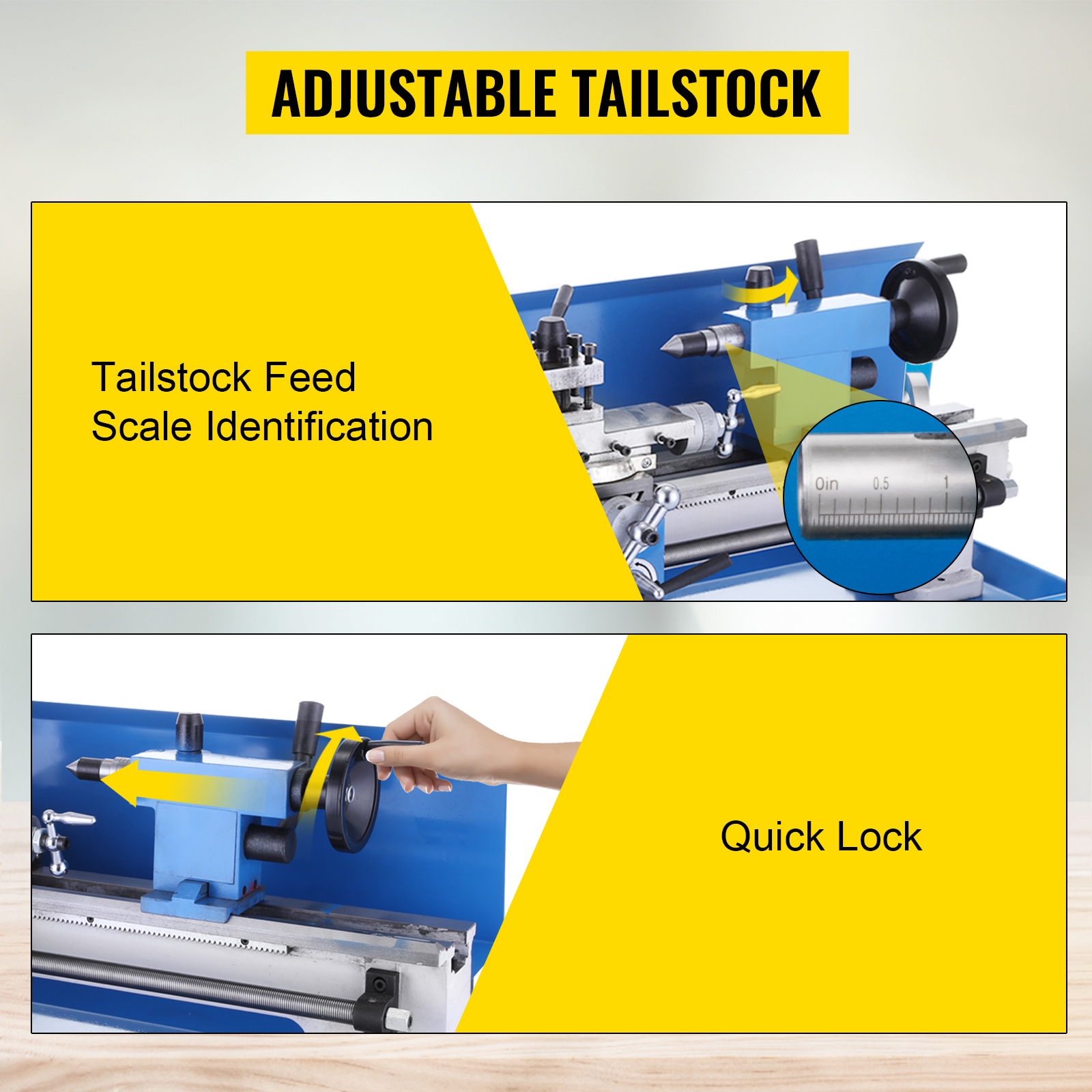

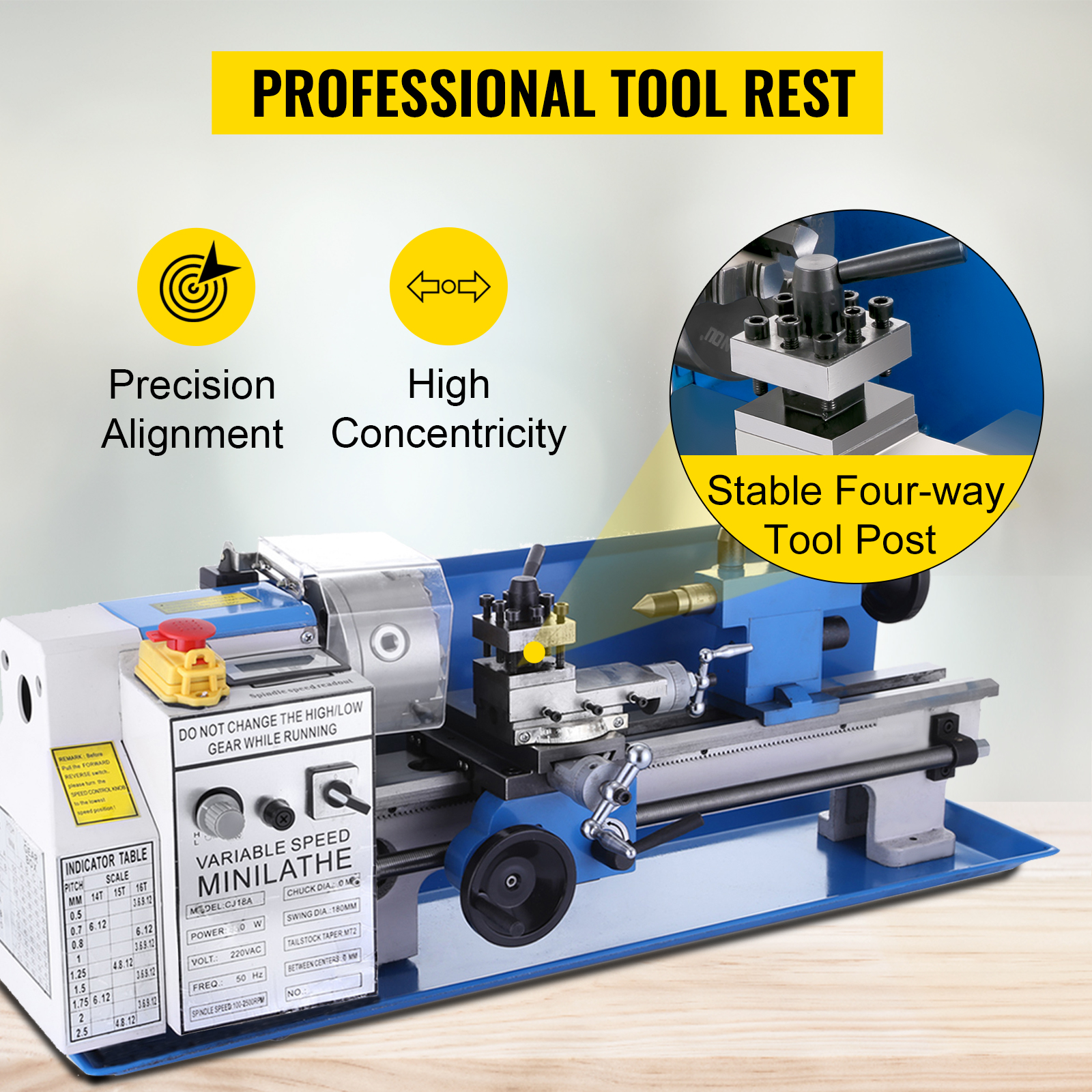

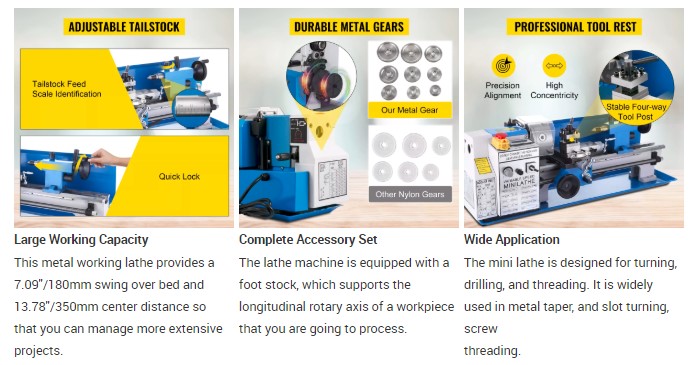

Product View 1 Product View 2 Product View 3 Product View 4 Product View 5 Product View 6 Product View 7 Product View 8 Product View 9 Product View 10

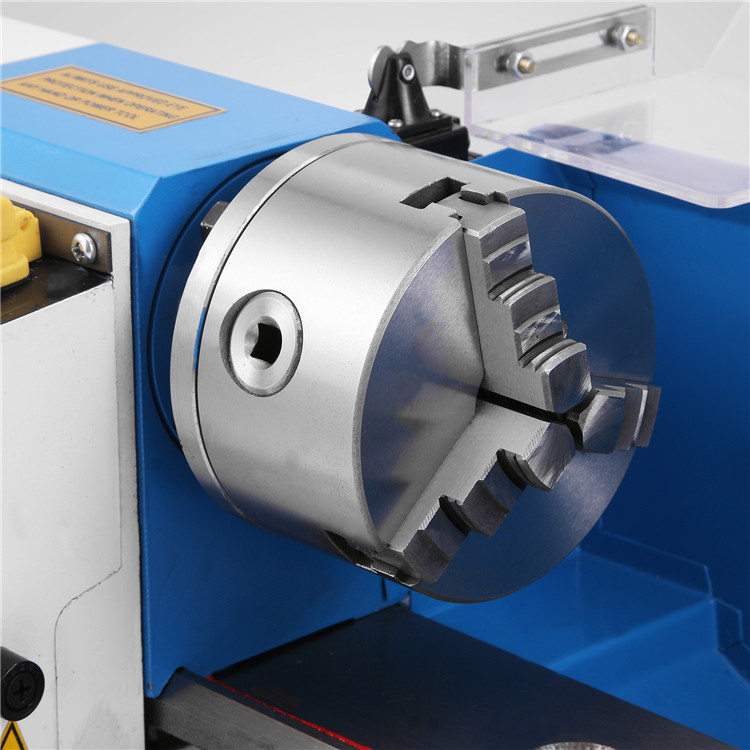

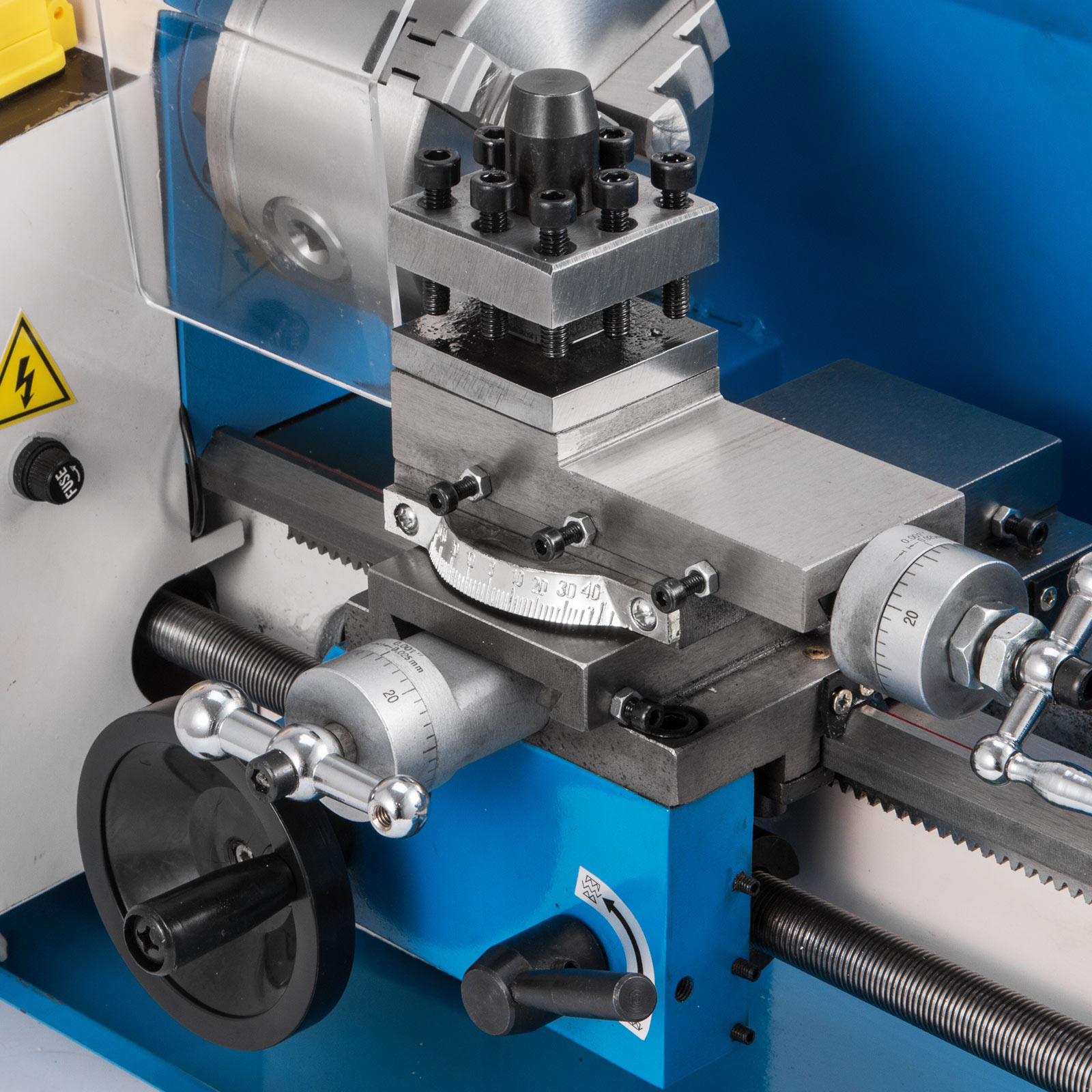

Details 1 Details 2 Details 3

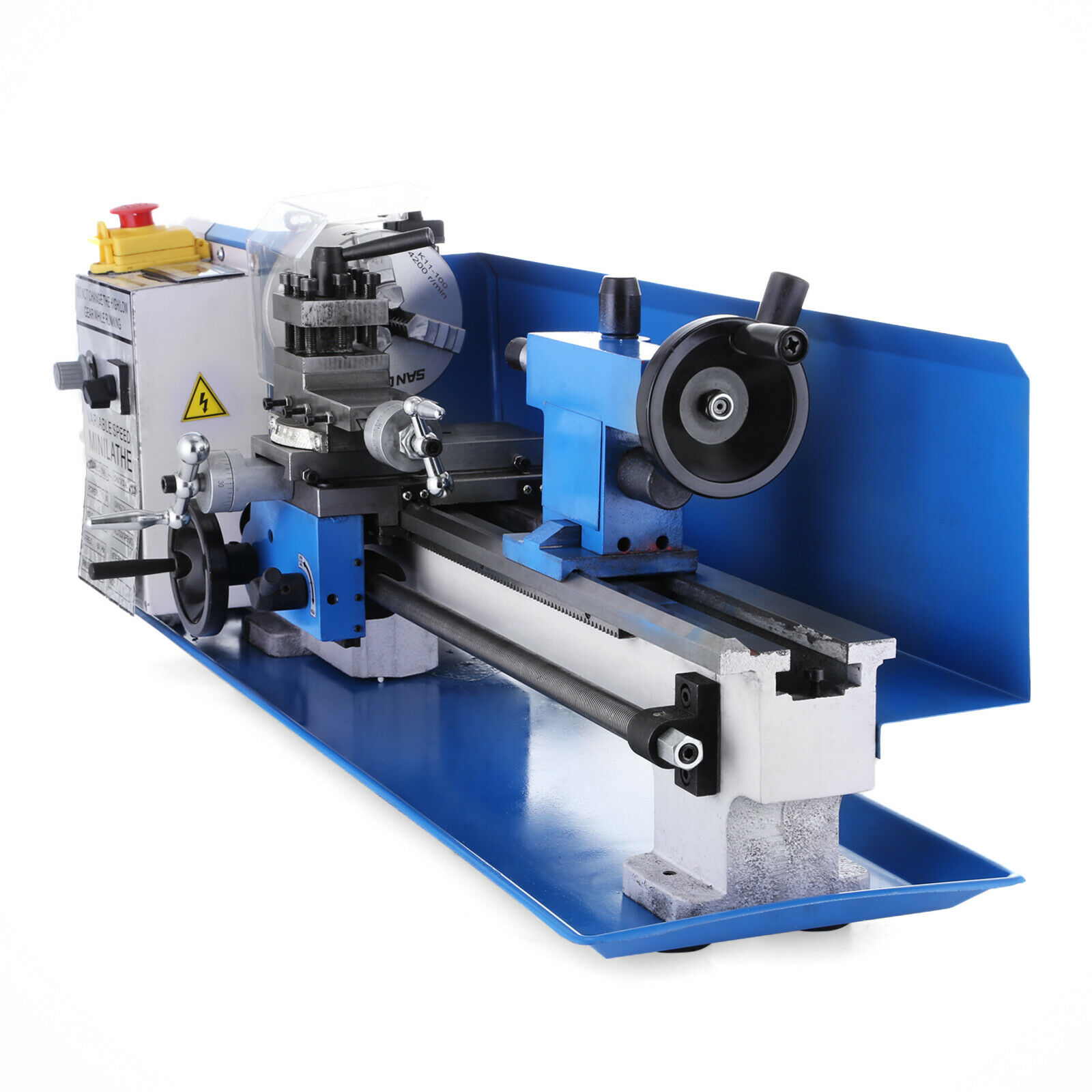

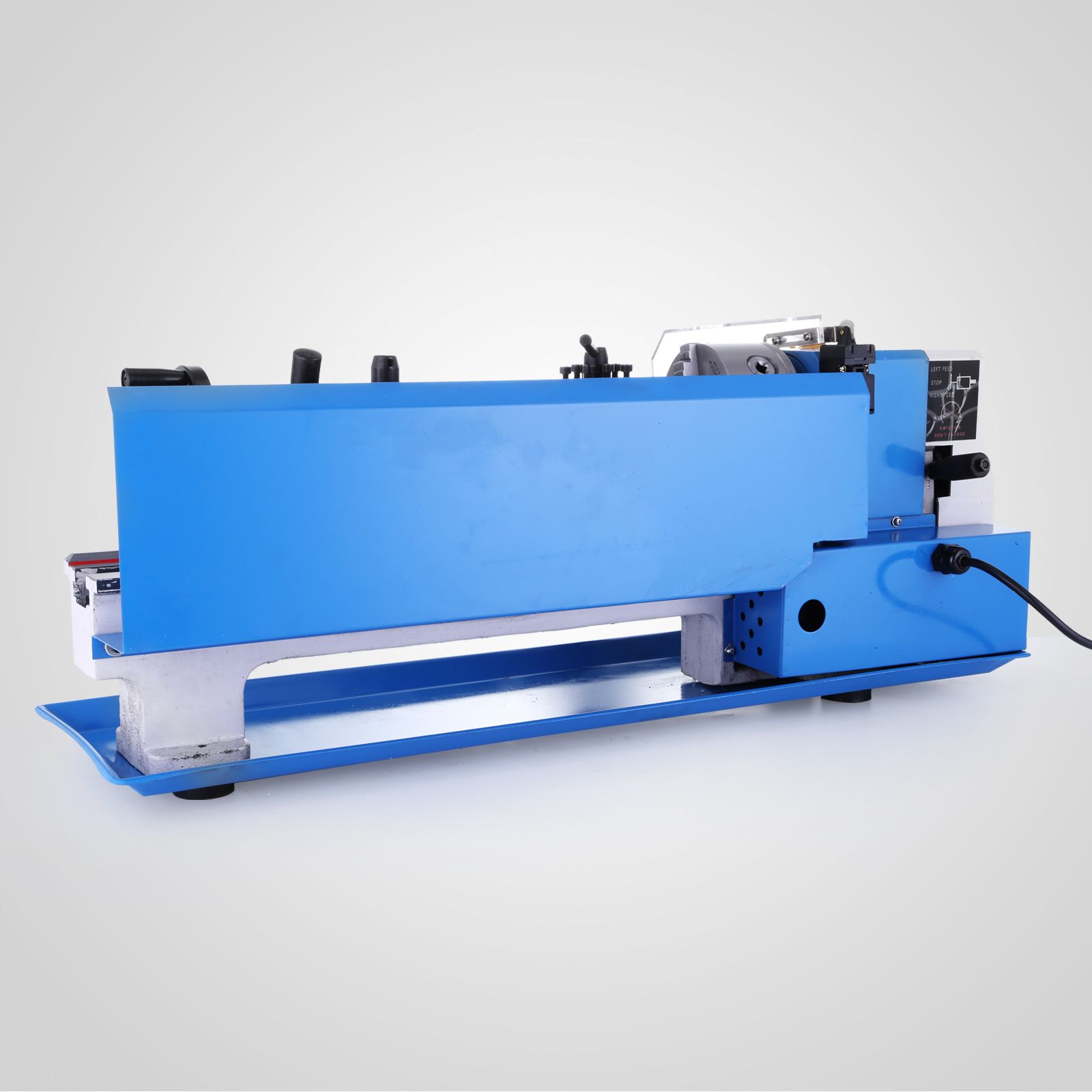

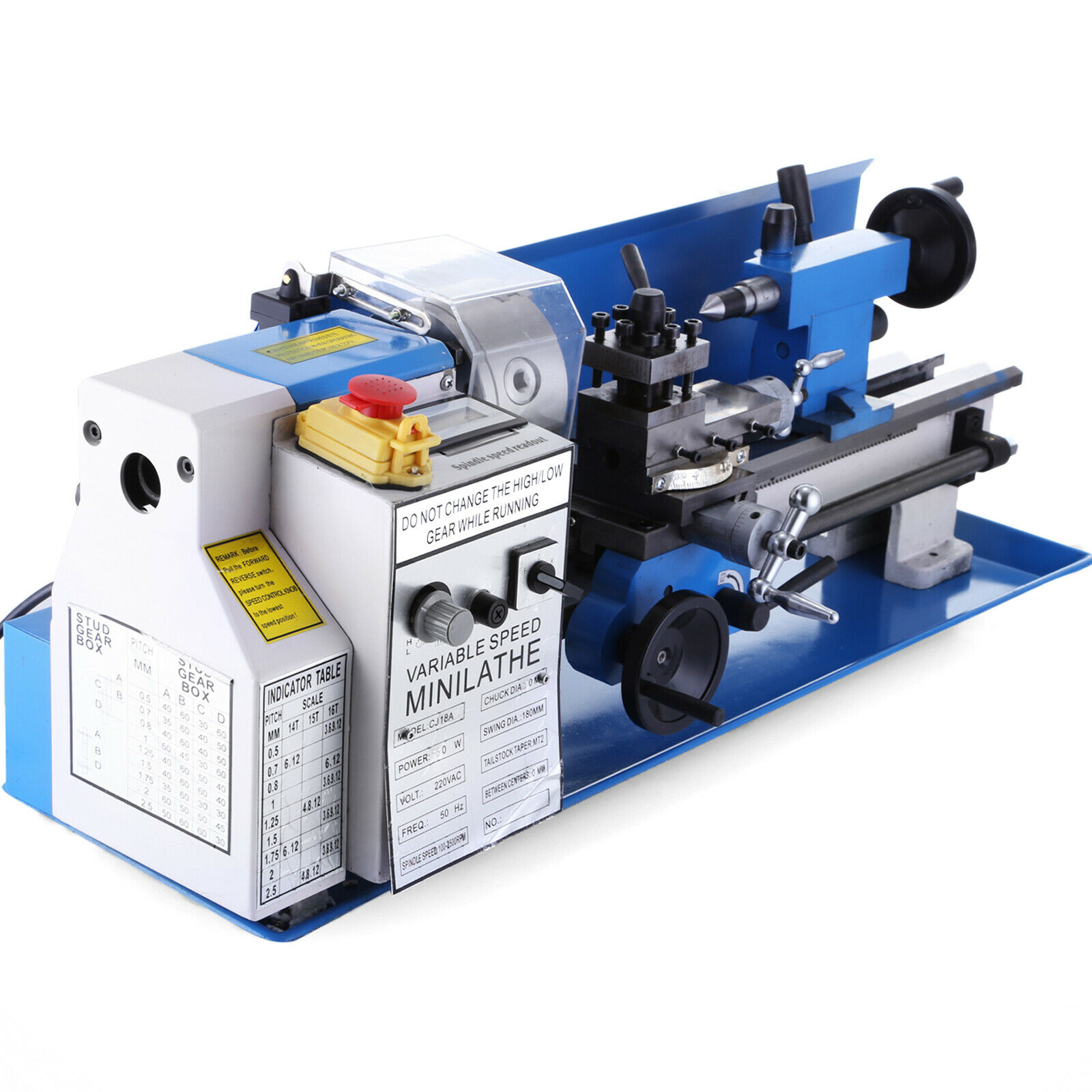

Operation 1 Operation 2 Operation 3
Packing & Delivery

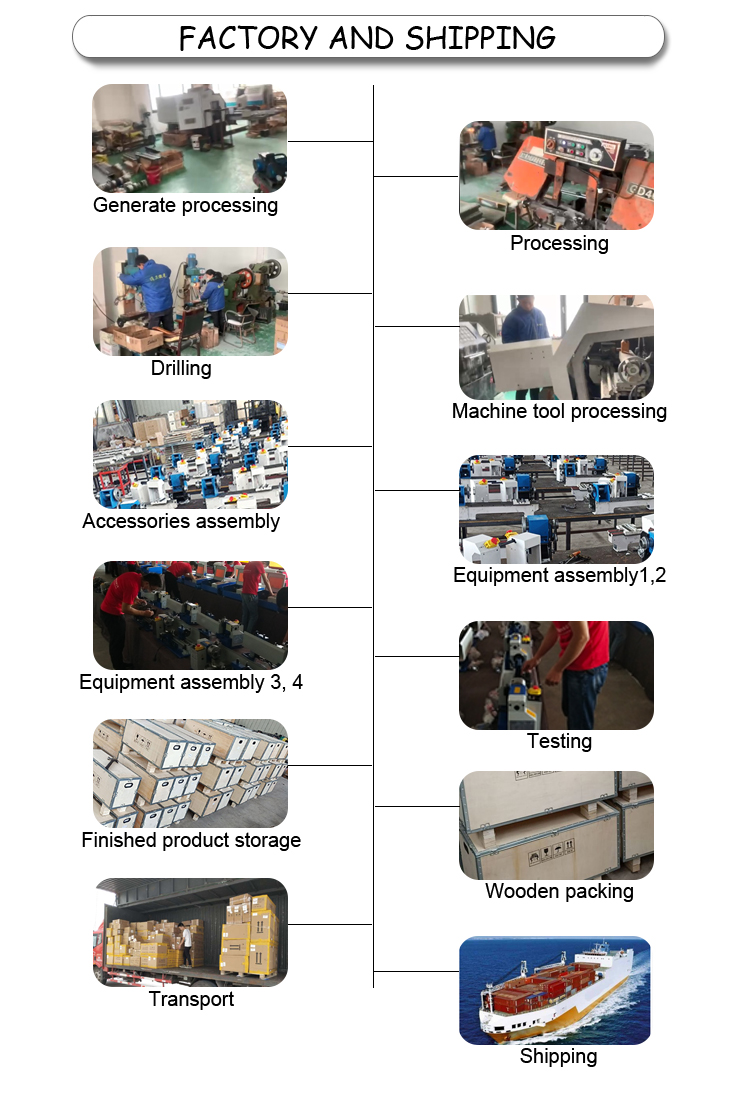

Package Contents
Packaging Size & Weight Info
Size 82X35X32cm (lathe)
37x33x23cm (Accessory)
Weight 45kg (Lathe)
12kg (Accessory)
Packaging Details * 1 X CJ18A Mini Lathe
* 1 X Set of External Jaw
* 9 X Indexable Tin Coated Lathe Tools
* 1 X Rear Splash Guard
* 1 X Set of Hex Keys
* 1 X Set of Spanner
* 1 X Oil Can
* 1 X Set of Accessories of Pictures
* 1 X Operation Manual
