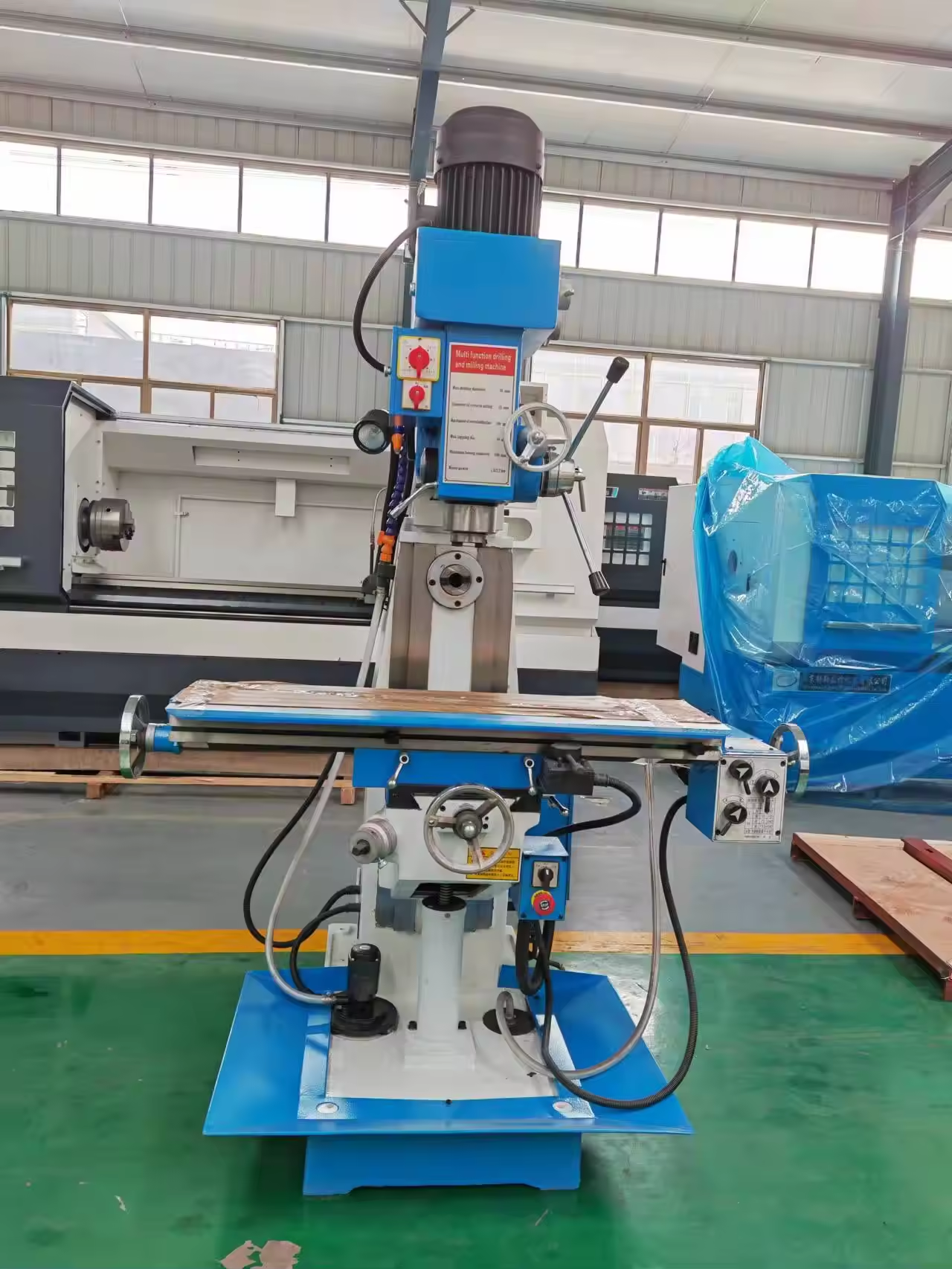

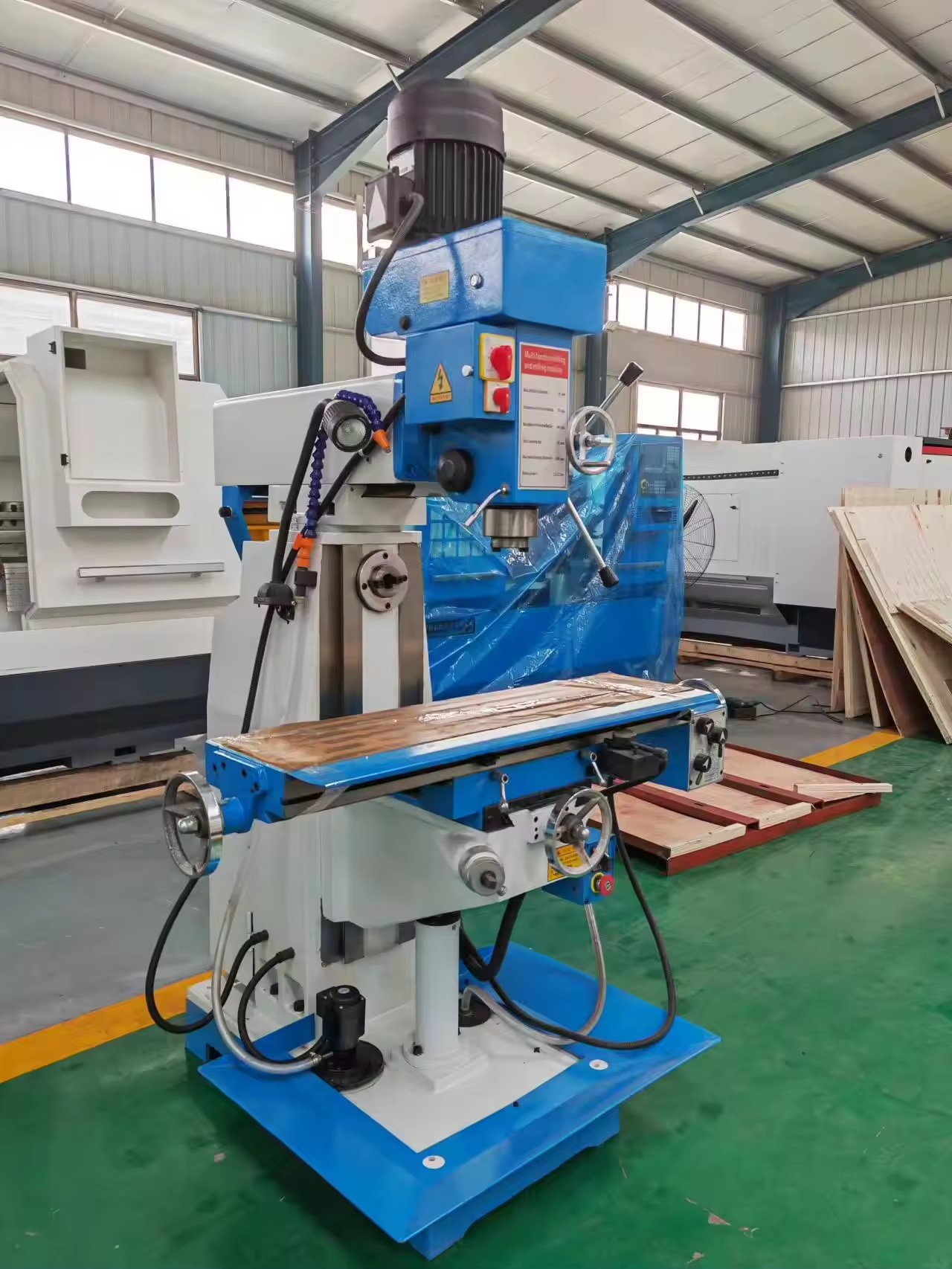

Popular China Manual Mill Zx7550cw Universal Multifunctional Drilling and Milling Machine with Dro Competitive Price
Uses standardized assemblies from the VH milling machine universal use as milling machines and drill press.
Easily shiftable gear drive ensures power transmission without losses.
With V-belt spindle drive and gear spindle drive.

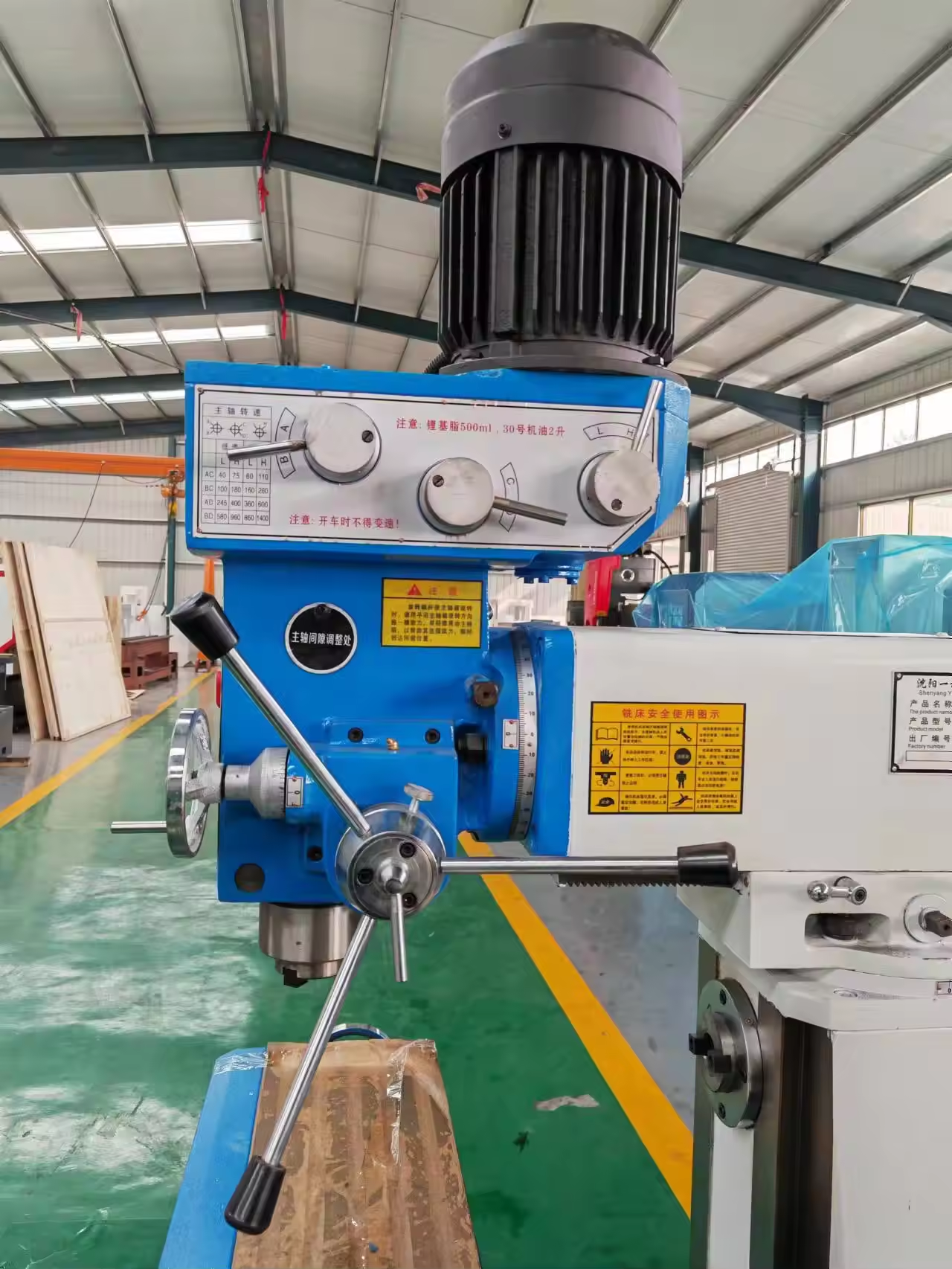

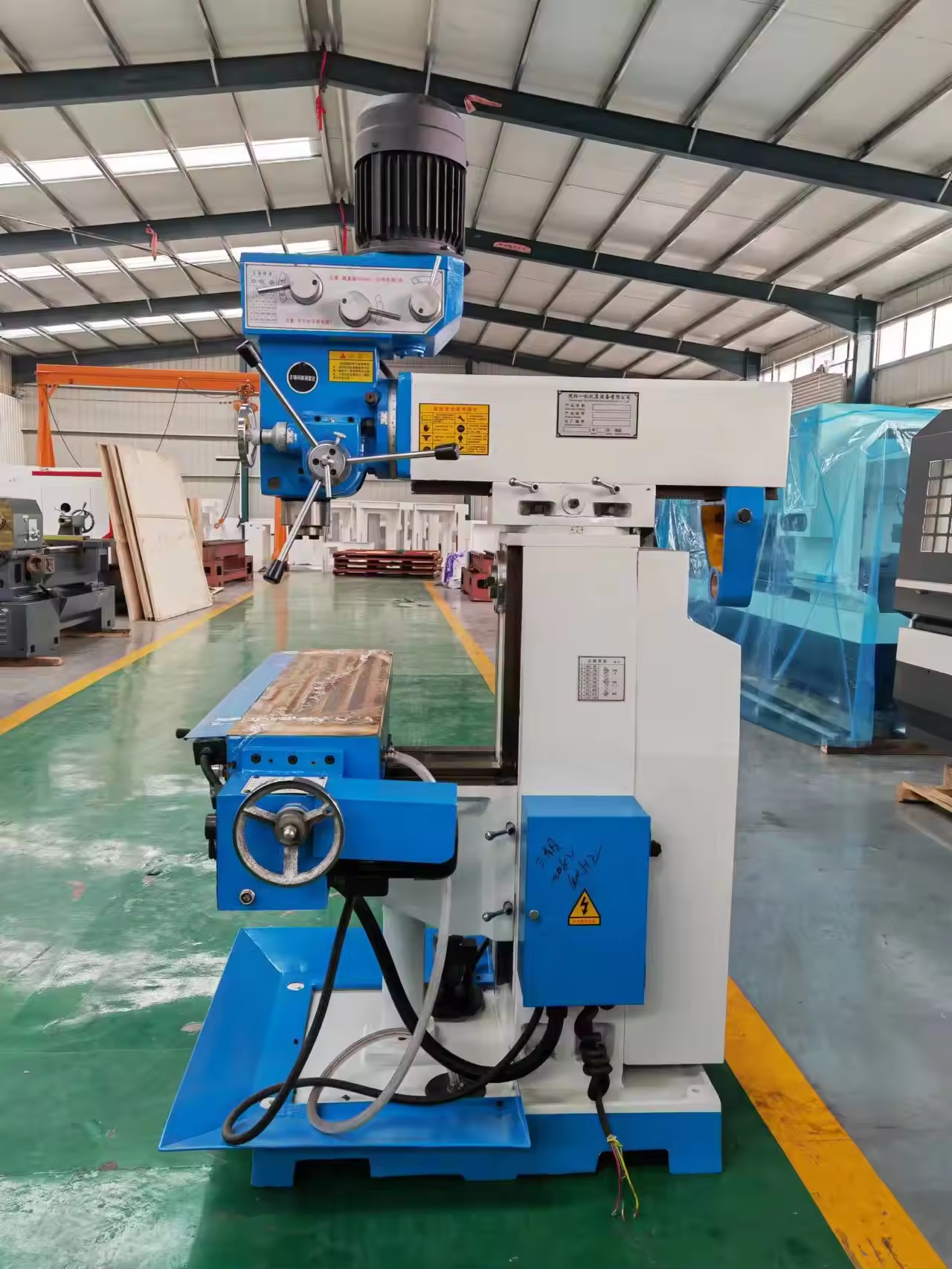

Head swivels into the horizontal level on both sided via crank and toothed gear, easy activation of manual micro-feed for the spindle quill.
Product Parameters
SPECIFICATIONS
Units
ZX50C
Max. drilling dia.
mm
50
Max. end milling dia.
mm
100
Max. vertical milling dia.
mm
25
Max.boring dia.
mm
120
Max. tapping dia.
mm
M16
Distance between spindle nose and table surface
mm
38-430
Spindle taper
MT4
Spindle speed range
rpm
40-1400(V)
Spindle travel
mm
120
Table size
mm
800*240
Table travel
mm
400*240
Table feed speed
mm/min
X:15-490
Main motor power
kw
1.5/2.2(V)
Machine weight
kg
550
Overall dimensions
mm
1400*900*1500
SPECIFICATIONS
Units
ZX6350
Max. drilling dia.
mm
50
Max. end milling dia.
mm
100
Max. vertical milling dia.
mm
25
Max.boring dia.
mm
120
Max. tapping dia.
mm
M16
Distance between spindle nose and table surface
mm
80-460
Spindle taper
MT4(V) / ISO40(H)
Spindle speed range
rpm
40-1400(V) 40-1300(H)
Spindle travel
mm
120
Table size
mm
1200*280 Opt.1500*280
Table travel
mm
680*280Opt.1000*280
Table feed speed
mm/min
X:16-480
Main motor power
kw
1.5/2.2(V) 3(H)
Machine weight
kg
1400
Overall dimensions
mm
1680*1400*2350
SPECIFICATIONS
Units
ZX7550
Max. drilling dia.
mm
50
Max. end milling dia.
mm
100
Max. vertical milling dia.
mm
25
Max.boring dia.
mm
120
Max. tapping dia.
mm
M16
Distance between spindle nose and table surface
mm
90-490
Spindle taper
MT4(V/H)
Spindle speed range
rpm
40-1400(V) 80-1300(H)
Spindle travel
mm
120
Table size
mm
1000*240
Table travel
mm
600*240
Table feed speed
mm/min
X:15-490
Main motor power
kw
1.5/2.2(V) 2.2(H)
Machine weight
kg
1000
Overall dimensions
mm
1400*1300*2080

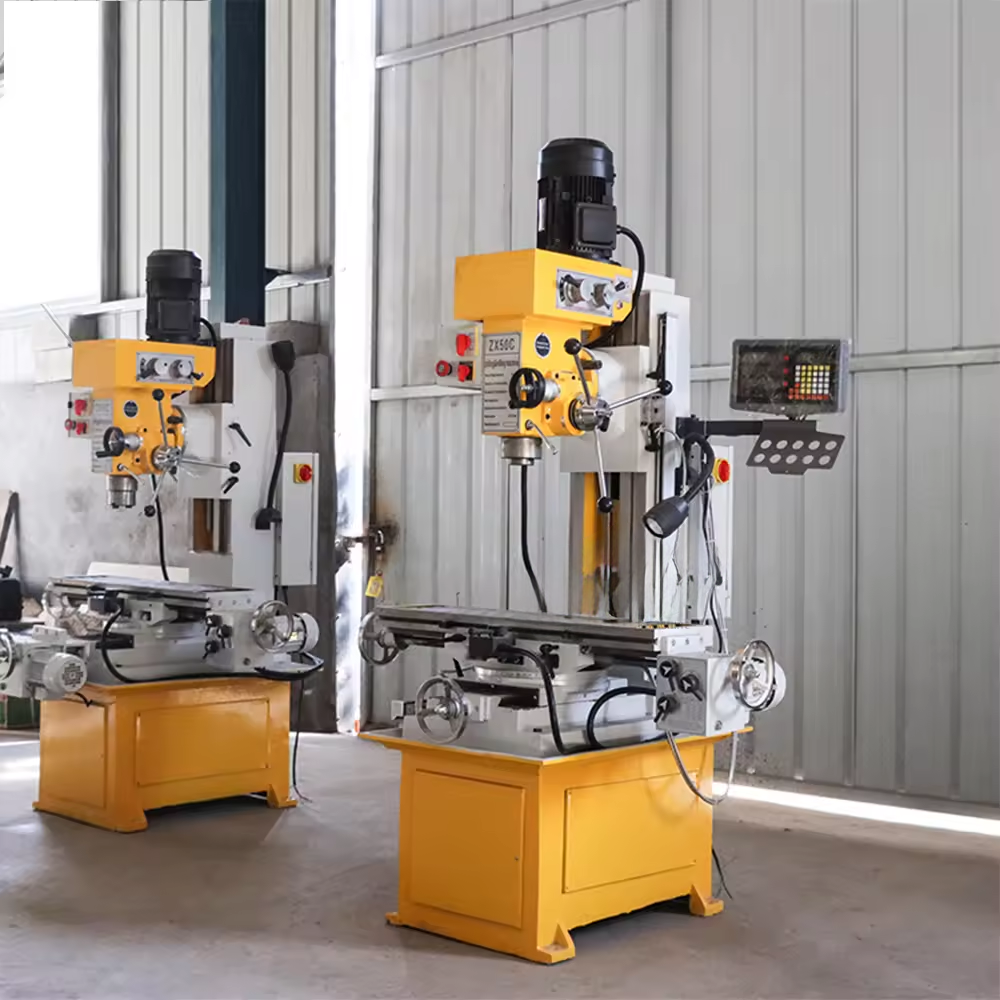

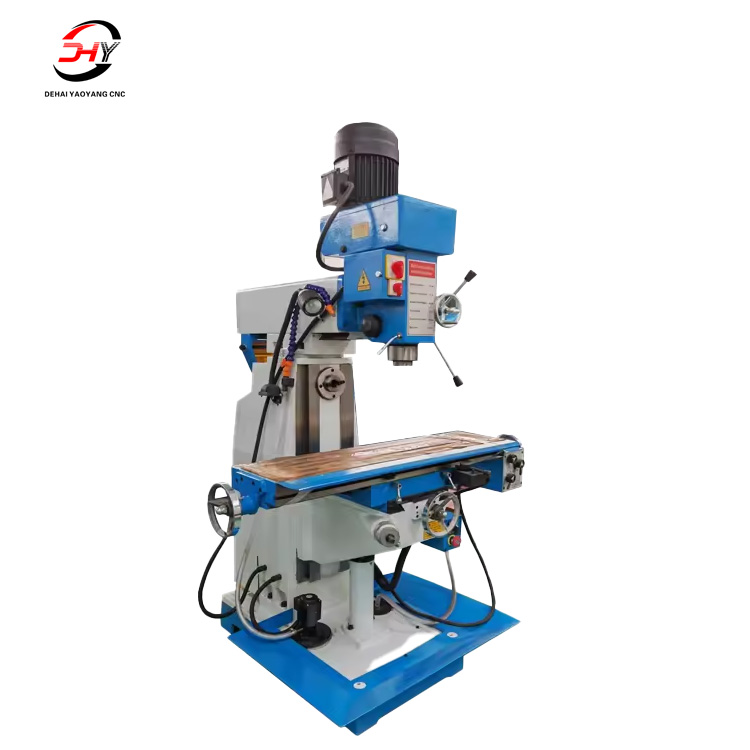

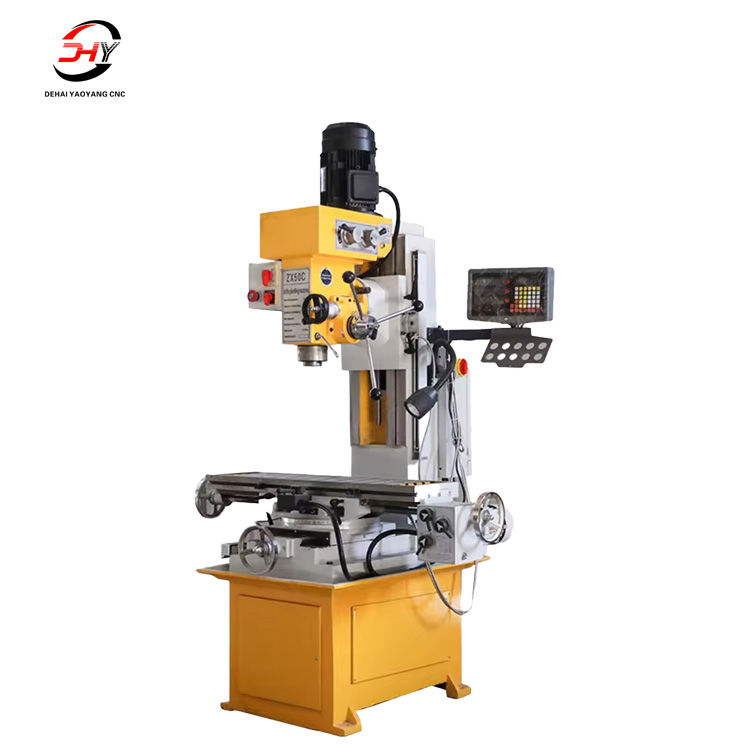

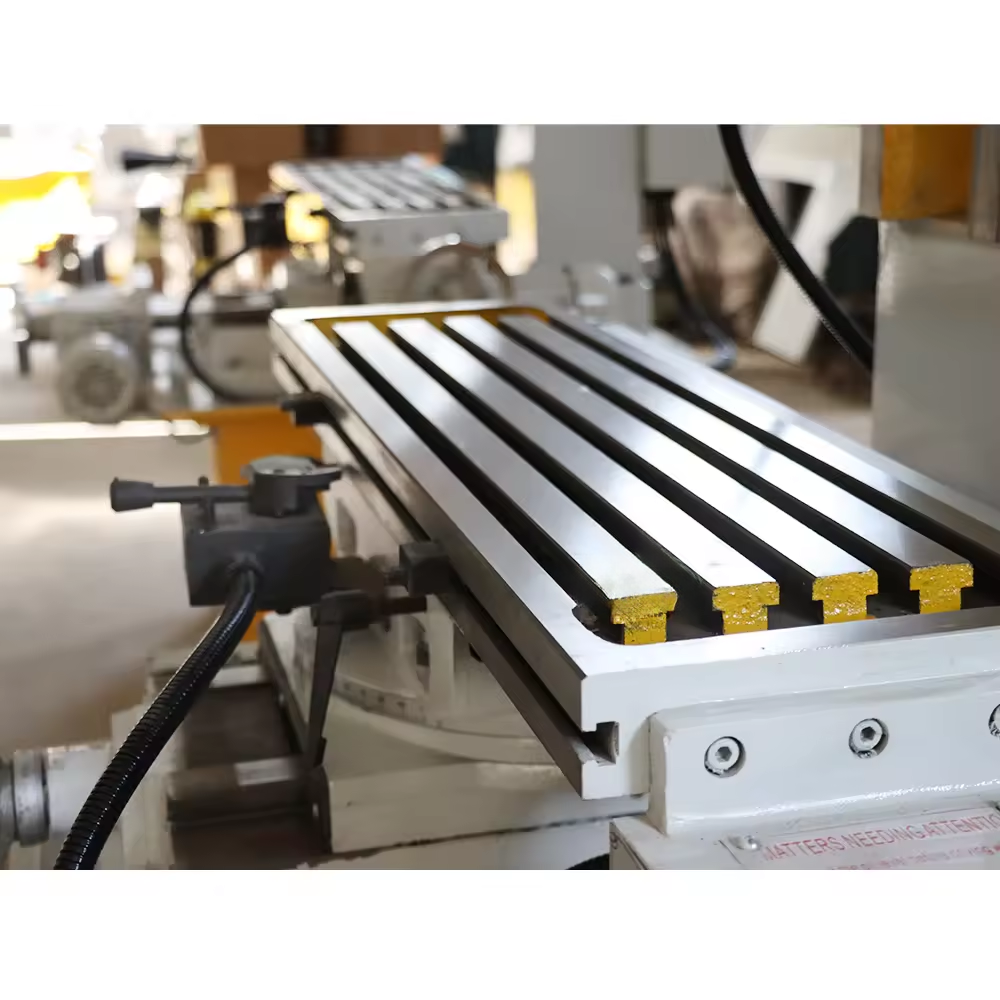

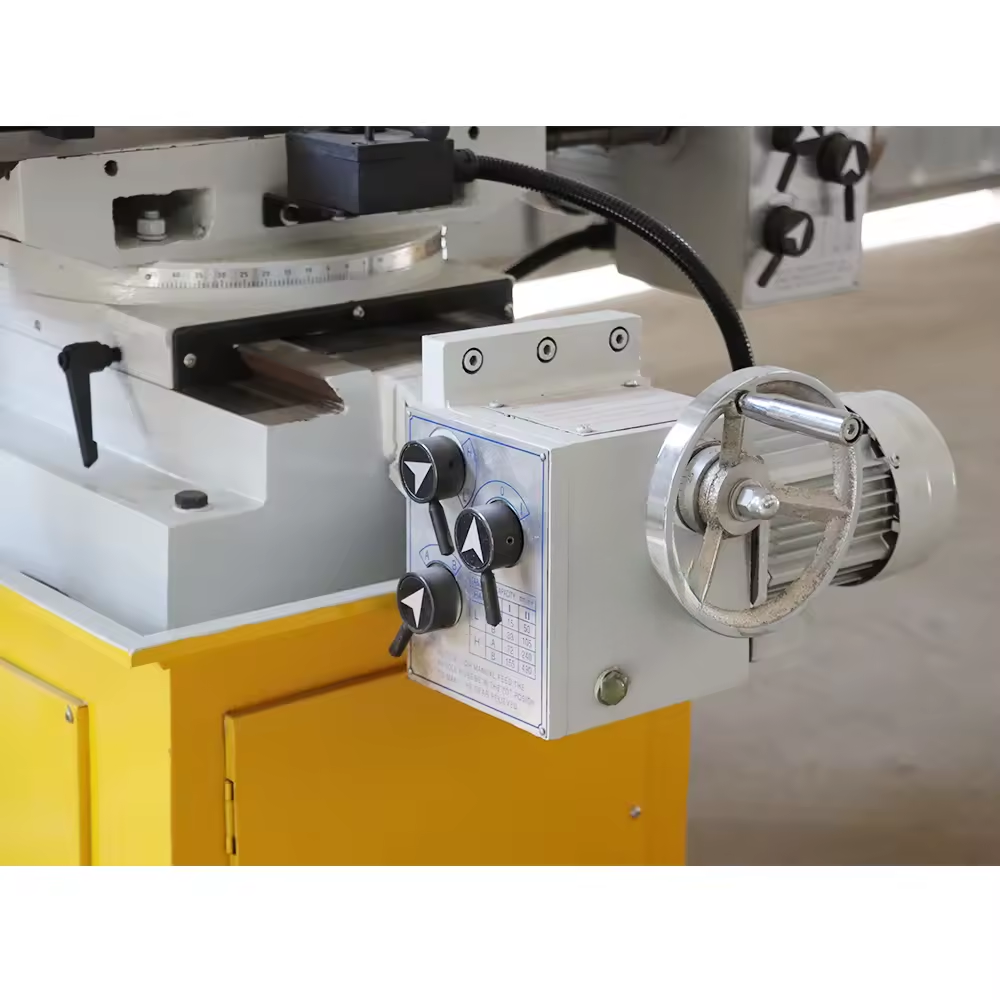

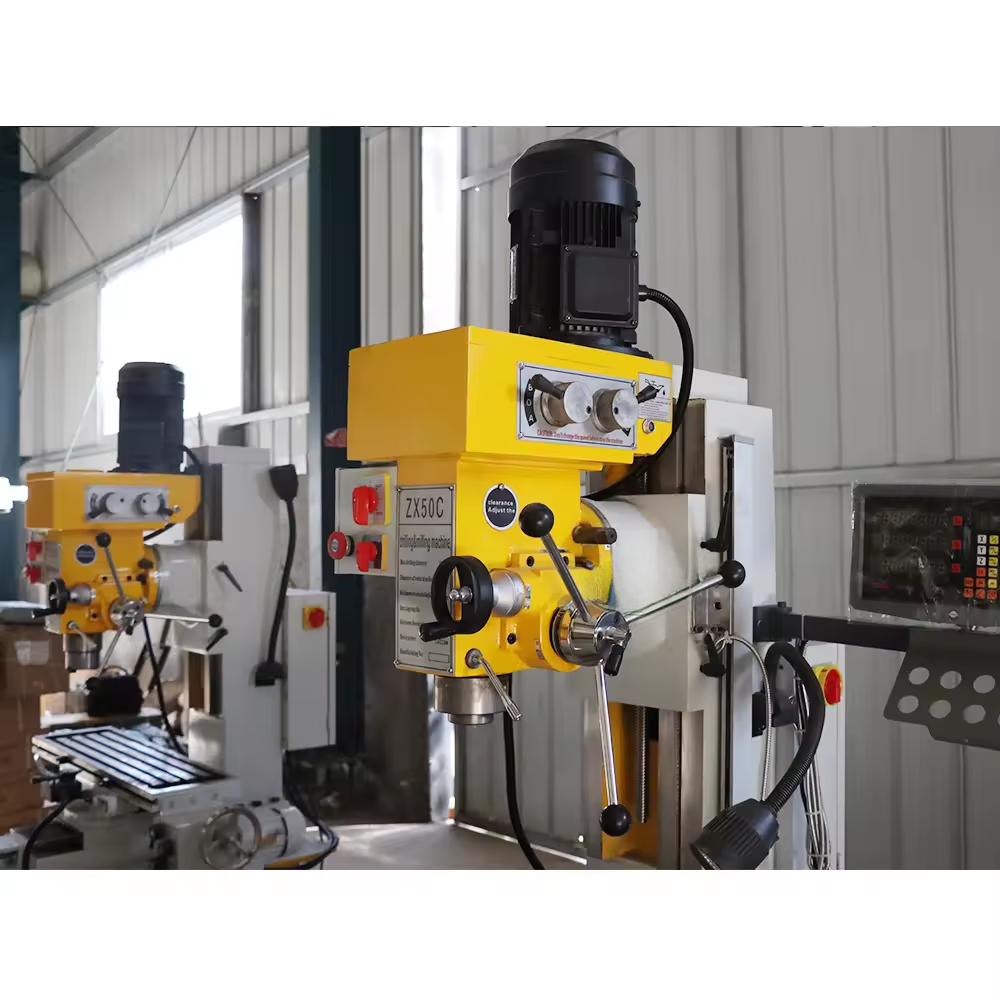

Details Images
Production Facility
Frequently Asked Questions
1. What is your MOQ and warranty?
The minimum order quantity is one set, the warranty period is one year, and lifetime technical support is provided.
2. What is the delivery time?
The production period of the machine is generally about 30 working days.
3. What is the packaging of the machine?
The standard packaging of the machine is an iron pallet and a plastic film wooden box.
4. How to choose the most suitable machine?
Please let us know your processing needs or machine parameters, we can choose the best model for you, or you can choose the exact model yourself. You can also send us product drawings and our engineers will make reasonable recommendations.
5. What are your trade and payment terms?
FOB, CFR, CIF or other terms are all acceptable. For payment, T/T with 30% down payment when ordering and 70% balance before shipment is standard.
6. Are you a manufacturer or trader?
We are a manufacturer. We have more than 5 engineers to provide you with technical support, and we only sell the machines we produce.
