| Swing over bed | 180mm | 210mm | 250mm |
| Swing over cross slide | 90mm | 105mm | 125mm |
| Distance between centers | 300mm | 400mm | 570mm |

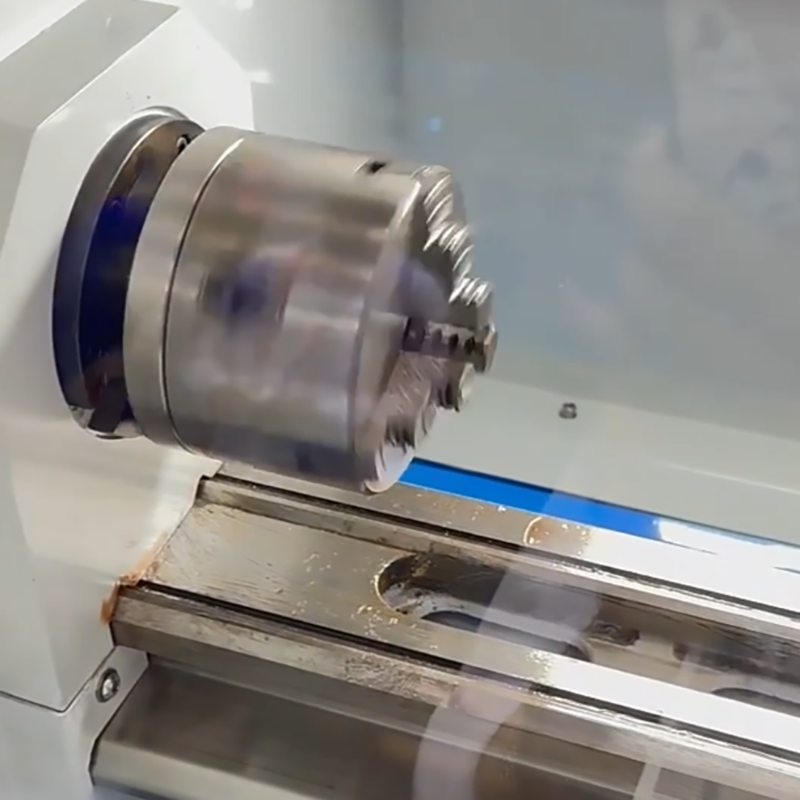

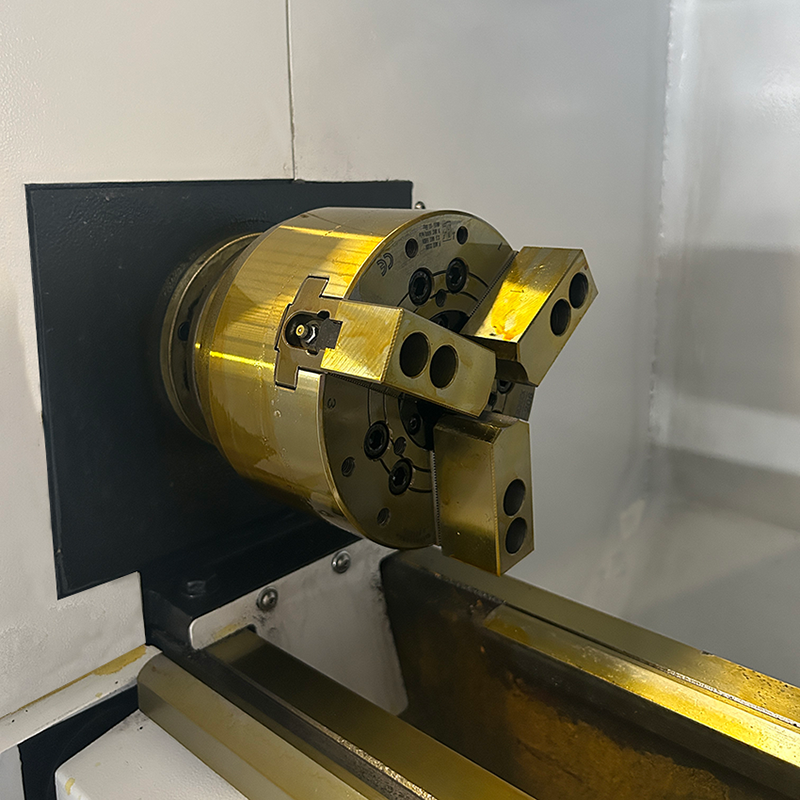

| Chuck diameter | 100mm | 100mm | 125mm |
| Spindle speed | 50-3000r/min | 50-3000r/min | 50-3000r/min |

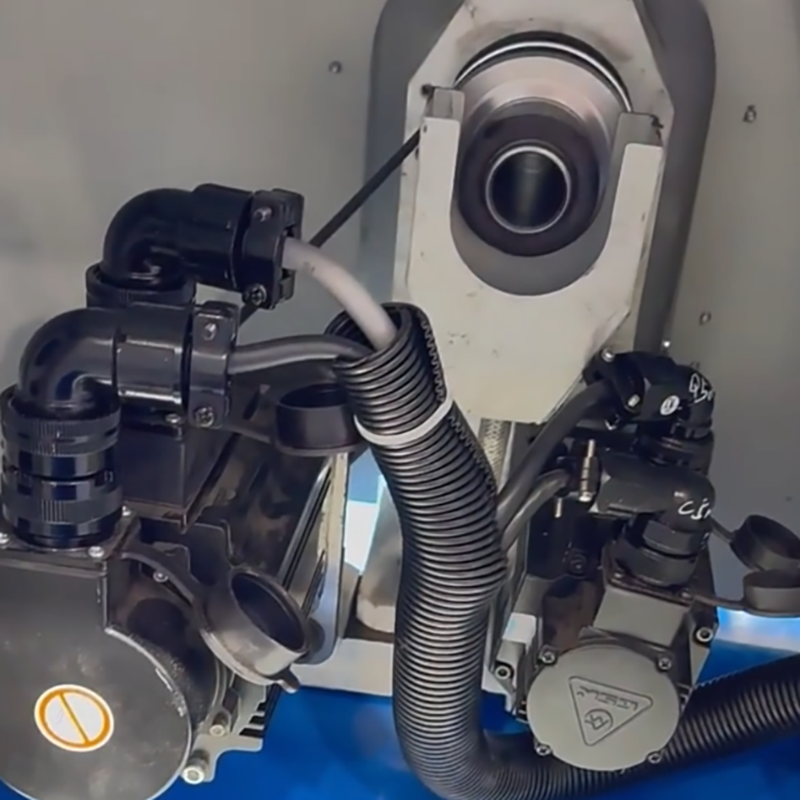

| Spindle bore | 20mm | 26mm | 38mm |
| Spindle mount | MT3 | MT3 | MT5 |
| Spindle motor power | 500W | 1100W | 1100W |
| Motor type | brushless motor | brushless motor / servo | brushless motor / servo |
| X travel | 65mm | 80mm | - |
| Z travel | 250mm | 250mm | - |
| The max moving speed X | 2000mm/min | 2000mm/min | 2000mm/min |
| The max moving speed Z | - | - | - |
| Maximum feed speed X | 500mm/min | 500mm/min | 500mm/min |
| Maximum feed speed Z | - | - | - |
| torque | 2.0Nm | 1.9 / 2.4Nm | 1.9 / 2.4Nm |

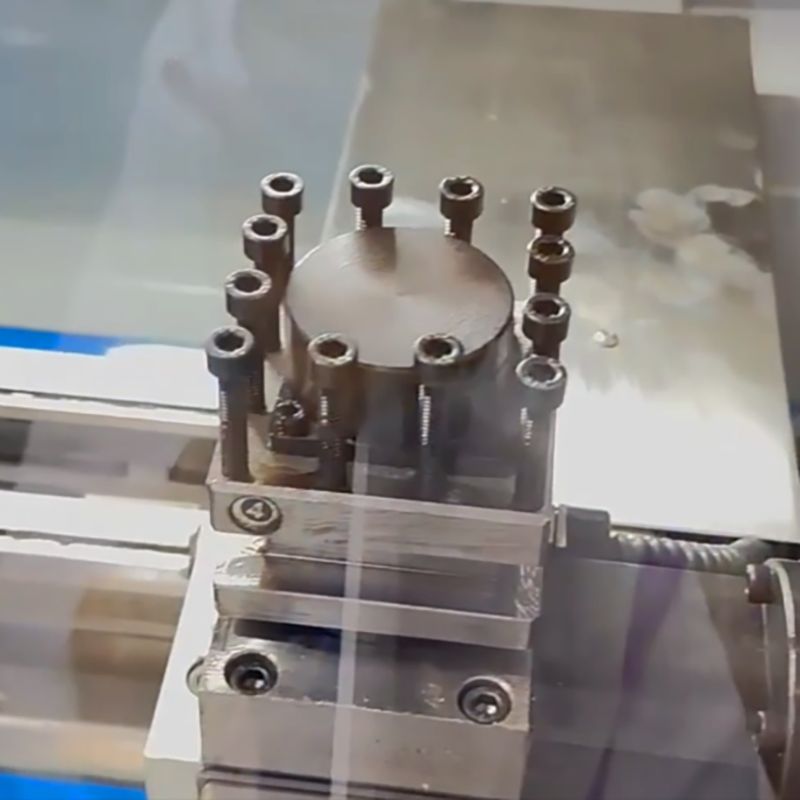

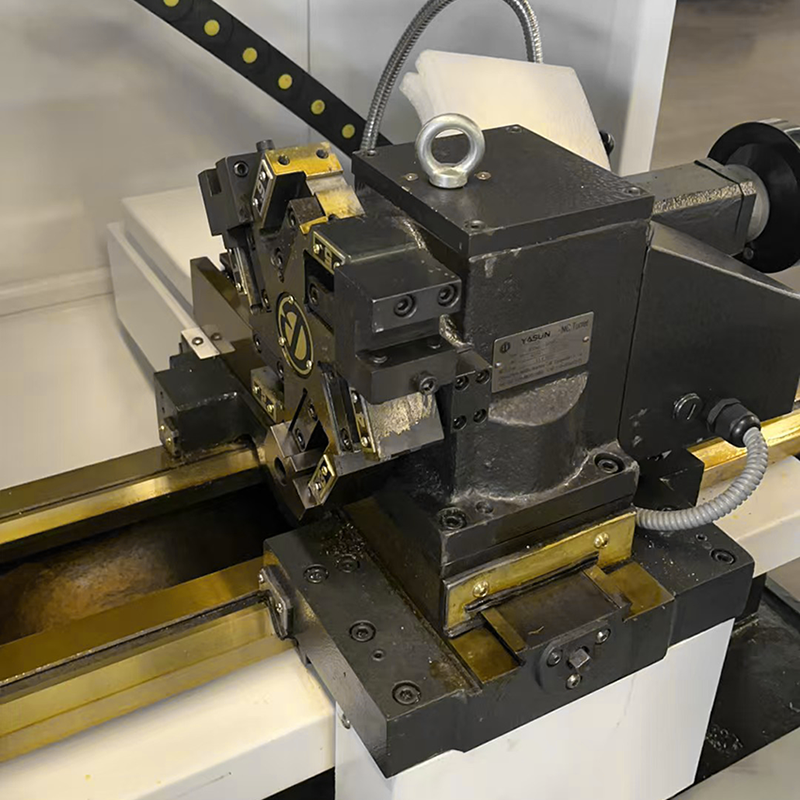

| Tool position | 4 position | 4 position / 4 electric tool carrier | 4 position / 4 electric tool carrier |
| 4 external | 8*8mm | 10*10mm | 12*12mm |

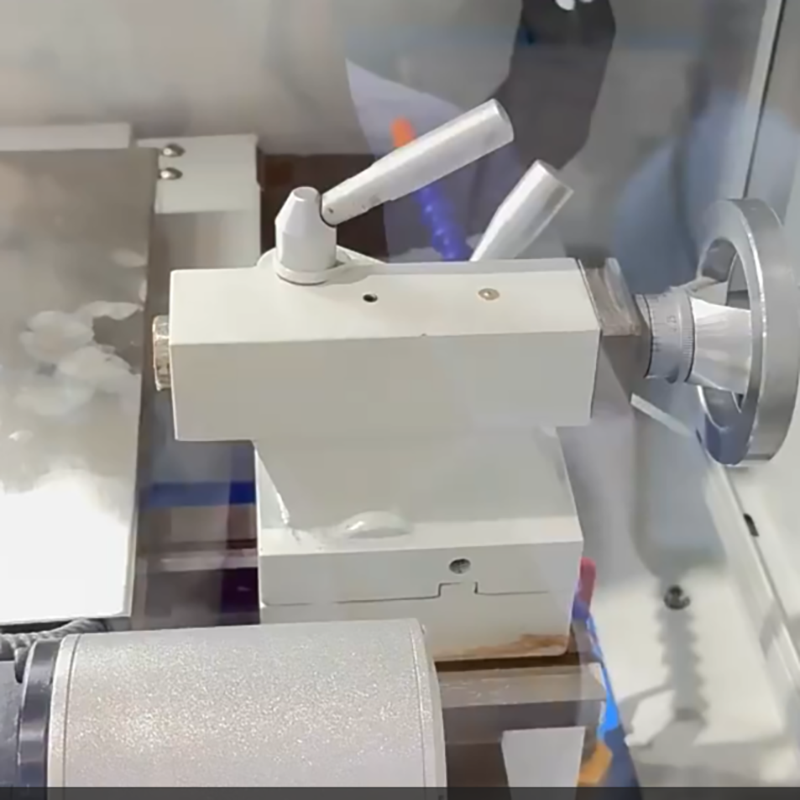

| Tailstock taper | MT2 | MT2 | MT2 |
| Tailstock sleeve diameter | 17mm | 22mm | - |
| Travel of tailstock | 50mm | 65mm | 70mm |
| Positioning accuracy | 0.015mm | 0.015mm | 0.015mm |
| Repeatability accuracy | 0.01mm | 0.01mm | 0.01mm |
| Power | 230/120V | 230/120V SIEMENS 380V | 230/120V SIEMENS 380V |

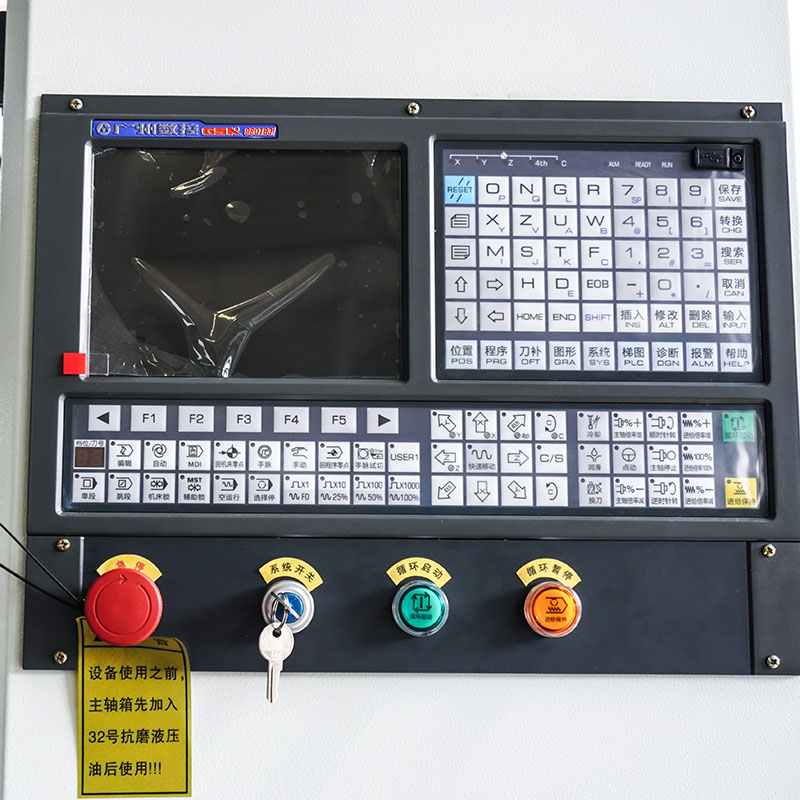

| CNC controller system | MACH3 | MACH3 / GSK / SIMENS / KT802 | MACH3 / GSK / SIMENS / KT802 |
Main products: Vertical Machining Center, Horizontal Machining Center, Gantry Machining Center, CNC Lathe, Turning center, Five axis machine, Manual lathe, CNC boring machine, Automatic lines etc. We focus on first class high technology, high-efficiency machines and high quality to customer, but also we are good at providing customized machines and production line solutions for customers. In this way, we can choose currently the most efficient processing method to make our machines in the shortest possible time with high quality.
