Product Description

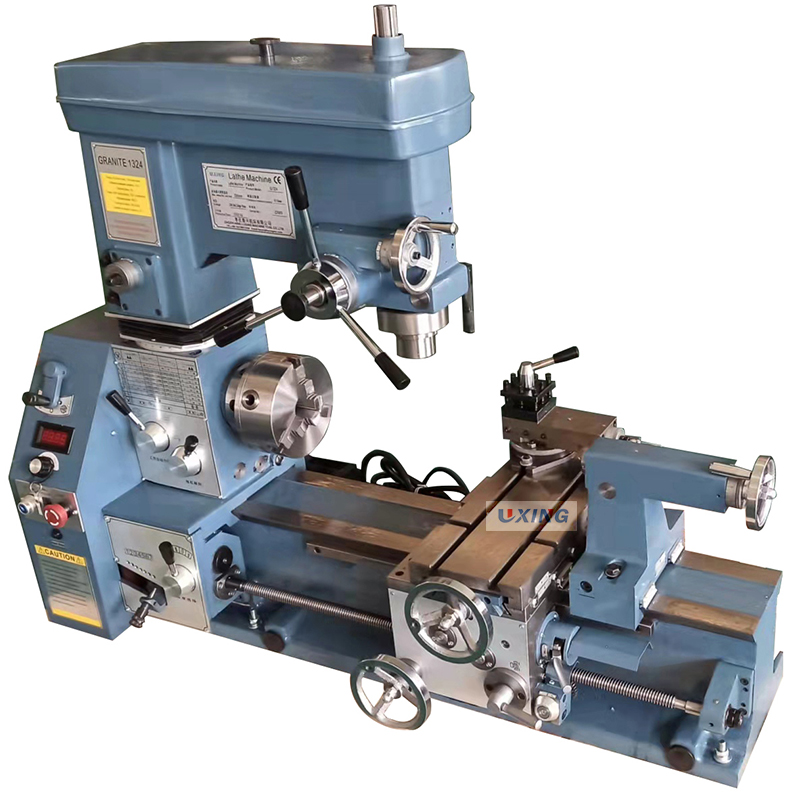

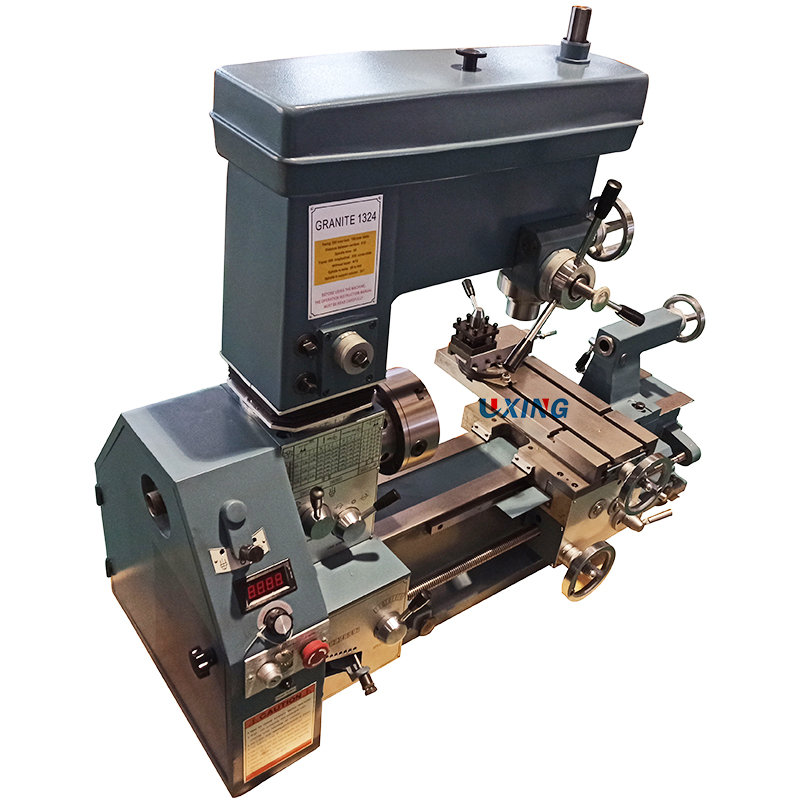

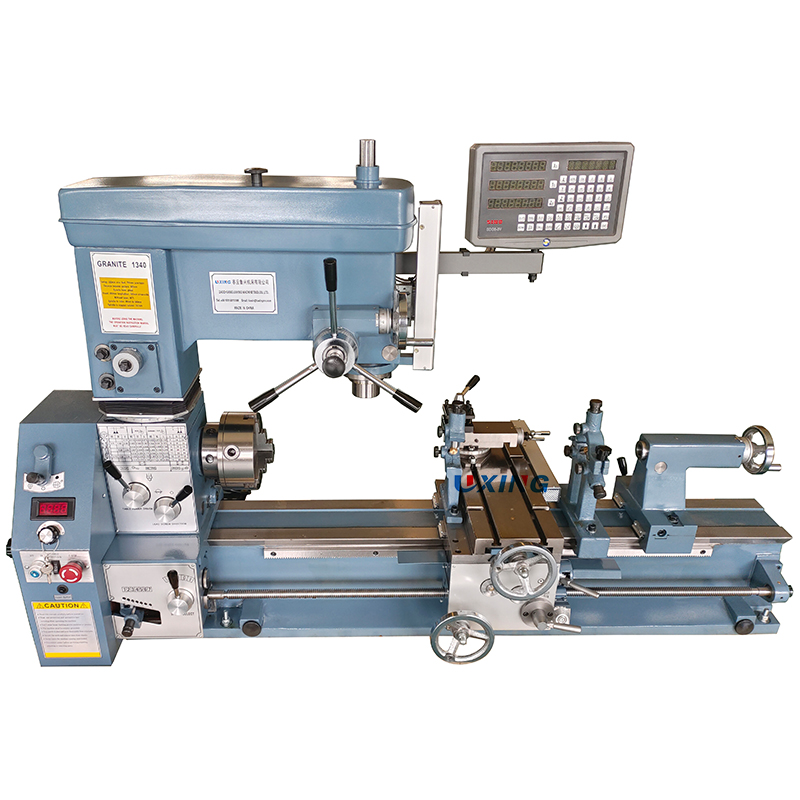

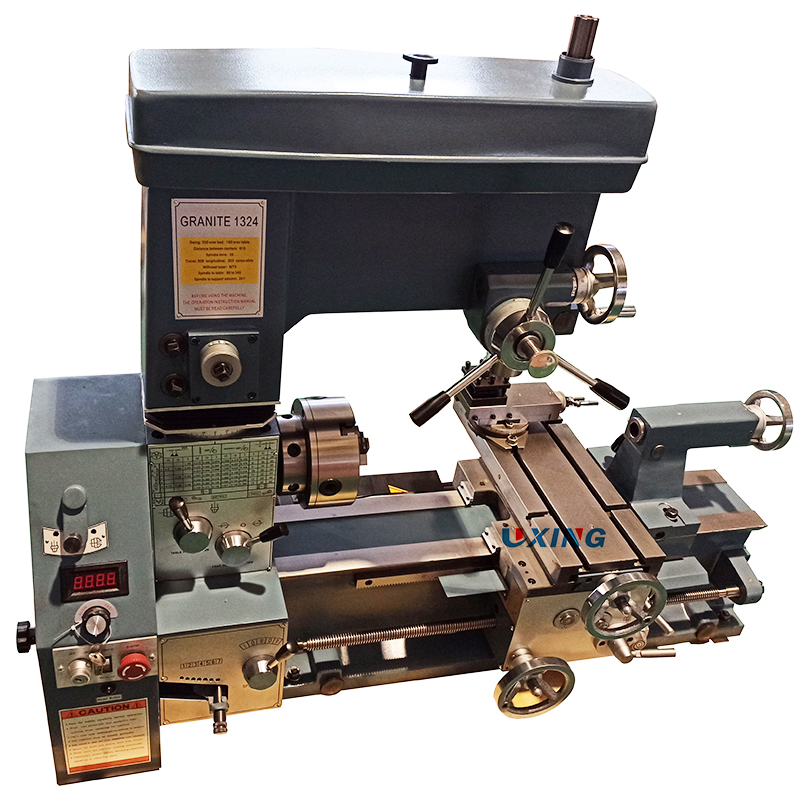

CE Approved Benchtop Combo Multi-Purpose G1324 G1340 Combination Mini Metal Bench Lathe Drill Mill Milling Machine
Benchtop Combo Lathe Drill Mill
Mini Metal Bench Lathe Detail
Features
  • Has the purposes of turning, milling, drilling, boring & thread-cutting.
  • DC brushless motor, big torque at low speed, infinitely variable speed.
  • Power-driven for table in milling.
  • Cam clamping chuck.
  • Lengthened table.
  • Has the devices of safety interlock & an overload safety.
  • Lengthened drilling/milling box, 360° rotation in vertical plane.
Product Main Technical Specifications
Specifications G1324 G1340
Swing dia. over bed 330mm 330mm
Swing dia. over table 190mm 190mm
Distance between centers 610mm 1000 mm
Spindle bore 28mm 28mm
Spindle speed 50 - 3000r/min 50 - 3000r/min
Longitudinal stroke 510mm 890mm
Cross stroke 185mm 185mm
Small toolpost stroke 70mm 70mm
Metric pitch/grade 0.5 - 3mm/9 0.5 - 3mm/9
Inch pitch/grade 7 - 52T.P.I./21 7 - 52T.P.I./21
Longitudinal feed/grade 0.067 - 0.5mm/r/21 0.067 - 0.5mm/r/21
Cross feed/grade 0.021 - 0.157mm/r/21 0.021 - 0.157mm/r/21
Milling-drilling spindle taper MT3 MT3
Milling-drilling shaft stroke 127mm 127mm
Milling-drilling box stroke 110mm 110mm
Table size 450×170mm 450×170mm
Drilling dia. 24mm 24mm
Power of motor 1.1kw 1.1kw
Overall dimensions 1705×585×1030mm 1705×585×1030mm
N.W/G.W 300/350kg 330/380kg
Accessories Details
Standard Accessories:
3-jaw chuck, drilling chuck, drill taper stock, center, drawing bar, exchange gear, tools, etc.
Optional Accessories:
Stand, steady rest, follow rest, milling chuck, milling cutter, live center, DRO (Digital Readout) etc.
Detailed Product Images

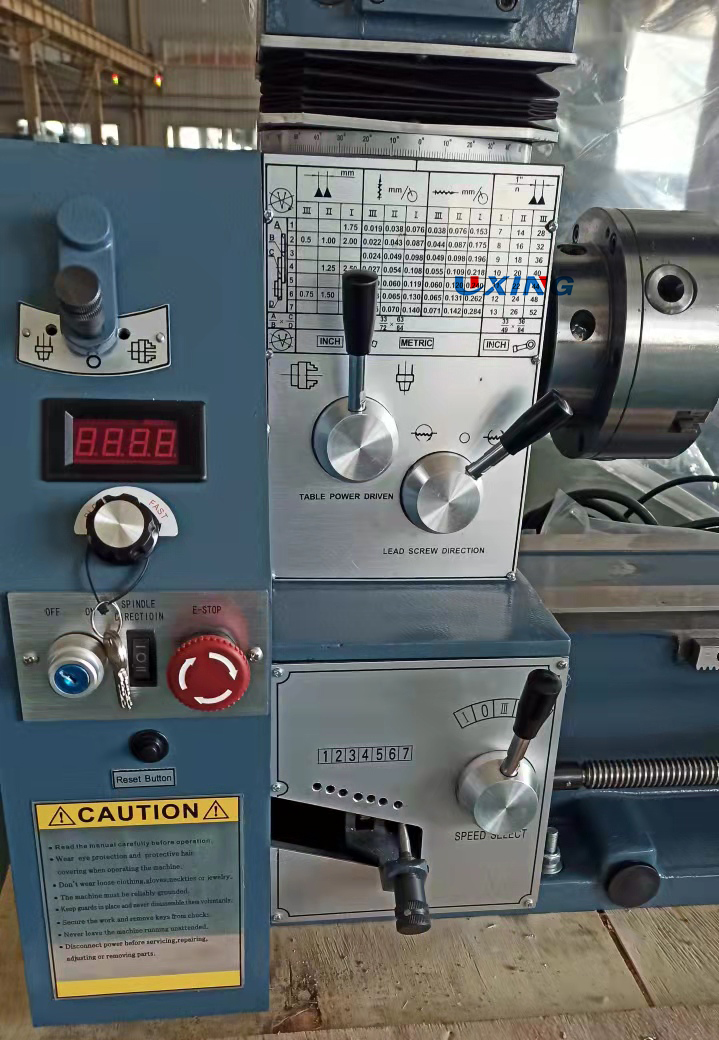

Detail 1
Detail 2

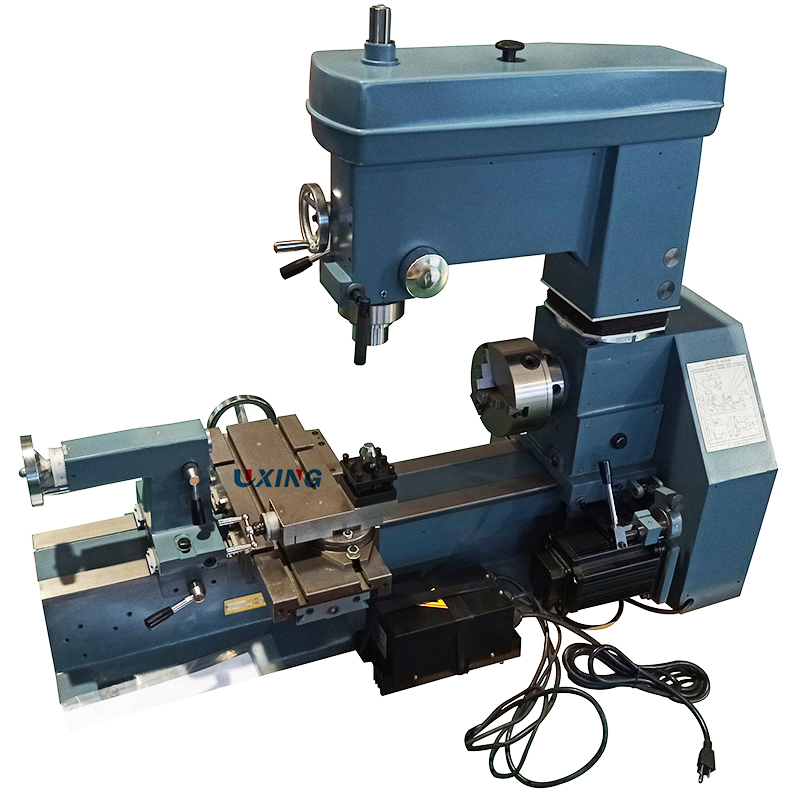

Detail 3

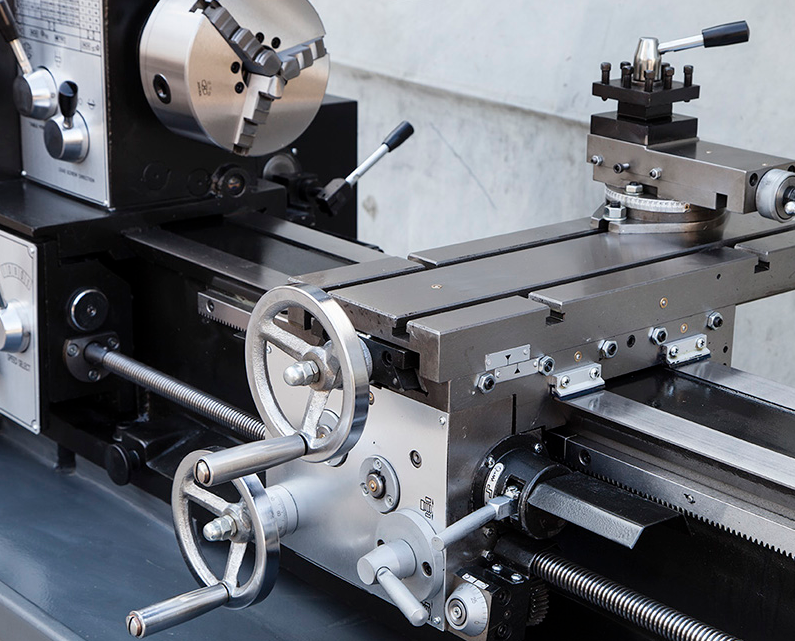

Detail 4
Machine Configuration
Machine Components
Frequently Asked Questions
1. How can I choose the most suitable machines?
Please confirm your specifications or send your workpiece drawing to us; we can select the best model for you, or you can choose the exact model yourself. You can also send us the products drawing, and we will choose the most suitable machines for you.
2. What are the main products available?
We specialize in CNC Lathe Machine, CNC Milling Machine, CNC Vertical Machining Center, Lathe Machines, Manual milling machine, Drilling Machine, Radial Drilling Machine, Band Saw Machine, Shaper machine, and more.
3. How long is the delivery time?
For standard machines, it would be around 30 days. For non-standard machines and customized machines according to client’s specification requirements, it would be slightly longer.
4. What are the trade terms?
FOB, CFR, and CIF are all acceptable terms.
5. What are the Payment Terms?
T/T with a 30% initial payment when the order is placed, and a 70% balance payment before shipment; or Irrevocable LC at sight.
6. What is the MOQ?
The minimum order quantity is 1 set. (Only some specific low-cost machines may require more than 1 set).
