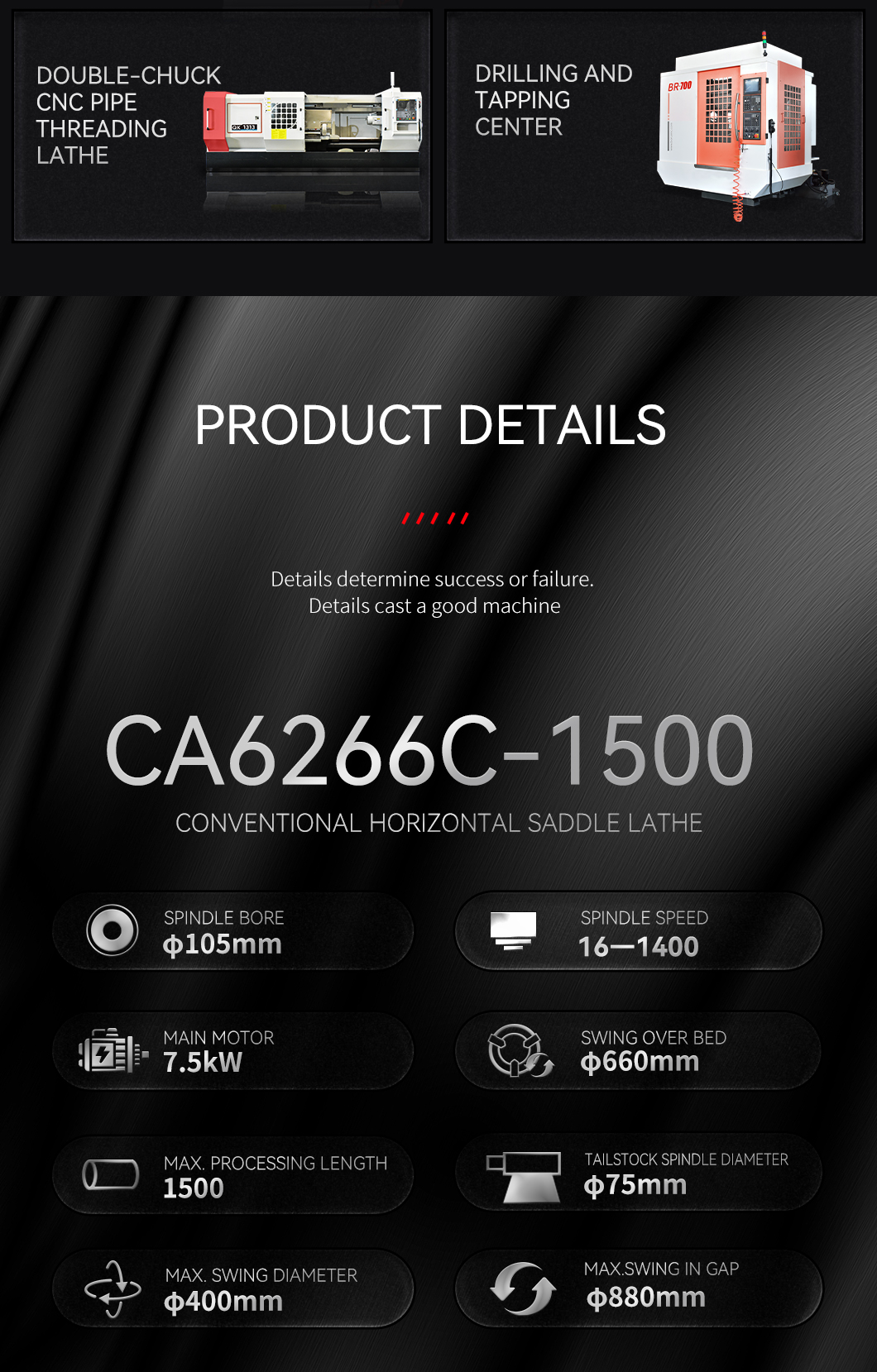

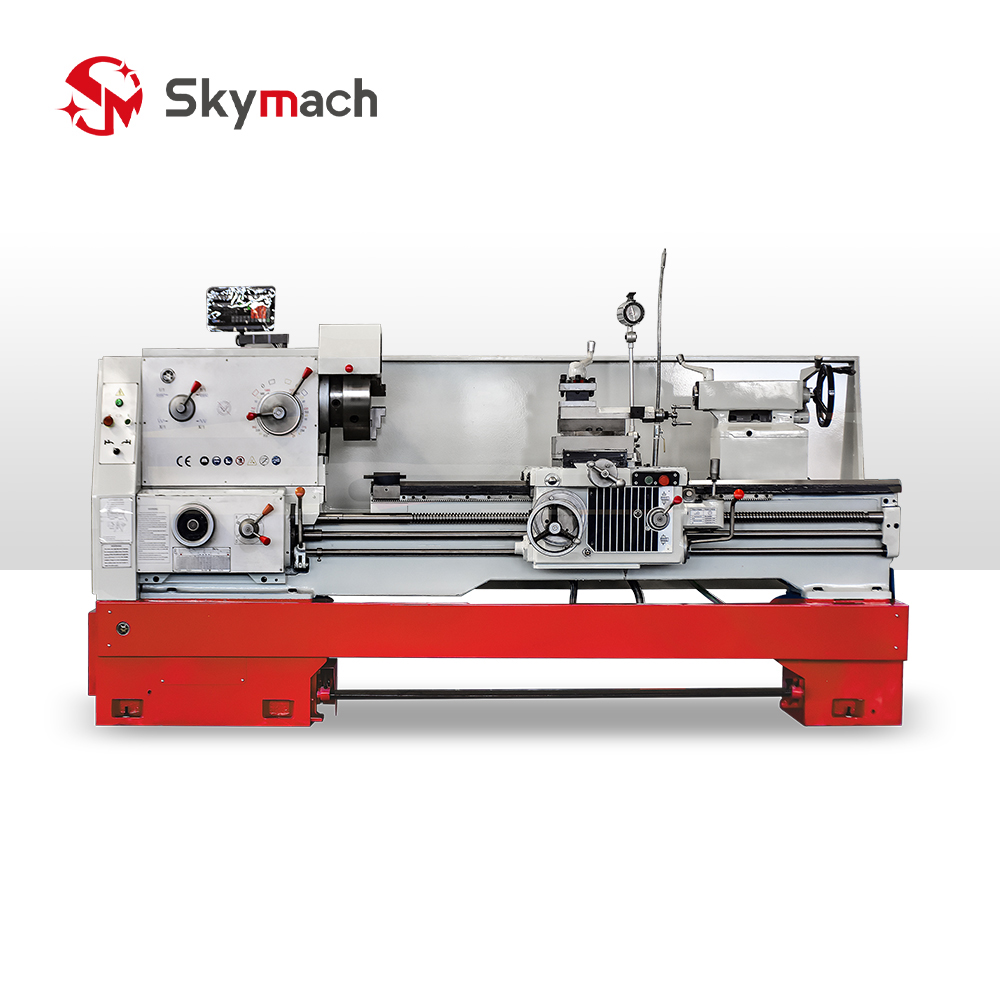

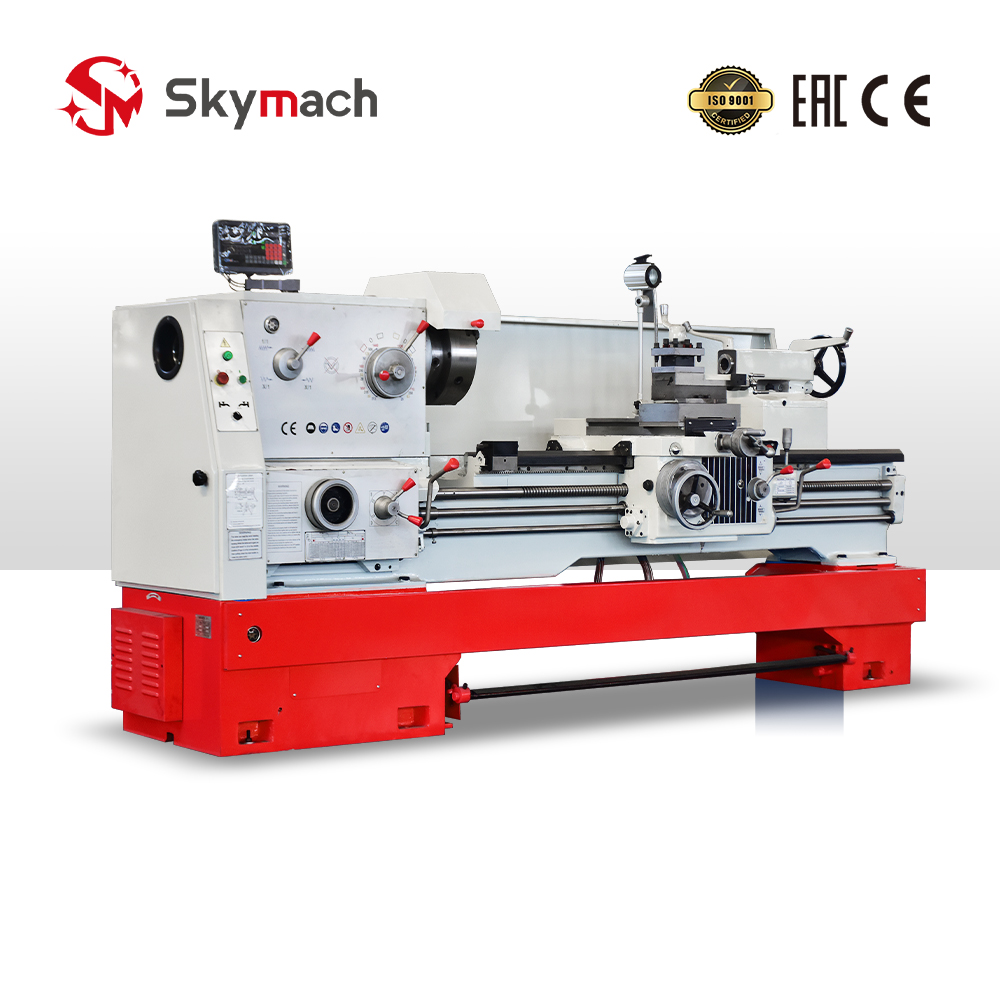

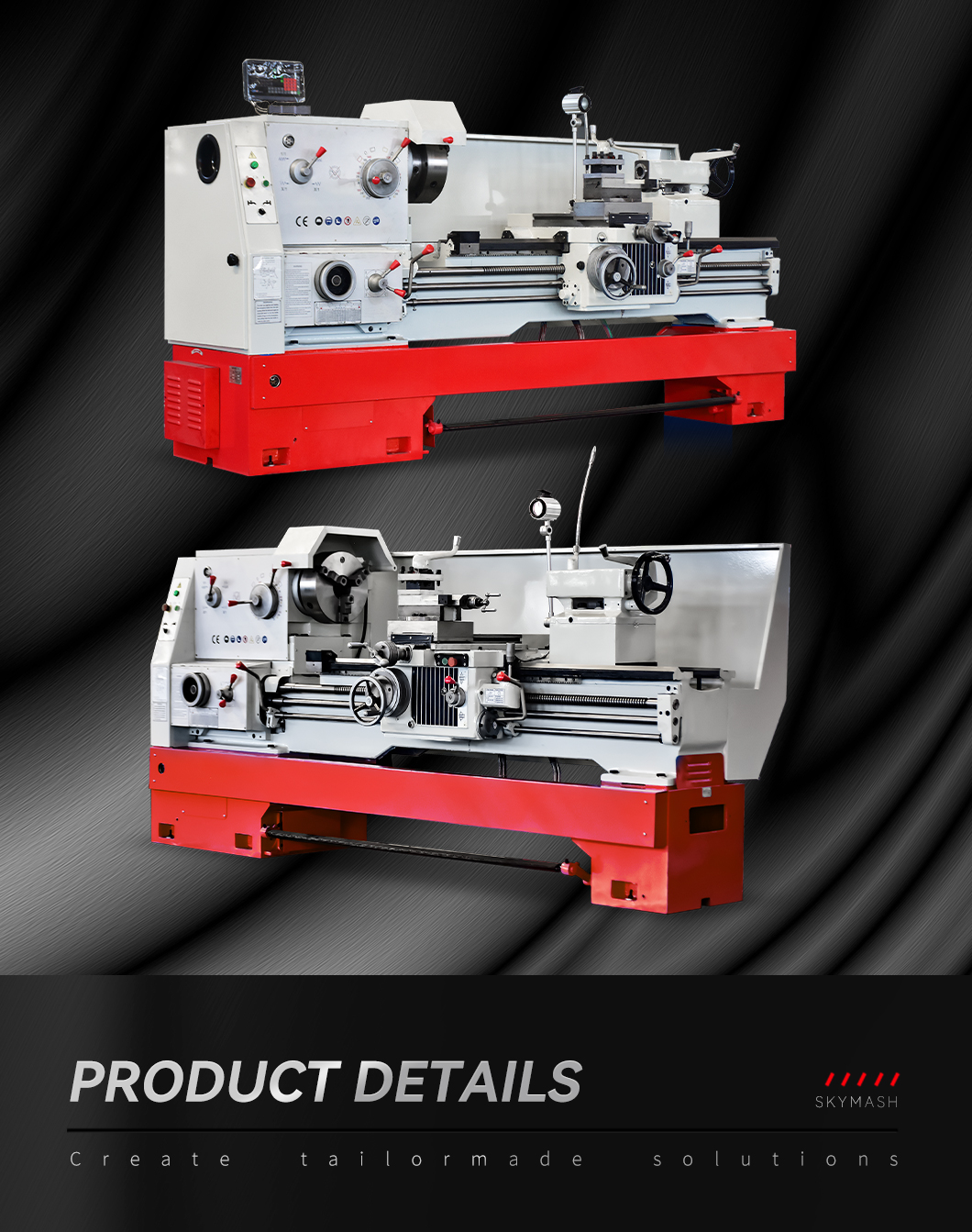

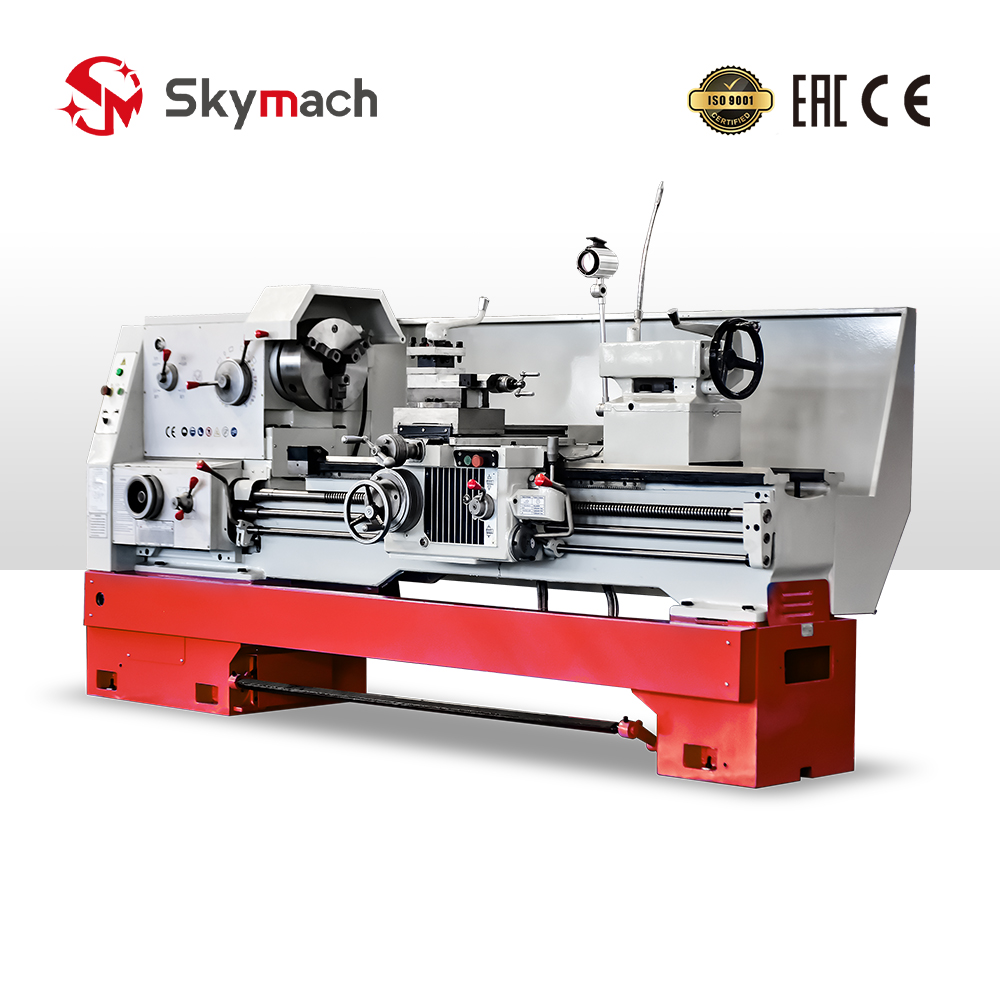

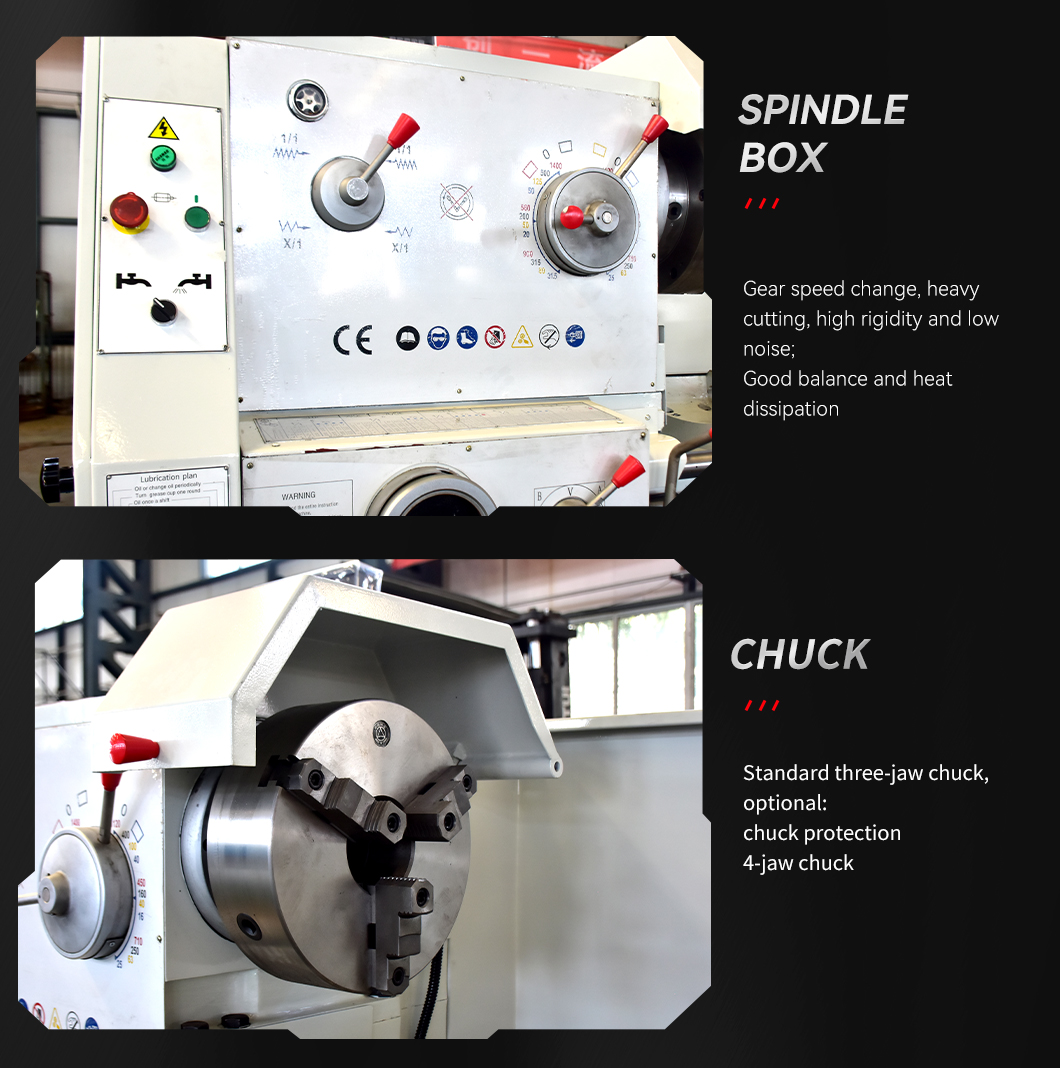

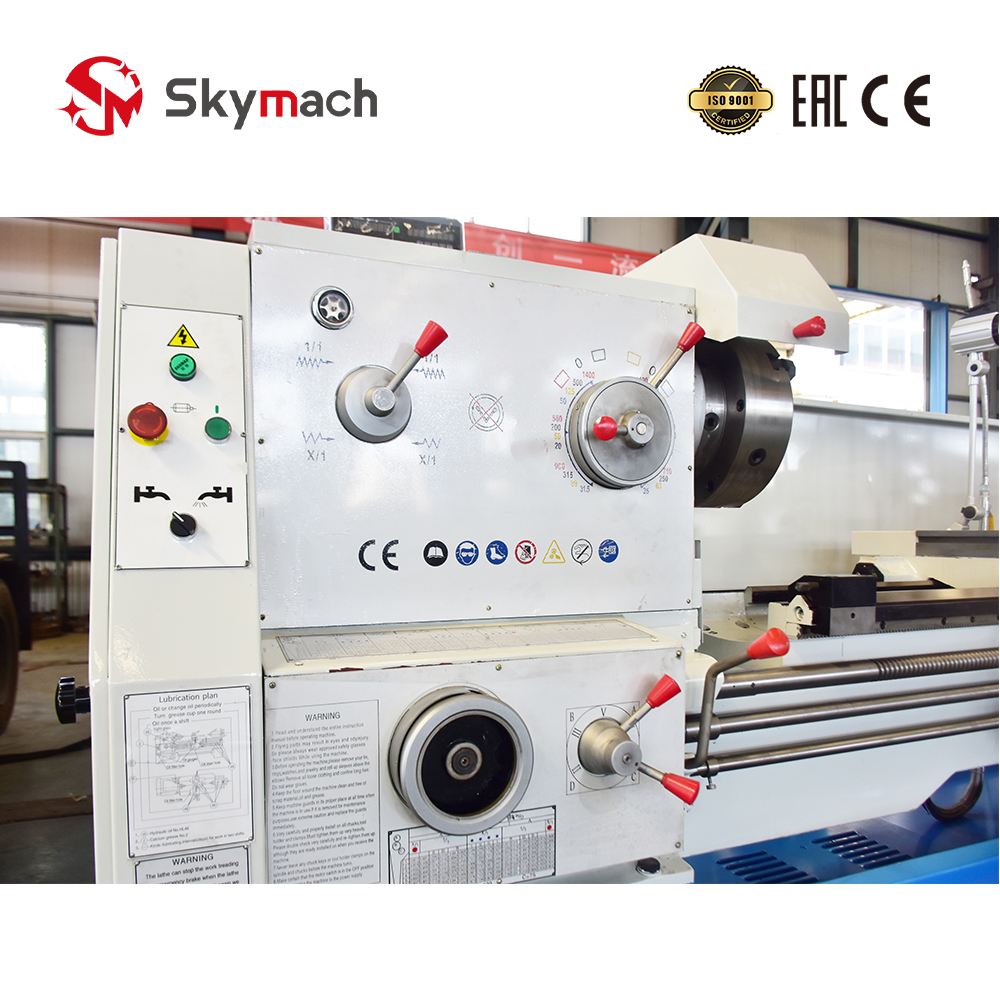

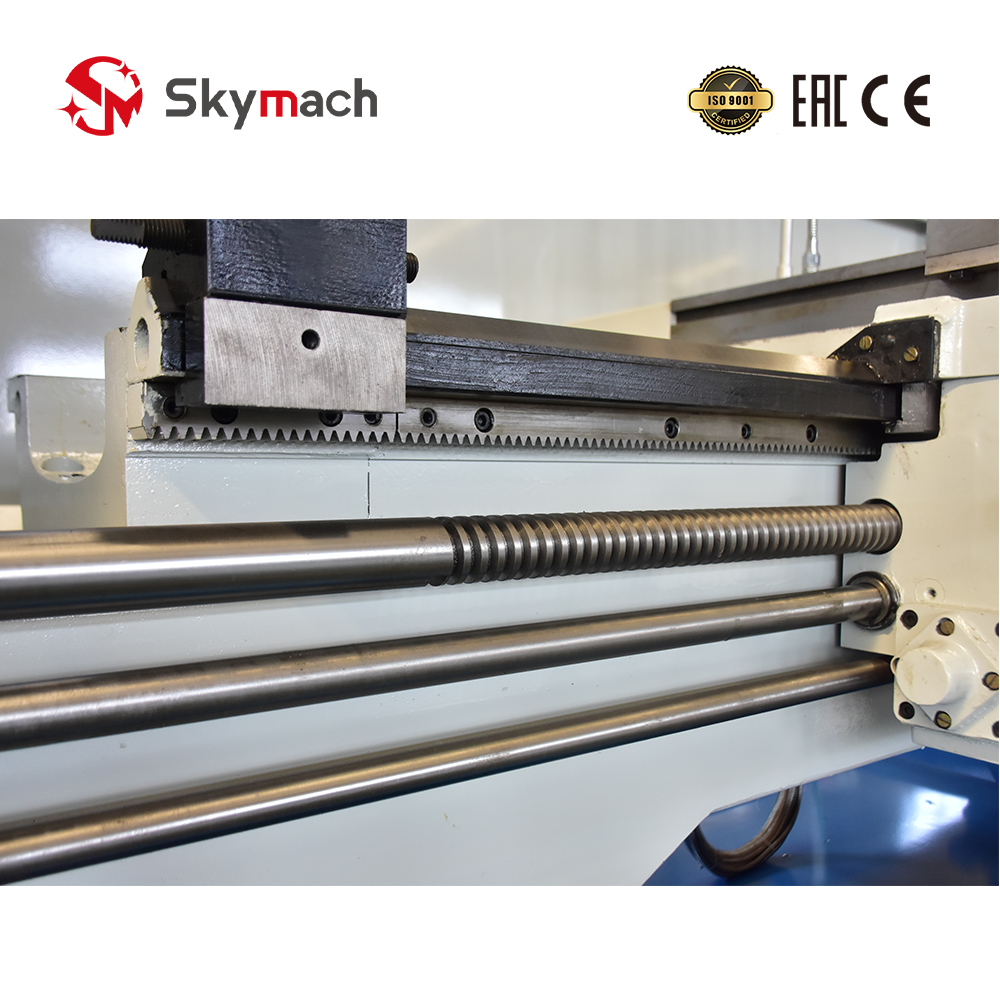

| Type | CA6140 / CA6140B | CA6150 / CA6150B / CA6150C | CA6161 / CA6161B / CA6161C | CA6166 / CA6166B / CA6166C | CA6180 / CA6180B / CA6180C |
|---|---|---|---|---|---|
| CA6240 / CA6240B | CA6250 / CA6250B / CA6250C | CA6261 / CA6261B / CA6261C | CA6266 / CA6266B / CA6266C | CA6280 / CA6280B / CA6280C | |
| Max. swing over bed | 400mm | 500mm | 610mm | 660mm | 800mm |
| Max. swing over carriage | 210mm | 300mm | 370mm | 400mm | 540mm |
| Max. swing in gap (CA62 series) | 630mm | 720mm | 830mm | 880mm | 1020mm |
| Max. effective length in gap (CA62 Series) | 210mm | ||||
| Max. length of workpiece | 750/1000/1500/2000/2200/3000/4000mm | ||||
| Width of bed | 400mm | ||||
| Section of turning tool | 25×25 mm | ||||
| Main motor | 7.5kw(10HP) | ||||
| Spindle | |||||
| Spindle speed | 16--1400rpm(24step) | ||||
| Spindle bore | 52mm (B:80mm),(C:105mm) | ||||
| Spindle taper | No.6(MT6)(Φ90 1:20)[Φ113 1:20] | ||||
| Feed | |||||
| NO. of feed | (64 kinds)(for each) | ||||
| Range of metric threads | (1-192mm) (44 kinds) | ||||
| Range of inch threads | (2-24tpi) (21kinds) | ||||
| Range of module threads | 0.25-48 (module 39 kinds) | ||||
| Range of diametral pitch threads | 1-96DP (37 kinds) | ||||

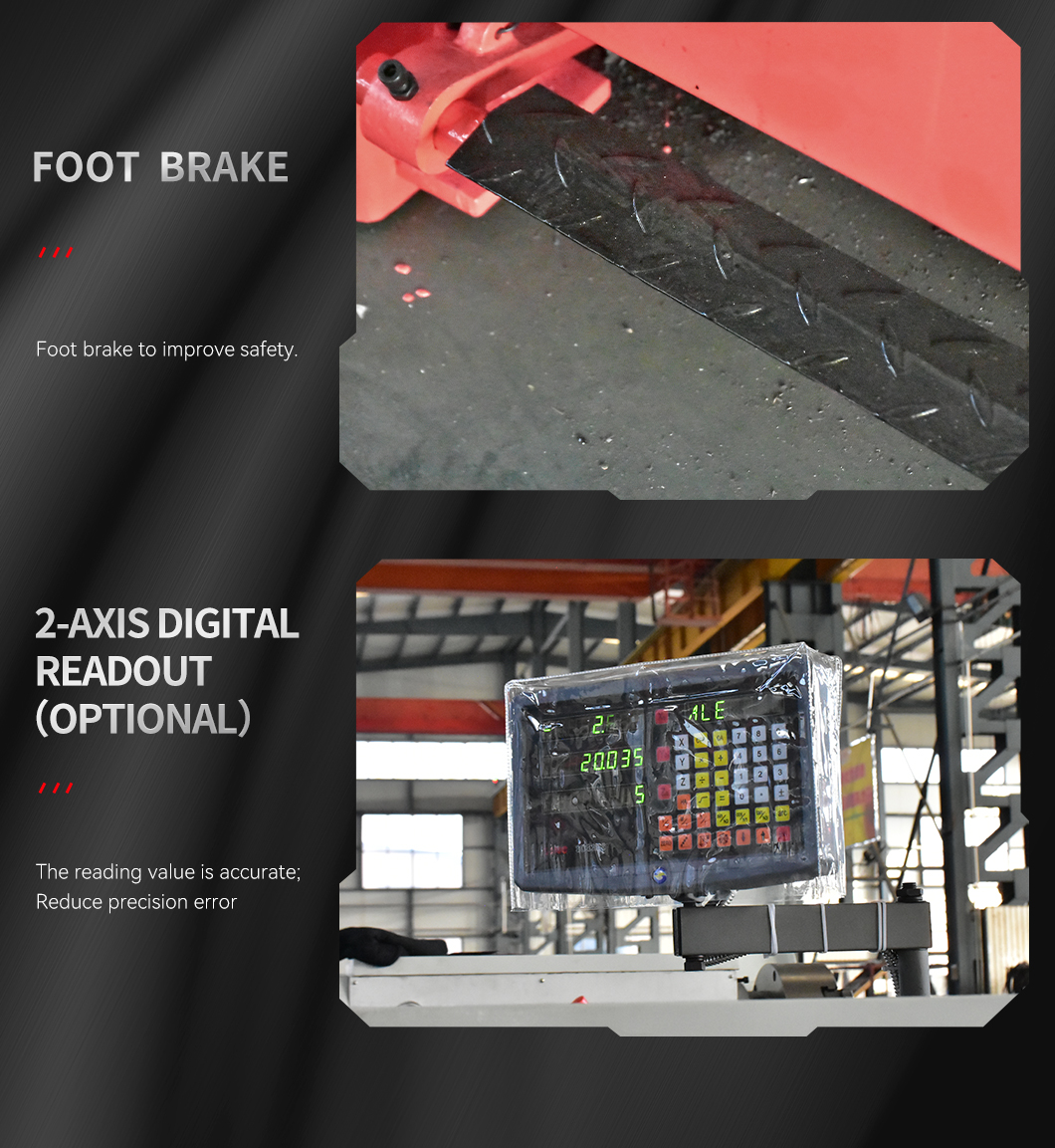

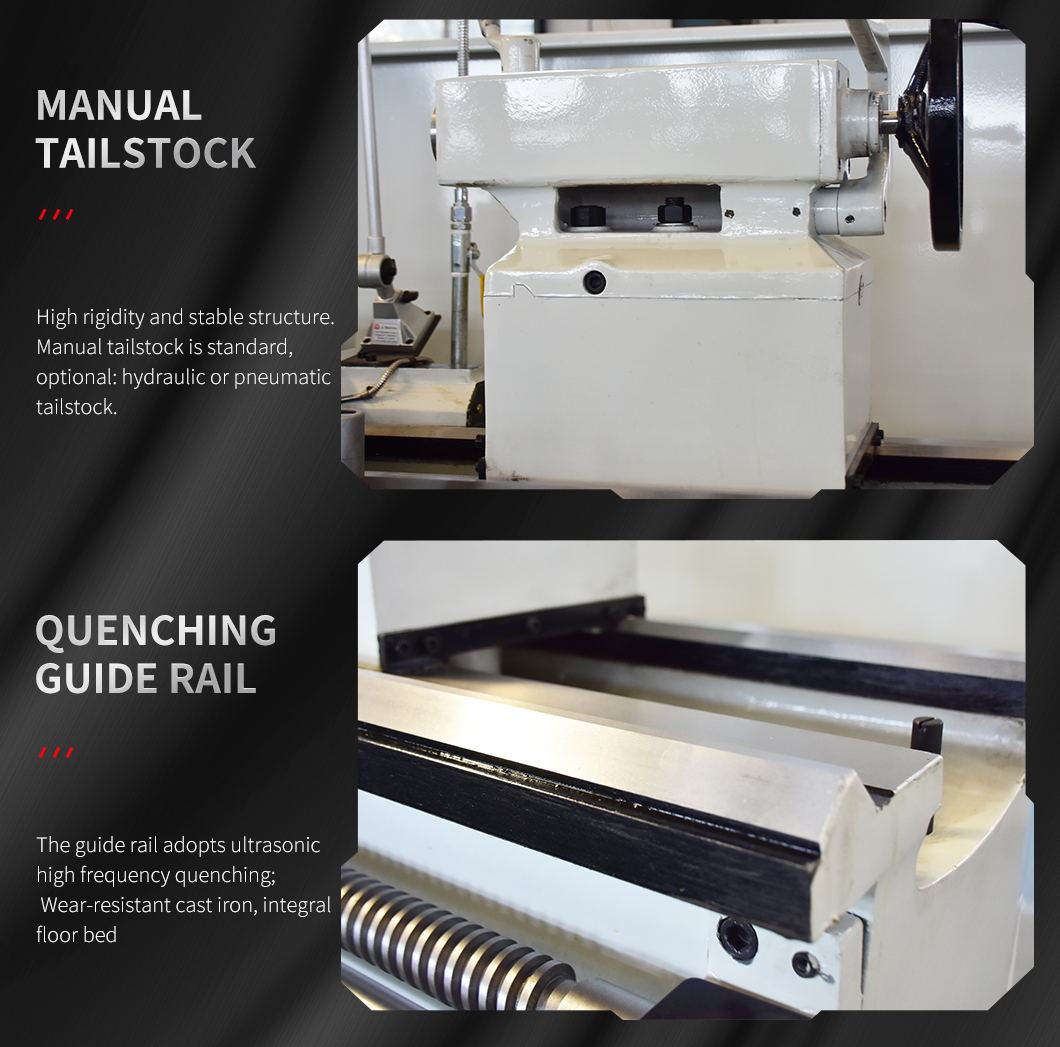

| Tailstock | |||||

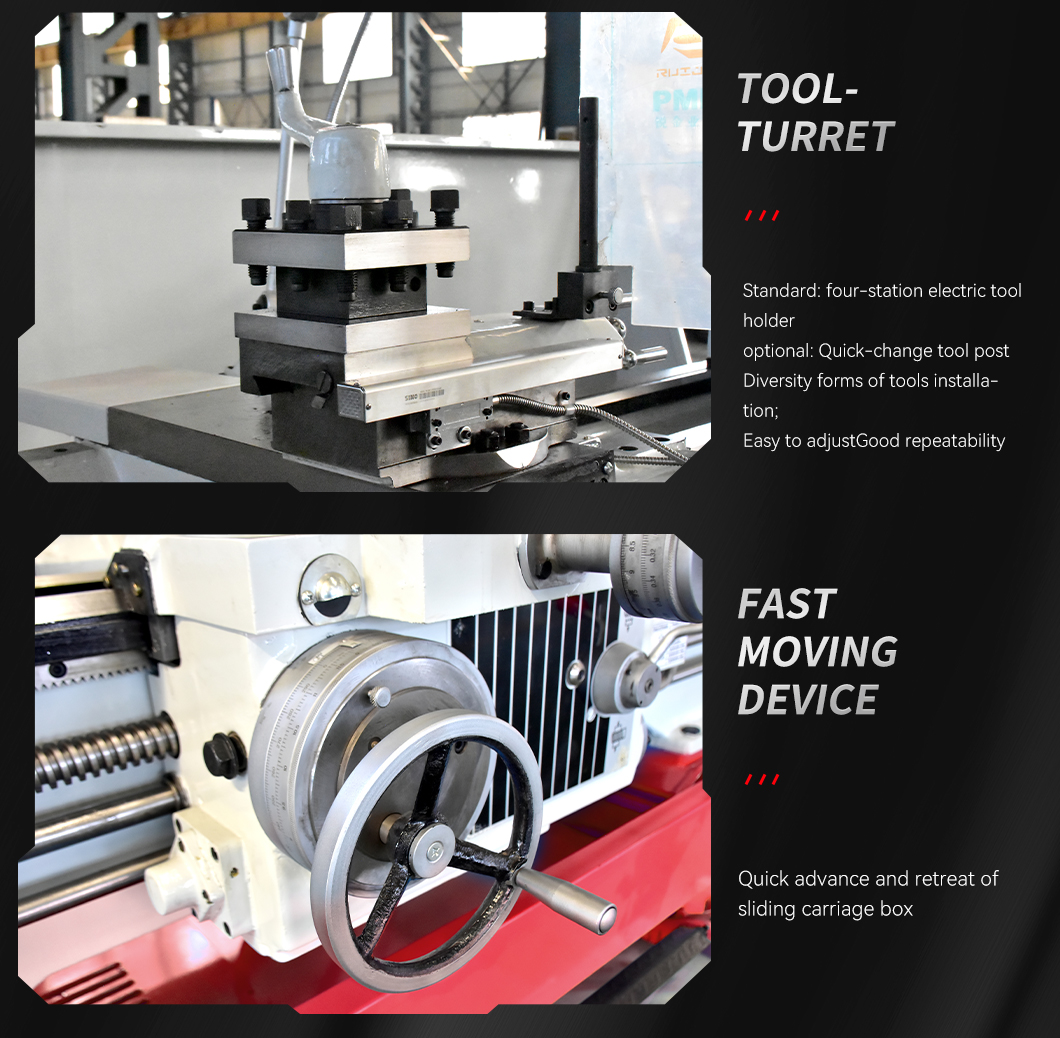

| Max. tailstock spindle travel | 150mm | ||||
| Tailstock spindle diameter | 75mm | ||||
| Taper of tailstock spindle centre hole | NO.5(MT5) | ||||
| Packing dimensions (L*W*H) | |||||
| Overall dimensions for 750mm | 2550×1140×1750mm | ||||
| Overall dimensions for 1000mm | 2700×1140×1750mm | ||||
| Overall dimensions for 1500mm | 3200×1140×1750mm | ||||
| Overall dimensions for 2000mm | 3700×1140×1750mm | ||||
| Overall dimensions for 2200mm | 4030×1140×1750mm | ||||
| Overall dimensions for 3000mm | 4850×1140×1750mm | ||||
| Overall dimensions for 4000mm | 5800×1140×1750mm | ||||
