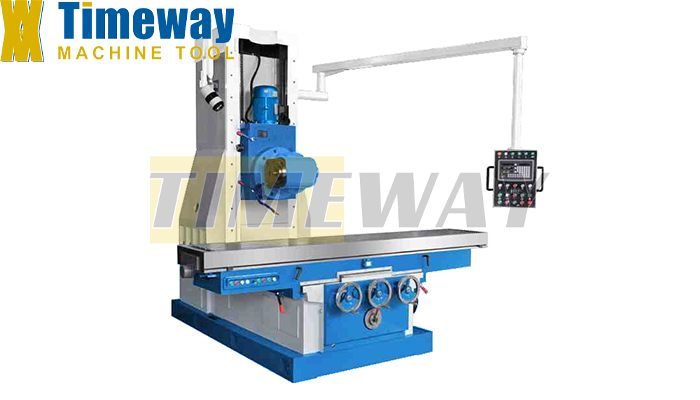

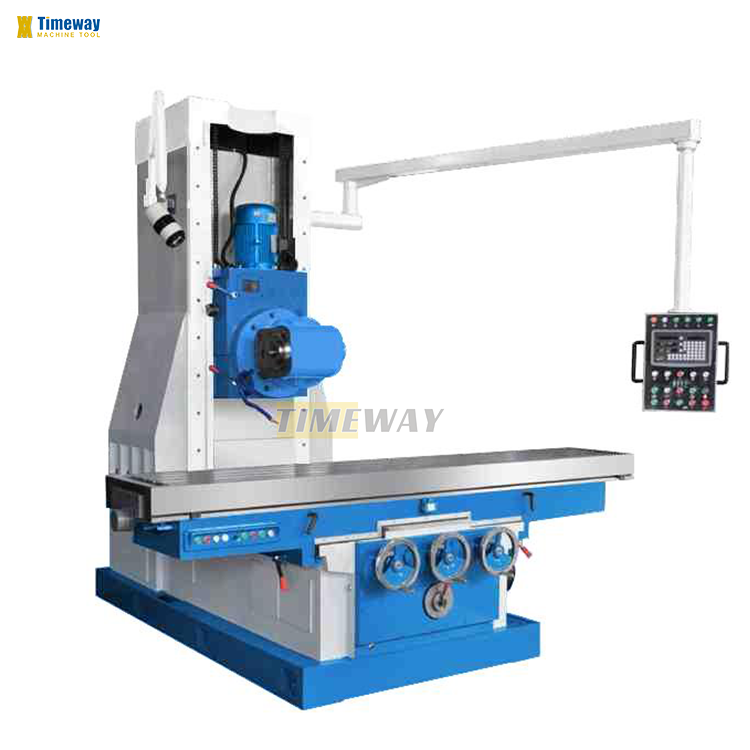

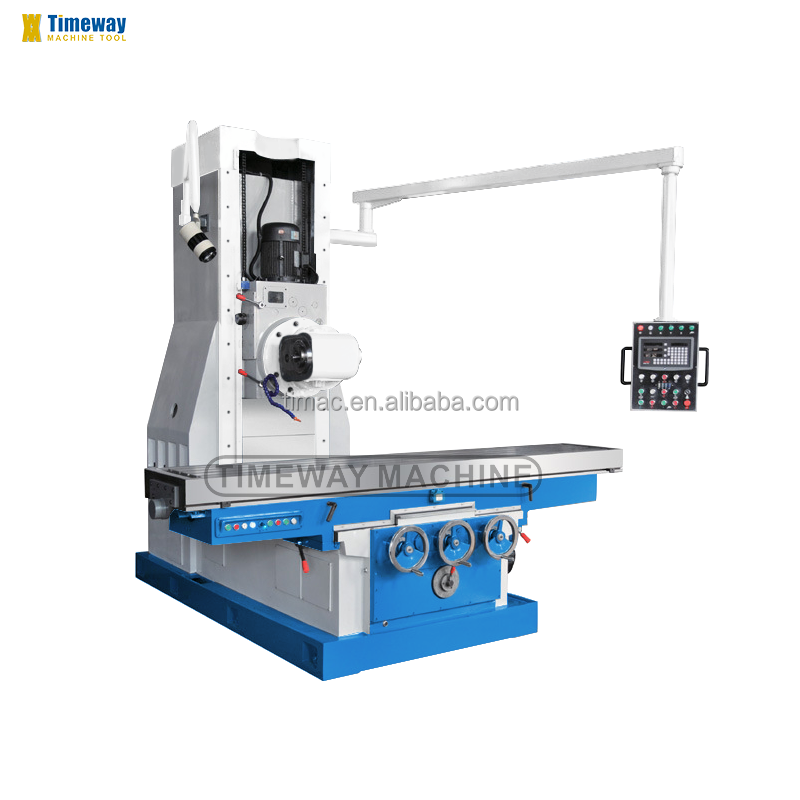

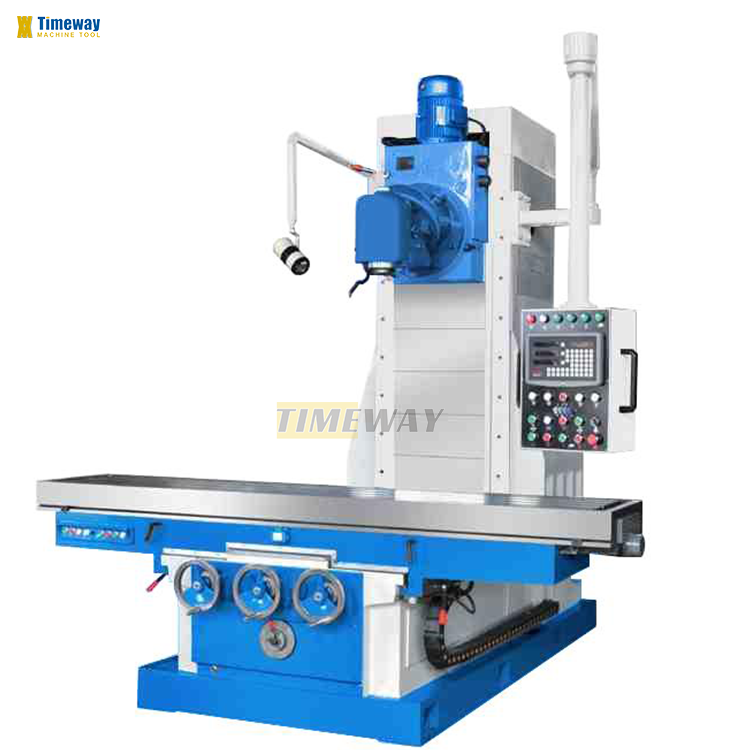

| SPECIFICATIONS | UNIT | BM718 |
| Table size | mm | 700x2800 |
| Longitudinal travel (X) | mm | 2500 |
| Cross travel (Y) | mm | 820 |
| Vertical travel(Z) | mm | 1090 |
| T slot (No./width/distance) | mm | 4/20/100 |
| Loading capacity | kg | 5000 |
| Spindle taper | - | IS050 |
| Spindle speed | rpm | 36-1340 (12) |
| Distance from spindle axis to table | mm | 385-1540/0-1160 |
| Distance from spindle axis to column | mm | 900 |
| Distance from spindle nose to table | mm | 0-1090 |
| X/Y-axis feed speed | mm/min | 22.4-560 |
| X/Y-axis rapid feed speed | mm/min | 1650 |
| Z-axis feed speed | mm/min | 11.2-280 |
| Z-axis rapid feed speed | mm/min | 825 |
| Main motor power | kw | 7.5 |
| Machine weight | kg | 10000 |
| Machine dimensions (LxWxH) | mm | 3020x3000x3000 |
We are a professional machine tool manufacturing enterprise. Our main products include lathes, milling machines, grinding machines, etc. According to customer needs, we can also design and manufacture various special purpose machines to provide relative technology upgrading and transformation services in the machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment, and provides professional customized services. Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling in more than 60 countries and regions both domestically and abroad.
