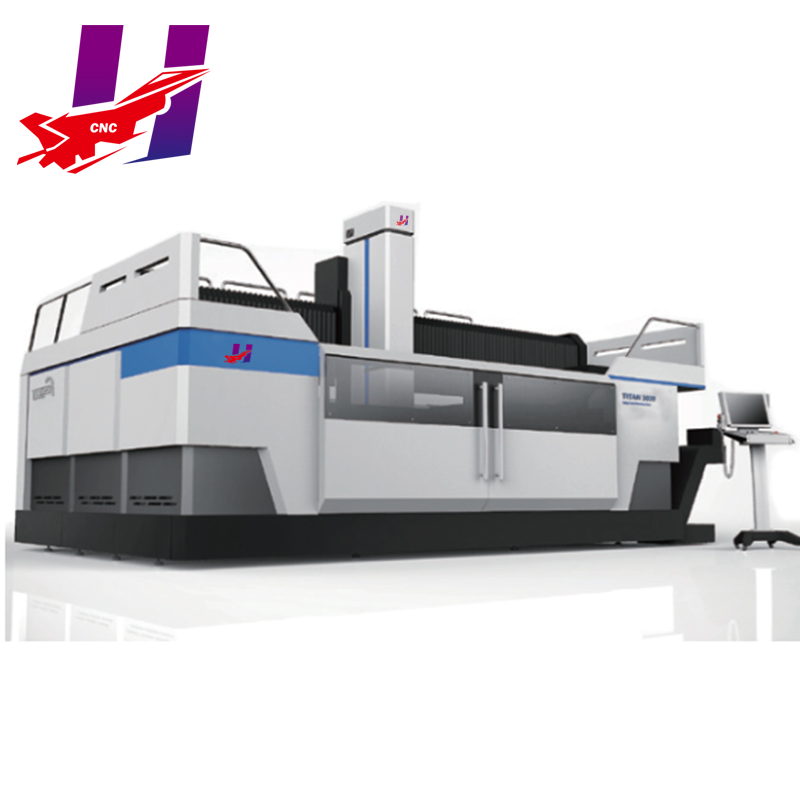

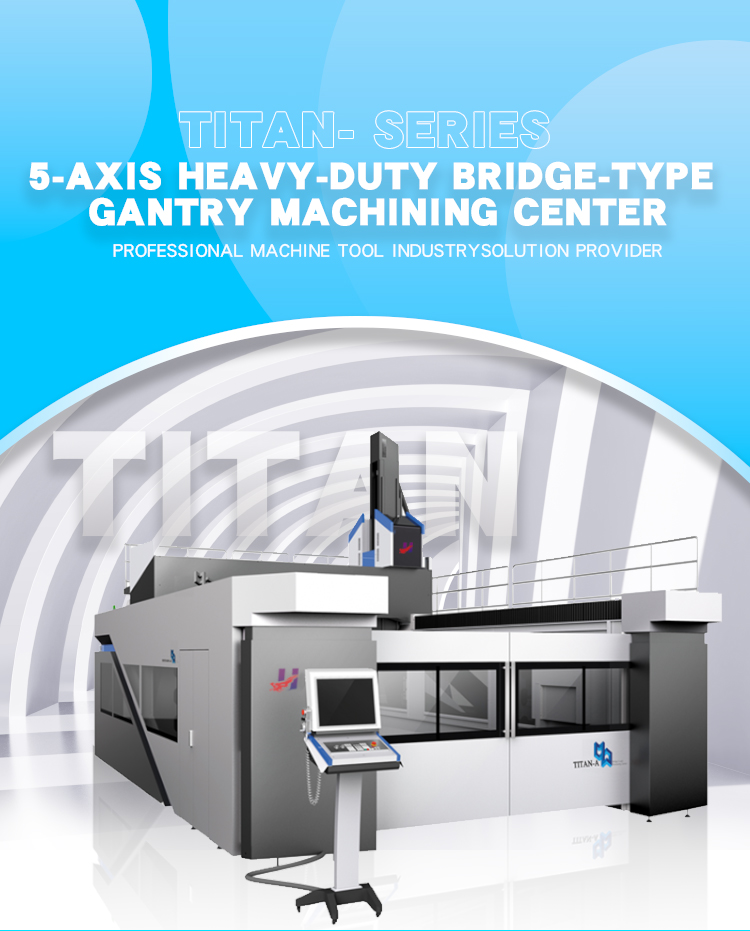

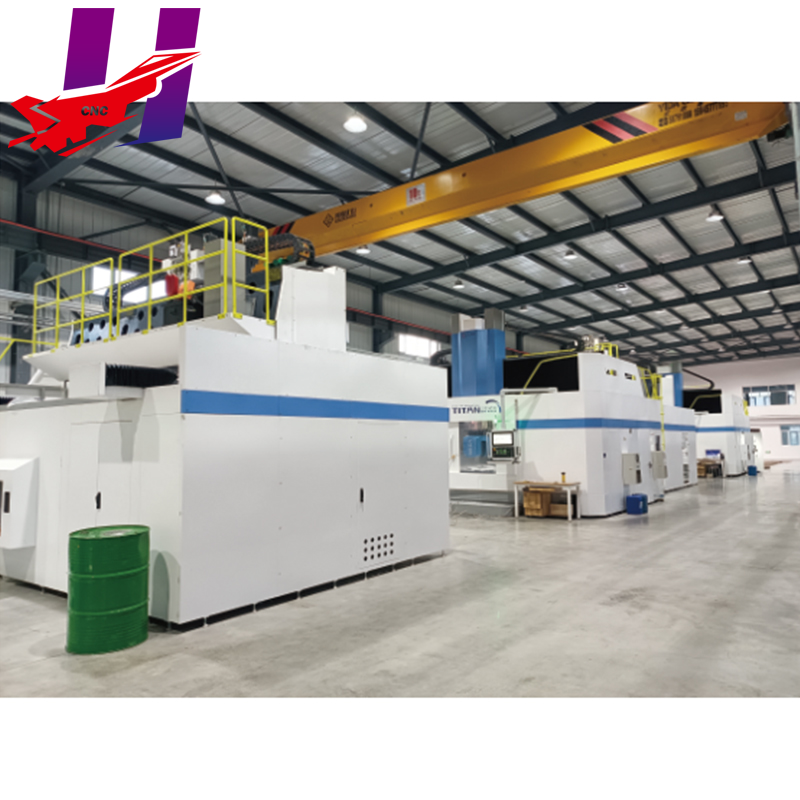

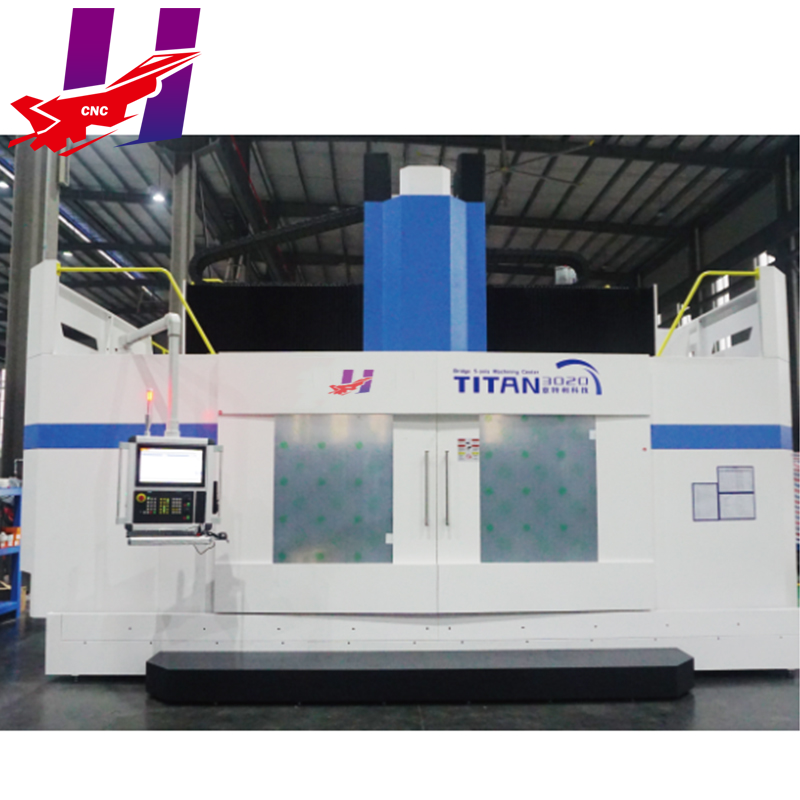

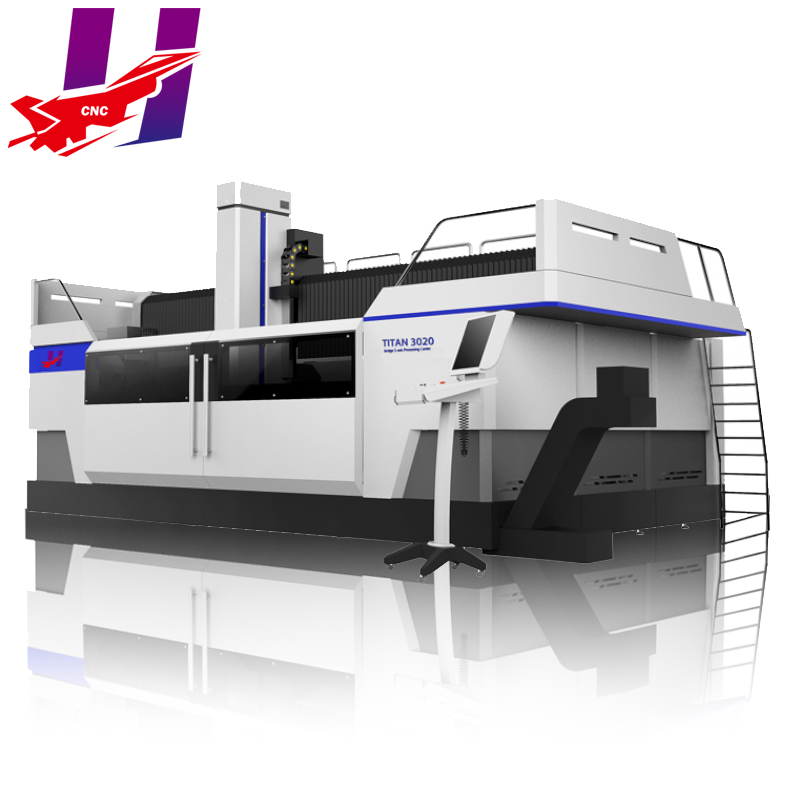

The TITAN series is the leading model among double-beam gantry machines, which is widely used in aerospace, mold manufacturing, and other fields. Existing large equipment in the aviation industry, with an on-site processing range of up to 40m in X-axis, 6m in Y-axis, and 2.5m in Z-axis, is operating stably.

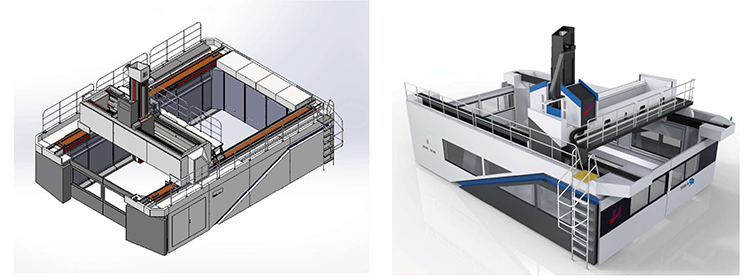

Utilizing patented double-beam technology and a unique box-in-box structure, the travel of the Z-axis can be extended while maintaining machining accuracy. Overall, the TITAN series offers an advantageous solution for processing large structural components.
| TITAN Series Specifications | Unit | TITAN 25 Series | TITAN 30 Series | ||||
|---|---|---|---|---|---|---|---|
| HS01 | HS02 | HS03 | HS01 | HS02 | HS03 | ||
| X-Axis Travel | mm | 4000-6000-8000...50000 | 4000-6000-8000...50000 | ||||
| Y-Axis Travel | mm | 2500 | 3000 | ||||
| Z-Axis Travel | mm | 1200 | 1500 (1750) | 1800 | 1200 | 1500 (1750) | 1800 |
| A-Axis Rotation Range | ° | ±120 | ±110 (±105) | ±110 | ±120 | ±110 (±105) | ±110 |
| C-Axis Rotation Range | ° | ±270 | ±360 (±270) | ±360 (±270) | ±270 | ±360 (±270) | ±360 (±270) |
| Gantry Width | mm | 3700 | 4200 | ||||
| Spindle Nose to Table | mm | 50-1250 | 50-1550 (50-2000) | 50-2000 | 50-1250 | 50-1550 (50-2000) | 50-2000 |
| Table Length | mm | 4000-6000-8000...50000 | 4000-6000-8000...50000 | ||||
| Table Width | mm | 2500 | 3000 | ||||
| Max. Table Load Capacity | T/m² | 10 | 10 | ||||
| T-Slot (Width*Pitch) | mm | 28*250 | 28*250 | ||||
| X/Y/Z Rapid Traverse | m/min | 40/40/25 | 50/50/30 (25) | 50/50/30 (25) | 40/40/25 | 50/50/30 (25) | 50/50/30 (25) |
| X/Y/Z Max. Feed Rate | m/min | 20/20/20 | 30/30/20 | 30/30/20 | 20/20/20 | 30/30/20 | 30/30/20 |
| A/C Rapid Traverse | rpm | 40/40 | 40/40 | ||||
| A/C Max. Feed Rate | rpm | 20/20 | 20/20 | ||||
| Floor Space Length | m | 10-12-14...46 | 10-12-14...46 | ||||
| Floor Space Width | m | 7.9 | 7.5 | 7.5 | 8.4 | 8.4 | 8.4 |
We specialized in manufacturing & exporting machine tools to the world for many years. Our products boast high quality, competitive prices, and we provide excellent after-sales service.
Yes, we have established a strict quality control department to ensure high product quality. A final inspection is always performed before shipment.
T/T with 30% advance payment, and the remaining 70% to be paid before shipment.
The warranty period is one year after delivery. Even beyond this period, we still provide lifetime service for the machines.

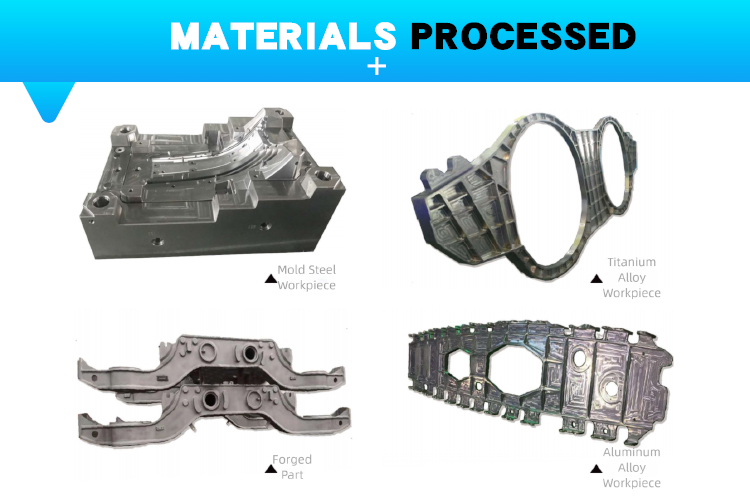

The TITAN series is ideal for processing super alloy steel, titanium alloy, carbon steel, stainless steel, aluminum alloy, and other demanding industrial metals.
It is widely used in aerospace structural manufacturing, automotive mold design, large-sized molds, and large aviation part production.
