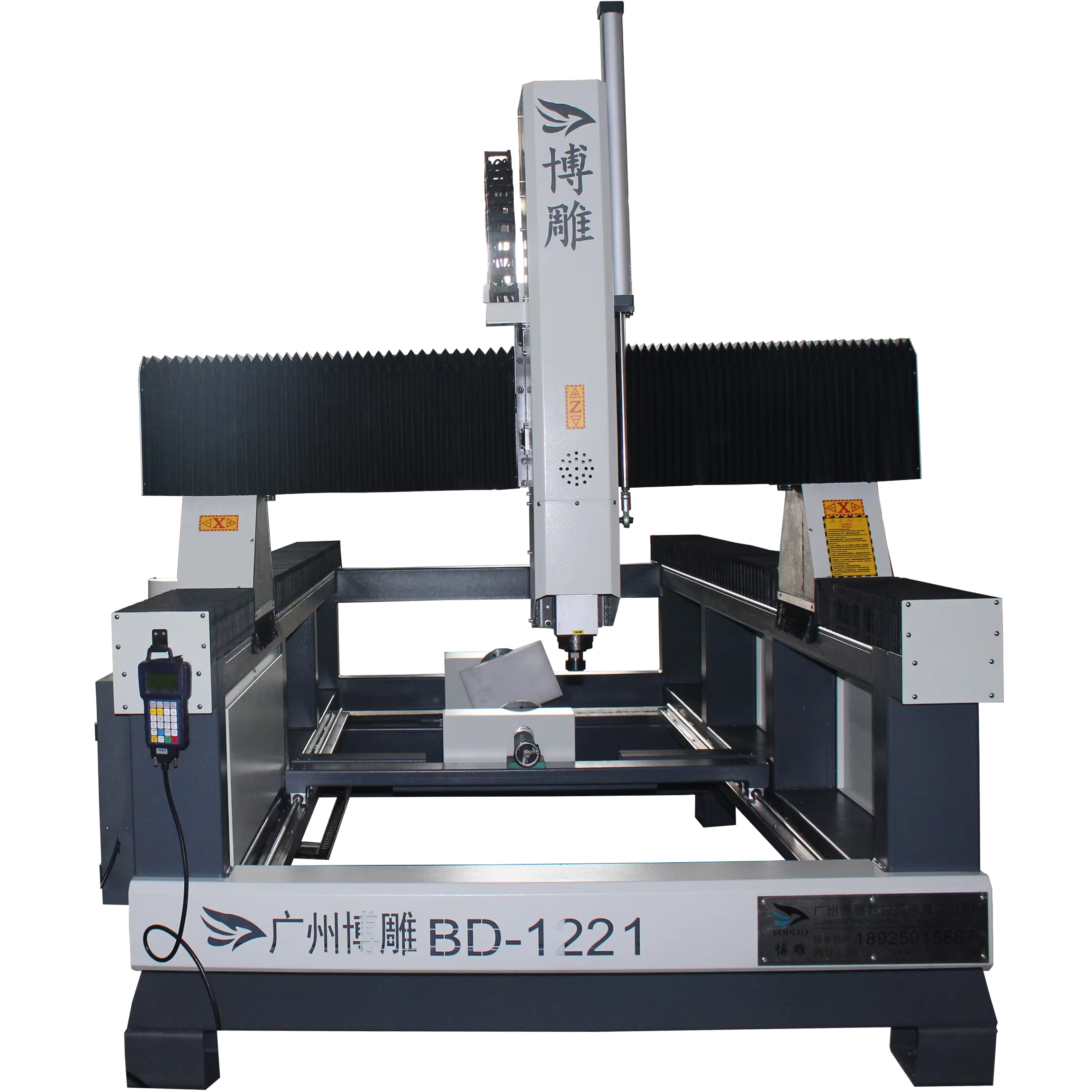

BD-1221 Large 4-Axis Gantry CNC Foam Engraving Milling Machine High Precision High-Speed Syntec Control Heavy Duty Single

Product Description

Product Description

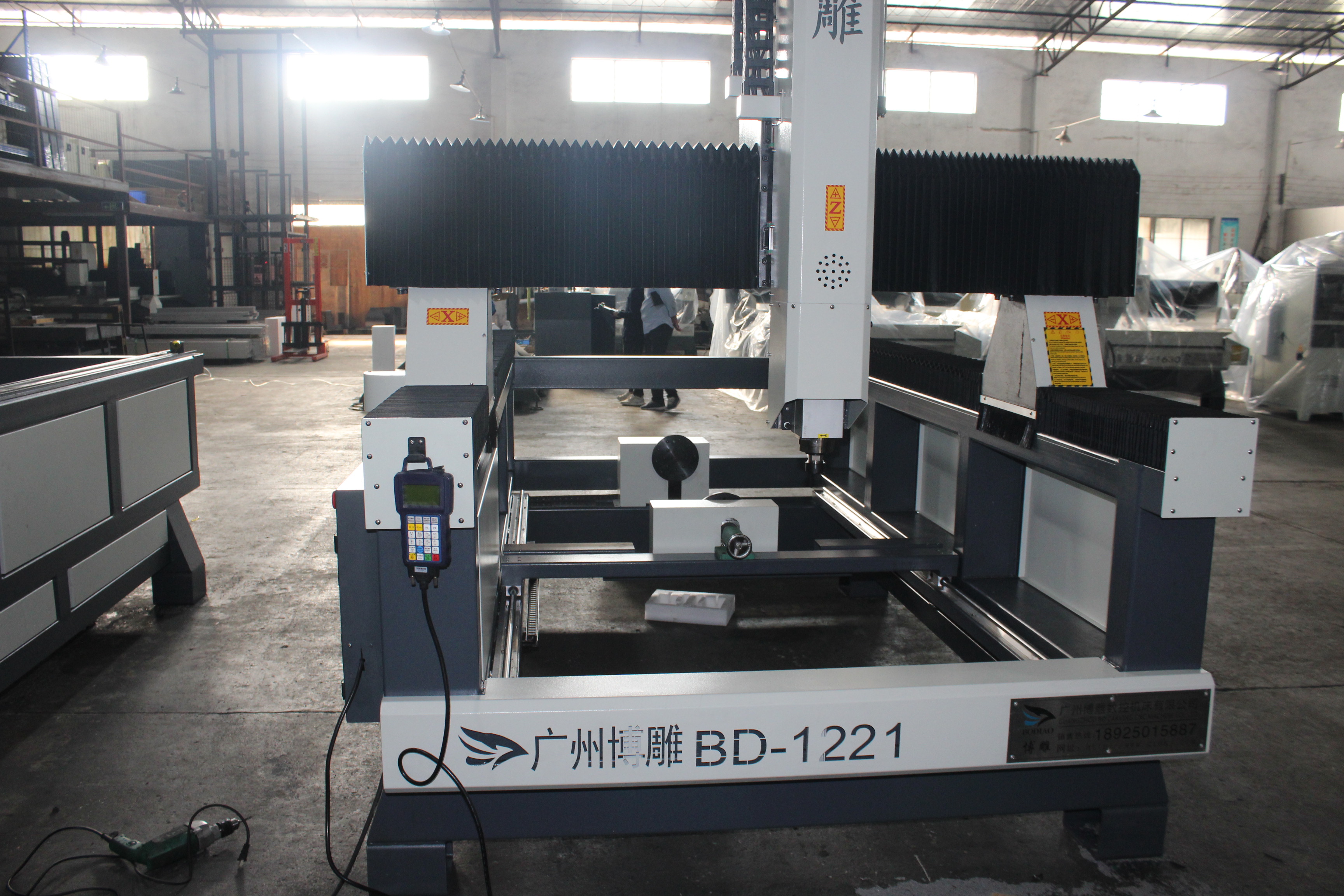

Foam Engraving Machine

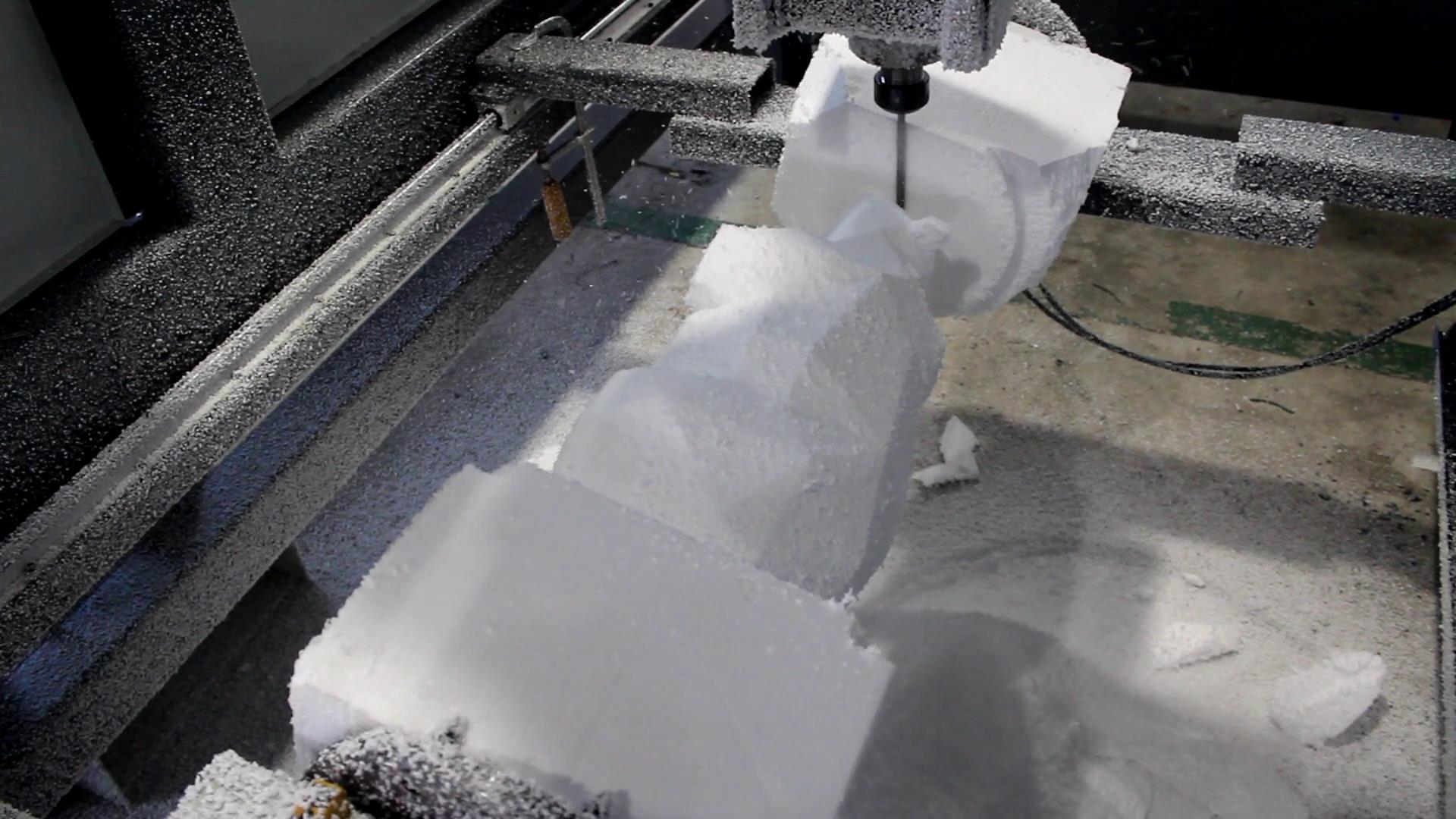

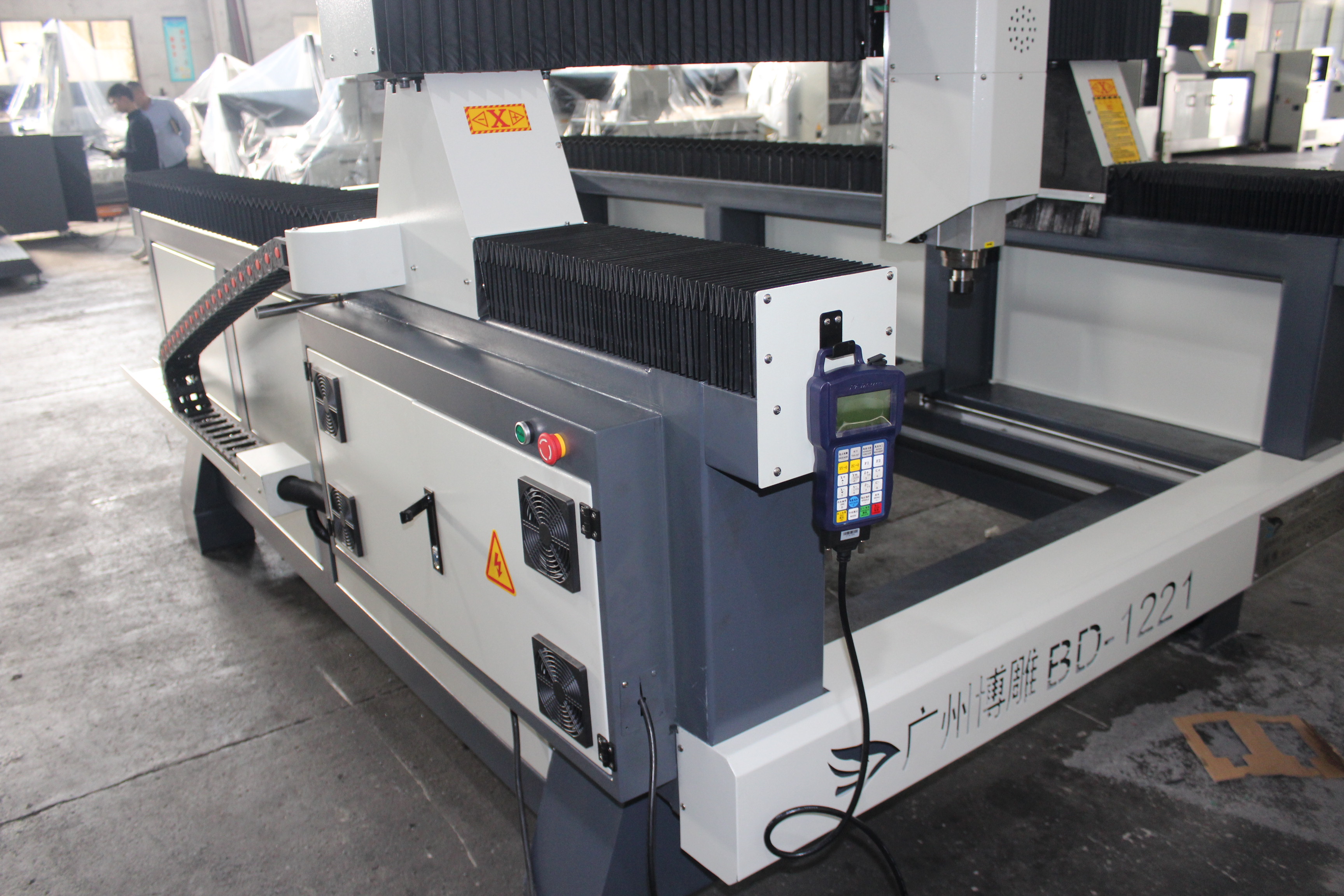

CNC Machining Process

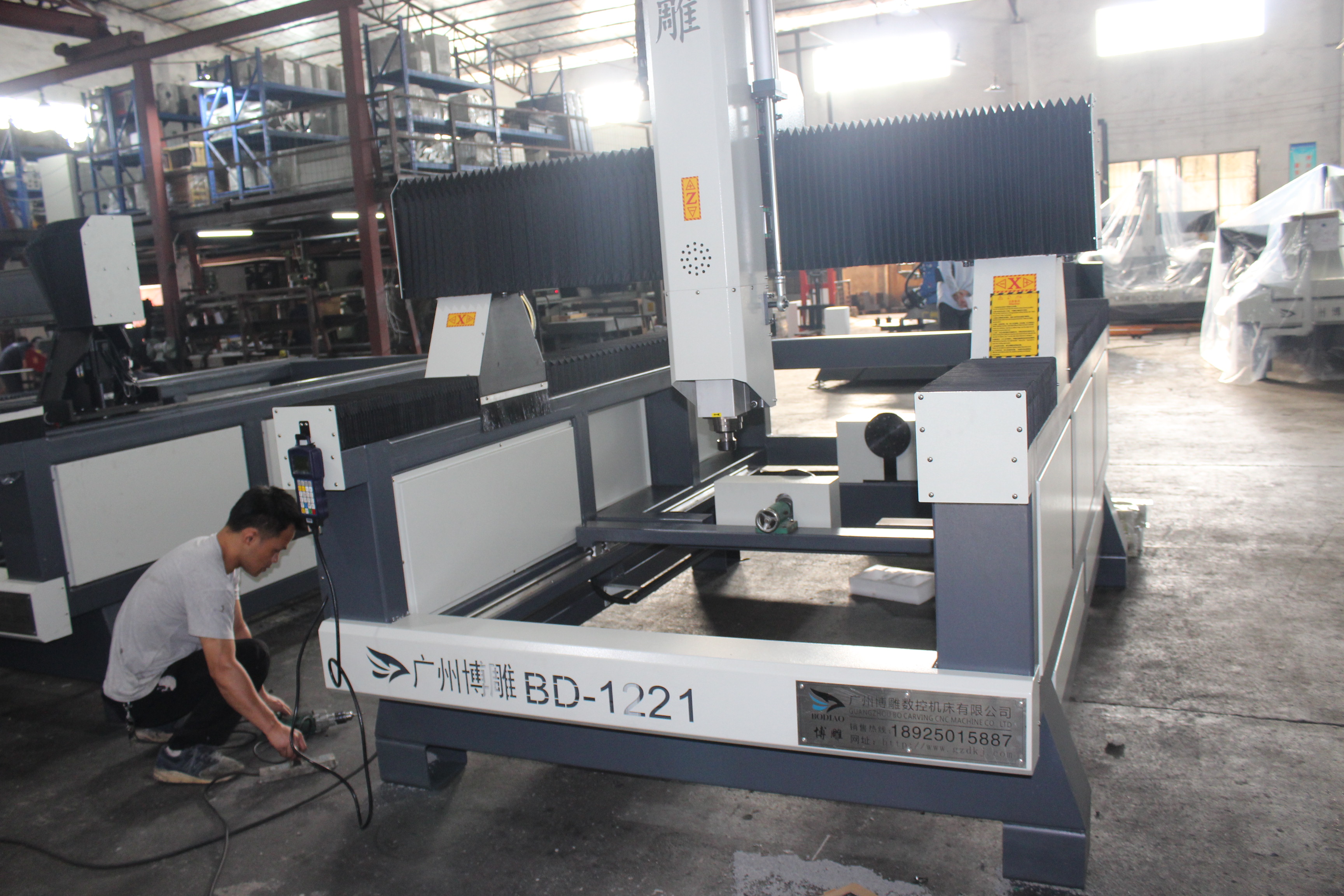

Detail Panel
  • Product advantages: Foam (Polyurethane) Engraving Machines are widely used in various fields such as machining and mold manufacturing. Capable of meeting processing requirements from roughing to finishing, they are characterized by high precision and high efficiency. These machines are extensively applied in aerospace, industrial and mold processing, automotive, architectural model making, advertising signage and exhibition displays, film props and stage design, packaging mold manufacturing, aerospace prototyping, as well as art sculpture and creative design.
  • Applicable Materials & Techniques: Suitable for processing various non-metallic materials including PVC, acrylic, aluminum-plastic composite panels, foam, wood, etc. Capable of performing 3D engraving, flat engraving, relief carving, hollowing (cut-outs), full 3D sculpting, and lettering.
  • Foam Processing Applications: Ideal for creating cast foam molds and lost-foam casting molds; decorative engraving and lettering; both intaglio (incised) and relief carving; milling and cutting. Can process curved materials for foam molds, wedding/celebration props, sculptures, etc.
  • Wood Processing Applications: Can machine various types of wood - milling and cutting; producing cast wood patterns; decorative engraving and lettering; both intaglio and relief carving; flat engraving, 3D engraving, and hollowing.
Specification
Processing range X stroke 1200mm X maximum speed 15m/min
Y stroke 2100mm Y maximum speed 15m/min
Z stroke 600mm Z maximum speed 10m/min
Operating mode servo motor Spindle power 6KW
Operation instructions G code, F/S command compatible Spindle speed 0-18000RPM/min
Operating voltage AC380V/50HZ Positioning precision 0.02mm
Operating system Syntec High-Speed Control System System resolution 0.001
Dimensions 2100x3400x2500mm Weight 2600KG
Details Display

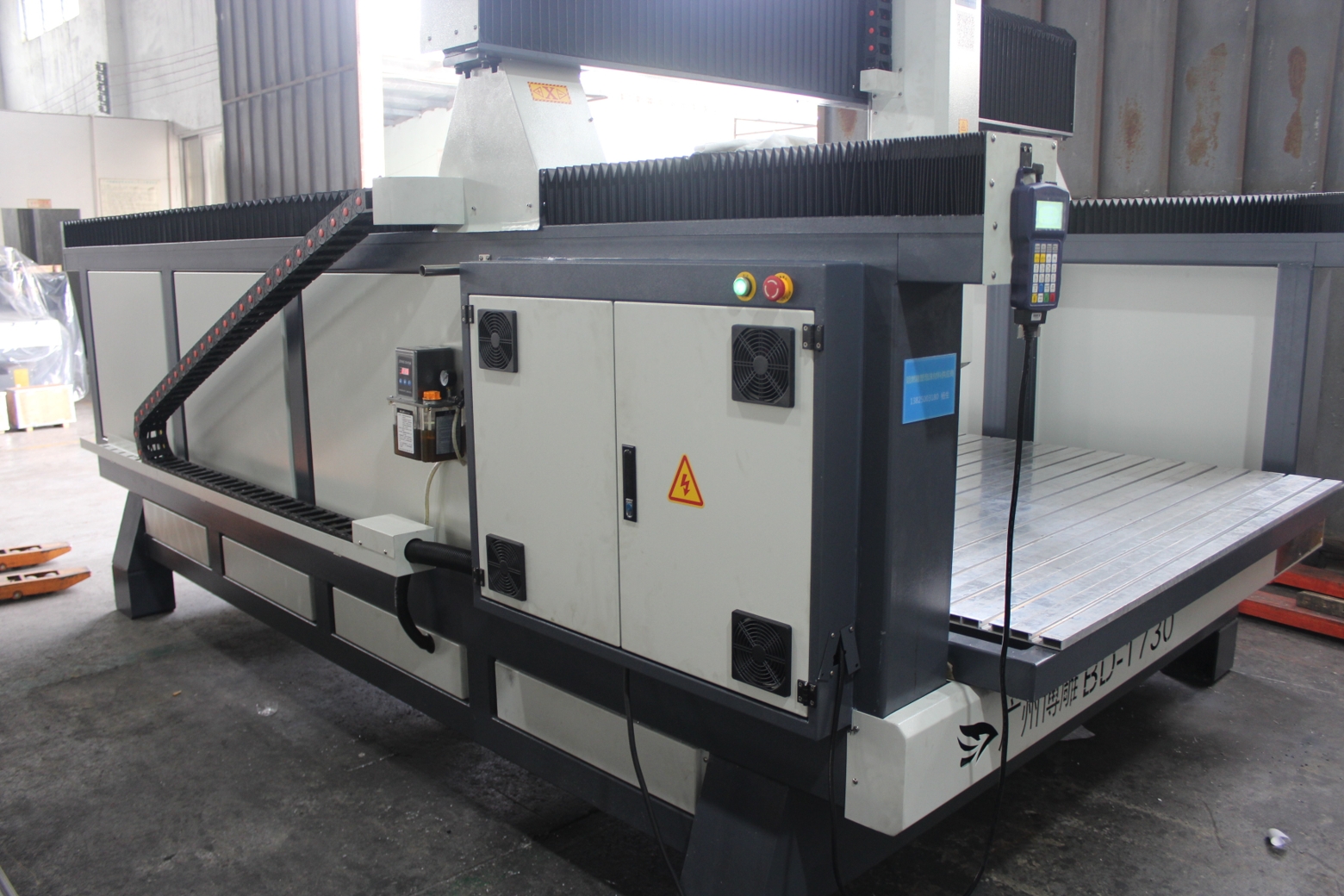

Monolithic Frame
Featuring a reinforced, monolithic frame with seamless welding for exceptional stability, durability, and heavy-duty load support.

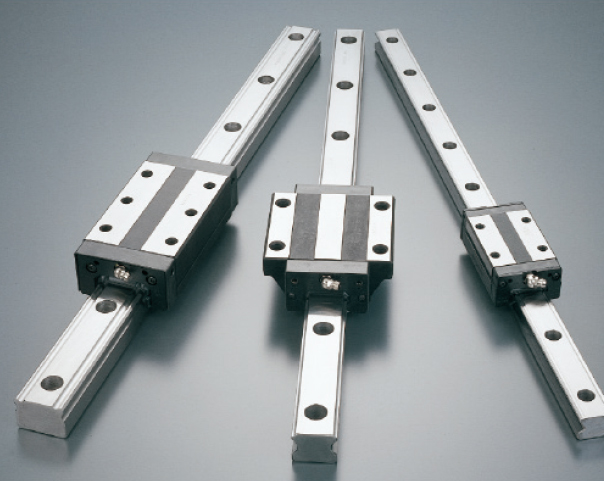

Linear Guide Rails
The X, Y, and Z axes of the equipment all adopt linear guide rails, with a steel structure bed, large load-bearing redundancy, and long service life. It is simple to operate and convenient to use.

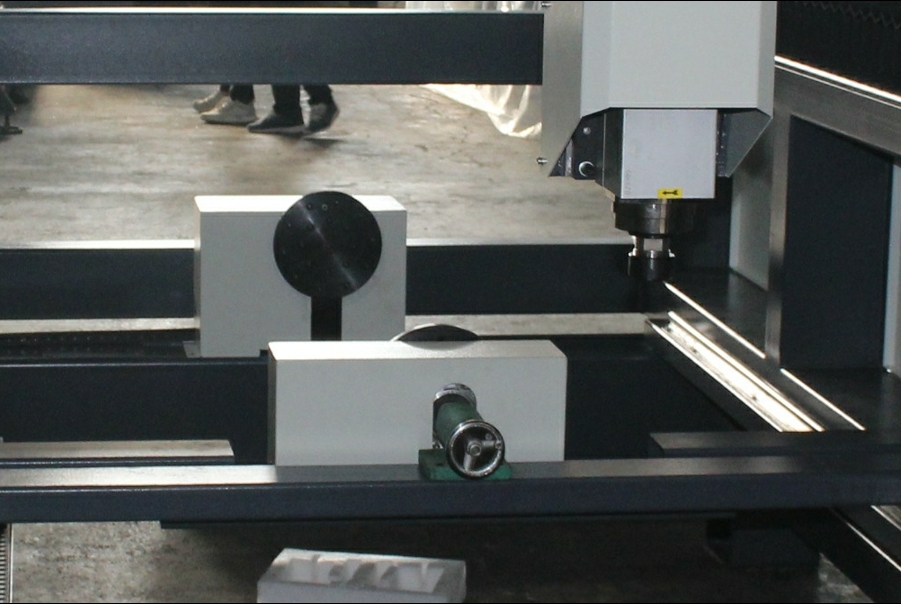

Rotating Shafts
High-quality rotating shafts adopt freely sliding tailstocks, which can adjust the size according to actual conditions and actual processing materials, making them a must-choice for three-dimensional processing.

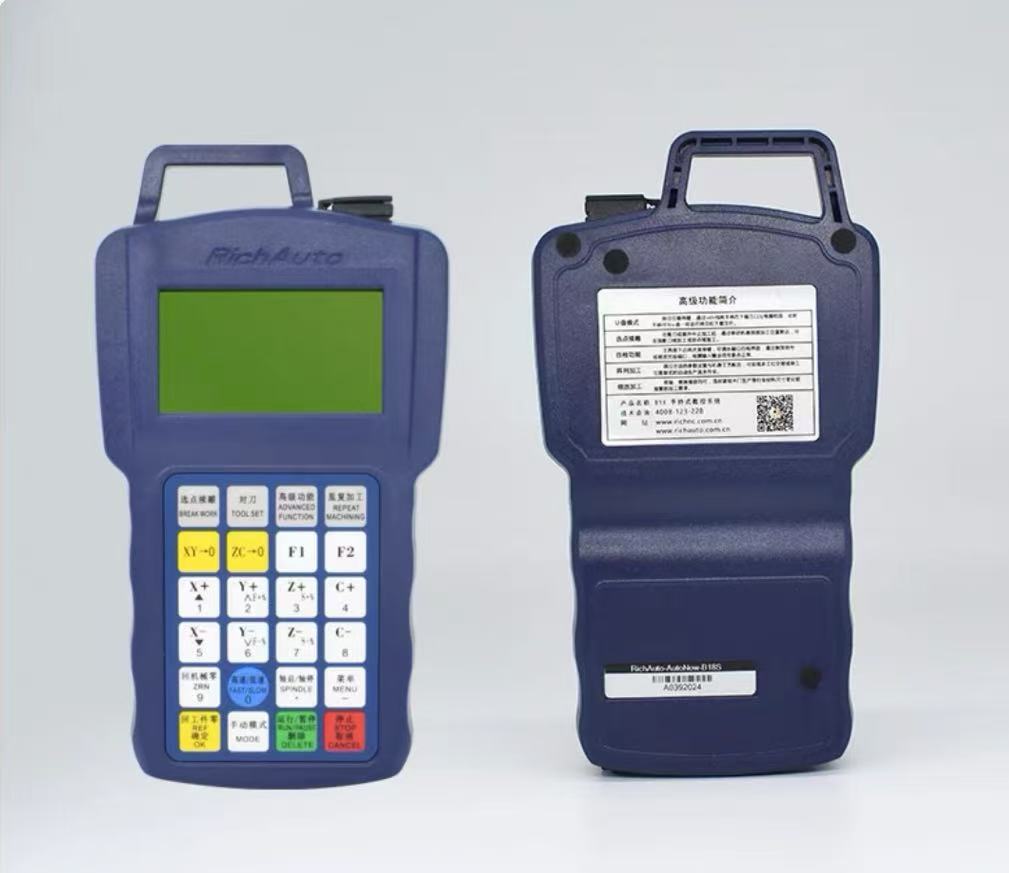

Linkage Control System
A brand-new four-axis linkage control system with intelligent processing memory, supporting breakpoint and power-off functions, and compatible with various CAD and CAM design and production software such as type3, Artcam, Castmate, UG, and Jingdiao.

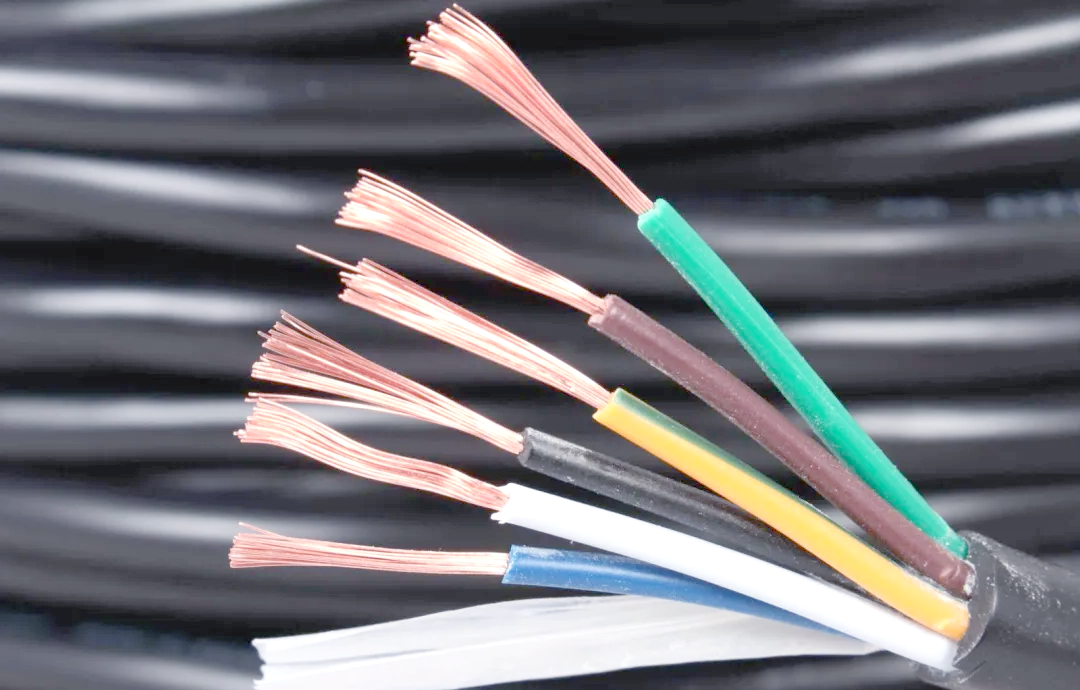

High-Frequency Wires
High-quality high-frequency wires and cables are used, which have stronger anti-interference performance and are more durable in use.

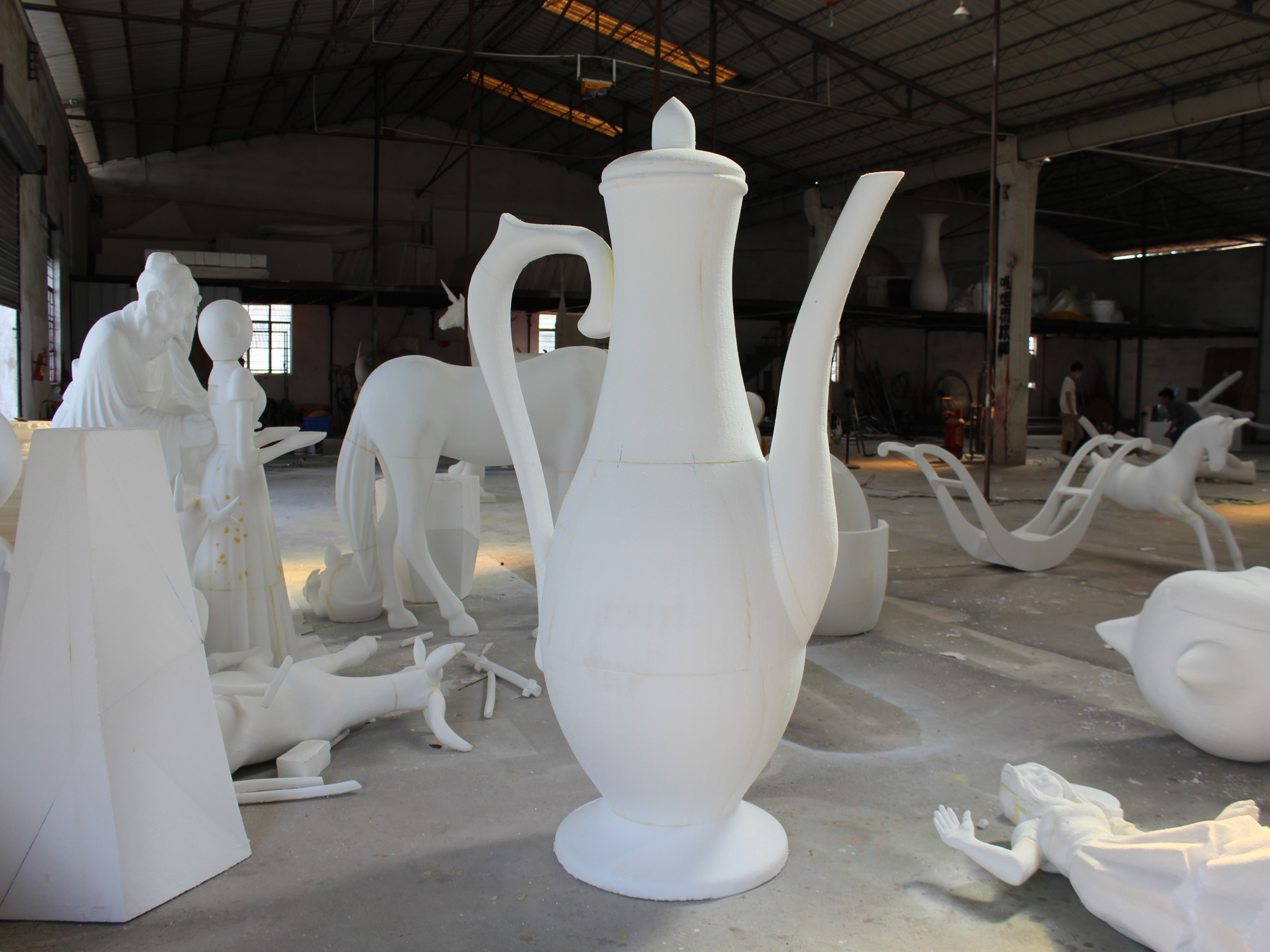

Complex Workpieces
Can realize the processing of complex 3D workpieces such as cylinders, prisms, etc.
Application Industries
Application Industries Showcase

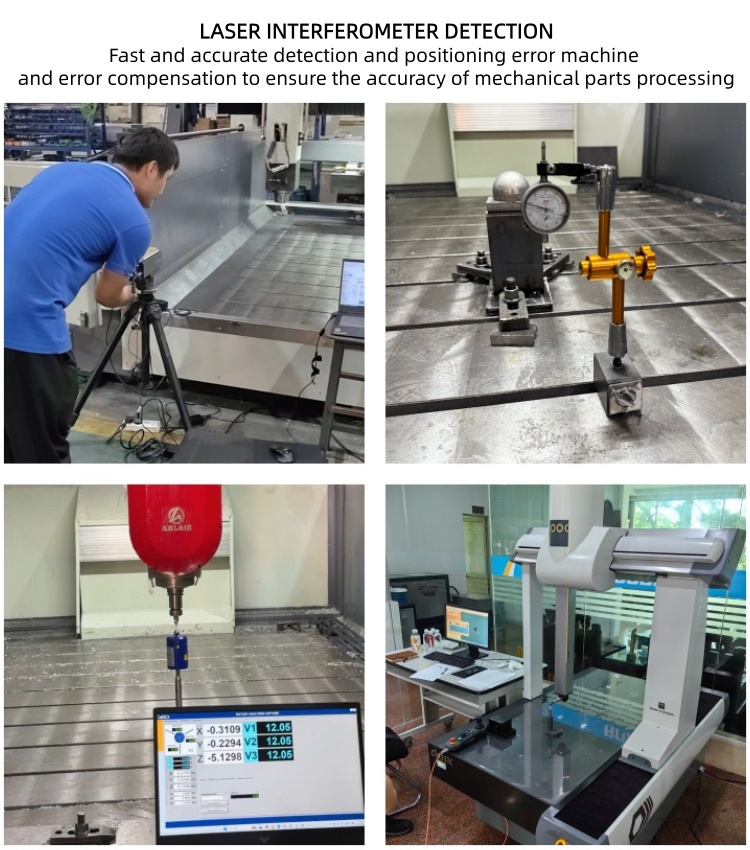

Quality Testing
Quality Testing Benchmarks
Company Profile
With over 30 years of specialization, we are dedicated to manufacturing and exporting high-quality machinery worldwide. Our facility spans more than 80,000 square meters and employs over 200 skilled workers. The company has obtained numerous international certifications, including ISO, and holds more than 40 patents. Our machines have been exported to over 100 countries and regions, and we provide long-term overseas technical guidance and after-sales service to these markets. We adhere to the business philosophy of "Quality First, Service Foremost, Continuous Improvement, and Innovation to Meet Customer Needs." This is backed by a strict quality control system with over 24 steps in our testing process. We sincerely look forward to collaborating with partners from around the globe for mutual growth and success.

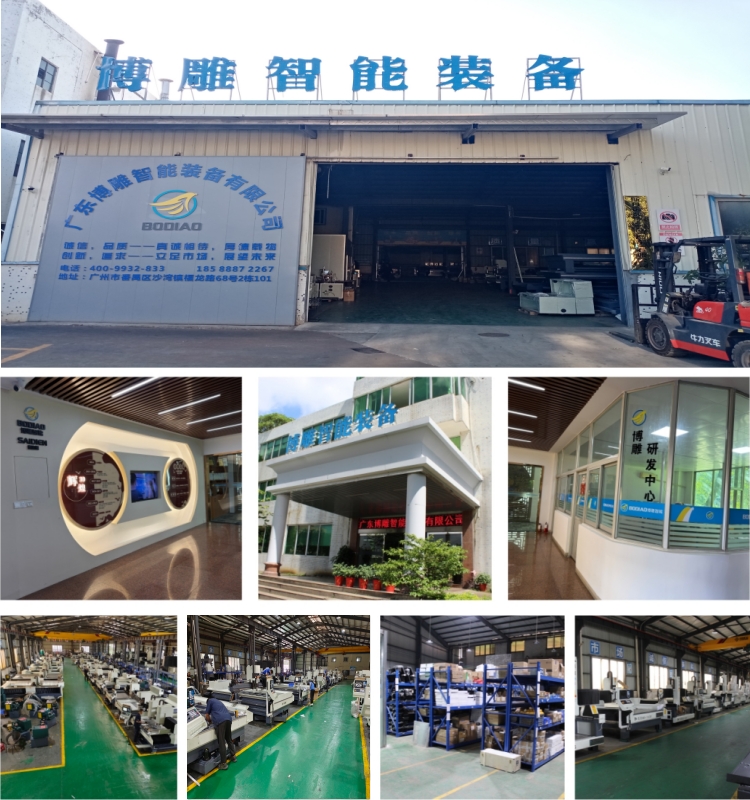

Factory Overview
Production Line
Storage Yard
Product packaging
Product Packaging Method
FAQ
How to choose the most suitable machine?
Please tell us your material specifications, and we can choose the best model for you, or you can choose the exact model. You can also send us the product drawings, and we will select the most suitable machine for you.
What are the main products available?
We specialize in various CNC equipment, such as CNC machine tools, gantry machining centers, metal engraving machines, three-axis/four axis/five axis engraving machine equipment, foam engraving machines, and so on.
What is the standard quality inspection system before delivery?
All machines follow a strict quality control system with over 24 individual steps in our testing process, ensuring optimal performance and consistency before shipment.
What needs to be confirmed before placing an order?
Please confirm the required voltage, frequency, plug type, and the corresponding trade terms with us before finalizing the order.
Can I place a small order?
Yes, the minimum order quantity for our products is 1 unit. Pricing may vary depending on different order quantities.
What are the payment terms?
Our payment terms are 30% initial payment upon ordering, and the remaining 70% balance payment before shipment.
