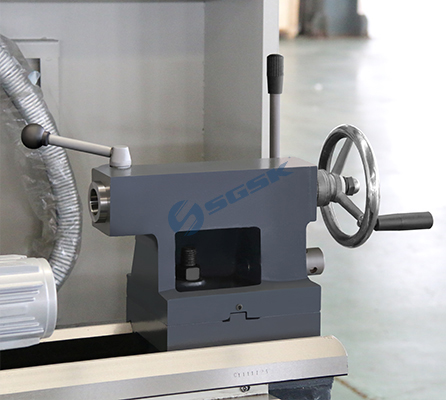

Standard: Manual tailstock
Optional: Hydraulic or Pneumatic type tailstock.

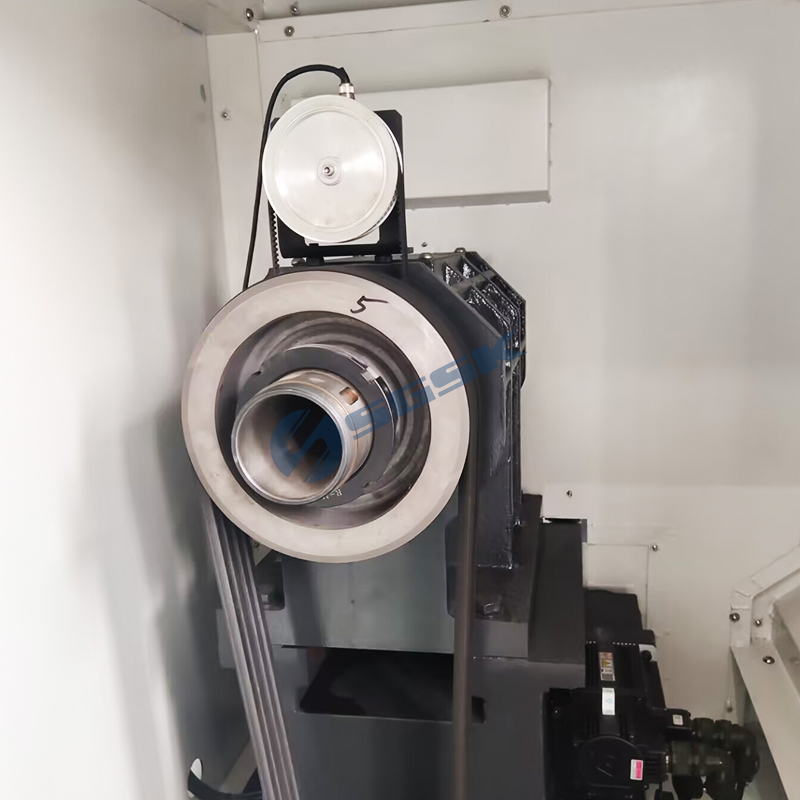

Stepless spindle speed.

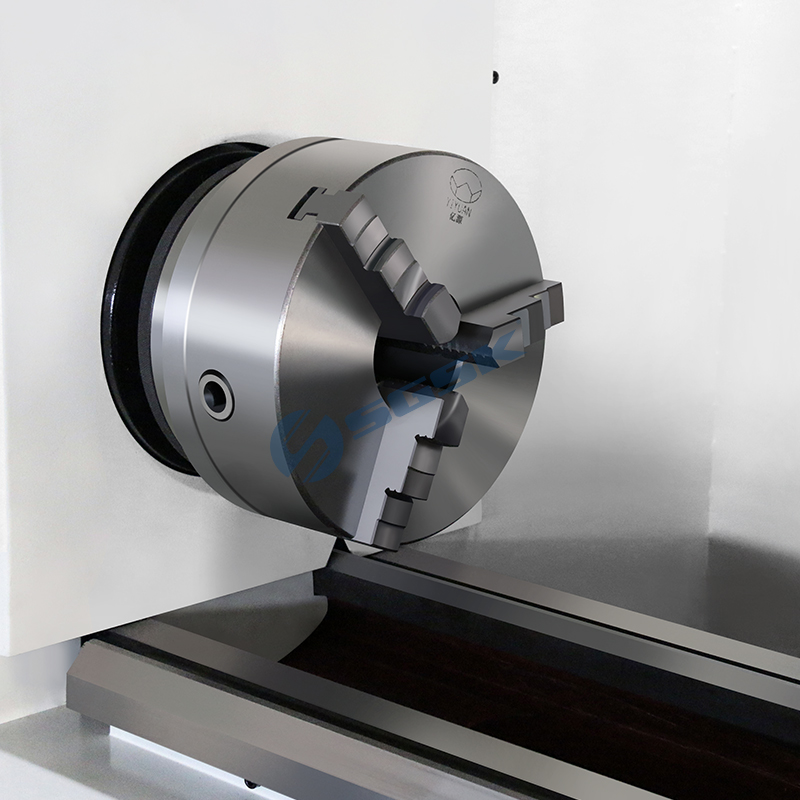

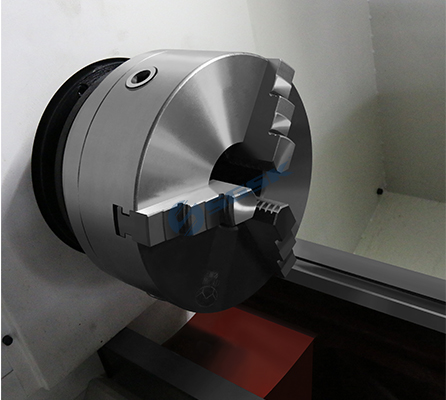

1. Standard: Manual chuck.
2. Optional: Hydraulic chuck, pneumatic chuck or 4-jaw chuck.

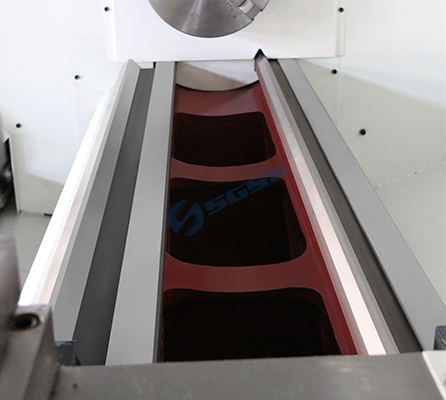

1. Super audio quenching guide rail,
2. Guide rail hardness HRC52,
3. Double mountain guideway.

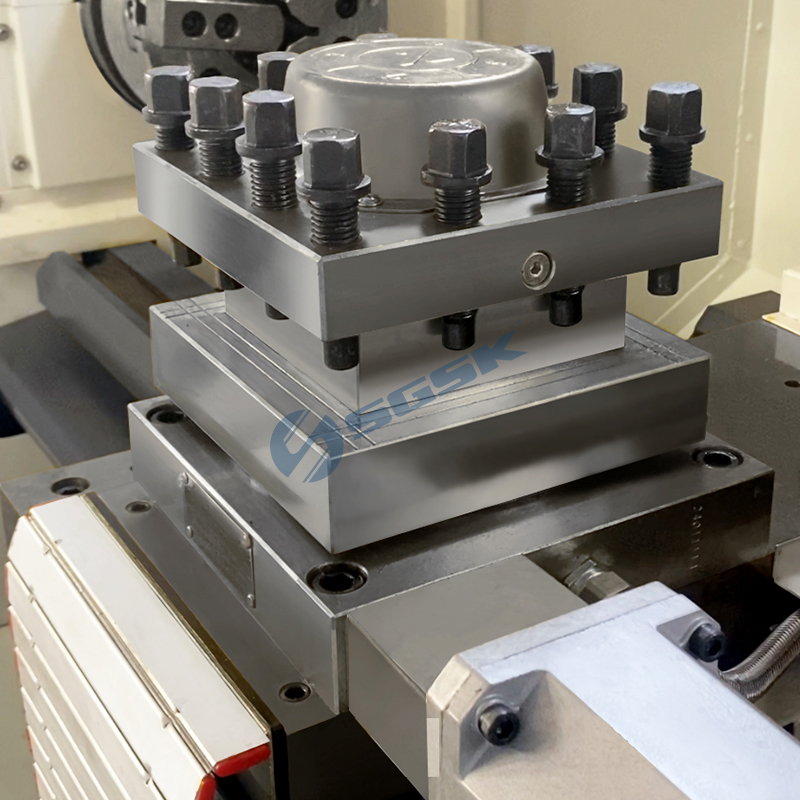

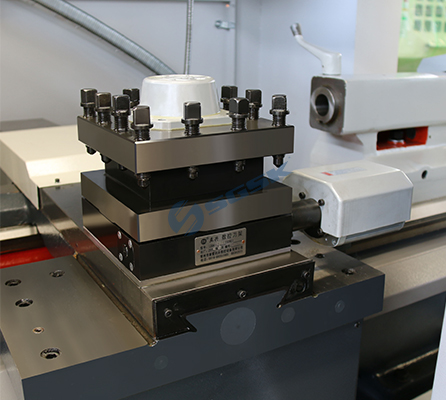

1. Standard: 4 position electric tool post
2. Optional: 6 position electric turret.

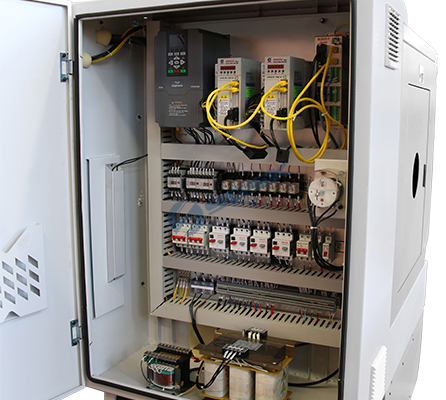

1. Standard: DELIXI brand,
2. Optional: Schneider, Siemens.

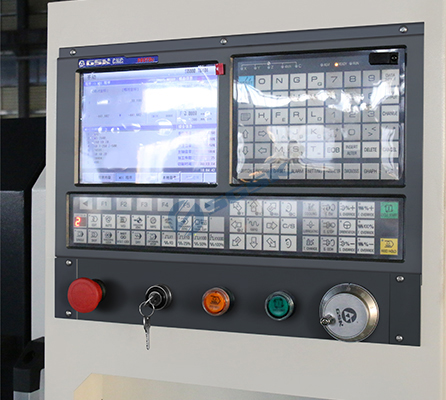

Standard: GSK / KND control
Optional: Siemens, FANUC, Syntec etc.

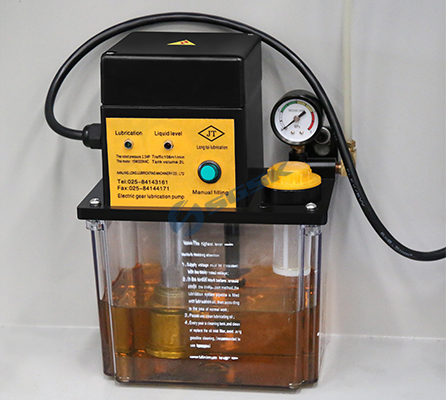

Automatic centralized lubrication device.

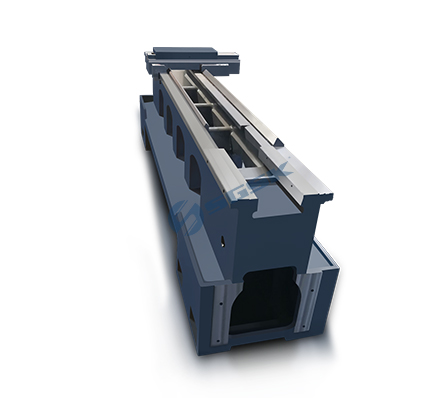

High strength high quality cast iron construct.

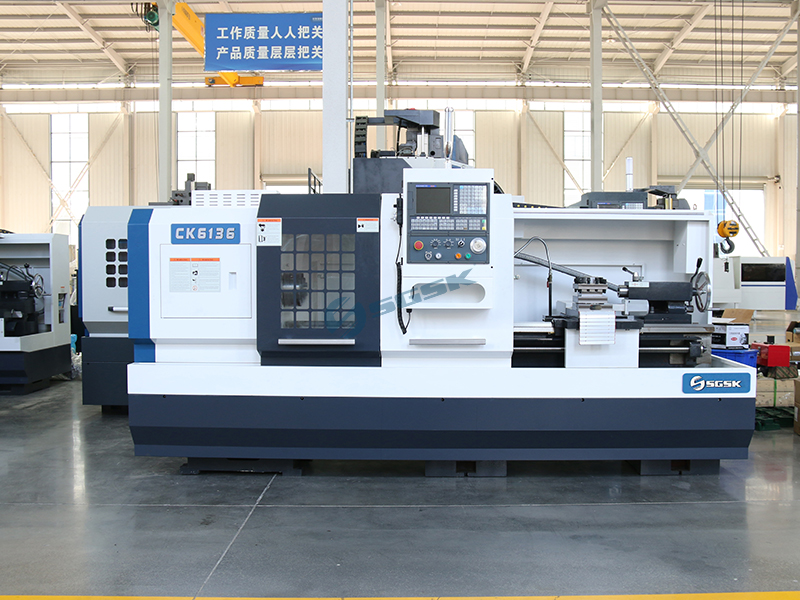

| SPECIFICATIONS | Units | CK6136 | CK6140 | CK6150 | CK6160 |
|---|---|---|---|---|---|
| Swing over bed | mm | 360 | 400 | 500 | 600 |
| Swing over cross slide | mm | 190 | 210 | 260 | 350 |
| Distance between centers | mm | 750/1000/1500/2000 | 750/1000/1500/2000 | 750/1000/1500/2000 | 750/1000/1500/2000 |

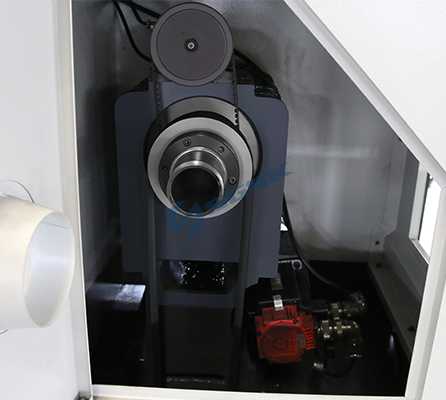

| Spindle bore | mm | 52(Optional 80) | 52(Optional 80) | 52(Optional 80) | 52(Optional 80) |
| Spindle bore taper | - | MT6 | MT6 | MT6 | MT6 |
| Spindle nose type | - | A2-6(A2-8) | A2-6(A2-8) | A2-6(A2-8) | A2-6(A2-8) |
| Spindle speed steps | rpm | Stepless | Stepless | Stepless | Stepless |
| Spindle speed range | 1800 | 1800 | 1800 | 1800 | |
| Turret/tool post | - | Electric 4 position | Electric 4 position | Electric 4 position | Electric 4 position |
| Tool size | mm | 20*20 | 20*20 | 25*25 | 25*25 |
| X axis travel | mm | 180 | 200 | 250 | 300 |
| Z axis travel | mm | 750/1000/1500/2000 | 750/1000/1500/2000 | 750/1000/1500/2000 | 750/1000/1500/2000 |
| X axis rapid traverse | mm/min | 6000 | 6000 | 6000 | 6000 |
| Z axis rapid traverse | mm/min | 8000 | 8000 | 8000 | 8000 |
| Tailstock quill diameter | mm | 65 | 65 | 65 | 65 |
| Tailstock quill taper | - | MT4 | MT4 | MT5 | MT5 |
| Tailstock quill travel | mm | 140 | 140 | 140 | 140 |
| Main spindle motor | kw | 5.5 | 5.5 | 5.5 | 5.5 |
| Coolant pump motor | kw | 0.125 | 0.125 | 0.125 | 0.125 |
| Weight for 750 | kg | 1500 | 1550 | 1600 | 1700 |
| Weight for 1000 | kg | 1600 | 1650 | 1700 | 1800 |
| Weight for 1500 | kg | 1800 | 1850 | 1900 | 2000 |
| Weight for 2000 | kg | 2000 | 2050 | 2100 | 2200 |
| Dimension for 750 | mm | 2200*1600*1650 | 2200*1650*1700 | 2200*1700*1750 | 2200*1750*1800 |
| Dimension for 1000 | mm | 2500*1600*1650 | 2500*1650*1700 | 2500*1700*1750 | 2500*1750*1800 |
| Dimension for 1500 | mm | 3000*1600*1650 | 3000*1650*1700 | 3000*1700*1750 | 3000*1750*1800 |
| Dimension for 2000 | mm | 3500*1600*1650 | 3500*1650*1700 | 3500*1700*1750 | 3500*1750*1800 |
A: MOQ is one set, and warranty is 18 months.
A: FANUC, SIEMENS, MITSUBISHI, LNC, SYNETC, GSK, etc. It depends on your choice.
A: For conventional machines, we will deliver them within 30-45 working days after receiving your deposit. If some special machines are required, the time will be longer accordingly.
A: The machines are standard packed by iron pallets with plastic films.
A: Please let us know your machining demand or machine size, and we can choose the best model for you, or you can choose the exact model by yourself. You can also send us the product drawings, and we will match the most suitable machine.
A: Trade Terms: FOB, CFR, CIF or other terms are acceptable.
Payment Terms: T/T, 30% initial payment when ordered, 70% balance payment before shipment; or irrevocable LC at sight.
