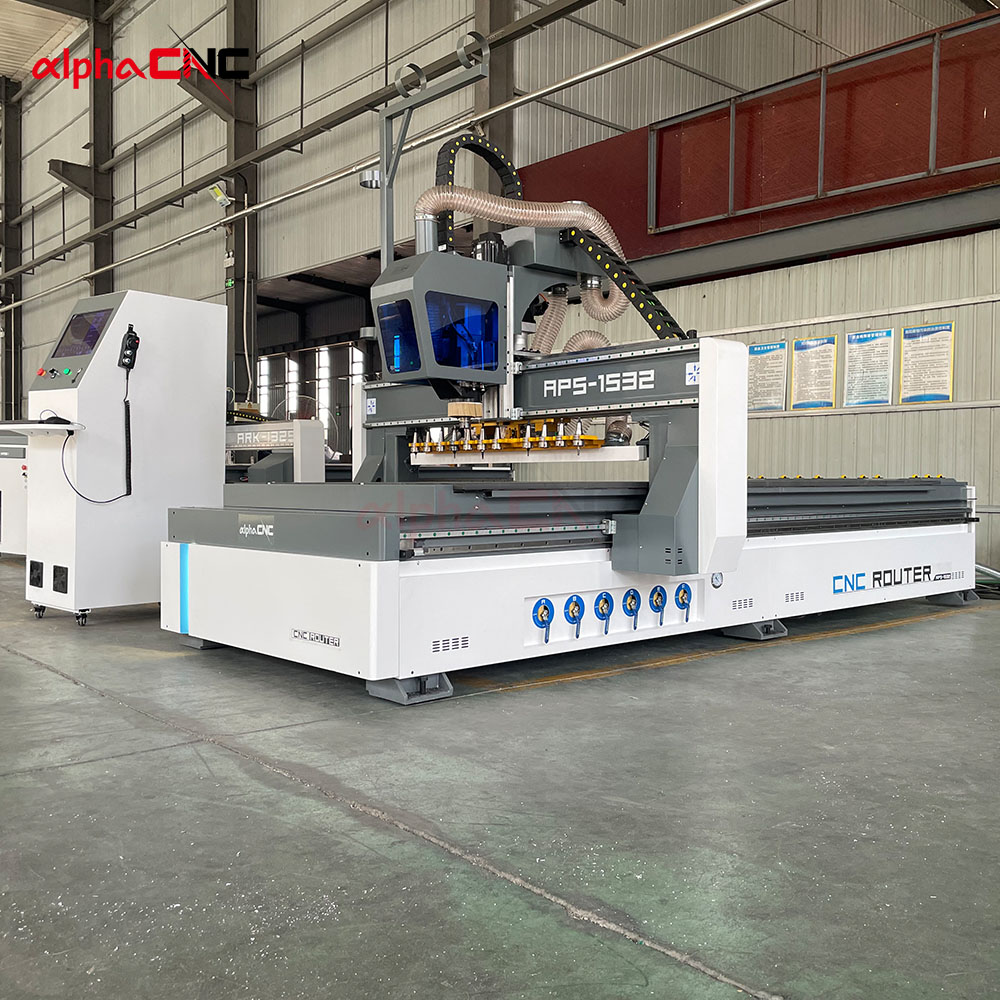

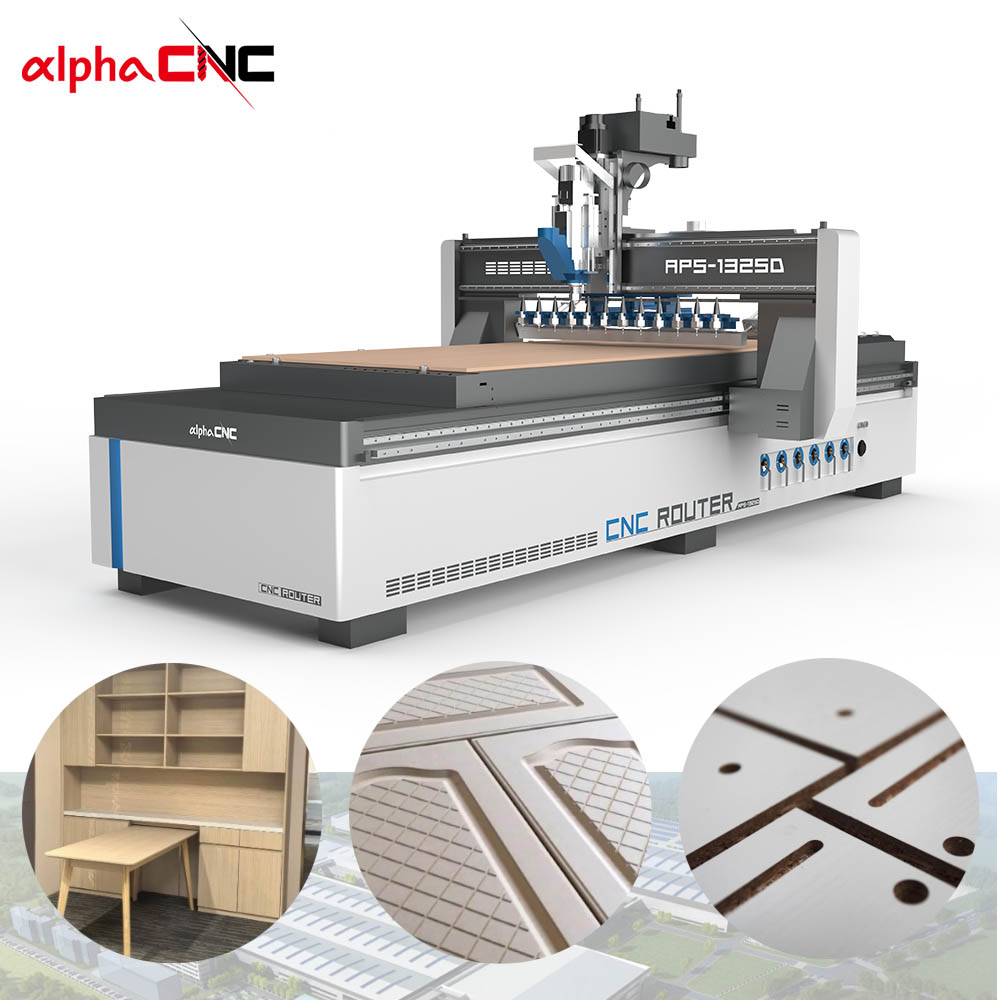

The APS-1325D linear ATC CNC machining center adopts a new large square tube seamless welded bed and widened square tubes, which improves the strength of the bed and worktable. In addition, this nesting CNC machine is equipped with a high-power automatic tool change spindle and a fast linear tool change magazine. This is a CNC wood cutting machine that can process various types of wood.
12-tool linear ATC machine reduces tool change time to <3 seconds, ensuring uninterrupted production and higher efficiency.

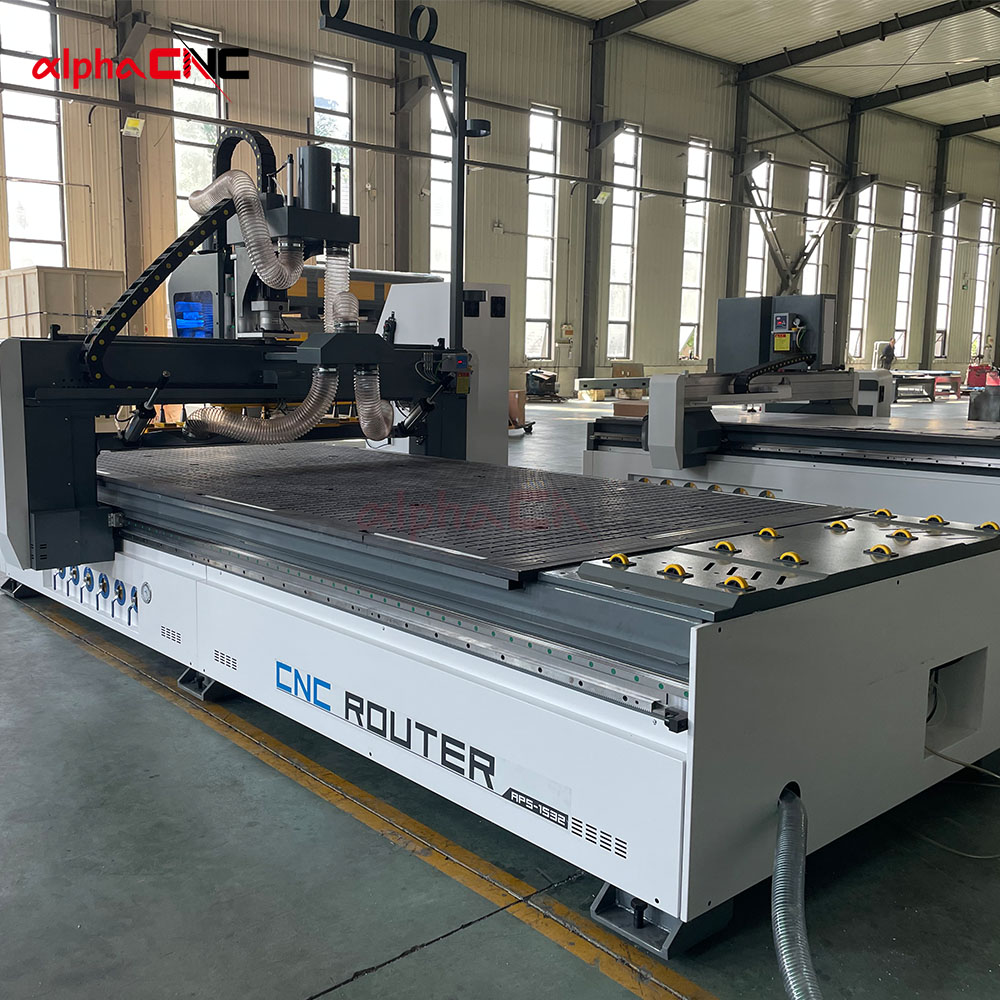

Wood CNC cutting machine, 7-zone vacuum table with individual control valves prevents material slippage during high-speed cutting.
Air pressure detection system automatically stops operation & triggers alarms if pressure drops, protecting critical components. Voltage phase sequence protector prevents machine damage from power fluctuations or incorrect wiring.
| Model | APS-1325D, APS-1530D, APS-2030D, APS-2040D |
| Working area(X-Y-Z) | 1300*2500mm / 1500*3000mm / 2000*3000mm / 2000*4000mm |
| Table structure | Vacuum work table |
| Control system | Taiwan SYNTEC/LNC controller |
| Supported file formats | *.g; *.nc; *.ug; *demo; *.iso; *.eng; *.cut etc. |
| Spindle type | 9kw air-cooling automatic tool change spindle, 24000r/min |
| Inverter | 11kw inverter |
| Motor and driving system | Servo motor drive, Japan SHIMPO reducer |
| Transmission | X, Y axis: Taiwan helical rack; Z axis: Taiwan TBI ball screw |
| Guide rail | Taiwan square rail |
| Lubrication system | Automatic lubrication system |
| Vacuum pump | 7.5 kw Vacuum pump |
| Vacuum cleaner | 5.5kw Double bag vacuum cleaner |
| Tool calibration | Auto tool sensor |

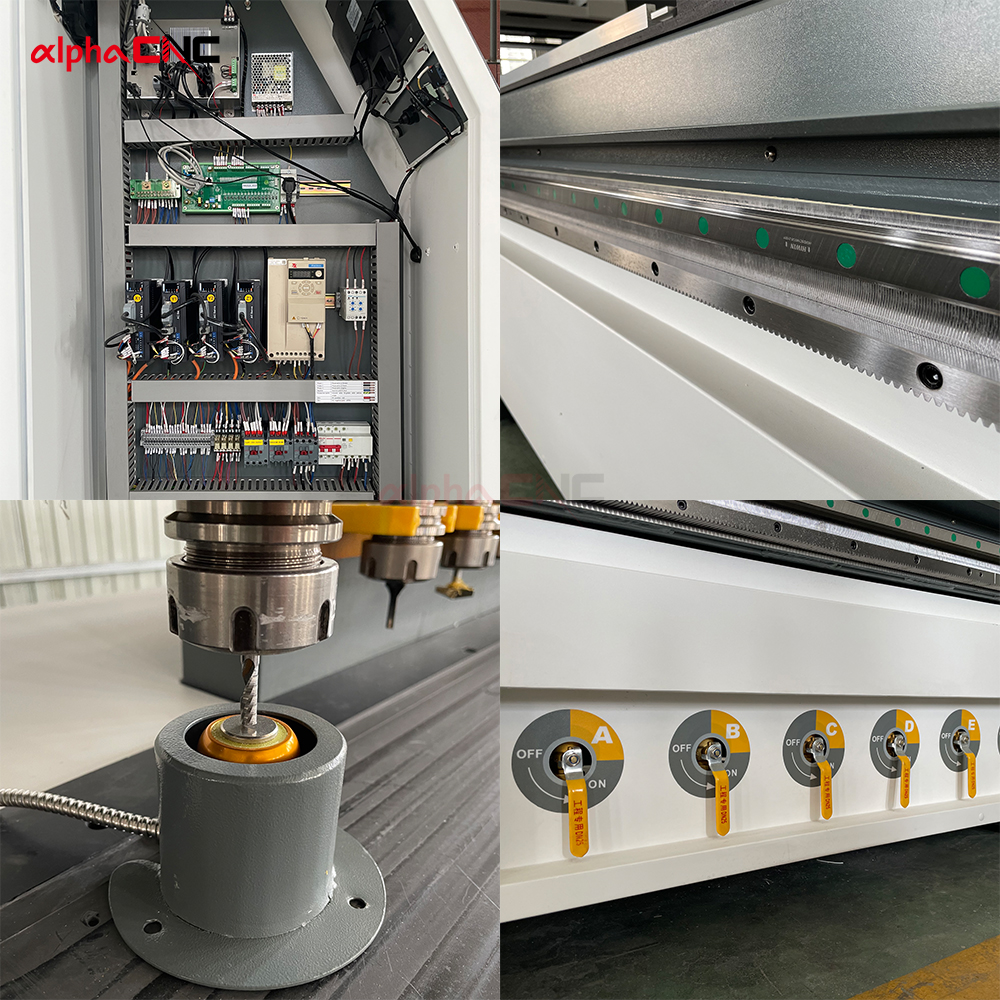

Utilizing high-rigidity linear guide rails from Taiwan, the system boasts a repeatability of ±0.03mm and a three-year accuracy retention rate exceeding 95%. It boasts a maximum operating speed of 80m/min and is exceptionally durable.
This product is made of high-quality alloy steel and features excellent wear resistance and impact resistance. The linear accuracy reaches 0.1 millimeters per meter, and the repeatability error is ±0.03 millimeters, ensuring precise and stable operation.
Utilizing a high-performance servo motor with strong instantaneous overload capacity, it easily handles high-load machining demands. Positioning accuracy reaches ±0.1mm, and repeatability accuracy reaches ±0.03mm, perfectly capturing fine engraving details.

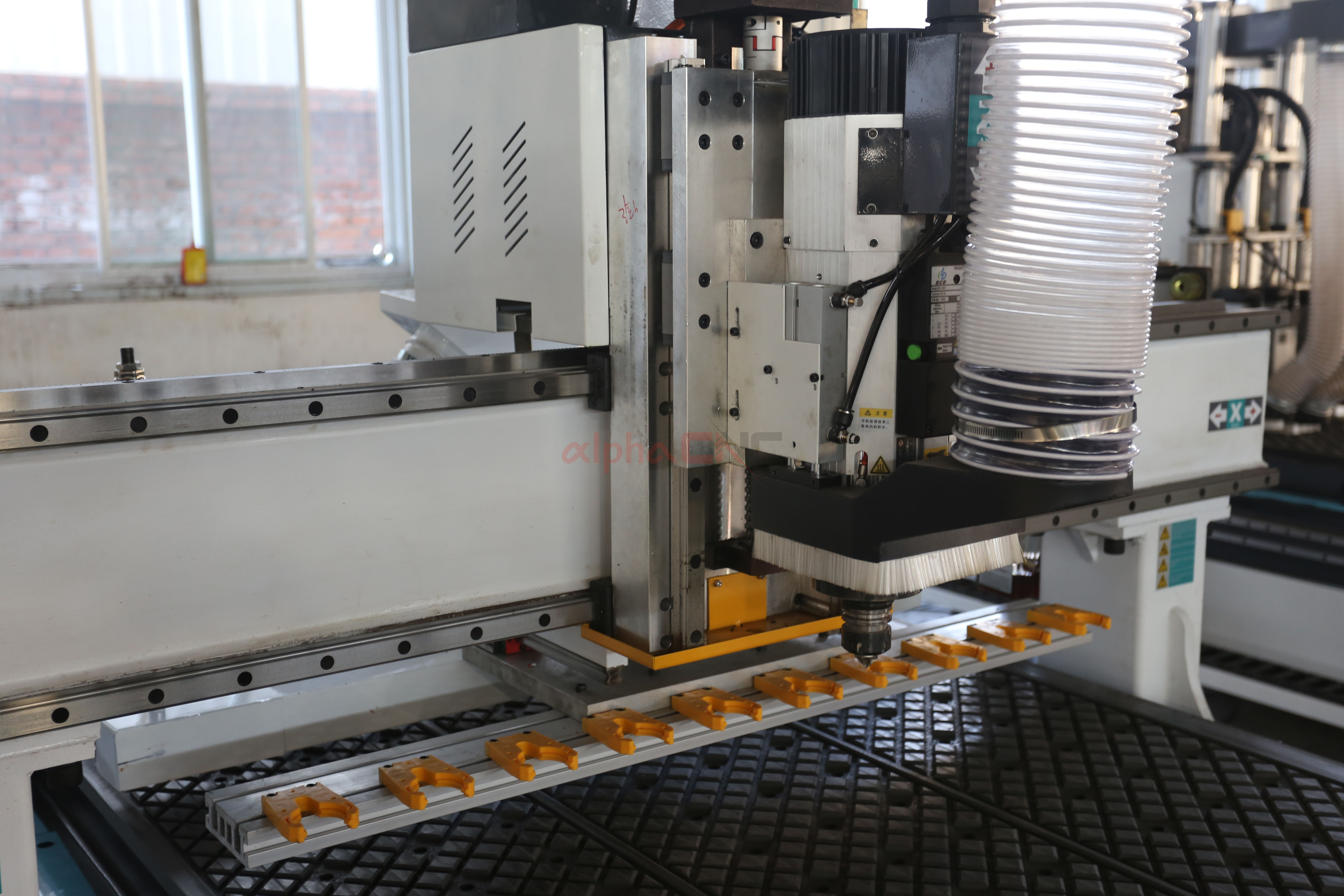

This high-precision spindle can rotate at a speed of up to 24,000r/min. It can effortlessly cut hardwood, medium-density fiberboard, acrylic and other materials. The fast tool change speed and the stable positioning accuracy of ±0.01 millimeters have enhanced the processing efficiency.
The high-performance Taiwan SYNTEC/LNC numerical control system features rapid processing speed and responsiveness, enabling the execution of high-precision woodworking processes such as solid wood engraving and panel furniture, without any delays or stalling.

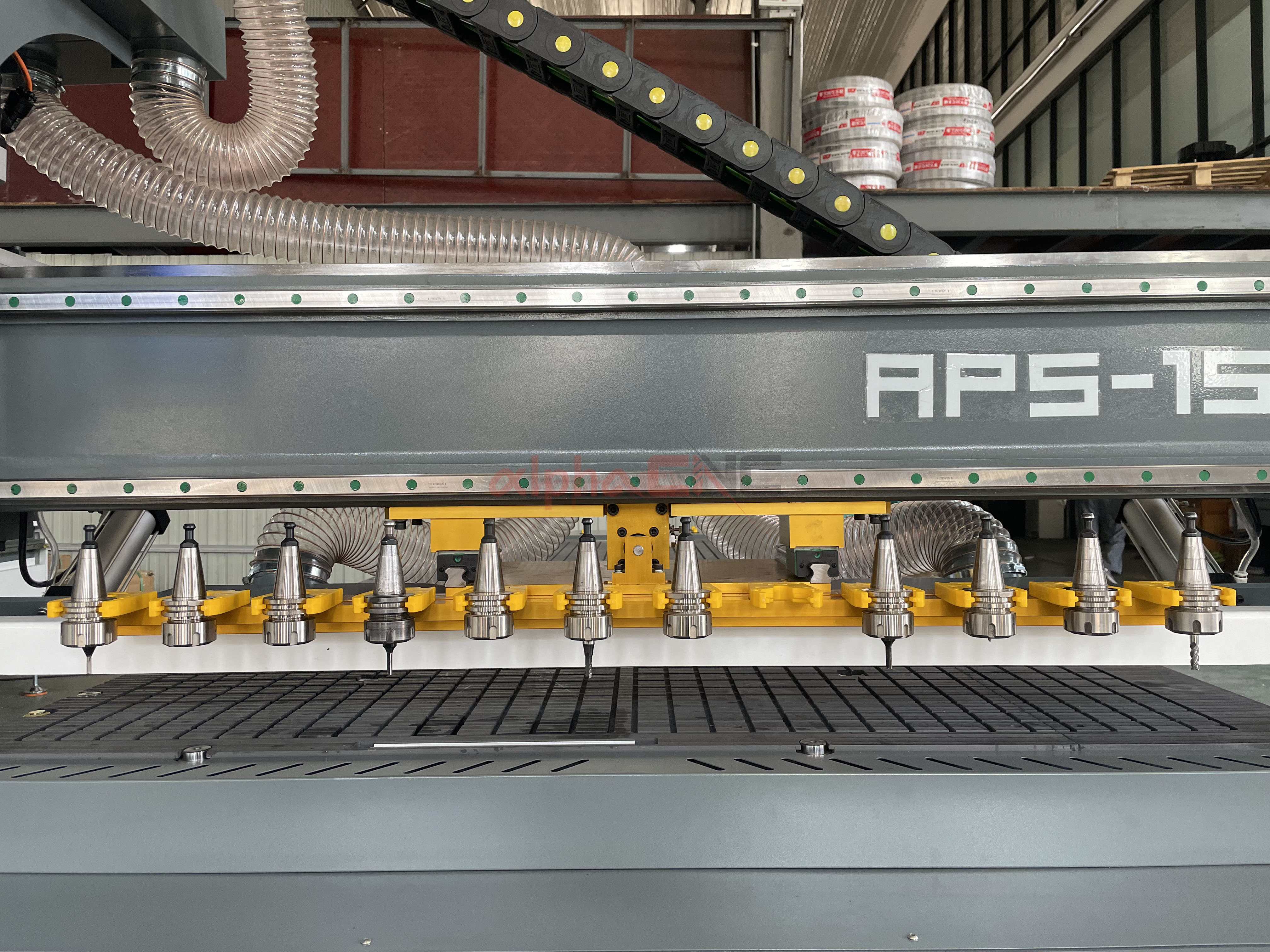

The rear-mounted linear tool storage device design enables the replacement of tools to be completed in just 2 to 3 seconds. It is compatible with various tools and can process multiple workpieces simultaneously, thereby increasing production efficiency by over 30%!
We also offer other types of woodworking engraving machines to meet your various production needs. If you have any other functional requirements, please contact us by sending an inquiry. Our customer service will provide you with professional assistance.
