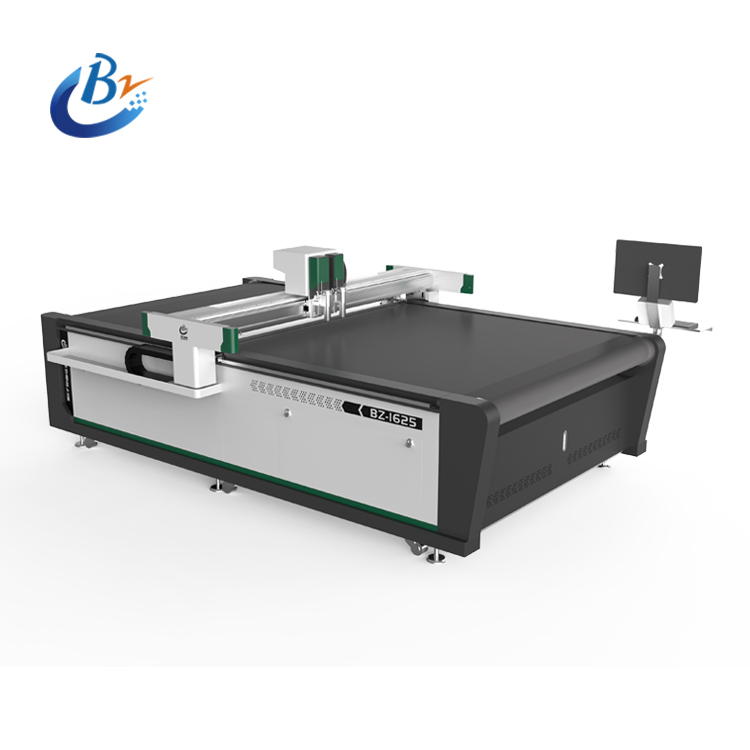

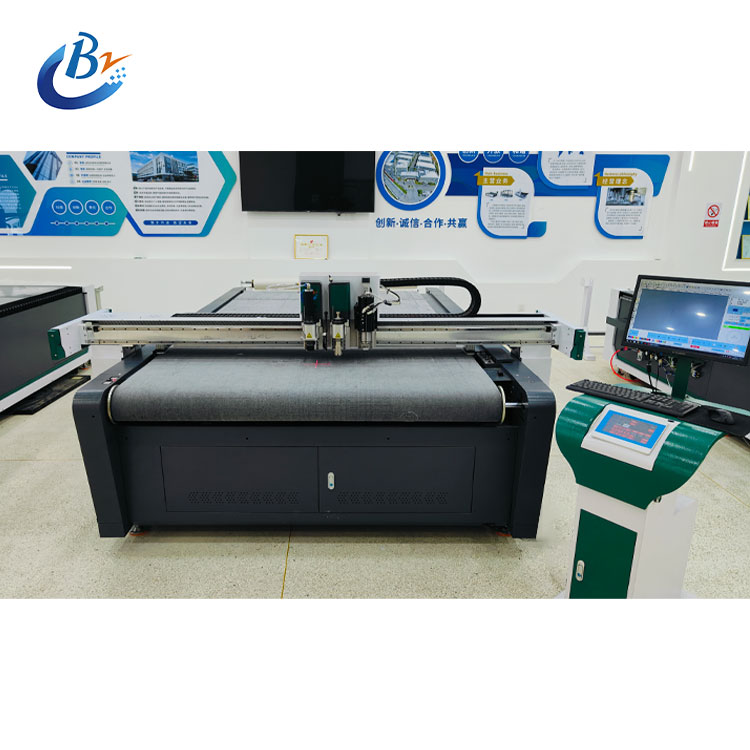

APPAREL AND TEXTILE AUTOMATIC CNC KNIFE CUTTING MACHINE
| Model |
BZ-SQ1625 (Size can be customized) |
| Effective working area |
1600x2500mm |
| Multi-function tool |
Vibrating knife full cut, semi-cutting cut, indentation, drawing mark, cursor positioning, camera positioning edge cutting, high power round knife |
| Safety devices |
Safety devices use infrared sensing, safe and reliable |
| Cutting speed |
200-2000mm/s |
| Cutting thickness |
≤50mm Other thicknesses can be customized according to the material |
| Applicable materials |

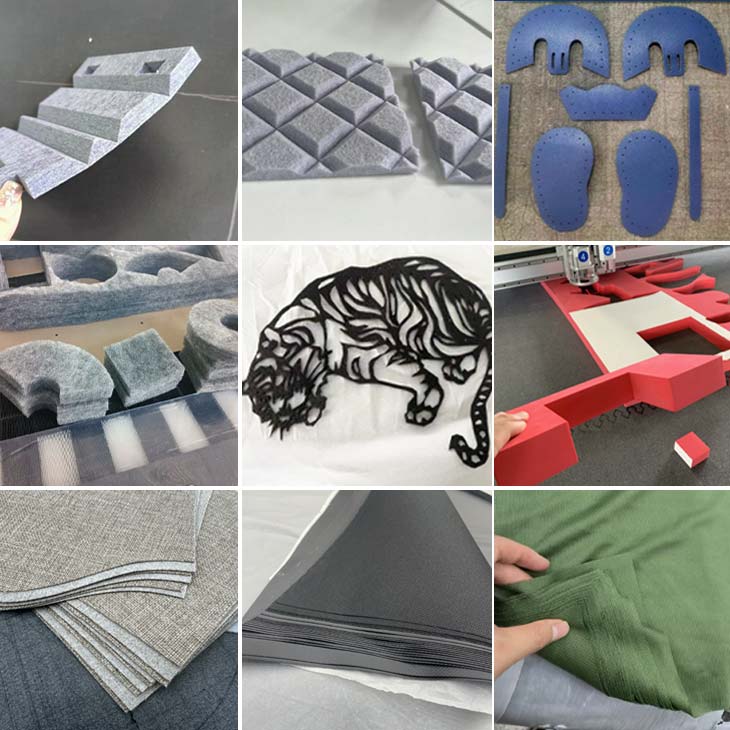

Fabric/ Cardboard/ Paper/ Mats/ PVC/ EVA/ Leather/ Acrylic/ Foam/ XPE, Etc |
| Material fixing method |
Vacuum partition adsorption |
| Transmission port |
Network port |
| Transmission system |
Panasonic servo motor, linear linear guide, timing belt, lead screw |
| Rated power |
11kw |
| Rated voltage |
380V±10%/220V±10% Optional |
| Control System |
Chinese and English LCD touch screen |
| Operating environment |
Operating environment Temperature 0-40°C Humidity 20%-80%RH |
| Support file format |
AI, PLT, DXF, CDR etc |

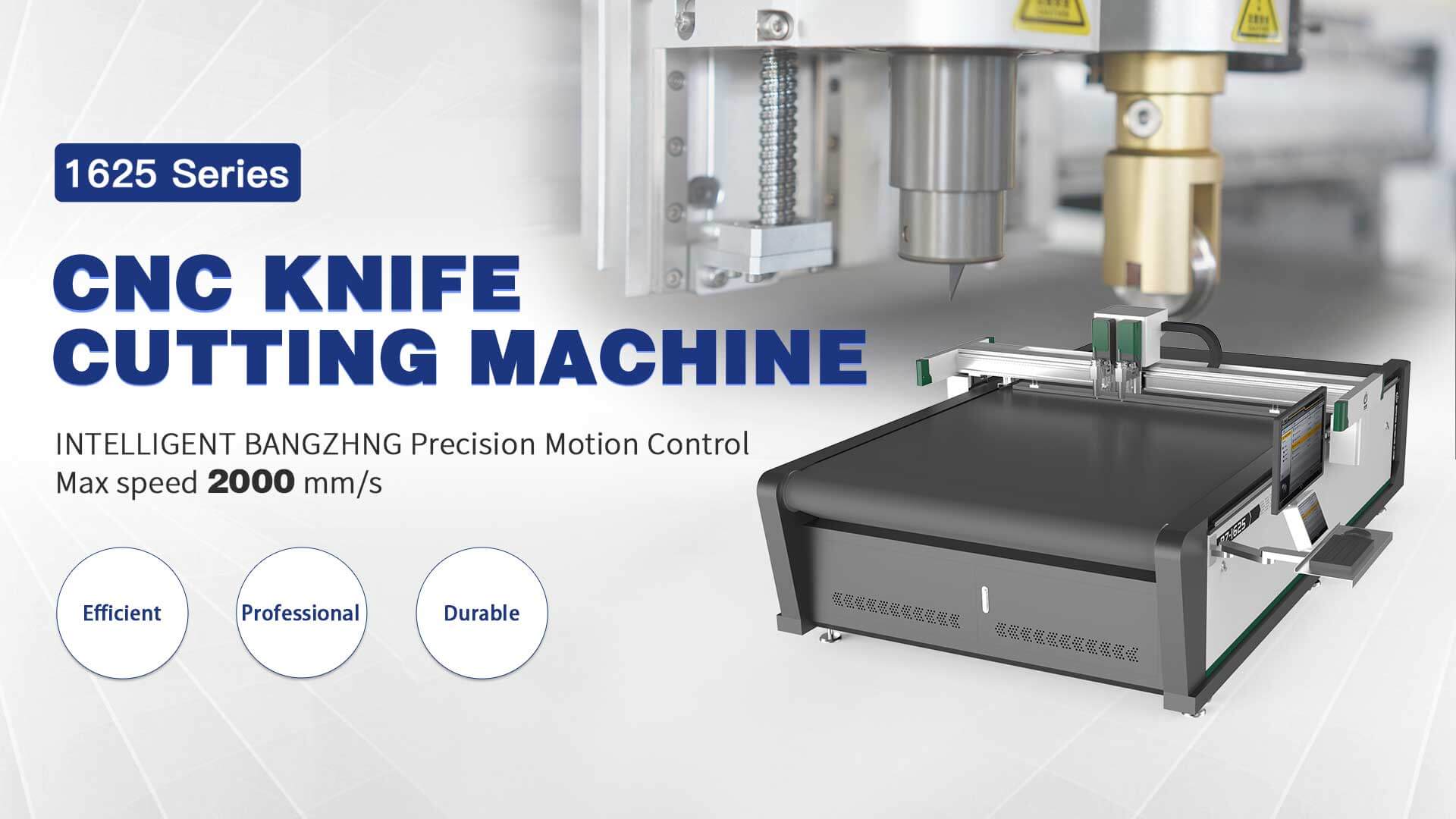

Automatic CNC knife cutting machine
➢
1. Intelligent graphic layout software, it can achieve any shape you want to cut, material utilization rate 98%.
➢
2. High speed and quality, capable of achieving a cutting speed of 1.5 m/s, completely liberating manpower.
➢
3. Smooth cutting without burrs, no pollution and no noise.
➢
4. High precision of cutting shapes and control cutting errors within 0.1mm.
➢
5. For cutting different materials 8 types of heads are available.
Multi-functional Tools Options
1. BZ-POT: High frequency pneumatic cutting tool for cutting hard and dense materials, the blade can cut materials up to 50 mm thick.
2. BZ-PRT: Powerful Driven Rotary Tool for cutting textiles.
3. BZ-EOT: Oscillating knife for cutting soft and medium-density materials.
4. BZ-UCT: Universal cutting tool for high-speed, cost-effective cutting of materials up to 5 mm thick.
5. BZ-VCUT: The V-cutting tool is ideal for making complex structural designs of foam core or sandwich panel materials. The tool can be set to different cutting angles of 0°, 15°, 30°, 45°.
6. BZ-CTT: CTT tools for creasing corrugated materials. For use in the packaging industry.
7. BZ-KCT: Kiss Cut Tool, for cutting vinyl, foil, films, thin paper, cardboard and other thin materials.
8. BZ-RZ: The router operates at speeds up to 60,000 RPM, and delivers solid performance on a wide range of rigid and flexible materials.

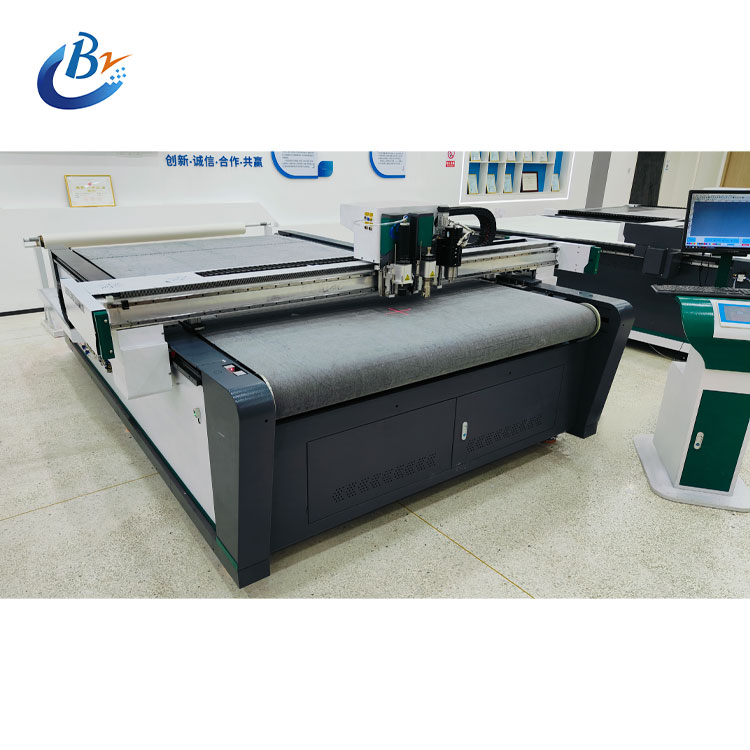

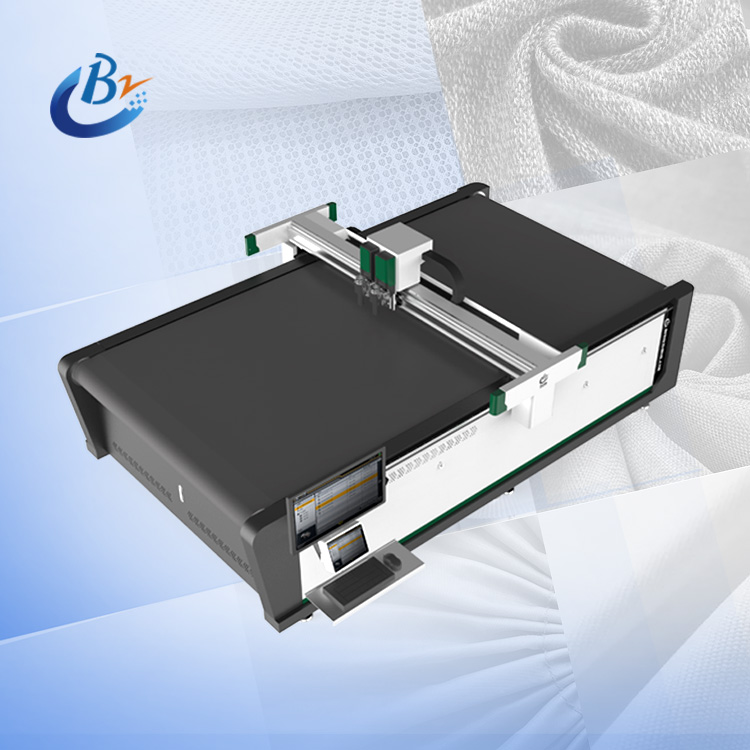

Garment Fabric CNC Vibrating Knife Cutting Machine
Our fabric cutting machines are known for their exceptional versatility and can easily handle a variety of fabric types, thicknesses and densities. The machine is popular for its ability to accurately cut fabrics of complex shapes, patterns or designs, whether it is a delicate pattern or a large design, it can easily handle it.
Designed for industries that require high-quality and precise cutting. Its unique safety, stability, speed and accuracy ensure that every cut meets the highest standards. Not only that, it also has powerful functions such as strip, grid and pattern alignment, cutting net collars, cutting linings and secondary precision cutting.

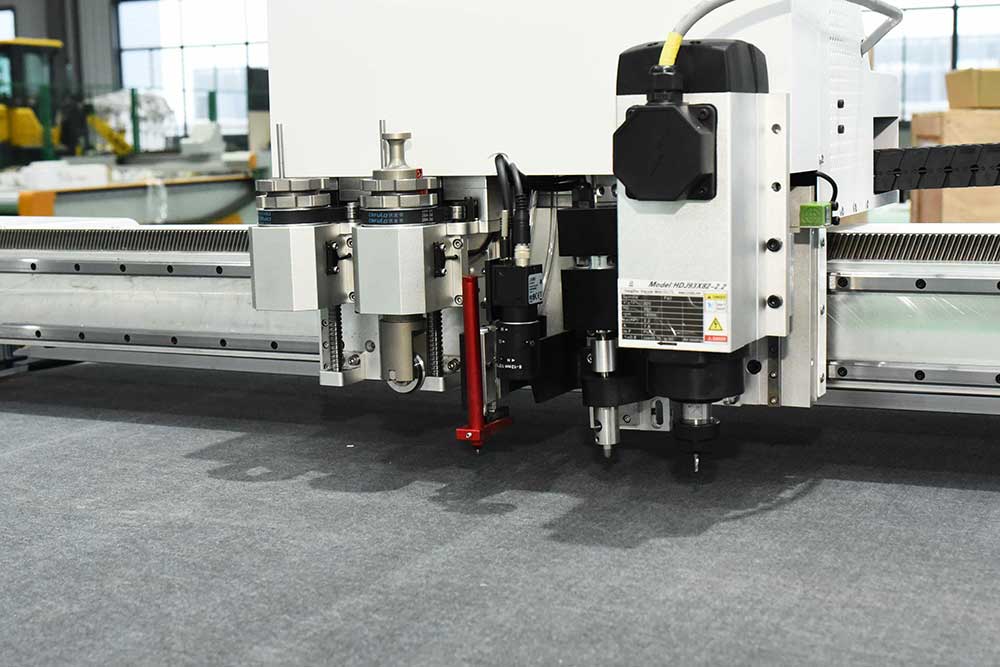

New modular tool design
Installing tools much more easier. For different cutting materials, suitable cutter heads can be selected for intelligent cutting.
Aviation-grade aluminum profile tabletop
The newly upgraded internal air suction structure ensures uniform air suction in all areas of the platform, more powerful air suction, and smooth cutting.
Intelligent CNC control system
Upload the design drawings to the CNC machine's control system, configure cutting parameters according to different materials, support global multi-language operation, and lifetime free system upgrades.

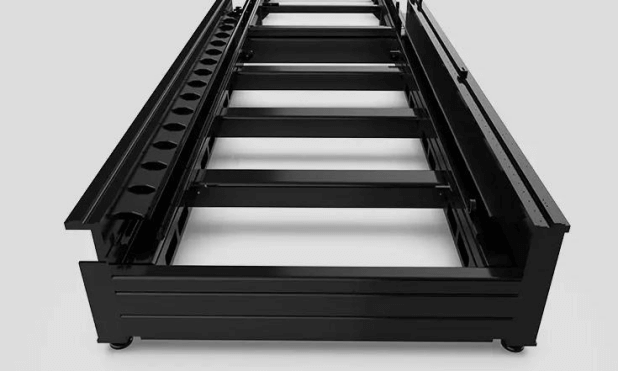

Lathe bed structure
The high-strength integrated frame is processed by imported milling machines to ensure the smoothness of the guide rail, greatly improving the stability and accuracy of the cutting process.

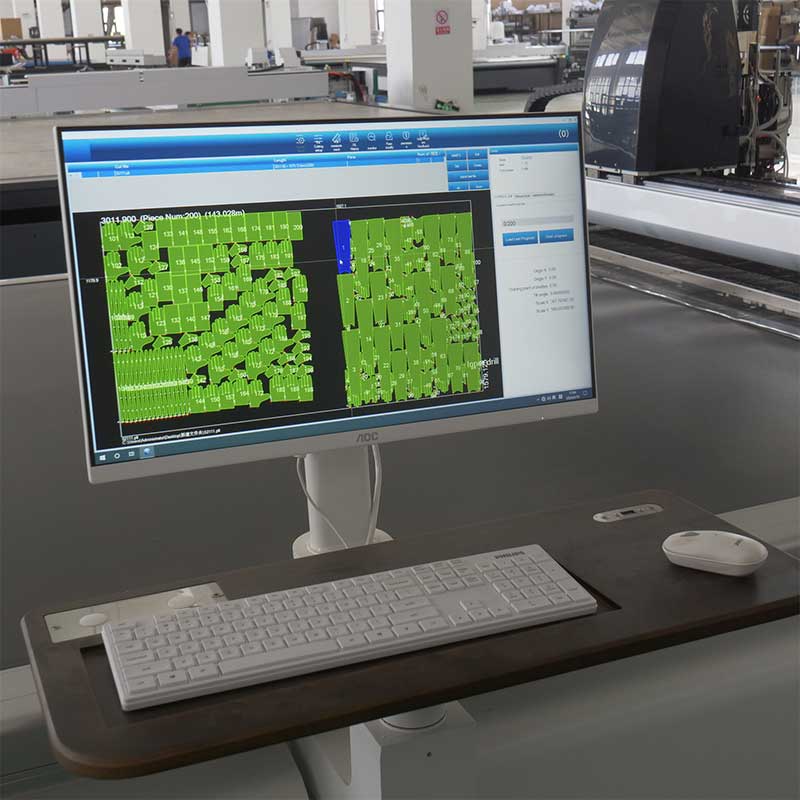

CAD/CAM Software
Professional CAD/CAM software, efficient material layout, easy operation, labor-saving, enjoy free upgrades and lifelong training.
Rack and Pinion Transmission
The equipment adopts rack and pinion transmission compared with belt transmission, which has large bearing capacity, high transmission accuracy, fast transmission speed and long service life.

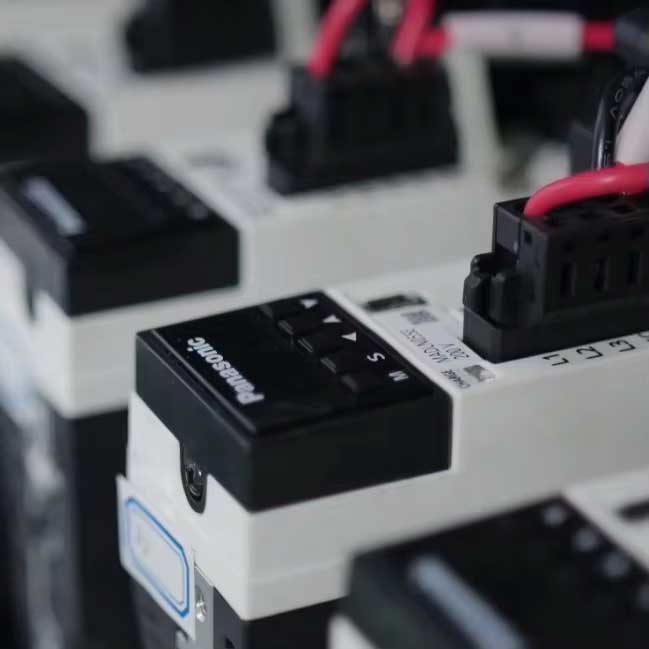

Panasonic Servo Motor
Panasonic servo motor, powerful, cutting machine equipped with 4-5 motors working simultaneously, cutting speed ultra fast, precise control.

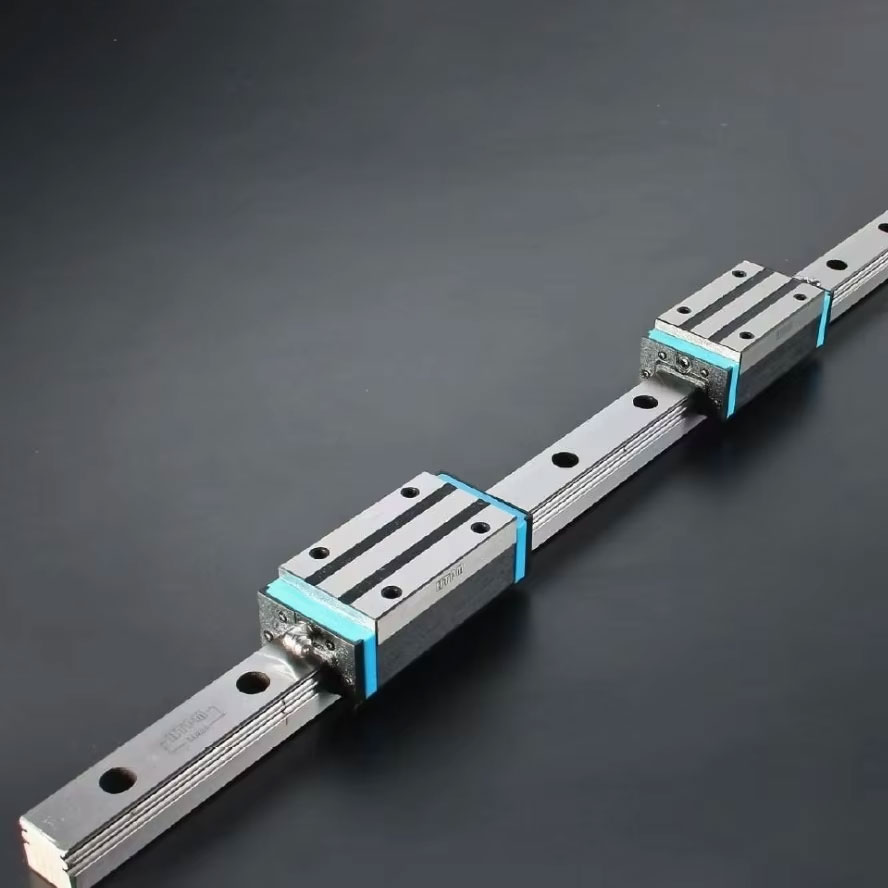

Taiwan's HIWIN Guide Rail
HIWIN stainless steel guide rail is non slip and can achieve μm level positioning accuracy; Load capacity can reach over 1 ton, durable and long-lasting.

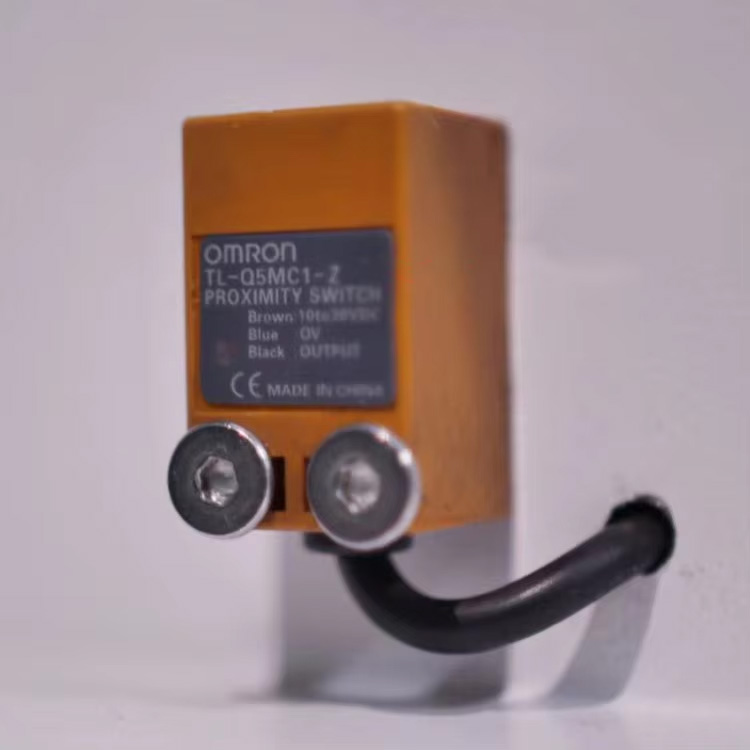

Top International Components
All components come from top international brands such as Delixi, Omron, Siemens, Panasonic, etc., stable and durable, and all enjoy quality assurance.

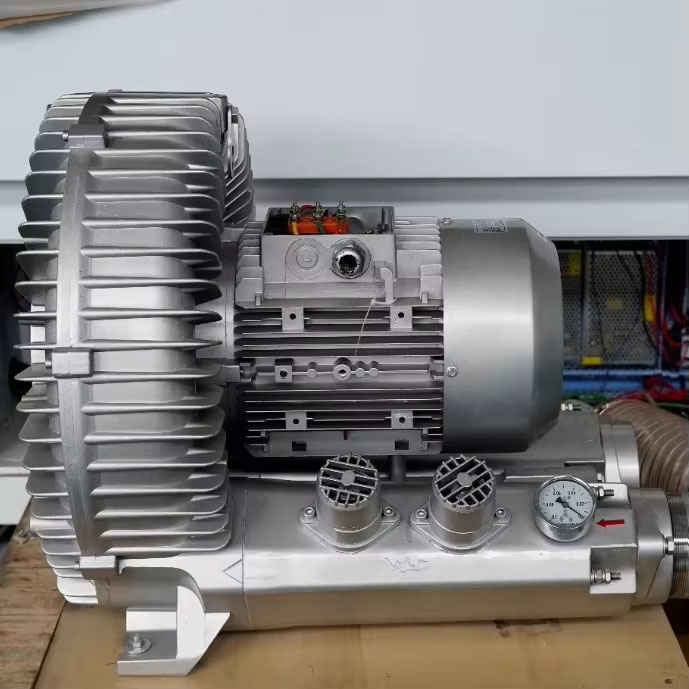

Vacuum Pump
High efficiency max 11KW vacuum pump, capable of continuously variable speed, adjustable adsorption force, and negative pressure in the cutting area up to -22Kpa.
What kind of support you can get:
✔
3 year warranty: Provide a full range of technical support for life.
✔
7 * 24-hour Support: Experienced technicians guarantee lifetime online support. We have enough after-sales staff, so there is no need to worry about technical support caused by time difference.
✔
Installation & Training: Local on-site installation and engineer training, with about 60G of after-sales installation videos provided.

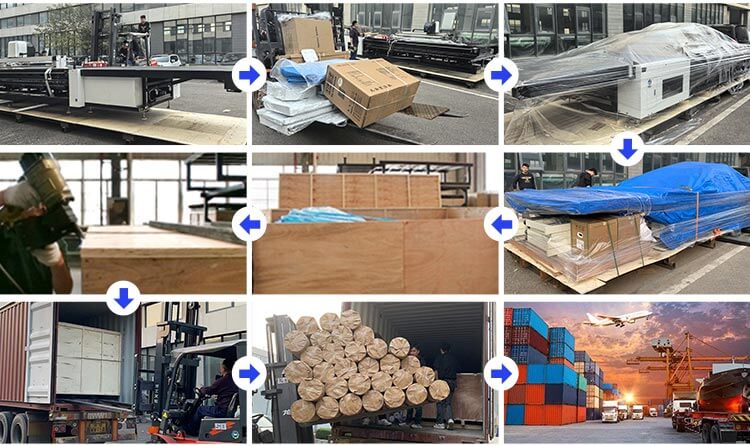

Packaging & Shipping Details
1. Outside package: Standard marine export plywood case.
2. Inner package: Stretchy film and plastic film for humidity protection.
3. Customization: We can package according to your requests.

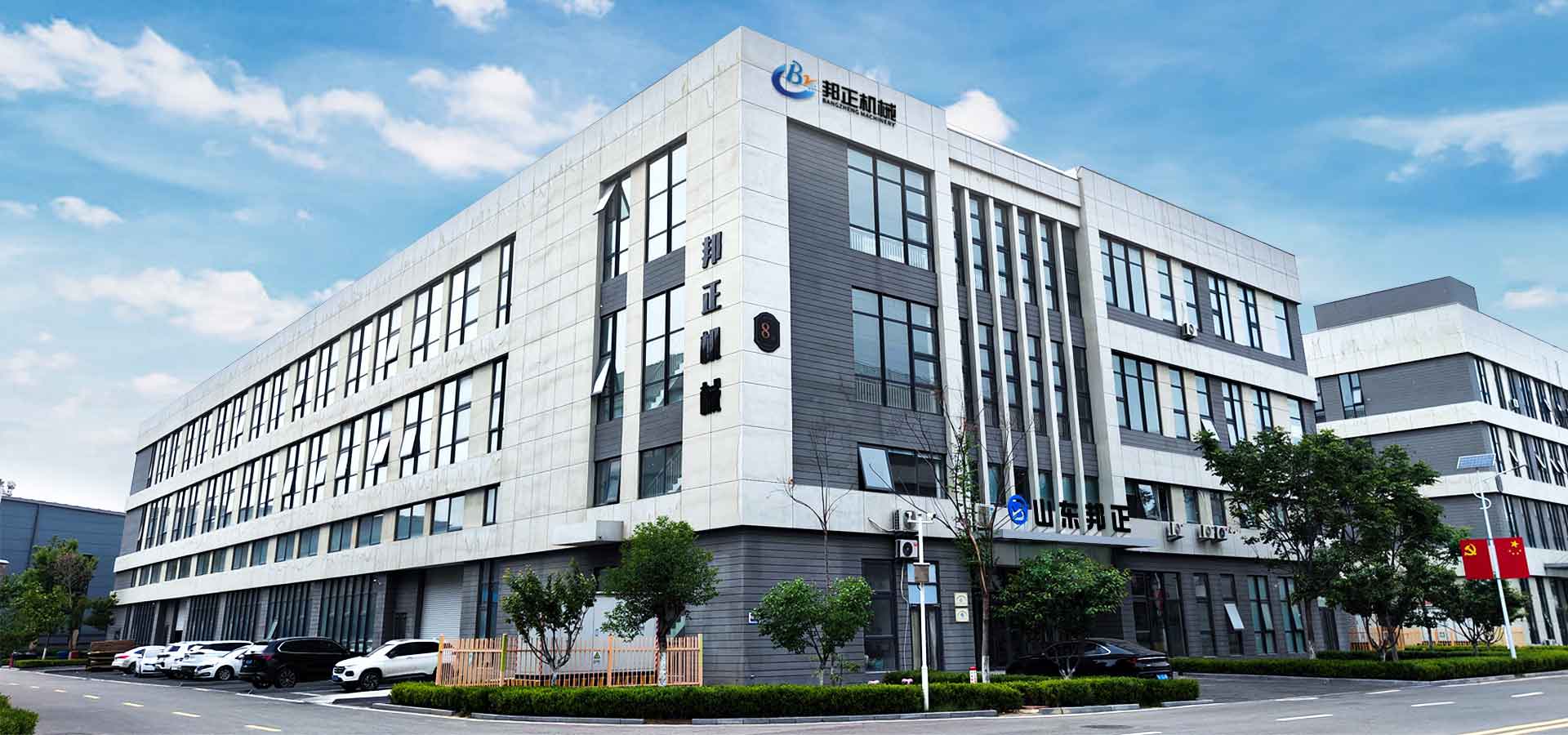

Our Machinery Group covers an area of 20,000 square meters. It is the largest flexible material cutting physical factory in northern China. As a professional manufacturer with many years of industry experience, we have established a good reputation for quality and reliability. We are a comprehensive flexible material cutting solution provider and manufacturer.
There are 30 R&D engineers, 168 production technicians, 53 market service experts, and 39 overseas after-sales engineers. Our products serve more than 80 countries and 1,930 customers around the world, with an annual output value of more than 60 million US dollars.
If you are looking for a reliable cutting solution provider for your business, we are the right choice. Help you solve all production problems.
10+ Years
Experience
24000+
Customer Choice
6 Programs
Quality Inspection
Frequently Asked Questions (FAQ)
Are you a factory or trading company?
We are a factory specializing in the production of cutting machines, with rich technical knowledge. Each of our machines comes with a machine manual and software manual. We store a large number of installation and after-sales videos for your reference, and offer 24-hour online technical support to ensure your machine runs smoothly.
Do you accept customized products?
Yes, our vibratory knife cutting machines can be customized in terms of working size and tooling configurations. The machines are highly stable, reliable, and sold worldwide.
Do you have agents or distributors in our country?
We have users all over the world and are always looking to partner with suitable agents in various countries. If you are interested, please contact us to discuss agent pricing.
What is the delivery process of the machine?
You can choose shipping by air, sea, or land. We will plan the most suitable transportation method for you based on your requirements and budget.
How do I choose the most suitable machine model?
To recommend the best machine, please confirm the following:
1) The maximum width and length of your material.
2) The maximum cutting thickness.
3) The kinds of materials you need to cut.
What kind of warranty and service support do you offer?
We provide a 3-year warranty and a full range of technical support for life. This includes 7*24-hour experienced technician support online via video call or messaging apps, along with comprehensive video databases.
