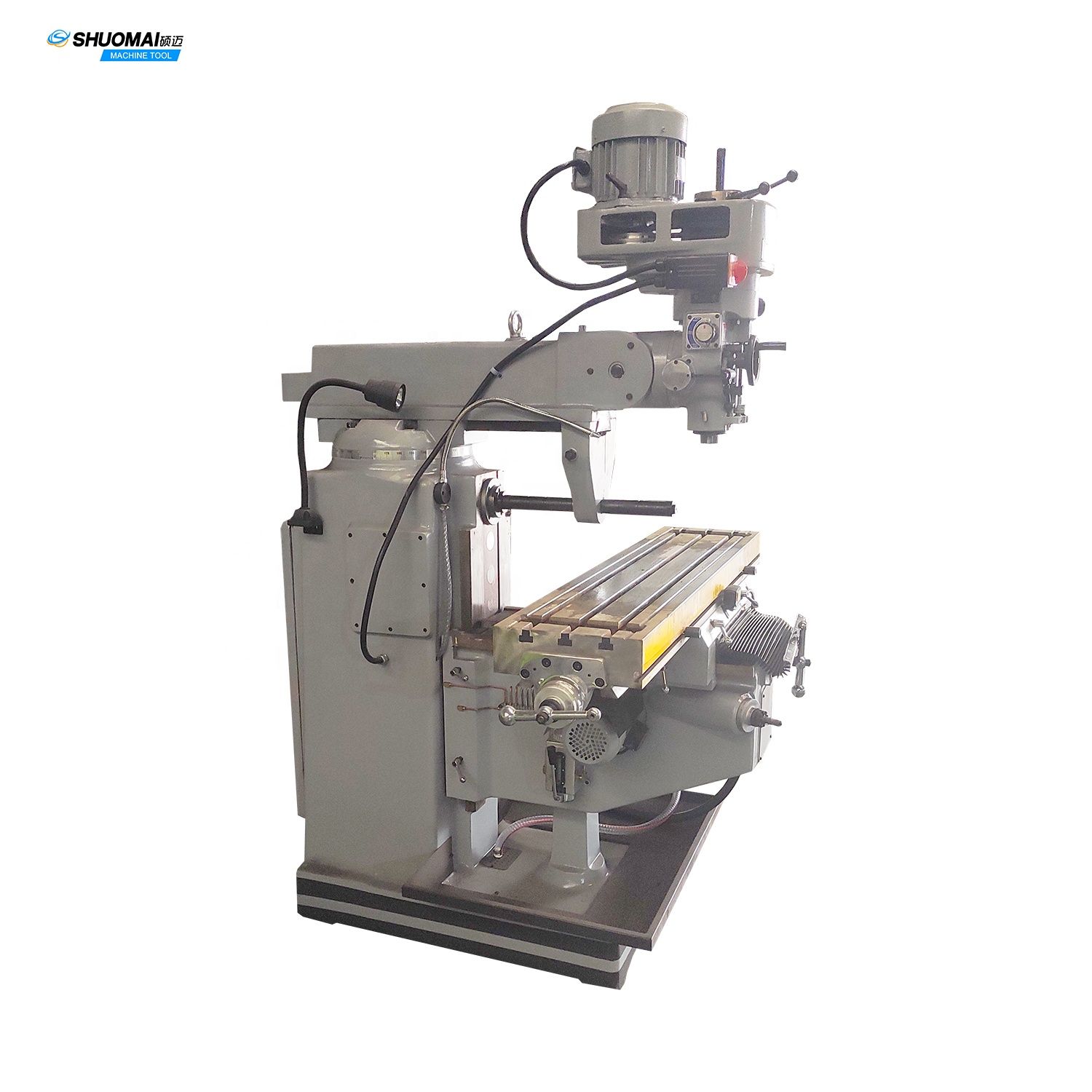

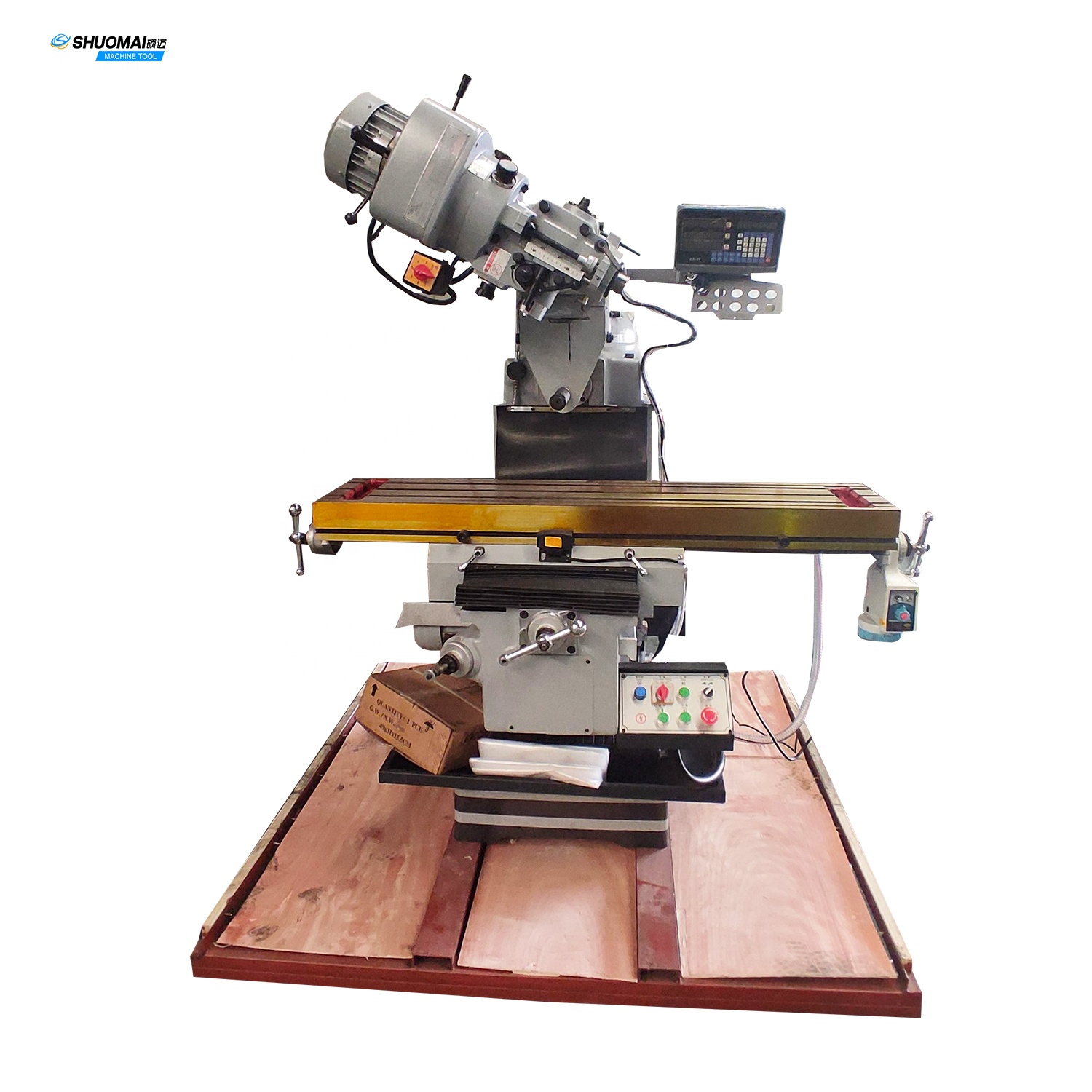

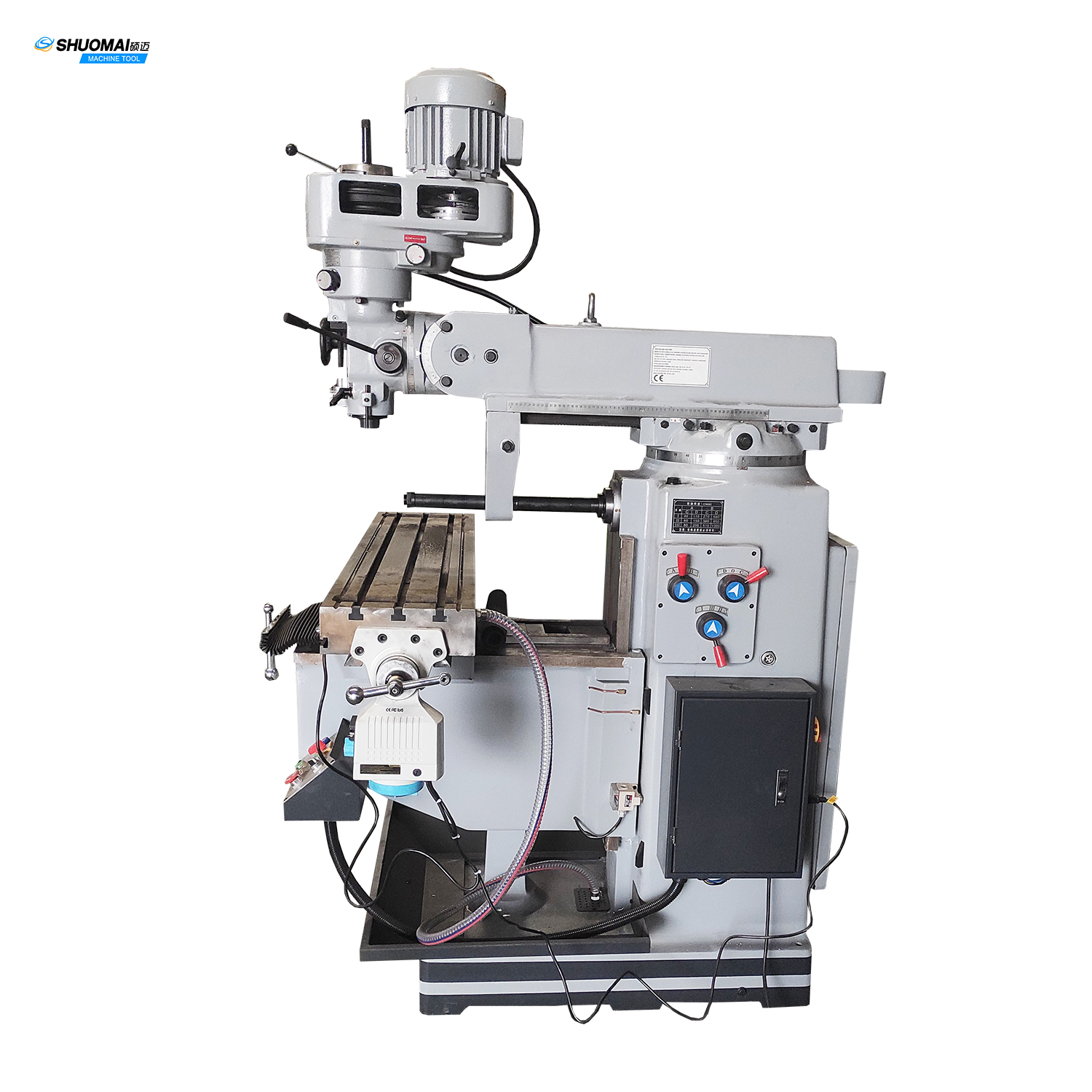

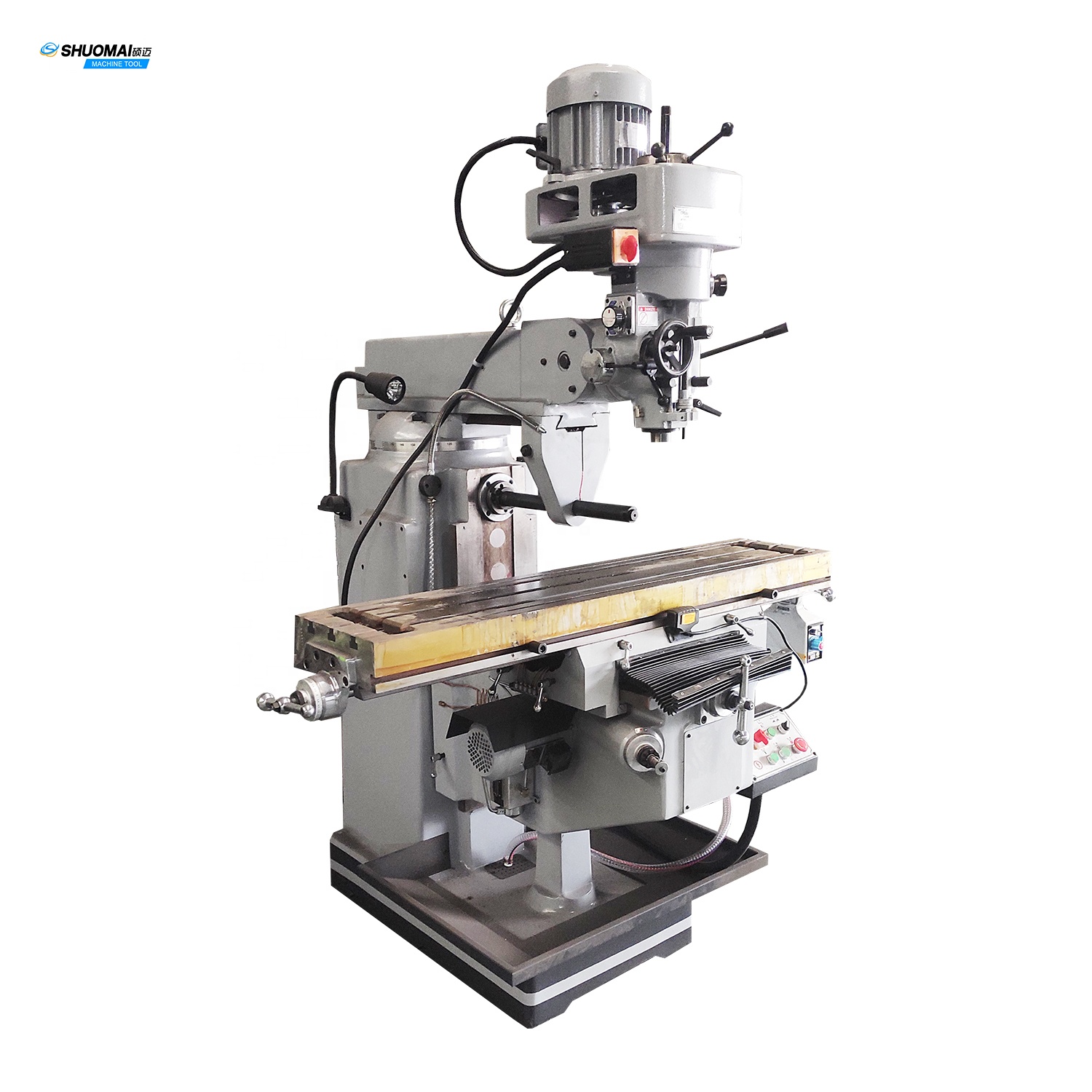

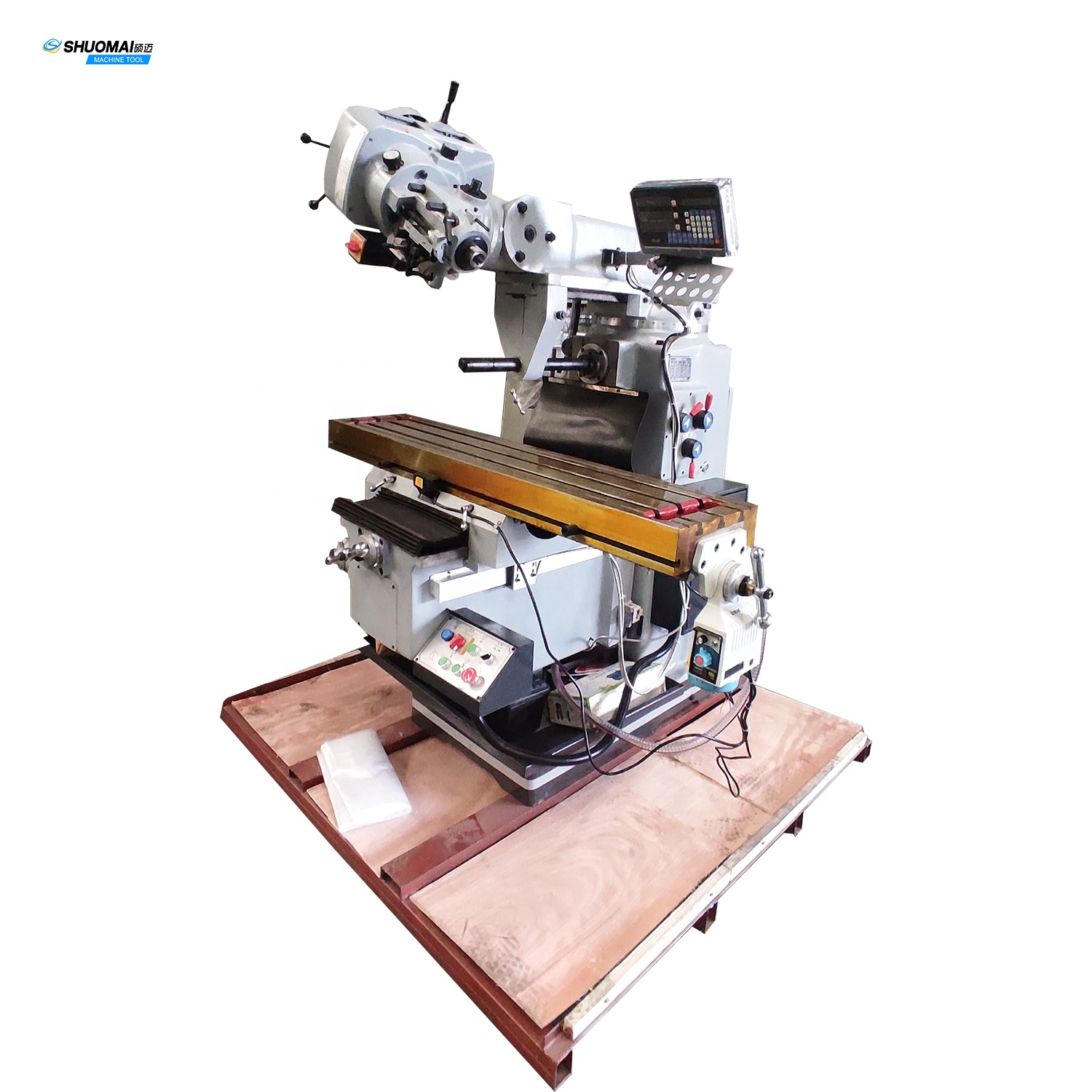

5HW Universal Horizontal and Vertical Turret Milling Machine Factory Price With CE Certificate
5HW Universal Horizontal and Vertical Turret Milling Machine Factory Price With CE Certificate
5HW Universal Horizontal and Vertical Turret Milling Machine Factory Price With CE Certificate
5HW Universal Horizontal and Vertical Turret Milling Machine Factory Price With CE Certificate
5HW Universal Horizontal and Vertical Turret Milling Machine Factory Price With CE Certificate
1 / 5
5HW Universal Horizontal and Vertical Turret Milling Machine Factory Price With CE Certificate
5HW Universal Horizontal and Vertical Turret Milling Machine Factory Price With CE Certificate
5HW Universal Horizontal and Vertical Turret Milling Machine Factory Price With CE Certificate
5HW Universal Horizontal and Vertical Turret Milling Machine Factory Price With CE Certificate
5HW Universal Horizontal and Vertical Turret Milling Machine Factory Price With CE Certificate

5HW Universal Horizontal and Vertical Turret Milling Machine Factory Price With CE Certificate

Send Inquiry

Product Description

Product Description 5HW Universal Horizontal and Vertical Turret Milling Machine
Main Specification
MAIN TECHNICAL DATA 5HW
Table area 1370x305 mm
Longitudinal travel 810 mm
Table cross travel 420 mm
Table vertical travel 500 mm
T-slot number and size 3X16
Telescopic stroke 470 mm
Spindle nose to table distance 500 mm
Spindle taper R8
Spindle stroke 127 mm
Spindle speed range 80-5440(V) / 45-1350 (H)
Spindle Feed 0.04(0.0015”) / 0.08(0.003” ) / 0.15(0.006”)
Spindle motor power 2.25kw (V) / 3kw(H)
Head turning around 90°
Head turning around 45°
Package Size / Taiwan 1780x1650x2080 mm
GW Taiwan 1980kg
Details Display

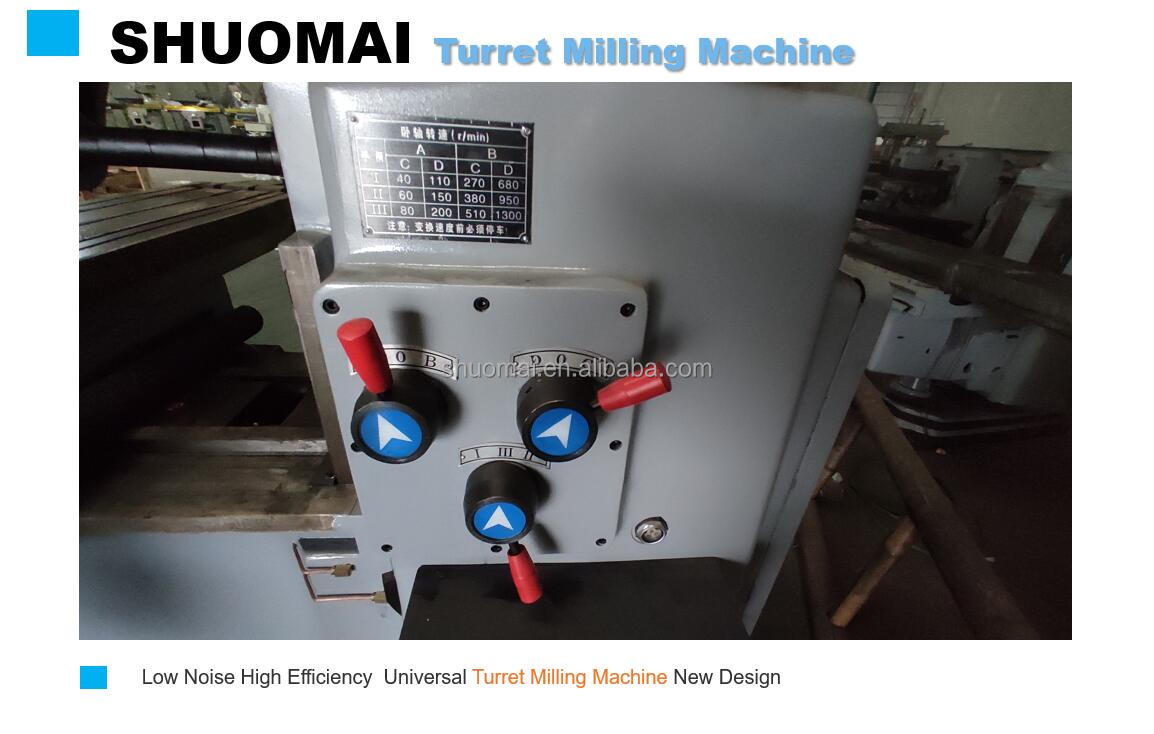

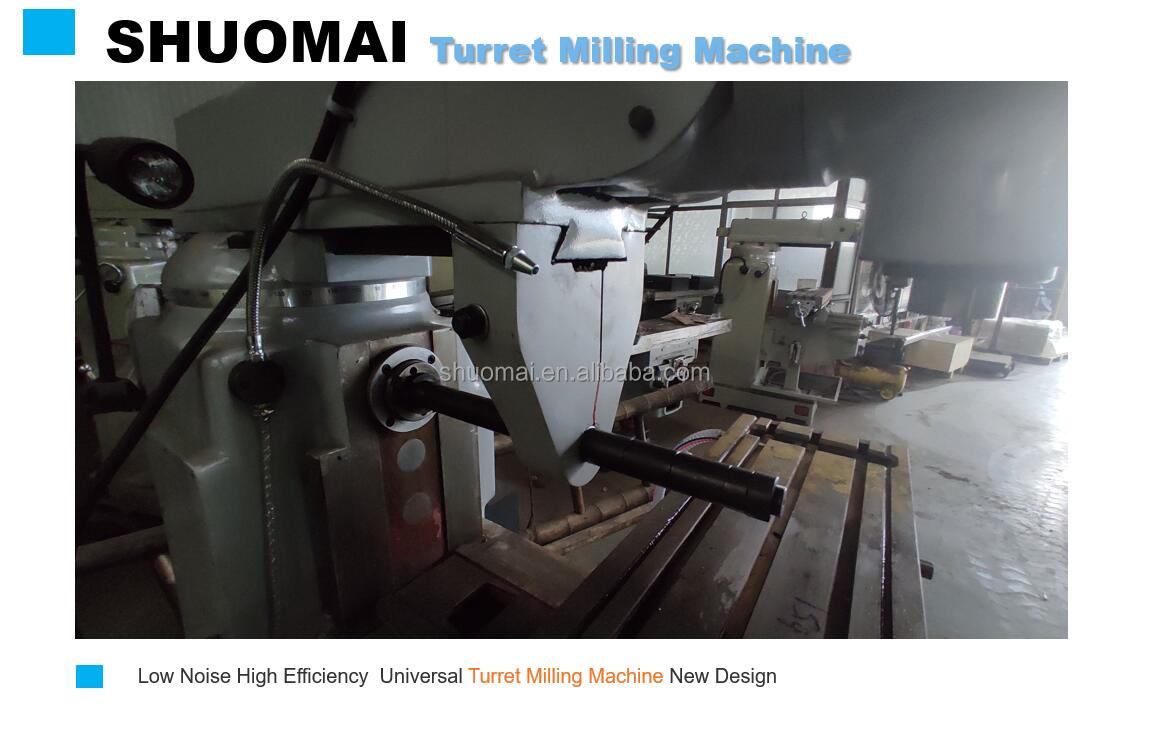

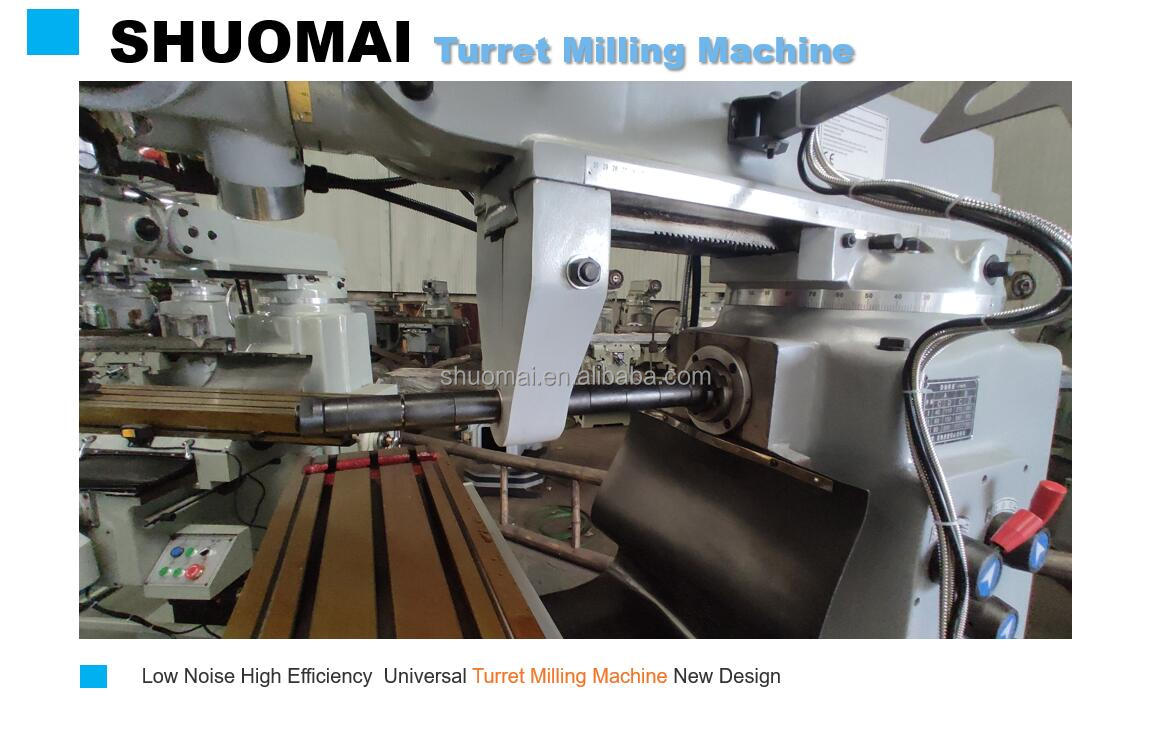

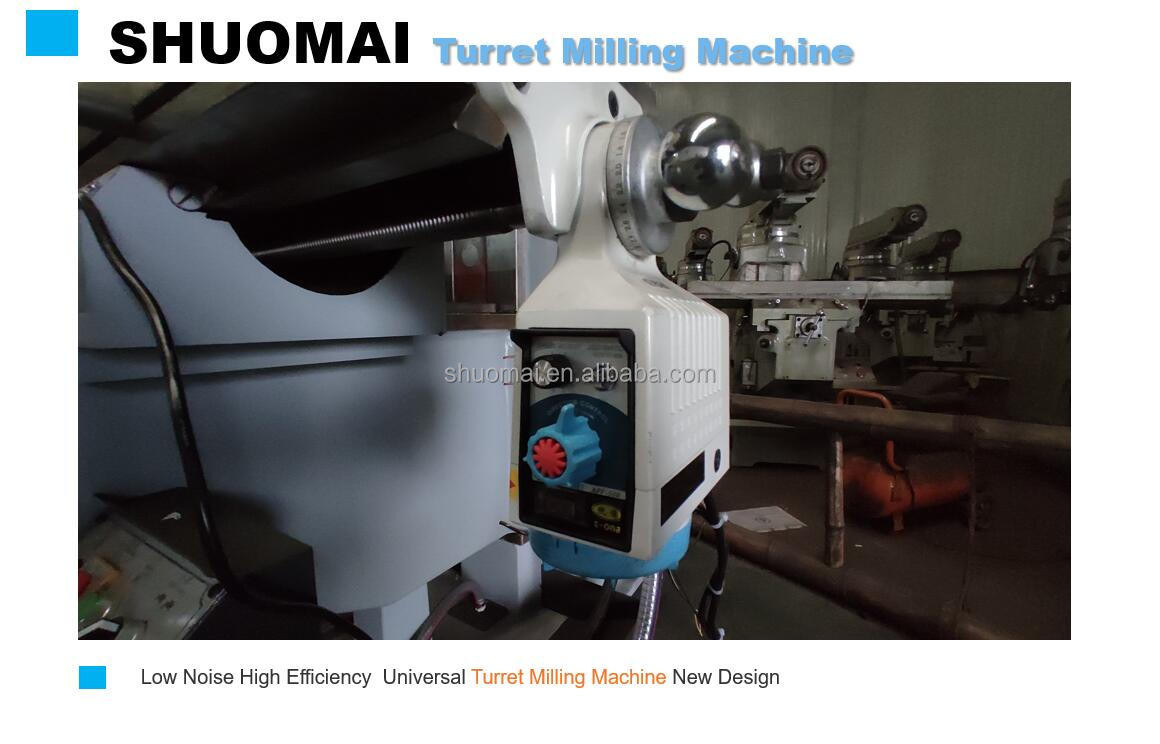

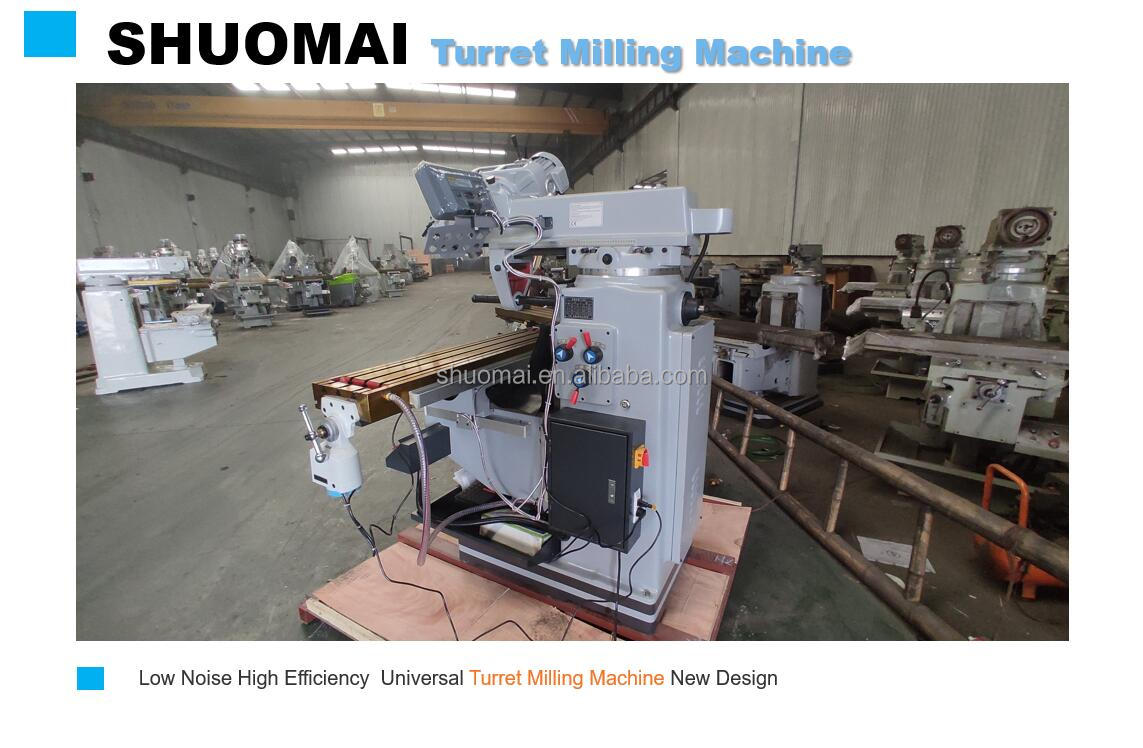

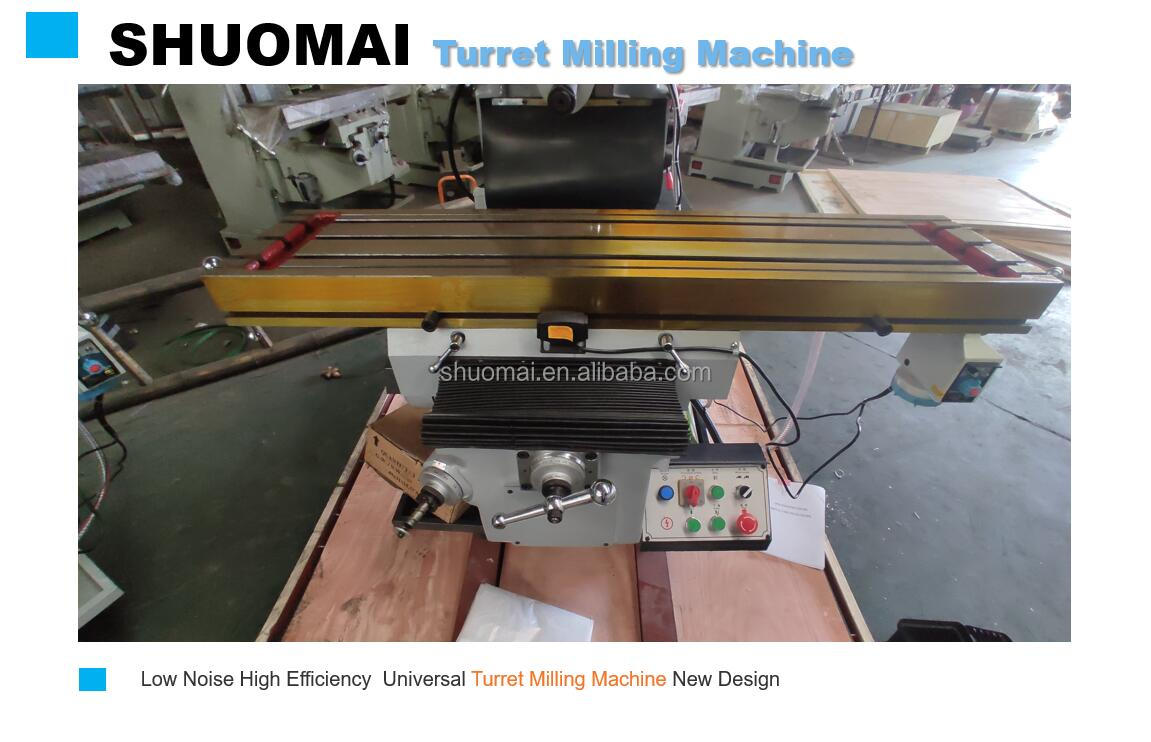

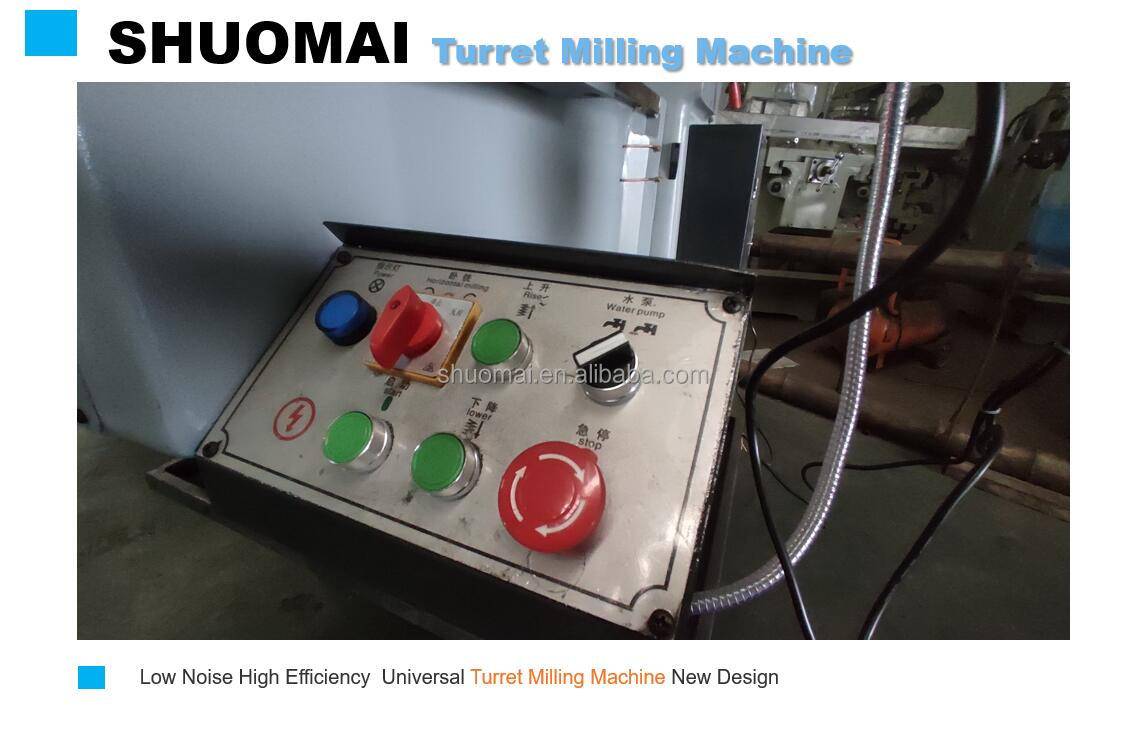

Turret Milling Machine Detail 1 Turret Milling Machine Detail 2 Turret Milling Machine Detail 3 Turret Milling Machine Detail 4 Turret Milling Machine Detail 5 Turret Milling Machine Detail 6 Turret Milling Machine Detail 7
Related Products

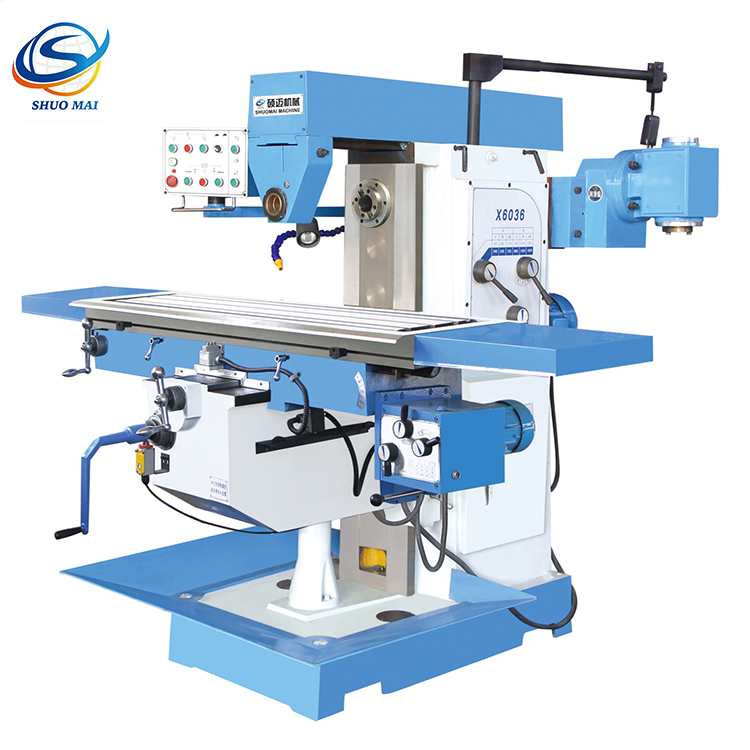

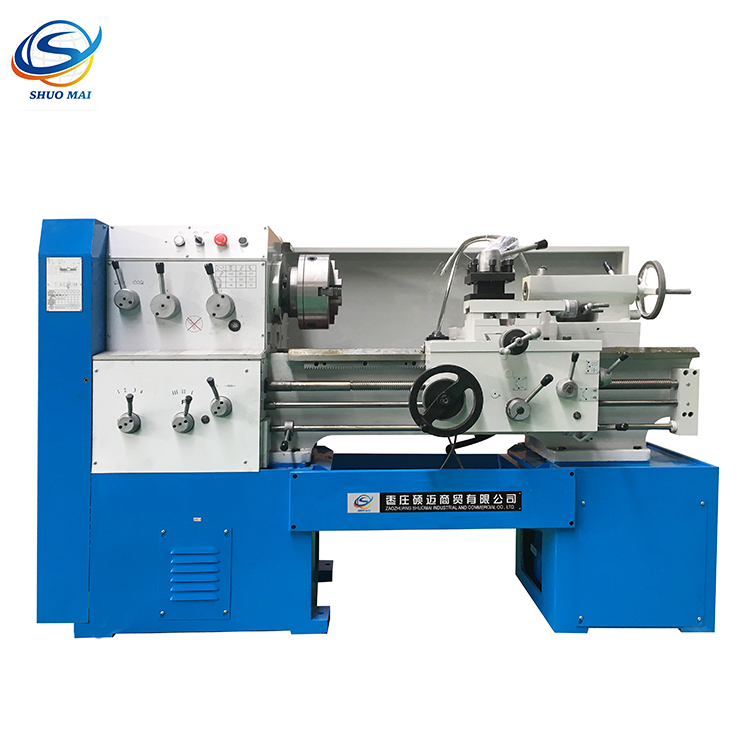

Related Product 1 Related Product 2 Related Product 3

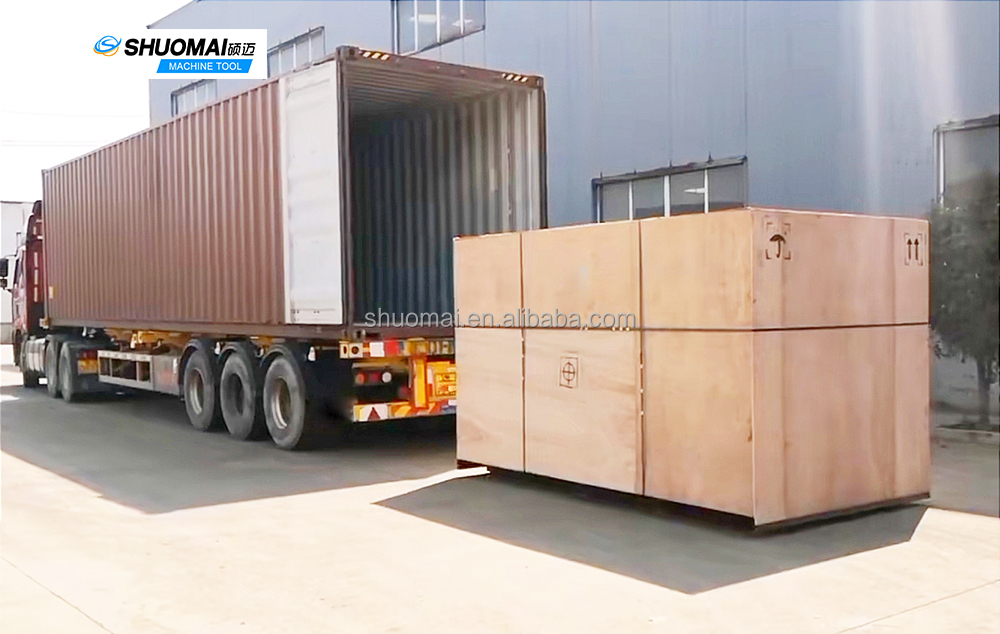

Packaging & Shipping Machine Packaging Details
FAQ
Q Which trade term can I choose?
A You can choose FOB, CIF, DDU or other terms. You can book the ship yourself or we can arrange the booking for you.
Q How can I get a quotation?
A You can submit an online inquiry or send us an email. Providing detailed requirements will help us prepare a specific quote. We reply within 2 hours on work days and 24 hours on holidays.
Q How can I make the payment?
A Payments can be processed via online platforms by T/T or Credit Card. Direct transfers to our business bank account, L/C, and other standard methods are also accepted.
Q How long does it take to get the machine?
A It generally takes approximately 10 days to prepare and process the machine.
Q What is the spindle taper and table dimensions of the 5HW machine?
A The 5HW model features an R8 spindle taper and a working table area of 1370x305 mm.
Q What are the spindle motor power specifications for vertical and horizontal configurations?
A The spindle motor power is 2.25kw for vertical operations (V) and 3kw for horizontal operations (H).
