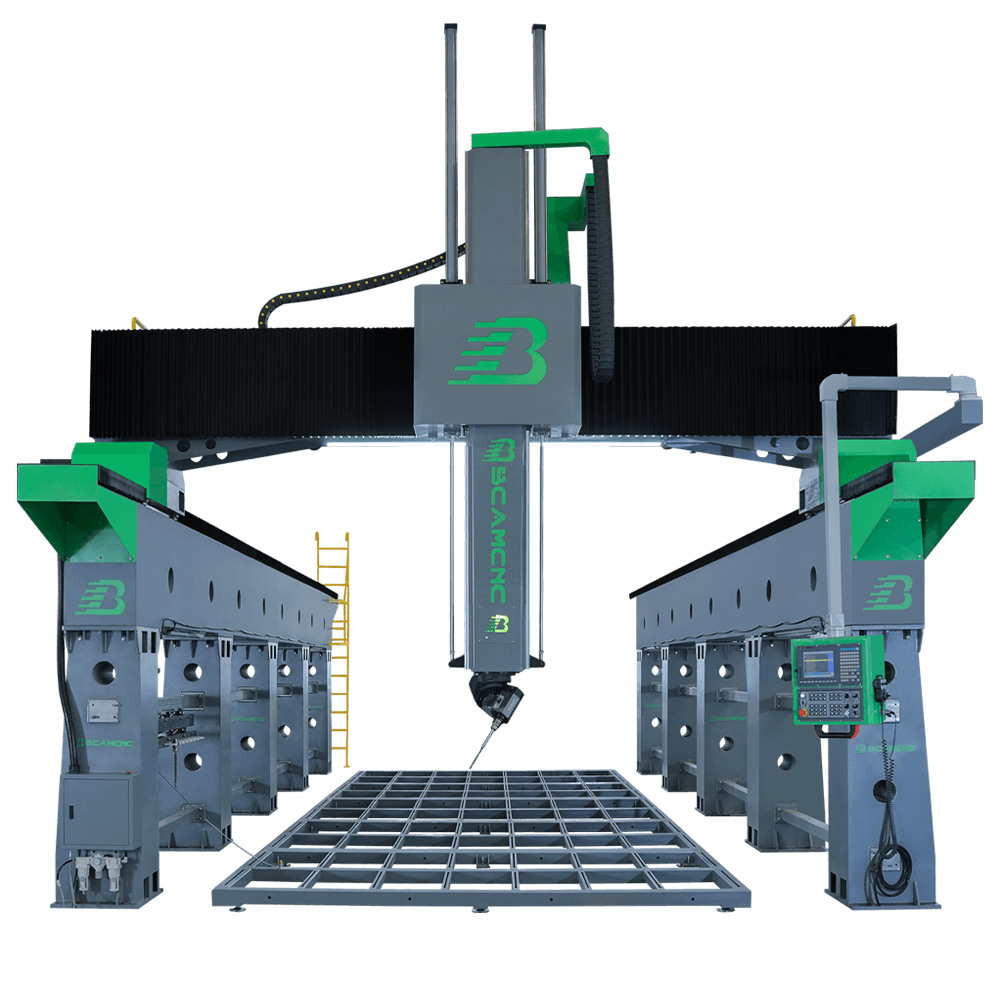

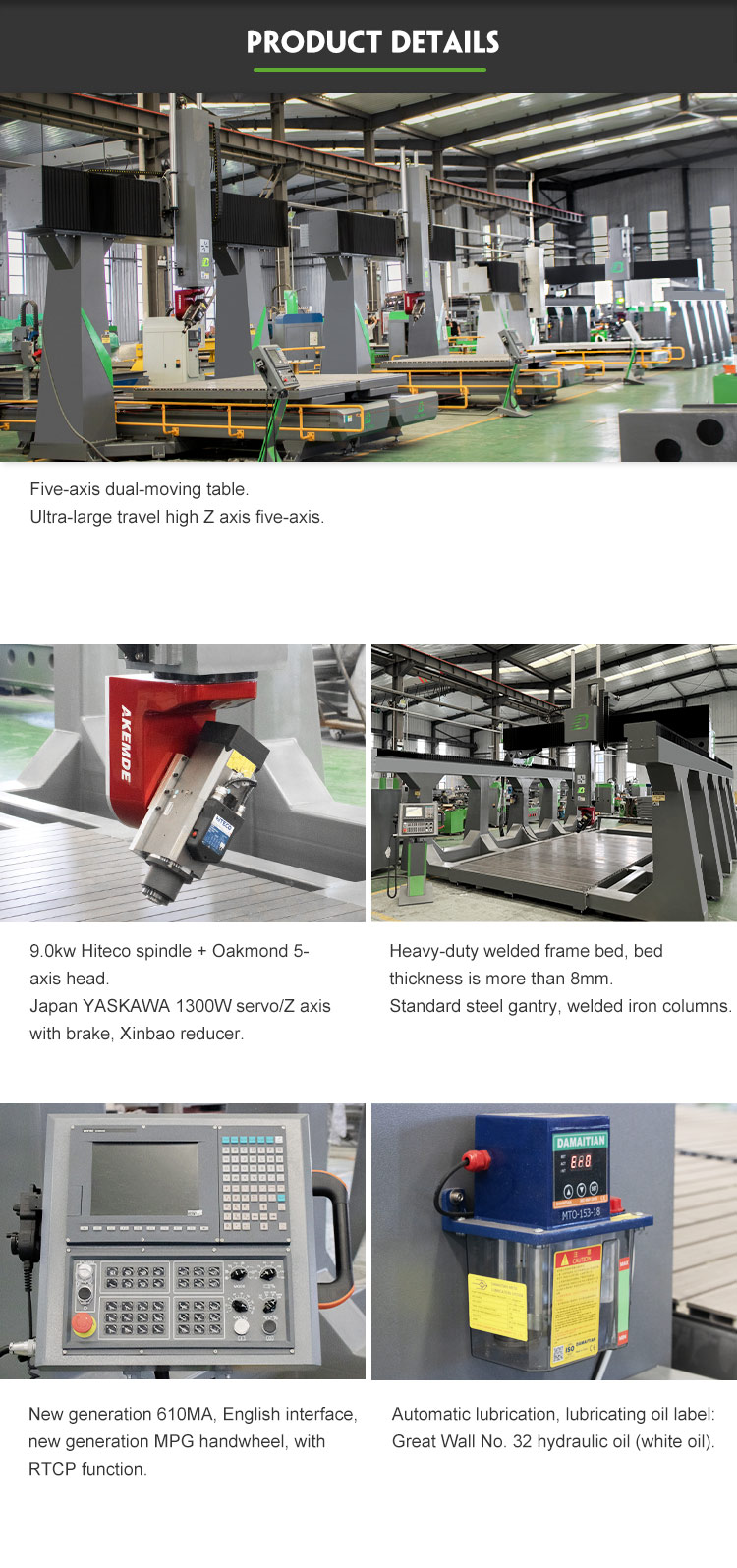

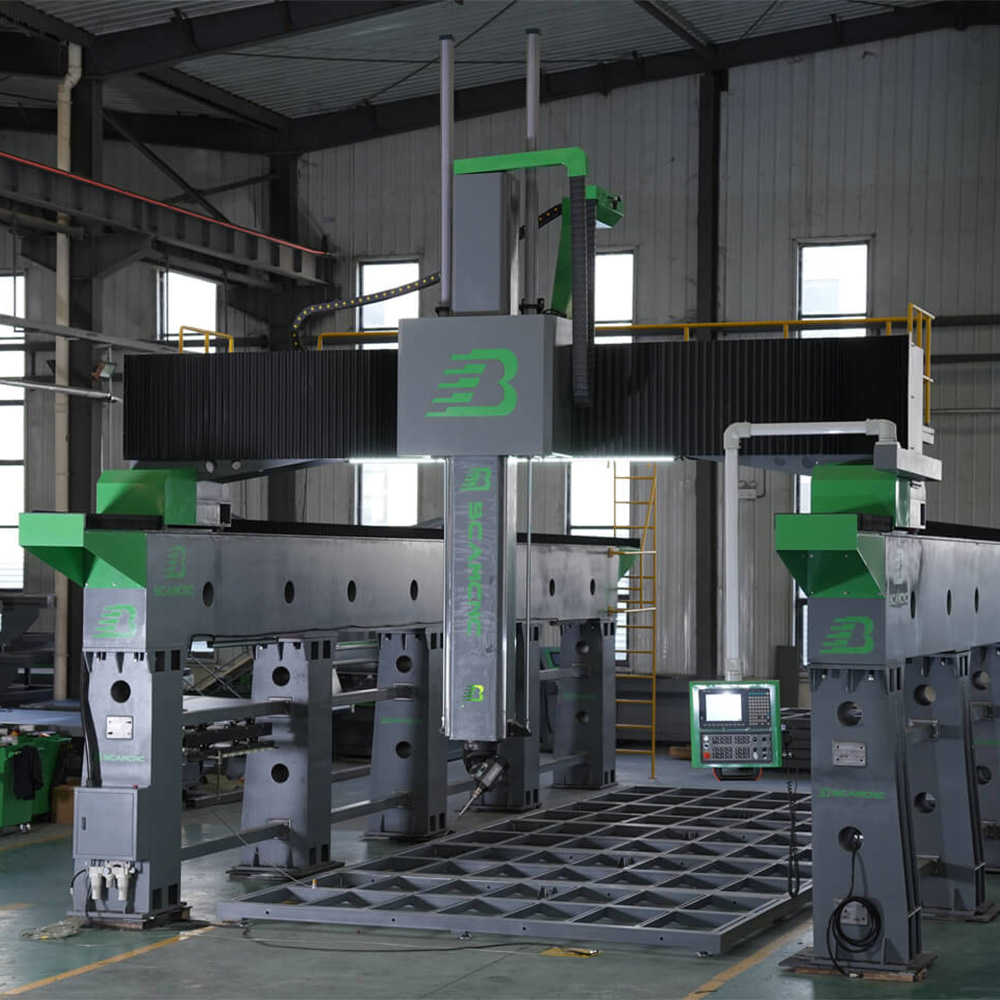

FEA-optimized, stress-relieved welded steel frame with ≥12mm thick bed/column. Uses TBI square rails with dust-proofing for ultimate rigidity and precision in large-format machining.
XY rack-and-pinion & Z ball screw drive powered by Yaskawa servos and a high-torque Hiteco spindle, ensuring fast, precise, and powerful cutting motion.

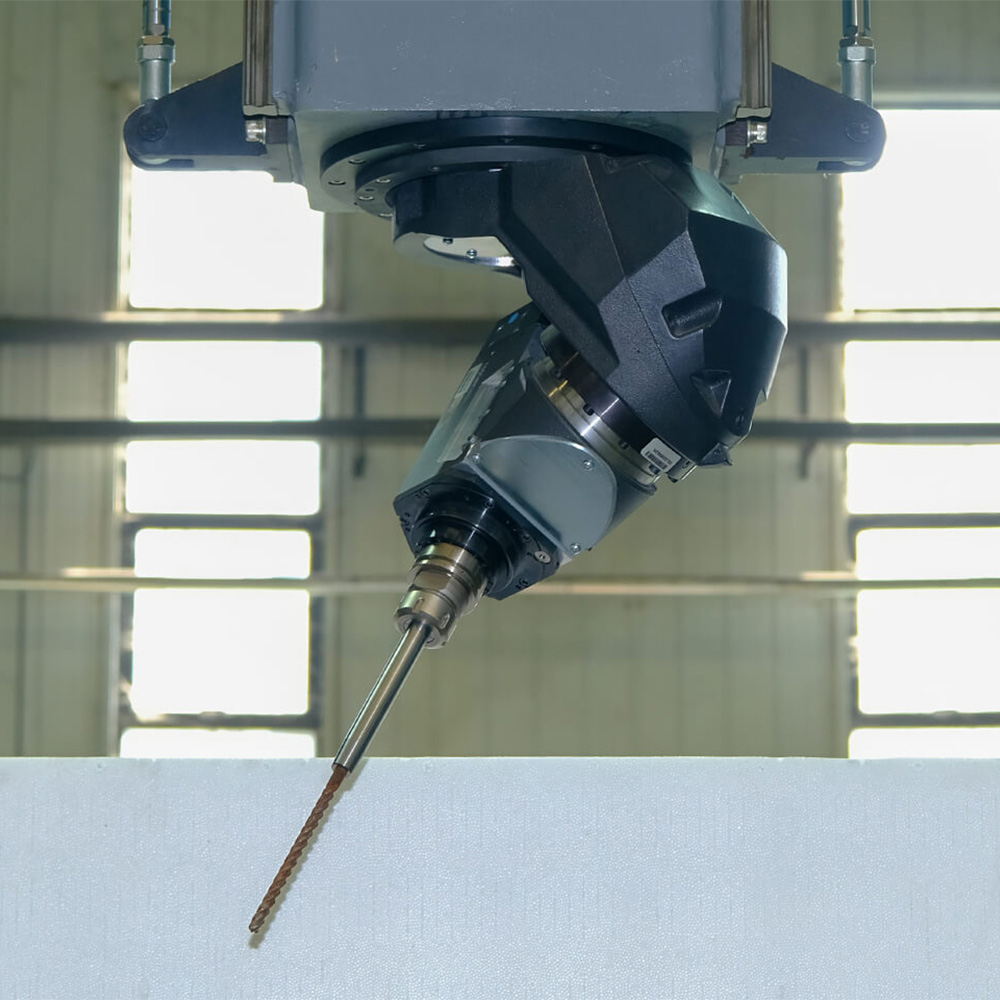

5-axis dual swivel head with RTCP and an automatic tool changer enables smooth, unattended machining of complex 3D geometries.
Syntec 610MA-E5 CNC with industrial PC provides real-time 3D simulation, diagnostics, and broad CAD/CAM software compatibility for intelligent operation.

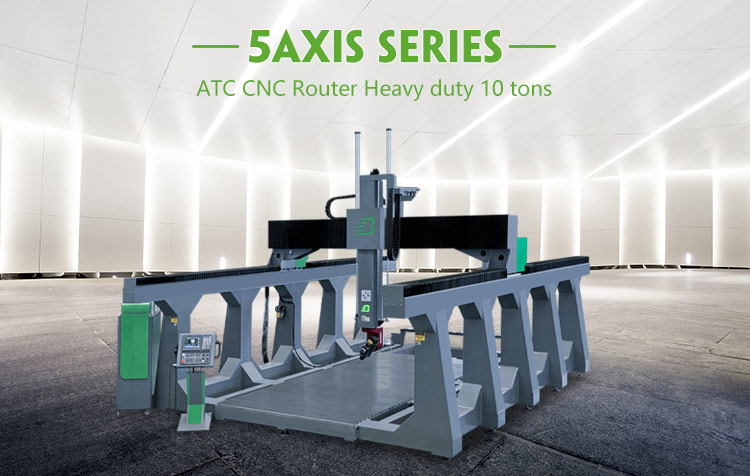

Large work envelope (up to 4x20x3m) and an 8-station ATC drastically reduce setup time and enable efficient production of oversized parts.
Built with CE/UL-certified components, dry transformer, and separated circuits for reliable, safe, and easy-to-maintain long-term operation.
| Parameters | Standard Specifications 5 Axis CNC Machine |
|---|---|
| X,Y,Z Working Area | 2500*5000*1800mm |
| Spindle Power | 13.5kw Italy HITECO air cooling spindle |
| X,Y,Z Traveling Positioning Accuracy | 0.36mm (Bed table is less than 2M x 5M) |
| Repeat positioning accuracy | ±0.08mm/1000mm |
| Table Surface | Vacuum table + T-slot table |
| X,Y,Z Rail and Transmission | X Y axis gear transmission, Z axis Taiwan TBI Ball Screw |
| Max. Rapid Travel Rate | 40m/min |
| Max. Working Speed | 15m/min (Calculated based on material 15 meters of foam) |
| Cutting thickness | According to materials |
| Spindle Speed | 6000-24000RPM |
| Drive Motors | Japanese Yaskawa servo motor and drivers |
| Working Voltage | AC110V/220V/240V/380V/400V, 1P/3P, 50HZ/60HZ |
| Command Language | G Code |
| Operating System | Taiwan Syntec control system |
| Interface | USB |
| Software Compatibility | Option: VCarve / VCarve Pro / ArtCAM / UCANCAM, etc. |
| Running Environment | Temperature: -20°C ~ 45°C, Relative Humidity: 5% ~ 75% |
