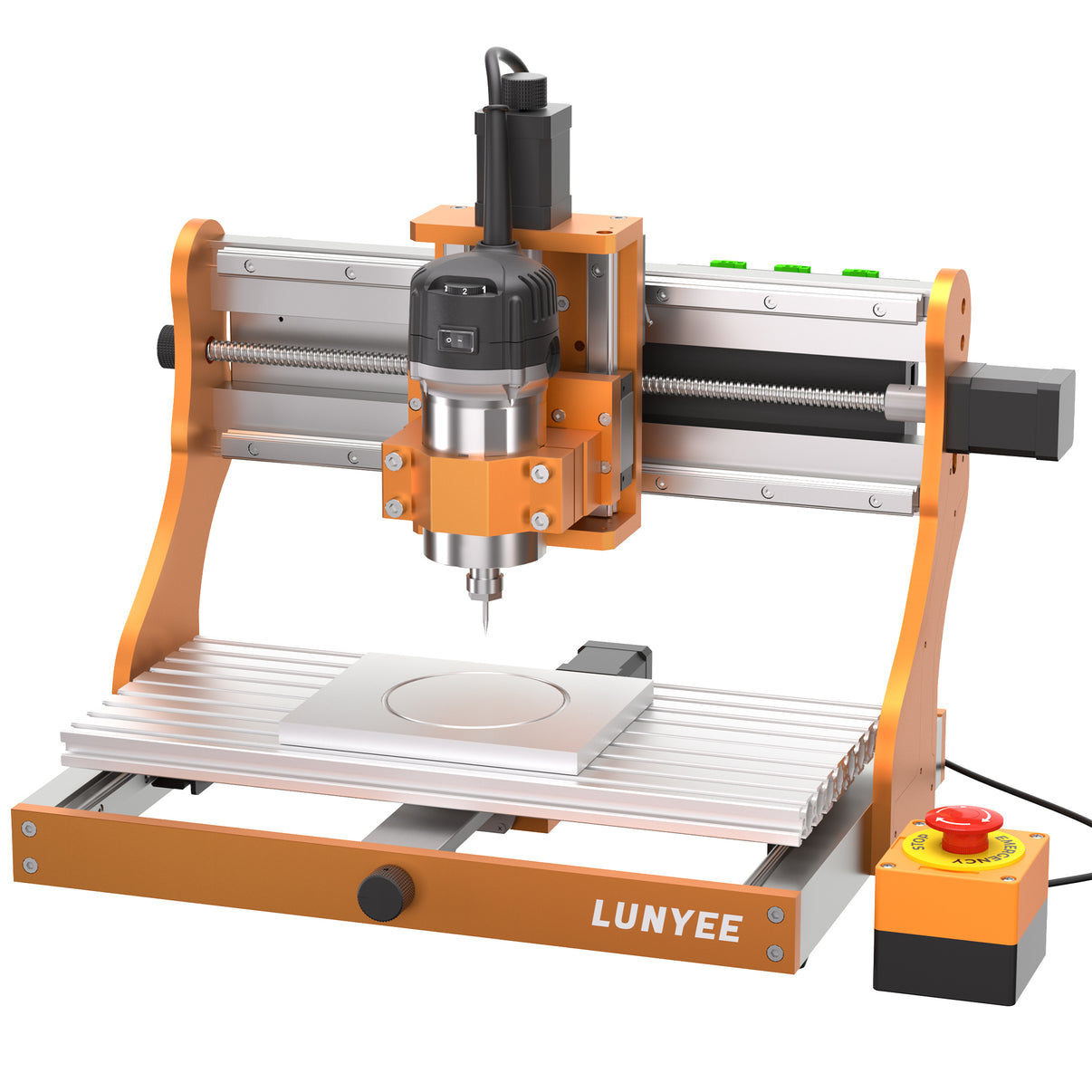

3020 Nova CNC Router with 10W Laser Head and 710W Spindle Desktop CNC Engraving Machine for Wood

3020 Nova CNC Router with 10W Laser Head and 710W Spindle Desktop CNC Engraving Machine

Technical Specifications

Parameter	Details
Model	CNC 3020 NOVA

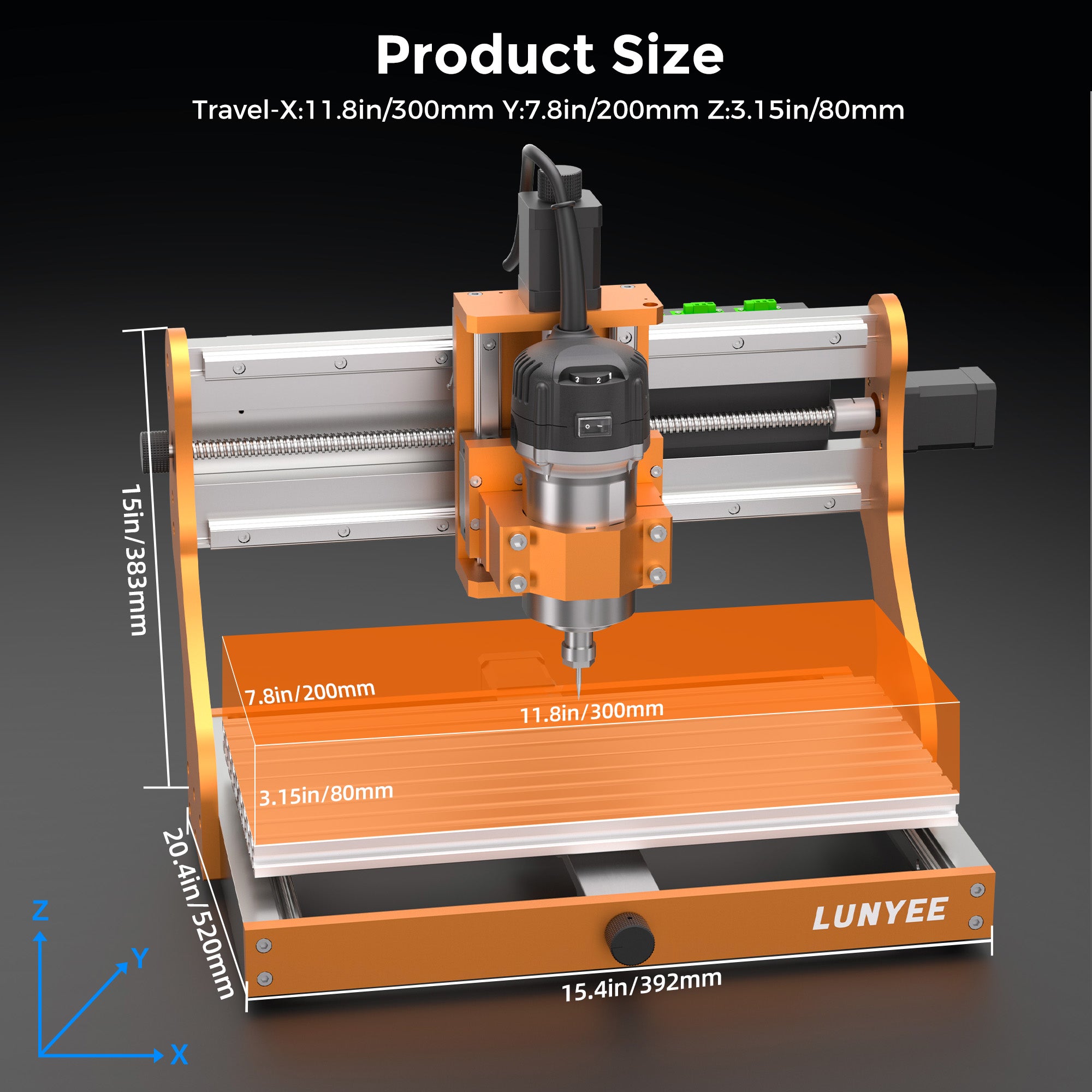

Working Area	11.8" x 7.8" x 3.15" (300 x 200 x 80mm)
Frame Material	All Aluminum
Max Speed (mm/min)	5000
Spindle Power	710W Trim Router, 6-Speed
Max RPM	6000-30,000 RPM
Running Accuracy	≤ ±0.05mm
Drive System	Dual HG15 Linear Guides & 1204 Ball Screws
Stepper Motor	NEMA17 60mm 2.3A, 0.89Nm torque
MCU	32-Bit
Software	GRBL Firmware, e.g. Easel, Candle, UGS, Fusion360, LaserGRBL, LightBurn
Spindle Mount	52mm & 65mm & 69mm & 80mm

Packing List & Accessories

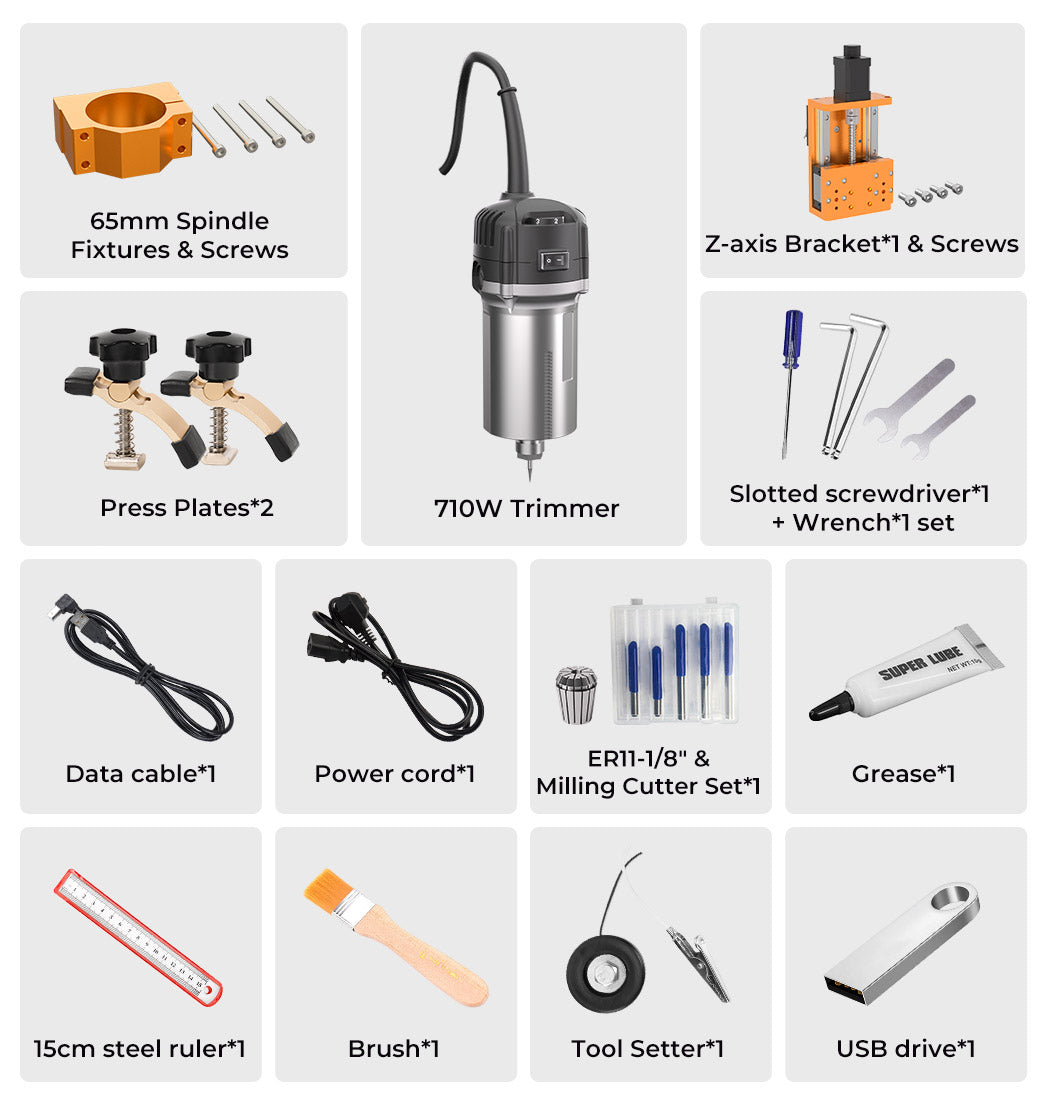

3020NOVA 710W Mini Engraving Machine Package Includes:

XY Axis Base Assembly & X-axis Assembly, Z-axis Assembly, Spindle & Spindle Motor Mount, Controller Board, Power Supply, Power Cord, USB Cable, USB Drive, Emergency Stop (E-Stop) Button, Limit Switch, Z-Probe Kit, ER11 1/8” Collet, Clamp Kit, Carving Router Bits Set, Brush, Steel rule, Synthetic Grease, Screws & Cable Tie, Allen Wrench, User Manual.

Optional accessories: Laser 10W.

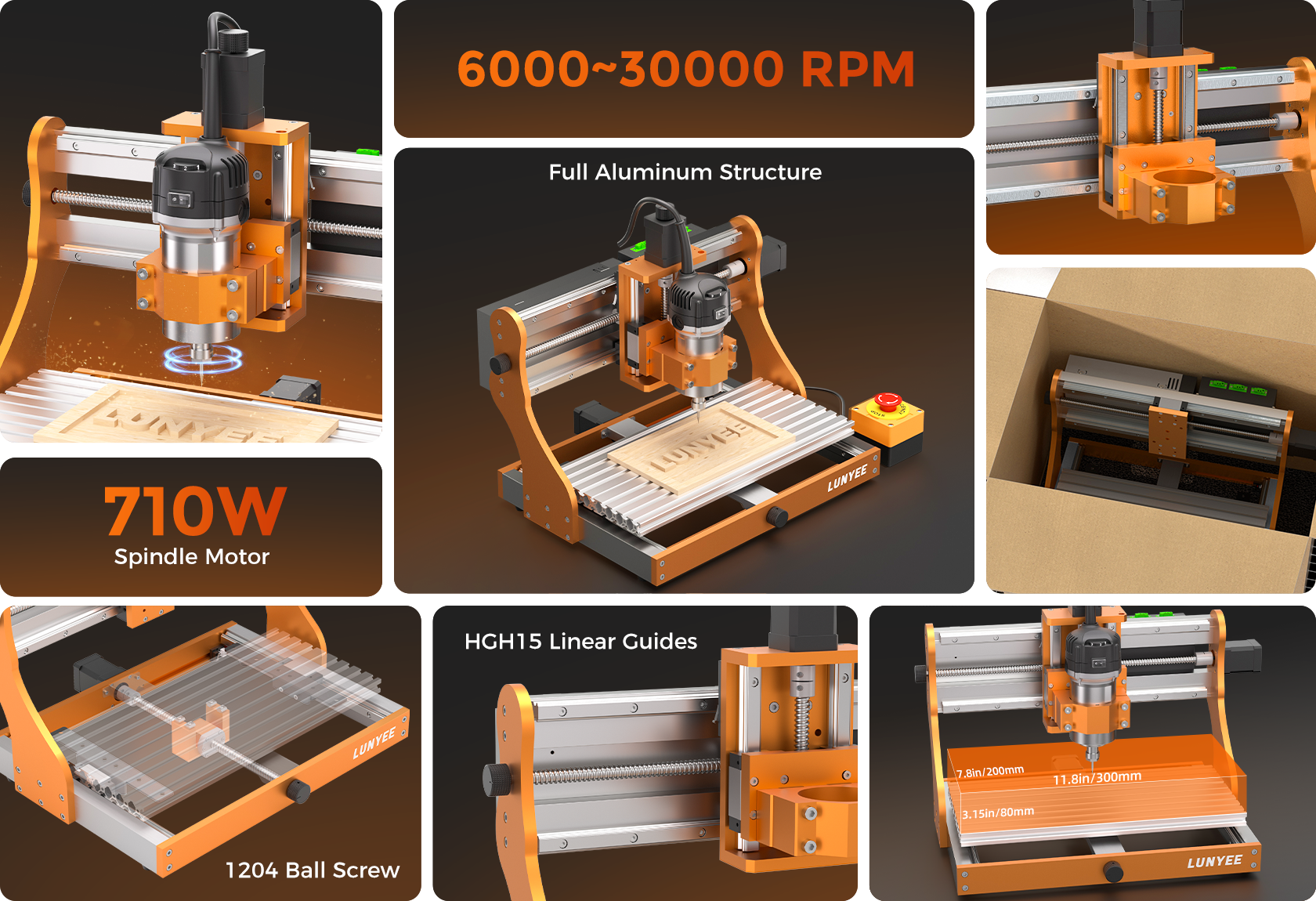

Product Details & Key Features

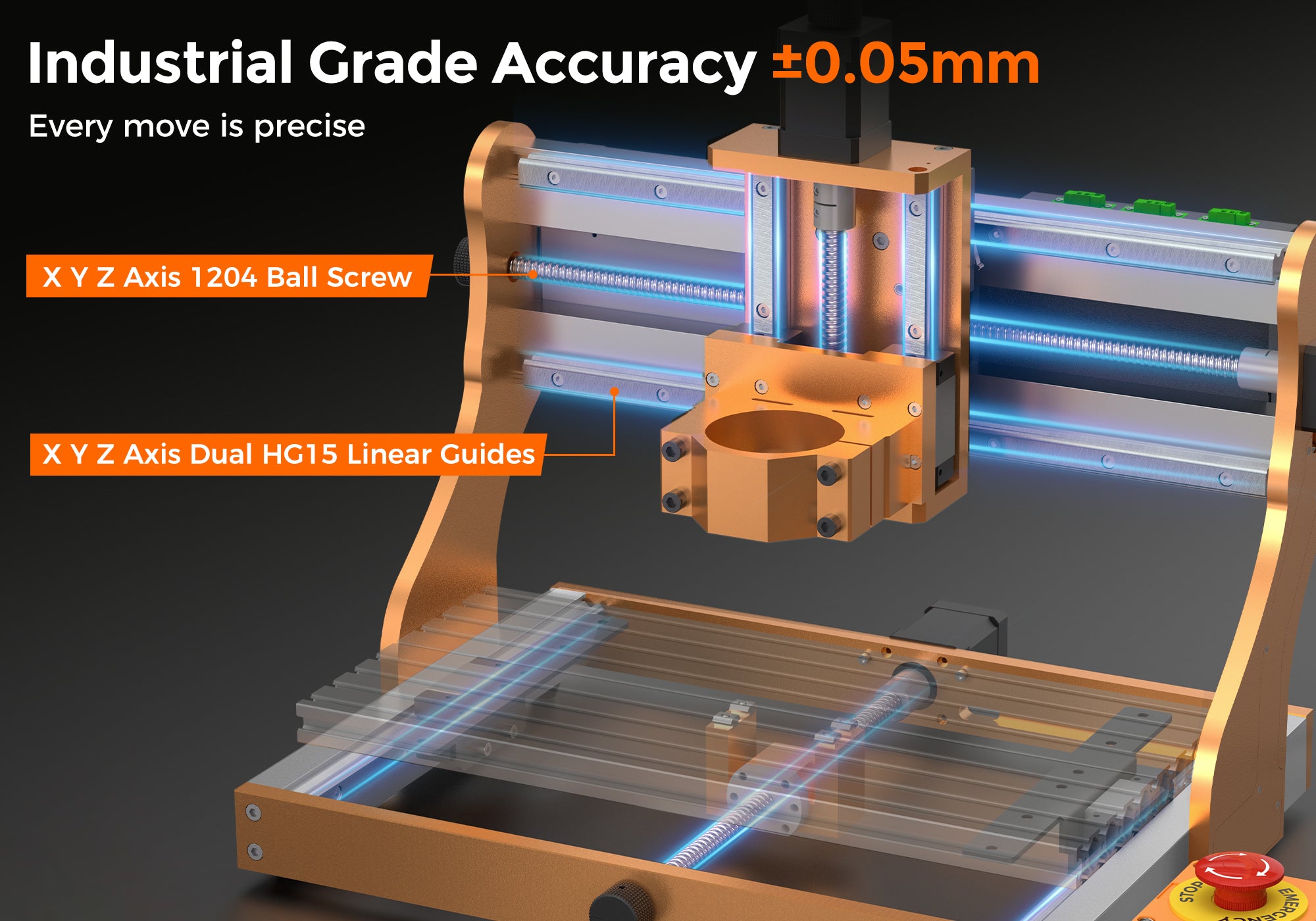

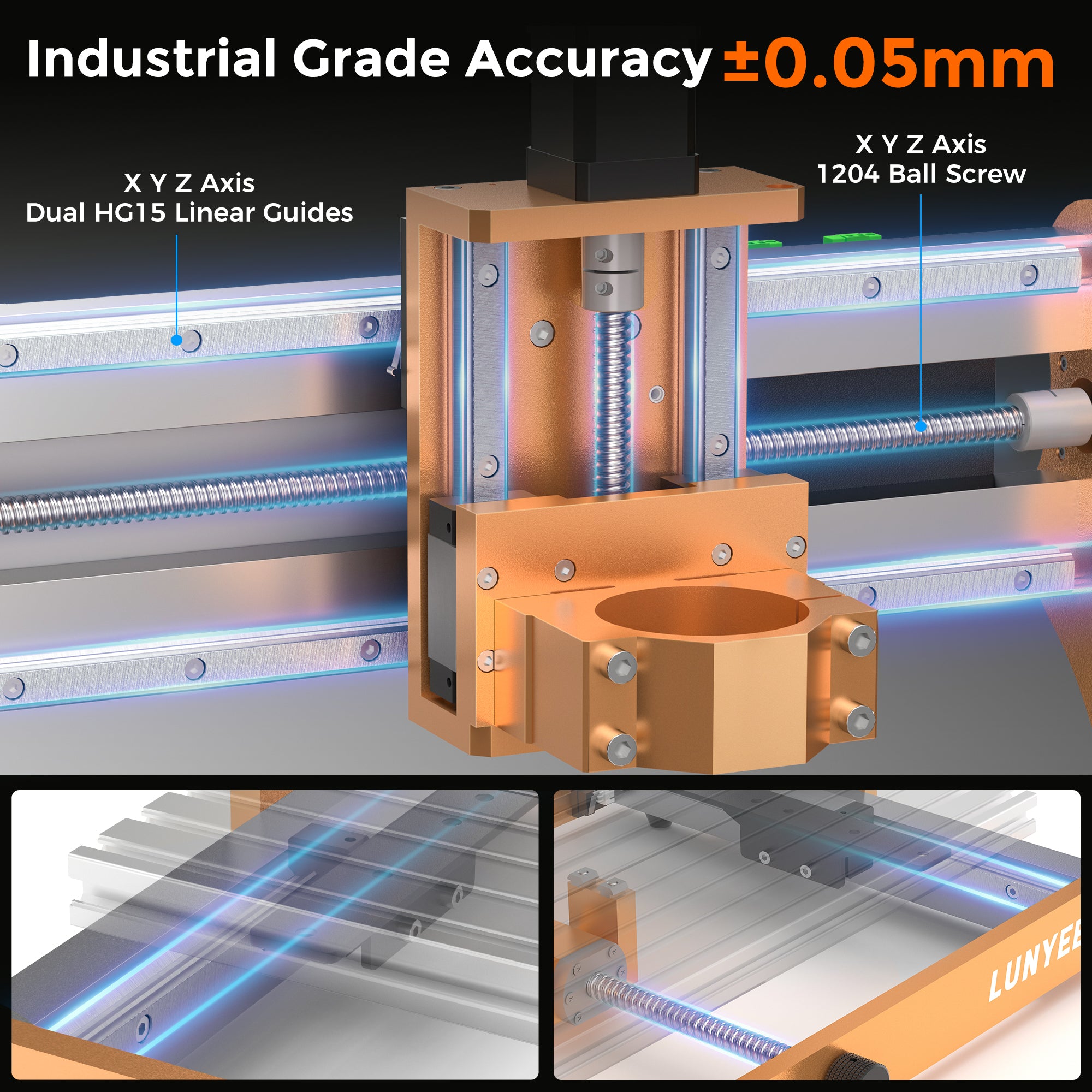

Engineered for Precision

The 3020 Nova features an industrial-grade drive system. Each axis (X, Y, Z) is equipped with 1204 ball screws and HG-15 linear guides that eliminate backlash, ensuring every engraving is perfectly precise. The max movement speed can reach 5000mm/min, and the accuracy is ±0.05mm.

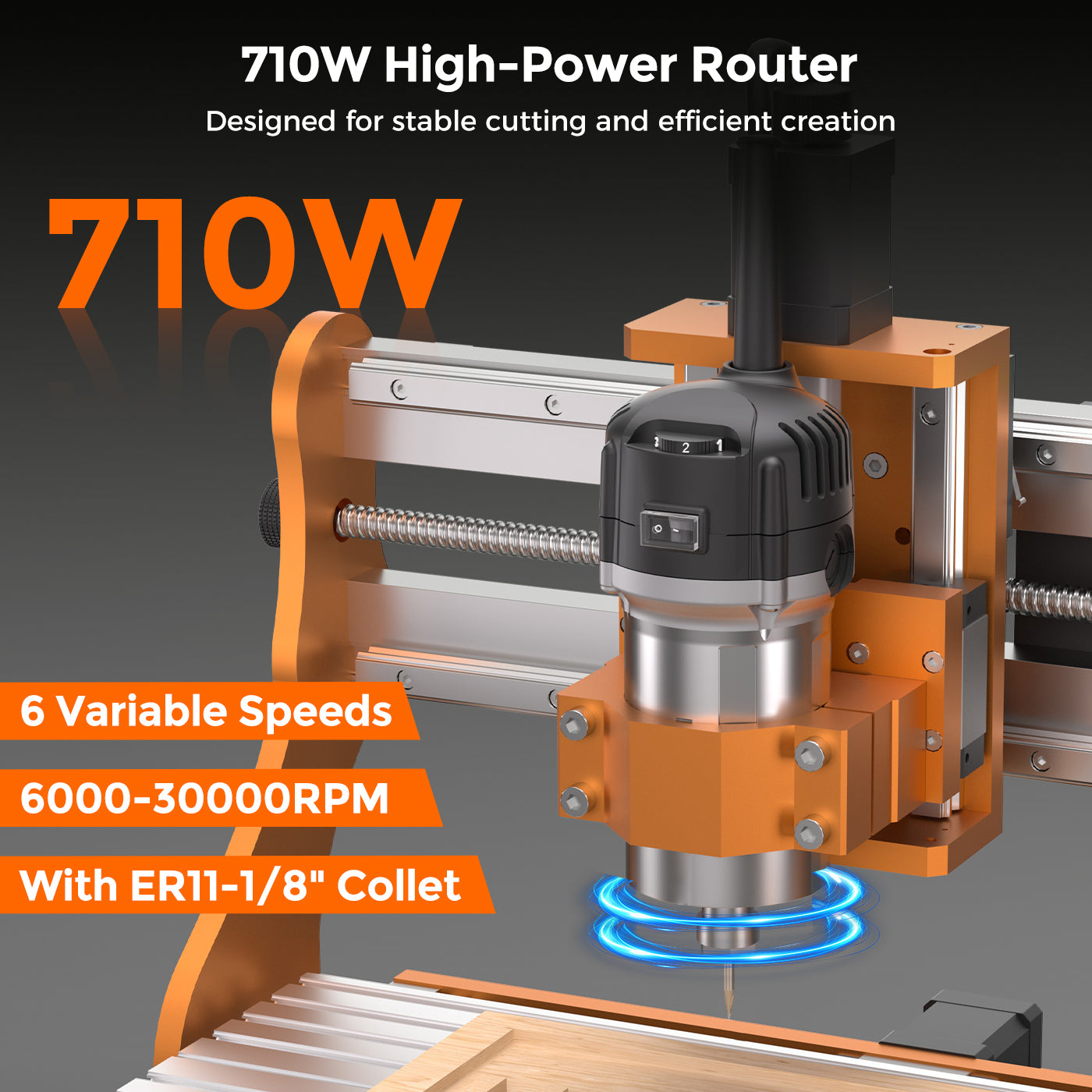

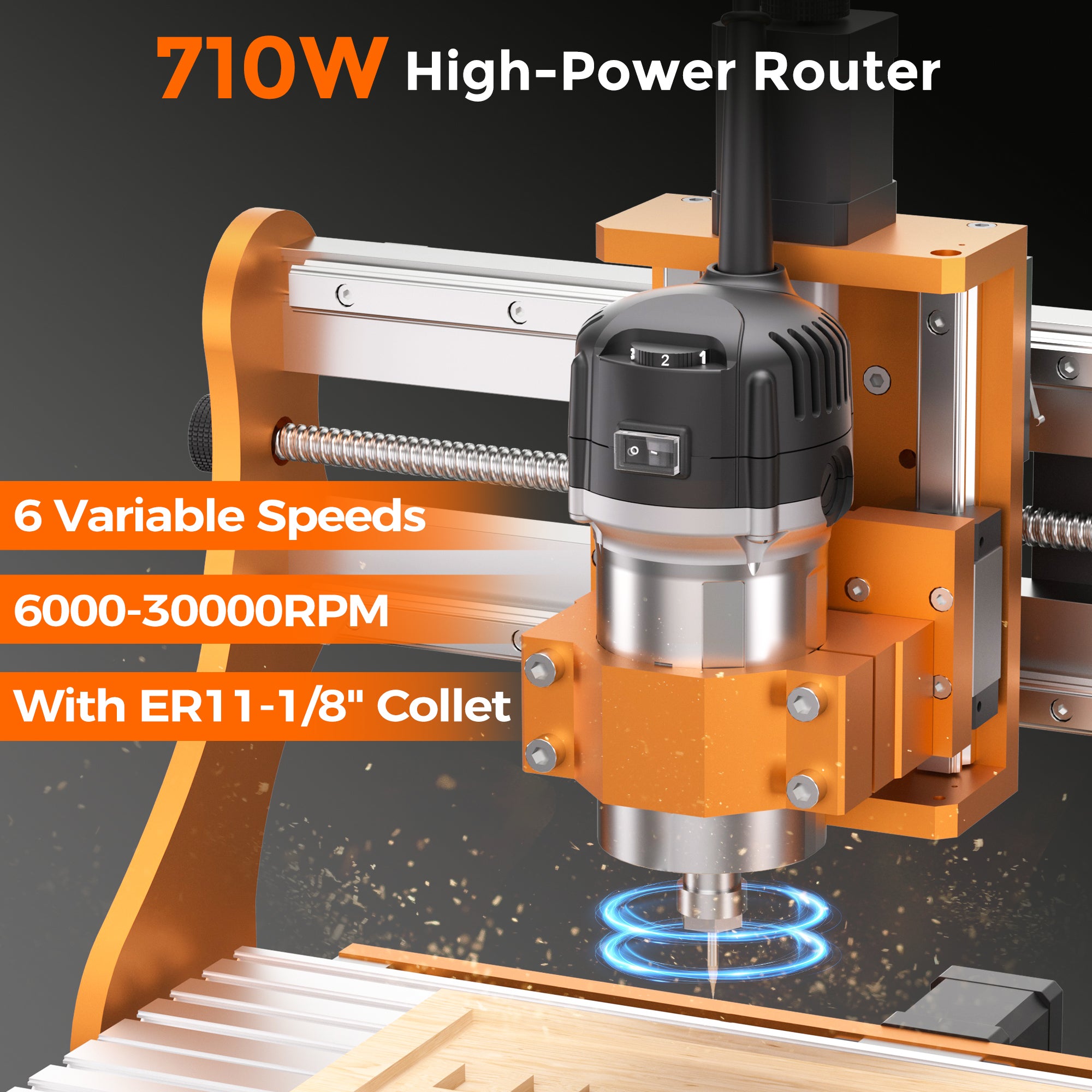

710W Spindle

An all-metal frame provides superior durability, enhanced stability, and reliable performance over time. The 3020 Nova is equipped with a 710W spindle. From solid wood to metal, acrylic, carbon fiber, and beyond—the spindle handles it all with ease. With a 6000–30,000 RPM range, six speed settings, and constant torque control, the spindle ensures stable and accurate performance.

Operate with total confidence in any workshop or indoor creative space. The 3020 Nova is engineered with essential safety features, including an instantly accessible external Emergency Stop switch and physical limit switches to prevent over-travel. Designed with a rock-solid structural footprint and user-friendly controls, it’s built for retail businesses, home studios, and shared maker spaces—allowing you to focus entirely on your craft, completely free of safety worries.

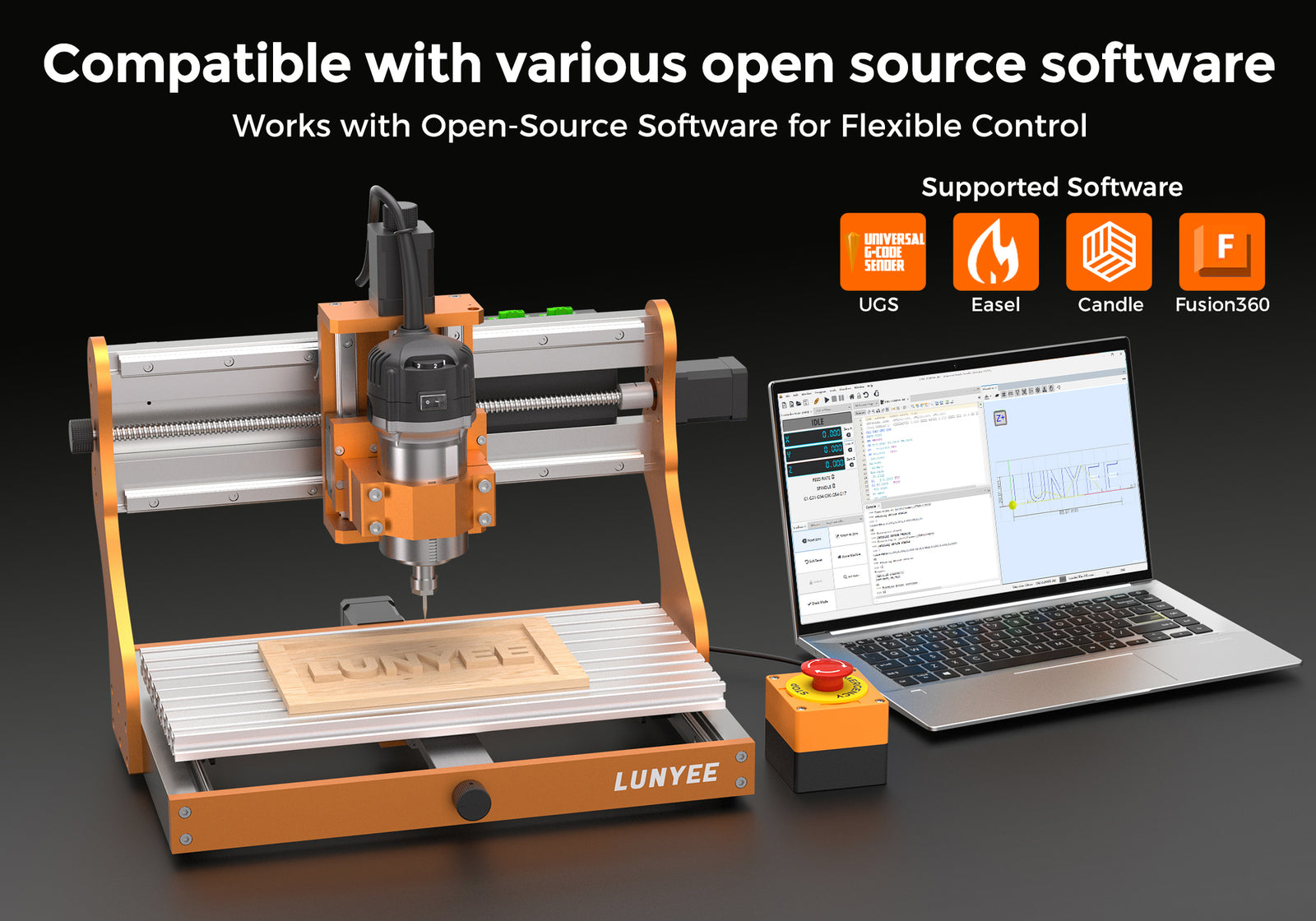

Wide Software Support

Works with all GRBL firmware software such as Fusion 360, Easel, Candle, UGS, LaserGRBL, and LightBurn. Turn your creative ideas into precise shapes and configurations across all materials.

Successful Projects & Effects

Packaging & Delivery Logistics

Inner Packing: Waterproof wrapping with shock-absorbing EPE foam protection and layered heavy-duty cardboard surround.

Shipment: Global logistics options including DHL, FedEx, UPS, TNT, and ocean transport options. Secure handling and robust packaging structures ensure the machine modules remain undamaged during transit.

Frequently Asked Questions

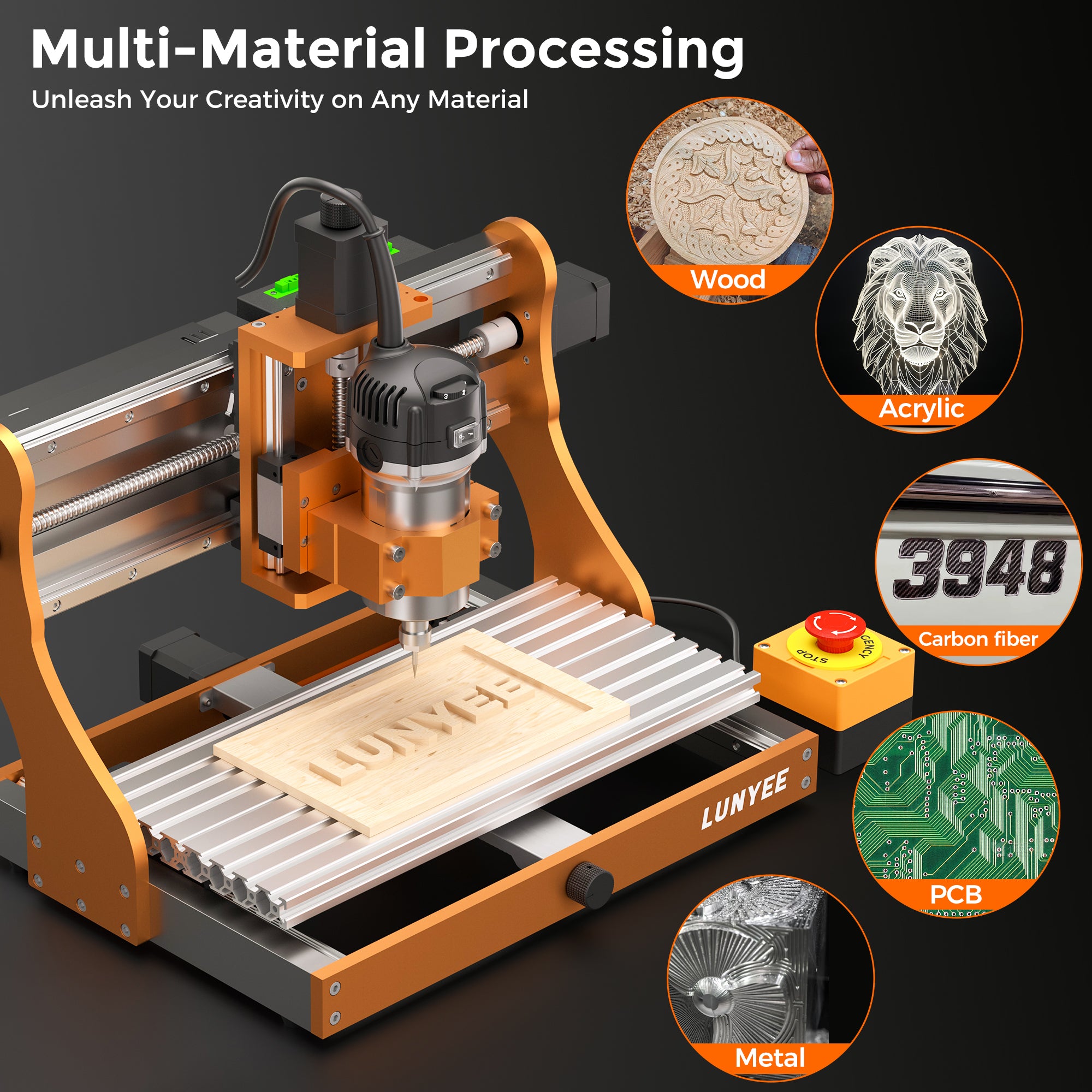

Q: What materials can the 3020 Nova CNC Router engrave?

A: Thanks to its robust all-aluminum construction and high-performance 710W spindle, it is engineered to process solid wood, metal, acrylic, carbon fiber, and a wide array of non-ferrous materials.

Q: What firmware and control software does the machine support?

A: The router operates on standard GRBL firmware. It is fully compatible with popular design and control platforms, including Fusion 360, Easel, Candle, UGS, LaserGRBL, and LightBurn.

Q: Does this machine support laser modules?

A: Yes, a 10W laser head is offered as an optional module accessory to allow both CNC routing and laser engraving configurations.

Q: What makes the driving mechanism precise?

A: Every axis (X, Y, and Z) utilizes premium 1204 ball screws paired with dual HG15 linear guide rails. This design eliminates backlash and ensures positioning accuracy up to ±0.05mm.

Q: What safety mechanisms are installed?

A: The unit features a dedicated external Emergency Stop (E-Stop) button and physical limit switches on the axes to ensure safe operation and prevent over-travel.

Q: How is the product packed for shipping?

A: The packaging features structural shock-absorbing EPE foam inserts encased in thick cardboard wraps to completely shield the CNC components during transit.
