Product Description

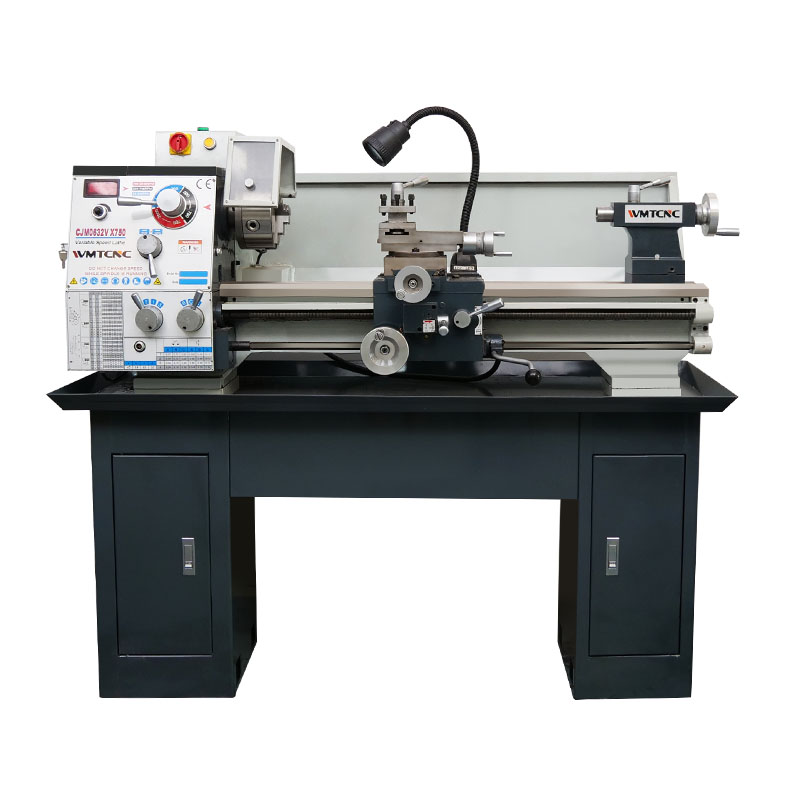

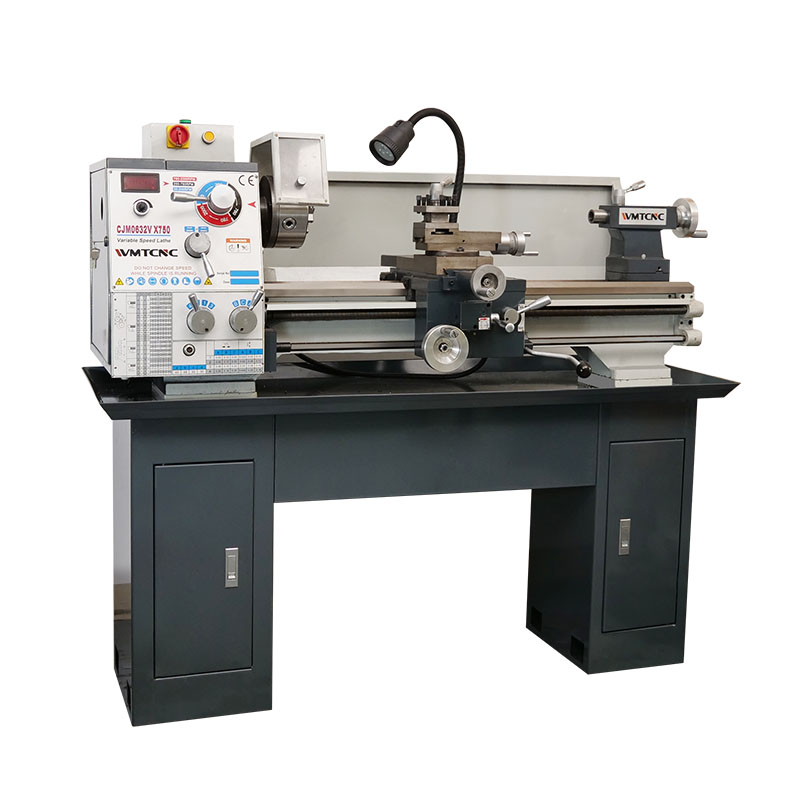

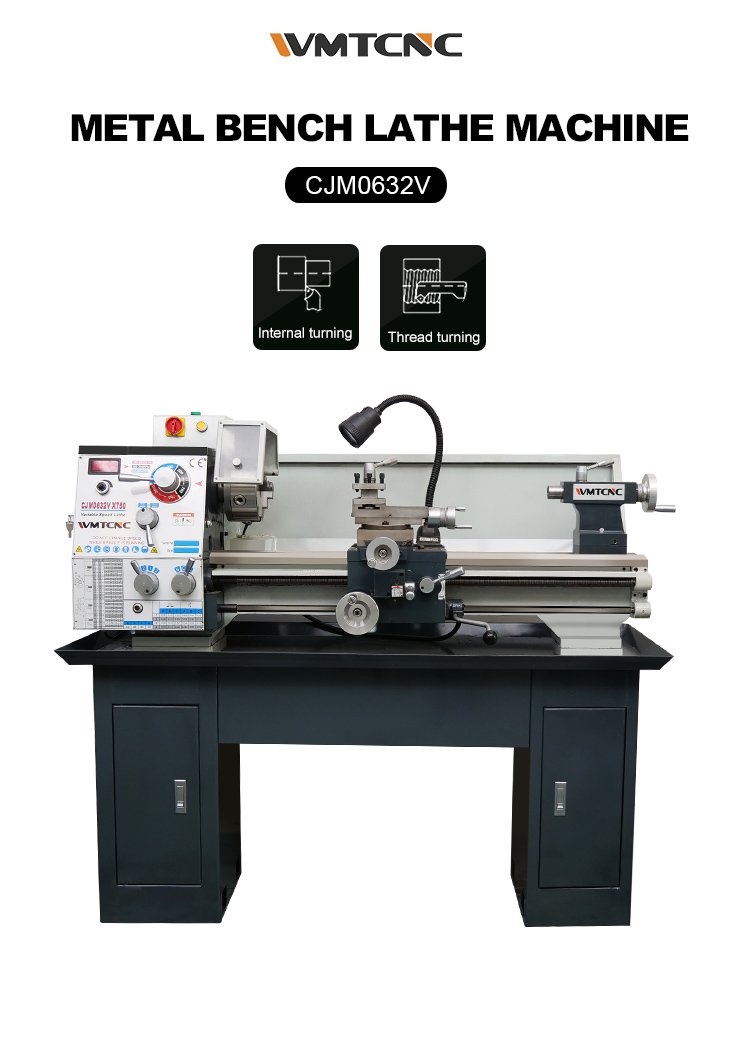

New Designed Metal Bench Lathe Machine CJM0632V Main Features:
- An economical and practical processing lathe that not only has the relatively complete functions of ordinary lathes, but also has the characteristics of lightness and flexibility of light bench lathes, compact and reasonable structure, simple and flexible operation, excellent cutting rigidity, complete basic functions, and quick installation and maintenance.
- The machine can be used for turning internal and external cylindrical surfaces, end surfaces, cones, and metric and inch threads.
- It is widely used in small and medium-sized enterprises, scientific research institutions, individual industries and repair industries at home and abroad; with corresponding functional modules, it can achieve other Special cutting processing.
| Specification |
CJM0632V |
| Max Swing diameter on the bed |
320mm |
| The distance between center |
500/750mm |
| Max swing over cross slide |
180 mm |
| Spindle bore |
38 mm |
| Spindle taper |
MT.5# |
| Max longitudinal travel over toolpost |
160 mm |
| Max cross slide travel over toolpost |
75 mm |
| Metric thread kinds |
18 |
| Metric thread range |
0.20~3.5 mm |
| Inch thread kinds |
34 |
| Inch thread range |
4 1/2 ~ 48 1/n″ |
| Moudle thread kinds |
16 |
| Moudle thread range |
0.20~1.75 π |
| Pitch thread kinds |
24 |
| Pitch thread range |
16 ~ 120 π/DP″ |
| Longitudinal feed range |
0.08~0.56 mm/r |
| Cross-feed range |
0.04~0.28 mm/r |
| Max tailstock quill travel |
60 mm |
| Tailstock quill taper |
MT.3# |
| Spindle speed kinds |
3 Kinds+Variable speed in one kind |
| Spindle speed range |
30~2000 r/min |
| Main motor |
750W 380V 50HZ (or 220V 50HZ) |
| New weight (without stand) |
300kg |
| Gross weight (without stand) |
350kg |

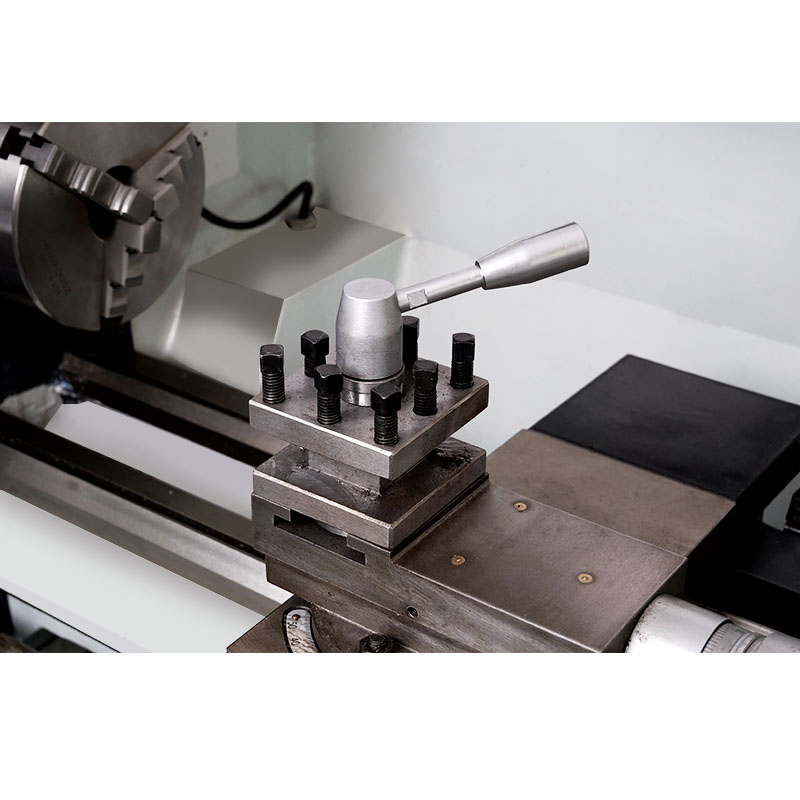

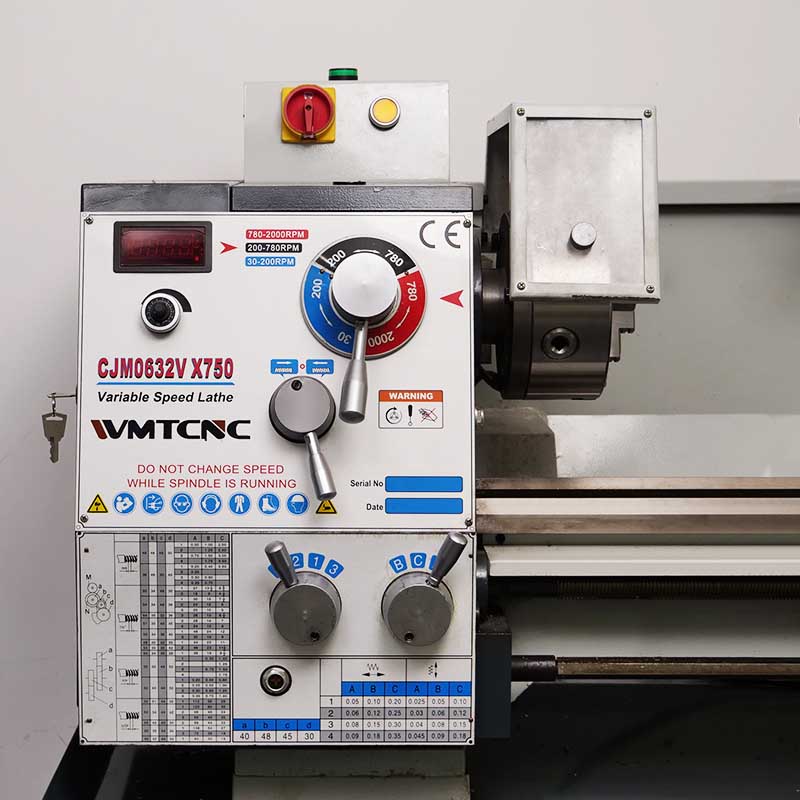

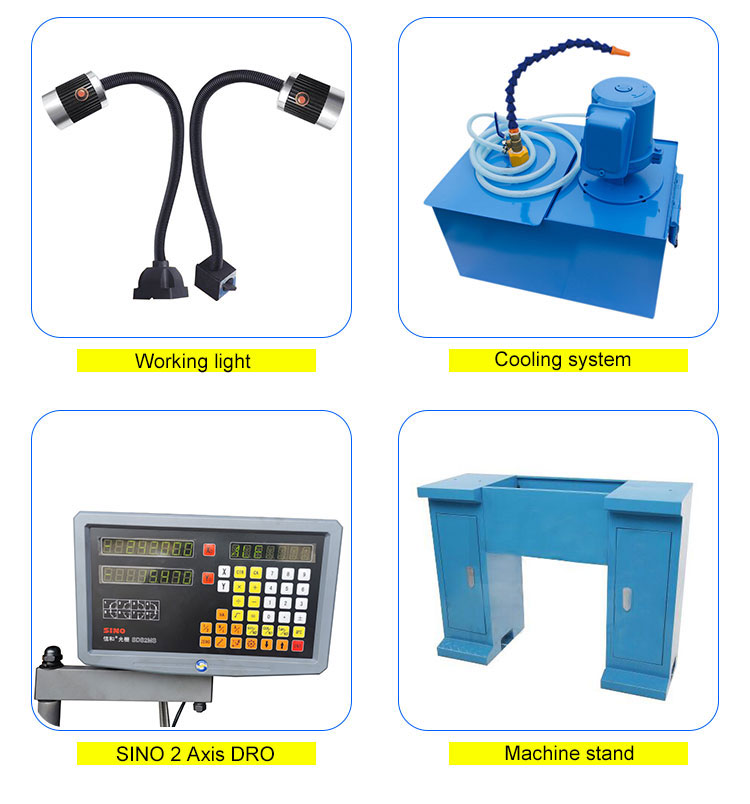

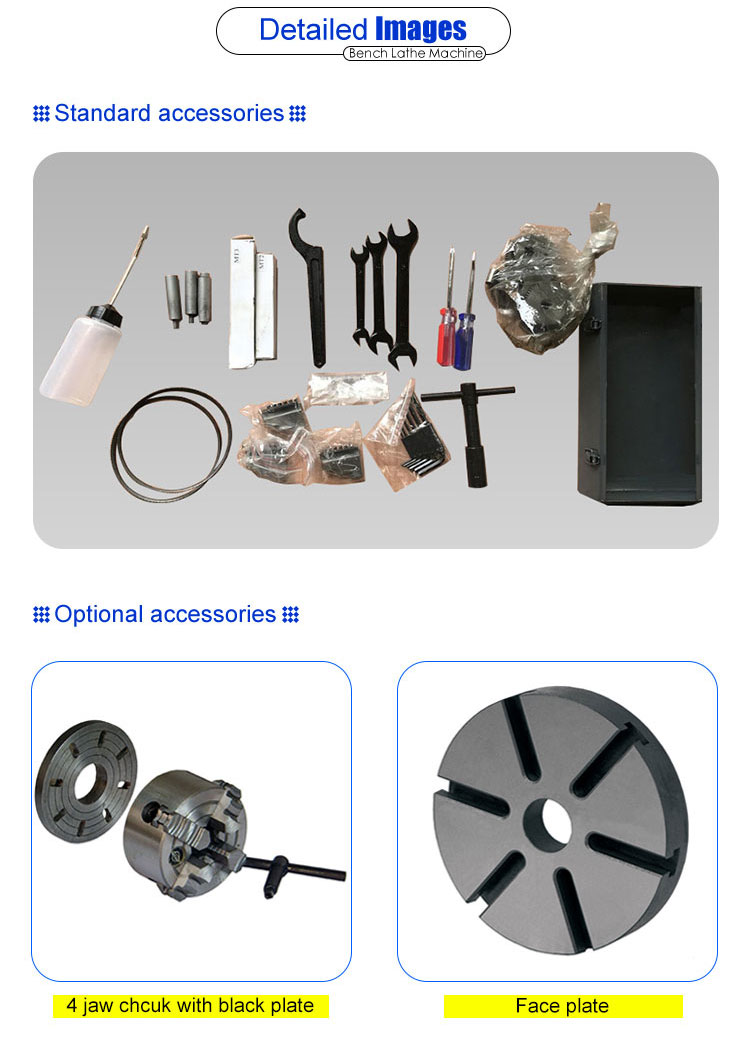

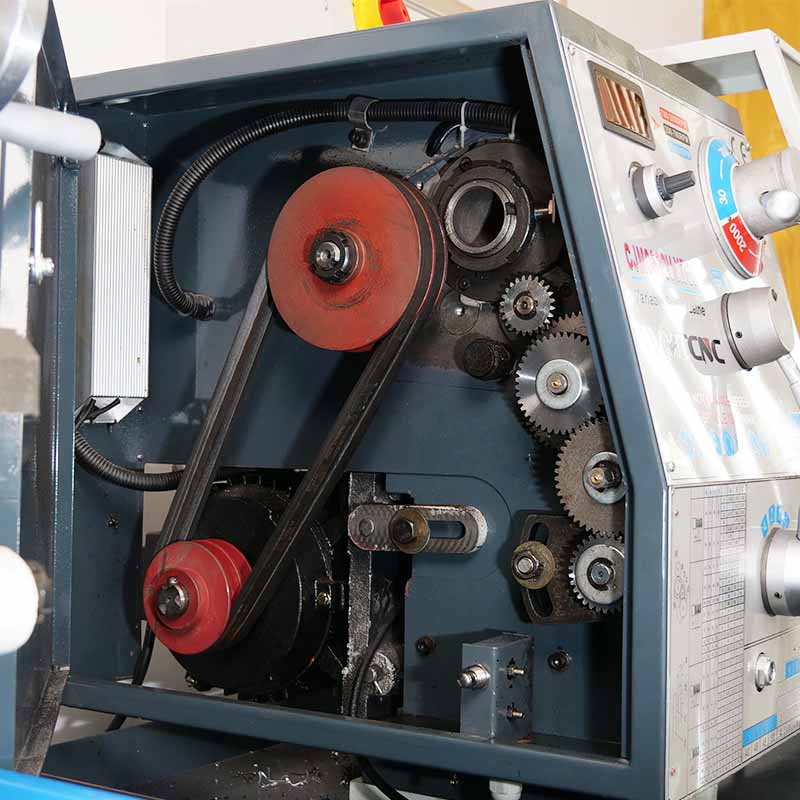

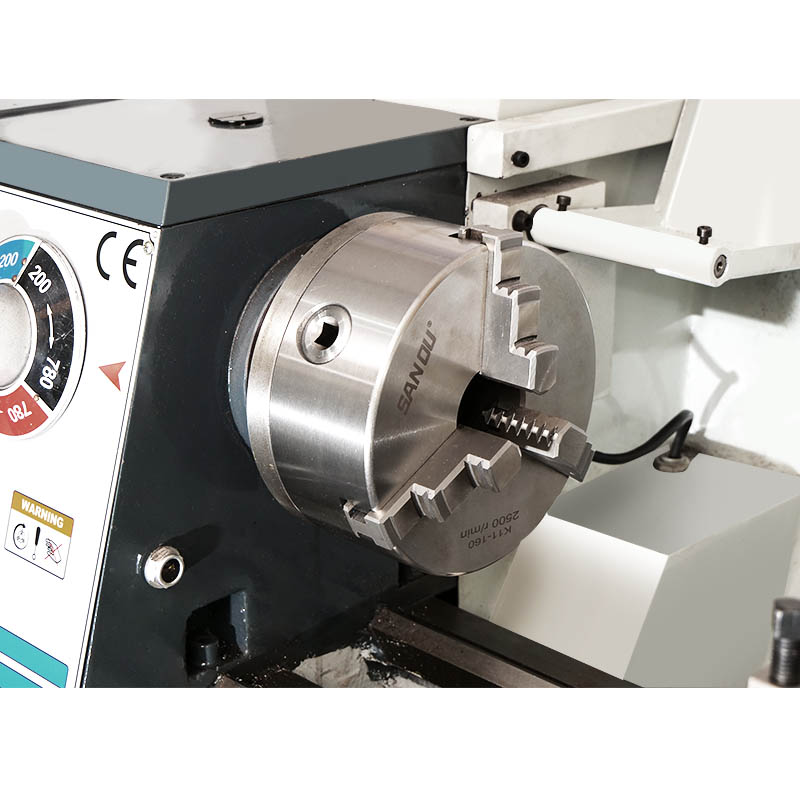

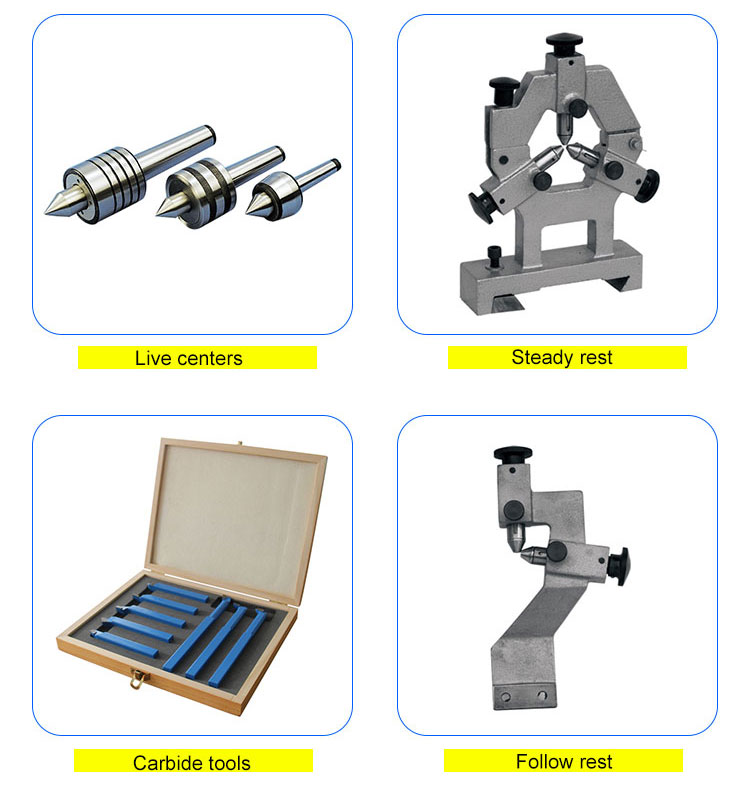

Products Show

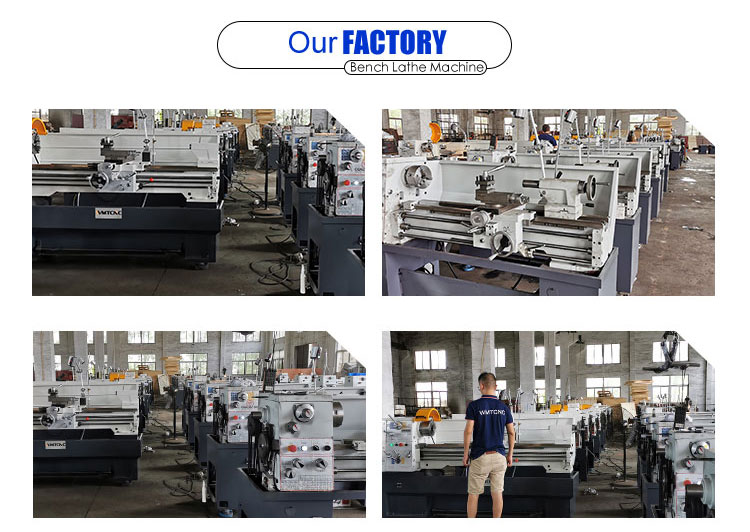

Company Profile
Professional Service
Customers' Feedback
Frequently Asked Questions
Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2: Can we visit your factory before order?
A2: Sure. All new and old friends are welcomed to visit us at our factory. Besides, we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3: What’s the MOQ?
A3: One set only.
Q4: How about your quality?
A4: We have approved the ISO9001:2008 Quality management system, ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000 (SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS & UL. 90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q5: Do you have professional engineers?
A5: Yes, we have professional engineers and designers. We can provide OEM services.
Q6: Can you provide customized machines?
A6: Yes, we can design and manufacture according to your specific requirements.
