VMC856 CNC Vertical Machining Center with Single Spindle BT40 Automatic Fanuc Control System for Automotive Parts
VMC856 CNC Vertical Machining Center with Single Spindle BT40 Automatic Fanuc Control System for Automotive Parts
VMC856 CNC Vertical Machining Center with Single Spindle BT40 Automatic Fanuc Control System for Automotive Parts
VMC856 CNC Vertical Machining Center with Single Spindle BT40 Automatic Fanuc Control System for Automotive Parts
VMC856 CNC Vertical Machining Center with Single Spindle BT40 Automatic Fanuc Control System for Automotive Parts
1 / 5
VMC856 CNC Vertical Machining Center with Single Spindle BT40 Automatic Fanuc Control System for Automotive Parts
VMC856 CNC Vertical Machining Center with Single Spindle BT40 Automatic Fanuc Control System for Automotive Parts
VMC856 CNC Vertical Machining Center with Single Spindle BT40 Automatic Fanuc Control System for Automotive Parts
VMC856 CNC Vertical Machining Center with Single Spindle BT40 Automatic Fanuc Control System for Automotive Parts
VMC856 CNC Vertical Machining Center with Single Spindle BT40 Automatic Fanuc Control System for Automotive Parts

VMC856 CNC Vertical Machining Center with Single Spindle BT40 Automatic Fanuc Control System for Automotive Parts

Send Inquiry

Product Description

Technical Parameter Banner
Technical Parameter
Specification Unit ZF-V856
Three axis travel mm 800*500*600
Workbench size mm 1000*550
The maximum load-bearing capacity of the workbench kg 400
Distance from spindle center to column mm 560
Distance from spindle nose to worktable mm 110-710
Three axis motor power kw 2*2*3
XYZ axis rapid feed m/min 36/36/36
Controller Standard Configuration: Mitsubishi M80VB system. Optional Configurations: Mitsubishi M80VA system, Fanuc system, Siemens system, HNC system, Sinumerik system
Specification of spindle end BT40
Spindle speed r.p.m 12000
Spindle motor power kw 7.5
Air compression specifications kg/c 6-7bar
Size mm 2700*2600*2700
Weight kg 5200
The mechanical specifications are subject to change with the increase in quality!
Detail Image 1
Detail Image 2
Detail Image 3

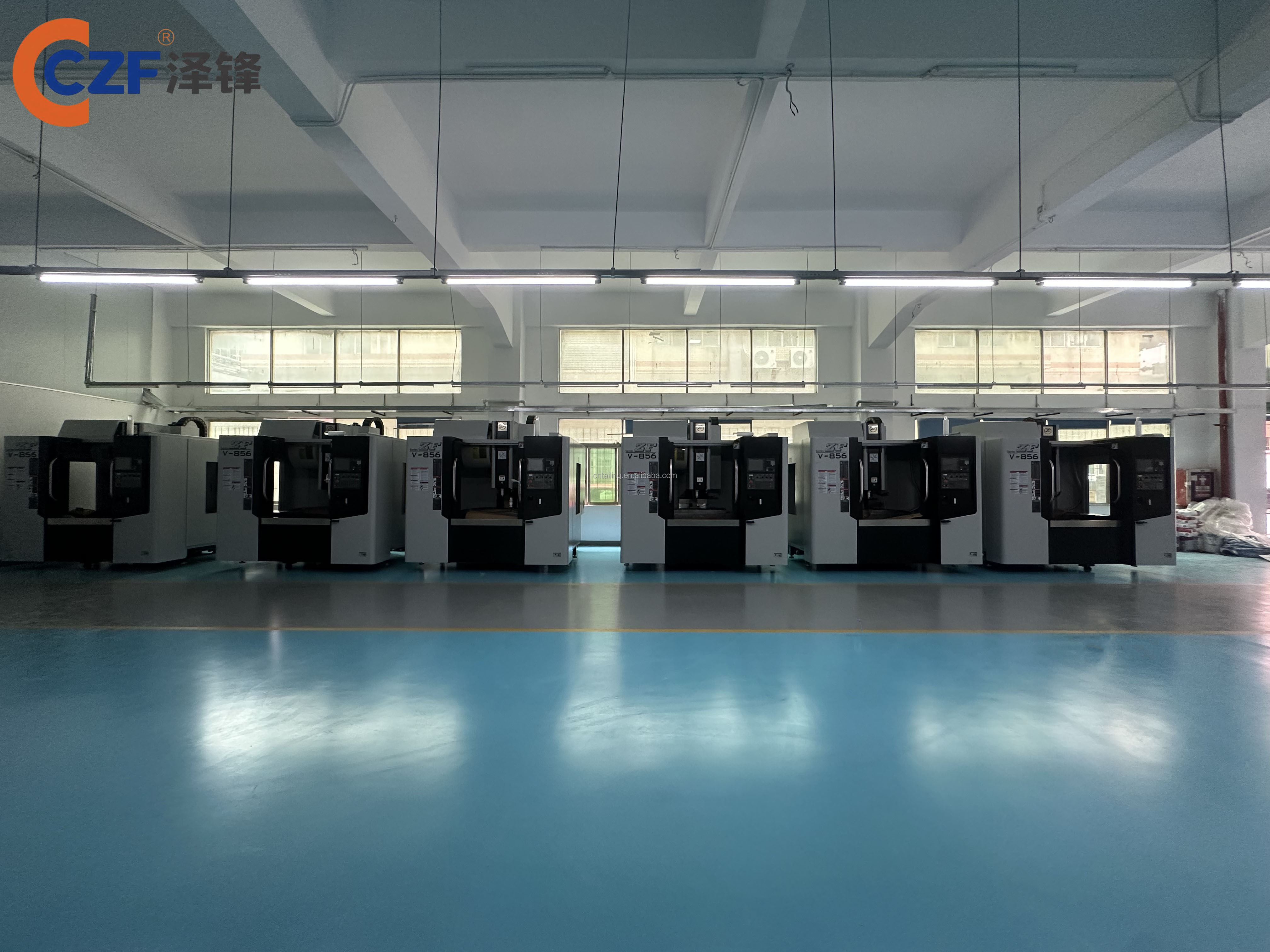

Detail Image 4
Product View 1
Product View 2
Product View 3
Product View 4
Product View 5
Product View 6
Product View 7
Product View 8
Product View 9
Process View
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Frequently Asked Questions
Q Are you a trading company or a factory?
We are a direct manufacturing brand and factory entity with a dedicated export arm for global business. You are buying directly from the source.
Q How to choose the most suitable machine?
Please provide your specifications, and we can select the best model for you, or you can choose the exact model. You can also send us the product drawings, and we will select the most suitable machine for you.
Q What are your payment terms?
A 30% down payment after signing the contract and a 70% payment before shipment can be discussed based on your specific situation.
Q Can you provide customized services?
Yes, we can. Please provide the specifications of the machine you need and let us know your requirements.
Q What is the warranty period for the machine?
The machine warranty period is 12 months from the date of receiving the goods.
Q Is your machine tool a 3-axis, 4-axis, or 5-axis machine?
We have 3-5-axis machine tools, and we need to know the dimensions you require, including the 4th and 5th rotary tables, NC controller, motor brand and model, so we can provide you with an accurate quotation.
Q Can your engineer come to our site to assist with machine installation and debugging?
Yes, our engineers can travel to your location. The round-trip airfare and accommodation expenses will be covered by you.
