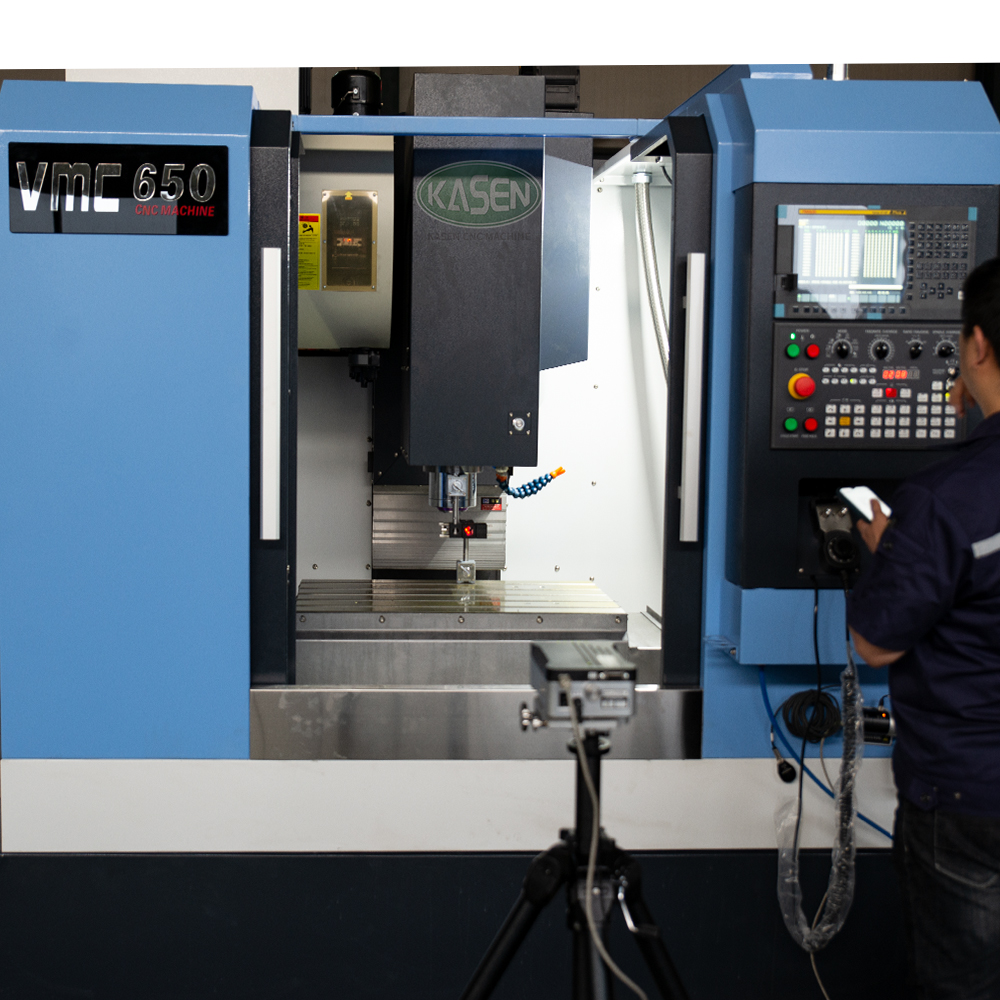

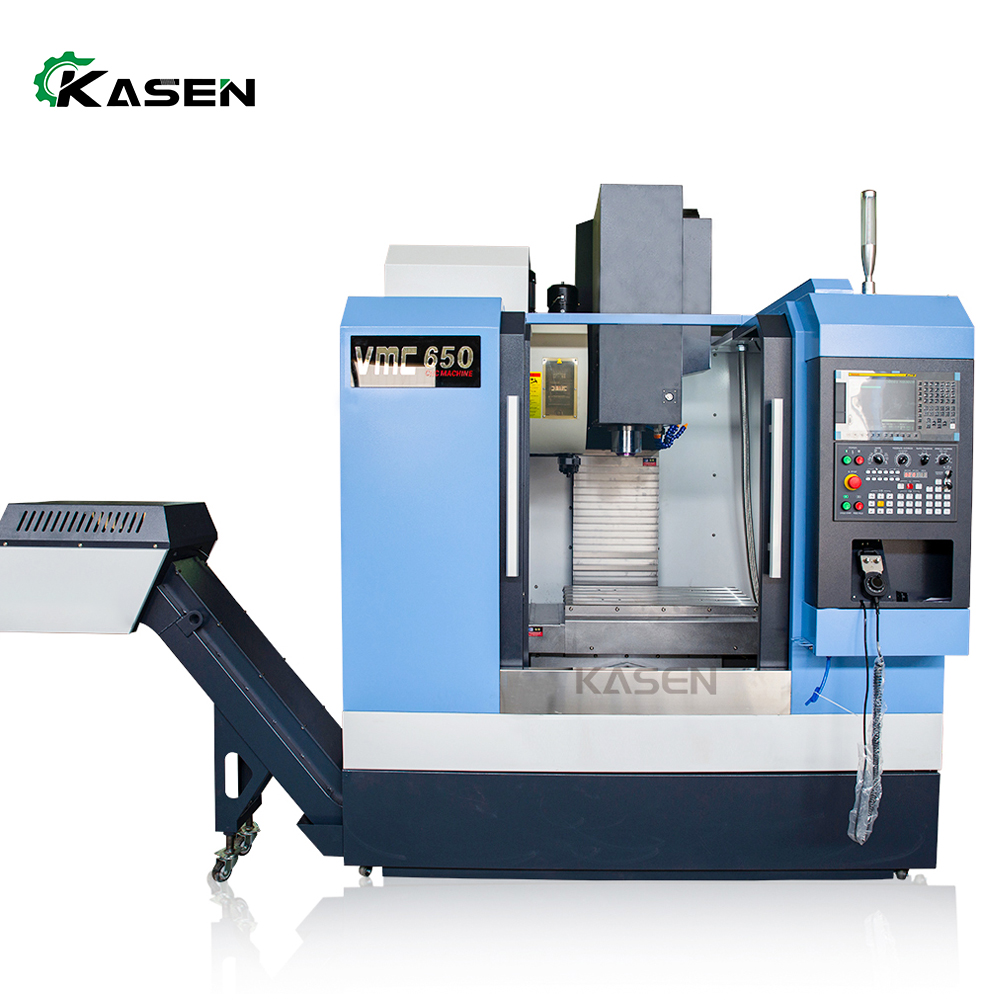

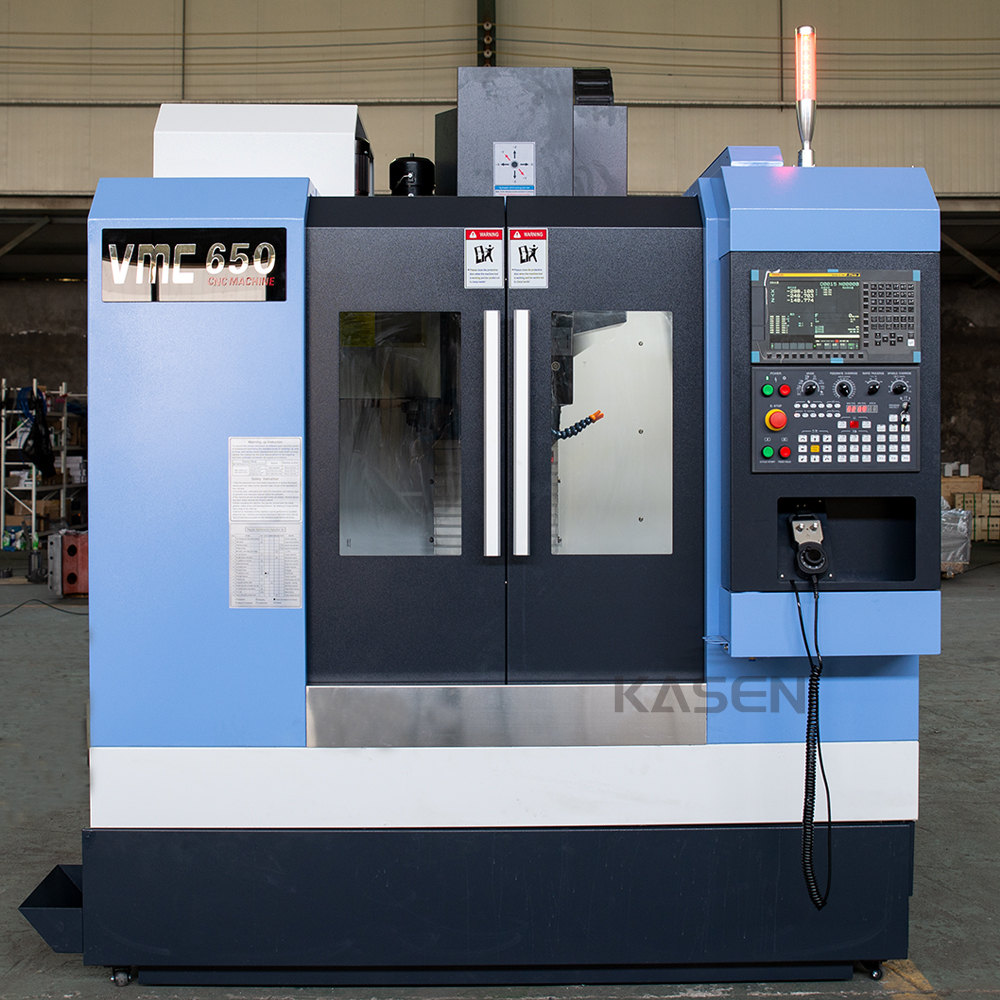

This VMC is suitable for mechanical processing and mold making. It can adapt to processing requirements from rough machining to finish machining, and can finish many working procedures like milling, drilling, tapping, boring, etc.
| Specifications | Units | VMC650 |
|---|---|---|
| Working table | Table size | 900x400 |
| T-slot | 3-18x125 | |
| Max loading capacity of table | 500kg | |
| Spindle | Spindle taper | BT40 |
| Spindle speed | 8000 rpm | |
| Spindle power | 7.5KW | |
| Oil cooler | Optional / Configurable | |
| Travel | X, Y, Z axis travel | 650X450X500 |
| Distance from spindle nose to table | 100-600mm | |
| Distance from spindle center to vertical guide way surface | 469mm | |
| Feed | Rapid movement speed X, Y, Z | 24/24/20 (Optional: 48/48/36) |
| Feed rate of cutting X, Y, Z | 1~10000mm/min | |
| Three axis | X Y Z axis motor torque | 10/10/15NM |
| X Y Z axis linear guide rail width | 35mm | |
| X Y Z lead screw size | 4016 | |
| X Y Z sliding block no | 4/4/4 | |
| Tools capacity | Tools capacity | 24T/16 |
| Max tool weight | 8kg | |
| Max length | Φ78/300mm | |
| Tool magazine type | Arm type | |
| Precision | Positioning accuracy X/Y/Z | ±0.005mm |
| Repeated positioning accuracy X/Y/Z | ±0.003mm | |
| Machine tool | Machine size | 2400x2000x2550mm |
| Casting material model | HT300 | |
| Machine hardness | 45-50rkc | |
| Machine weight | 4000kg |
HT300 high-grade gray iron castings have been quenched twice and subjected to aging vibration treatment. The reinforced rib structure spindle box has strong rigidity and long service life.

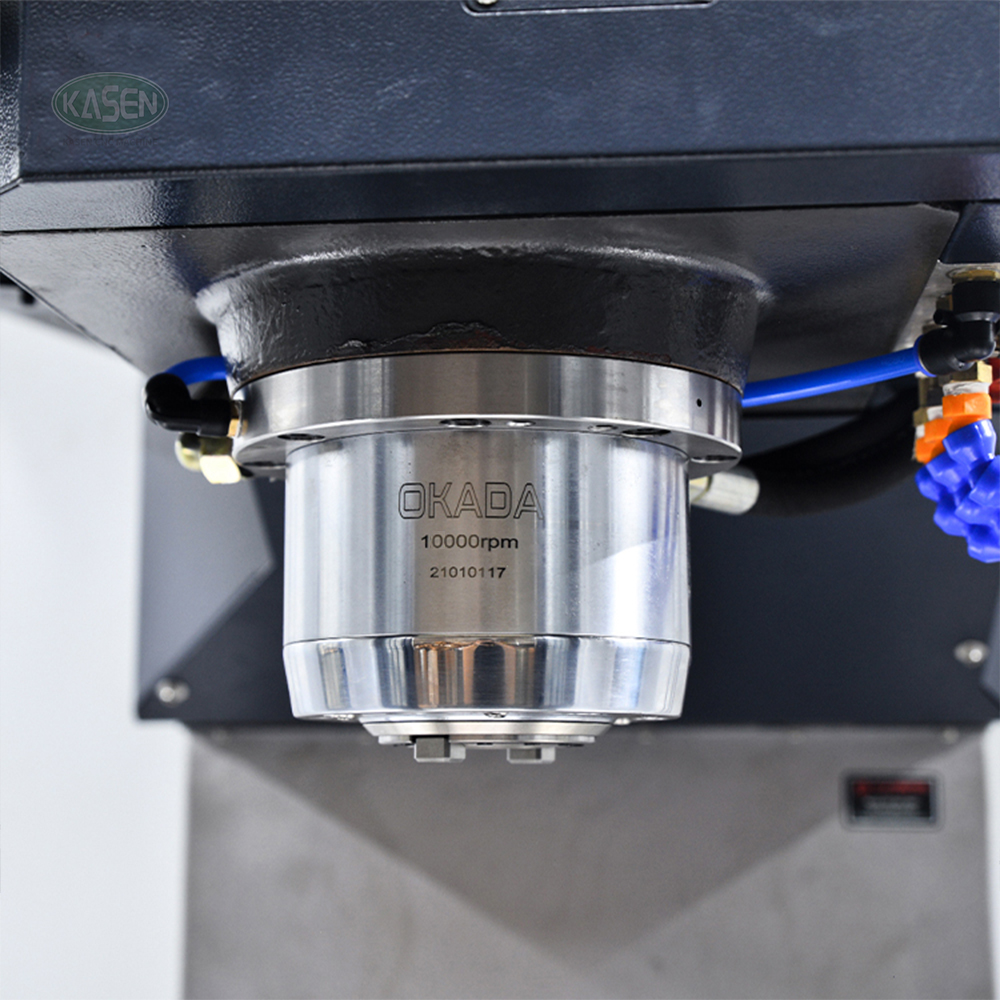

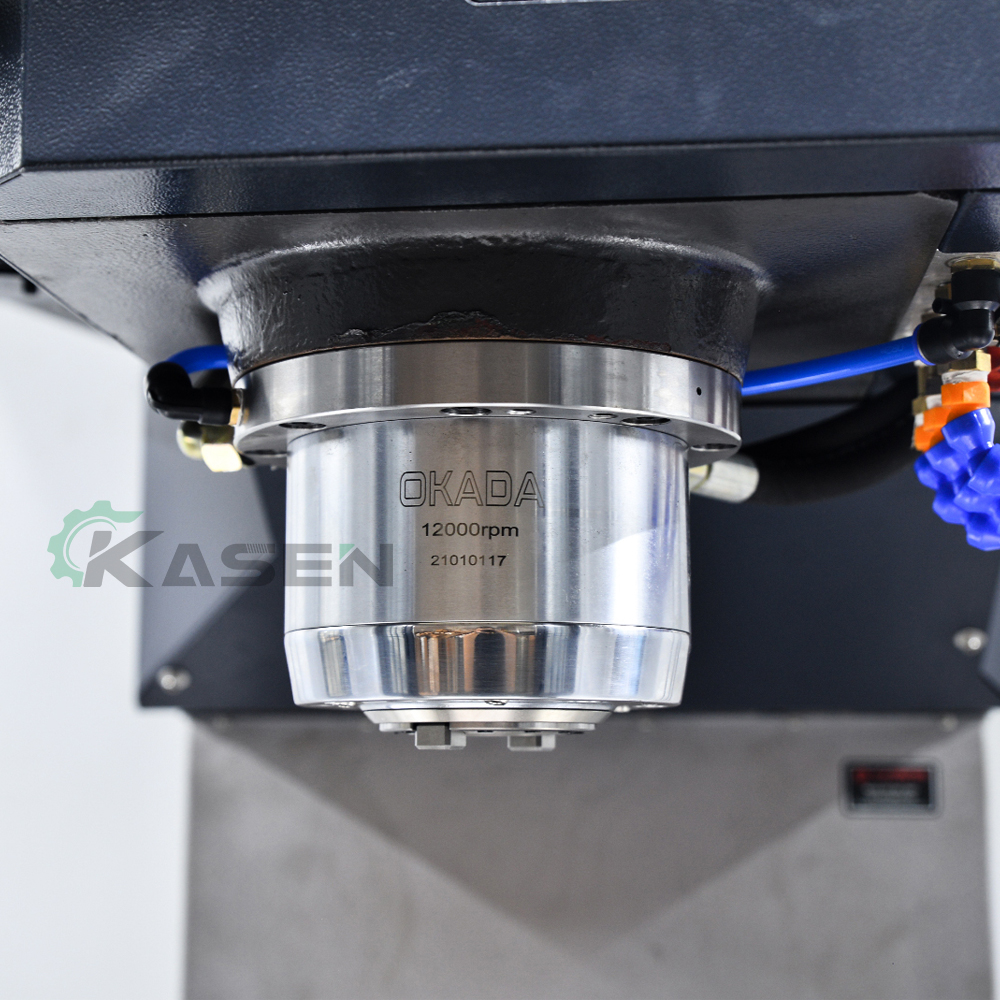

Famous Taiwan spindle. High speed, high precision. Good surface finishing. 10000rpm/12000rpm is optional.

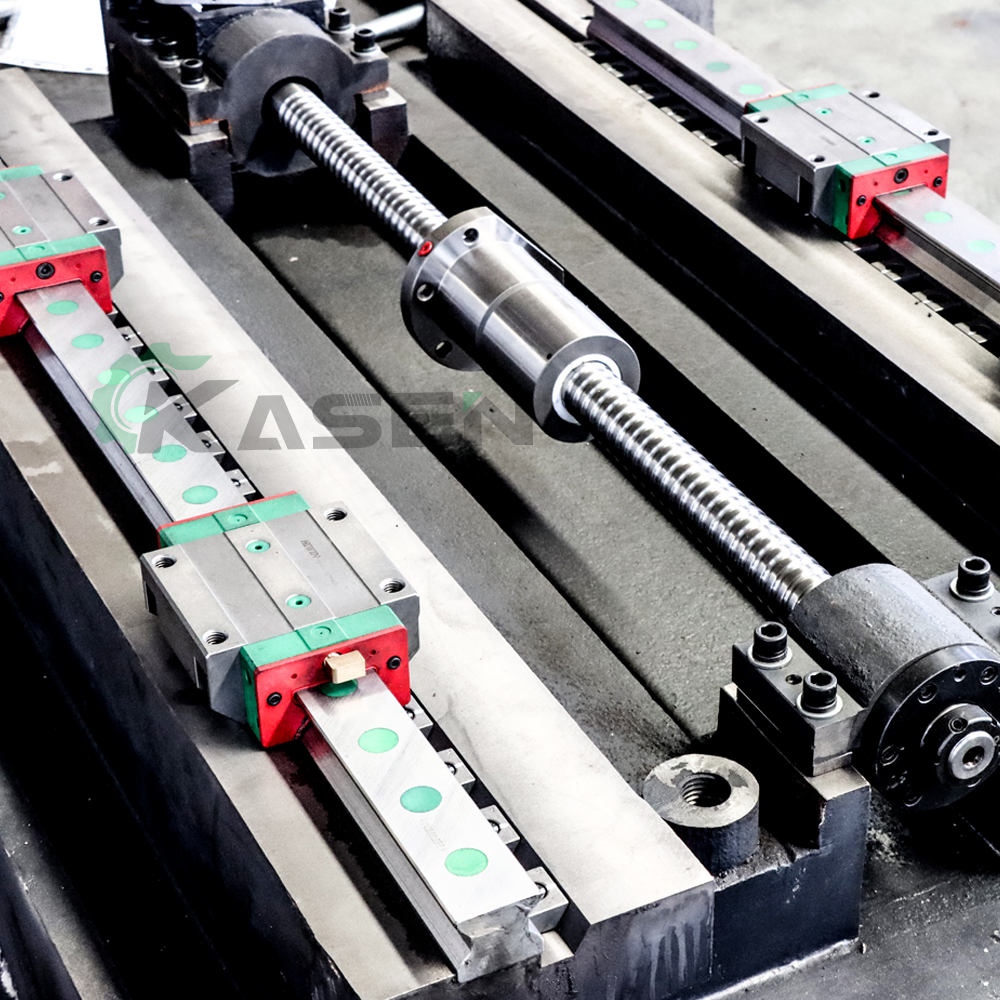

Taiwanese brand linear guides and screws provide higher precision and more accurate positioning.

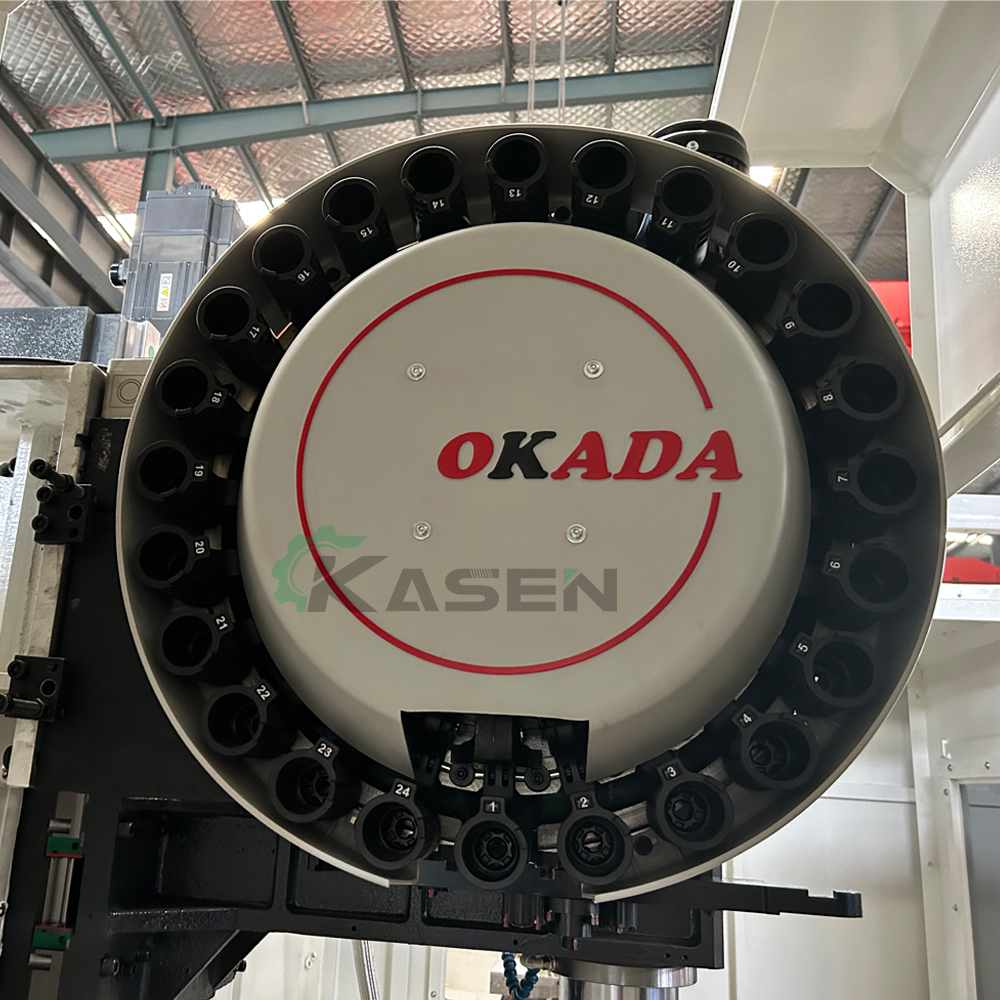

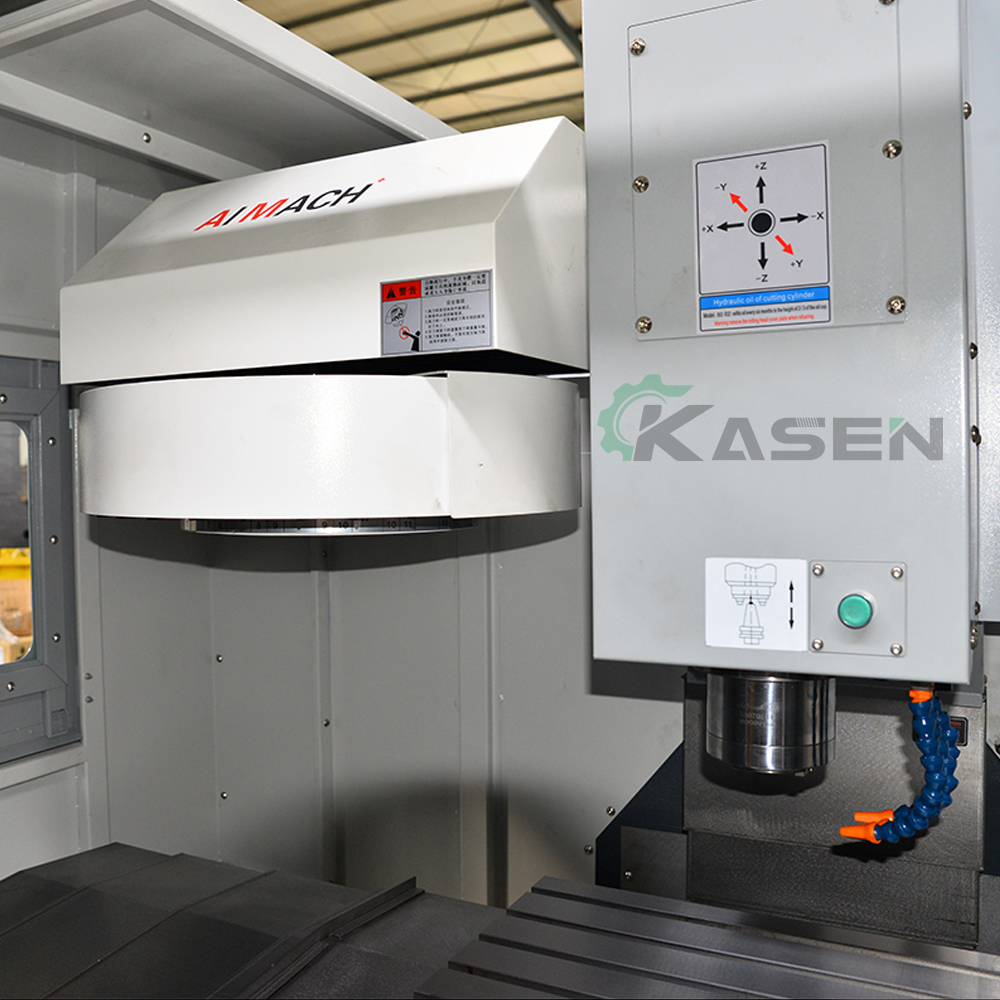

Optional 12/16/24 knives, tool changing speed 3s.

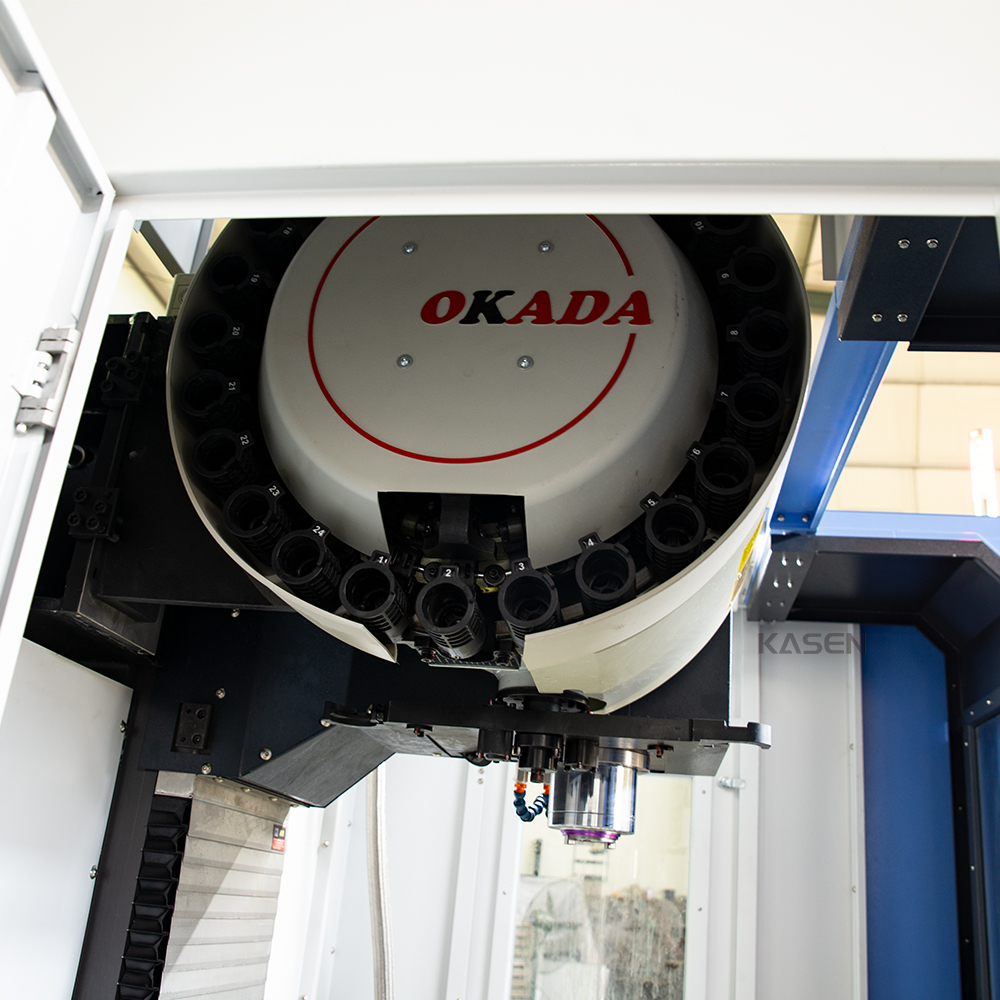

24 tools, tool changing speed 2s, automatic tool changing.

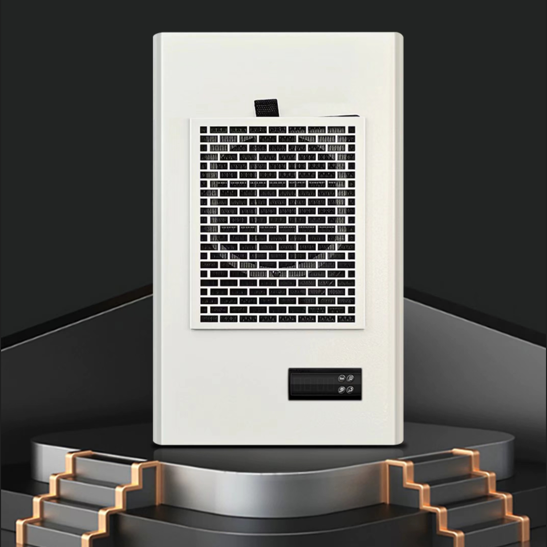

Standard with Industrial electrical cabinet air conditioner. Cooling the electric box better.

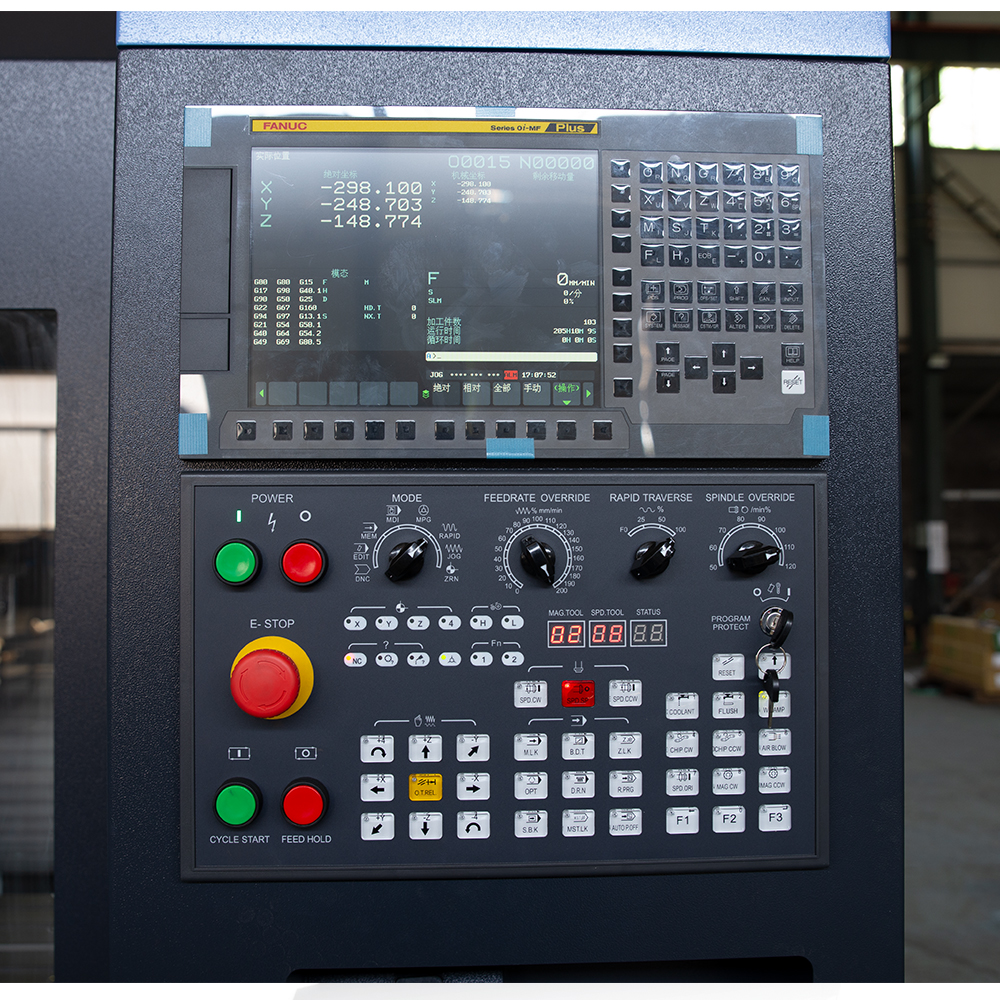

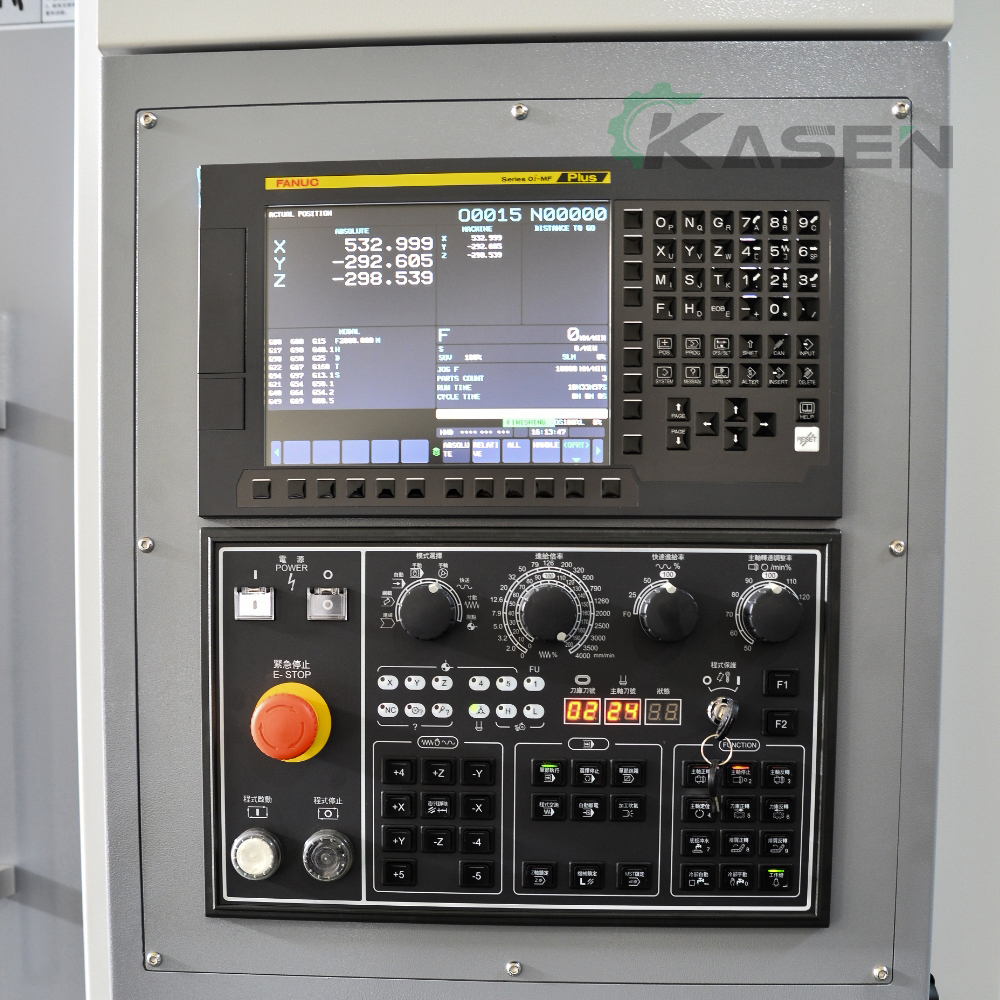

Optional - Fanuc / Siemens / GSK / Syntec / Mitsubishi brand.
Automatic centralized lubrication device.
Standard Schneider safety electrical components.
Transfer heat from hot fluid to cold fluid.

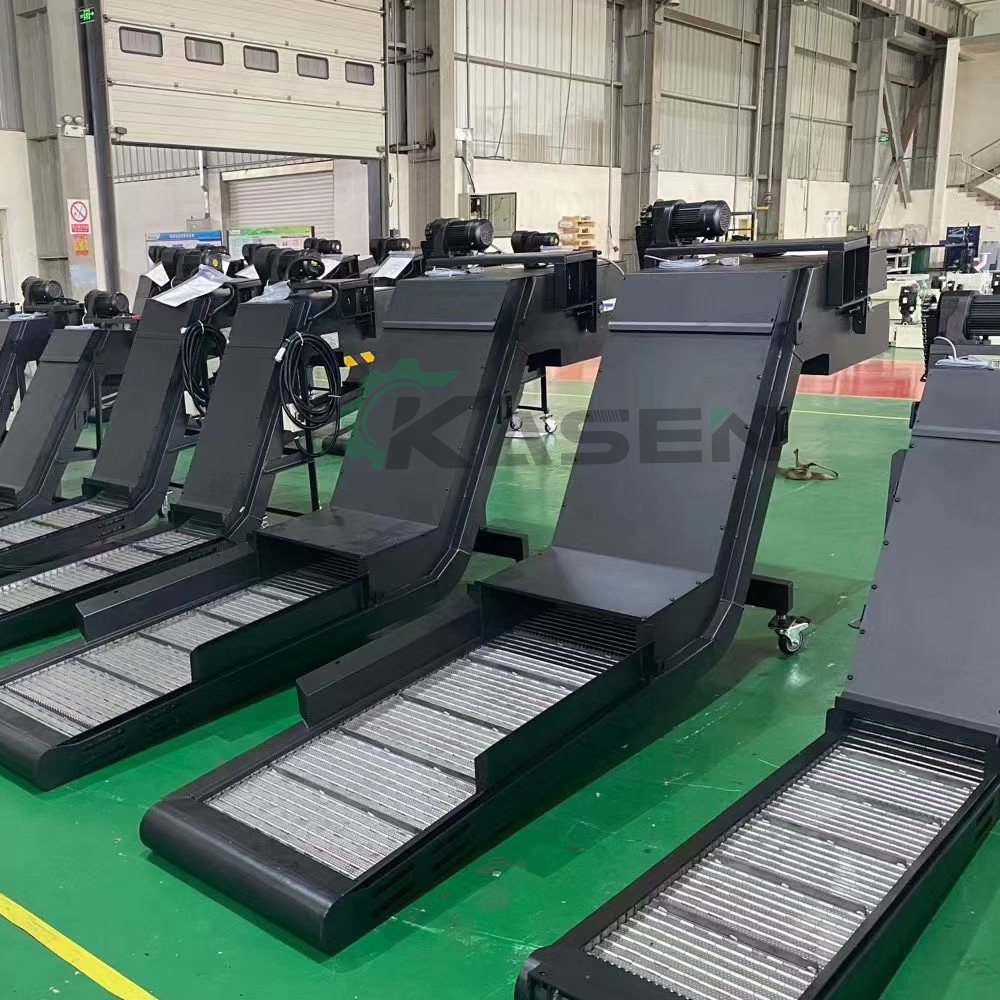

Optional chain type chip conveyor. It can filter most iron filings and has good chip removal performance.
Taiwan brand, with hydraulic chuck and top tailstock.

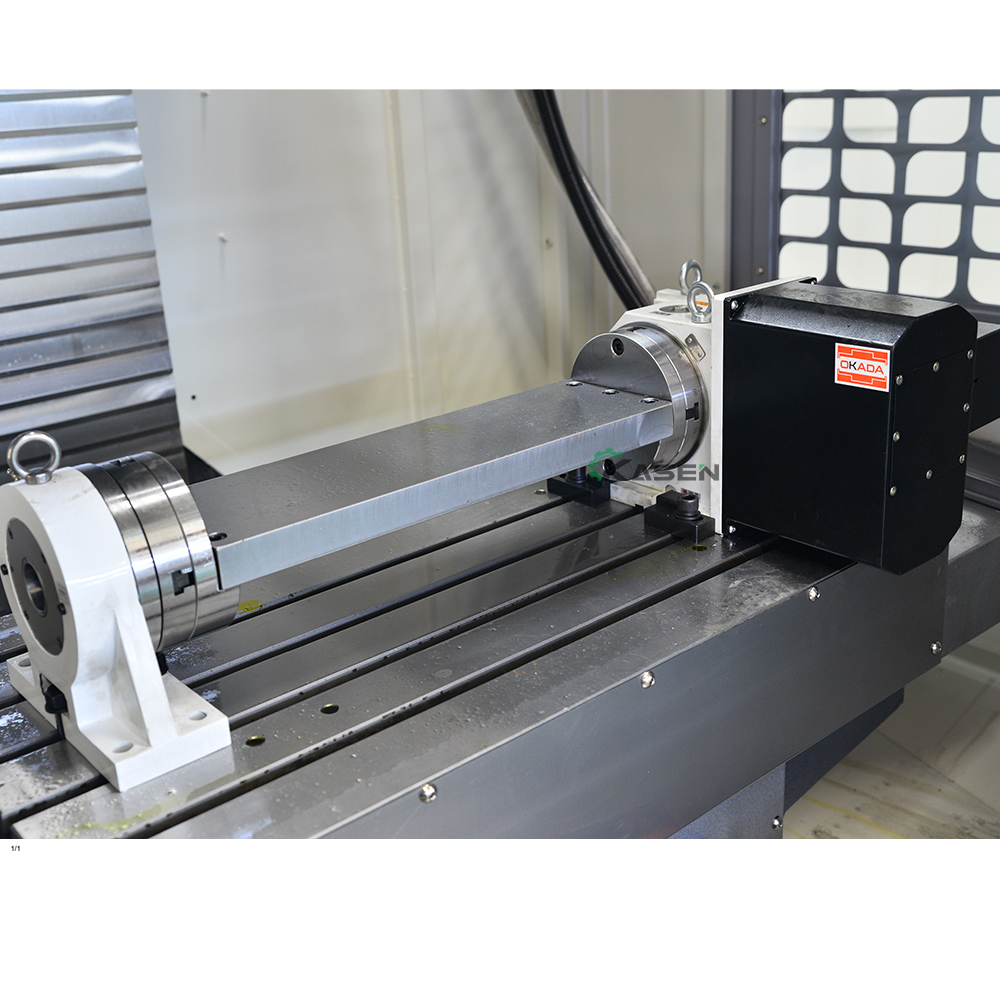

Taiwan brand, bridge type, it including Disc tailstock, Middle plate and L-block.

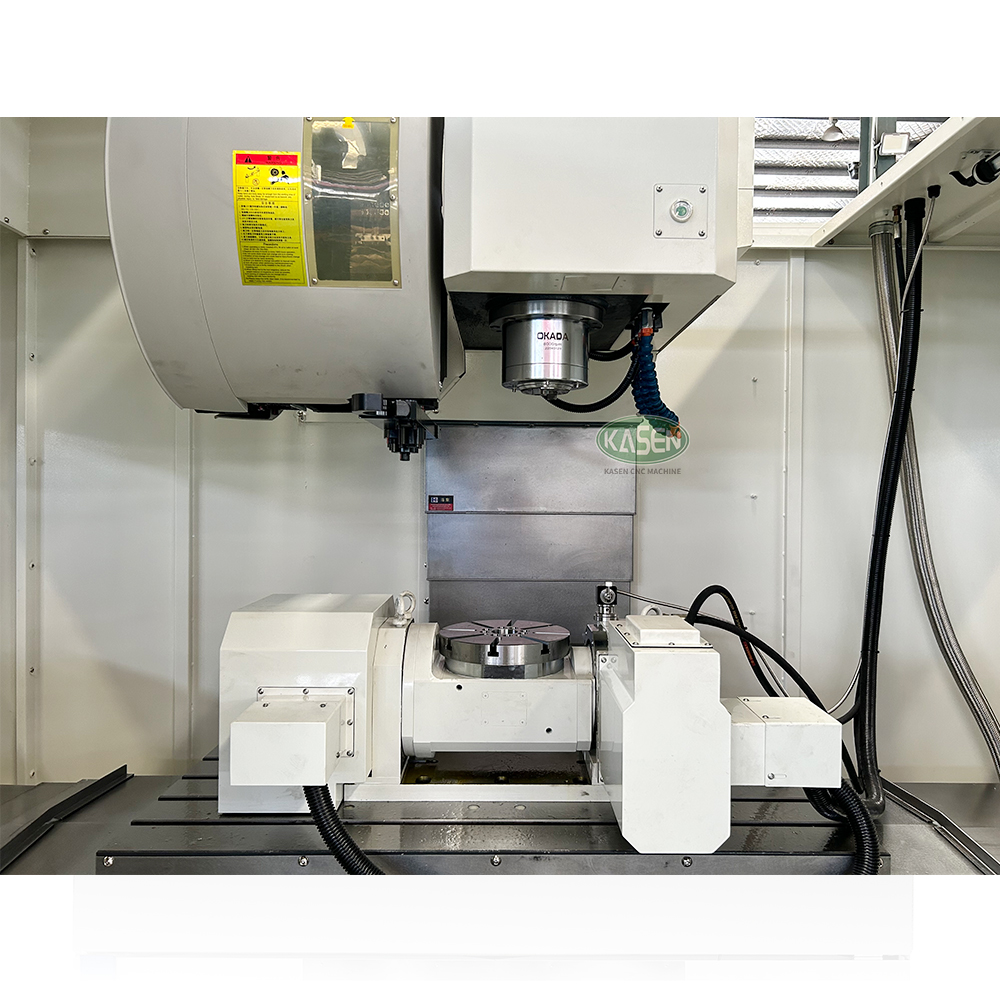

Taiwan brand, Five axis linkage, High accuracy, high performance and high efficiency Strong braking system.

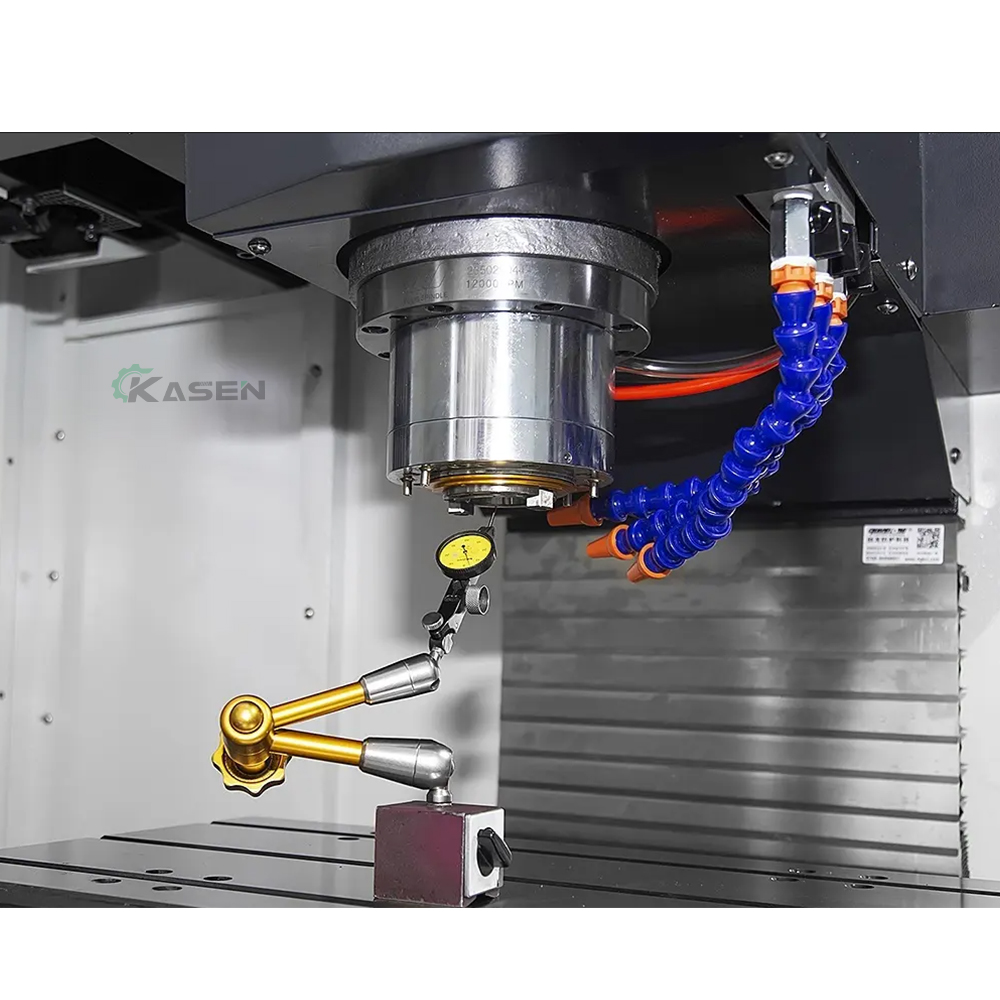

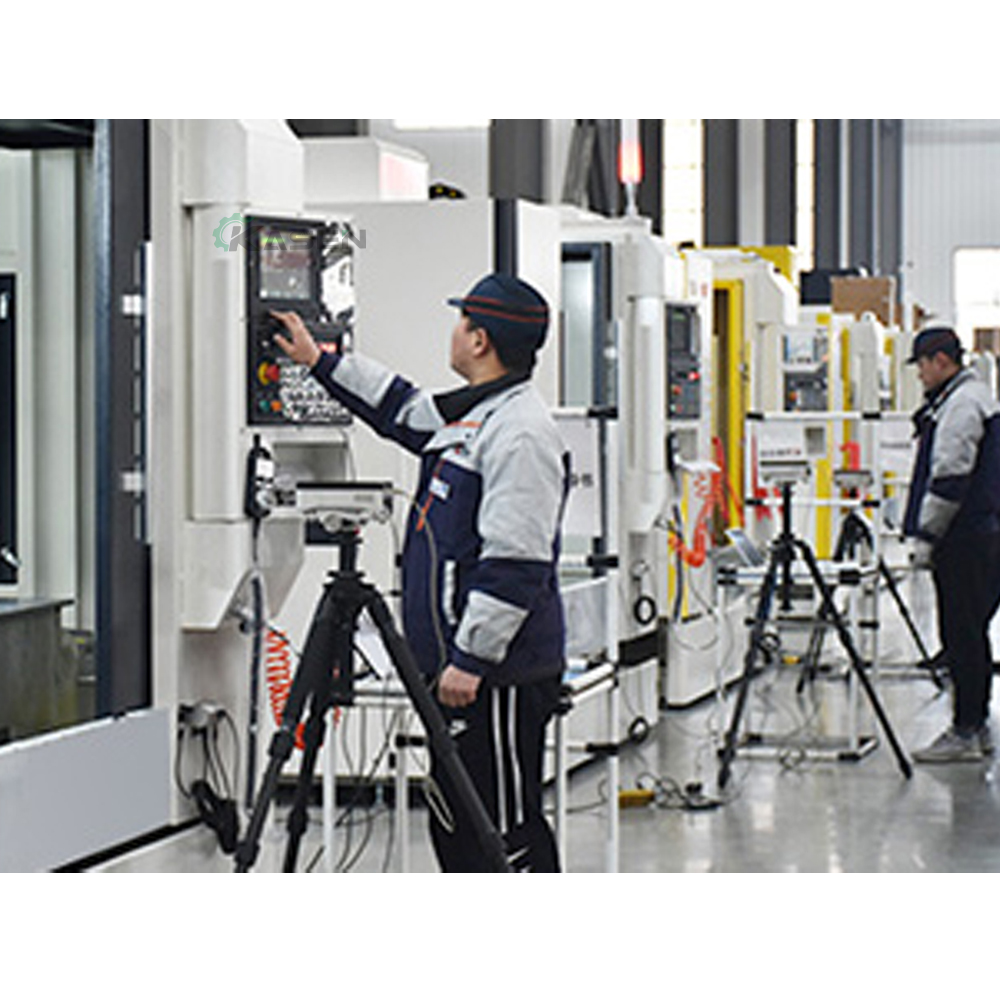

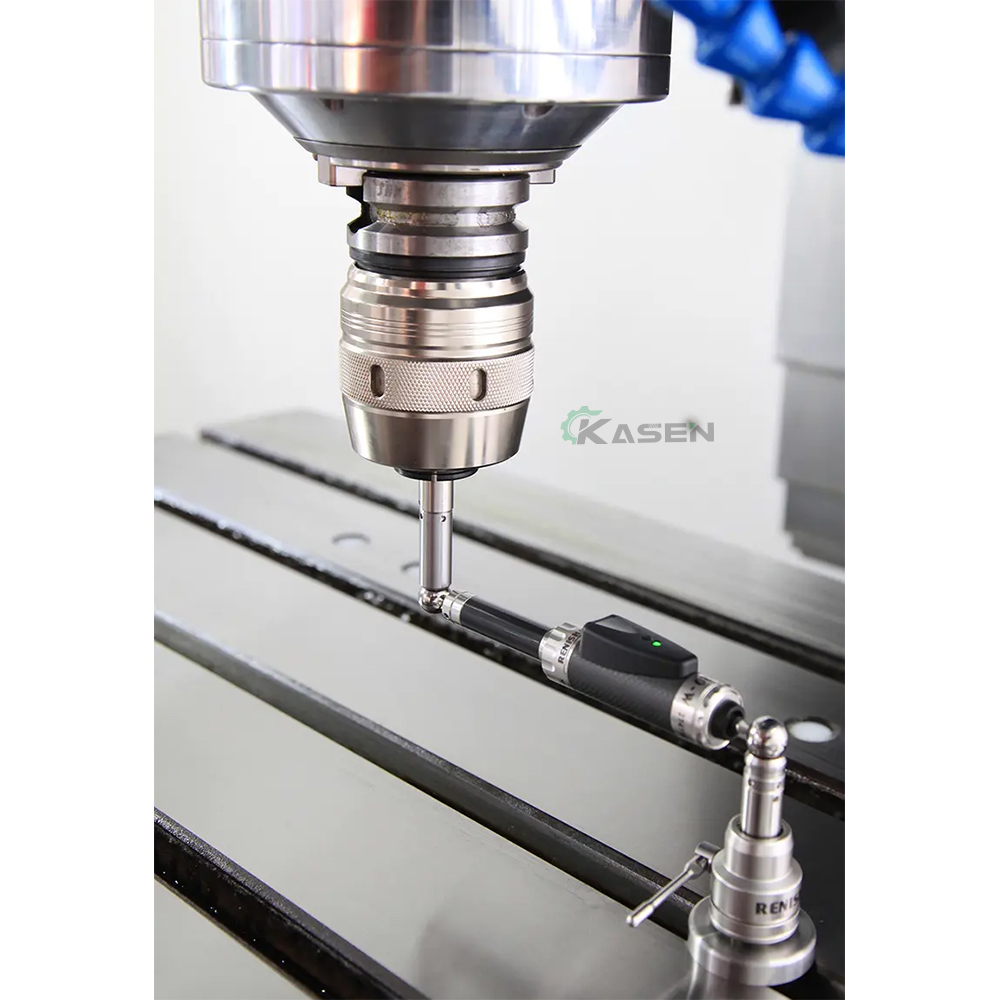

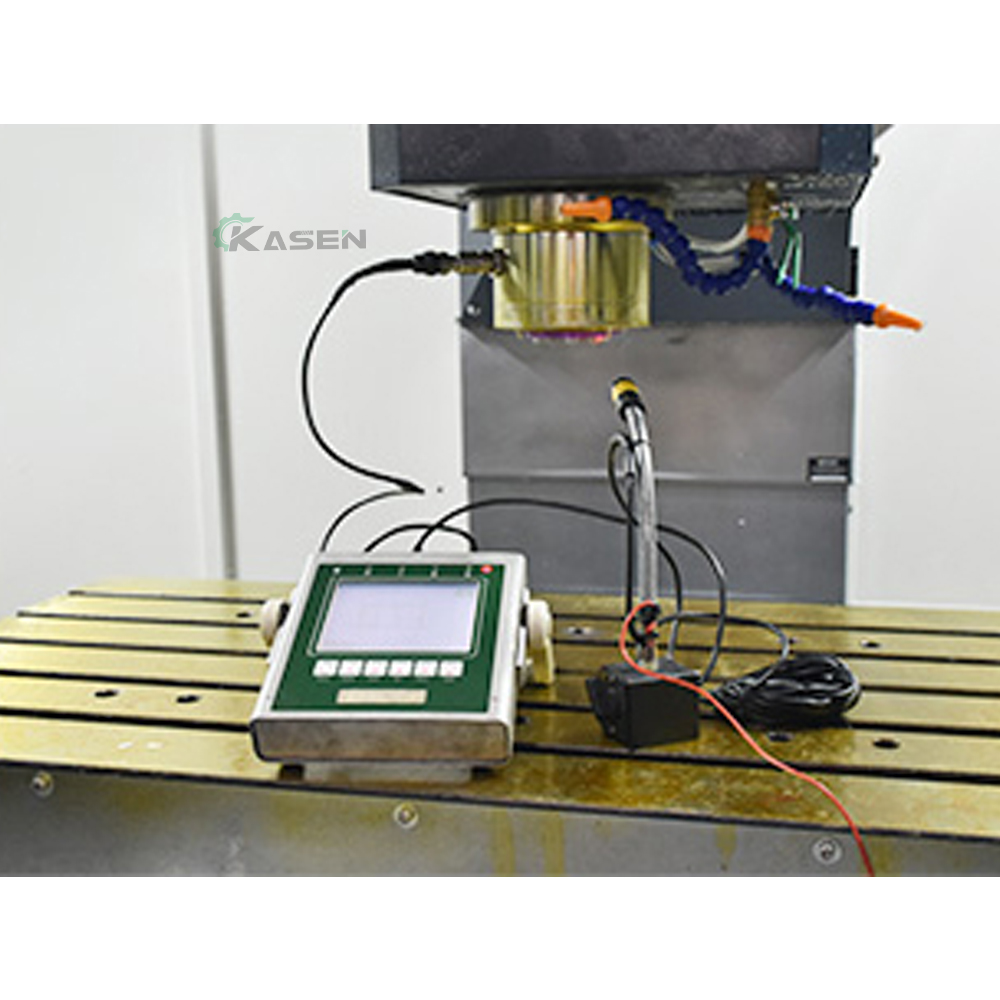

The machine is inspected by Cue meter, dial indicator, dynamic balance and Renishaw laser detector before leaving the factory.
