Product Description

Vertical Machining Center Overview

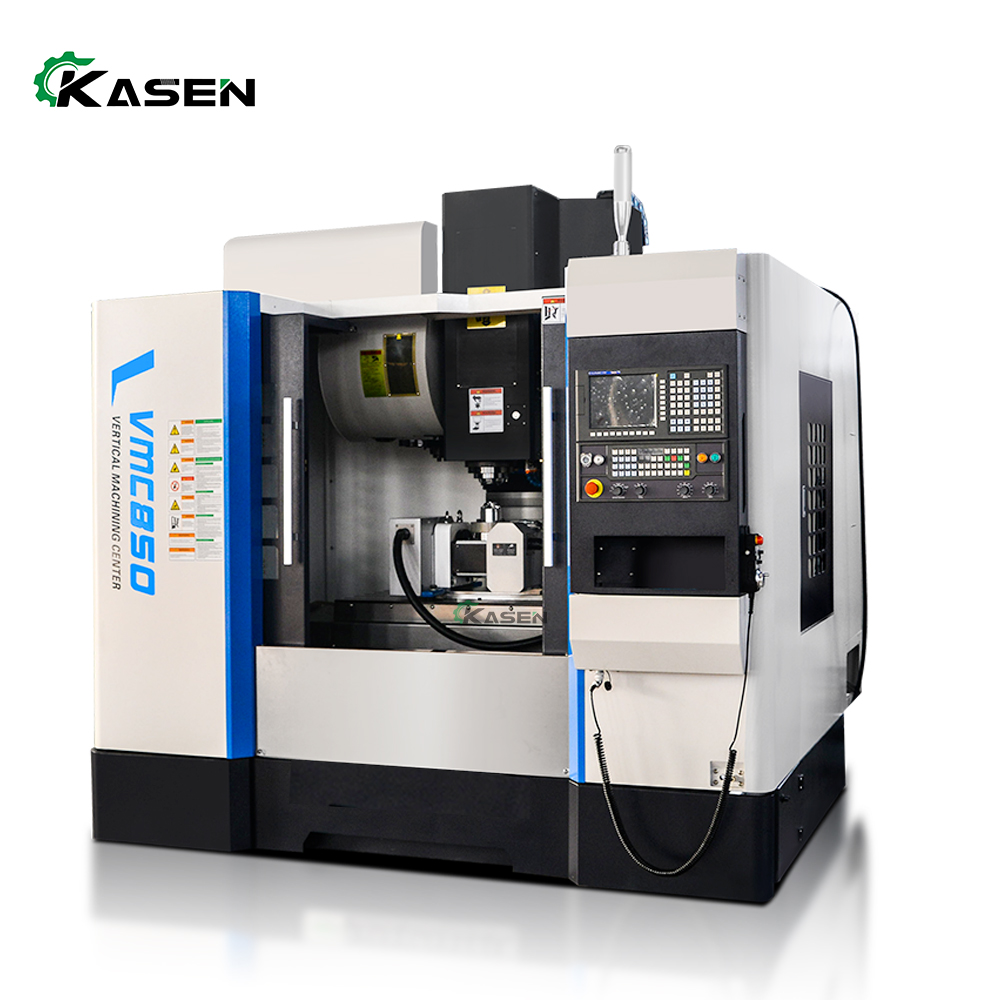

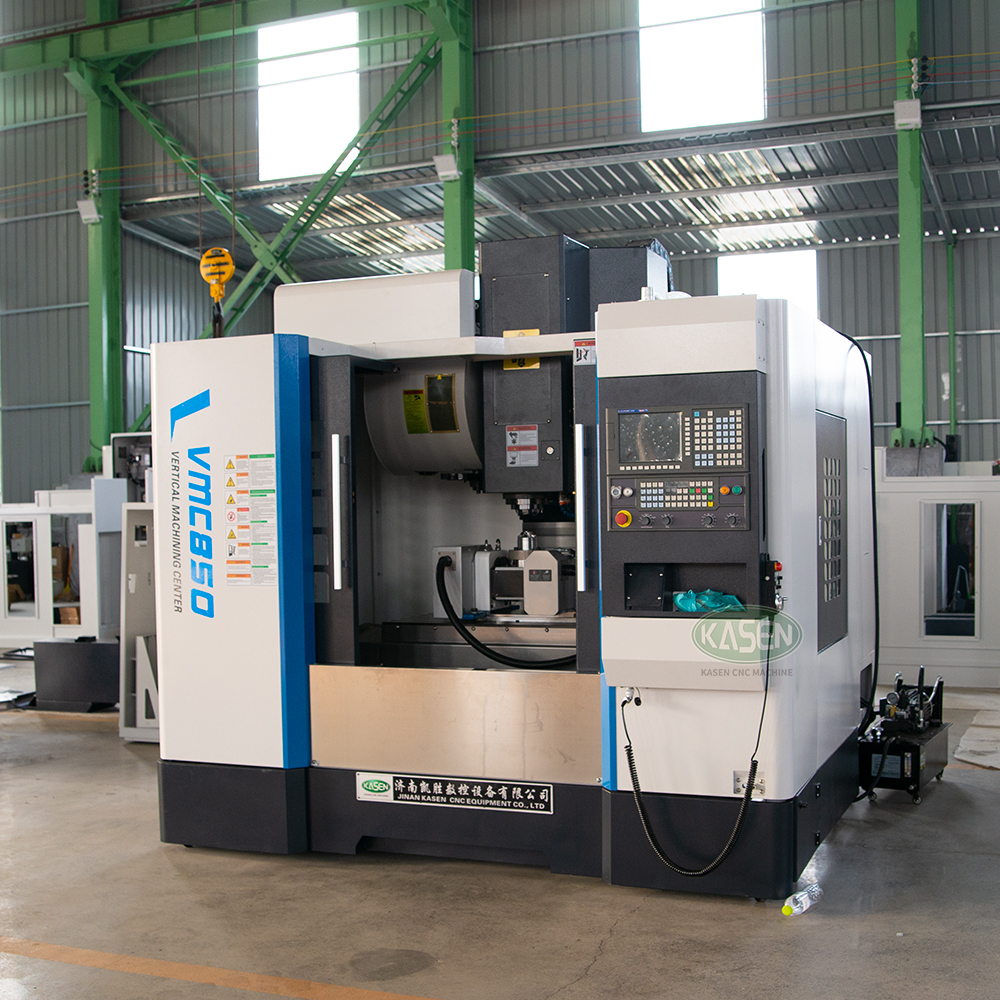

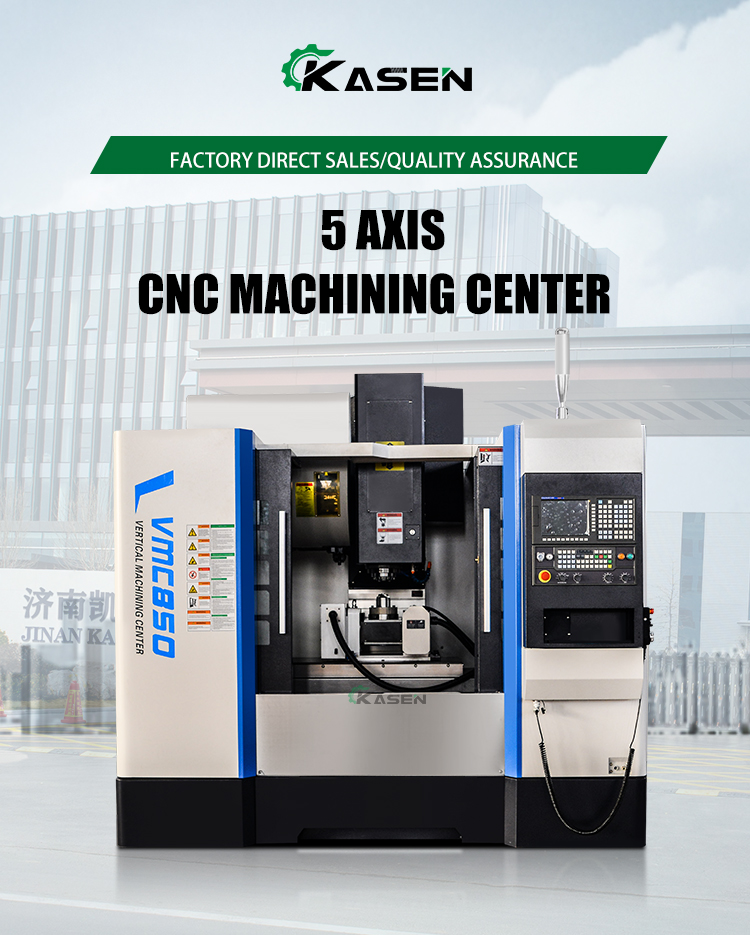

VMC850 Product Display
Detailed Component View

Technical Specifications

Specifications Units VMC850
Table size mm 1000x500
X axis travel mm 800
Y axis travel mm 500
Z axis travel mm 500
Max. worktable load kg 500
T slot (number-width-pitch) - 5-18x100
Max. spindle speed rpm 8000 (Optional: 12000)
Spindle taper mm BT40
Main motor power kw 7.5/11
X/Y/Z rapid traverse speed m/min 24/24/20
(Optional: 48/48/36)
Cutting feed speed mm/min 1-10000
Guide rail type - Linear rail
Distance from spindle axis to column surface mm 525
Distance between spindle nose and worktable surface mm 140-740
Positioning accuracy mm ±0.005
Repeat positioning accuracy mm ±0.003
Tool magazine - Arm 24/16
Max. tool diameter mm φ78 (Adjacent) / φ120 (Apart)
Max. tool weight kg 8
Machine weight kg 5600
Overall dimension mm 2600x2300x2800

Product Processing & Quality Control

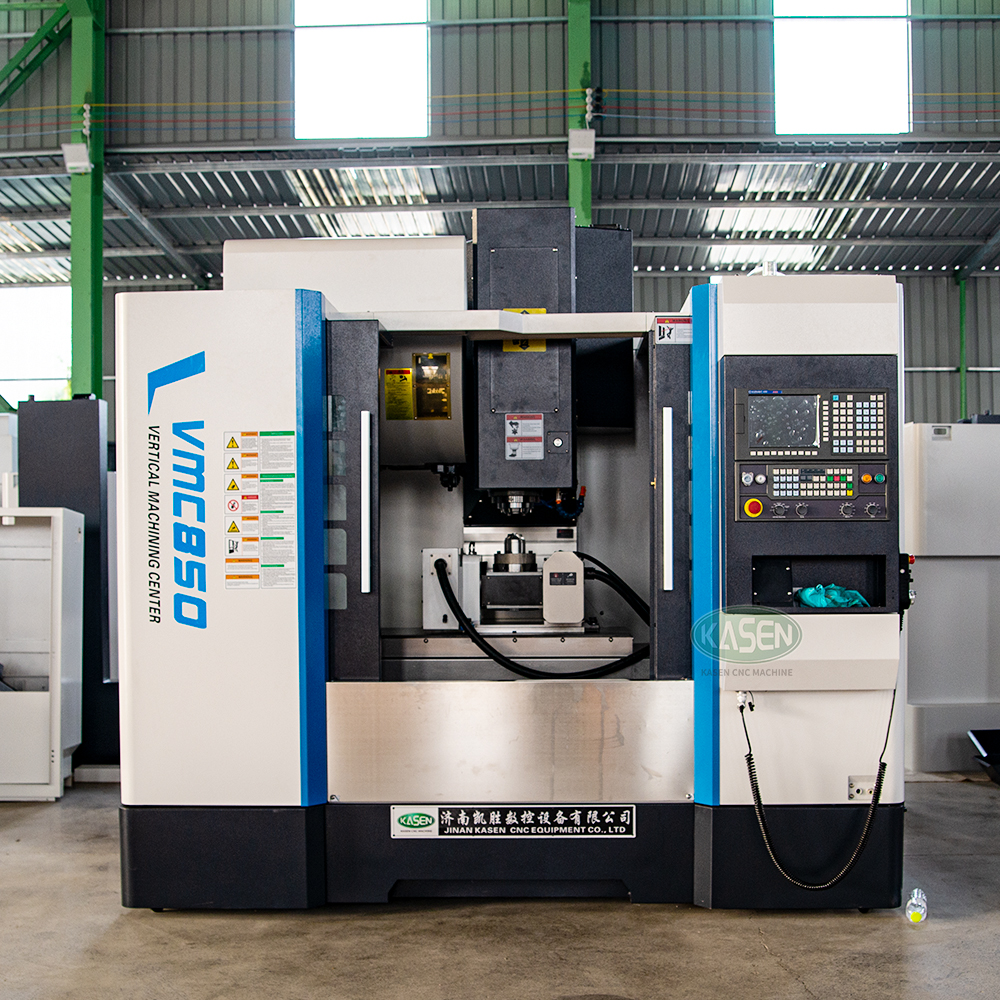

Machining Processing Stage 1
Machining Processing Stage 2

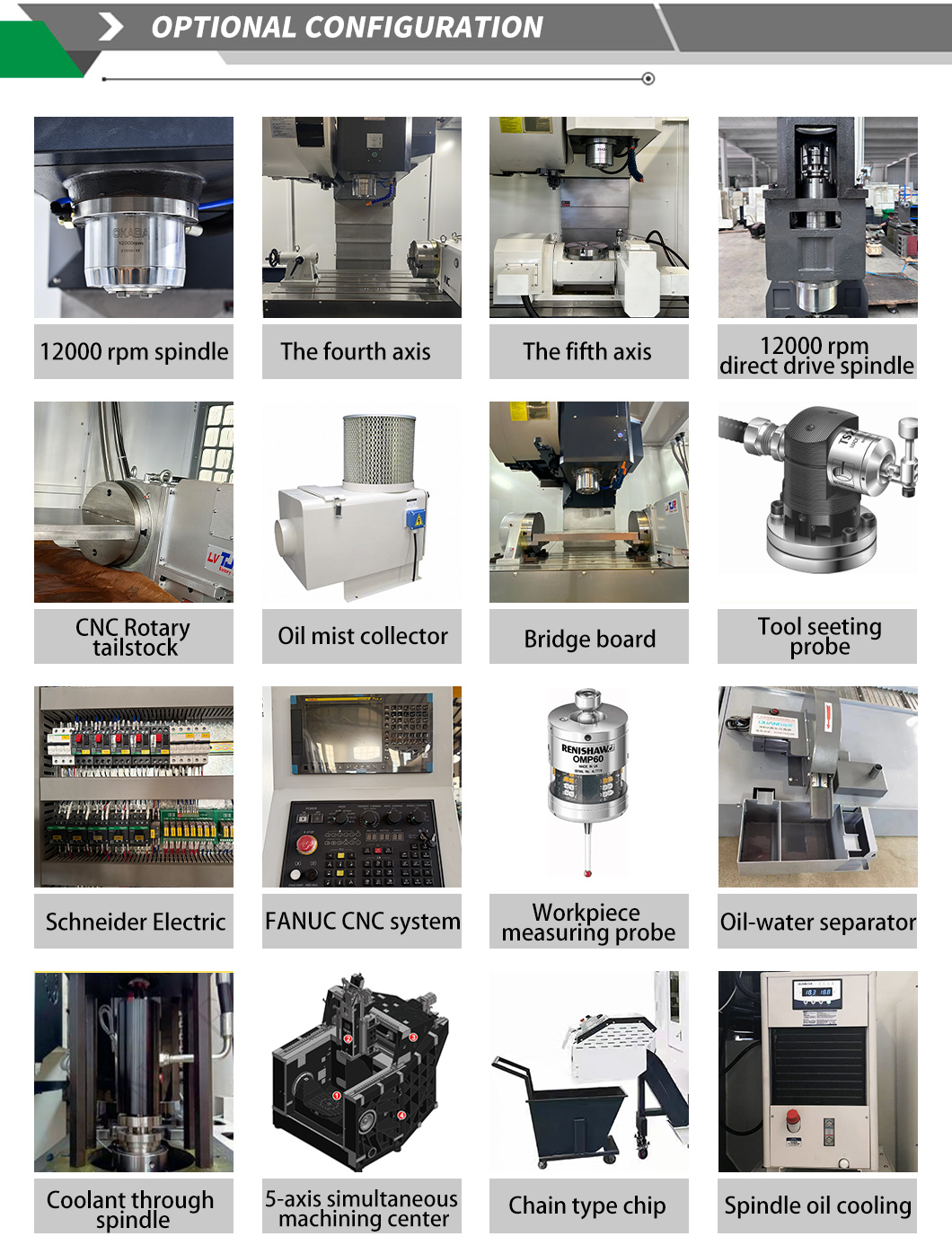

Machining Center Configurations
Precision Calibration
Internal Component Inspection
Machining Performance Assembly
Factory Workshop View
Manufacturing Line Quality Check
Packaging & Shipment Standards
Global Delivery Logistics

Frequently Asked Questions (FAQ)

Q What are the core advantages of the VMC850 vertical machining center?
The VMC850 features high-precision linear guide rails on all axes, dynamic BT40 spindle configurations (up to 12000 RPM option), a rigid structure, and high-performance arm-type tool magazines (16/24 tools), making it ideal for precision milling, drilling, and boring.
Q What is the positioning and repeat positioning accuracy?
The VMC850 delivers exceptional precision with a positioning accuracy of ±0.005 mm and a repeat positioning accuracy of ±0.003 mm, ensuring consistency in high-tolerance industrial applications.
Q Can the machine handle heavy-duty workloads?
Yes. With a robust worktable size of 1000x500 mm and a maximum table load capacity of 500 kg, the VMC850 is engineered to handle heavy molds and metal workpieces reliably.
Q What optional upgrades are available for the spindle and traverse speeds?
While the standard setup offers an 8000 RPM spindle and rapid traverse speeds of 24/24/20 m/min, customers can opt for a high-speed 12000 RPM spindle upgrade and upgraded linear slide traverse speeds of up to 48/48/36 m/min.
Q What types of tool magazines are compatible?
The machine natively supports robust Arm-type tool magazines with options for either 16 or 24 tools, supporting tool diameters up to φ78 mm (adjacent) or φ120 mm (apart), with a maximum tool weight of 8 kg.
