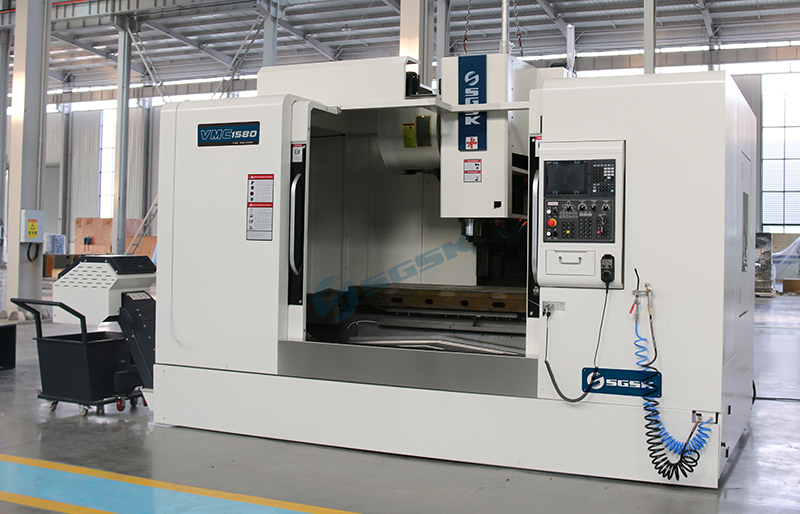

| SPECIFICATIONS | Units | VMC1580 | VMC1690 | VMC1890 |
| Table size | mm | 1700*800 | 1800*900 | 2000*900 |
| X axis travel | mm | 1500 | 1600 | 1800 |
| Y axis travel | mm | 800 | 900 | 900 |
| Z axis travel | mm | 700 | 700 | 700 |
| Max. worktable load | kg | 1500 | 1600 | 1600 |
| T slot(number-width*pitch) | - | 5-22*135 | 5-22*165 | 5-22*165 |
| Max. spindle speed | rpm | 6000/8000 | 6000/8000 | 6000/8000 |
| Spindle taper | mm | BT50 | BT50 | BT50 |
| Main motor power | kw | 18.5 | 18.5 | 18.5 |
| X/Y/Z rapid traverse speed | m/min | 15/15/12 | 15/15/12 | 15/15/12 |
| Cutting feed speed | mm/min | 1-5000 | 1-5000 | 1-5000 |
| Guide rail type | - | Roller Linear | Roller Linear | Roller Linear |
| Distance from spindle axis to column surface | mm | 810 | 950 | 950 |
| Distance between spindle nose and table surface | mm | 130-830 | 105-805 | 115-815 |
| Positioning accuracy | mm | 0.01 | 0.01 | 0.01 |
| Repeat positioning accuracy | mm | 0.0075 | 0.0075 | 0.0075 |
| Tool magazine | - | Arm 24 | Arm 24 | Arm 24 |
| Max. tool diameter | mm | 112/200 | 112/200 | 112/200 |
| Max. tool weight | kg | 18 | 18 | 18 |
| Machine weight | kg | 13000 | 15000 | 16000 |
| Overall dimension(L*W*H) | mm | 4300*3200*3100 | 4500*3350*3200 | 5100*3800*3200 |

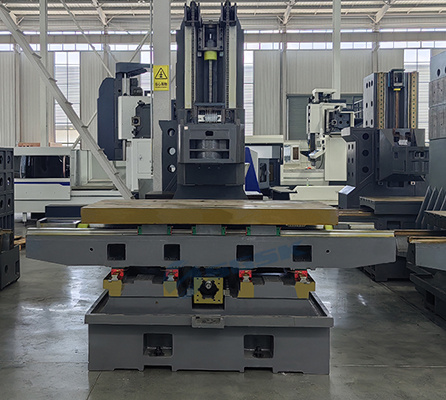

High strength high quality HT300 cast iron. Y axis with 4 linear railways.

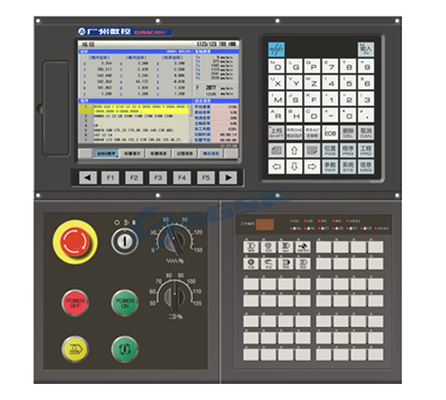

Standard: GSK25i / KND1000 control

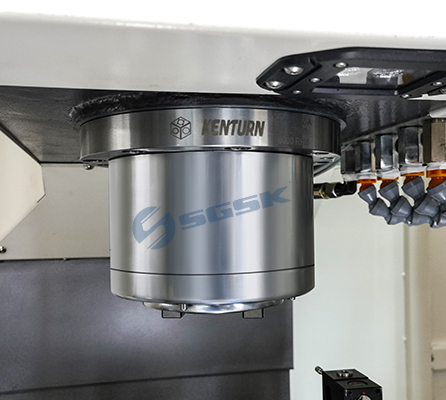

1. Taiwan spindle BT40 8000rpm. 2. Passed dynamic balance ISO rating test.

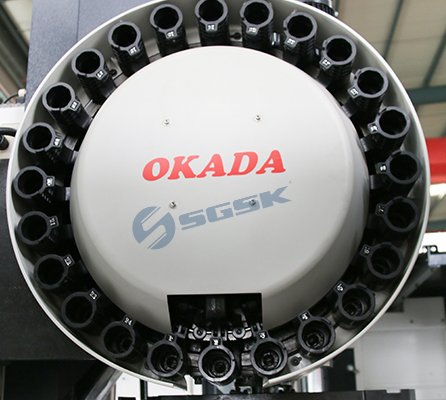

1. Taiwan OKADA arm 24 tool magazine. 2. Tool change time only 2-3 seconds.
1. China famous brand lead screw. 2. Lead screw bearing using SKF or NACHI bearing. 3. Coupling YC directly connected.
1. Taiwan high speed roller linear guide rail, positioning accuracy can reach μm class. 2. Brand: HIWIN or PMI.
Taiwan spindle Tool unclamp cylinder.
Air storage tank to ensure the stability of spindle tool change.

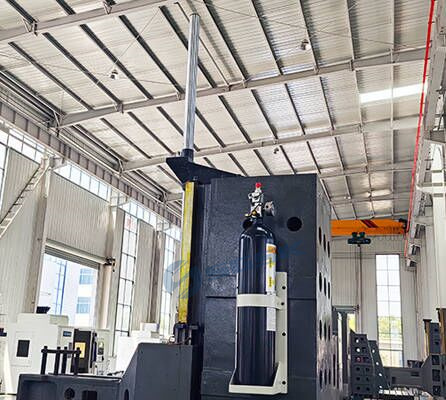

Use a nitrogen balance cylinder to counterweight.
Each machine passed Renishaw laser interferometer testing and ballbar testing.

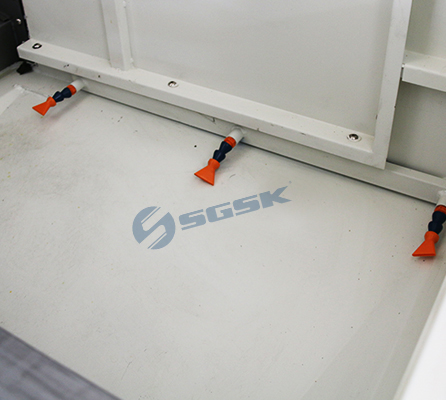

Standard with strong chip punching function.
High-pressure air guns and water guns.
Standard with AirTAC Pneumatic Components.
1. With Schneider safety electrical components. 2. Quick plug as standard.
With industrial electrical cabinet air conditioner. Cooling the electric box better.
HERG Automatic centralized lubrication device.
Standard with BT40 milling chuck.
Standard with lock knife block.
