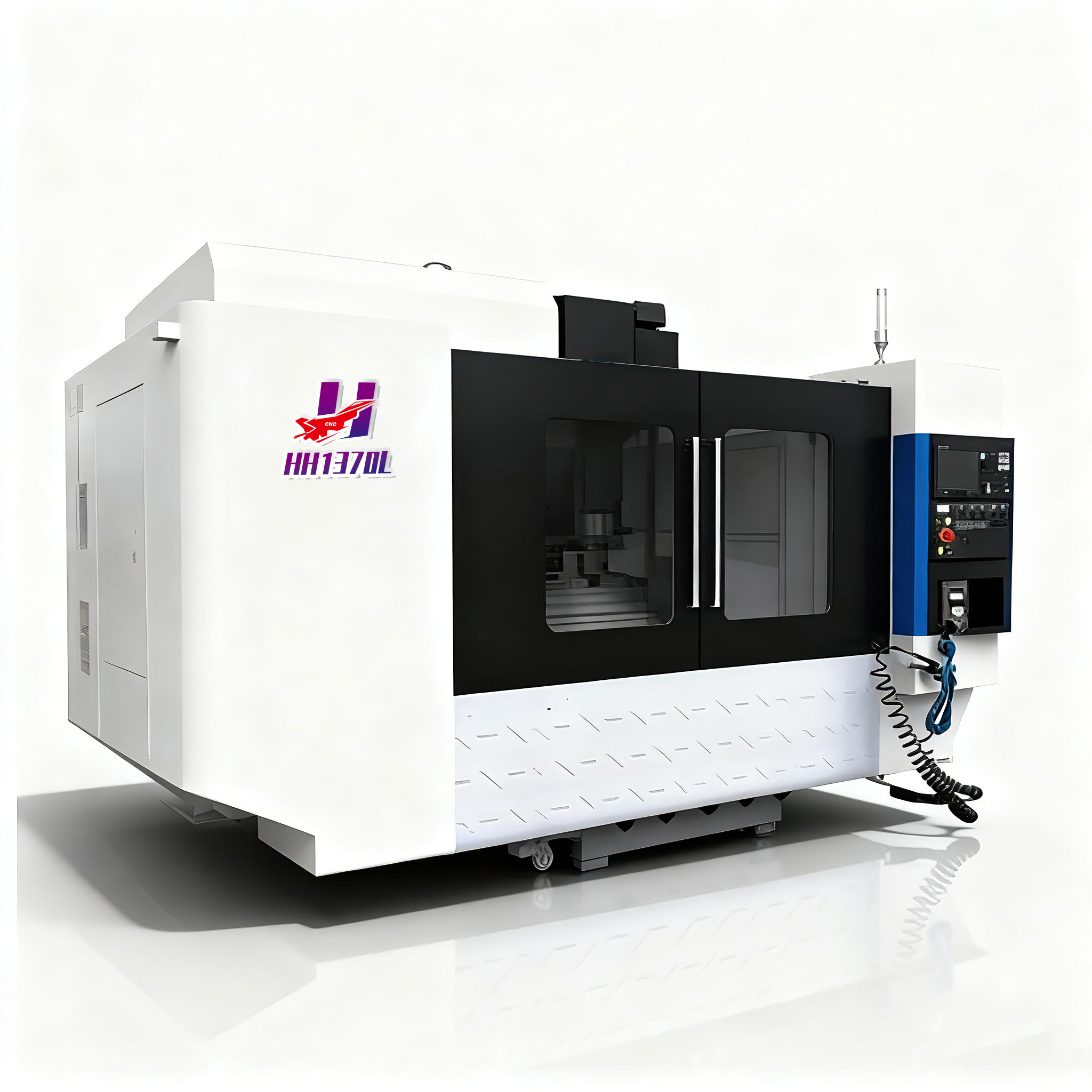

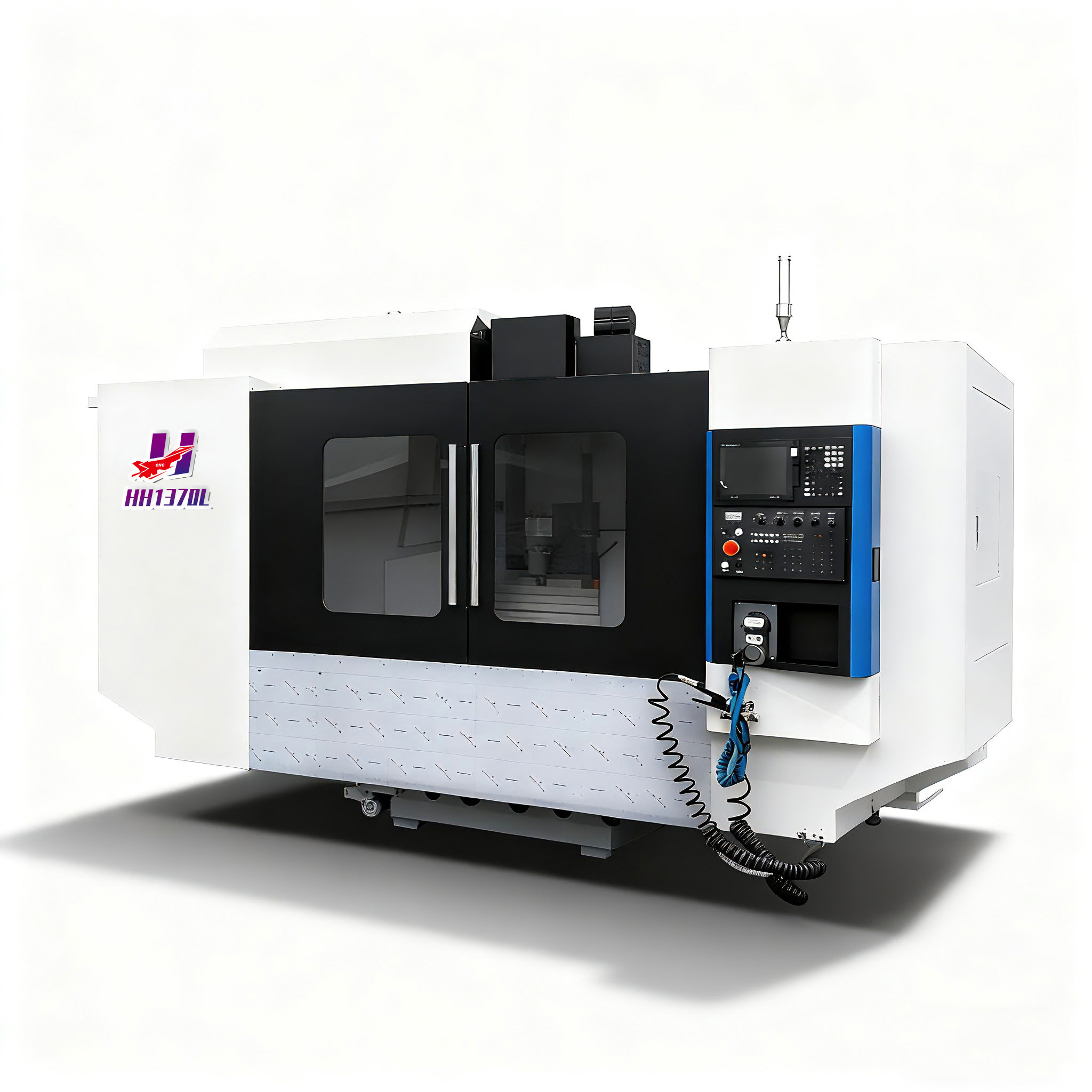

VMC1370 Compact High-Performance 3-Axis CNC Vertical Machining Center

Product Description

CNC Machining Center

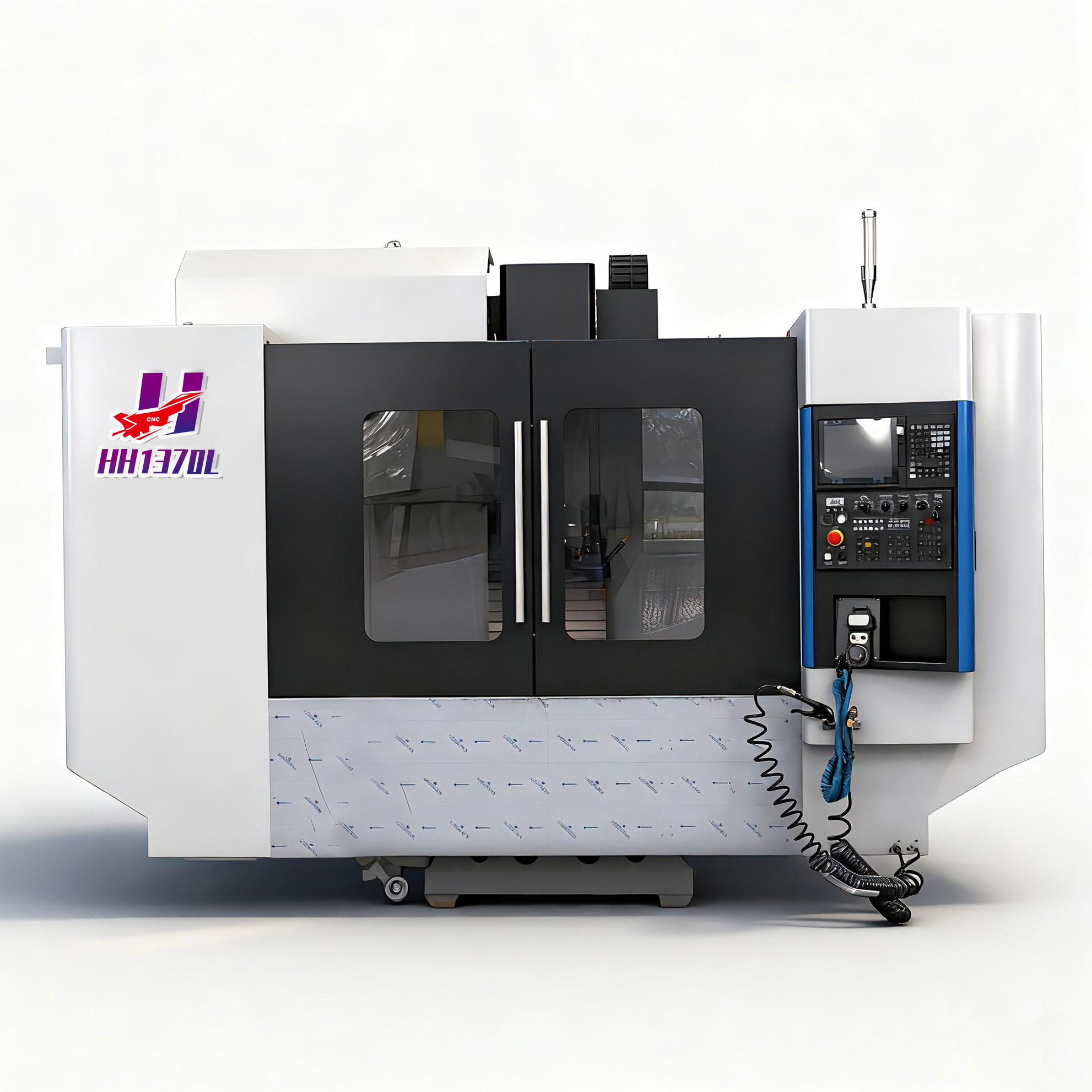

Machine Rigid Body Frame

Features

The machining area is larger than standard 1-meter models, while significantly enhancing machine rigidity. Equipped with a high-power spindle motor, an extra-wide machine base and column, combined with 45mm heavy-duty roller guides on all three axes, the X and Z axes feature six blocks each. This configuration not only improves load-bearing capacity but also effectively absorbs vibrations during heavy cutting operations, thereby achieving superior workpiece accuracy and surface finish. Thus, this model represents the perfect integration of high speed and high rigidity!
Technical Dimensions Profile

HH1370L Specifications

Item Unit Value
Travel
 X-axis Travel mm 1300
 Y-axis Travel mm 700
 Z-axis Travel mm 650
Spindle Nose to Table Surface Distance mm 120-770
Spindle Center to Column Front Face mm 757
Table
Table Size / Work Table Dimensions mm 700*1400
T-slot mm 18*5*145
Table Load Capacity kgs 1100
Spindle
Spindle Motor (Continuous duty/30-min duty rating) kw 11/15
Spindle Speed (Standard) rpm 10000
Spindle Speed (Optional) rpm -
Spindle Taper (Standard) BT40
Feed Rate
Rapid Traverse Rate X/Y/Z m/min 30/30/30
Cutting Feed Rate X/Y/Z m/min 1-10000
Accuracy
Positioning Accuracy mm ±0.005/300
Repeatability mm ±0.003
Automatic Tool Changer (ATC)
Tool Magazine Capacity 24
Max. Tool Diameter (adjacent pots occupied) mm 75
Max. Tool Diameter (adjacent pots empty) mm 150
Max. Tool Length mm 300
Max. Tool Weight mm 8
Tool Holder Type kg Arm-type
Other / Miscellaneous
Power Supply Requirement kva 30
Machine Net Weight T 11
Footprint (L x W x H) mm 3690*2400*2700
Tool Changer Configuration Drawing

Standard & Optional Features

Spindle Annular Coolant Jet (For Arm-type Tool Changers Only)
10,000-12,000rpm Direct-Drive Spindle
Disc-type Oil-Water Separator
30-Station Disc-type Tool Magazine
NC Rotary Table (4th Axis)
300-psi or 1000-psi Through-Spindle Coolant System
Automatic Tool Length & Breakage Detector
Crawler-type Chip Conveyor
24-Station Umbrella-type Tool Magazine
3-Axis Optical Linear Scales
M30 Auto Power-off System
Structure Frame Castings Assembly
Casting Ribs Structure
All key components of this machine tool are manufactured using high-grade resin sand casting and a box-type structural design. Through stress-relieving aging treatment, internal stresses are eliminated, resulting in a tough material composition. Combined with the box-type structure design and high-rigidity frame construction, the machine exhibits exceptional rigidity and strength. This ensures outstanding cutting resistance and high-precision performance characteristics.

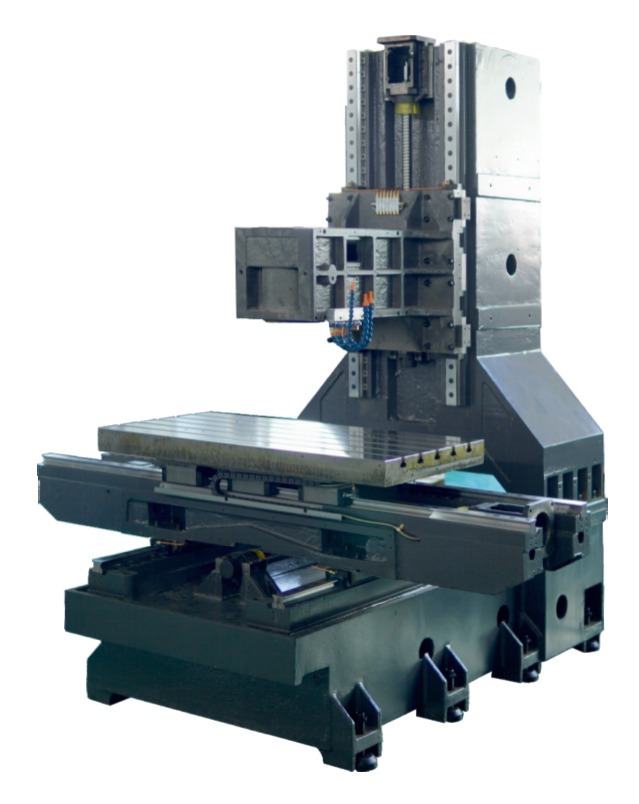

CNC Linear Guide Way Details
High Precision: Robust structure ensures consistent accuracy and low failure rate.
High Efficiency: Capable of precise, rapid cutting for various metal workpieces.
High Performance: Combines quality mechanical transmission with high-performance servo motors.

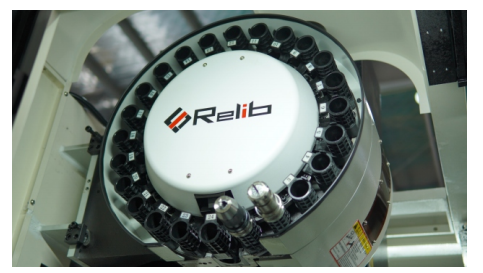

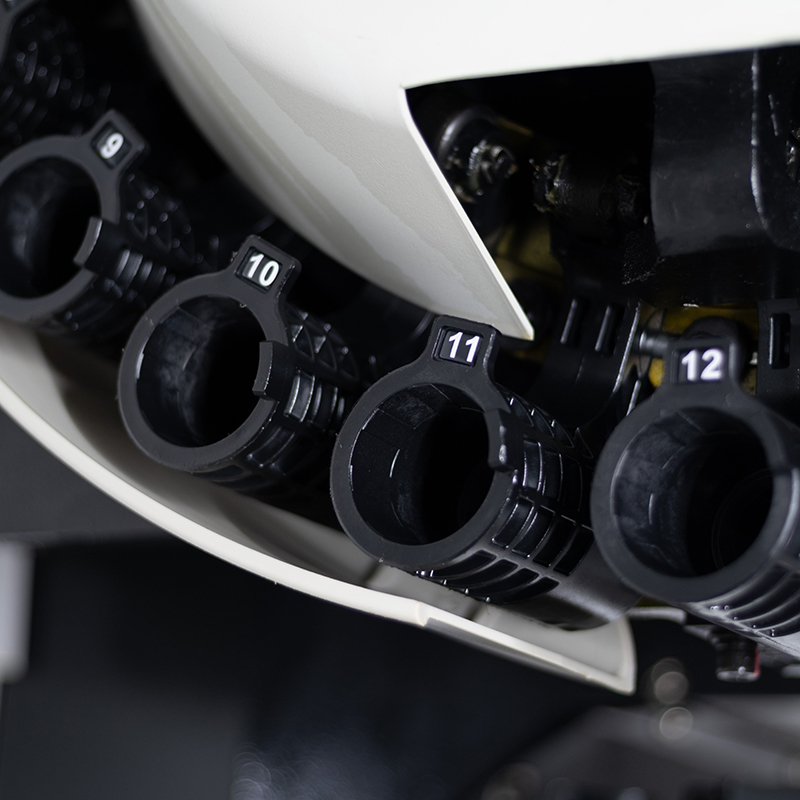

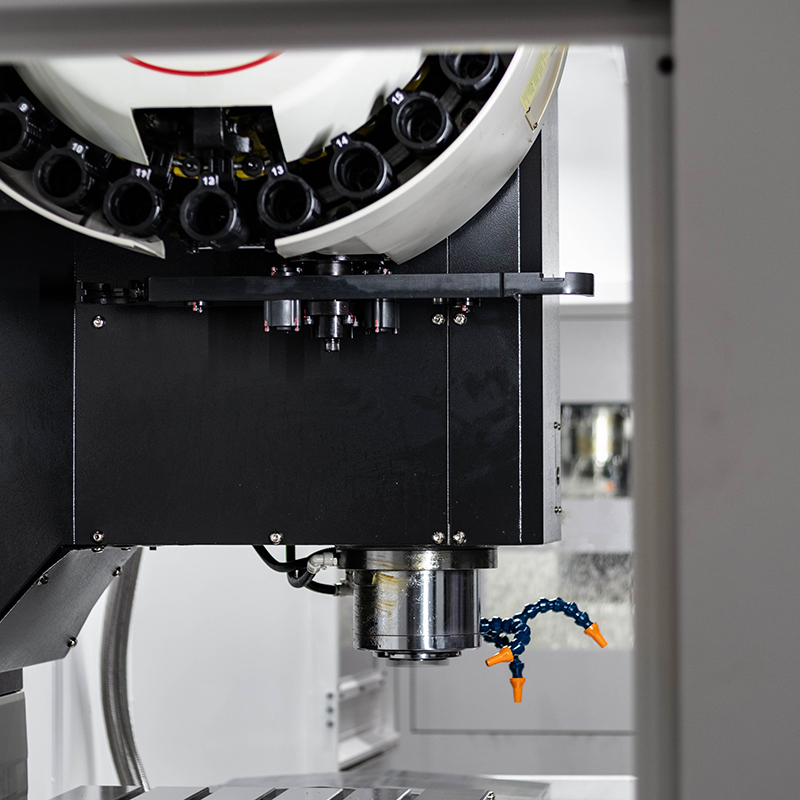

Disc-type Tool Magazine

① Tool Magazine & ATC

Large-capacity disc-type tool magazine with a cam-driven dual-arm ATC mechanism, minimizing non-productive time and enhancing production efficiency.

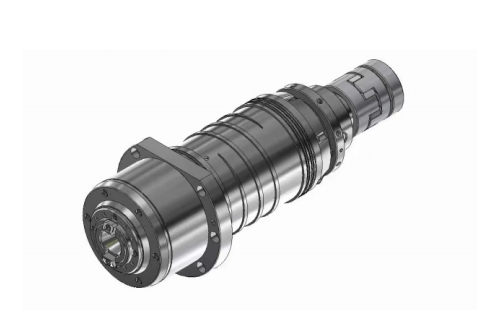

Spindle Head Casting Design

② Spindle Head & Structure

The robust structure and extensively supported spindle head ensure high-power milling and drilling capabilities. An enclosed internal cooling system effectively controls thermal drift of the spindle head.

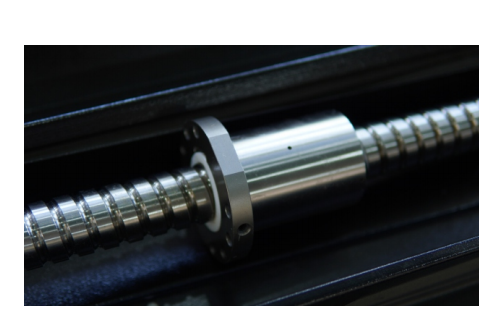

Axial Servo Motor Ball Screws

③ Transmission & Ball Screws

The three axes are equipped with precision ball screws featuring a pre-tensioning design, delivering high-speed transmission performance and precise positional control. High-power axial servo motors employ direct coupling transmission, eliminating backlash and servo lag. Flexible couplings are incorporated to dampen operational noise during transmission.

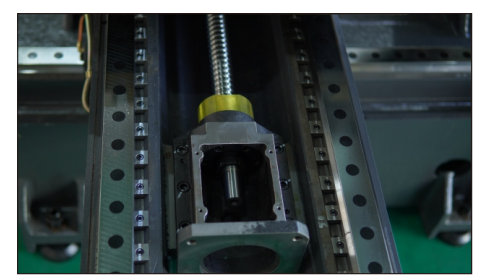

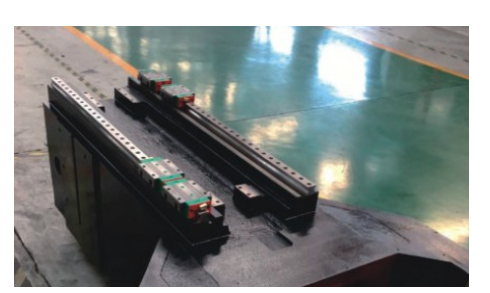

Taiwan linear guideways

④ Linear Guideways

HIWIN/PMI linear guideways from Taiwan, featuring robust rigidity, high precision, long service life, and low noise.

Column Casting Process

Column Design

The column casting is manufactured using high-grade resin sand casting. With a wide span and secure installation, its well-structured internal ribs enable robust construction capable of readily meeting the machining demands of various industries.

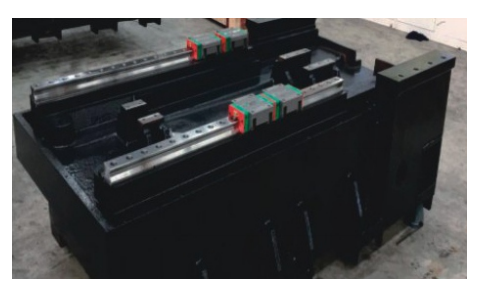

Base Casting Grid Ribs

Base Design

The base casting is produced using high-grade resin sand casting. After demolding, it undergoes both artificial aging treatment and vibration stress relief to eliminate internal stresses, ensuring superior precision retention. The interior features a rationally designed grid-patterned rib structure for enhanced stability.

Detailed Component Geometry Drawing

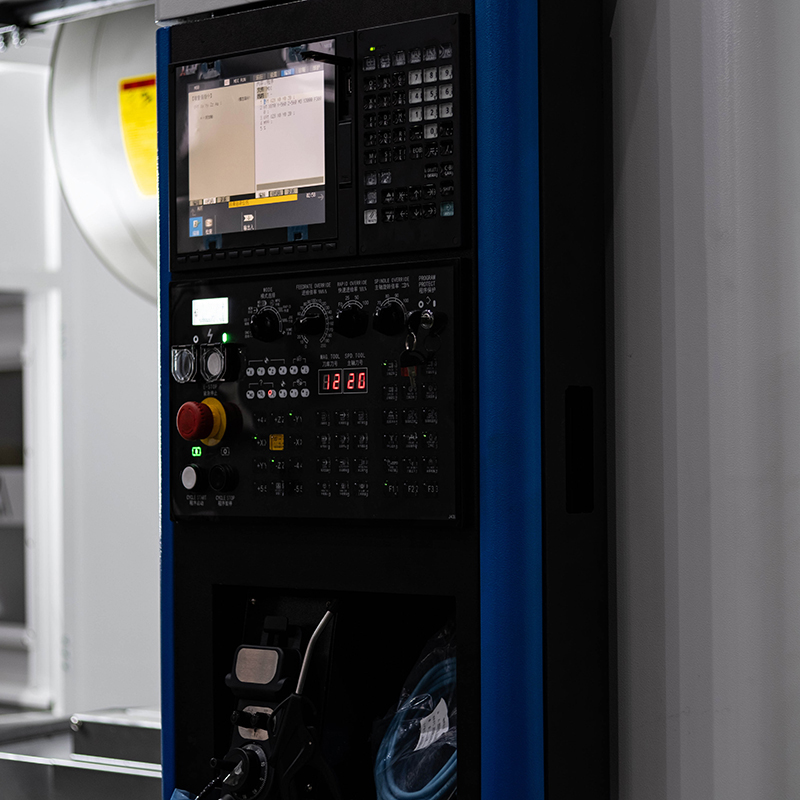

FANUC 0i-MF Plus CNC System Control Panel

FANUC Series 0i-MF Plus

A high-precision and high-performance control system designed for CNC lathes, machining centers, and turning centers. It integrates intelligent function modules to support more complex trajectory control, dynamic compensation, and adaptive machining.

With high precision, high efficiency, and high reliability, it enables multi-axis control and high-speed machining capabilities.

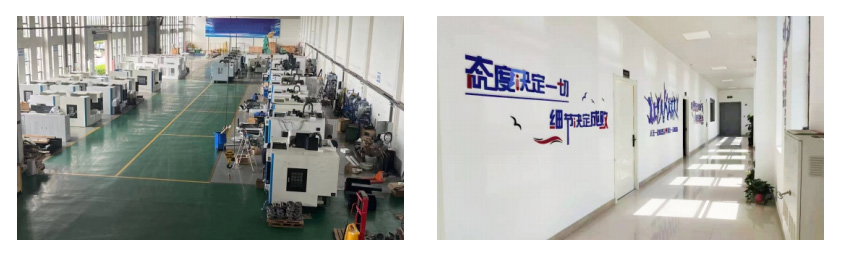

CNC Machining Center Factory Assembly Showroom

Frequently Asked Questions

What are the core structural features of the HH1370L?
The HH1370L uses key components made from high-grade resin sand casting and structured with a robust box-type design. The X and Z axes feature six guide blocks on 45mm heavy-duty roller guides to absorb vibrations during heavy cutting and increase rigidity.
What is the travel distance capacity of the X, Y, and Z axes?
The machine features an X-axis travel of 1300 mm, a Y-axis travel of 700 mm, and a Z-axis travel of 650 mm. The spindle nose to table surface distance ranges from 120 mm to 770 mm.
What configuration is standard for the spindle on this model?
The standard setup includes a BT40 spindle taper with a spindle speed rating of up to 10,000 RPM. The spindle motor has a power output rating of 11/15 kW.
How does this model eliminate internal casting stresses?
After demolding, the high-grade castings undergo stress-relieving aging treatments and vibration stress relief to eliminate internal stress, which ensures superior precision retention and long-term durability.
Which CNC control system is used on the HH1370L?
The machine is equipped with the high-precision and high-performance FANUC Series 0i-MF Plus control system, ideal for managing complex multi-axis trajectories, dynamic compensation, and high-speed cutting.
What are the details of the tool changer system?
It employs a large-capacity disc-type tool magazine (capacity of 24 tools) coupled with a Taiwan-designed cam-driven dual-arm automatic tool changer (ATC) mechanism, optimizing tool-to-tool operations and improving efficiency.
