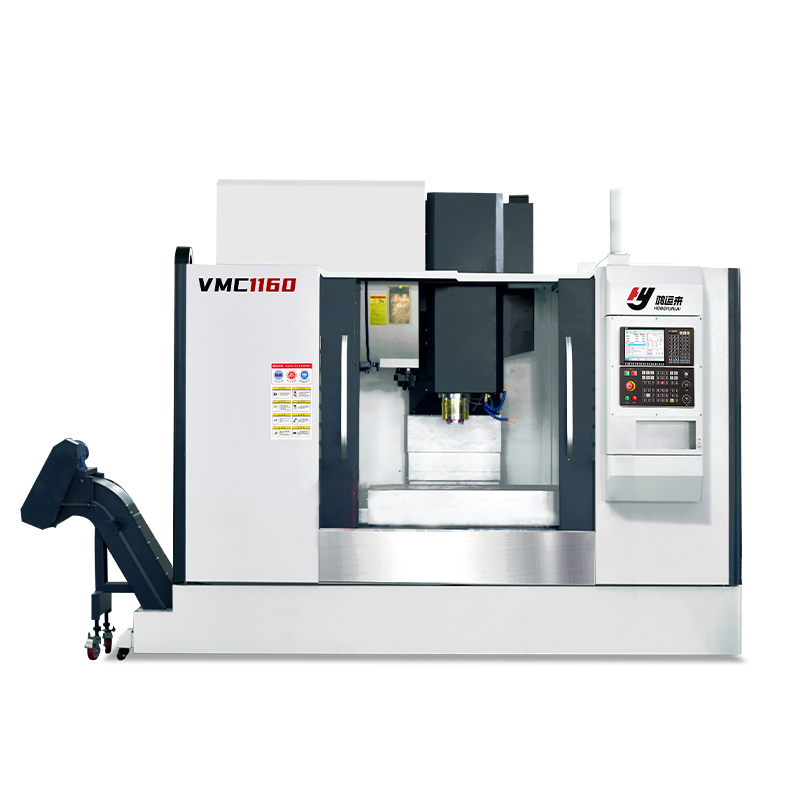

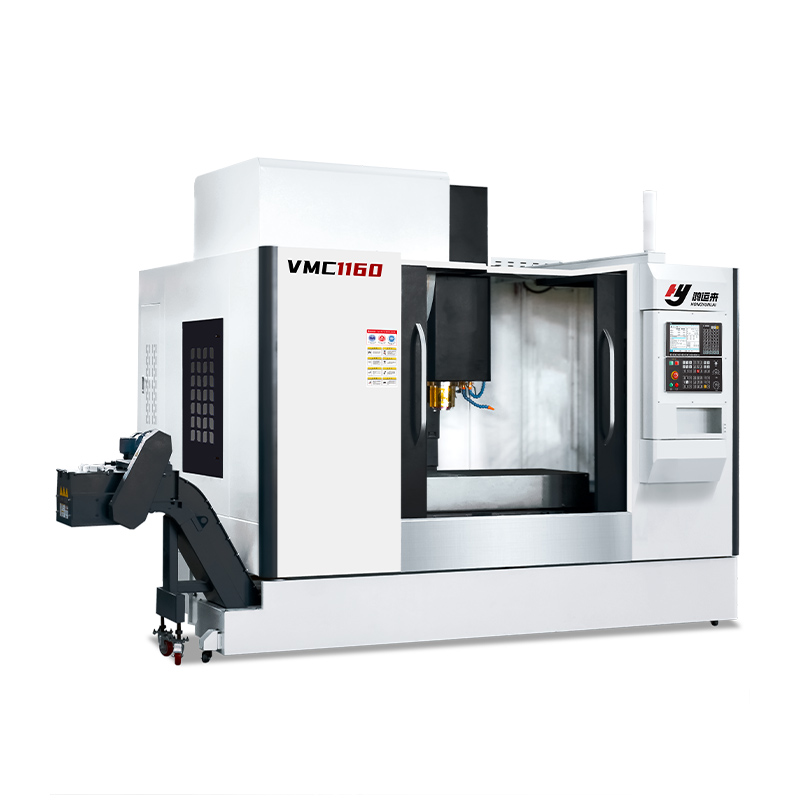

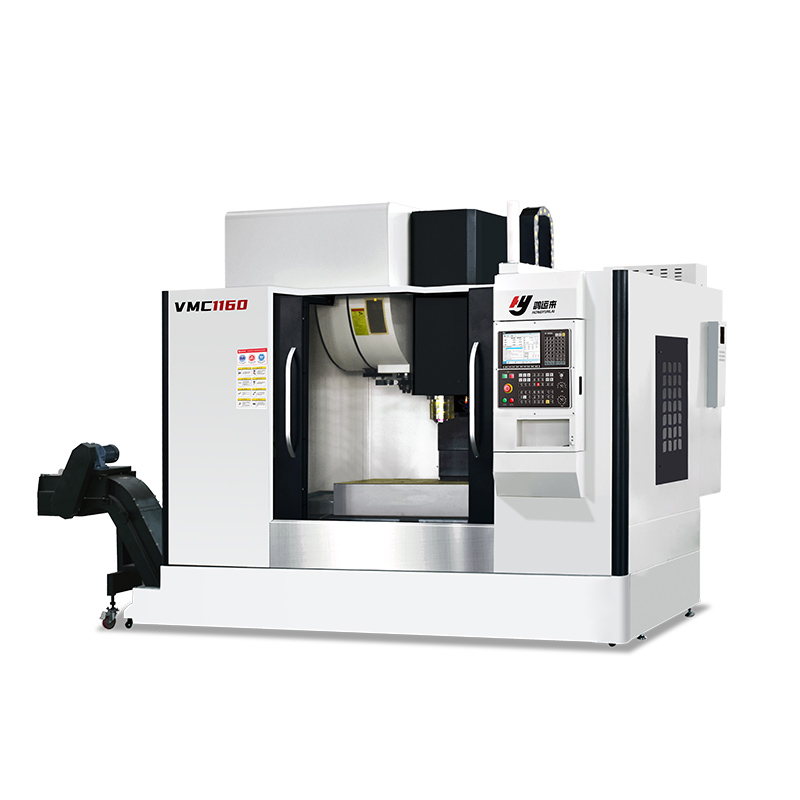

| Specifications | VMC1160 | Unit | |
|---|---|---|---|
| Work table | Worktable size | 1200*600 | mm |
| Worktable max.load | 800 | kg | |
| T-slot (number*width*distance) | 5-18-100 | mm | |
| Travel | X-axis travel | 1100 | mm |
| Y-axis travel | 600 | mm | |
| Z-axis travel | 600 | mm | |
| Distance from spindle nose to table surface | 120-720 | mm | |
| Distance from spindle center to column guideway | 650 | mm | |
| Spindle | Spindle taper | BT40-150 | |
| Spindle speed | 8000 | r/min | |
| Spindle motor | 11 | kW | |
| Feed Speed | X/Y/Z-axis rapid feed | 36/36/24 | m/min |
| Cutting feed speed | 1-10000 | mm/min | |
| Tool magazine | Tools change way | Arm type ATC | |
| Tool number | 24 | pcs | |
| Tool change time | 2.5 | s | |
| Precision | test standard | JISB6336-4:2000/ GB/T18400.4-2010 | |
| Positioning precision | 0.008 | mm | |
| Reported positioning precision | 0.005 | mm | |
| other | size | 3100*2500*2800 | mm |
| weight | 6500 | kg | |
