Product Description

Vertical Machining Center

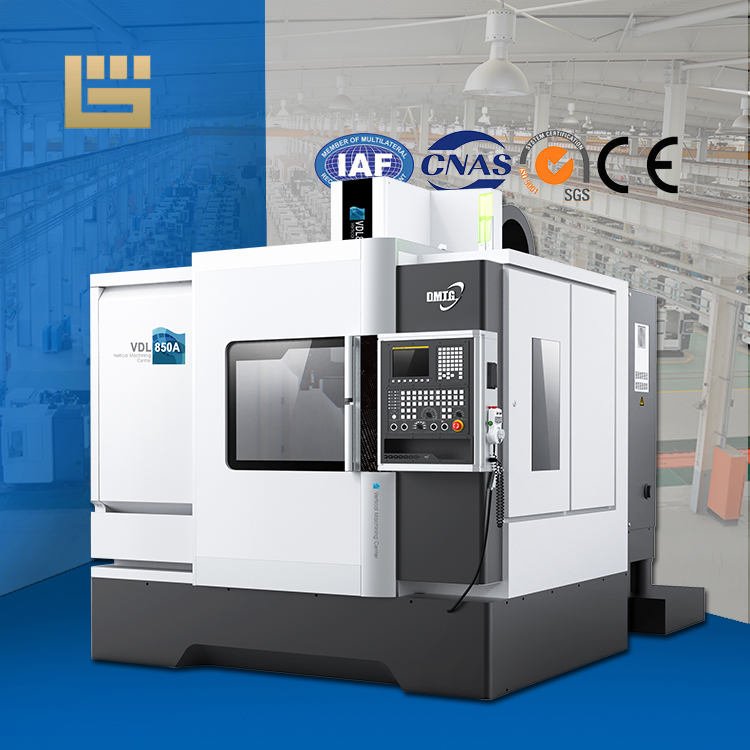

Taiwan Spindle CNC VMC Machine Center VDLS850

Product Configuration

The VDLS850 vertical machining center features a uniquely strong and durable rigid structure. Through repeated simulation and calculation in engineering mechanics, the robust bed structure is designed to meet engineering requirements for increased rigidity and reduced weight. It is suitable not only for machining plates, plates, housings, and precision parts, but also for mold processing. The machine is equipped with an automatic tool changer (ATC), an integrated protective cover, automatic lubrication and cooling systems, and a portable manual override (MPG). With a single part setup, it can perform multiple machining operations, including milling, boring, drilling, reaming, reaming, and tapping. It offers a high degree of automation, strong reliability, simple, convenient, and user-friendly operation, and boasts an elegant overall design and a high level of mechatronics.

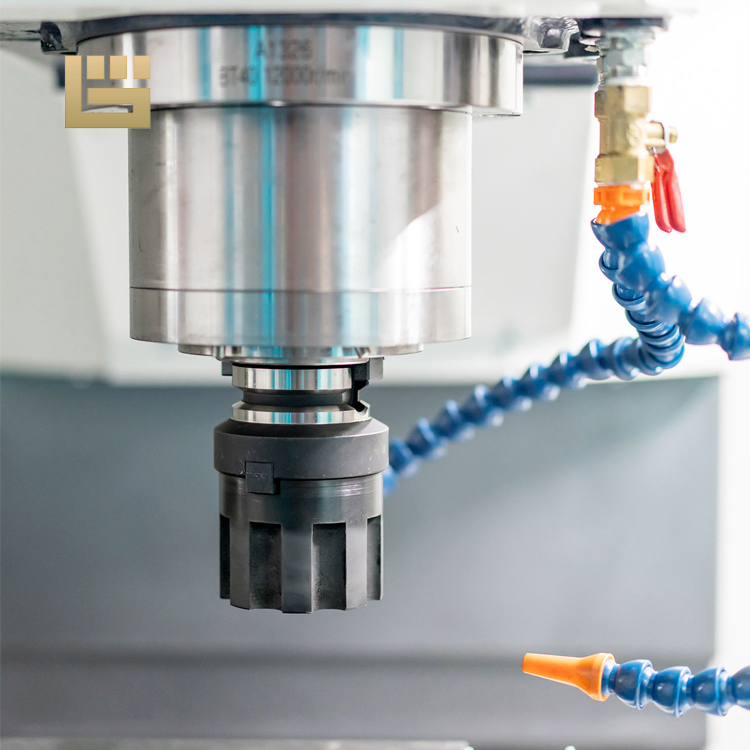

Taiwan BT40 Direct Spindle: 12000rpm

Taiwan 24 ATC

High Rigidity Bed Body

FANUC/SIEMENS/MITSUBISHI/GSK Support

THK Guide Screw

Famous Spindle Oil Cooling Box

FANUC Drive

FANUC Motor(X/Y/Z Axis)

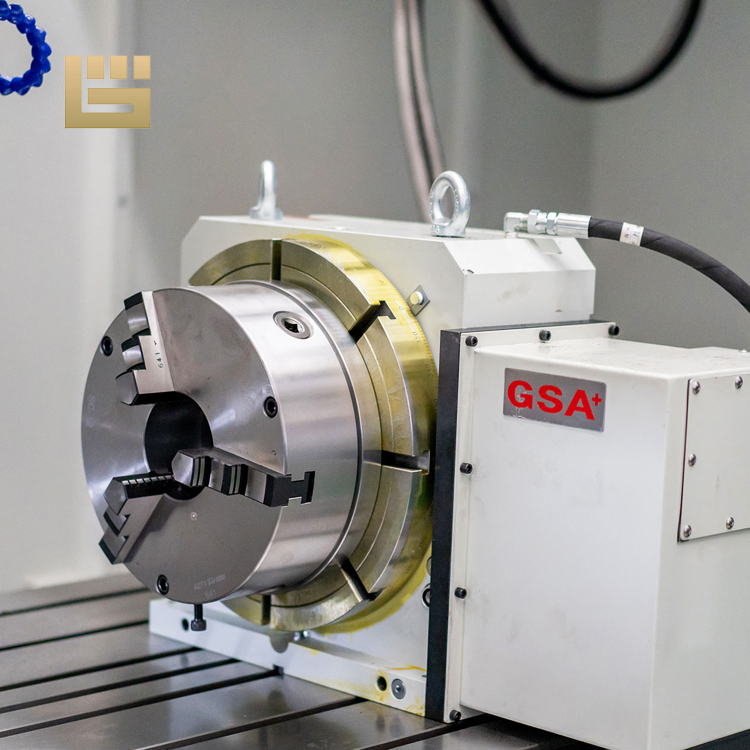

Taiwan GSA Rotary Table

Key Technical Specifications

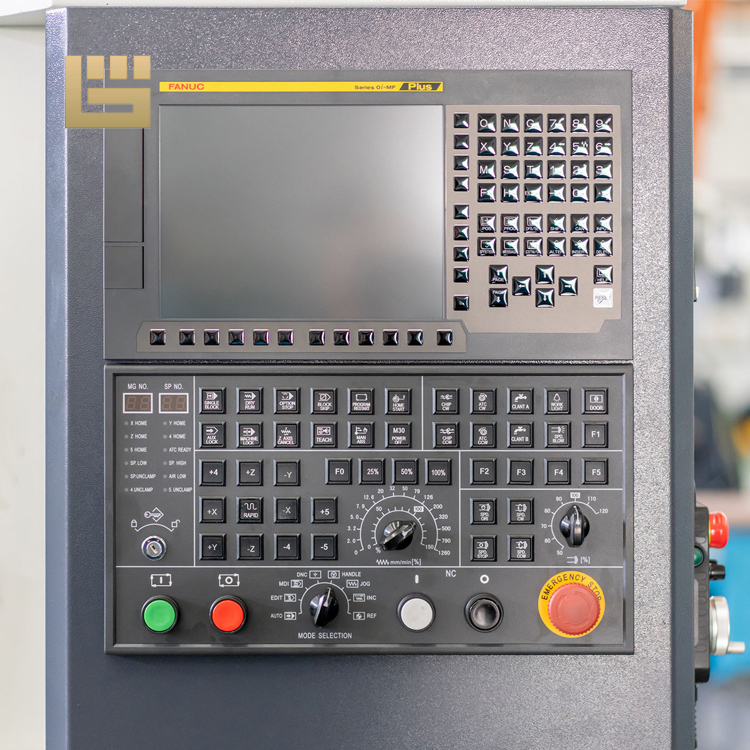

FANUC 0i-MF PLUS(5) System with 10.4″ Color LCD Display
High-strength cast iron bed frame
Spindle directly connected to the spindle motor through a high-torque flexible coupling (maximum speed 12,000rpm)
Rigid Threading
24 Tool Holder Knife Magazine
Linear Guide (X-34mm, Y/Z-45mm)
Servo Motor Direct Connection with Extra Large, Double Pre-Tensioned Screw Rod (X-φ40 mm, Y-φ40 mm, Z-φ40 mm)
Faster movement speed (X-36 m/min, Y-36 m/min, Z-30 m/min)
High Accuracy (positioning accuracy 0.008/0.008/0.008, repeatable positioning accuracy 0.005/0.005/0.005)

Specification	Unit	Cnc Machining Center VDLS850	Cnc Machining Center VDLS1000

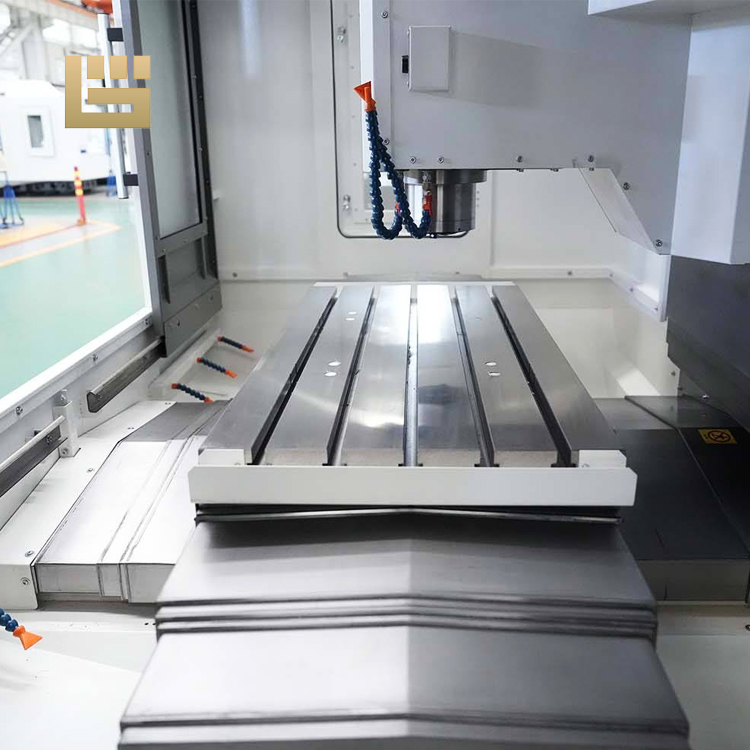

Worktable size(LxW)	mm	1000X500	1120X560
Max. load	kg	600	750
*T-slots (numberswidth* centre distance)**	mm	5X18X100	5X18X100
X/Y/Z axis travel	mm	860/510/560	1040/580/620
X/Y/Z axis guide way type		Linear guideway	X/Y Linear guide way Z Box way (or Linear guideway)
Distance from spindle center to column	mm	607	629 / 666
Distance from spindle nose to table	mm	145~705	125~745
Spindle motor power	KW	7.5/11	7.5/11 or 11/15
Max. spindle speed	r/min	12000 (Direct-driven) / Opt: 8000 (Belt-driven)	12000 (Direct driven) / Opt: 8000 (Belt/Gear-driven)
Spindle taper		No.40(7:24)	No.40(7:24)
Rapid travel of X/Y/Z axis	m/min	36/36/30	36/36/30 or 24/24/20
Max. cutting feed rate	m/min	10	10
Tool magazine capacity		24T/Arm	24T/Arm
Tool shank type		BT40	BT40
Max. tool weight	kg	8	8
Max. tool diameter (w/o adjacent tools)	mm	Φ78/155	Φ78/155
Tool change time (T-T)	S	2.7	2.7
X/Y/Z axis positioning accuracy	mm	0.008/0.008/0.008	0.016/0.008/0.008
X/Y/Z axis repeatability accuracy	mm	0.005/0.005/0.005	0.006/0.005/0.005
CNC controller		FANUC 0i-MF(5)Plus, FANUC 0i-MF(1)PLUS, SIEMENS 828D, MITSUBISHI M80B
Machine dimensions(L×W×H)	mm	2496X2530X2679	2800X2671X2820
Machine weight	kg	5600	7000

Standard Configurations

1. 24T Arm-type ATC
2. Ball screw and linear guideway
3. Spindle oil chiller
4. Spindle coolant ring
5. Spindle air blow
6. Heat exchanger
7. Compact oil-water separator
8. Screw-type chip conveyor
9. Rigid tapping
10. Workpiece coolant system
11. Air gun
12. Automatic lubrication system

Optional Configurations

FANUC 0i-MF PLUS(5), GSK25MC, KND K2000MF3i. 15000 RPM Direct Drive Spindle. Center Coolant through Spindle + 2MP (5-7MP) High-Pressure Unit. 11/15 kW Spindle Motor. Internal Spiral Chip Conveyor. External Chain-Type Chip Conveyor. Automatic Front Safety Door. Machine Tool Cleaning Water Gun. Oil Mist Collector. CNC Rotary Table. Electrical Cabinet Air Conditioning. Linear Scales (Full Closed-Loop Control).

Manufacturing Facilities & Factory Floor

Workpieces Samples

Frequently Asked Questions

QAre you a factory or a trading company?

We are a factory.

QWhat are your payment terms?

If the machine is in stock, 100% payment in advance is required as it can be prepared for shipment immediately. If there is no stock, a standard 30% down-payment is required upon signing the contract, with the remaining 70% paid before shipment. Specific terms can be discussed based on your requirements.

QWhat is the estimated delivery time?

Delivery time depends on the specific machine configuration and current stock status. Please contact our team directly to verify availability and lead times.

QWhat is the warranty period for the machining centers?

The machine is warranted for 13 months after the Bill of Lading (B/L) date or 12 months from the date of port arrival, whichever comes first, covering faulty workmanship and defective materials. Replacement parts are supplied free of charge upon submission and validation of a detailed inspection report.

QCan you send service engineers to our facility for installation?

Yes, once the machine arrives at its destination, we can dispatch service engineers to install the machinery according to your schedule. The buyer is responsible for all associated travel and accommodation expenses.

QWhich CNC controller systems are supported on these machines?

We support standard systems including FANUC 0i-MF(5)Plus, FANUC 0i-MF(1)PLUS, SIEMENS 828D, and MITSUBISHI M80B, as well as optional systems like GSK25MC and KND K2000MF3i.
