| SPECIFICATIONS | Units | VMC640 |
|---|---|---|
| Table size | mm | 800*300 |
| X axis travel | mm | 600 |
| Y axis travel | mm | 360 |
| Z axis travel | mm | 450 |
| Max. worktable load | kg | 300 |
| T slot(number-width*pitch) | - | 3-16*90 |
| Max. spindle speed | rpm | 8000 |
| Spindle taper | mm | BT40 |
| Main motor power | kw | 5.5 |
| X/Y/Z rapid traverse speed | m/min | 24/24/20 |
| Cutting feed speed | mm/min | 1-10000 |
| Guide rail type | - | Linear rail |
| Distance from spindle axis to column surface | mm | 410 |
| Distance between spindle nose and table surface | mm | 100-550 |
| Positioning accuracy | mm | 0.0075 |
| Repeat positioning accuracy | mm | 0.005 |
| Tool magazine | - | Armless 16 |
| Max. tool diameter | mm | φ90 |
| Max. tool weight | kg | 8 |
| Machine weight | kg | 3000 |
| Overall dimension(L*W*H) | mm | 1900*1700*2100 |
High strength high quality HT300 cast iron
Standard: GSK980 / KND1000 control

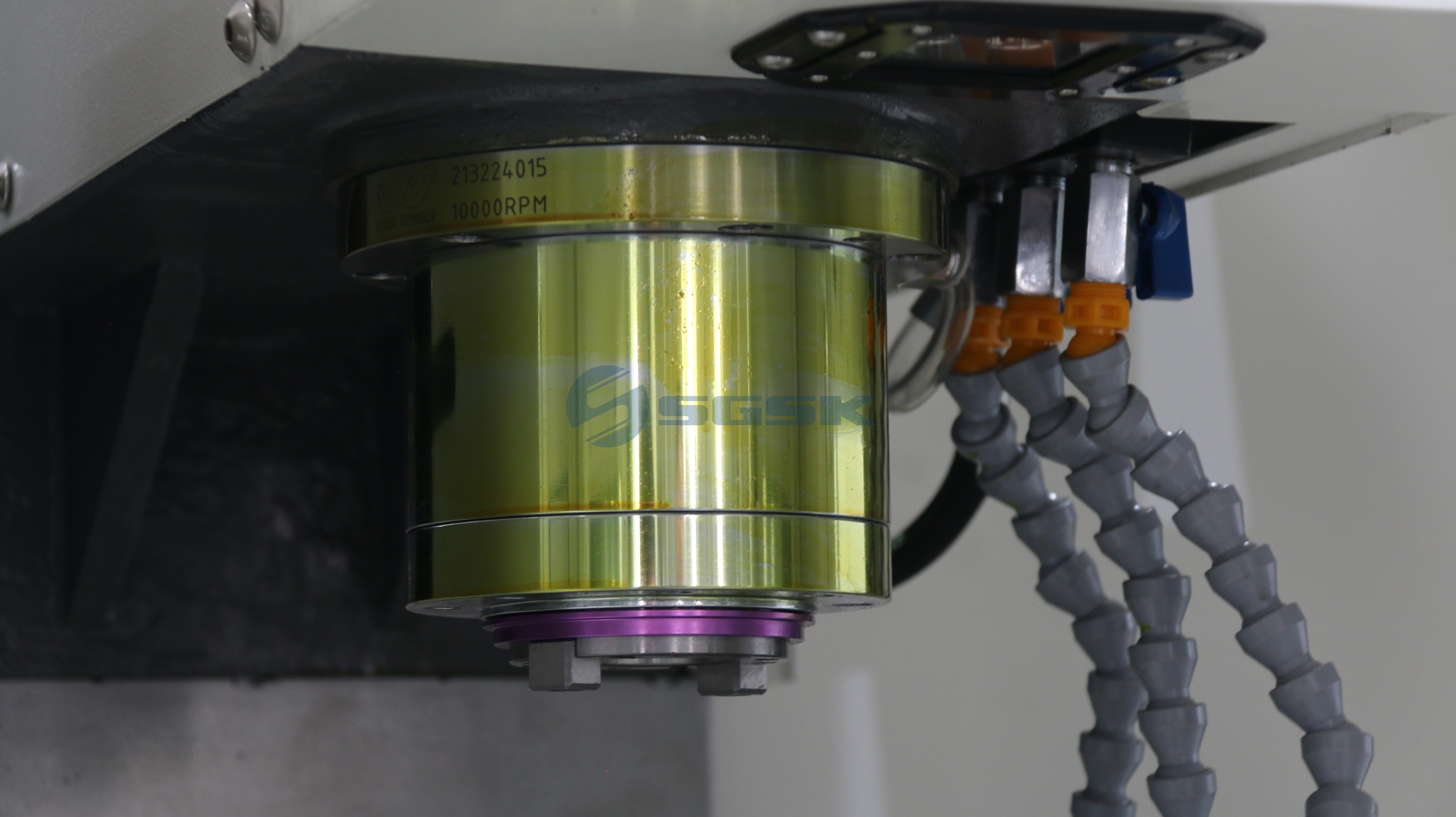

1. Taiwan spindle BT40 8000rpm
2. Passed dynamic balance ISO rating test
1. Taiwan OKADA armless 16 tool magazine.
2. Tool change time only 6-7 seconds.
1. China famous brand lead screw
2. Lead screw bearing using SKF or NACHI bearing
3. Coupling YC directly connected
1. Taiwan high speed roller linear guide rail, positioning accuracy can reach μm class
2. Brand: HIWIN or PMI
Taiwan spindle Tool unclamp cylinder
Air storage tank to ensure the stability of spindle tool change
High-pressure air guns and high-pressure water guns
Standard with AirTAC Pneumatic Components
1. With Schneider safety electrical components
2. Quick plug as standard
With Industrial electrical cabinet air conditioner. Cooling the electric box better.
HERG Automatic centralized lubrication device.
Each machine passed Renishaw laser interferometer testing and ballbar testing
Standard with BT40 milling chuck.
Each machine passed Renishaw laser interferometer testing and ballbar testing
