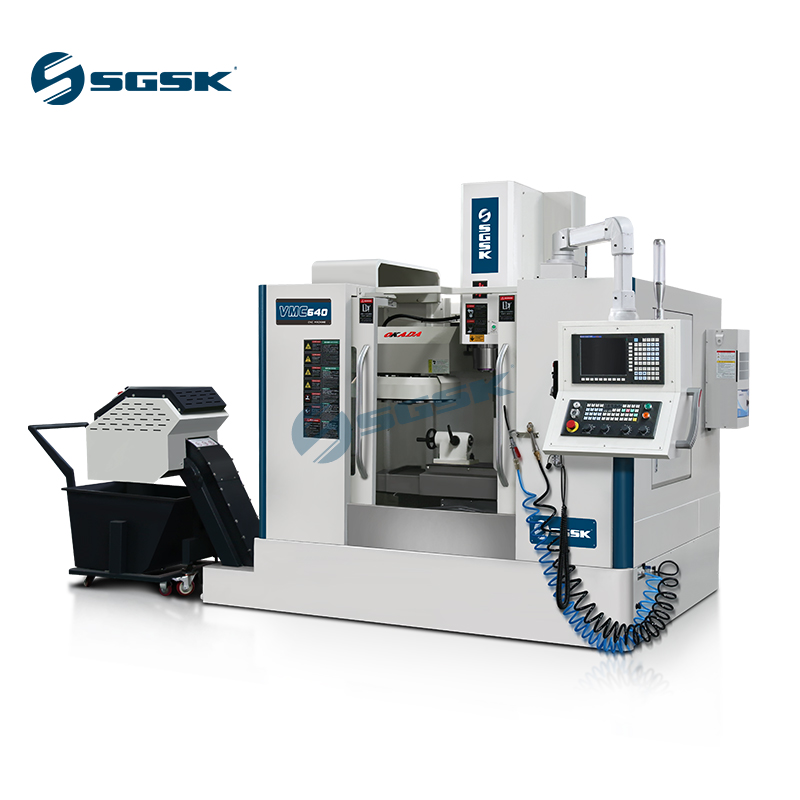

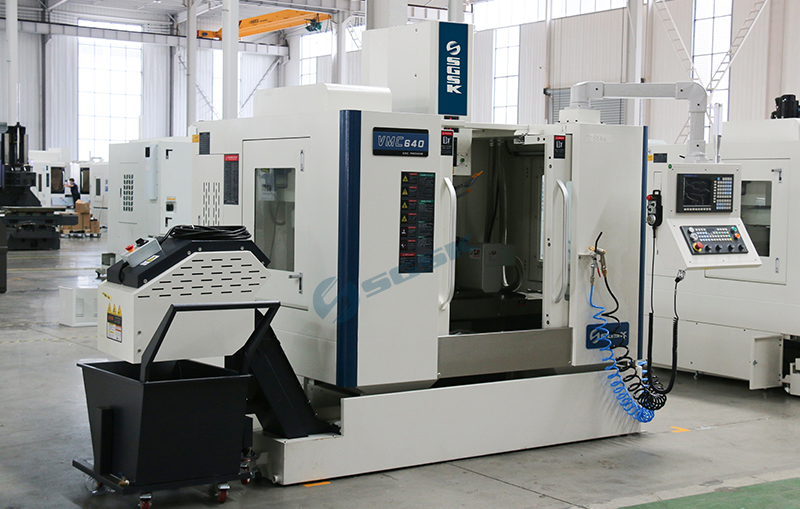

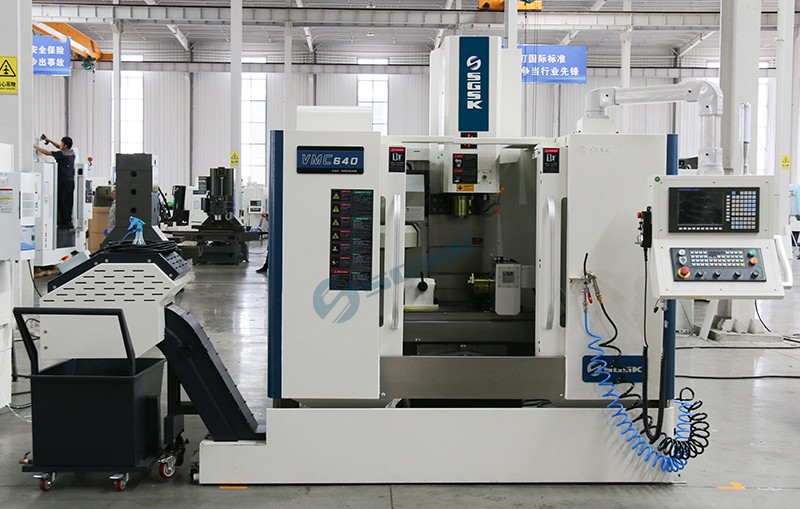

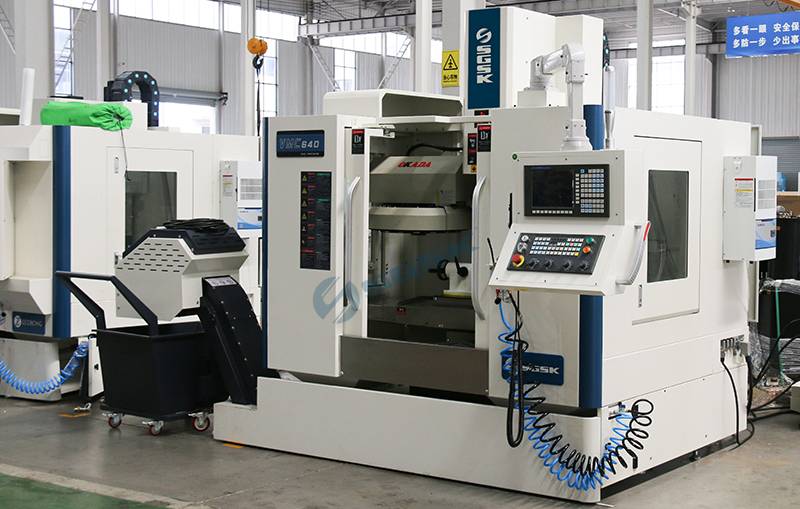

Inexpensive Small CNC Steel Milling Machine VMC640 Cnc Vertical Milling Machine For Aluminum VMC Machine

Send Inquiry

Product Description

Inexpensive Small CNC Steel Milling Machine VMC640 Cnc Vertical Milling Machine for Aluminum VMC Machine

Machine Configuration

Standard Configuration

KND1000/GSK980MDi control system
BT40 taiwan 8000 RPM spindle
Taiwan screw
Taiwan 3 axis roller linear rails
Taiwan 16 armless tool magazine
Electrical cabinet air conditioner

Optional Configuration

Siemens, FANUC, Mitsubishi, Syntec
Direct drive spindle
Spindle oil cooler
Coolant through spindle
Chain type chip conveyor
Screw type chip conveyor
Fourth axis
Fifth axis
Tool setting probe
Workpiece measuring probe

Specifications

SPECIFICATIONS	Units	VMC640
Table size	mm	800*300
X axis travel	mm	600
Y axis travel	mm	360
Z axis travel	mm	450
Max. worktable load	kg	300
T slot(number-width*pitch)	-	3-16*90
Max. spindle speed	rpm	8000
Spindle taper	mm	BT40
Main motor power	kw	5.5
X/Y/Z rapid traverse speed	m/min	24/24/20
Cutting feed speed	mm/min	1-10000
Guide rail type	-	Linear rail
Distance from spindle axis to column surface	mm	410
Distance between spindle nose and table surface	mm	100-550
Positioning accuracy	mm	0.0075
Repeat positioning accuracy	mm	0.005
Tool magazine	-	Armless 16
Max. tool diameter	mm	φ90
Max. tool weight	kg	8
Machine weight	kg	3000
Overall dimension(LWH)	mm	190017002100

Product Details & Features

Machine Construct

High strength high quality HT300 cast iron.

Control System

Standard: GSK25i / KND1000 control.

Taiwan Precision Spindle

1. Taiwan spindle BT40 8000rpm
2. Passed dynamic balance ISO rating test.

Taiwan Tool Magazine

1. Taiwan OKADA armless 16 tool magazine.
2. Tool change time only 6-7 seconds.

Lead Screw and Coupling

1. China famous brand lead screw.
2. Lead screw bearing using SKF or NACHI bearing.
3. Coupling YC directly connected.

Taiwan Precision Linear Rails

1. Taiwan high speed roller linear guide rail, positioning accuracy can reach μm class.
2. Brand: HIWIN or PMI.

Tool Unclamp Cylinder

Taiwan spindle Tool unclamp cylinder.

Air Storage Tank

Air storage tank to ensure the stability of spindle tool change.

Air Gun and Water Gun

High-pressure air guns and high-pressure water guns.

Pneumatic Components

Standard with AirTAC Pneumatic Components.

Schneider Electrical Components

1. With Schneider safety electrical components.
2. Quick plug as standard.

Air Conditioner

With Industrial electrical cabinet air conditioner. Cooling the electric box better.

Lubrication System

HERG Automatic centralized lubrication device.

Testing

Each machine passed Renishaw laser interferometer testing and ballbar testing.

BT40 Milling Chuck

Standard with BT40 milling chuck.

Locking Knife Block

Each machine passed Renishaw laser interferometer testing and ballbar testing.

Frequently Asked Questions

What is your minimum order quantity and warranty?

A: MOQ is one set, and the warranty period is 18 months.

What CNC system do you use?

A: We offer FANUC, SIEMENS, MITSUBISHI, LNC, SYNTEC, GSK, etc. It depends on your specific choice.

When is the delivery time?

A: For conventional machines, we will deliver them within 30-45 working days after receiving your deposit. Special custom machines will take longer, and we will advise you accordingly.

What is the package of the machines?

A: The machines are standard packed by iron pallets with plastic films for safe transit.

How can I choose the most suitable machines?

A: Please let us know your machining demand or the machine size you require, and we can choose the best model for you. Alternatively, you can select the exact model yourself or send us the product drawings for assessment.

What are your payment terms and trade terms?

A: Trade terms: FOB, CFR, CIF, or other terms are acceptable. Payment terms: T/T with 30% initial payment when ordering, 70% balance payment before shipment, or irrevocable LC at sight.
