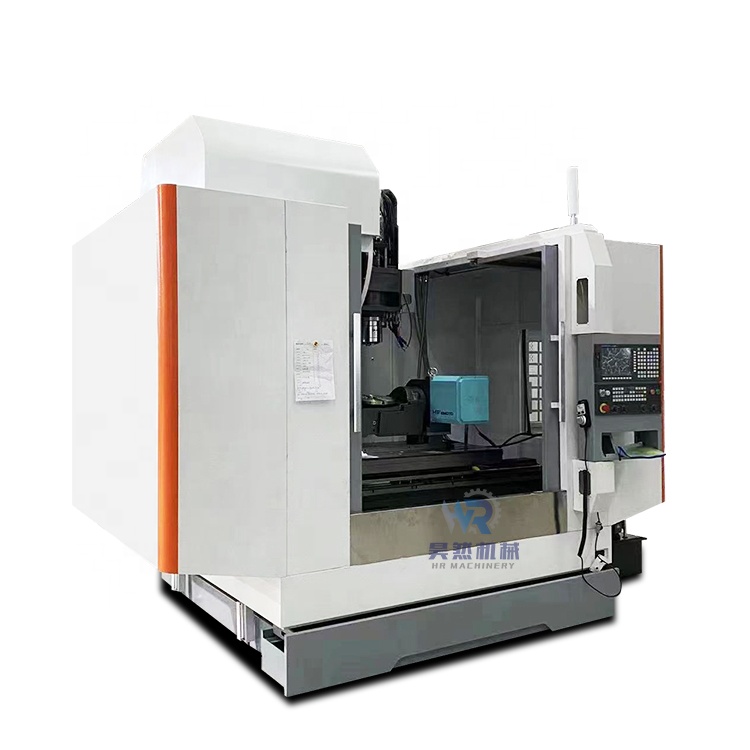

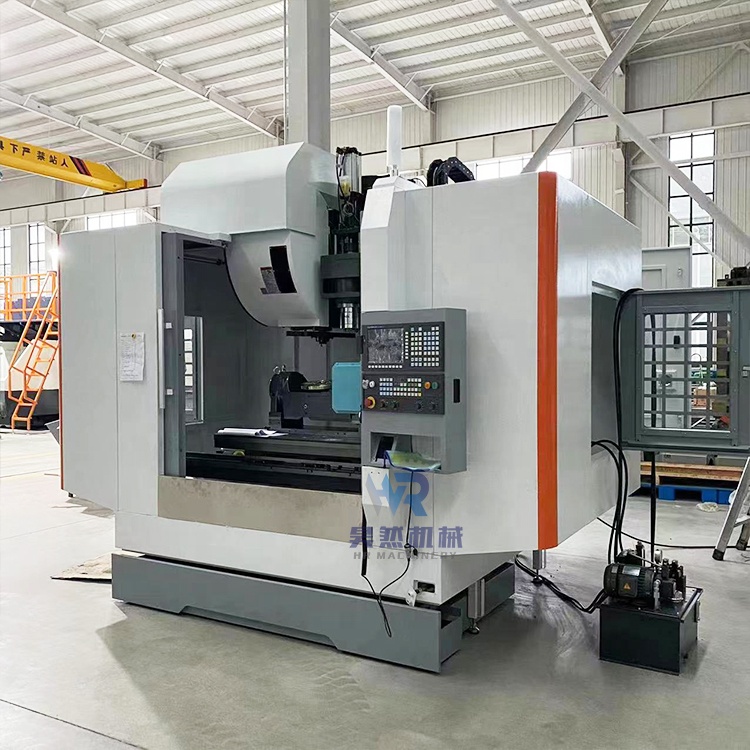

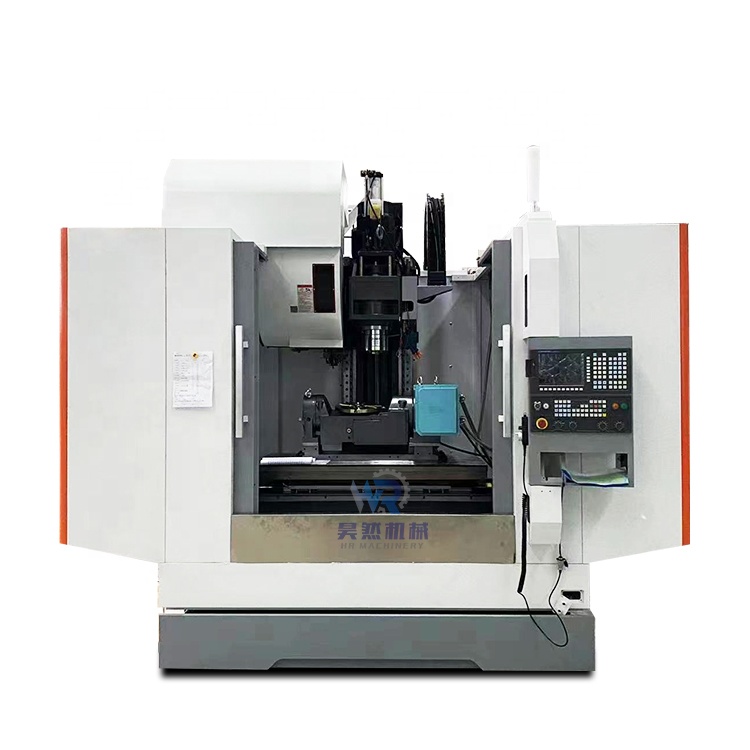

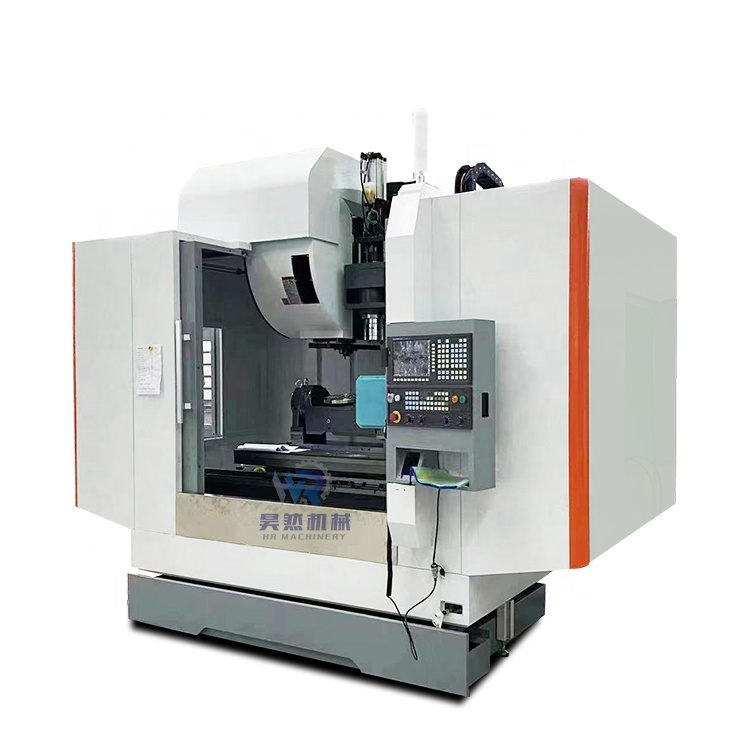

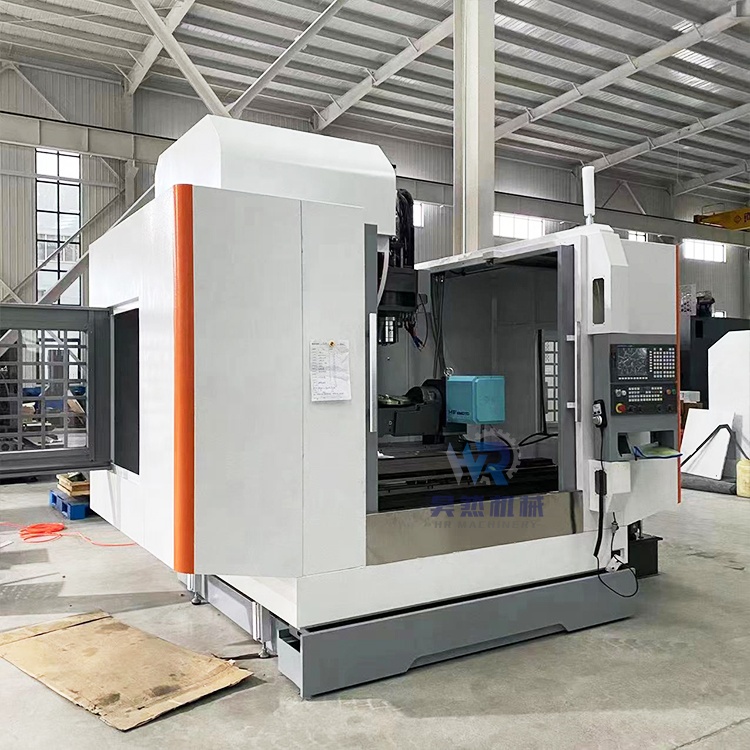

New design high quality VMC1370 vertical CNC machining center. Perfect for high-precision manufacturing, heavy-duty cutting, and versatile mold processing operations.
The vertical CNC machining center is suitable for producing metal products and parts in all shapes. It is widely used to produce auto spare parts, medical treatment instruments, and various injection molds, blowing molds, die-casting molds, car LED molds, toy molds, and precise molds.
| Model | Vmc640 | VMC650 | VMC840 | VMC850 | VMC855 |
|---|---|---|---|---|---|
| Table size (mm) | 800*300 | 1000*400 | 1000*400 | 1000*500 | 1000*550 |
| Max. allowable load (Kg) | 400 | 400 | 300 | 500 | 500 |
| X-axis stroke (mm) | 600 | 650 | 800 | 800 | 800 |
| Y-axis travel (mm) | 400 | 400 | 400 | 500 | 550 |
| Z-axis travel (mm) | 450 | 550 | 550 | 500 | 550 |
| T-slot | 3-18-120 | 3-18-120 | 3-18-140 | 5-18-108 | 5-18-90 |
| Spindle center to Z-axis guide surface (mm) | 460 | 485 | 445 | 552 | 590 |
| Spindle end face to work table (mm) | 120-670 | 100-650 | 100-650 | 110-610 | 120-670 |
| Spindle taper hole | BT40-120 | BT40-120 | BT40-120 | BT40-140 | BT40-150 |
| Spindle speed (r/min) | 8000 | 8000 | 8000 | 8000 | 8000 |
| X/Y/Z rapid movement (m/min) | 24/24/18 | 48/48/48 | 30/30/18 | 48/48/48 | 48/48/48 |
| Machine Weight (Kg) | 3000 | 3800 | 3200 | 5300 | 5500 |
| Model | VMC966 | VMC1050 | VMC1160 | VMC1165 |
|---|---|---|---|---|
| Table size (mm) | 1100*550 | 1200*420 | 1200*600 | 1200*600 |
| Max. allowable load (Kg) | 600 | 500 | 800 | 800 |
| X-axis stroke (mm) | 900 | 1000 | 1100 | 1100 |
| Y-axis travel (mm) | 600 | 500 | 600 | 650 |
| Z-axis travel (mm) | 600 | 550 | 600 | 650 |
| T-slot | 5-18-100 | 5-18-100 | 5-18*100 | 5-18-100 |
| Spindle center to Z-axis guide surface (mm) | 663 | 575 | 650 | 710 |
| Spindle end face to work table (mm) | 100-700 | 100-650 | 120-720 | 120-720 |
| Spindle taper hole | BT40-150 | BT40-150 | BT40-150 | BT40-150 |
| Spindle speed (r/min) | 8000 | 8000 | 8000 | 8000 |
| X/Y/Z rapid movement (m/min) | 48/48/48 | 18/18/18 | 36/36/24 | 36/36/36 |
| Machine Weight (Kg) | 5600 | 5500 | 6500 | 6800 |
| Model | VMC1265 | VMC1270 | VMC1370 | VMC1580 | Vmc1690 |
|---|---|---|---|---|---|
| Table size (mm) | 1200*600 | 1200*700 | 1400*700 | 1700*800 | 1600*800 |
| Max. allowable load (Kg) | 800 | 800 | 800 | 1500 | 1500 |
| X-axis stroke (mm) | 1200 | 1200 | 1300 | 1500 | 1600 |
| Y-axis travel (mm) | 650 | 700 | 700 | 800 | 900 |
| Z-axis travel (mm) | 650 | 700 | 750 | 700 | 700 |
| T-slot | 5-18-100 | 5-18-130 | 5-18-130 | 5-22-135 | 7-22-110 |
| Spindle center to Z-axis guide surface (mm) | 710 | 710 | 713 | 855 | 936 |
| Spindle end face to work table (mm) | 120-770 | 120-770 | 120-870 | 160-860 | 150-850 |
| Spindle taper hole | BT40-150 | BT40-150 | BT40-150 | BT50-155 | BT50-190 |
| Spindle speed (r/min) | 8000 | 8000 | 8000 | 6000 | 10000 |
| X/Y/Z rapid movement (m/min) | 36/36/36 | 36/36/36 | 24/24/24 | 24/24/18 | 15/15/12 |
| Machine Weight (Kg) | 7000 | 7000 | 8000 | 12000 | 12000 |
It is widely used to produce auto spare parts, medical treatment instruments, and various injection molds, blowing molds, die-casting molds, car LED molds, toy molds, and precise molds. Large steel molds are the primary products requiring large cutting amounts and fast processing speed. It is applicable to the processing of the plastic mold industry, automobile tire industry, hardware industry, toy industry, handicrafts, fine stamping dies, bronzing dies, high-frequency dies, embossing wheel dies, die-casting dies, and graphite electrodes. It is an optimal choice for the mold manufacturing industry and parts processing.
All products are available upon request, with or without trademarks. If you need OEM service with your own brand or product, please let us know. Our factory has obtained the import and export license issued by the Ministry of Foreign Trade, and passed the ISO9001 quality management system certification and CE certification. With strict quality inspection layers, we wholeheartedly serve our clients.

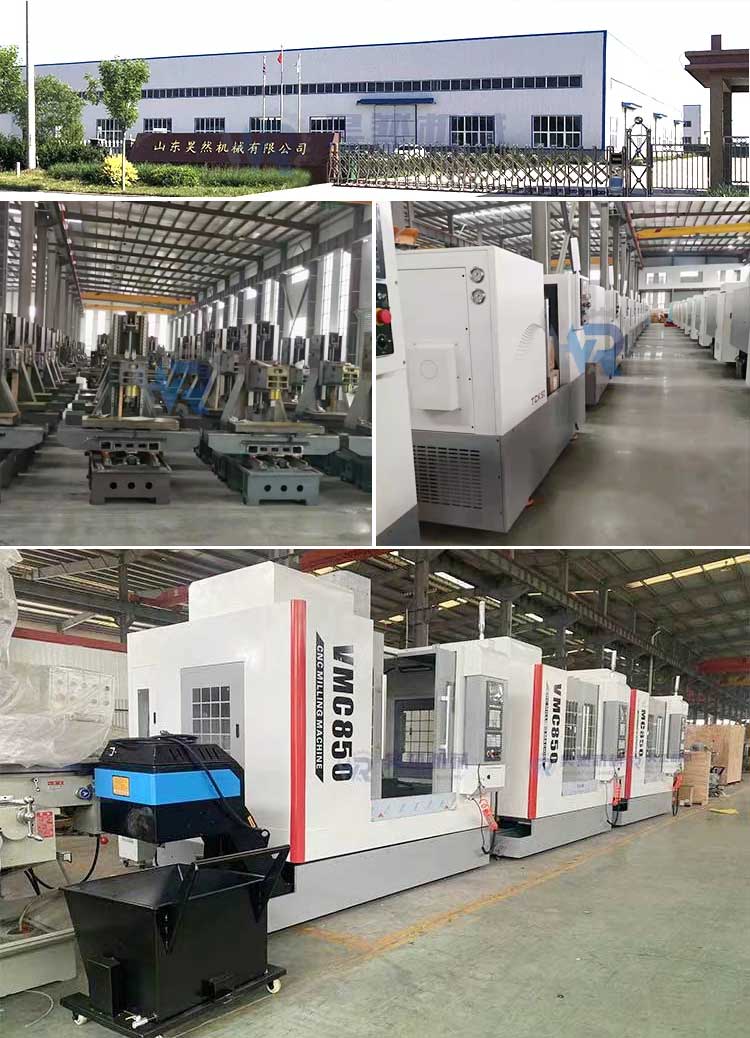

Our company is a production-oriented enterprise with import and export rights. The factory is equipped with many kinds of machine tools and equipment, including nearly 100 sets of large, fine, and sophisticated machinery. Currently, the enterprise has 100 employees, including more than 10 engineers and dozens of workers and technicians. Through continuous staff training, enterprise reform, and modern management methodologies, we maintain a highly efficient production standard.
We have established hundreds of sales outlets, branches, and offices across 30 provinces, cities, and autonomous regions. Long-term cooperation with dealers has been successfully developed in Europe, South America, Asia, and other regions. In recent years, our focus has remained on structural adjustment, brand strategy, and expanding foreign markets. Our production scale includes CNC lathes, CNC milling machines, vertical machining centers, gantry machining centers, CNC metal band sawing machines, drilling and milling series, turret milling machines, and other specialized configurations.
We warmly welcome customers to visit our factory. We host regular on-site tours and integrate valuable customer feedback from both physical visits and online purchases to continuously refine our products and services. We are dedicated to the pursuit of quality and look forward to building a bright future hand-in-hand with global merchants.
