Features positioning accuracy of 0.003mm - 0.005mm and repeatability accuracy of 0.003mm.

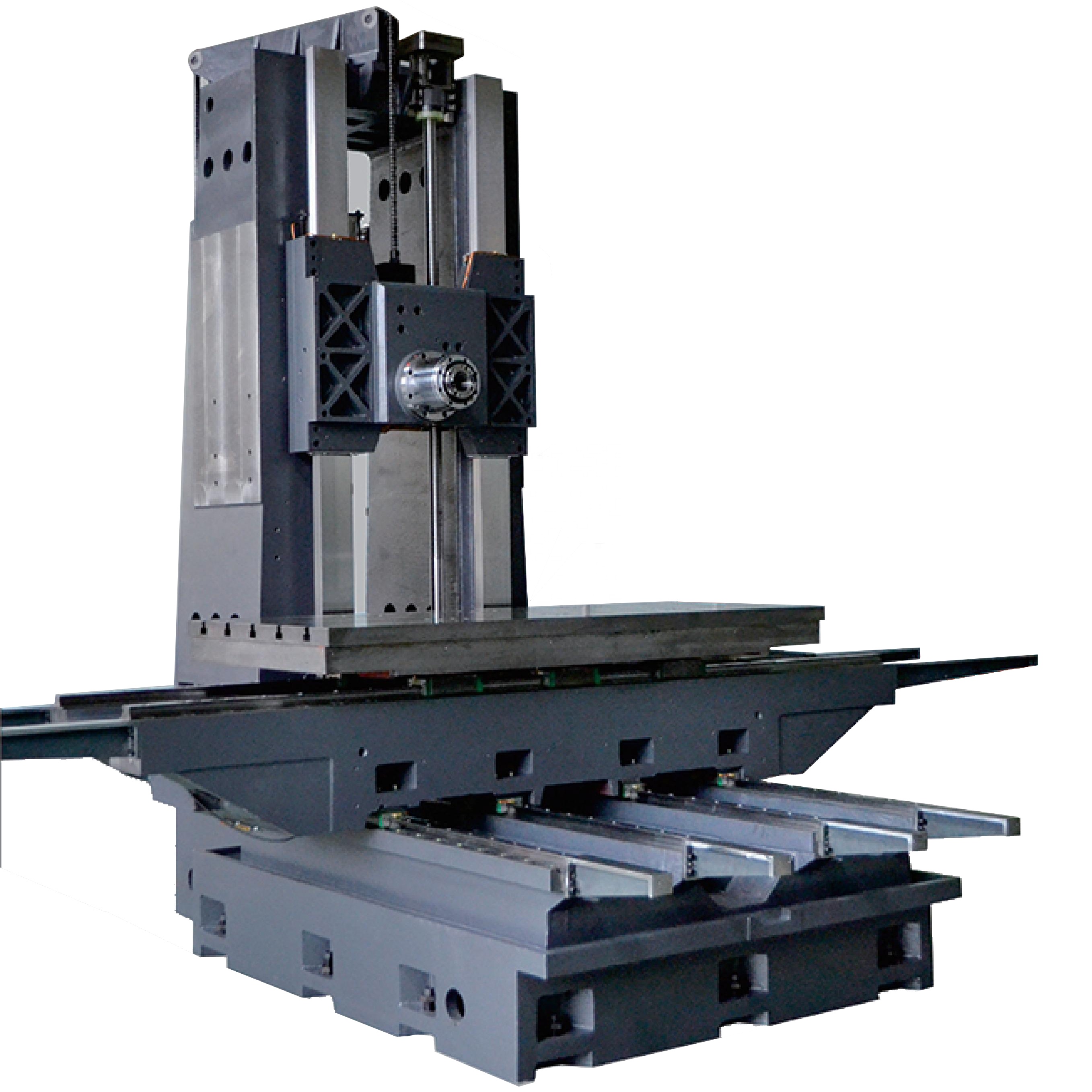

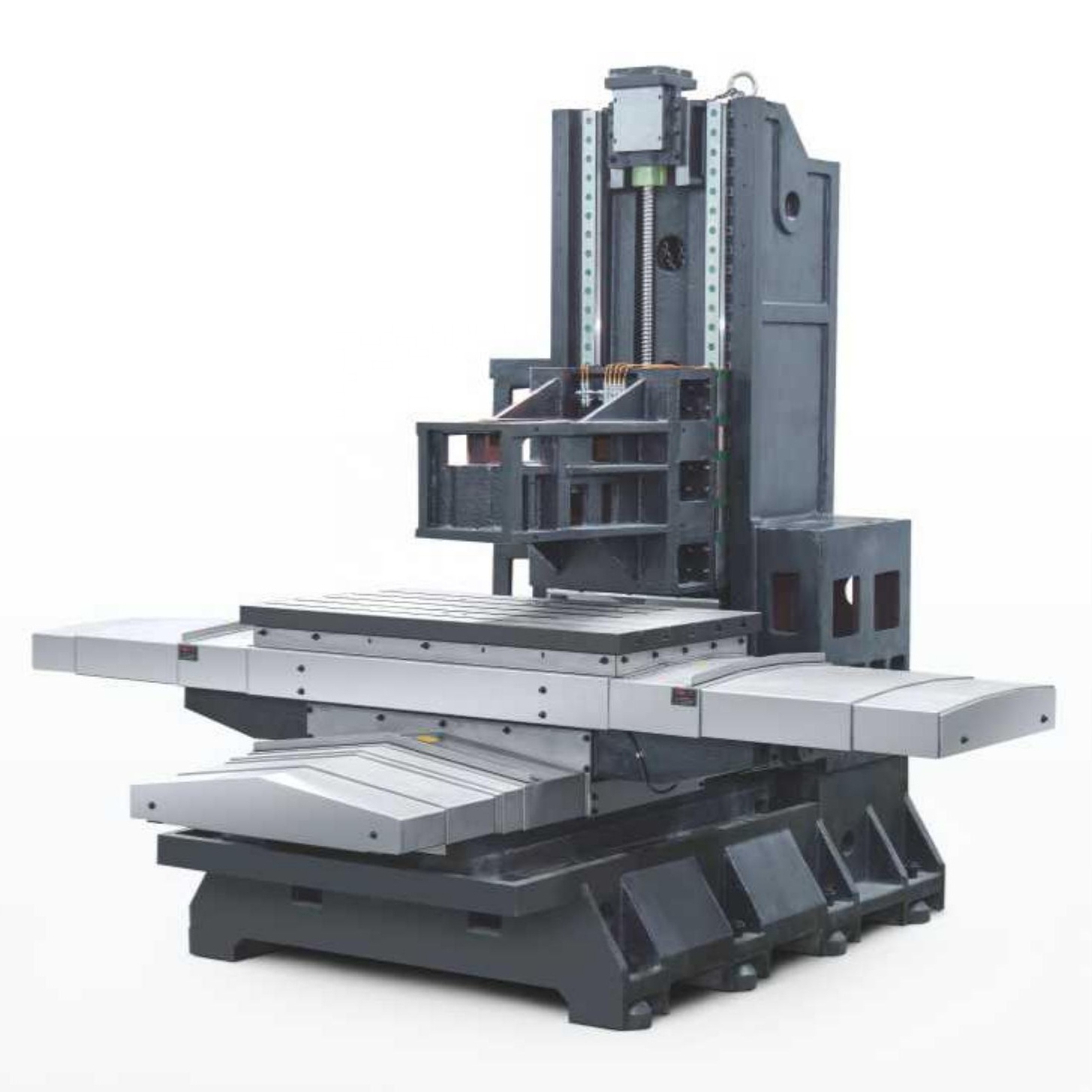

Equipped with 45 roller linear guides (X/Y axes) and rectangular hard rails (Z axis).
11kW rated spindle power supporting up to 8000 r/min with standard BT 40 interface.
| Category | Parameter Name | Unit | VMC850 | VMC1160 | Remark |
|---|---|---|---|---|---|
| Processing Range | Worktable travel (X axis) | mm | 800 | 1100 | |
| Saddle travel (Y axis) | mm | 500 | 600 | ||
| Spindle box travel (Z axis) | mm | 500 | 600 | ||
| Distance from spindle end to worktable | mm | 110-610 | 120-720 | ||
| Workbench | Workbench size | mm | 1000*500 | 1200*600 | |
| Workbench load-bearing | Kg | 500 | 800 | ||
| Spindle | Motor power (rated) | kw | 11kw | 11 | |
| Motor torque (rated) | Nm | 52.5 | 52.5 | ||
| Speed range | r/min | 50 ~ 8000 | 50 ~ 8000 | ||
| Material diameter | mm | Φ 150 | Φ 150 | ||
| Tool handle specifications | / | - | BT 40 | ||
| Guide | X-axis | mm | 800 | 45 rollers | Heavy Duty |
| Y-axis | mm | 500 | 45 roller | Heavy Duty | |
| Z-axis | mm | 500 | Rectangular hard rail | ||

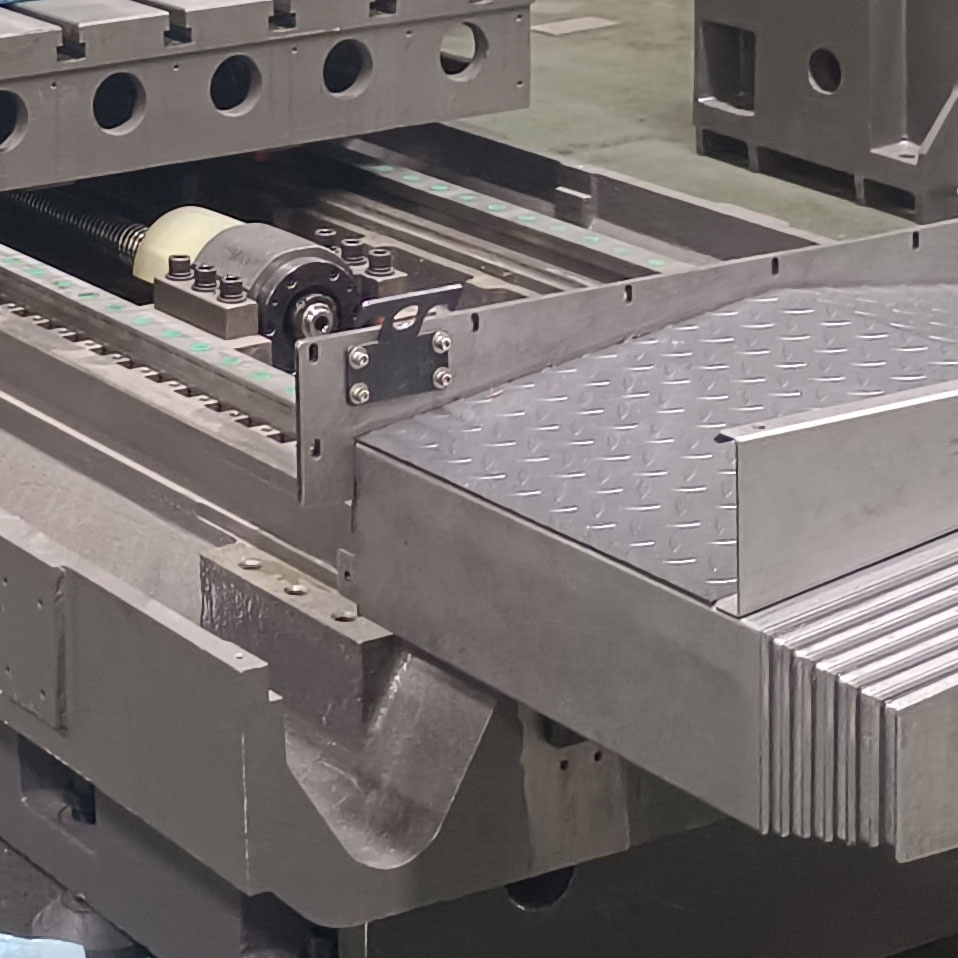

| Drive | Screw X/Y/Z | mm | 4012 / 4012 / 4012 | 4012 / 4012 / 4012 | C3 |
| Motor power X/Y/Z | kw | 3 / 3 / 3 | 3 / 3 / 3 | ||
| Speed | Cutting feed speed range | mm/min | 1-8000 | 1-8000 | |
| X, Y, Z axis fast moving speed | m/min | 36 / 36 / 20 | 36 / 36 / 20 | ||
| Machine Accuracy | Positioning accuracy (X/Y/Z) | mm | 0.003 | 0.005 | |
| Repeatability (X/Y/Z) | mm | 0.003 | 0.003 |
